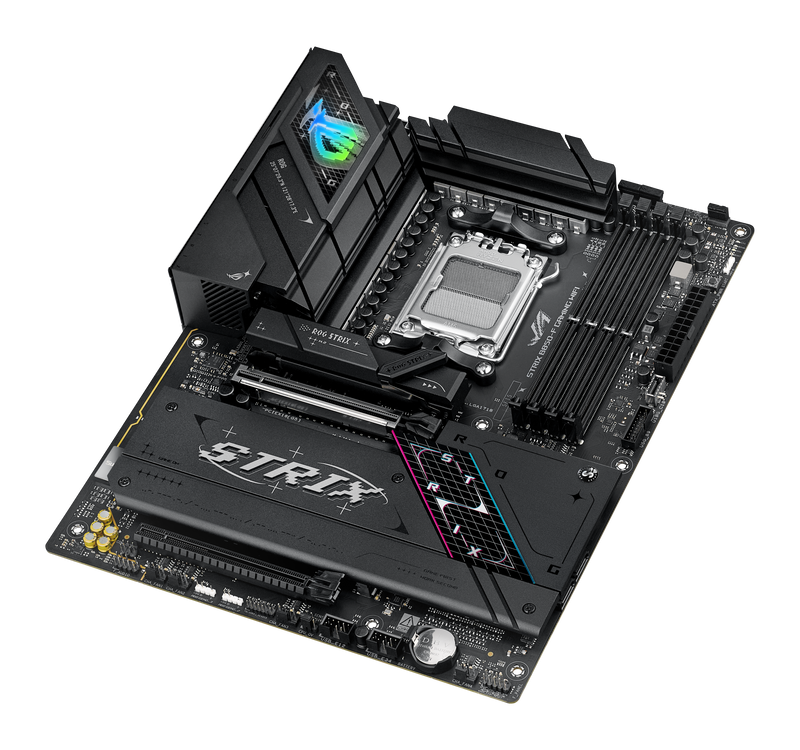

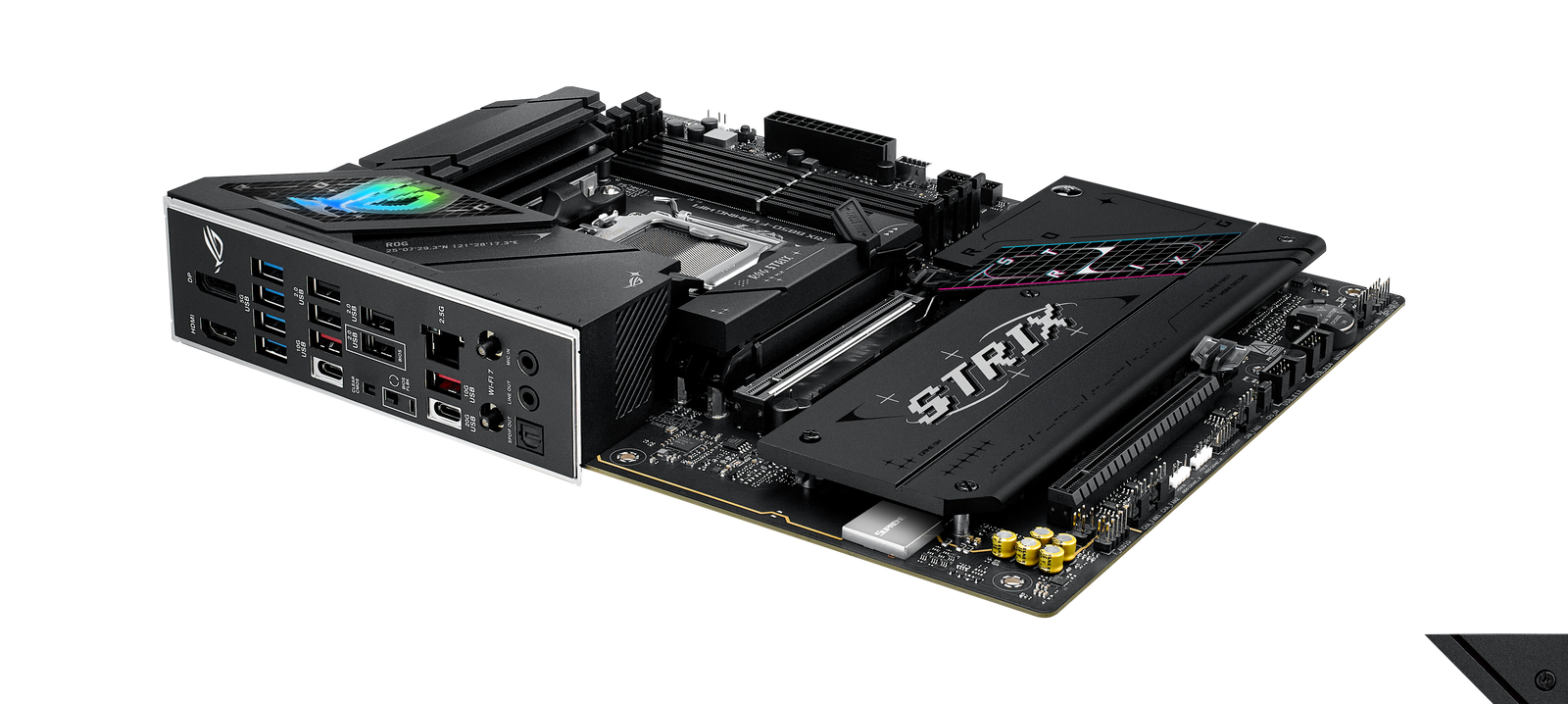

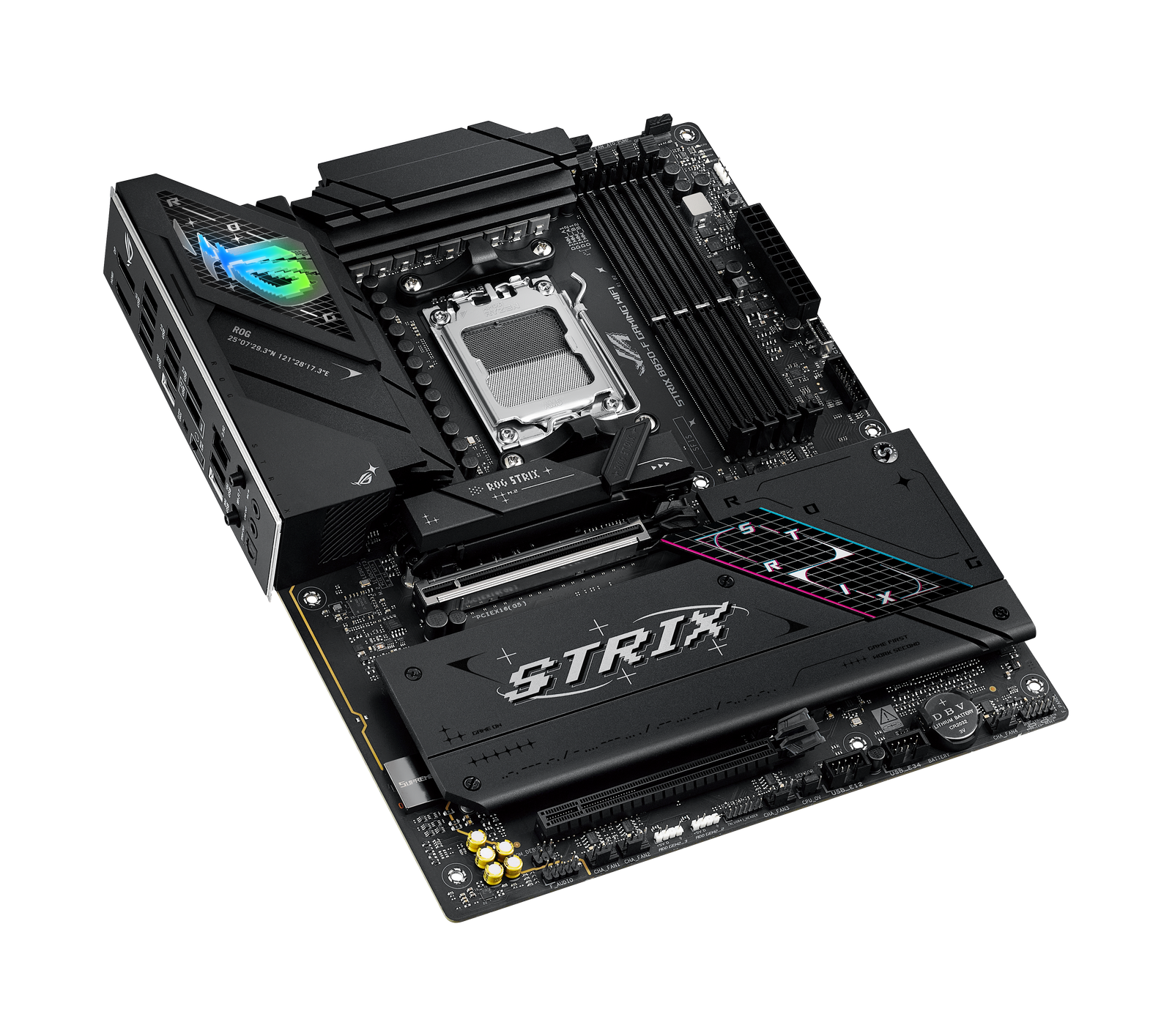

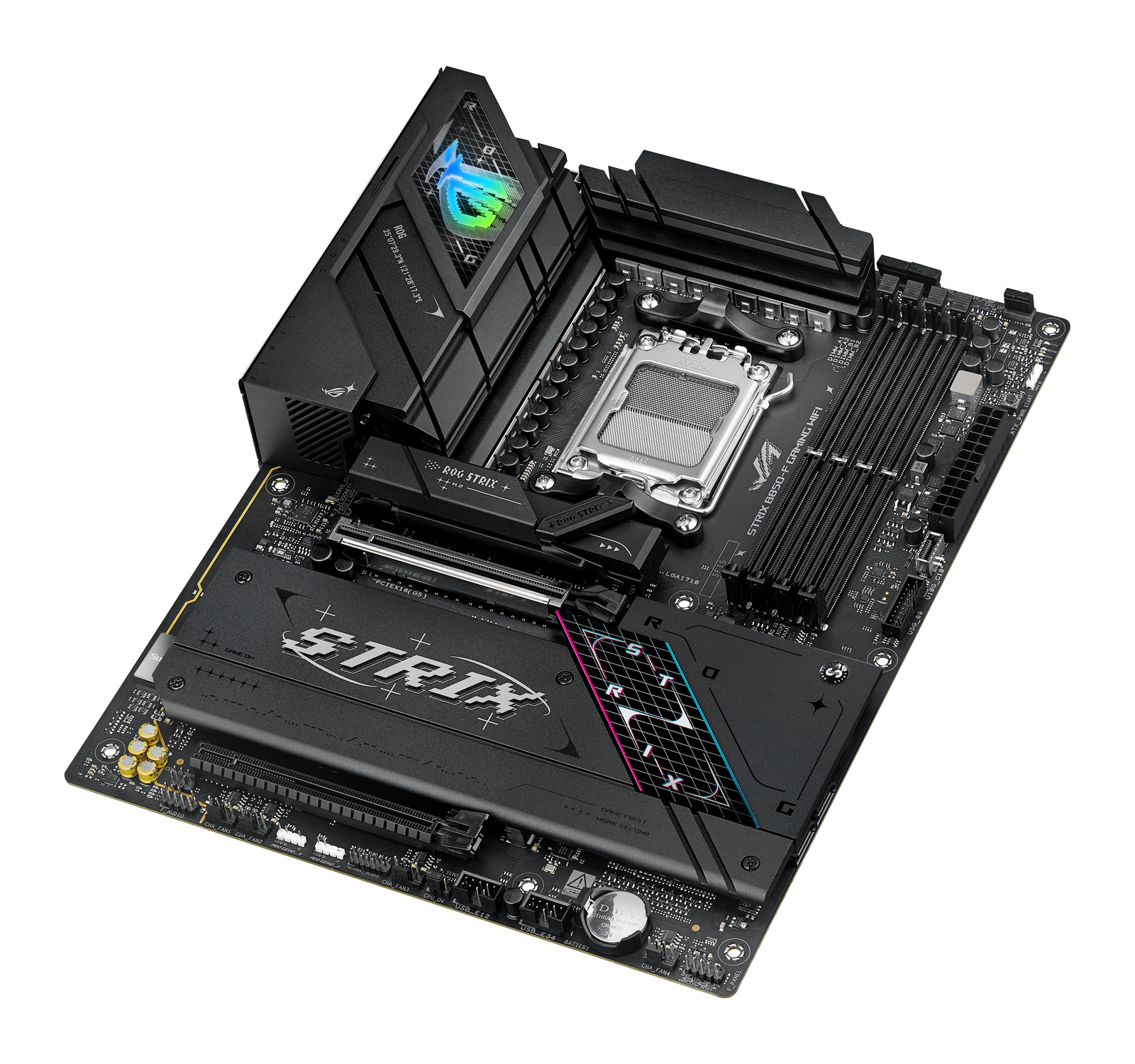

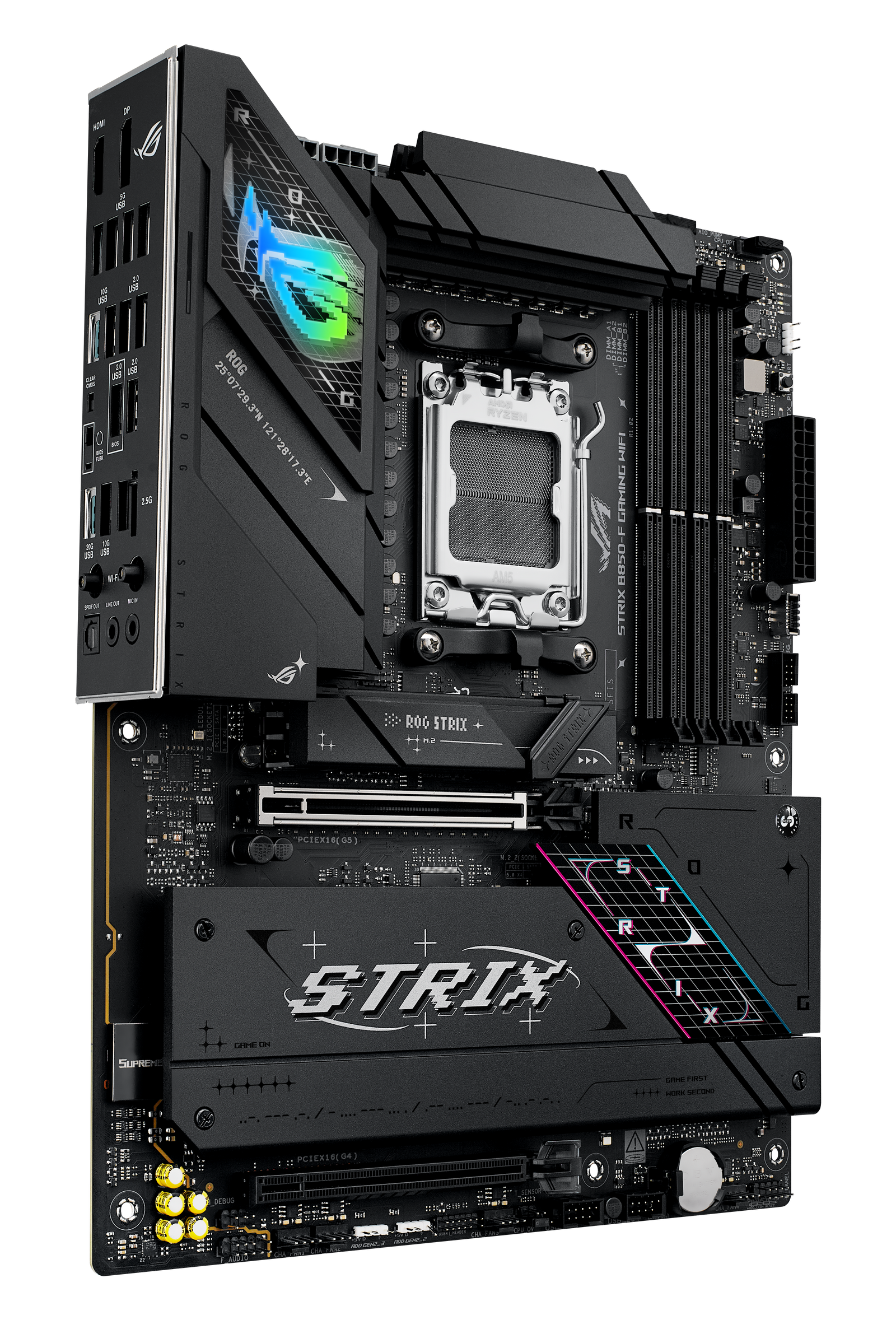

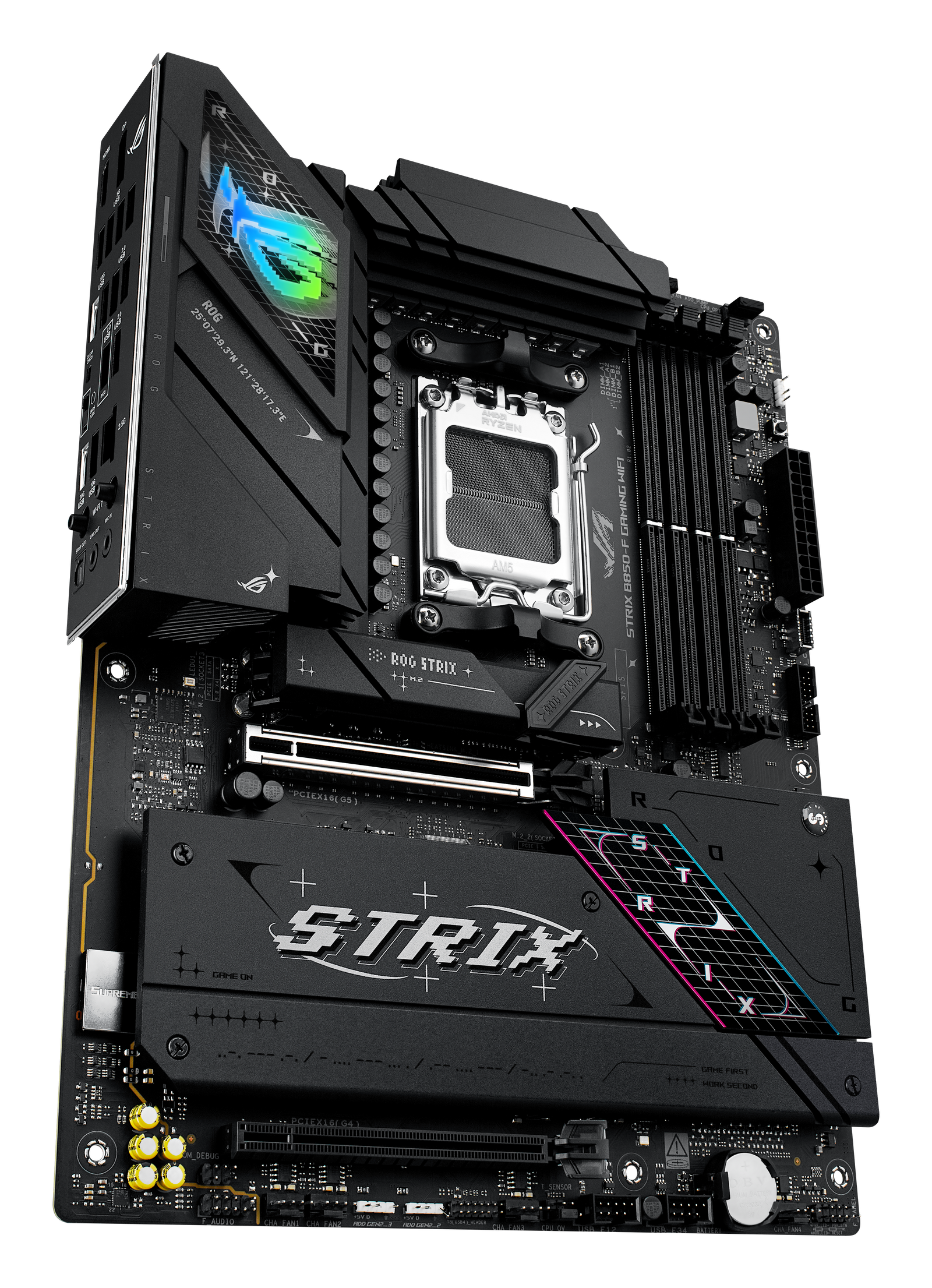

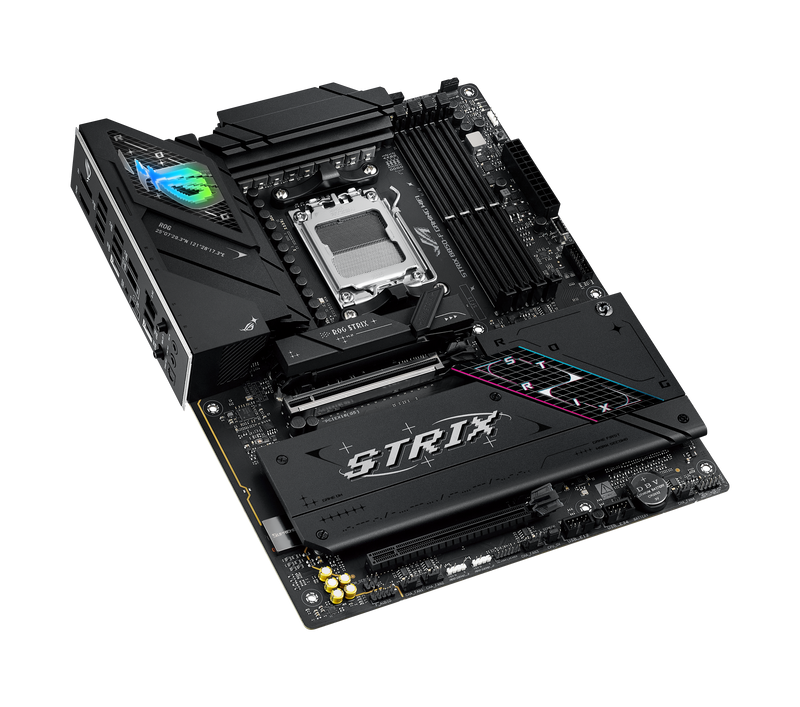

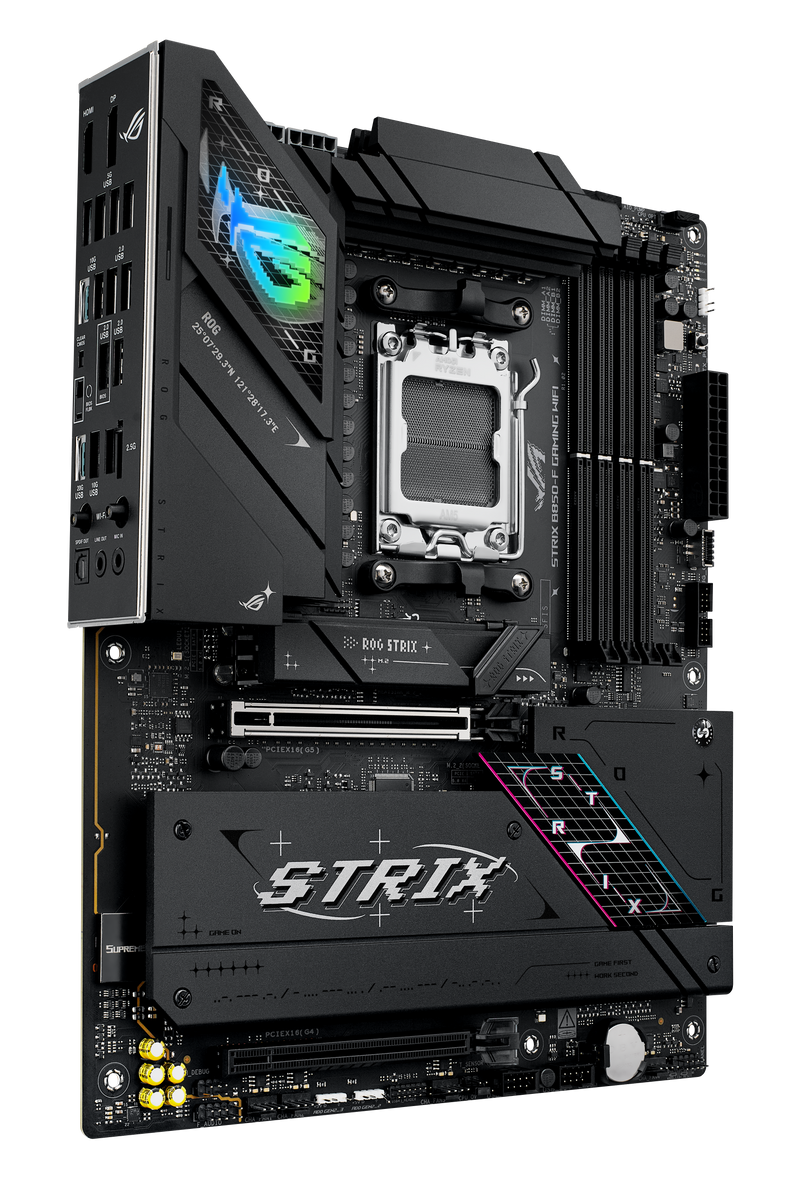

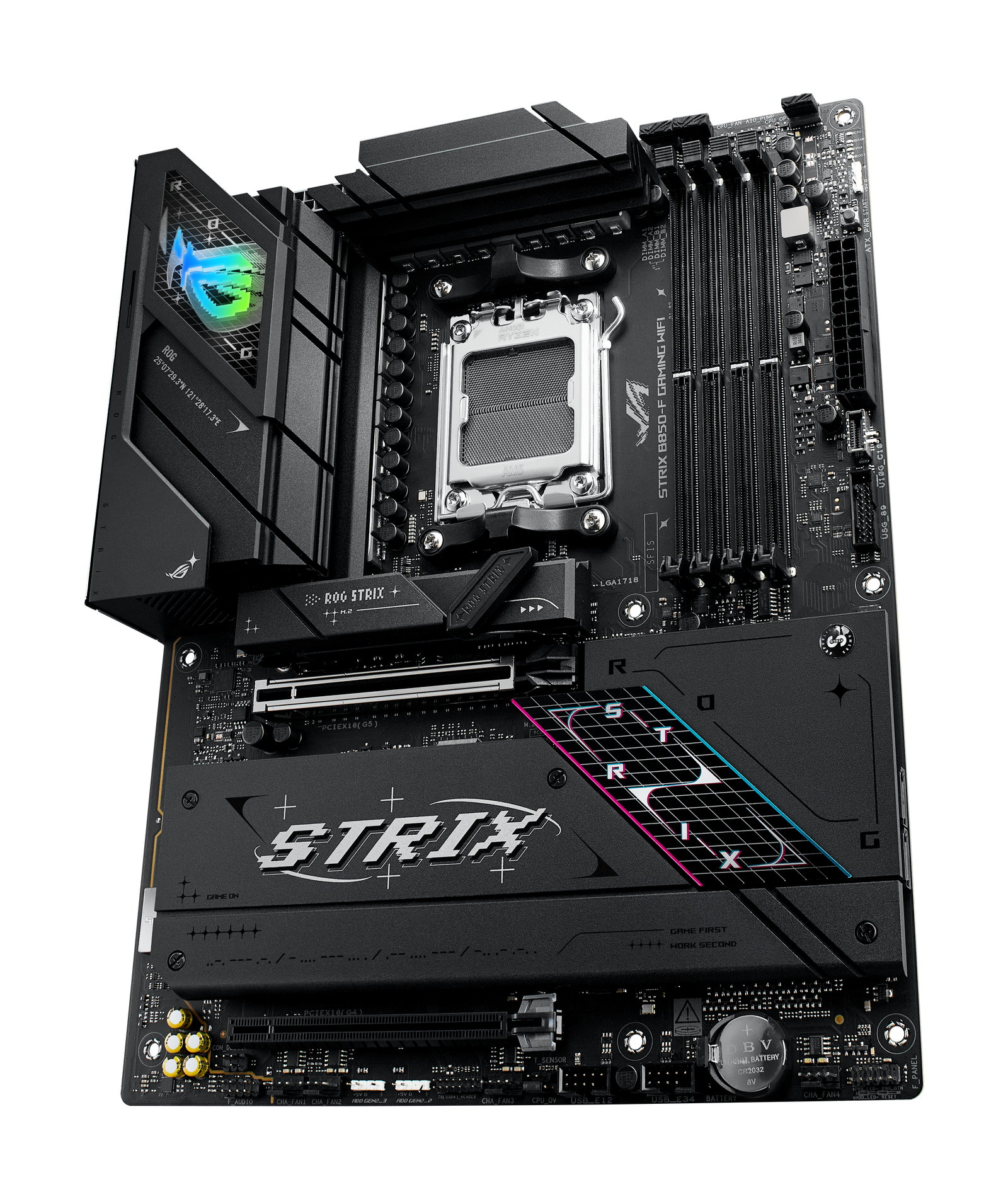

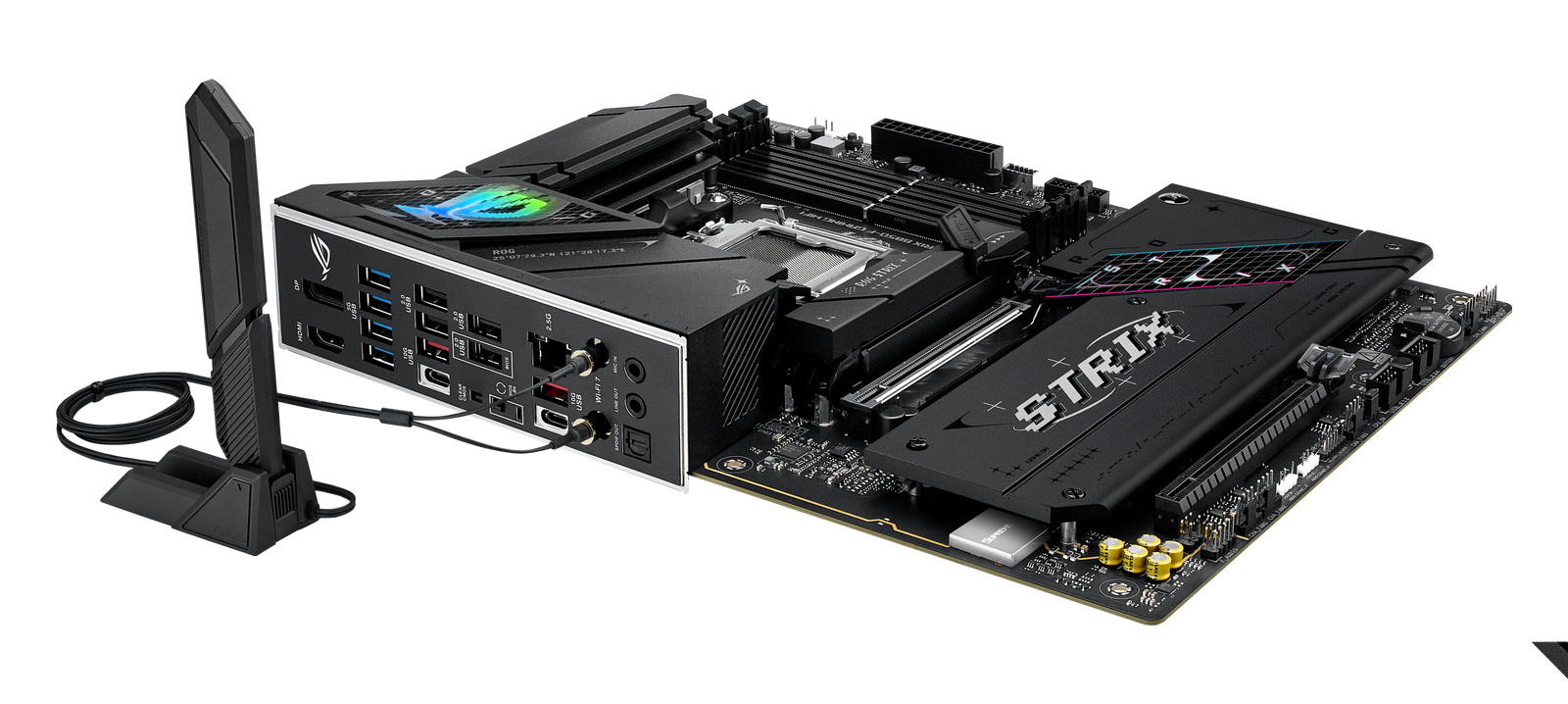

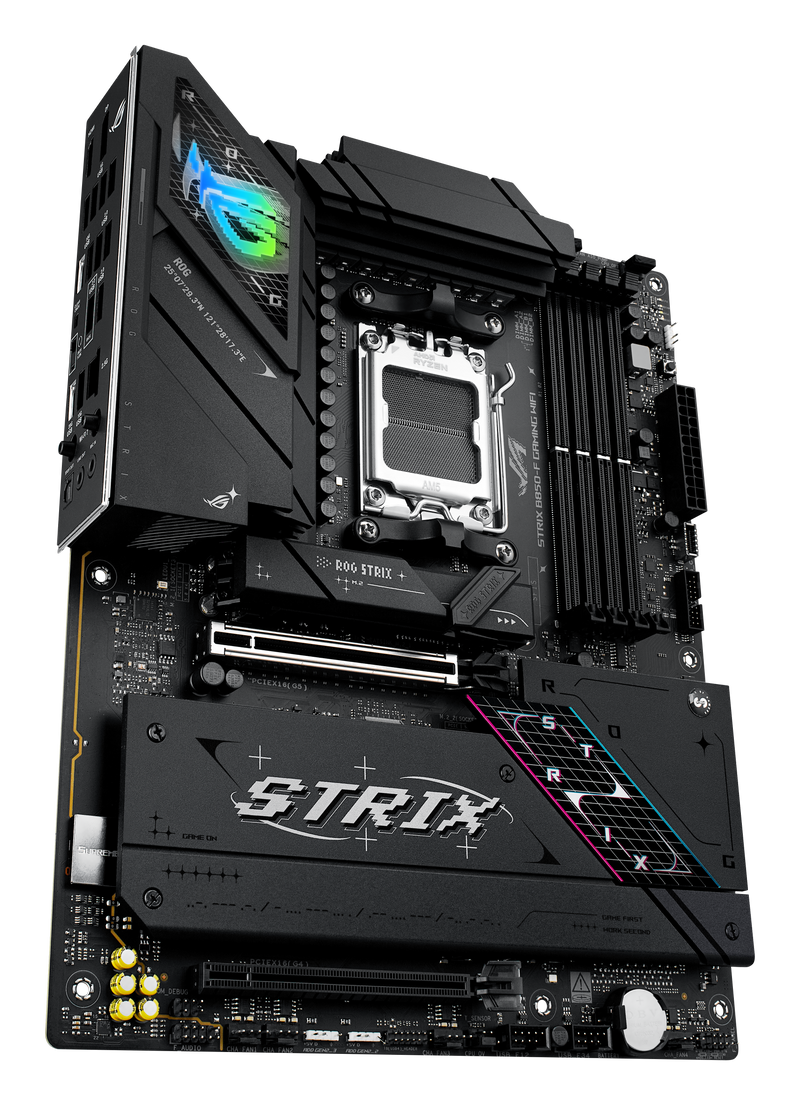

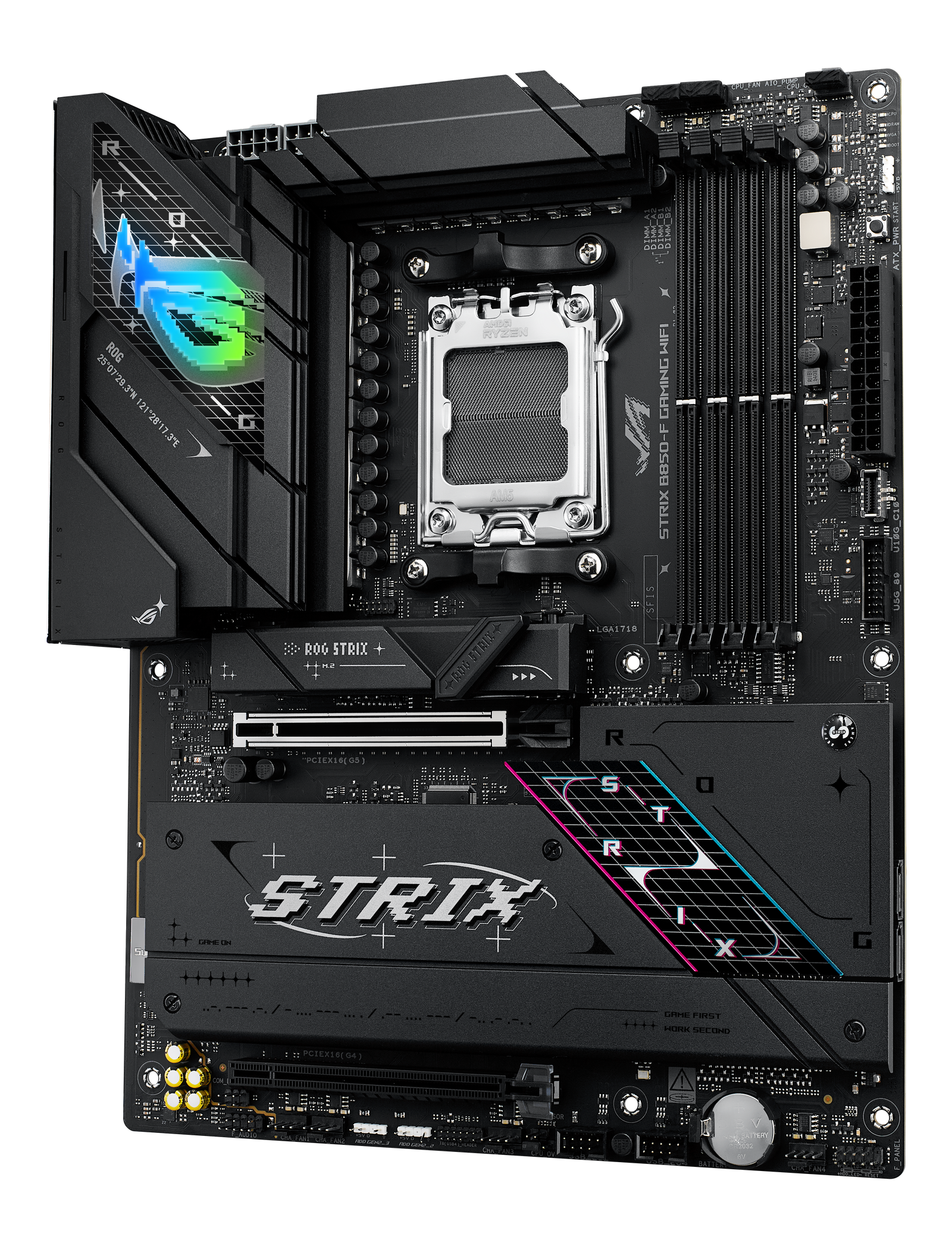

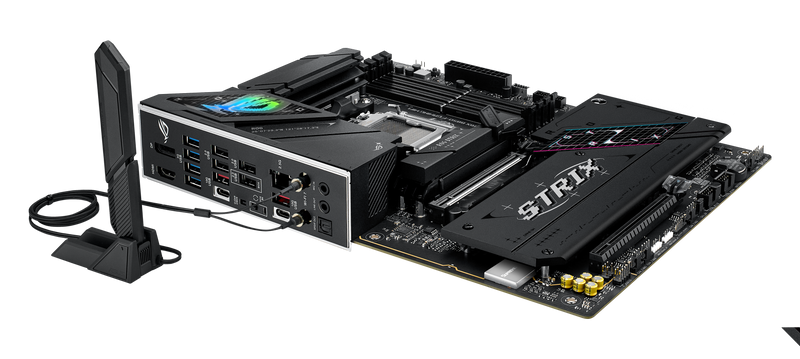

Asus ROG STRIX B850-F GAMING WIFI (Socket AM5) DDR5 ATX Motherboard

SKU MOT-ASU-03841EAN 4711387771013MPN 90MB1J70-M0EAY0

Overview

Socket AM5, B850 Chipset, Supports 7000/8000/9000 series AMD Ryzen, 4x DIMM Slots, DDR5 8000MHz (OC), PCIe Gen 5, 2x SATA 6Gb/s connectors, 4x M.2 Slot, 2.5GB LAN, USB Type-C, ATX

Feature	Details
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to ASUS Support for CPU support list.
Chipset	AMD B850 Chipset
Memory	4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. Refer to ASUS Support for more details.
Graphics	1 x DisplayPort (Supports max. 8K@30Hz as specified in DisplayPort 1.4) 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1) * Graphics specifications may vary between CPU types. Refer to AMD CPU specifications.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports PCIe 4.0 x8/x4 mode) AMD B850 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)* * Specifications vary by CPU types. Refer to ASUS Support.
Storage	Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 7000 & 9000 Series Desktop Processors: M.2_1: PCIe 5.0 x4 M.2_2: PCIe 5.0 x4 AMD Ryzen™ 8000 Series Desktop Processors: M.2_1: PCIe 4.0 x4 M.2_2: PCIe 4.0 x4/x2 AMD B850 Chipset: M.2_3: PCIe 4.0 x4 M.2_4: PCIe 4.0 x4 * AMD RAIDXpert2 Technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 is only supported by AMD Ryzen™ 9000 series CPU.
Ethernet	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth®	Wi-Fi 7 (802.11be), 2x2 Supports 2.4/5/6GHz frequency bands Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 * Wi-Fi features vary by OS version. Refer to product specifications for details.

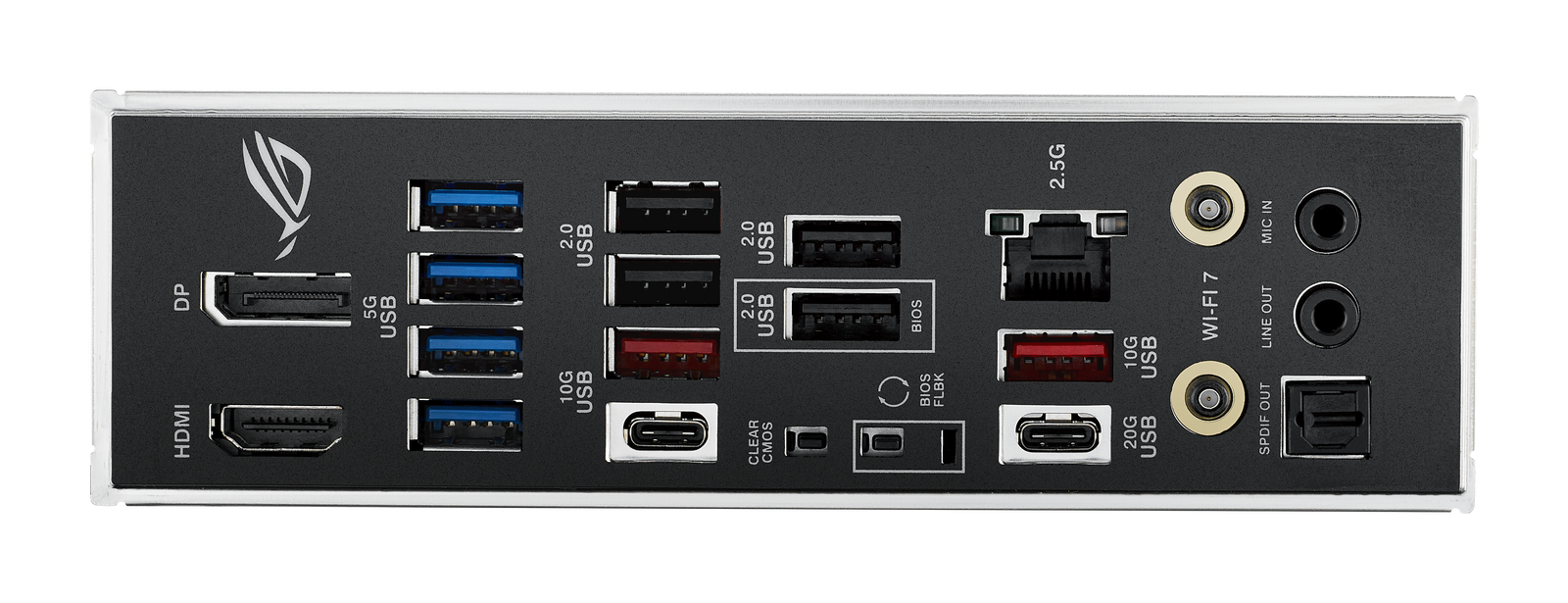

USB	Rear USB: 1 x USB 20Gbps (USB Type-C®) 3 x USB 10Gbps (2 x Type-A + 1 x Type-C®) 4 x USB 5Gbps (4 x Type-A) 4 x USB 2.0 (4 x Type-A) Front USB: 1 x USB 10Gbps (Type-C®) 1 x USB 5Gbps header (supports 2 USB 5Gbps ports) 2 x USB 2.0 headers (supports 4 USB 2.0 ports)
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sense, supports up to 32-Bit/384 kHz playback on front panel Dolby Atmos and premium audio features included.
Special Features	ASUS Q-Design (M.2 Q-Latch, Q-Release, Q-Antenna) Aura Sync with Addressable Gen 2 headers BIOS FlashBack™ and Clear CMOS button Pre-mounted I/O shield ASUS EZ DIY features included.
Accessories	2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x USB drive with utilities and drivers ROG stickers, key chain, and more.
Form Factor	ATX Form Factor (12 x 9.6 inches)

Specifications

Motherboard	Motherboard Chipset AMD B850 Built-In I/O Shield Yes Wi-Fi & LAN LAN Yes LAN Ports 1x 2.5 Gbit/s Wi-Fi / Bluetooth Yes Wi-Fi Standard Wi-Fi 7 Bluetooth Standard 5.4 CPU CPU Manufacturer AMD CPU Socket AM5 Form Factor Motherboard Form Factor ATX Dimensions Length / Depth 244 mm Width 305 mm Lighting Lighting / RGB Yes Colour Primary Colour Black Fan Header 4 Pin Fan Connectors 7 Memory Max. Memory 192 GB Memory Type DDR5 Memory Form Factor DIMM System Memory Subtype UDIMM Max. Memory Speed (OC) 8000 MT/s EEC Support Yes Memory slots 4x Performance Profile AMD EXPO Expansion Slots PCIe x16 slots (total) 2 PCIe 5.0 x16 mechanical slot 1 PCIe 4.0 x16 mechanical slot 1 Internal Ports CPU Power Supply 2x 8-Pin USB4 (internal) Header 1 USB 3.0 / 3.1 / 3.2 (internal) Type C Header 1 USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports 1 USB 3.0 (internal) Header 1 USB 3.0 (internal) Possible Ports 2 USB 2.0 (internal) Header 2 USB 2.0 (internal) Possible Ports 4 RGB / LED connectors 3x Digital RGB (3-Pin 5VDG) Front Panel Audio Header Yes External Ports USB 3.2 (external) Type C 1 USB 3.1 (external) Type C 1 USB 3.1 (external) Type A 2 USB 3.0 (external) Type A 4 USB 2.0 (external) Type A 4 Display Connectors HDMI (1x), Display Port (1x) Cooling Backplate Yes M.2 Heatsinks Yes VRM Heatsinks Yes Storage Ports M.2 PCIe 4.0 x4 1 M.2 PCIe 5.0 x4 2 SATA 6G (internal) 2 Audio Soundchip Realtek ALC4080
Motherboard Chipset	AMD B850
Built-In I/O Shield	Yes
LAN	Yes
LAN Ports	1x 2.5 Gbit/s
Wi-Fi / Bluetooth	Yes
Wi-Fi Standard	Wi-Fi 7
Bluetooth Standard	5.4
CPU Manufacturer	AMD
CPU Socket	AM5
Motherboard Form Factor	ATX
Length / Depth	244 mm
Width	305 mm
Lighting / RGB	Yes
Primary Colour	Black
4 Pin Fan Connectors	7
Max. Memory	192 GB
Memory Type	DDR5
Memory Form Factor	DIMM
System Memory Subtype	UDIMM
Max. Memory Speed (OC)	8000 MT/s
EEC Support	Yes
Memory slots	4x
Performance Profile	AMD EXPO
PCIe x16 slots (total)	2
PCIe 5.0 x16 mechanical slot	1
PCIe 4.0 x16 mechanical slot	1
CPU Power Supply	2x 8-Pin
USB4 (internal) Header	1
USB 3.0 / 3.1 / 3.2 (internal) Type C Header	1
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports	1
USB 3.0 (internal) Header	1
USB 3.0 (internal) Possible Ports	2
USB 2.0 (internal) Header	2
USB 2.0 (internal) Possible Ports	4
RGB / LED connectors	3x Digital RGB (3-Pin 5VDG)
Front Panel Audio Header	Yes
USB 3.2 (external) Type C	1
USB 3.1 (external) Type C	1
USB 3.1 (external) Type A	2
USB 3.0 (external) Type A	4
USB 2.0 (external) Type A	4
Display Connectors	HDMI (1x), Display Port (1x)
Backplate	Yes
M.2 Heatsinks	Yes
VRM Heatsinks	Yes
M.2 PCIe 4.0 x4	1
M.2 PCIe 5.0 x4	2
SATA 6G (internal)	2
Soundchip	Realtek ALC4080

Specifications

Manufacturer	Asus
Manufacturer part number	90MB1J70-M0EAY0
OcUK SKU	MOT-ASU-03841
EAN	4711387771013
CPU Socket	AM5
Display Connectors	HDMI (1x), Display Port (1x)
Lighting / RGB	Yes
Memory Form Factor	DIMM
Memory Type	DDR5
Primary Colour	Black
RGB / LED connectors	3x Digital RGB (3-Pin 5VDG)
