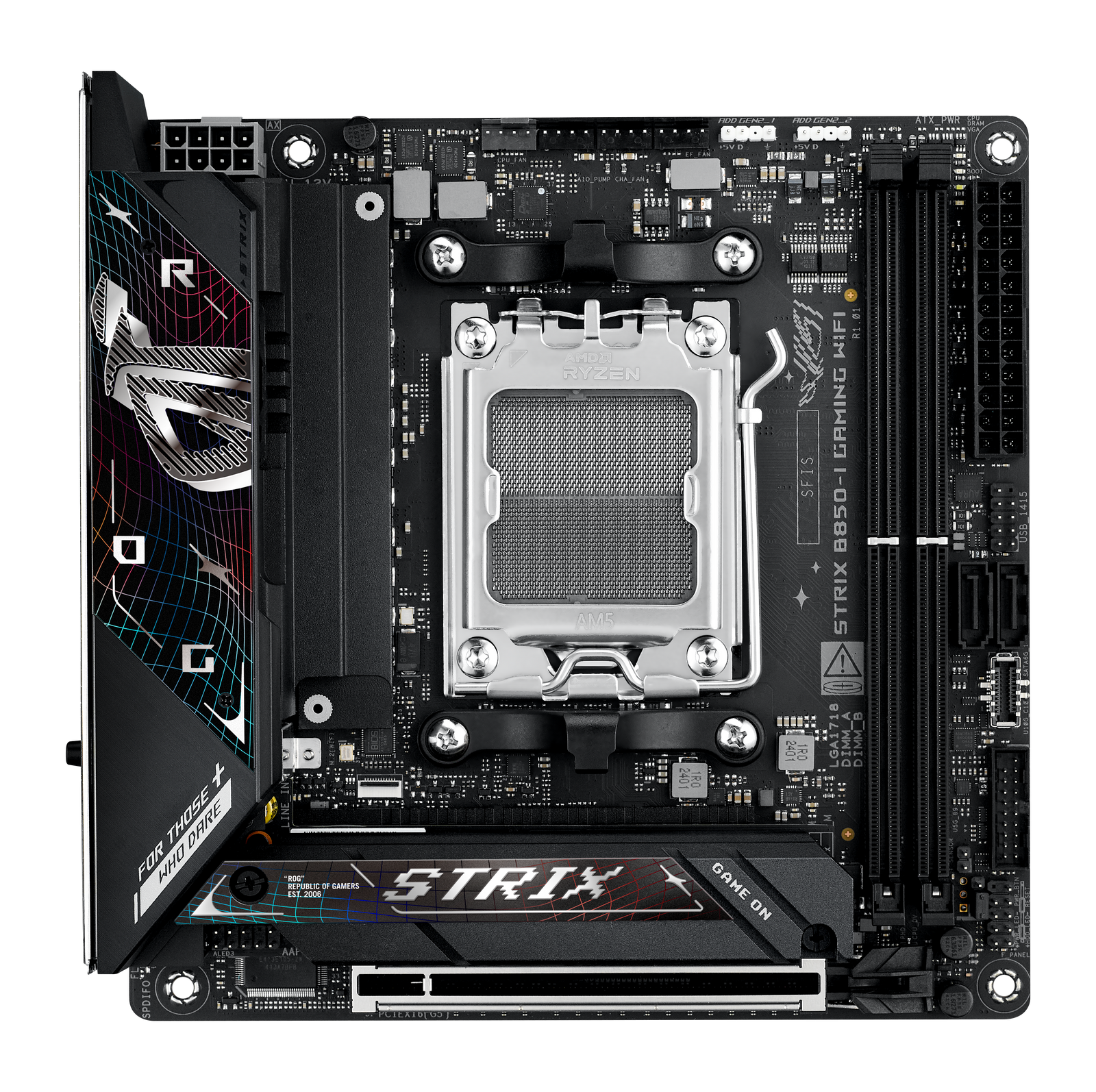

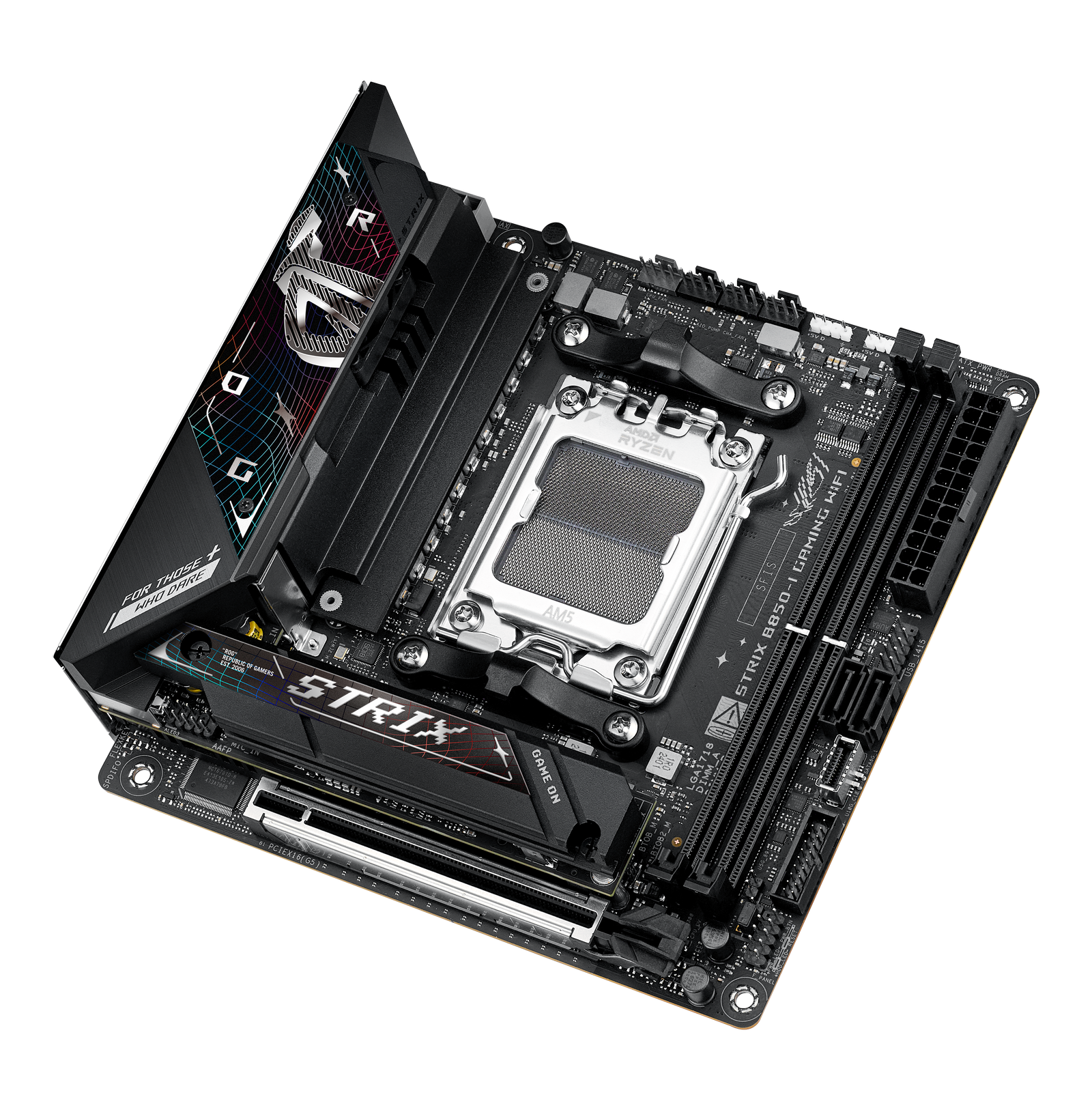

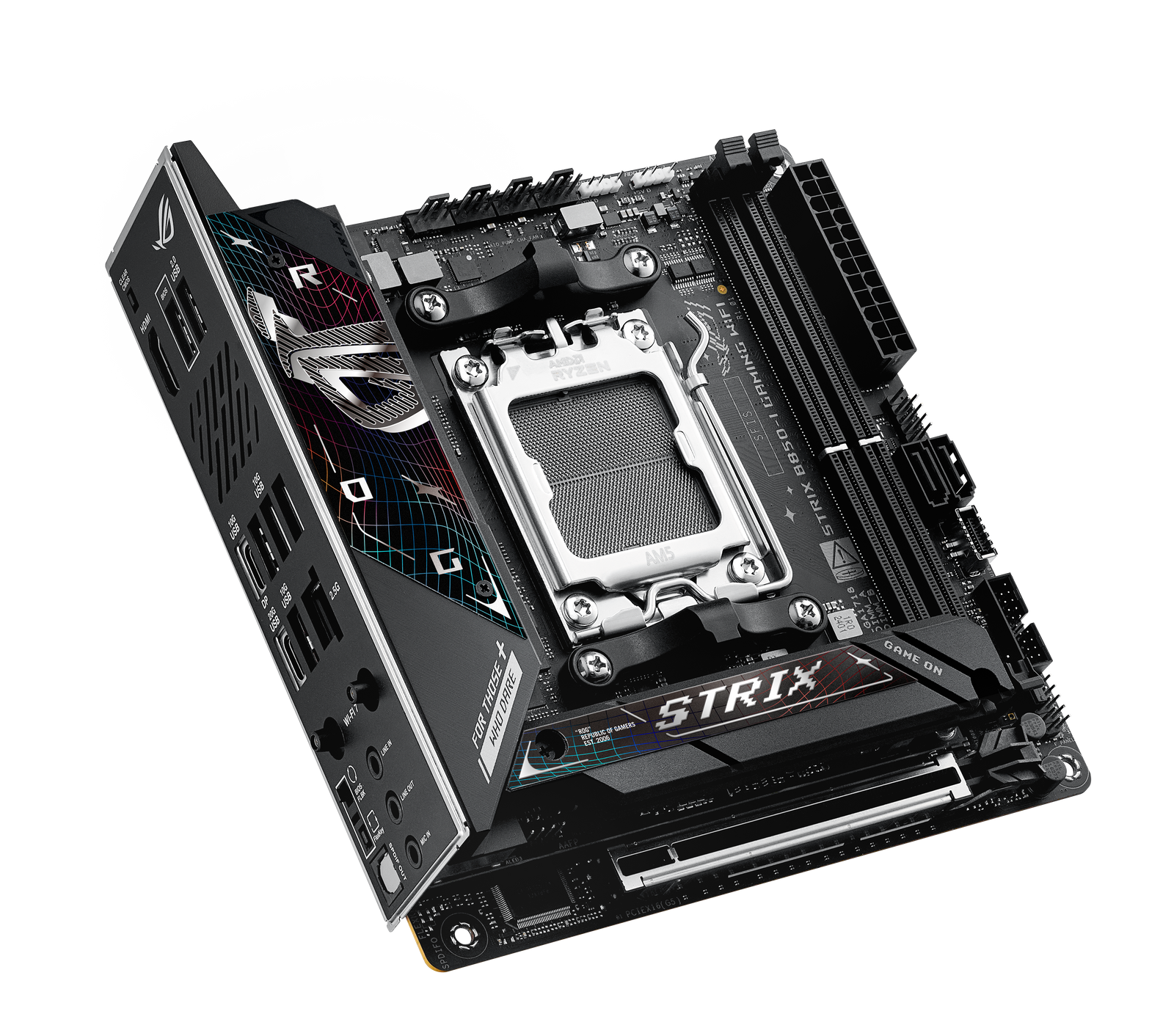

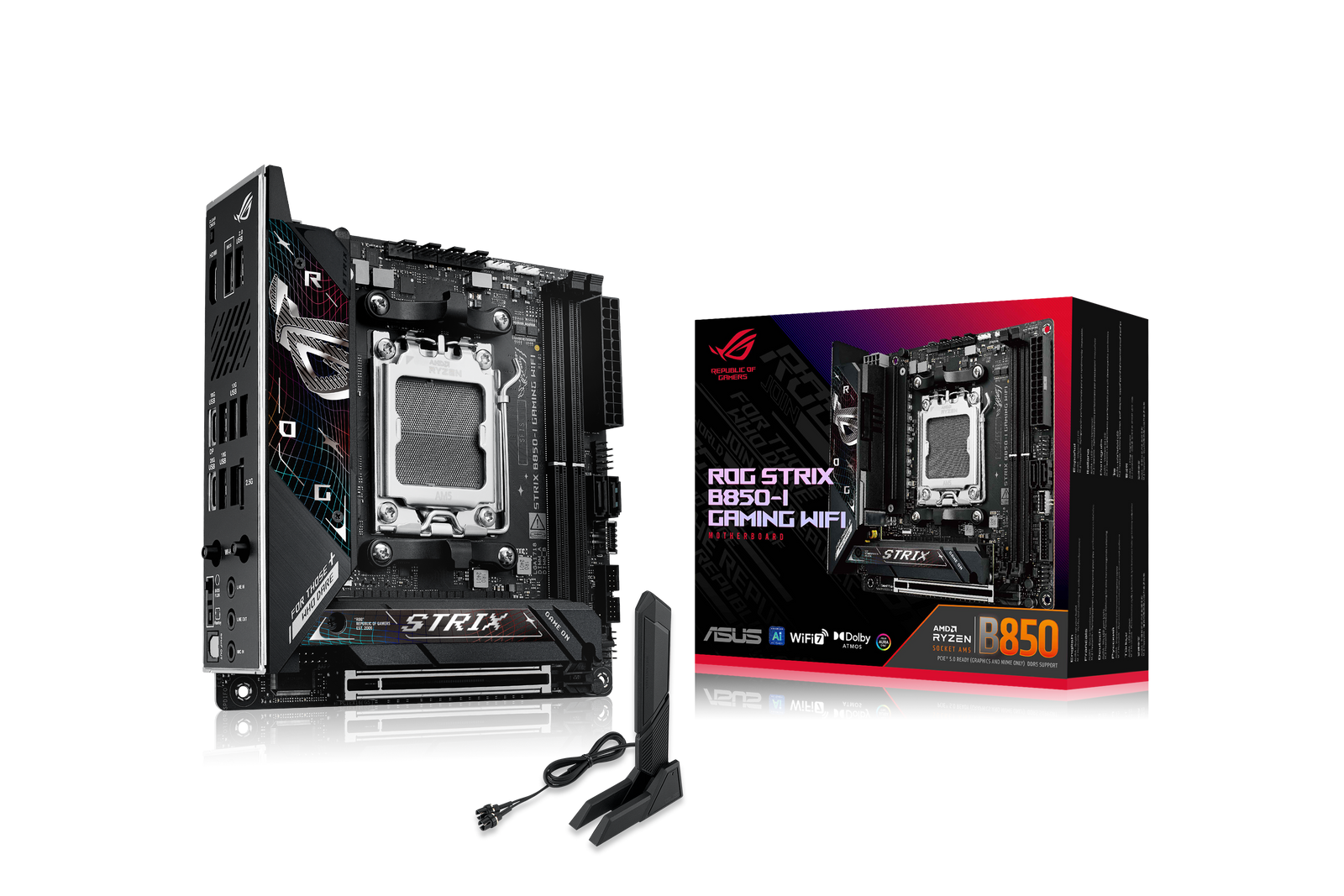

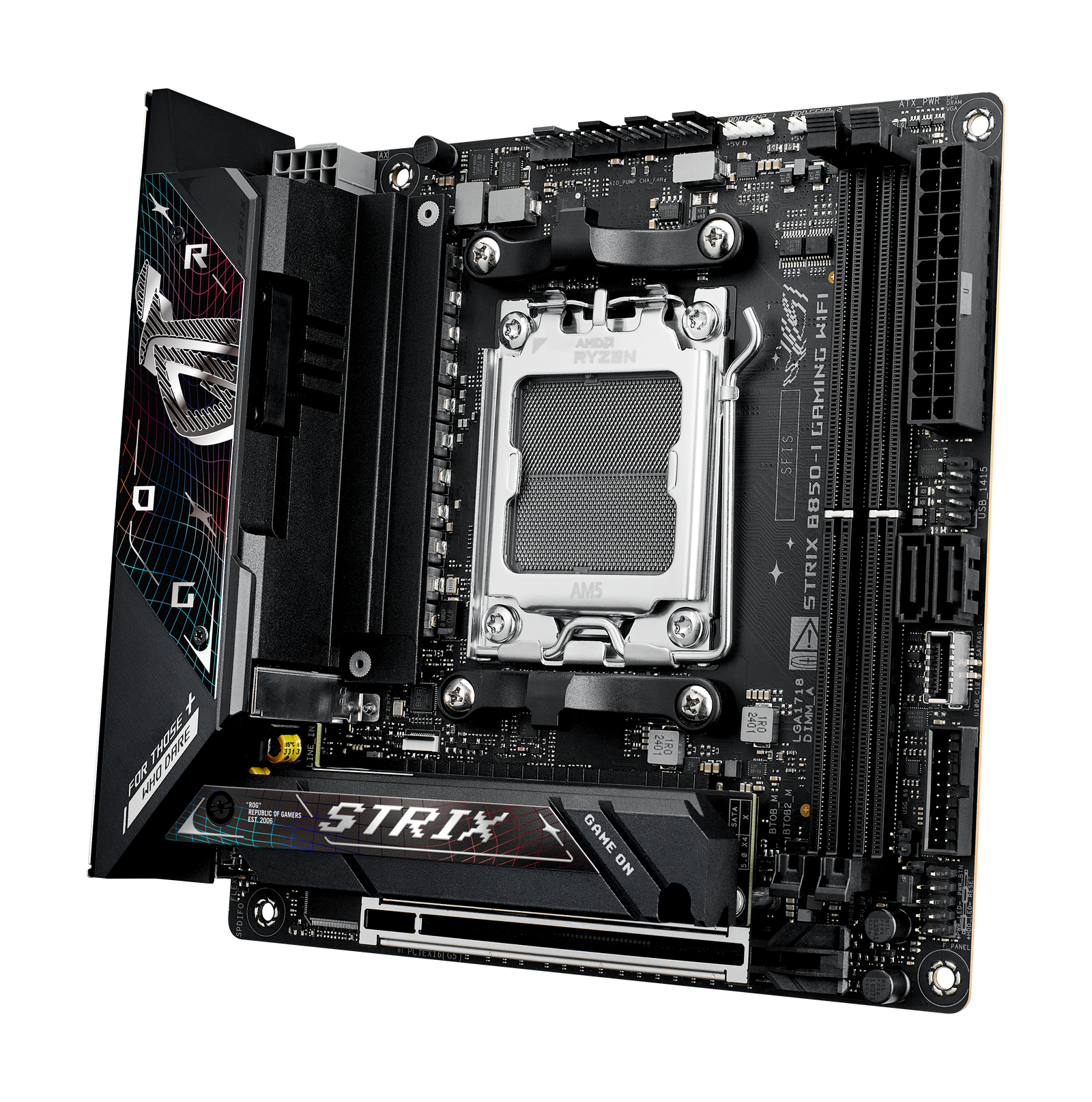

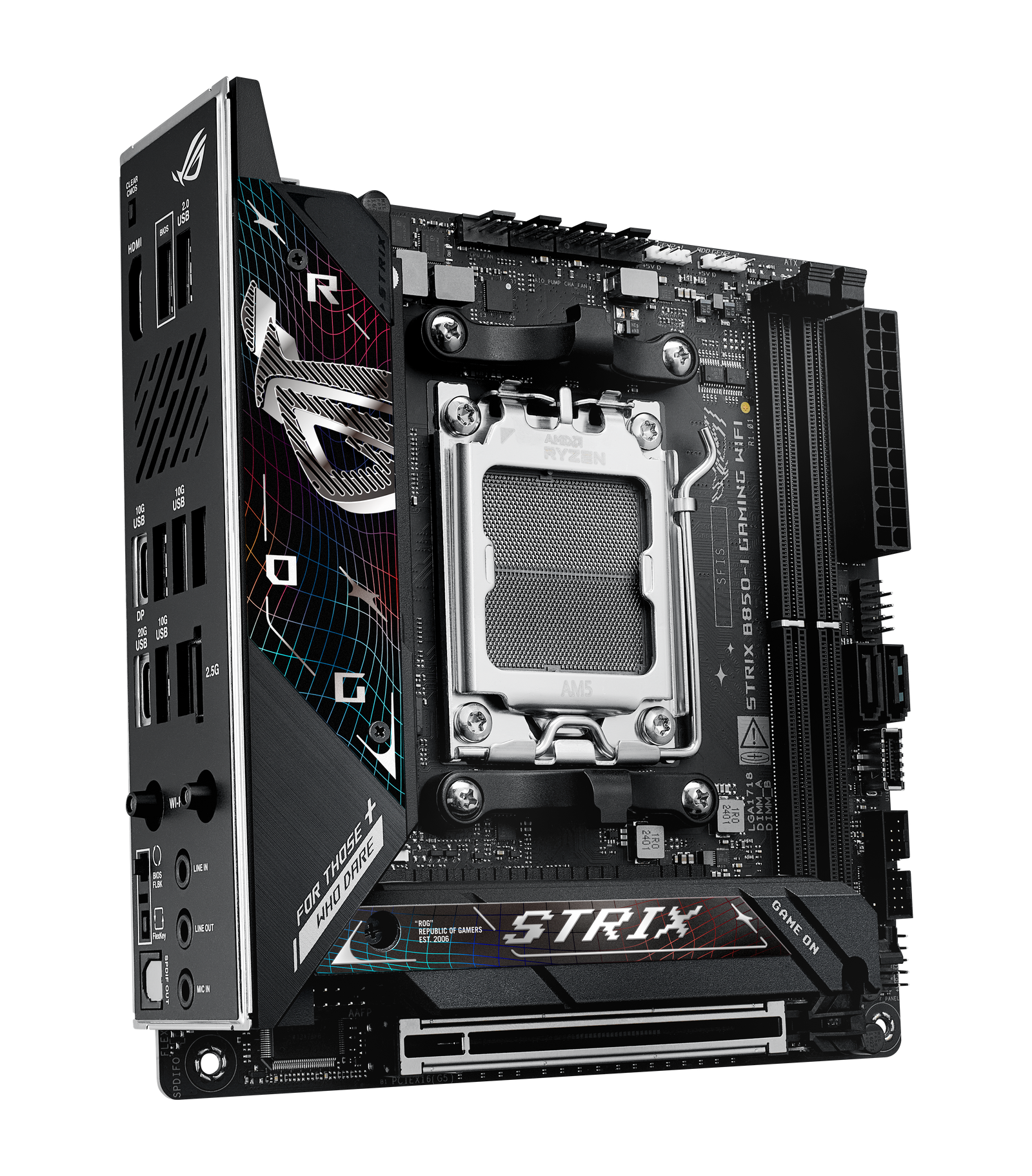

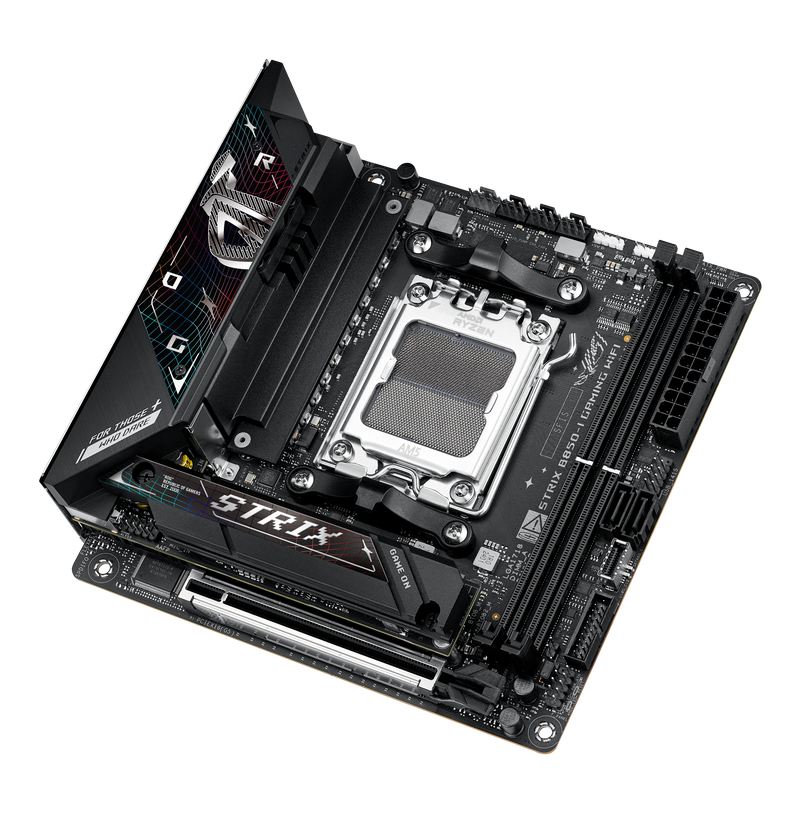

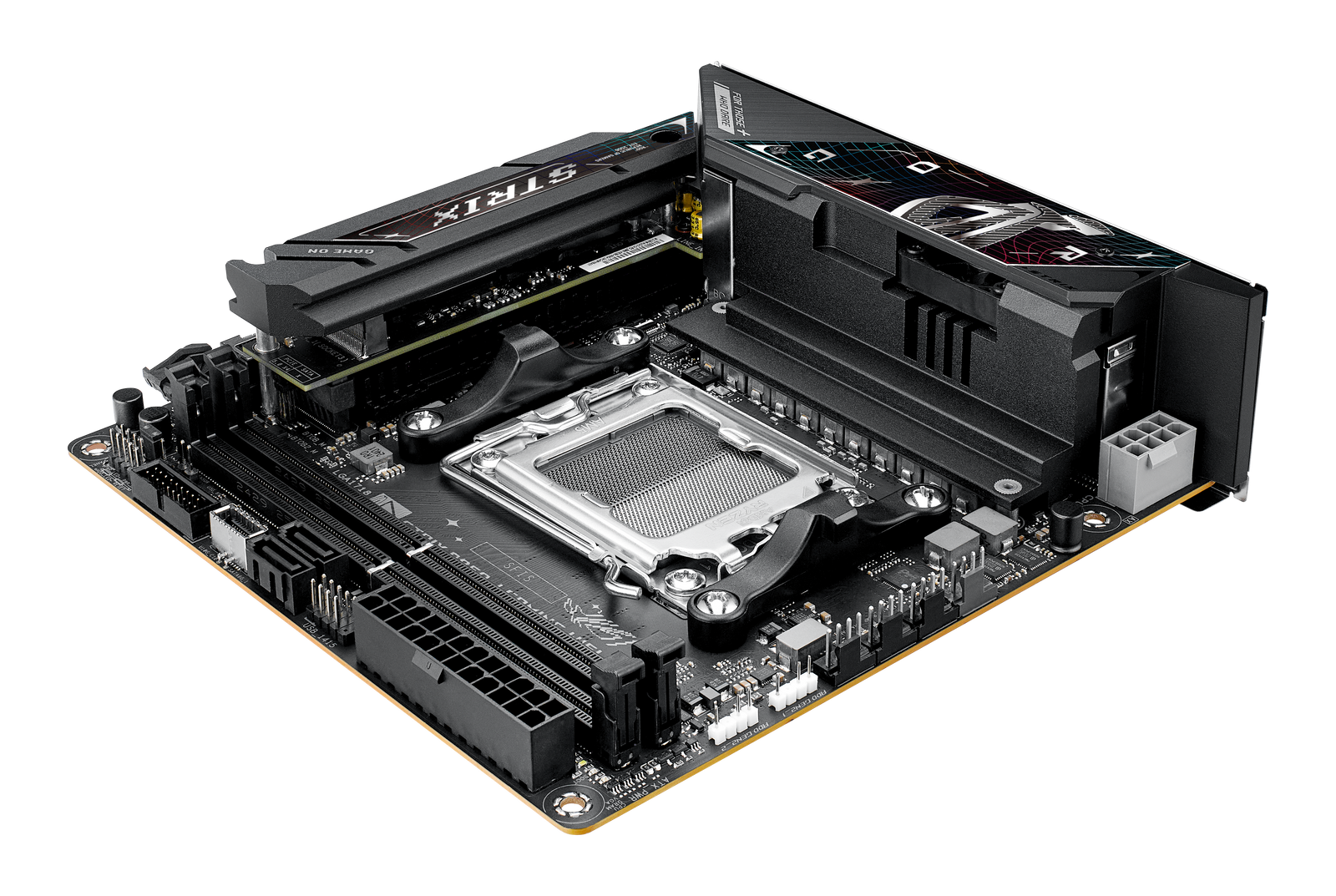

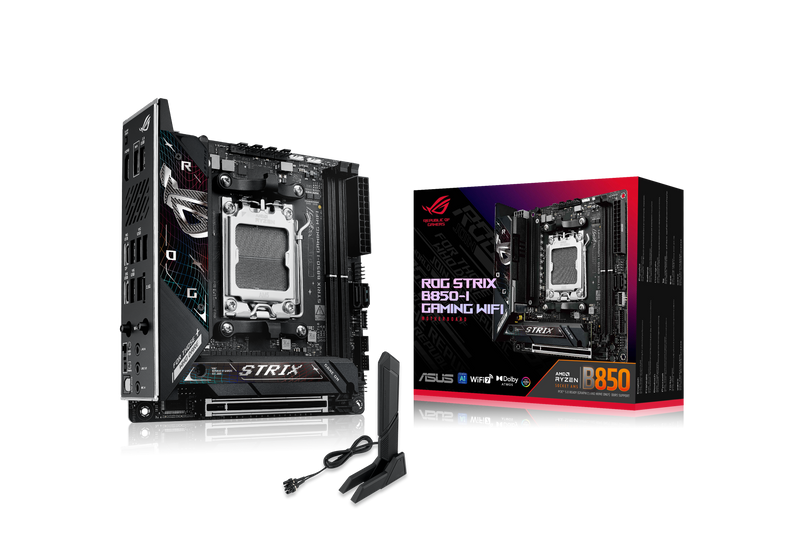

Asus ROG STRIX B850-I GAMING WIFI (Socket AM5) DDR5 Mini ITX Motherboard

SKU MOT-ASU-03843EAN 4711387823620MPN 90MB1K30-M0EAY0

Overview

Socket AM5, B850 Chipset, Supports 7000/8000/9000 series AMD Ryzen, 2x DIMM Slots, DDR5 8000MHz+ (OC), PCIe Gen 5, 2x SATA 6Gb/s connectors, 2x M.2 Slot, 2.5GB LAN, USB Type-C, Mini-ITX

Feature	Details
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to ASUS support for CPU support list.
Chipset	AMD B850
Memory	2 x DIMM slots, max. 96GB, DDR5 Supports up to: 8200+MT/s (OC) with Ryzen™ 9000 Series Processors 8400+MT/s (OC) with Ryzen™ 8000 Series Processors 8000+MT/s (OC) with Ryzen™ 7000 Series Processors ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Flex ASUS Enhanced Memory Profile (AEMP) * For more information, refer to CPU/Memory Support list.
Graphics	1 x HDMI™ port (supports 4K@60Hz as specified in HDMI 2.1) 1 x USB 10Gbps ports support USB Type-C® display outputs (supports max. 4K@60Hz as specified in DisplayPort 1.4a) * Graphics specifications may vary between CPU types. Refer to AMD CPU specifications.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot(s) AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot(s) * Refer to ASUS support for a list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot: PCIe 5.0 x4 mode M.2_2 slot: PCIe 5.0 x4 mode AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot: PCIe 4.0 x4 mode M.2_2 slot: PCIe 4.0 x4 mode * AMD RAIDXpert2 Technology supports PCIe RAID 0/1/10 and SATA RAID 0/1.
Ethernet	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth®	Wi-Fi 7 (802.11be), 2x2 Supports 2.4/5/6GHz frequency bands Bluetooth® v5.4 * Wi-Fi features and Bluetooth® version may vary based on the operating system.

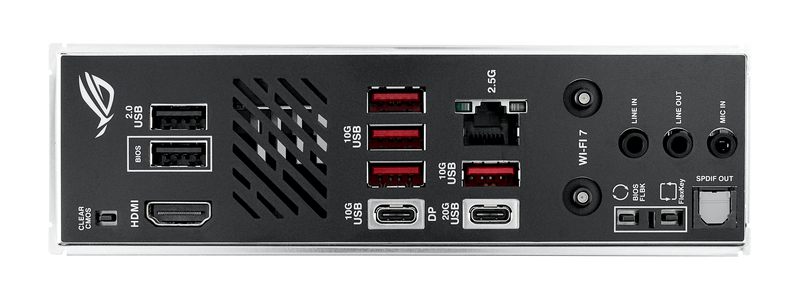

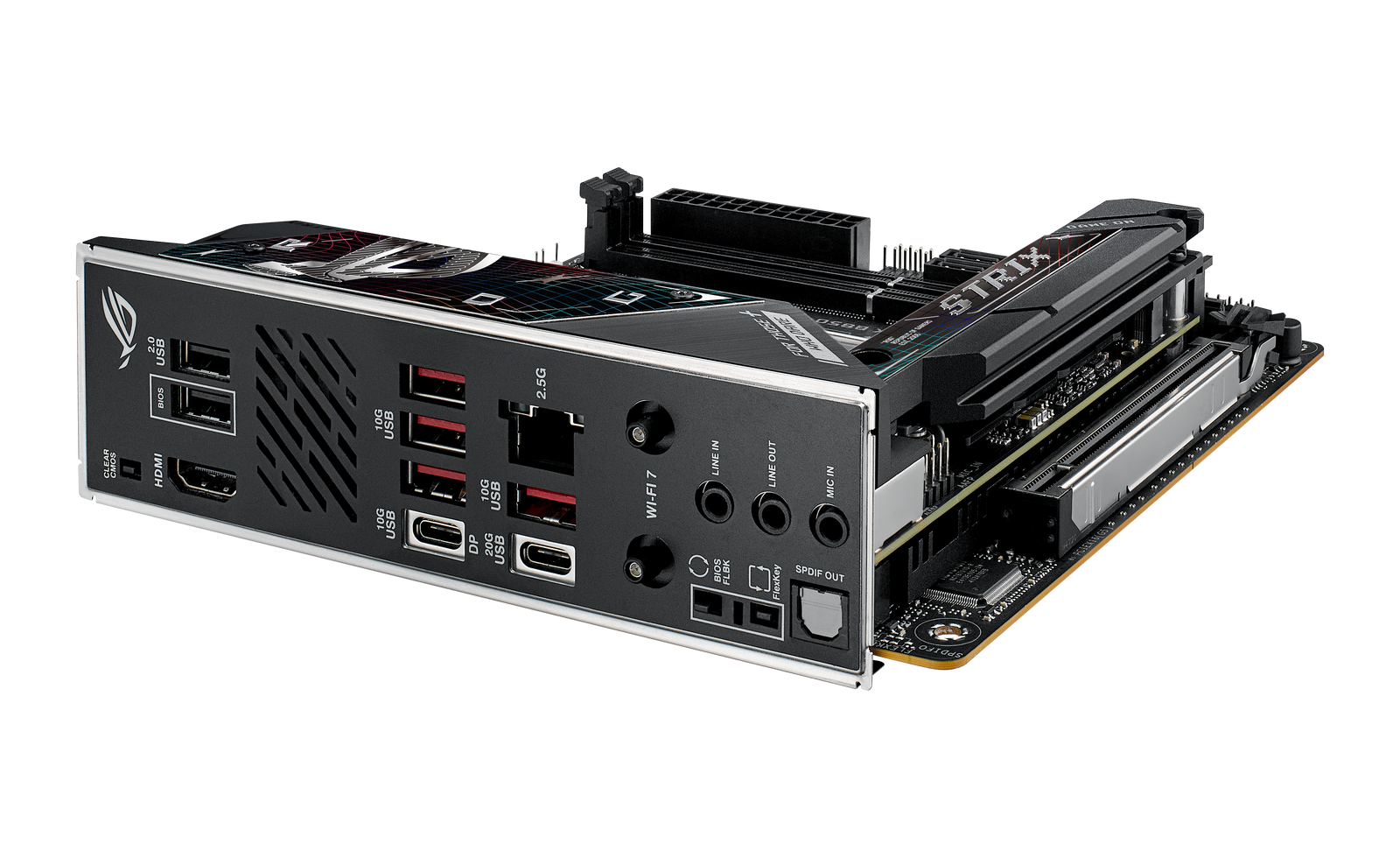

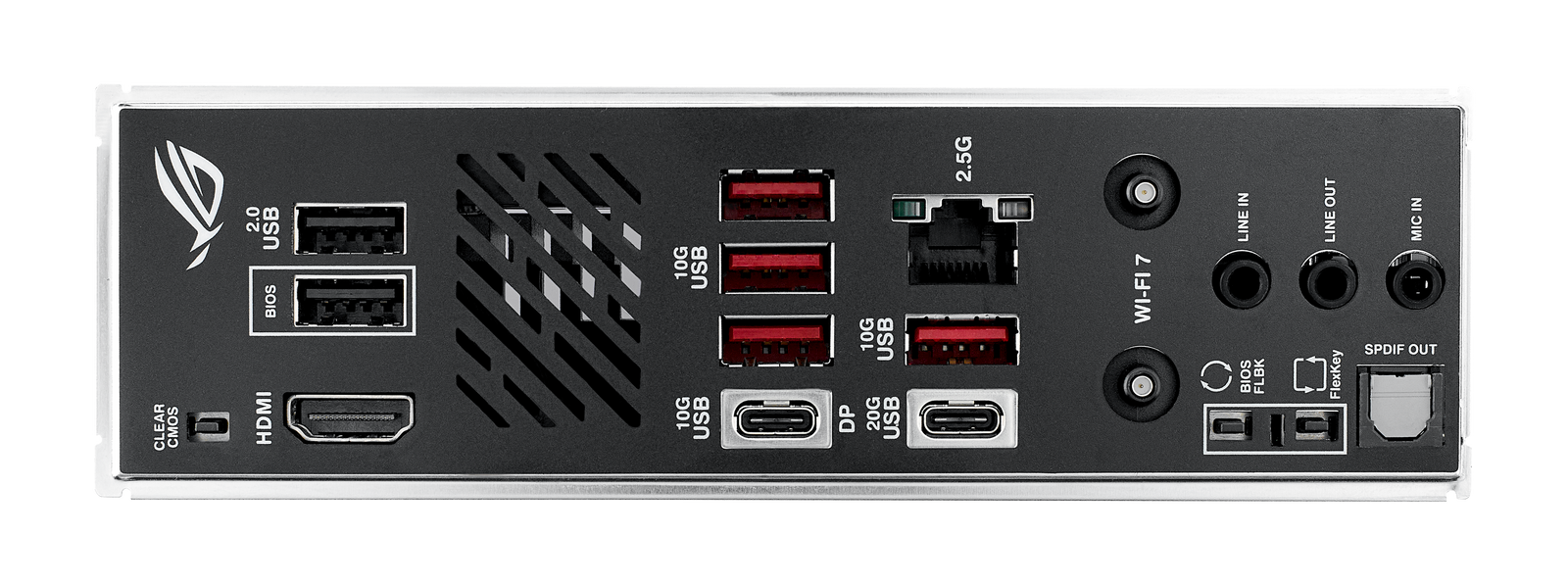

USB	Rear USB (Total 8 ports): 1 x USB 20Gbps (Type-C®) 5 x USB 10Gbps (4 x Type-A + 1 x Type-C®) 2 x USB 2.0 (Type-A) Front USB (Total 5 ports): 1 x USB 10Gbps 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports) 1 x USB 2.0 header (supports 2 additional USB 2.0 ports)
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Supports up to 32-Bit/384 kHz playback on front panel Audio features: SupremeFX Shielding Technology Savitech SV3H712 AMP Rear optical S/PDIF out port
Form Factor	Mini-ITX Form Factor (6.7 inch x 6.7 inch)

Specifications

Lighting	Lighting / RGB Yes Motherboard Motherboard Chipset AMD B850 Built-In I/O Shield Yes Form Factor Motherboard Form Factor Mini-ITX Dimensions Length / Depth 170 mm Width 170 mm Colour Primary Colour Black CPU CPU Manufacturer AMD CPU Socket AM5 Wi-Fi & LAN LAN Yes LAN Ports 1x 2.5 Gbit/s Wi-Fi / Bluetooth Yes Wi-Fi Standard Wi-Fi 7 Bluetooth Standard 5.4 Fan Header 4 Pin Fan Connectors 4 Memory Max. Memory 96 GB Memory Type DDR5 Memory Form Factor DIMM System Memory Subtype UDIMM Max. Memory Speed (OC) 8400 MT/s EEC Support Yes Memory slots 2x Performance Profile AMD EXPO Internal Ports CPU Power Supply 1x 8-Pin USB 3.0 / 3.1 / 3.2 (internal) Type C Header 1 USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports 1 USB 3.0 (internal) Header 1 USB 3.0 (internal) Possible Ports 2 USB 2.0 (internal) Header 1 USB 2.0 (internal) Possible Ports 2 RGB / LED connectors 2x Digital RGB (3-Pin 5VDG) Front Panel Audio Header Yes Expansion Slots PCIe x16 slots (total) 1 PCIe 5.0 x16 mechanical slot 1 External Ports USB 3.2 (external) Type C 1 USB 3.1 (external) Type C 1 USB 3.1 (external) Type A 4 USB 2.0 (external) Type A 2 Display Connectors HDMI (1x) Cooling Backplate Yes M.2 Heatsinks Yes VRM Heatsinks Yes Storage Ports M.2 PCIe 4.0 x4 1 M.2 PCIe 5.0 x4 1 SATA 6G (internal) 2 Audio Soundchip Realtek ALC4080
Lighting / RGB	Yes
Motherboard Chipset	AMD B850
Built-In I/O Shield	Yes
Motherboard Form Factor	Mini-ITX
Length / Depth	170 mm
Width	170 mm
Primary Colour	Black
CPU Manufacturer	AMD
CPU Socket	AM5
LAN	Yes
LAN Ports	1x 2.5 Gbit/s
Wi-Fi / Bluetooth	Yes
Wi-Fi Standard	Wi-Fi 7
Bluetooth Standard	5.4
4 Pin Fan Connectors	4
Max. Memory	96 GB
Memory Type	DDR5
Memory Form Factor	DIMM
System Memory Subtype	UDIMM
Max. Memory Speed (OC)	8400 MT/s
EEC Support	Yes
Memory slots	2x
Performance Profile	AMD EXPO
CPU Power Supply	1x 8-Pin
USB 3.0 / 3.1 / 3.2 (internal) Type C Header	1
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports	1
USB 3.0 (internal) Header	1
USB 3.0 (internal) Possible Ports	2
USB 2.0 (internal) Header	1
USB 2.0 (internal) Possible Ports	2
RGB / LED connectors	2x Digital RGB (3-Pin 5VDG)
Front Panel Audio Header	Yes
PCIe x16 slots (total)	1
PCIe 5.0 x16 mechanical slot	1
USB 3.2 (external) Type C	1
USB 3.1 (external) Type C	1
USB 3.1 (external) Type A	4
USB 2.0 (external) Type A	2
Display Connectors	HDMI (1x)
Backplate	Yes
M.2 Heatsinks	Yes
VRM Heatsinks	Yes
M.2 PCIe 4.0 x4	1
M.2 PCIe 5.0 x4	1
SATA 6G (internal)	2
Soundchip	Realtek ALC4080

Specifications

Manufacturer	Asus
Manufacturer part number	90MB1K30-M0EAY0
OcUK SKU	MOT-ASU-03843
EAN	4711387823620
CPU Socket	AM5
Display Connectors	HDMI (1x)
Lighting / RGB	Yes
Memory Form Factor	DIMM
Memory Type	DDR5
Primary Colour	Black
RGB / LED connectors	2x Digital RGB (3-Pin 5VDG)
