SKU MOT-ASU-06003EAN 4711636062343MPN 90MB1LL0-M0EAY0
Overview
Socket AM5, B850 Chipset, Supports 7000/'8000/9000 series AMD Ryzen, 4x DIMM Slots, DDR5 8000+MHz (OC), PCIe Gen 5, 4x SATA 6Gb/s connectors, 3x M.2 Slot, 1GB LAN, WIFI6, Micro-ATX

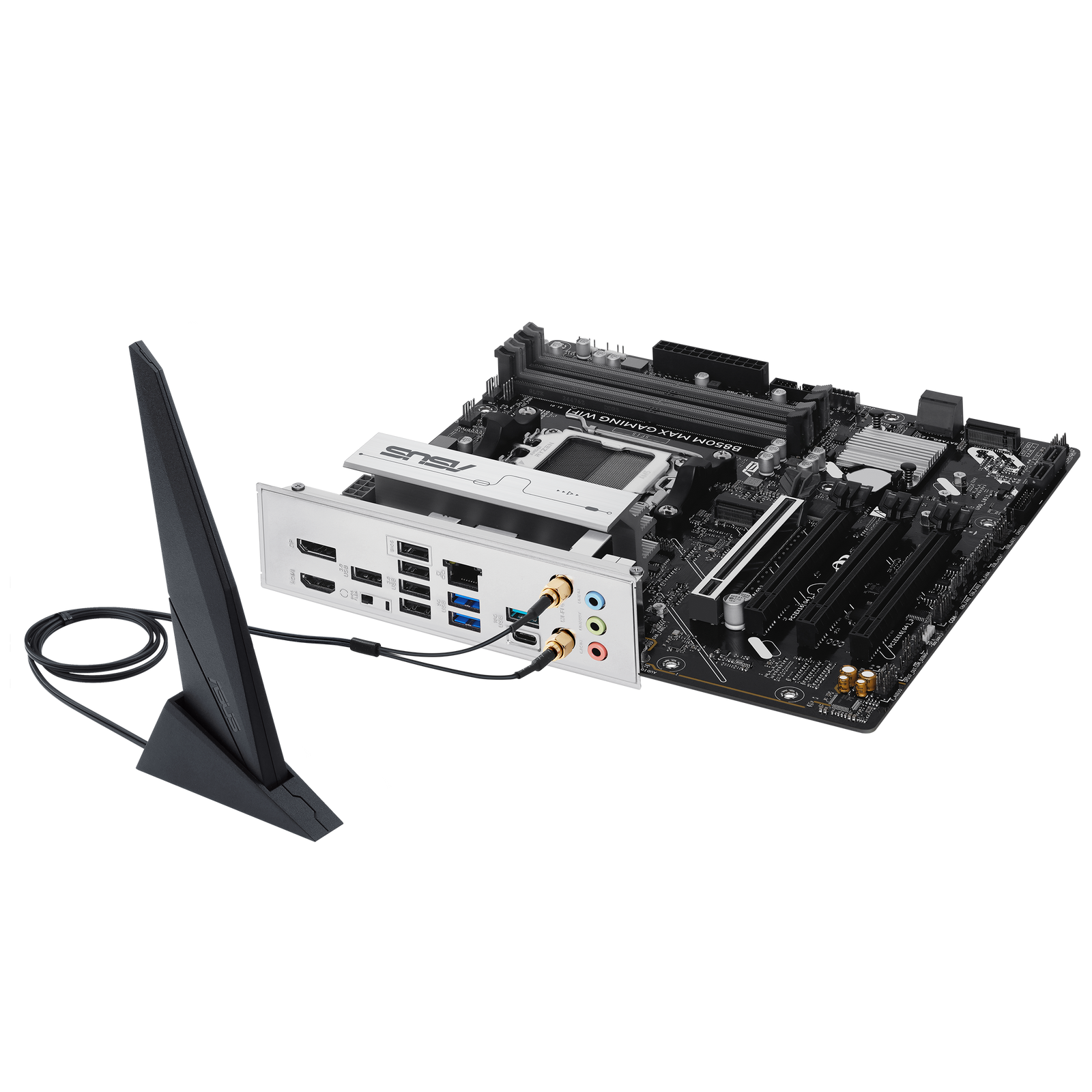

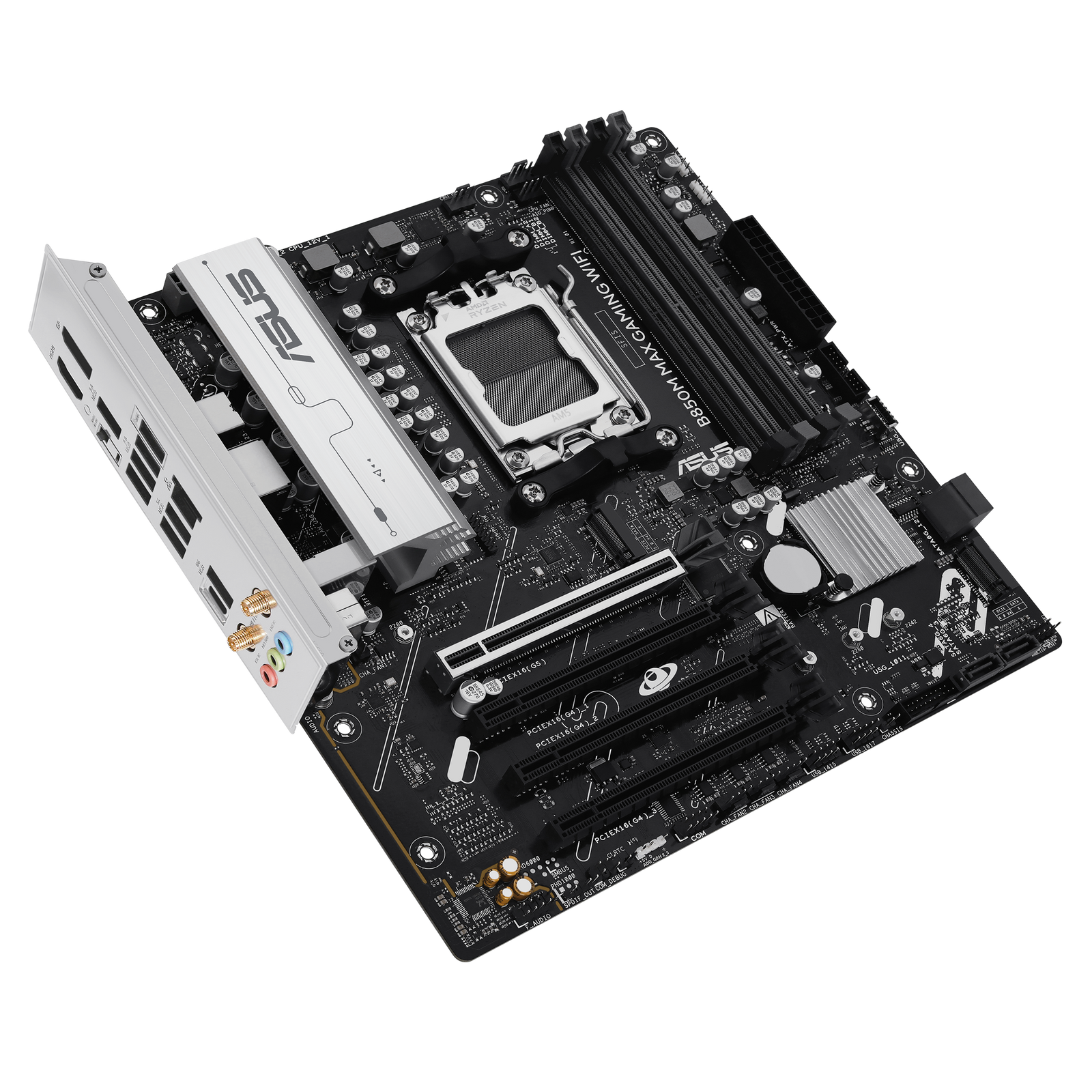

ASUS B850M MAX GAMING WIFI Specs
| Category | Details |
|---|---|
| Model | B850M MAX GAMING WIFI |
| CPU | AMD Socket AM5, supports Ryzen 9000, 8000, 7000 Series |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM, up to 256GB, up to 8000+MT/s (OC), ECC/Non-ECC, Dual Channel, EXPO & AEMP supported |
| Graphics | 1 x DisplayPort (8K@30Hz), 1 x HDMI (4K@60Hz) |
| Expansion Slots |
Ryzen 9000/7000: 1 x PCIe 5.0 x16, 3 x PCIe 4.0 x1 Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4), 3 x PCIe 4.0 x1 |
| Storage |
3 x M.2 slots: - M.2_1 (PCIe 5.0 x4 for Ryzen 9000/7000, PCIe 4.0 x4 for Ryzen 8000) - M.2_2 (PCIe 4.0 x4) - M.2_3 (PCIe 4.0 x2) 4 x SATA 6Gb/s RAID Support: Varies by CPU series |
| Networking |
Ethernet: Realtek 1Gb with ASUS LANGuard Wi-Fi: 1x1 Wi-Fi 6 (2.4/5GHz), Bluetooth v5.4 |
| USB (Rear) |
2 x USB 10Gbps (1x Type-A, 1x Type-C) 2 x USB 5Gbps (Type-A) 5 x USB 2.0 |
| USB (Front) |
1 x USB 5Gbps Type-C 2 x USB 5Gbps headers (4 ports) 2 x USB 2.0 headers (4 ports) |
| Audio |
Realtek 7.1 HD Audio CODEC, Jack-detection, Multi-streaming, 24-bit/192kHz Audio Shielding, Premium Capacitors, Dedicated PCB layers |

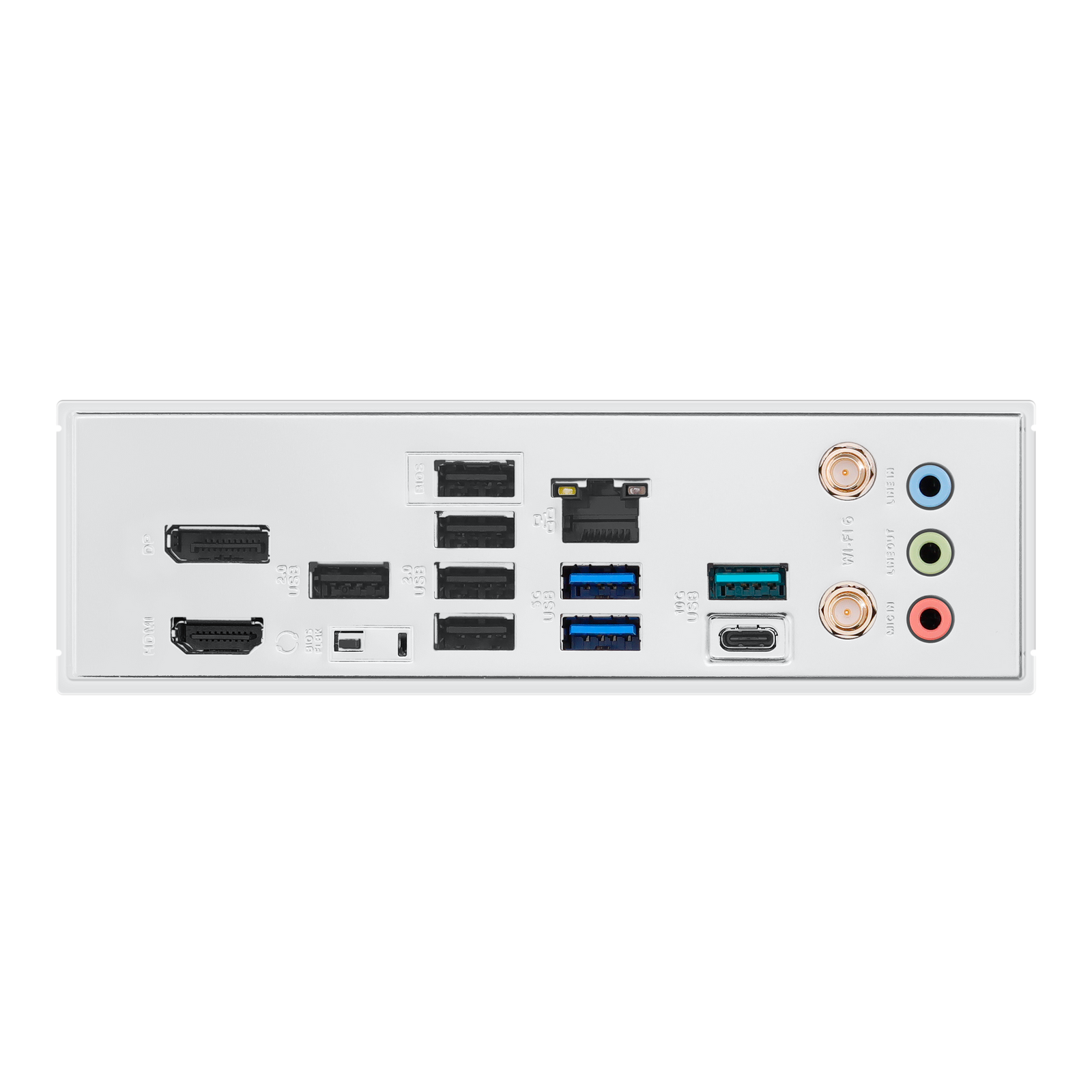

| Back Panel I/O |
2 x USB 10Gbps (1x Type-A, 1x Type-C) 2 x USB 5Gbps, 5 x USB 2.0 1 x HDMI, 1 x DisplayPort 1 x Ethernet, 1 x Wi-Fi, 3 x Audio jacks 1 x BIOS FlashBack button |
| Internal I/O |
CPU/Chassis fan headers, AIO pump header 24-pin ATX, 8-pin + 4-pin CPU power M.2 & SATA ports USB headers RGB headers, COM, TPM, Audio, SPDIF |
| Special Features | ASUS 5X Protection III, Q-Design, Thermal Solution, EZ DIY, Aura Sync |
| Software | Armoury Crate, AI Advisor, TurboV Core, ASUS CPU-Z, Norton (60-day), WinRAR (40-day) |
| BIOS | 256Mb UEFI AMI BIOS, EZ Mode, FlashBack, MyHotkey |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA cables, Wi-Fi antenna, M.2 screws, Quick Start Guide |
| Operating System | Windows 11 / 10 (64-bit) |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
Specifications
| Lighting | Lighting / RGB Yes Form Factor Motherboard Form Factor Micro-ATX Wi-Fi & LAN LAN Yes LAN Ports 1x 1 Gbit/s Wi-Fi / Bluetooth Yes Motherboard Motherboard Chipset AMD B850 CPU CPU Manufacturer AMD CPU Socket AM5 Colour Primary Colour Black Fan Header 4 Pin Fan Connectors 7 Memory Max. Memory 256 GB Memory Type DDR5 Memory Form Factor DIMM Memory slots 4x Internal Ports CPU Power Supply 1x 4-Pin + 1x 8-Pin |
|---|---|
| Lighting / RGB | Yes |
| Motherboard Form Factor | Micro-ATX |
| LAN | Yes |
| LAN Ports | 1x 1 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Motherboard Chipset | AMD B850 |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Primary Colour | Black |
| 4 Pin Fan Connectors | 7 |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 4x |
| CPU Power Supply | 1x 4-Pin + 1x 8-Pin |
Specifications
| Manufacturer | Asus |
|---|---|
| Manufacturer part number | 90MB1LL0-M0EAY0 |
| OcUK SKU | MOT-ASU-06003 |
| EAN | 4711636062343 |
| CPU Socket | AM5 |
| Lighting / RGB | Yes |
| Memory Form Factor | DIMM |
| Memory Type | DDR5 |
| Primary Colour | Black |
Product reviews
No review for this product yet.
Warranty & Delivery
Click & Collect
Collect from OcUK HQ, or one of thousands of DPD Pickup Points around the UK.*
Full Delivery InformationIE Delivery
We ship to Ireland, with tax and customs included in the price you pay.*
Full Delivery Information*Exclusions and product restrictions apply
Asus

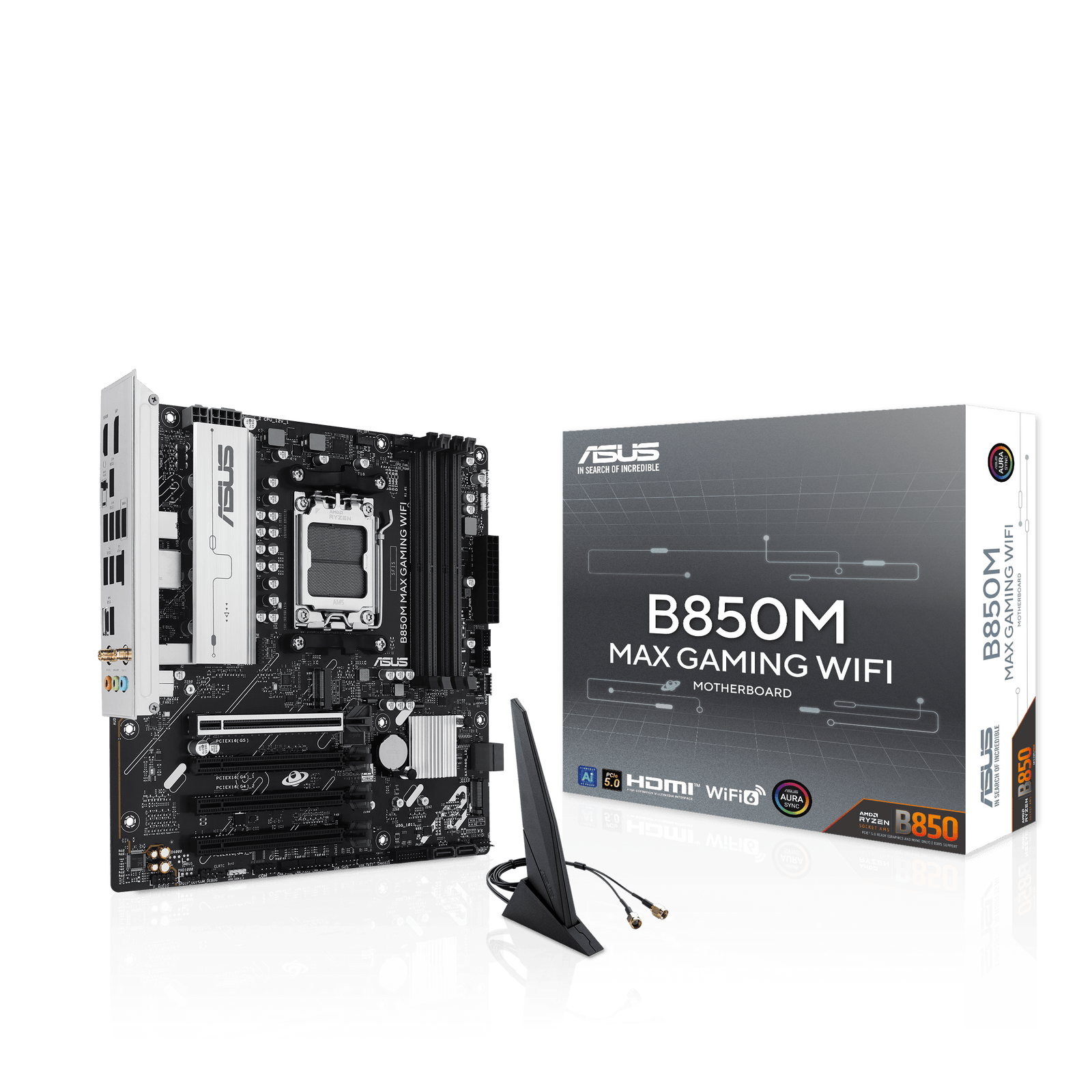

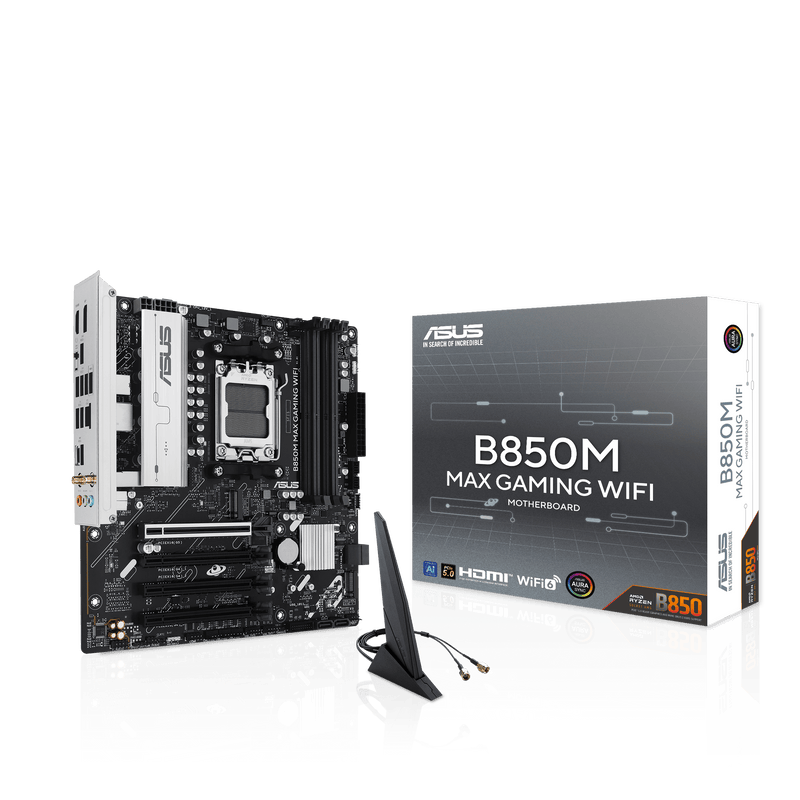

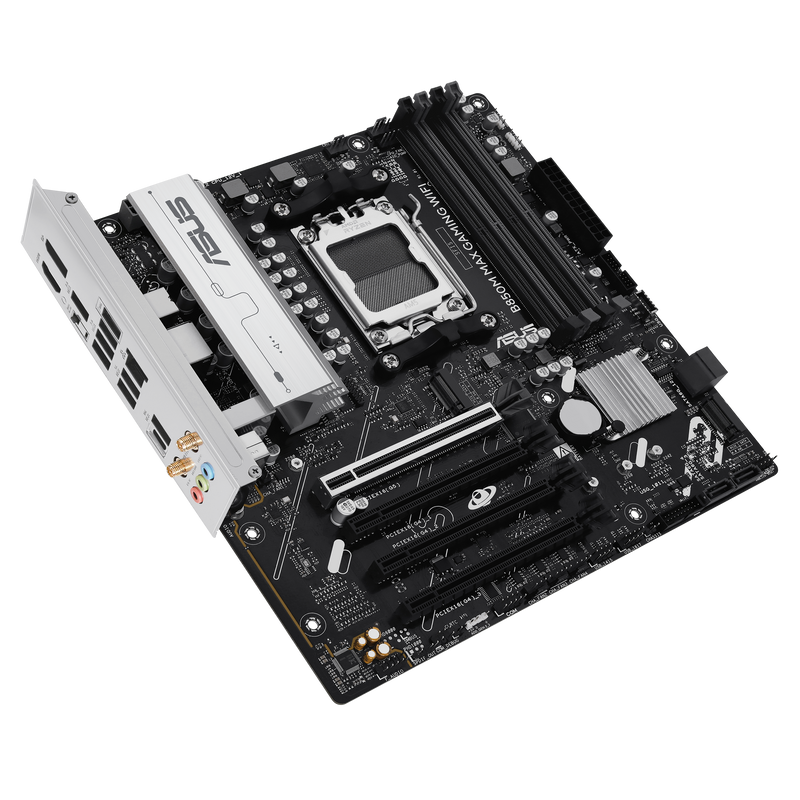

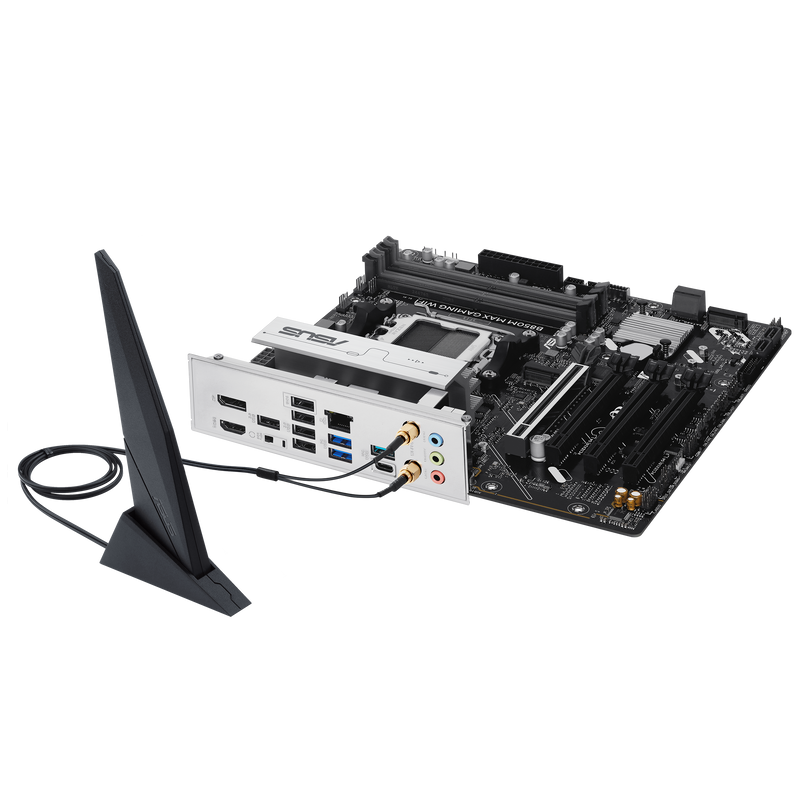

Asus B850M Max Gaming WIFI (Socket AM5) DDR5 Micro-ATX Motherboard
No review for this product yet.
Socket AM5, B850 Chipset, Supports 7000/'8000/9000 series AMD Ryzen, 4x DIMM Slots, DDR5 8000+MHz (OC), PCIe Gen 5, 4x SATA 6Gb/s connectors, 3x M.2 Slot, 1GB LAN, WIFI6, Micro-ATX ASUS B850M MAX G...
£149.99(incl. VAT)
£124.99 (ex. VAT)
Only available to UK and IE
Want your order tomorrow?
Order within — with Premium Delivery (arriving 1 working day, Mon–Fri) for UK mainland delivery.
Klarna Pay in 3 interest-free instalments, or pay in 30 days.
In stock
