Overview
Y70 is an upgraded dual chamber ATX mid tower modern aesthetic case that delivers next gen gaming experiences with massive 4 slot vertical graphics and unlocks maximum performance via ginormous cooling capacity. All while celebrating your favorite hardware by showing off your PC the way it was meant to be seen. The massive 4 slot vertical graphics can accommodate even the largest and most powerful of GPUs into your build with ease. Included with the case is a luxury PCIE 4.0 x 16 riser with a color-matched canopy for uninterrupted visual flow that'll make for a painless GPU installation and build process. Additionally, below the GPU lies the Y70 cold floor cooling, which can house up to a trio of 120mm or duo of 140mm fans up to 32mm thick to direct fresh airflow straight into the GPU. The ginormous cooling capacity makes room for up to a 360mm long & 125mm thick radiator on the side and adjustable top bracket that can house another 360mm radiator up to 68mm thick above. Working together with the cold floor cooling at the bottom and spot for an additional fan at the rear of the case, Y70 has a total capacity of 10 fans in a fully populated chassis. With over 180mm of clearance to the side glass, air and water cooling enthusiasts alike will appreciate the flexibility afforded to them by the chassis to create the most robust cooling configurations possible. The unified modern aesthetic with 4 unique colorways (Snow White, White/Black, Red/Black, Black) puts your PC front and center with a beautifully crafted 3-piece panoramic glass which serves as a window into the heart of your PC. The dual chamber interior layout keeps the front looking great while giving you plenty of space to manage cables in the back, especially with the help of our seamless L-shaped molded rubber grommet, meticulously placed cable routing channels & tie-down points, and reusable Velcro straps. All easily accessible with tool-less top and side panels alongside floating storage sleds that eject from the rear of the case for intuitive drive maintenance.
"Y70 at a Glance
- Unified modern aesthetic which is available in 4 unique colorways with a beautifully crafted 3-piece panoramic glass and dual chamber interior.
- Massive 4 slot vertical graphics with an included luxury PCIE 4.0 x 16 riser which sports a color-matched canopy for uninterrupted visual flow.
- Ginormous cooling capacity with support for up to a 360mm radiator on the side (125mm thick) and adjustable top (68mm thick) of the case along with cold floor cooling that can fit either a trio of 120mm or duo of 140mm fans up to 32mm thick down below.
- Exquisite detailing such as helpful labels, reusable Velcro straps, floating storage sleds, and clicky blue power switch are present throughout the case.
- Premium build experience made possible by using the finest materials, tightest tolerances, and tool-less panels with extensive cable management space in the rear chamber of the chassis.
Y70 Specification
| Brand | HYTE |
| Model | CS-HYTE-Y70-WW |
| UPC | 848604045665 |
| SKU | 1220000350588 |
| Case Type | Dual Chamber Mid-Tower ATX Case |
| Motherboard Support | ITX, mATX, ATX, EATX |
| Volume | 70.7 L |
| Dimensions (L x W x H) | 470mm x 320mm x 470mm (18.5 x 12.6 x 18.5 Inches) |
| Materials | ABS, Steel, Tempered Glass |
| Color | Snow White |
| Max GPU Length | ATX up to 235mm |
| Max CPU Cooler Height | 180 mm |
| Fan Support (Locations) | Side: 3x 120mm or 2x 140mm, Top: 3x 120mm or 2x 140mm, Rear: 1x 120mm or 1x 140mm, Bottom: 3x 120mm or 2x 140mm |
| Radiator Support | Side: Up to 360mm or 280mm long and 125mm thick, Top: Up to 360mm or 280mm long and 68mm thick, Rear: 120mm or 140mm |
| Drive Bays | 2x 3.5" HDD or 4x 2.5" SSD |
| Expansion Slots | 4 Vertical + 7 Half-Height |
| Front I/O Ports | 2 x Front USB-A 3.2, 1 x Front USB-C 3.2, Audio/Mic Jack x 1 |
| Dust Filters | Bottom, Side, Top |
| Warranty | 3 Year Manufacturer Case Warranty |
Specifications
| Additional Contents | Fans Included No Included fans None Lighting Lighting / RGB No Case Features I/O position Front Side panel with window Vertical GPU Mount Yes Adjustable Vertical GPU Bracket No Front door No Cable Management Yes Filters Included Yes Filter Position Top, Bottom, Side Noise dampening No Mainboard slide / tray No Transport System No Colour Primary Colour White Secondary Colour Black Back Connect Back Connect No Radiator Support Max. Radiator Compatibility 360 Radiator/AIO Support (Rear) 120mm Radiator, 140mm Radiator Radiator/AIO Support (Side) 120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator Radiator/AIO Support (Top) 120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator Fan Support Case Fan Support (Bottom) 120mm Fan (3x), 140mm Fan (2x) Case Fan Support (Top) 120mm Fan (3x), 140mm Fan (2x) Case Fan Support (Rear) 120mm Fan (1x), 140mm Fan (1x) Max. Number of Fans 10 Case Fan Support (Side) 120mm Fan (3x), 140mm Fan (2x) 120 mm fans 10 140 mm fans 7 Expansion Slots Expansion slots / PCI slots 11 PCI slot allocation 4 + 7 External Ports Front I/O – USB Type C Ports Total 1 Front I/O – USB Type A Ports Total 2 USB 3.2 (external) Type C 1 USB 3.0 (external) Type A 2 Audio outputs & inputs 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) Mounting Internal Monitor Mount No Case VESA Mountable No Internal Dimensions Max. CPU Cooler Height 180 mm Max. GPU Length 422 mm Max. GPU Width 105 mm Max. PSU Length / Depth 235 mm Inner Volume 70.7 l Dimensions Length / Depth 470 mm Width 320 mm Height 470 mm Weight 11.05 kg Features Housing Feedthrough No Display Display Included No Power Supply PSU included No PSU Format ATX Power Supply Position rear side / bottom Motherboard Support Compatible Motherboard Formats E-ATX, ATX, Micro-ATX, Mini-ITX Max. Motherboard Format E-ATX Materials Materials ABS, Steel, Tempered Glass Case Case Type Mid Tower Drive Bays Max. 2.5 Inch Drives 4 Max. 3.5 Inch Drives 2 Max. 5.25 Inch Drives 0 1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) 4 Hot swap drive bays No Product Series Product Series/Family Y70 Fan Header Fan Controller / Fan Hub No Cable Specifications Riser Cable Included Yes Riser Cable Generation PCIe 4.0 Connectivity Card reader No |
|---|---|
| Fans Included | No |
| Included fans | None |
| Lighting / RGB | No |
| I/O position | Front |
| Side panel | with window |
| Vertical GPU Mount | Yes |
| Adjustable Vertical GPU Bracket | No |
| Front door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Filter Position | Top, Bottom, Side |
| Noise dampening | No |
| Mainboard slide / tray | No |
| Transport System | No |
| Primary Colour | White |
| Secondary Colour | Black |
| Back Connect | No |
| Max. Radiator Compatibility | 360 |
| Radiator/AIO Support (Rear) | 120mm Radiator, 140mm Radiator |
| Radiator/AIO Support (Side) | 120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator |
| Radiator/AIO Support (Top) | 120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator |
| Case Fan Support (Bottom) | 120mm Fan (3x), 140mm Fan (2x) |
| Case Fan Support (Top) | 120mm Fan (3x), 140mm Fan (2x) |
| Case Fan Support (Rear) | 120mm Fan (1x), 140mm Fan (1x) |
| Max. Number of Fans | 10 |
| Case Fan Support (Side) | 120mm Fan (3x), 140mm Fan (2x) |
| 120 mm fans | 10 |
| 140 mm fans | 7 |
| Expansion slots / PCI slots | 11 |
| PCI slot allocation | 4 + 7 |
| Front I/O – USB Type C Ports Total | 1 |
| Front I/O – USB Type A Ports Total | 2 |
| USB 3.2 (external) Type C | 1 |
| USB 3.0 (external) Type A | 2 |
| Audio outputs & inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
| Internal Monitor Mount | No |
| Case VESA Mountable | No |
| Max. CPU Cooler Height | 180 mm |
| Max. GPU Length | 422 mm |
| Max. GPU Width | 105 mm |
| Max. PSU Length / Depth | 235 mm |
| Inner Volume | 70.7 l |
| Length / Depth | 470 mm |
| Width | 320 mm |
| Height | 470 mm |
| Weight | 11.05 kg |
| Housing Feedthrough | No |
| Display Included | No |
| PSU included | No |
| PSU Format | ATX |
| Power Supply Position | rear side / bottom |
| Compatible Motherboard Formats | E-ATX, ATX, Micro-ATX, Mini-ITX |
| Max. Motherboard Format | E-ATX |
| Materials | ABS, Steel, Tempered Glass |
| Case Type | Mid Tower |
| Max. 2.5 Inch Drives | 4 |
| Max. 3.5 Inch Drives | 2 |
| Max. 5.25 Inch Drives | 0 |
| 1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) | 4 |
| Hot swap drive bays | No |
| Product Series/Family | Y70 |
| Fan Controller / Fan Hub | No |
| Riser Cable Included | Yes |
| Riser Cable Generation | PCIe 4.0 |
| Card reader | No |
Specifications
| Manufacturer | HYTE |
|---|---|
| Manufacturer part number | CS-HYTE-Y70-BW |
| OcUK SKU | CAS-HYT-01820 |
| EAN | 1220000350571 |
| Back Connect | No |
| Case Type | Mid Tower |
| Included fans | None |
| Lighting / RGB | No |
| Power Supply Position | rear side / bottom |
| Primary Colour | White |
| Product Series/Family | Y70 |
| PSU Format | ATX |
| Secondary Colour | Black |
Product reviews
No review for this product yet.
Warranty & Delivery
Click & Collect
Collect from OcUK HQ, or one of thousands of DPD Pickup Points around the UK.*
Full Delivery InformationIE Delivery
We ship to Ireland, with tax and customs included in the price you pay.*
Full Delivery Information*Exclusions and product restrictions apply

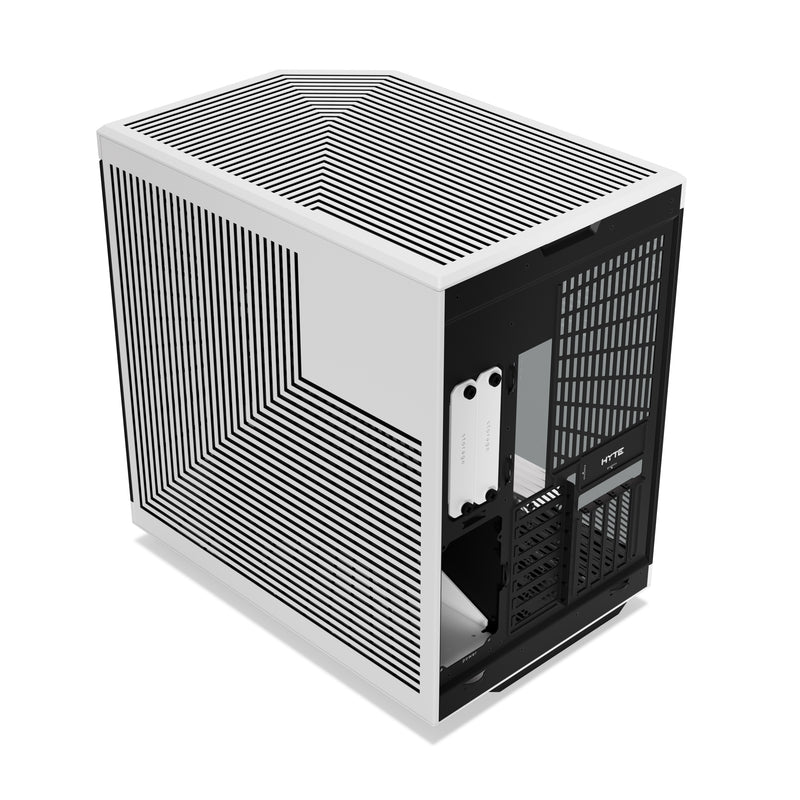

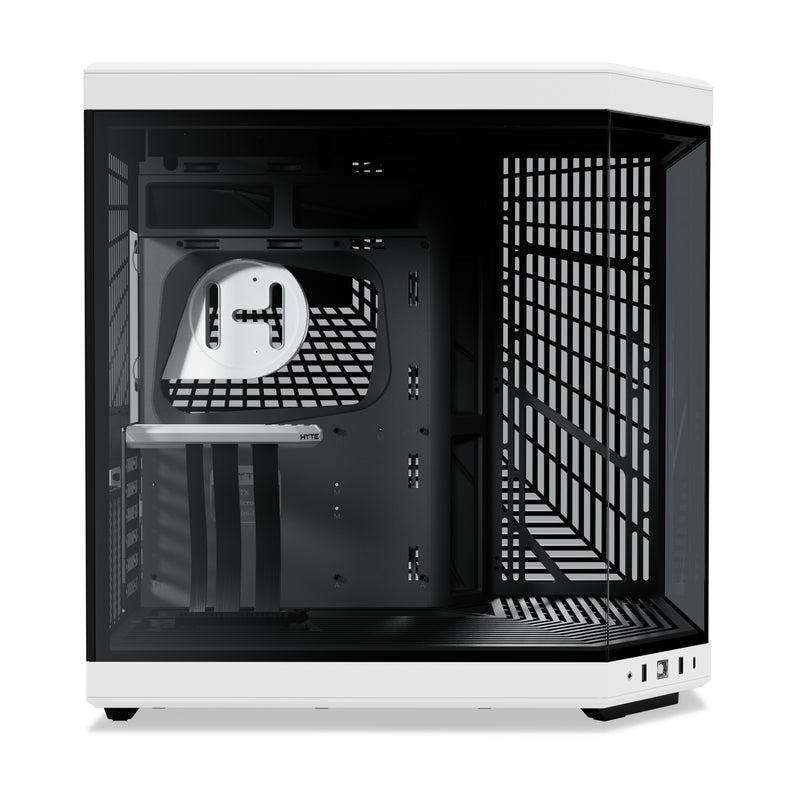

HYTE Y70 Dual Chamber Mid-Tower ATX Case - White/Black
