Stylish Midi-Tower for motherboards up to E-ATX, Tempered glass side window, Tempered glass front, 4x 120mm RGB fans pre-installed, Radiators up to 240 mm, 2x 3,5/2,5" slots, Removable dust filters

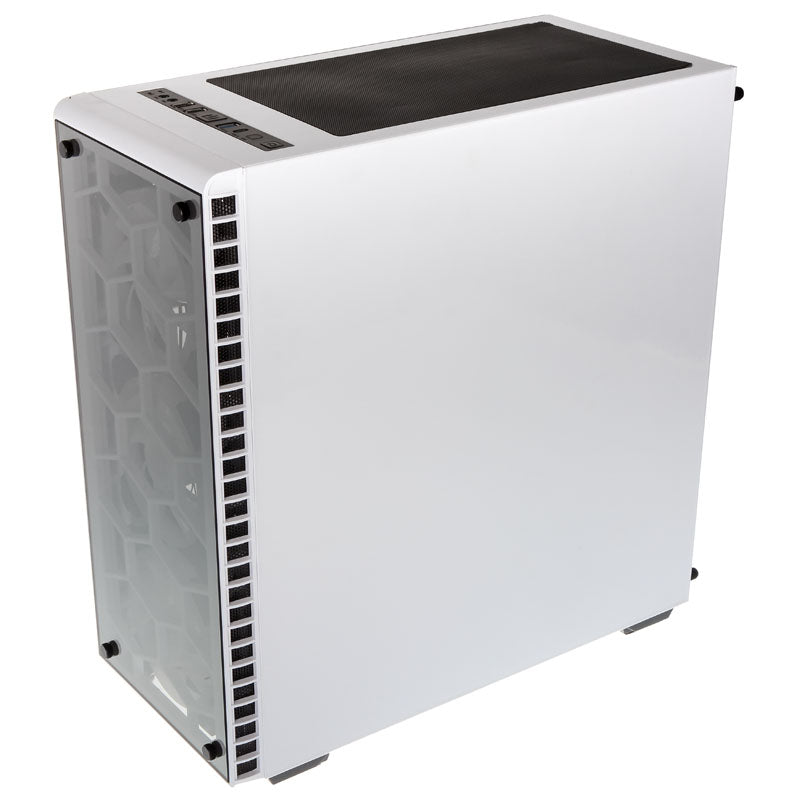

Kolink is pleased to introduce the incredibly stylish Observatory Midi-Tower with its tempered glass front- and side panel, through which users can see the total of four pre-installed RGB-LED fans in all their glory. The lighting can be controlled via the bundled controller and remote. The tidy interior of the Observatory offers lots of space for putting your hardware on show. Pre-installed dust filters, extensive space for water cooling and cable management, these are just a few of the highlights offered by this Kolink case despite its diminutive size and price. This case is almost entirely white, except for the black elements, and this helps it look extremely premium for the price.

The Features of the Kolink Observatory at a Glance

• Case designed to support motherboards up to E-ATX
• Front and side panel in 4 mm thick tempered glass
• 4x 120 mm RGB fans including controller and remote
• I/O Panel with 2x USB 2.0 / 1x USB 3.0 & HD Audio In/Out
• Support for two radiators in 280 mm format
• 2x 3,5" and 4x 2,5" data storage devices
• Supports graphics cards up to 38 cm long & CPU coolers up to 16 cm high

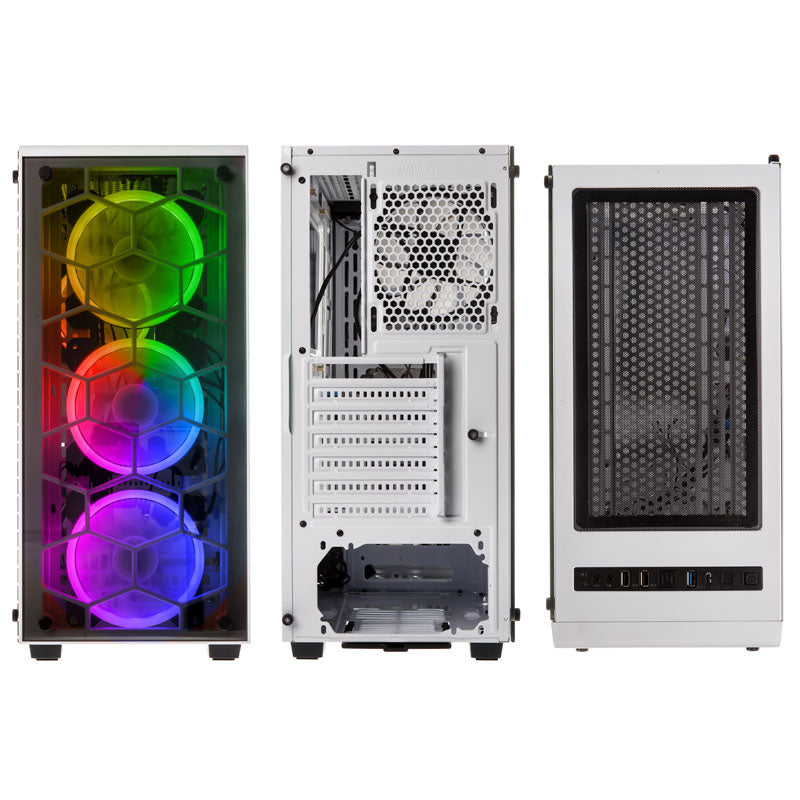

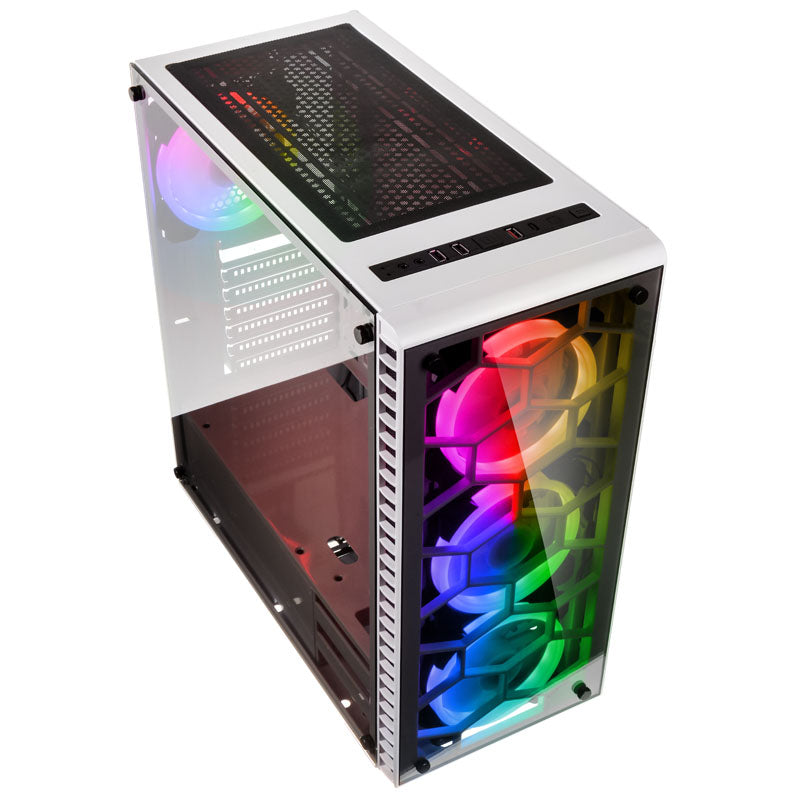

Front and Side Panel in Tempered Glass & Four Pre-Installed RGB Fans

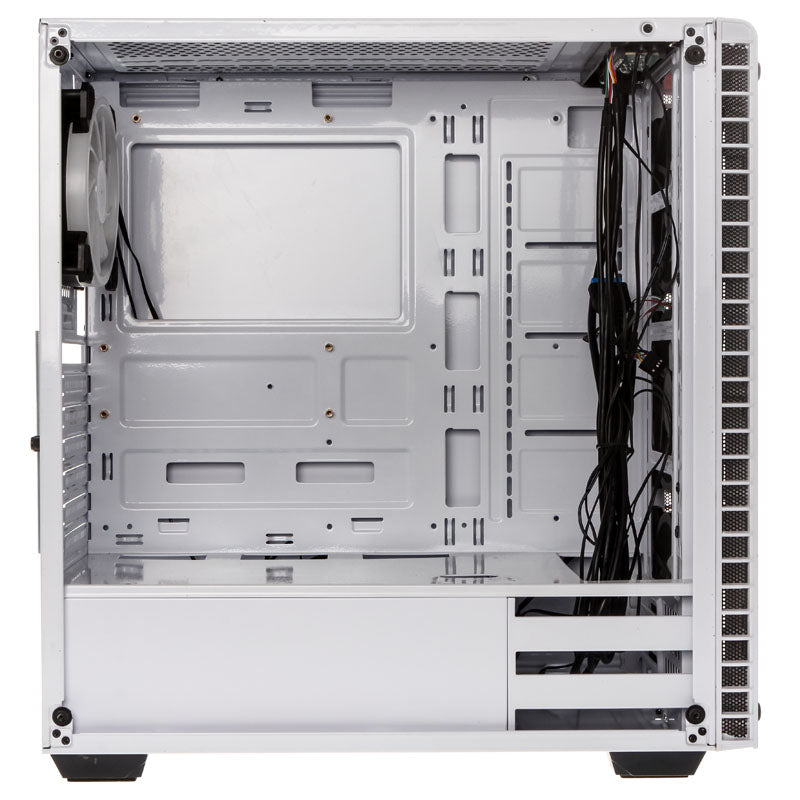

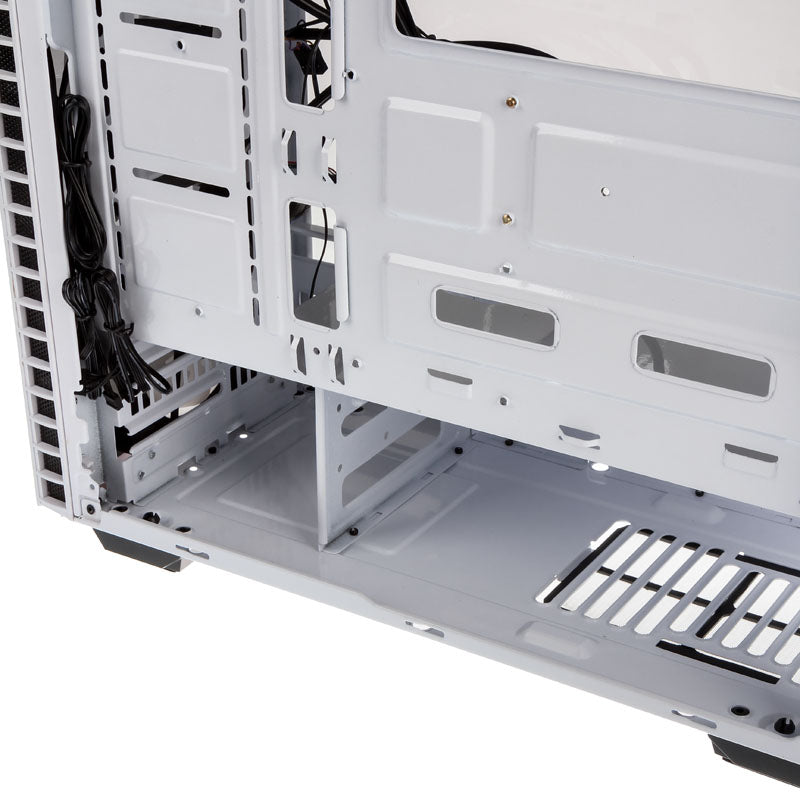

The robust chassis is made from millimetre thick SECC steel and comes with a front and side panel in four millimetre thick glass. The entire interior is likewise coated in white and equipped with a shroud for the power supply in order to maintain an incredibly clean aesthetic. A hard drive cage is attached here with brackets for two 3,5" drives as well as space for the power supply. Four more 2,5" drives can be placed next to the motherboard.

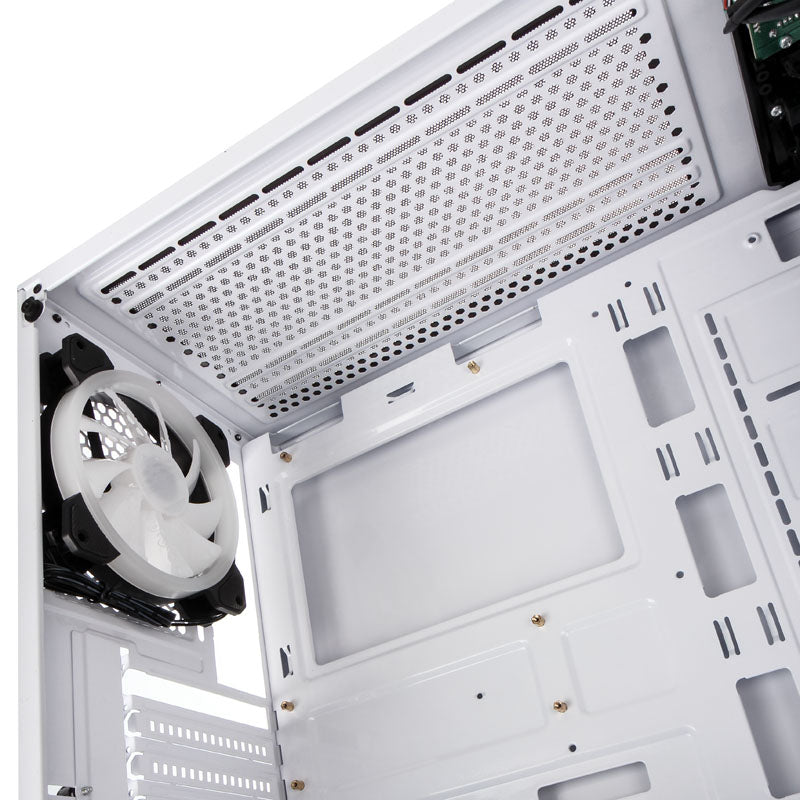

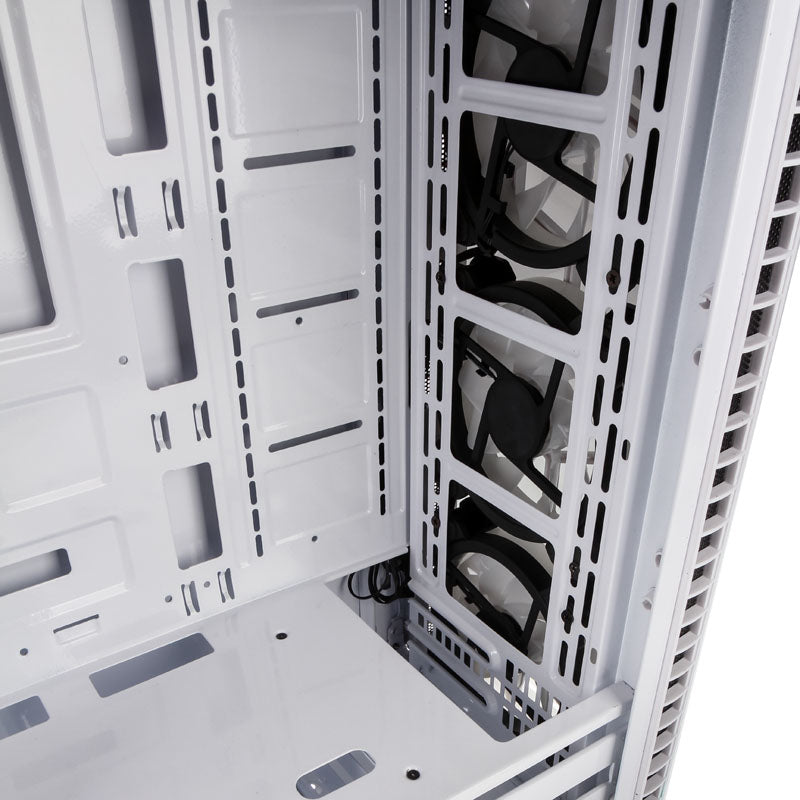

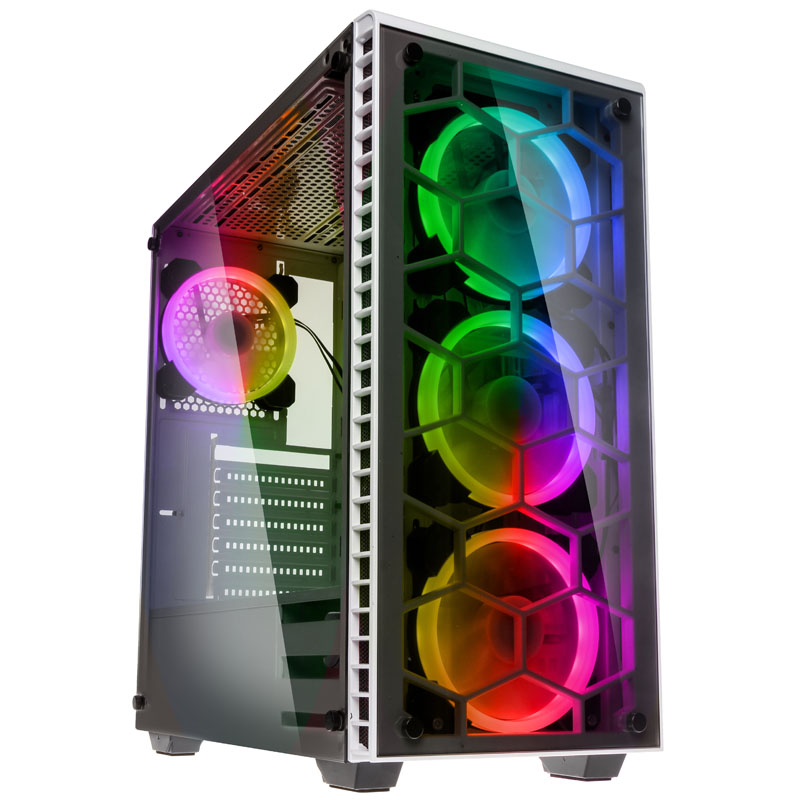

The visual highlight of the case is formed by the three 120 mm RGB fans pre-installed in the front and an additional fan in the rear. The fans possess 16 individually addressable RGB-LEDs. Their lighting can be controlled via infrared remote control using the bundled RGB controller and fan hub that can be placed in a location of your choosing. This enables 300 dynamic lighting effects to be configured. Two further 120 mm or 140 mm fans can be mounted in the roof. The three 120 mm fans at the front can be exchanged for two 140 mm fans.

Dust Filters Keep the Kolink Observatory Clean

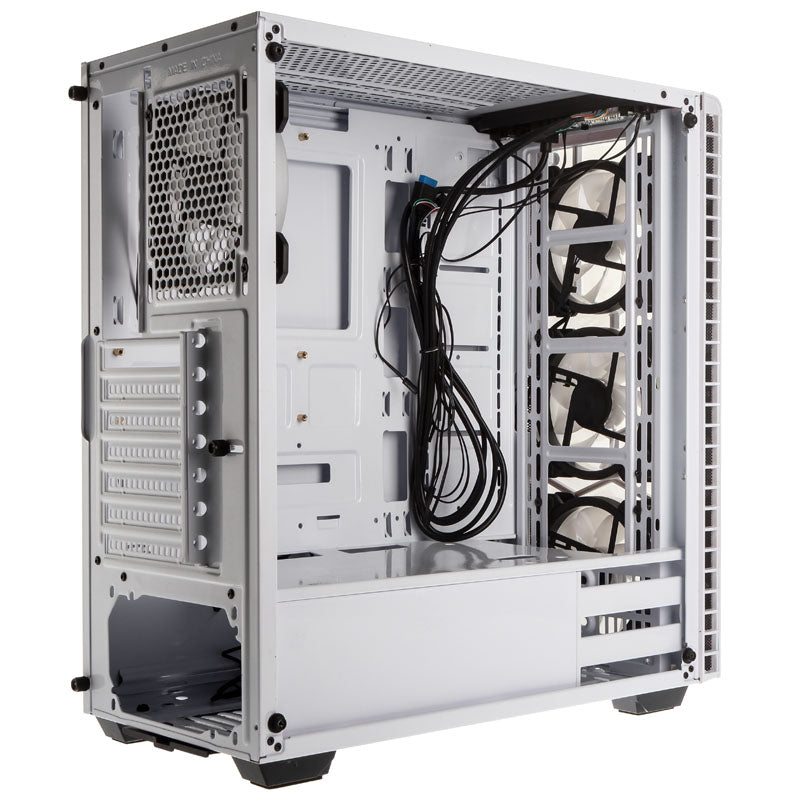

The motherboard tray and the PSU shroud offer multiple openings for cables. A 240 mm or 280 mm radiator can be installed in the front and on the roof of the Kolink case. With air inlets are equipped with fine dust filters located in the roof and on the bottom of the case. They are easily removed without requiring tools and strengthened with a filigree honeycomb design.

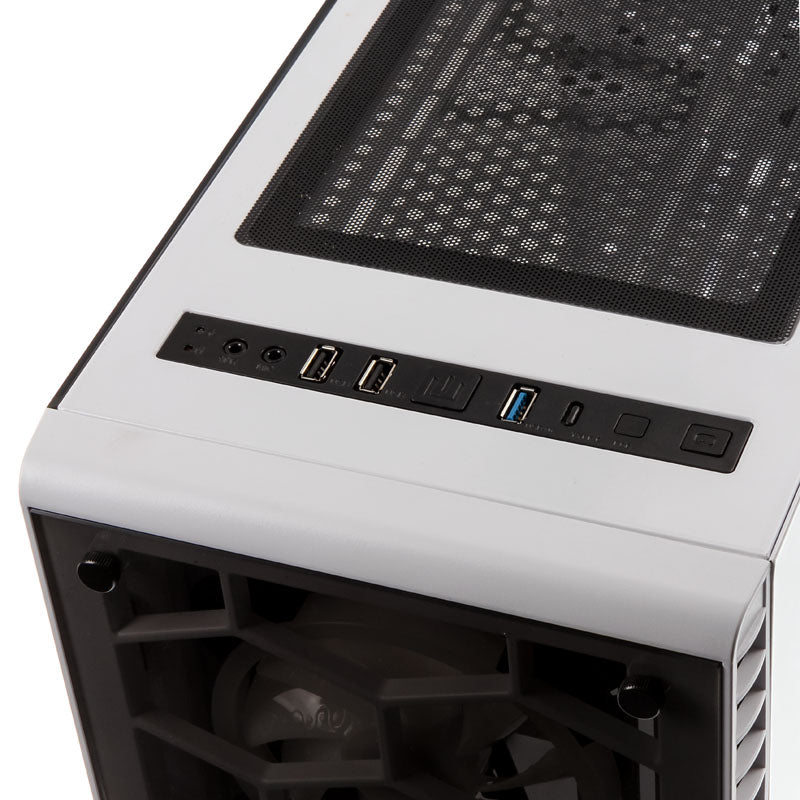

GPUs can be up to 38 cm long and CPU coolers may be up to 16 cm high. Additionally the I/O panel located on the front offers two USB 2.0 connections as well as a USB 3.0 Type-A port. A cut-out is present for a USB Type-C connection, however this does not come as standard with the case and must be added later. The same is true of a switch used for controlling the I/O panel's RGB lighting.

Technical Details:

• Dimensions: 210 x 435 x 435 mm (W x H x D, with standups)
• Dimensions: 210 x 453 x 435 mm (W x H x D, without standups)
• Material: Steel, tempered glass
• Weight: approx. 6,8 kg
• Colour: White (case), Black (mesh elements)
• Form Factor: E-ATX (up to 279 mm wide), ATX, Micro-ATX, Mini-ITX
• Total Possible Fans:
  3x 120 mm / 2x 140 mm (Front)
  2x 120 mm / 140 mm (Top)
  1x 120 mm (Rear)
• Pre-Installed:
  3x 120 mm RGB (Front)
  1x 120 mm RGB (Rear)
• Radiator Mountings:
  1x 240 mm / 280 mm (Front)
  1x 240 mm / 280 mm (Roof)
• Filter: Roof, underside
• Drive Bays:
  4x 2,5" (internal)
  2x 3,5" (internal)
• Power Supply: 1x Standard ATX up to 200 mm (optional)
• Expansion Slots: 7
• I/O Panel:
  2x USB 2.0 (internal connection)
  1x USB 3.0 (internal connection)
  1x Audio In/Out
• Maximum GPU Length: 380 mm
• Maximum CPU Cooler Height: 160 mm

Specifications

Back Connect	Back Connect No Power Supply PSU included No PSU Format ATX Power Supply Position rear bottom Colour Primary Colour White Secondary Colour Black Fan Main Colour (Frame) White Fan Main Colour (Rotor) Black Fan Secondary Colour (Rotor) White Case Features I/O position Top Side panel with window Vertical GPU Mount No Adjustable Vertical GPU Bracket No Front door No Cable Management Yes Filters Included Yes Filter Position Top, Bottom Noise dampening No Mainboard slide / tray No Transport System No Radiator Support Max. Radiator Compatibility 1x Dual (240 mm), 1x Dual (280 mm) Radiator/AIO Support (Front) 240mm Radiator, 280mm Radiator Radiator/AIO Support (Top) 240mm Radiator Motherboard Support Compatible Motherboard Formats E-ATX, ATX, Micro-ATX, Mini-ITX Max. Motherboard Format E-ATX Fan Support Case Fan Support (Top) 120mm Fan (2x), 140mm Fan (2x) Case Fan Support (Rear) 120mm Fan (1x) Case Fan Support (Front) 120mm Fan (3x), 140mm Fan (2x) Max. Number of Fans 6 120 mm fans 6 140 mm fans 4 Lighting Lighting / RGB Yes Fan / RGB control No RGB Controller Yes Lighting Colour RGB Dimensions Length / Depth 435 mm Width 210 mm Height 453 mm Weight 6.8 kg Mounting Internal Monitor Mount No Case VESA Mountable No Drive Bays Max. 2.5 Inch Drives 4 Max. 3.5 Inch Drives 2 Max. 5.25 Inch Drives 0 2.5 inch internal drive bay 2 3.5 inch internal drive bay 2 Hot swap drive bays No Internal Dimensions Max. CPU Cooler Height 160 mm Max. GPU Length 380 mm Max. PSU Length / Depth 200 mm Display Display Included No Compliance Compliance Documents Kolink Case Compliance and Safety Manufacturer Information Pro Gamersware GmbH Gaußstraße 1, 10589 Berlin, Germany info@gamersware.com Responsible Person Pro Gamersware GmbH Gaußstraße 1, 10589 Berlin, Germany info@gamersware.com Features Housing Feedthrough No Materials Materials Steel, Tempered Glass Additional Contents Fans Included Yes Included fans 4x 120 mm Fan Header Fan Controller / Fan Hub No Expansion Slots Expansion slots / PCI slots 7 Case Case Type Mid Tower External Ports Front I/O – USB Type A Ports Total 3 USB 3.0 (external) Type A 1 USB 2.0 (external) Type A 2 Audio outputs & inputs 1x output + 1x input (3.5 mm jack, 3-pin, TRS) Cable Specifications Riser Cable Included No Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Connectivity Card reader No
Back Connect	No
PSU included	No
PSU Format	ATX
Power Supply Position	rear bottom
Primary Colour	White
Secondary Colour	Black
Fan Main Colour (Frame)	White
Fan Main Colour (Rotor)	Black
Fan Secondary Colour (Rotor)	White
I/O position	Top
Side panel	with window
Vertical GPU Mount	No
Adjustable Vertical GPU Bracket	No
Front door	No
Cable Management	Yes
Filters Included	Yes
Filter Position	Top, Bottom
Noise dampening	No
Mainboard slide / tray	No
Transport System	No
Max. Radiator Compatibility	1x Dual (240 mm), 1x Dual (280 mm)
Radiator/AIO Support (Front)	240mm Radiator, 280mm Radiator
Radiator/AIO Support (Top)	240mm Radiator
Compatible Motherboard Formats	E-ATX, ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format	E-ATX
Case Fan Support (Top)	120mm Fan (2x), 140mm Fan (2x)
Case Fan Support (Rear)	120mm Fan (1x)
Case Fan Support (Front)	120mm Fan (3x), 140mm Fan (2x)
Max. Number of Fans	6
120 mm fans	6
140 mm fans	4
Lighting / RGB	Yes
Fan / RGB control	No
RGB Controller	Yes
Lighting Colour	RGB
Length / Depth	435 mm
Width	210 mm
Height	453 mm
Weight	6.8 kg
Internal Monitor Mount	No
Case VESA Mountable	No
Max. 2.5 Inch Drives	4
Max. 3.5 Inch Drives	2
Max. 5.25 Inch Drives	0
2.5 inch internal drive bay	2
3.5 inch internal drive bay	2
Hot swap drive bays	No
Max. CPU Cooler Height	160 mm
Max. GPU Length	380 mm
Max. PSU Length / Depth	200 mm
Display Included	No
Compliance Documents	Kolink Case Compliance and Safety
Manufacturer Information	Pro Gamersware GmbH Gaußstraße 1, 10589 Berlin, Germany info@gamersware.com
Responsible Person	Pro Gamersware GmbH Gaußstraße 1, 10589 Berlin, Germany info@gamersware.com
Housing Feedthrough	No
Materials	Steel, Tempered Glass
Fans Included	Yes
Included fans	4x 120 mm
Fan Controller / Fan Hub	No
Expansion slots / PCI slots	7
Case Type	Mid Tower
Front I/O – USB Type A Ports Total	3
USB 3.0 (external) Type A	1
USB 2.0 (external) Type A	2
Audio outputs & inputs	1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Riser Cable Included	No
Compatibility Note	Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Card reader	No
