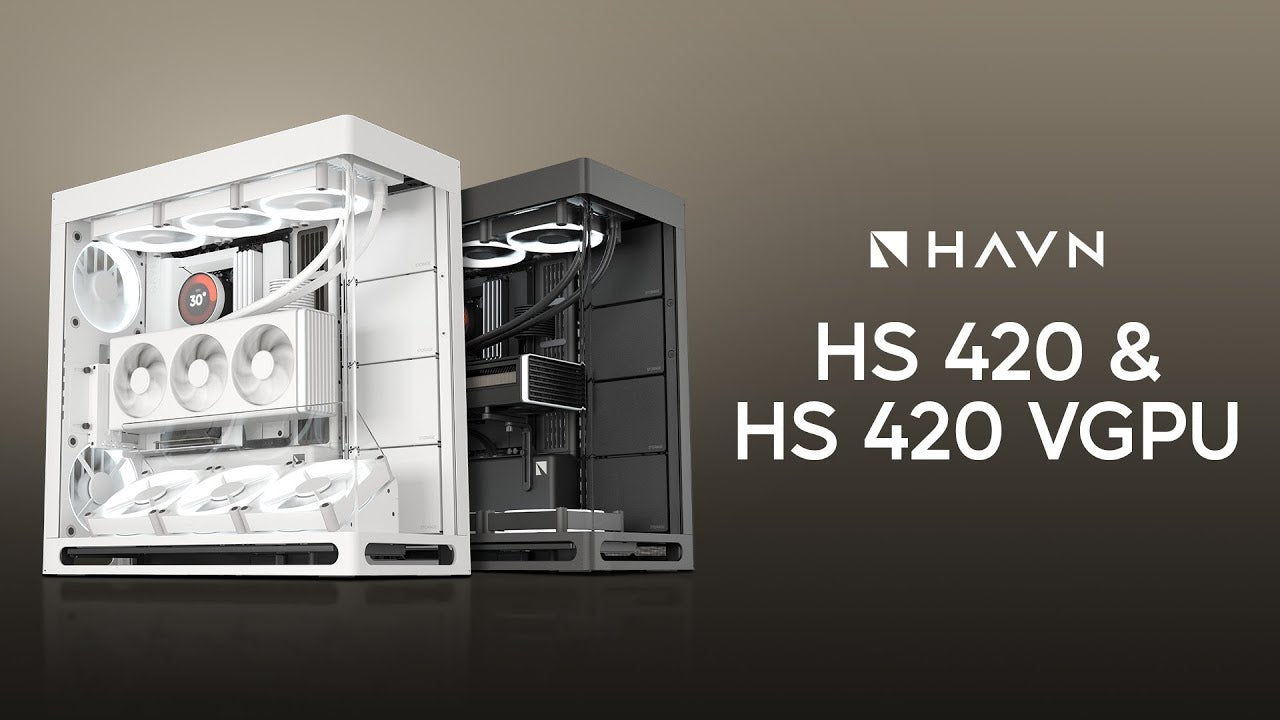

HS 420 VGPU Edition

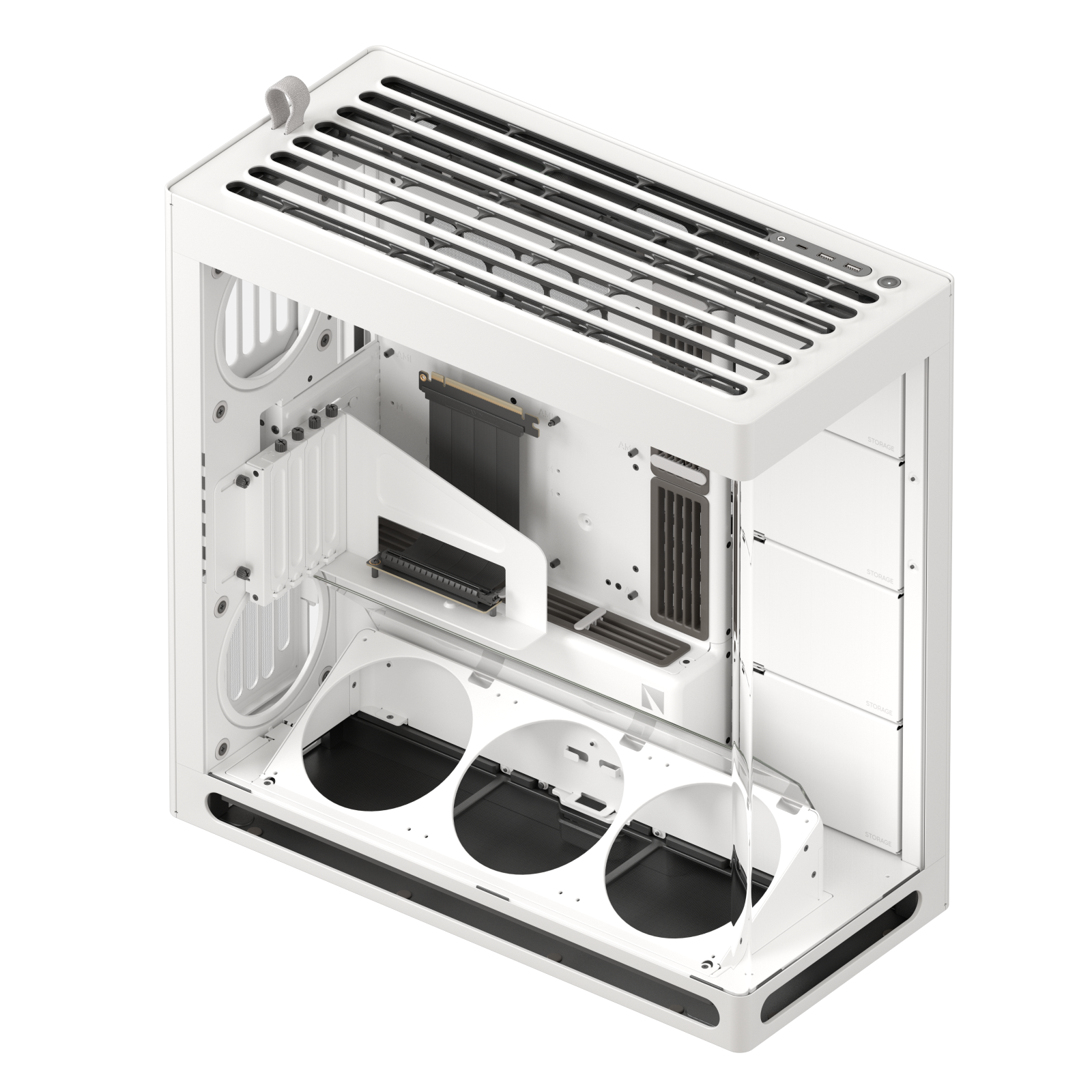

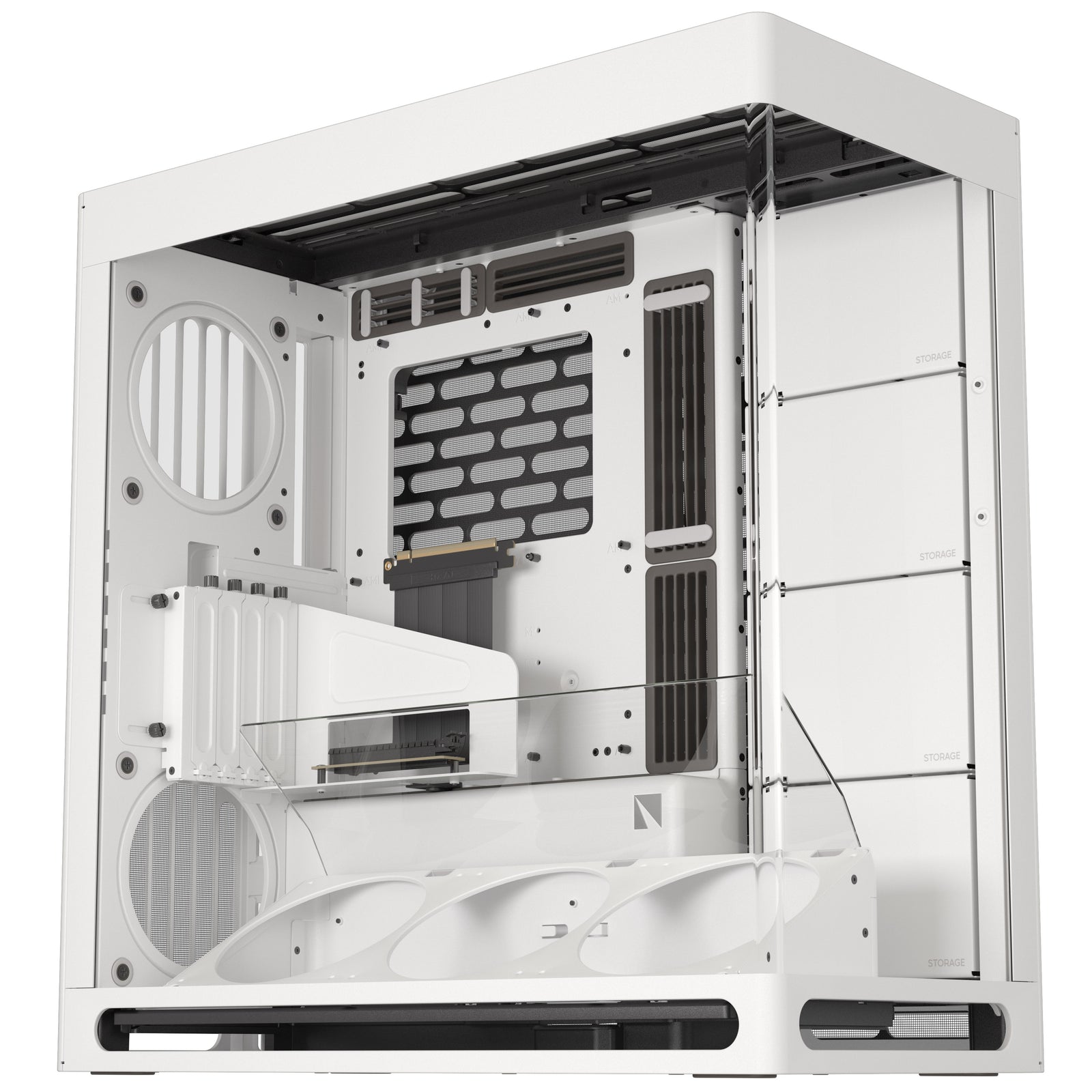

Elevate your gaming PC’s aesthetics with the HAVN HS 420 VGPU PC case. This mid-tower chassis has been CNC milled and curve stamped to produce its smooth contours and modern aesthetic. Even the PSU shroud has been intricately 3D stamped to match the design’s flow, with the added benefit of reducing noise and turbulence. The star piece of the HAVN HS 420 VGPU is the UniSheet panoramic glass. Using industry-leading techniques, this single pane has been heat-formed to feature the smallest possible curve, minimising visual distortion of your prized hardware within.

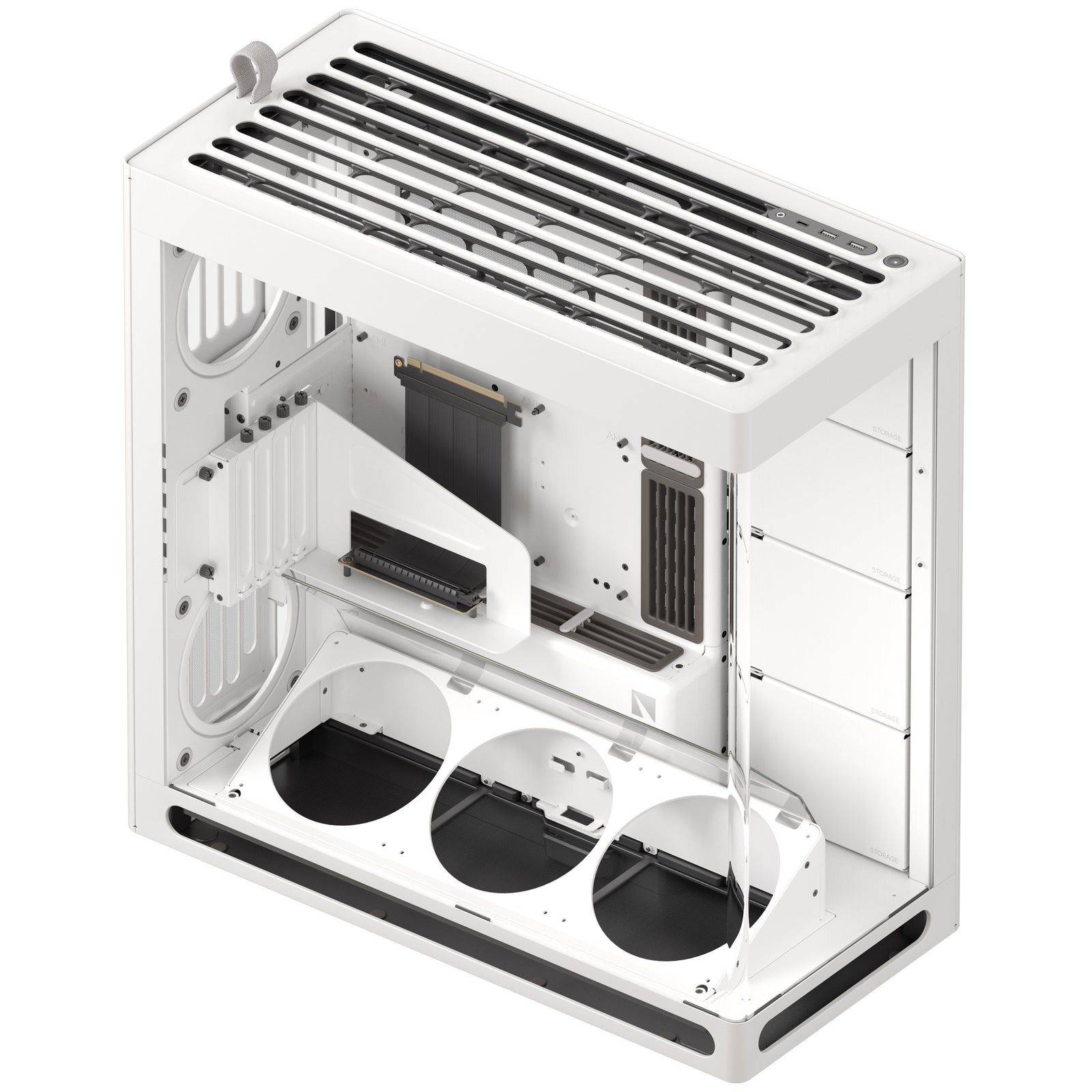

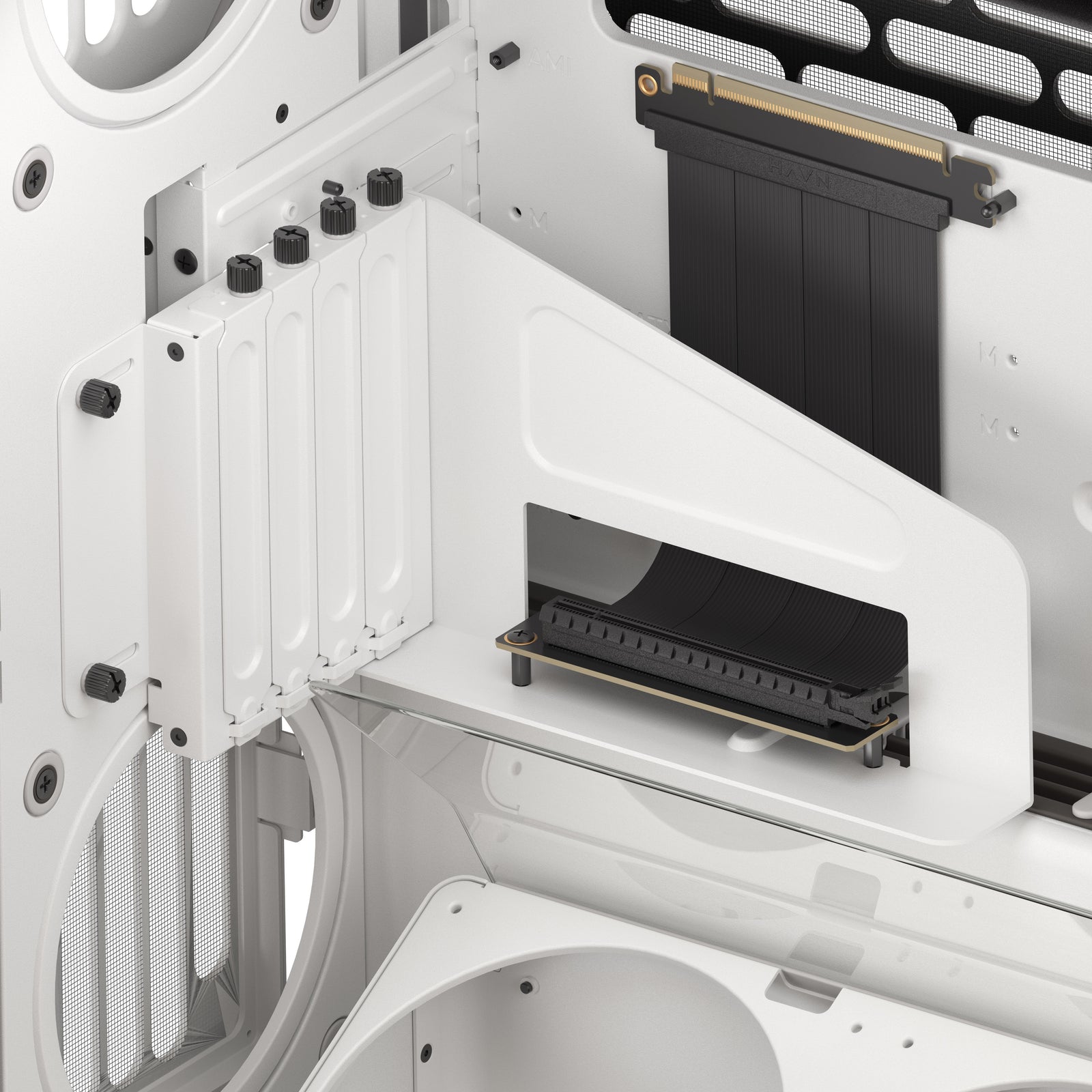

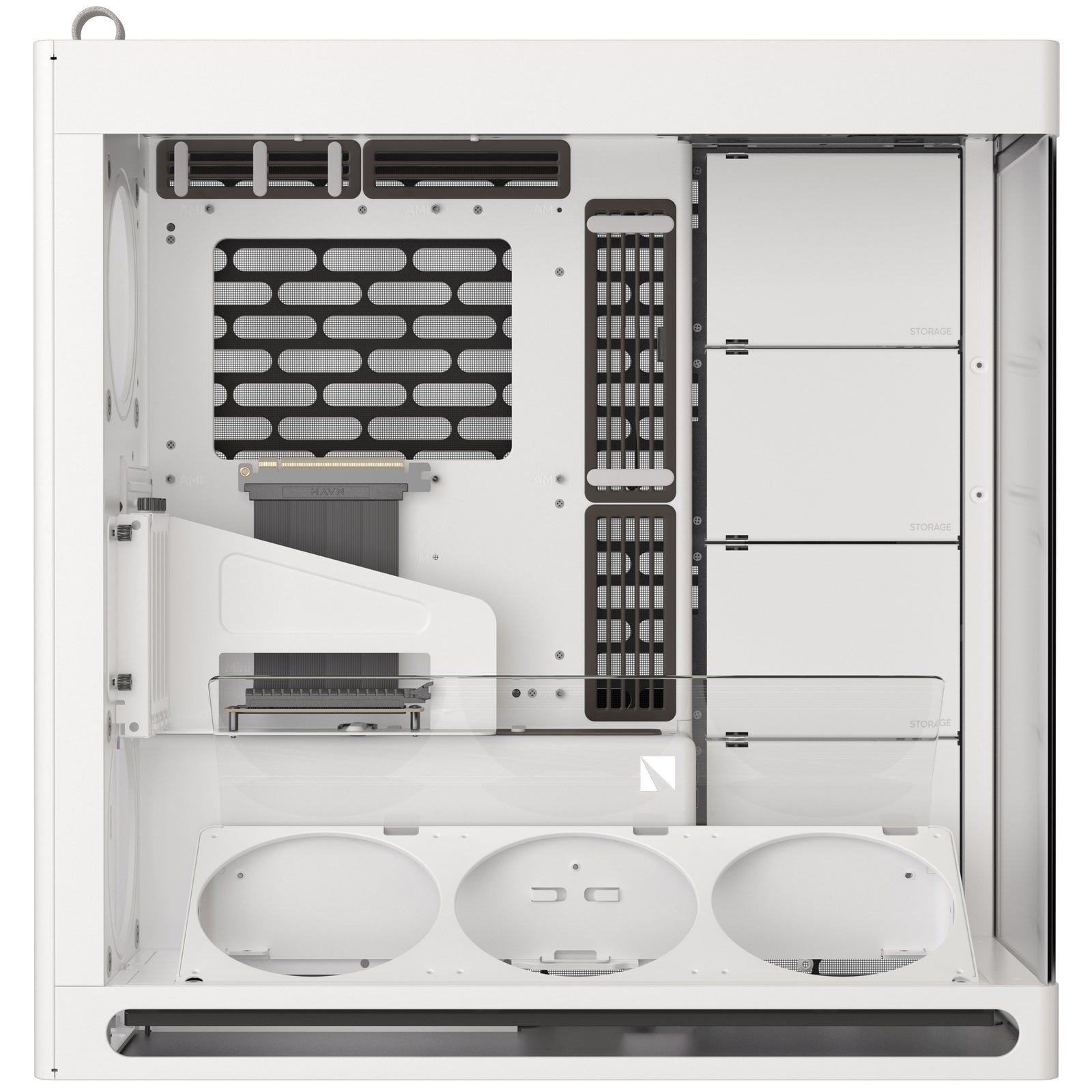

To best meet your gaming set-up's style, the HAVN HS 420 VGPU is available in black or white. This model is white, the perfect canvas for an all-white or RGB build. What’s more, the HAVN HS 420 VGPU Edition includes an innovative vertical GPU mount and PCIe 5.0 riser cable. The colour-matched mount seamlessly integrates with the PC case and is compatible with a wide variety of graphics cards. What sets this bracket apart is the included fan mount. This sits at the bottom of the case, with the fans angled to drive cool air directly onto the GPU whilst the warmer air is channelled behind the mount to be exhausted by fans and vents.

The HAVN HS 420 VGPU Edition does not include the flat, standard bottom fan bracket as featured on the Base Edition. This will be available for purchase separately soon.

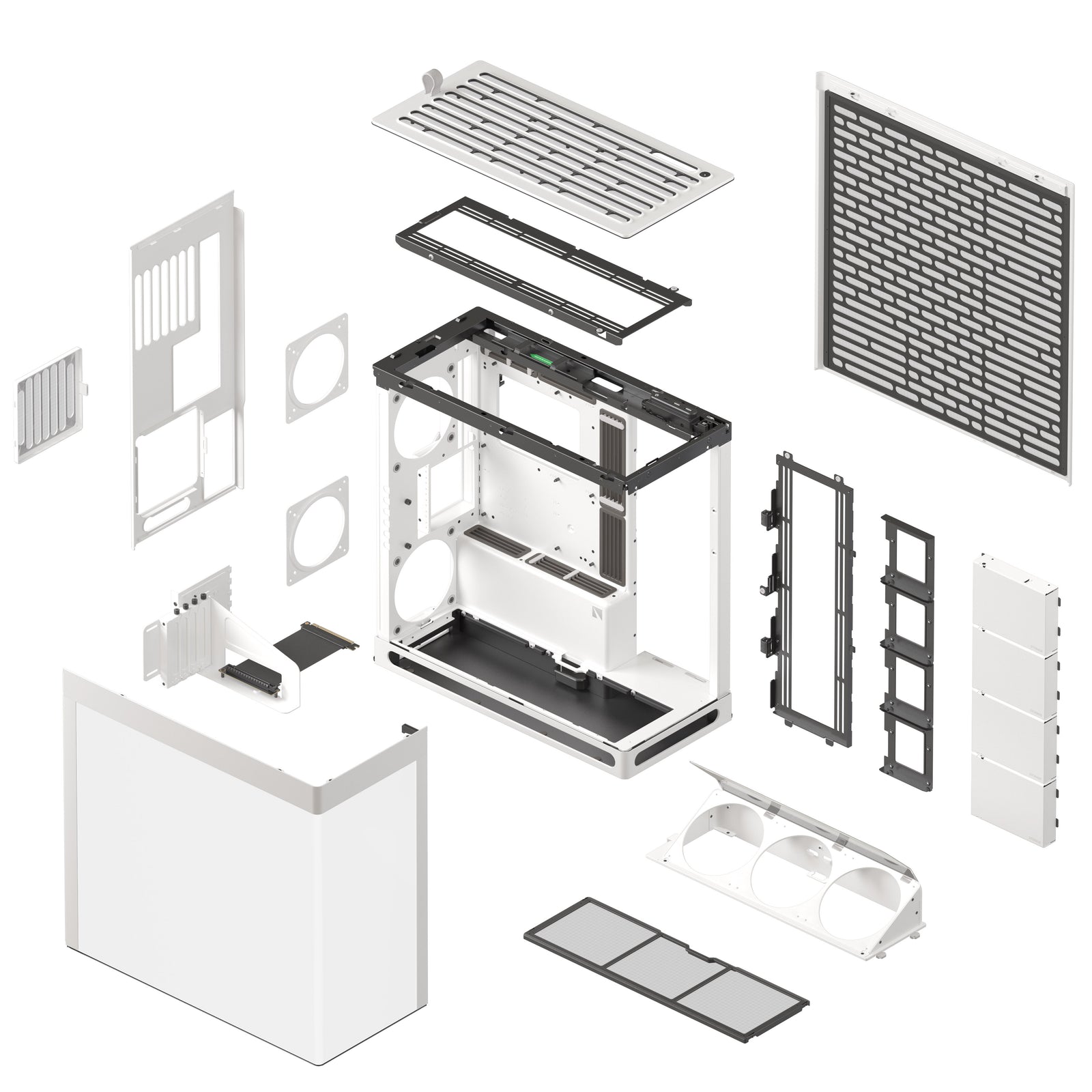

Hybrid Structure

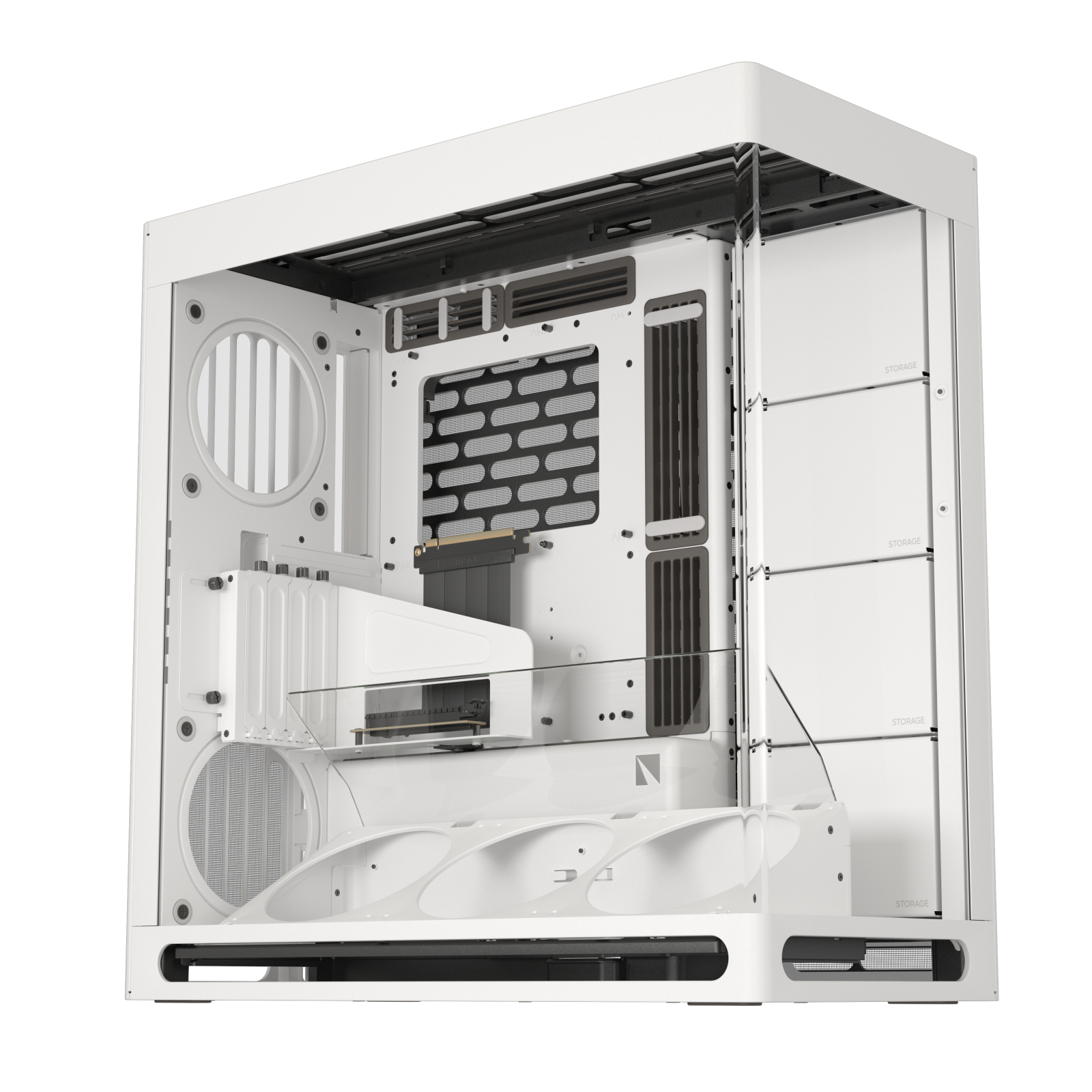

The HAVN HS 420 VGPU has a hybrid structure to optimise airflow within the chassis and facilitates extensive customisation while retaining a smaller footprint. The motherboard tray can support up to E-ATX boards, with a maximum width of 277mm, and there are six expansion slots for PCIe devices. Optimising compatibility with the current market, there is clearance for GPUs up to 470mm long and 195mm wide, taking up to four slots.

The PSU shroud supports ATX power supplies up to 220mm long but provides 190mm clearance to help with airflow. For storage, there is a single drive bay on the motherboard tray, which can be used for either one 3.5” HDD or two 2.5” SSDs. Additionally, the versatile space to the right of the motherboard can be used for up to four 3.5" or eight 2.5” SSDs. Thanks to its innovative design, the HAVN HS 420 VGPU can be configured to support a myriad of hardware configurations, including portable screens with VESA fittings (VESA mount provided).

Optimised Thermal Design

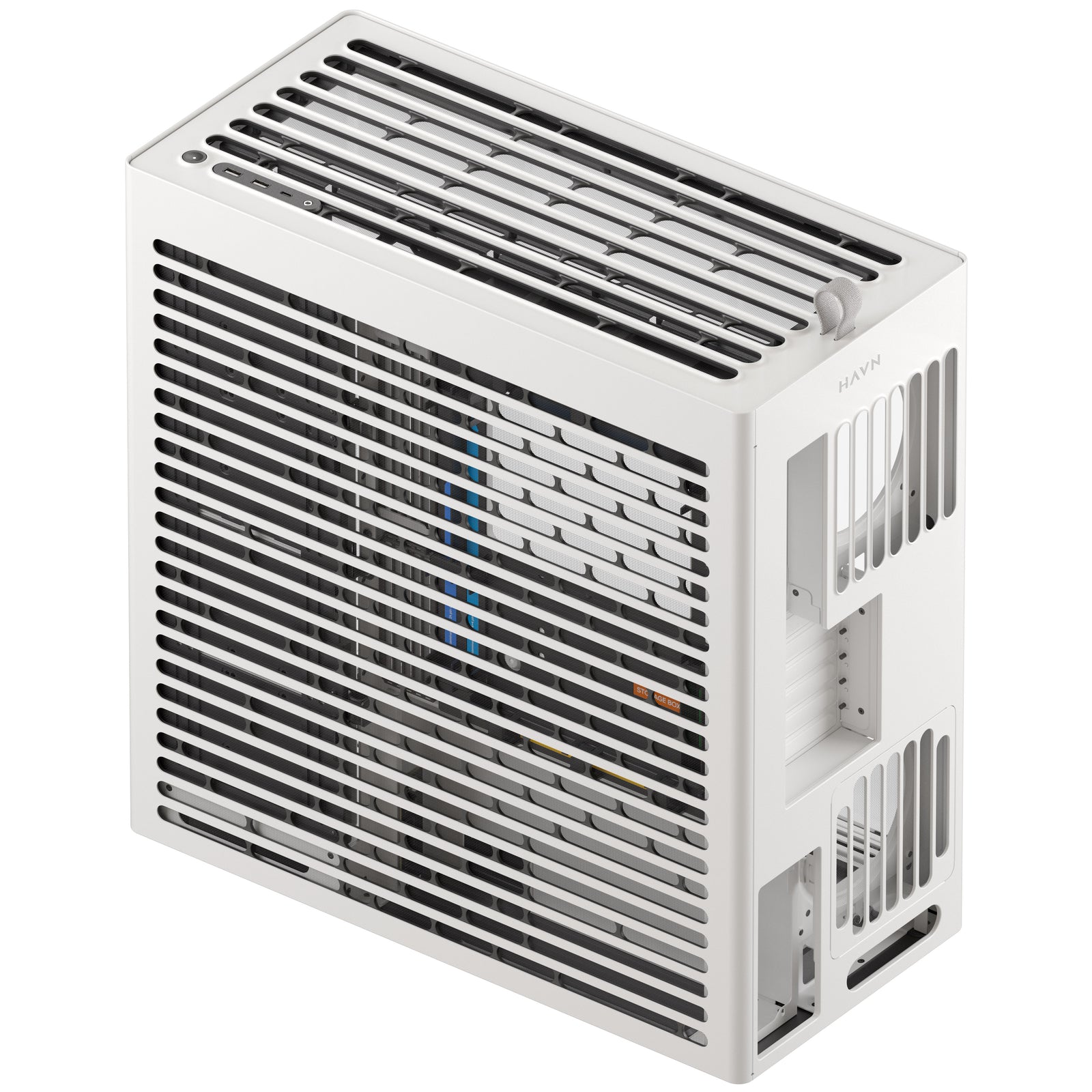

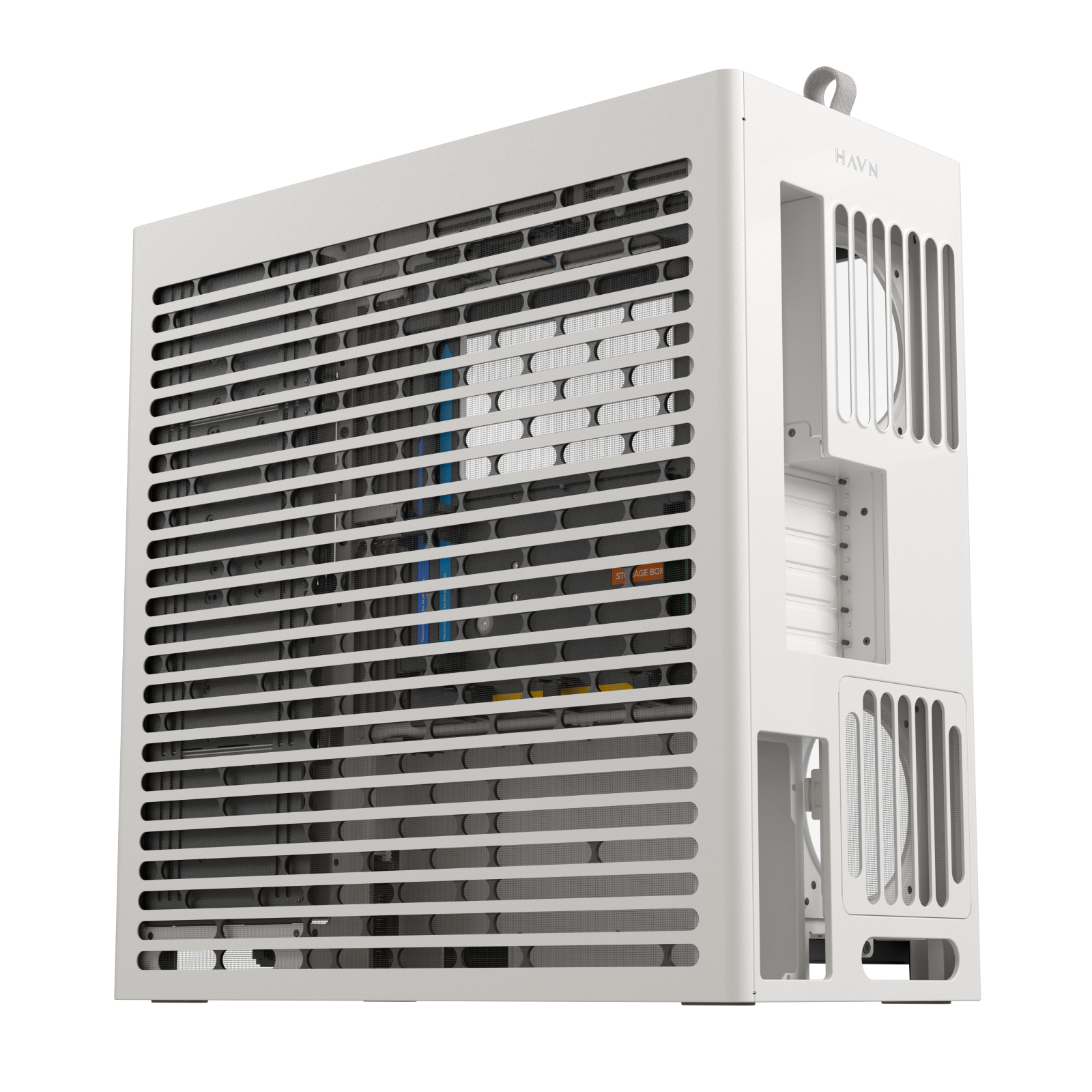

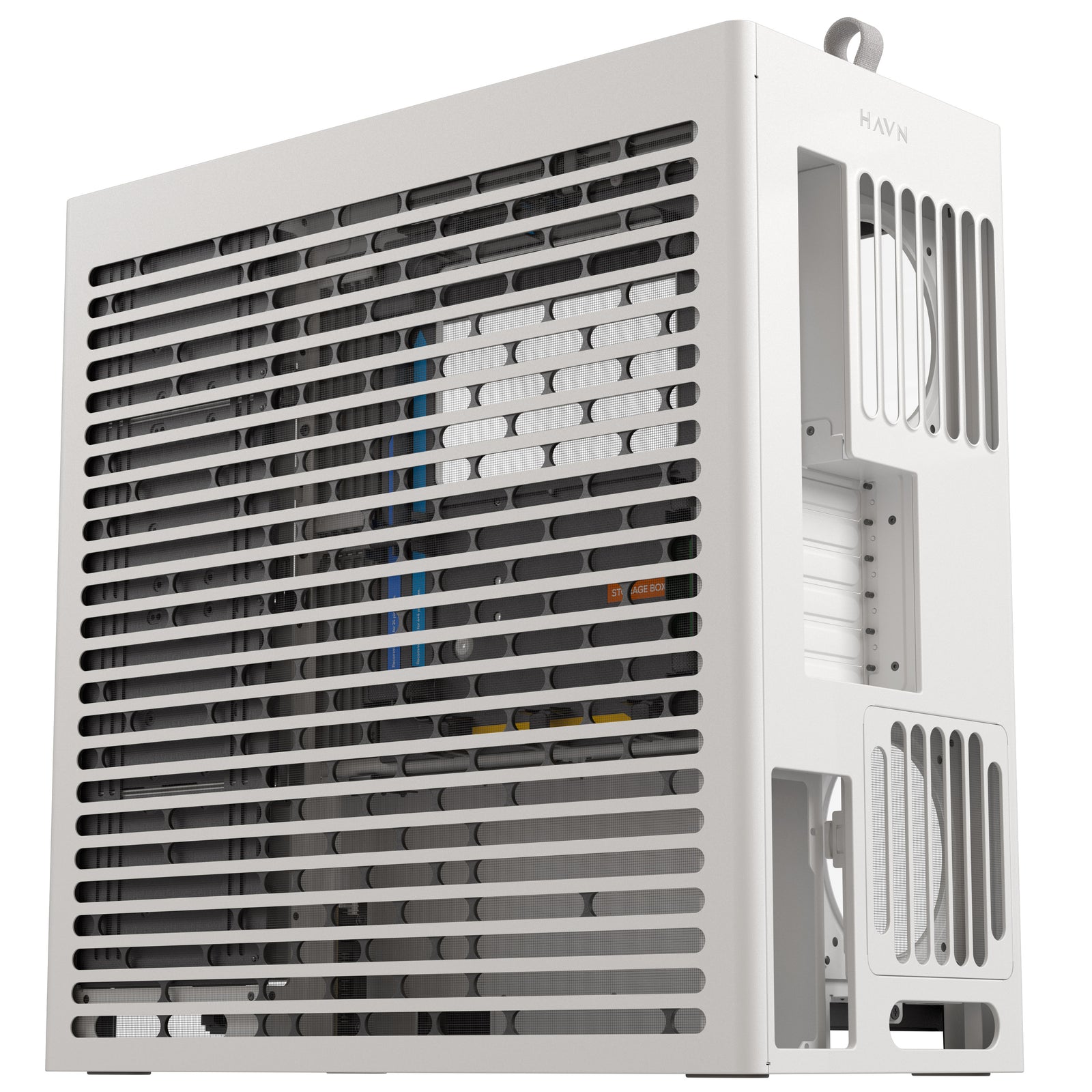

The HAVN HS 420 VGPU is a masterclass in thermal optimisation. Enhancing its modern looks are stylised custom vents on the top, left, and rear panel, whilst the bottom sports innovative cut-outs to bolster airflow. Each vent is equipped with built-in filters that are easy to remove and clean.

Within the chassis, you can mount up to eleven 140mm fans, positioned as three on the top, bottom, and side, and the final two on the rear panel. The fan brackets are removable, making installation a breeze, and they also feature vibration dampening rubber to minimise noise. If you prefer water-cooling, the top, bottom, and side can instead be used for radiators up to 420mm in length. Finally, the HAVN HS 420 VGPU has 185mm clearance for CPU coolers.

Innovative Features

On top of its stylish looks and extensive hardware support, the HAVN HS 420 VGPU has a selection of user-friendly features to optimise your experience with this PC case. All of the panels are magnetic, to provide easy access to the interior when installing or upgrading hardware. There is even an integrated guide wheel and rail system to make the process more intuitive.

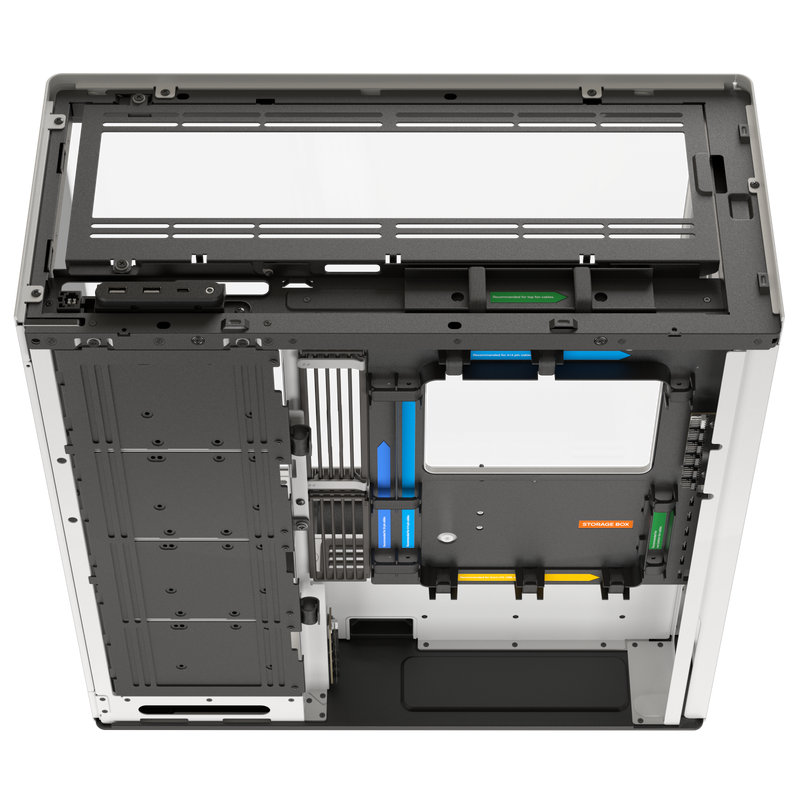

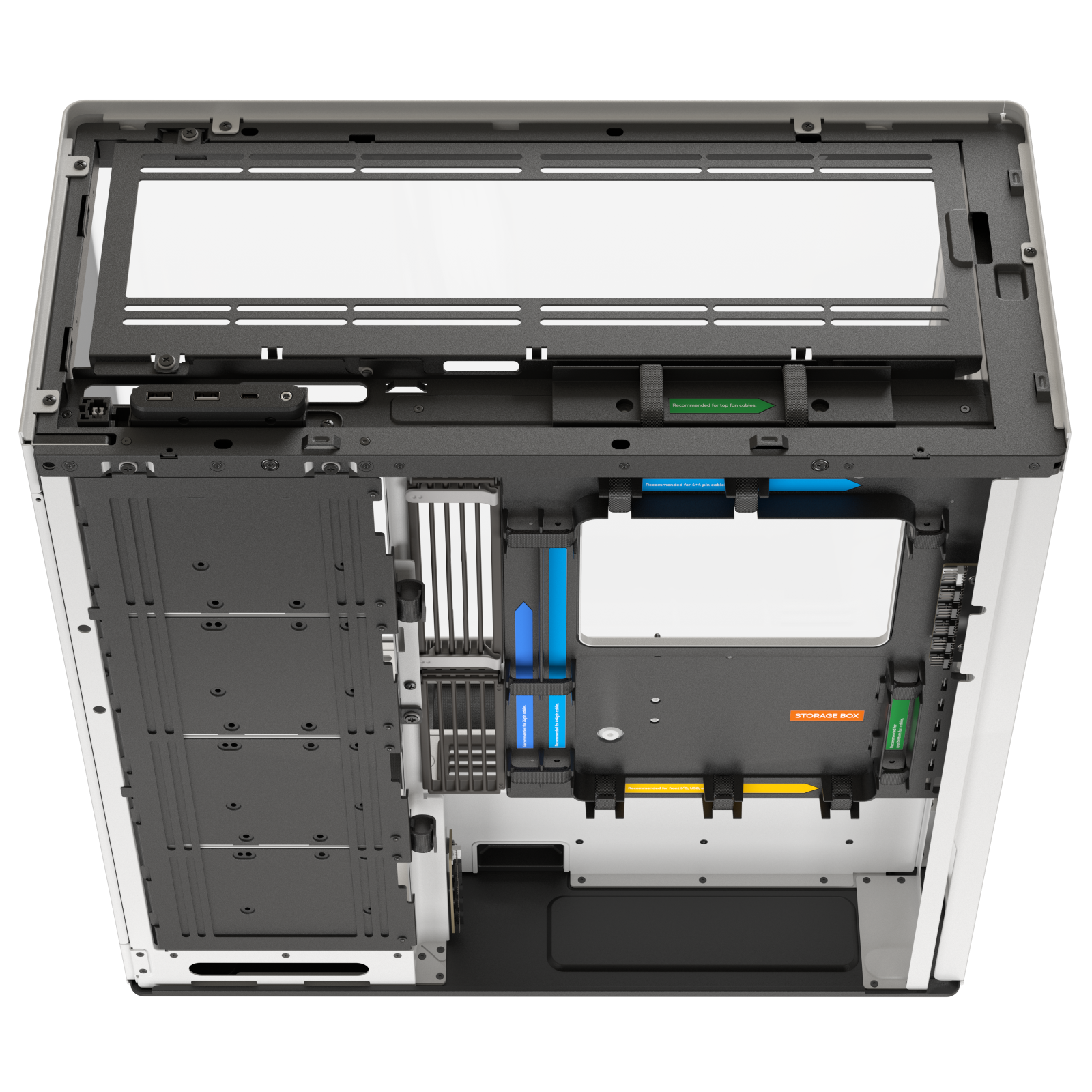

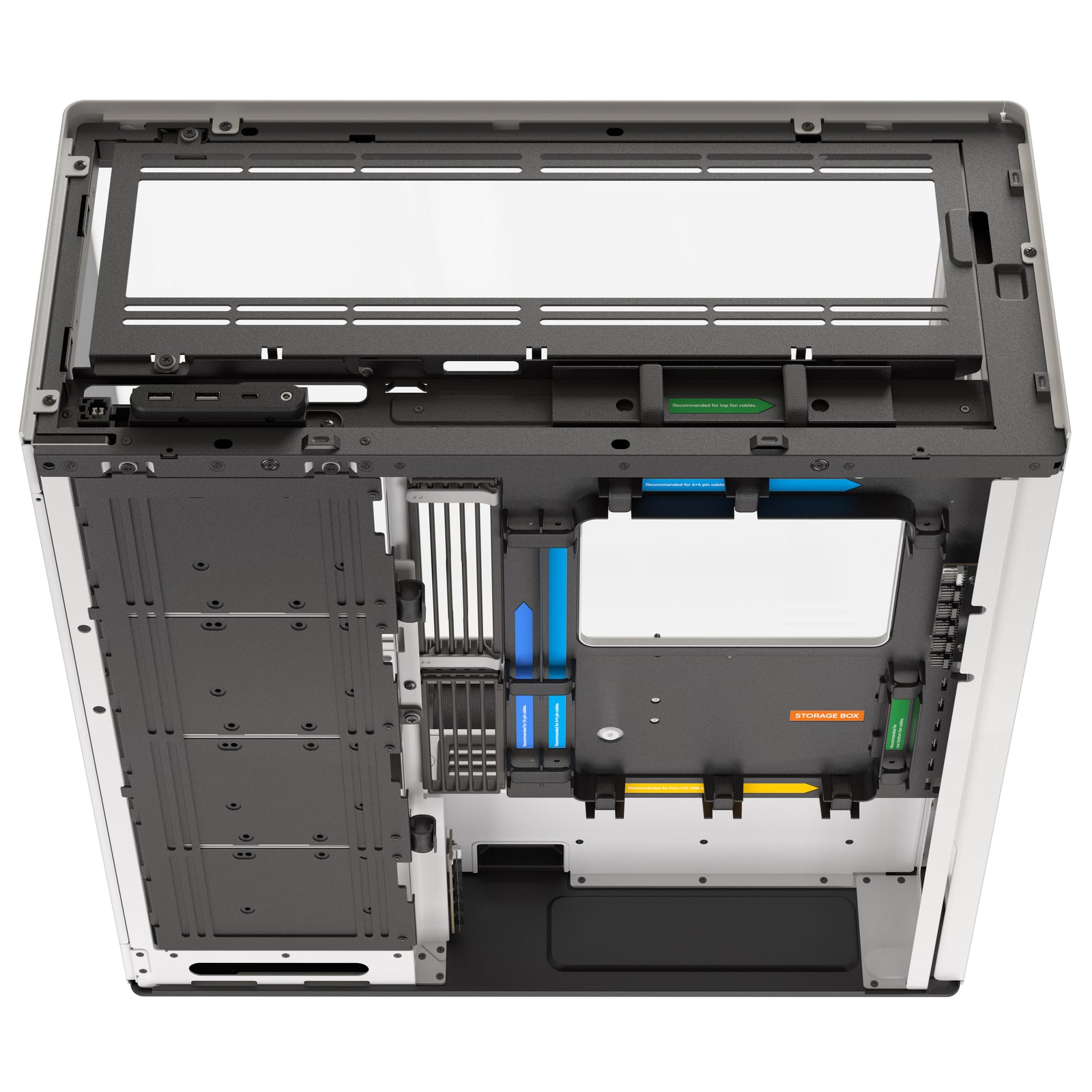

What’s more, there is a specialised SimpliCable routing system developed for this PC case. On the cable tray, there are channels with suggested cables to help streamline the building process.
