SKU CAS-FTL-02138EAN 7340172706564MPN FD-C-NOR1X-04
Overview

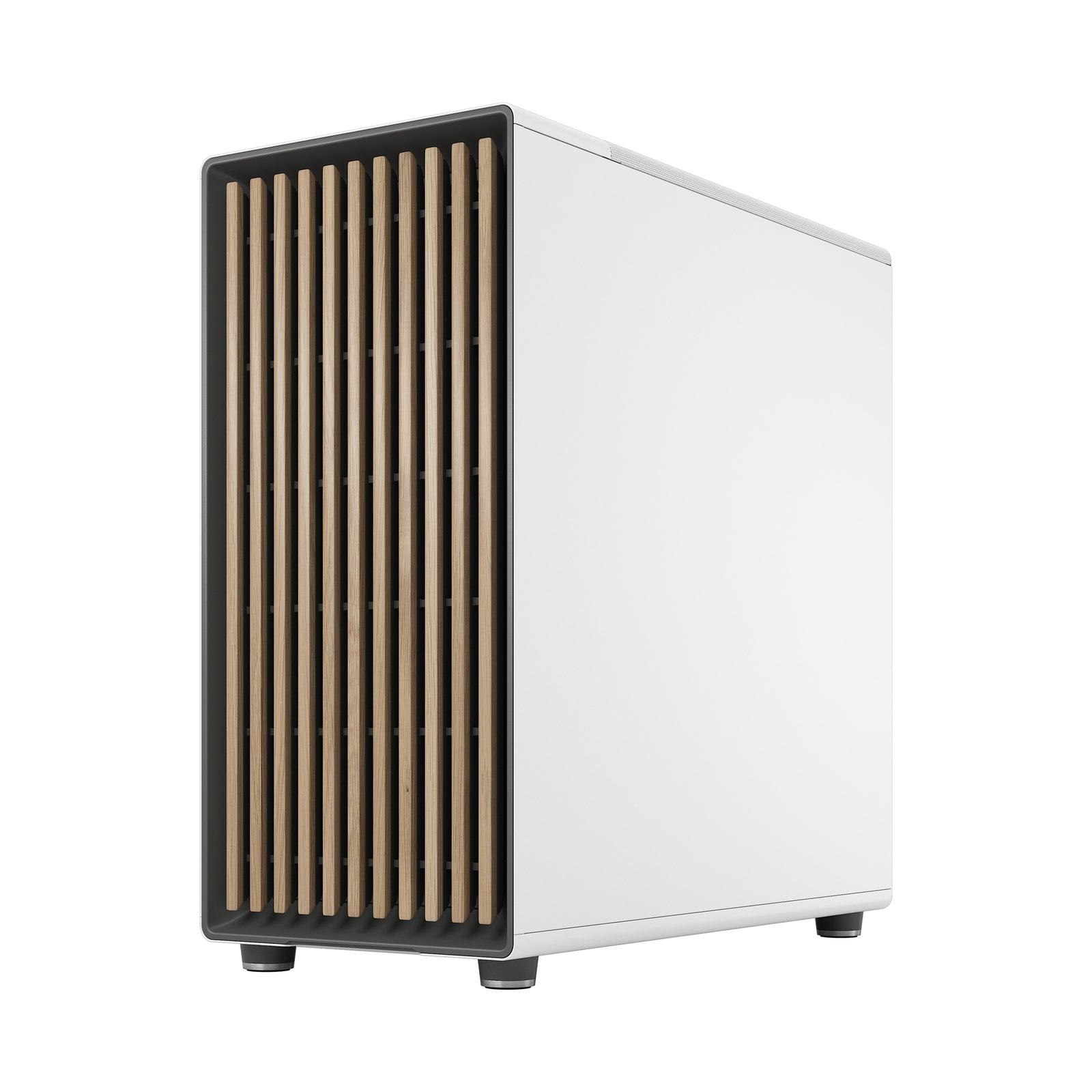

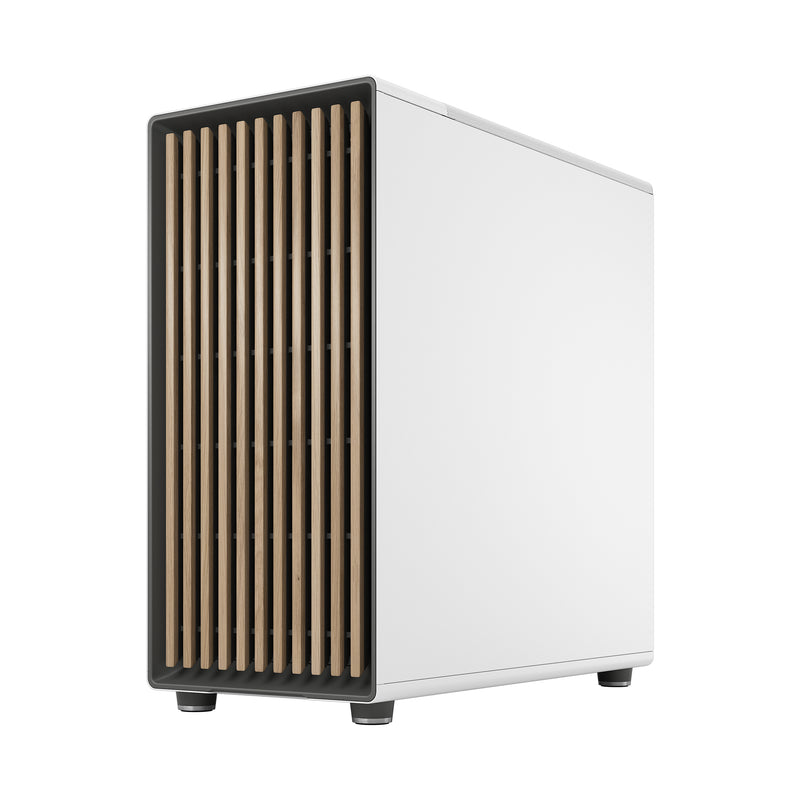

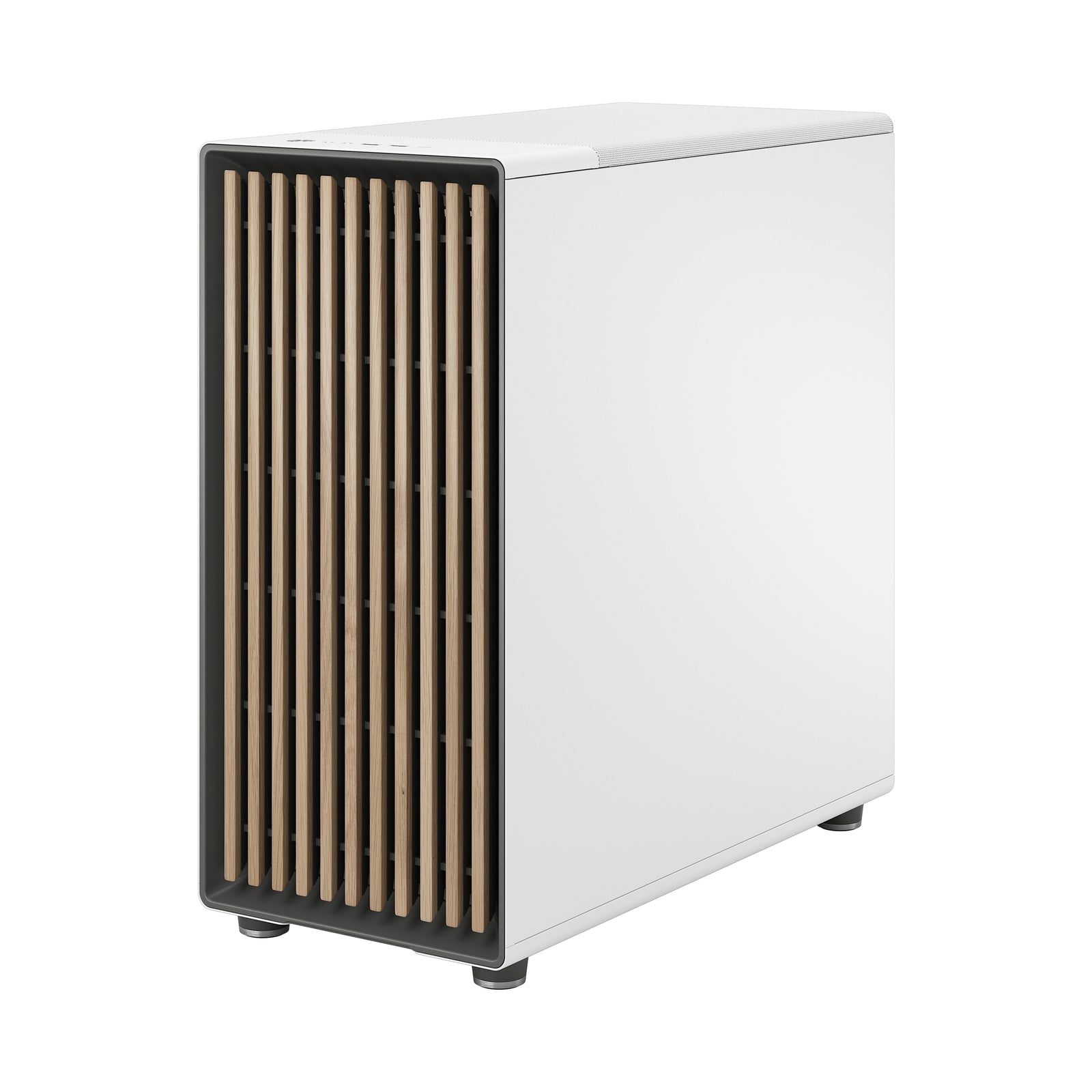

Fractal Design's North XL in Chalk White features spacious interior, tempered glass panels, and premium aesthetics for enthusiasts seeking a high-performance and visually stunning PC case solution.
North XL combines a transformative take on the gaming PC case with a generous form factor. It fuses design materials with airflow engineering, to make performance gaming a stylish addition to the living space. Inside, it boasts a spacious, flexible, and intuitive interior layout so you can make the most of your building and gaming experience.
North XL at a Glance
- Spacious Interior: The North XL offers ample space for high-end components and efficient cable management.

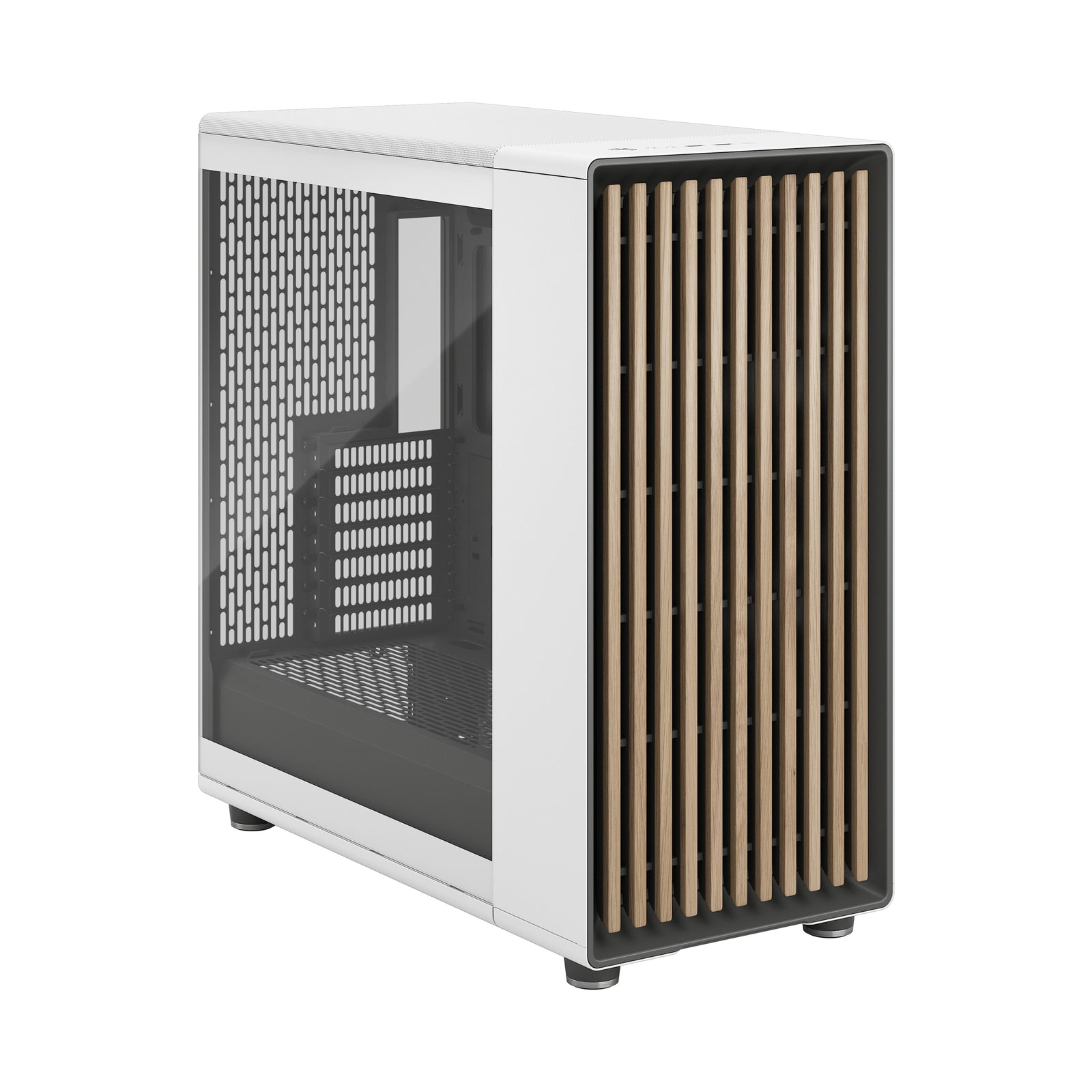

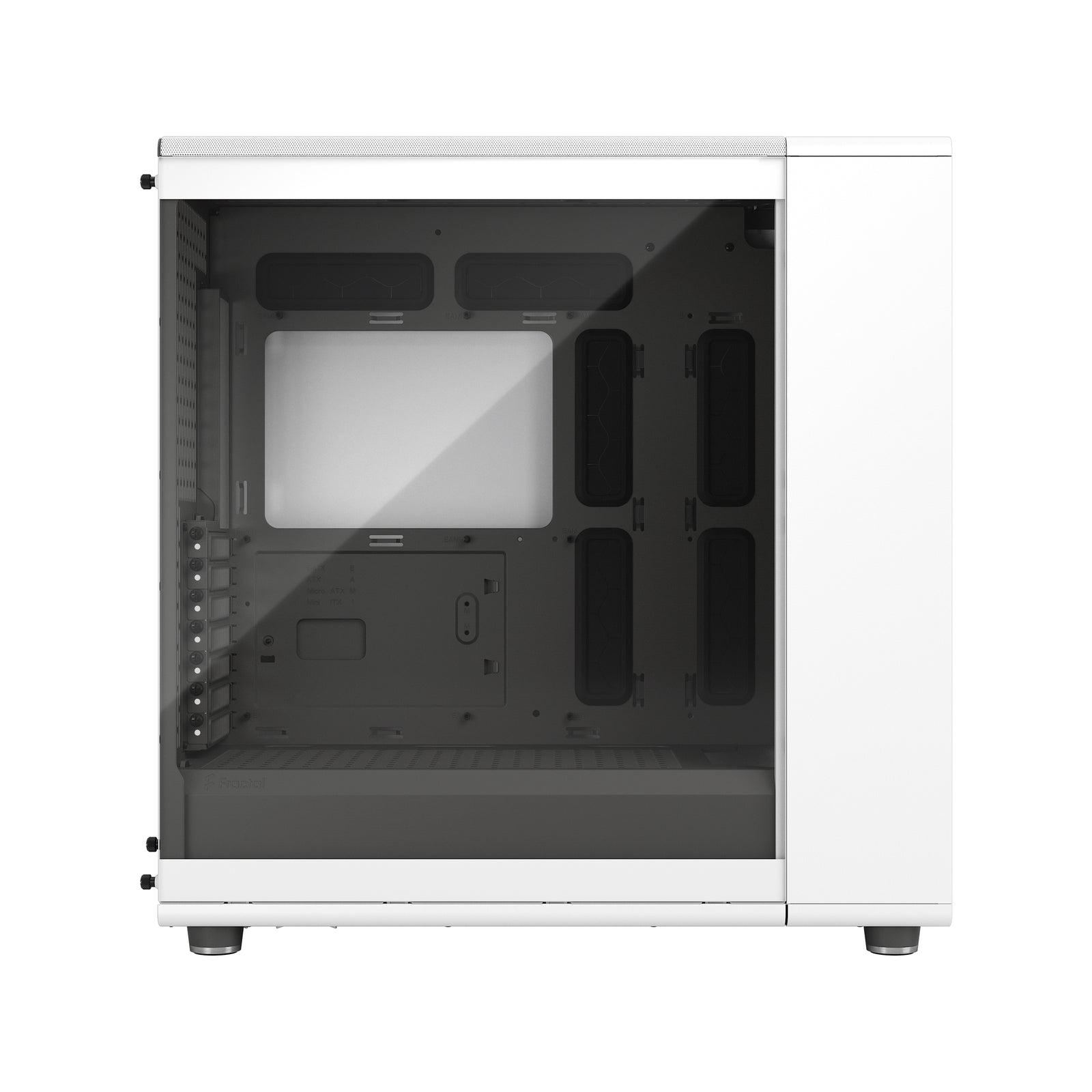

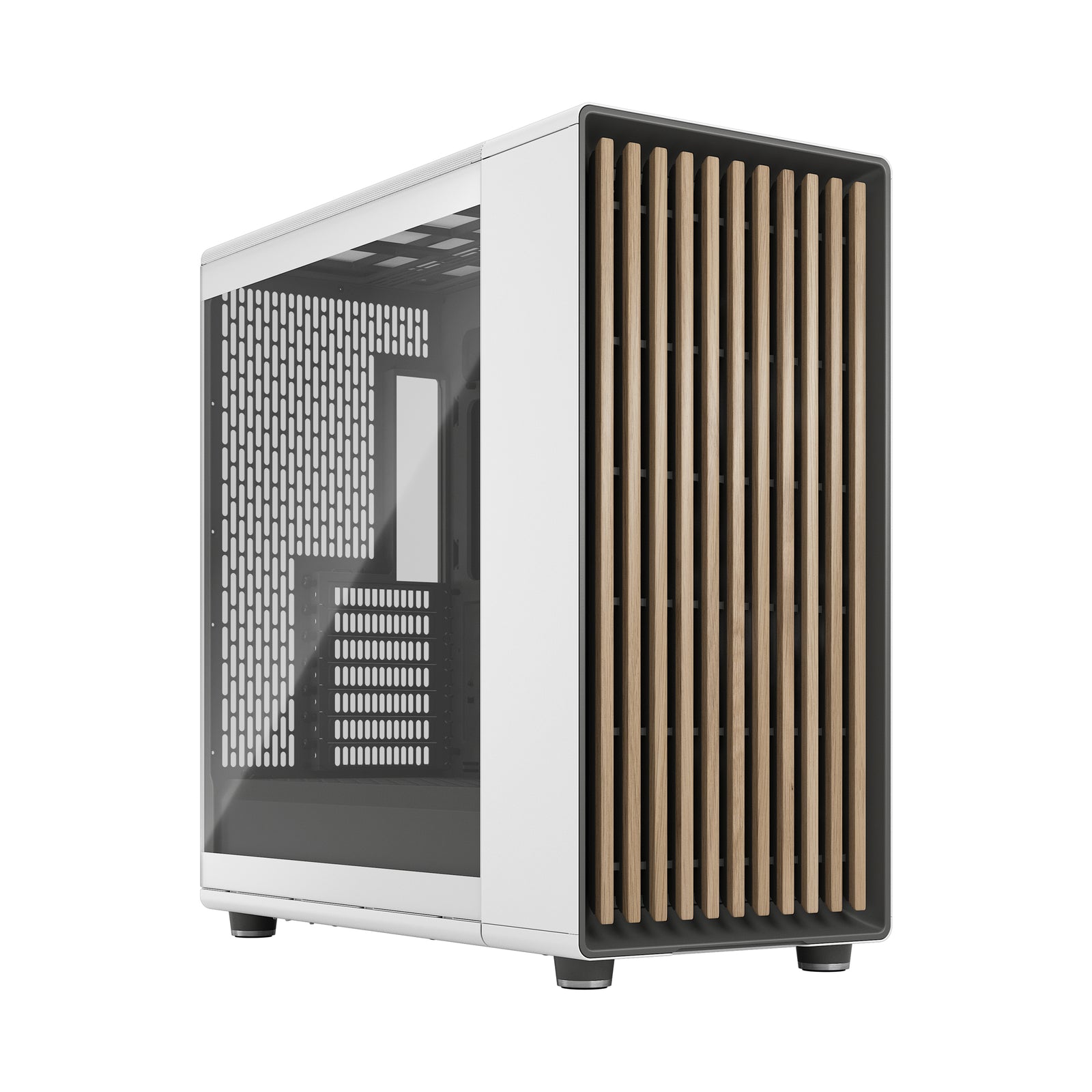

- Tempered Glass Panels: Showcase your build with tempered glass side panels, adding a touch of elegance.
- Premium Aesthetics: Featuring a sleek design and chalk white finish, the case exudes sophistication.
- Versatile Compatibility: Compatible with a wide range of hardware configurations, including EATX motherboards.
- Enhanced Cooling: Supports multiple fan and radiator configurations for optimal airflow and cooling performance.
- Easy Access: Tool-free installation and removable panels ensure convenient access for maintenance and upgrades.
North XL Specification
| Dedicated 2.5" Drive Mounts | 2 |
| Combined 3.5"/2.5" Drive Mounts | 2 included |
| 5.25" Drive Mounts | 0 |

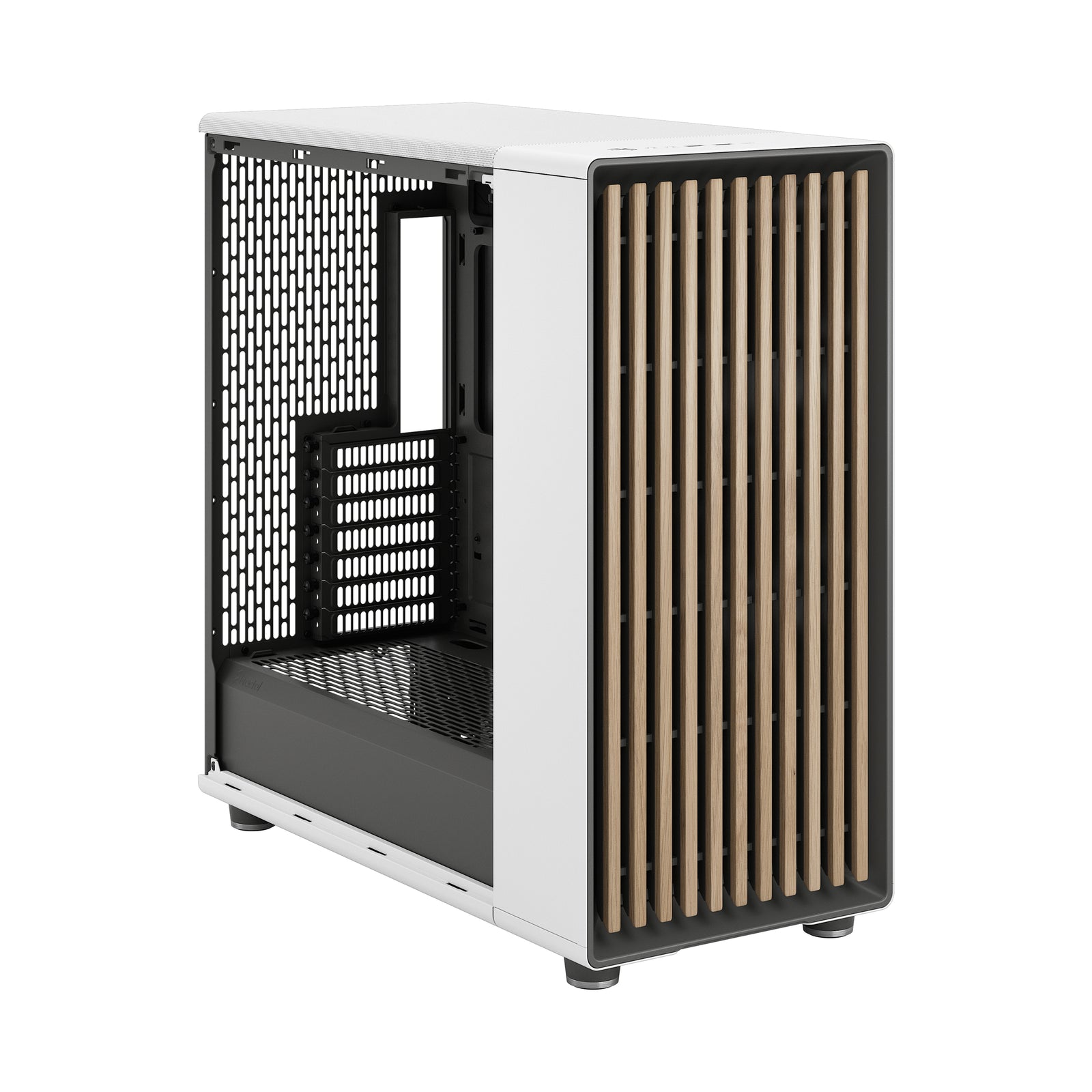

| Expansion Slots | 7 |

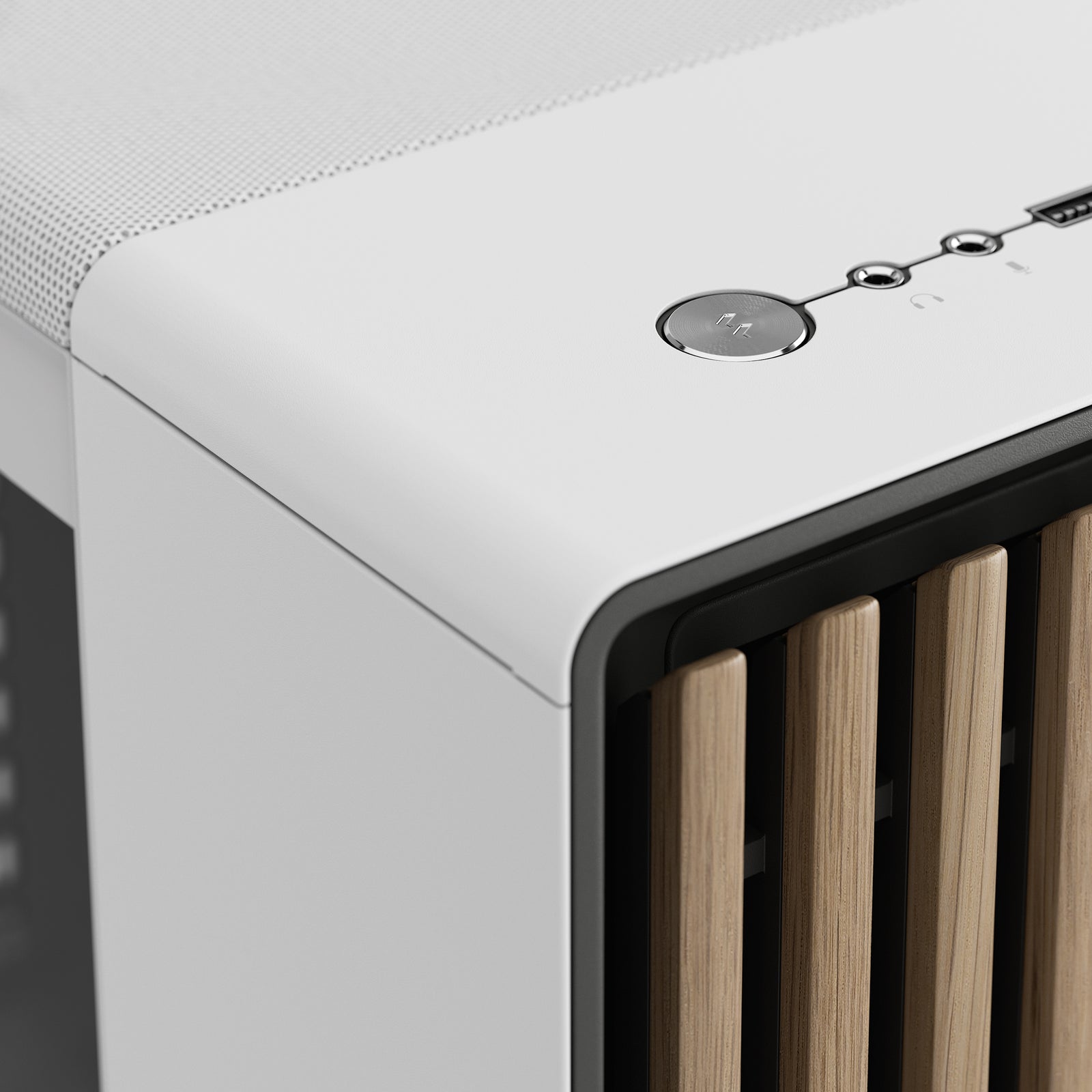

| Front Interface | 1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic |
| Total Fan Mounts (TG Version) | 7 x 120 mm or 6 x 140 mm |
| Total Fan Mounts (Mesh Version) | 9 x 120 mm or 8 x 140 mm |

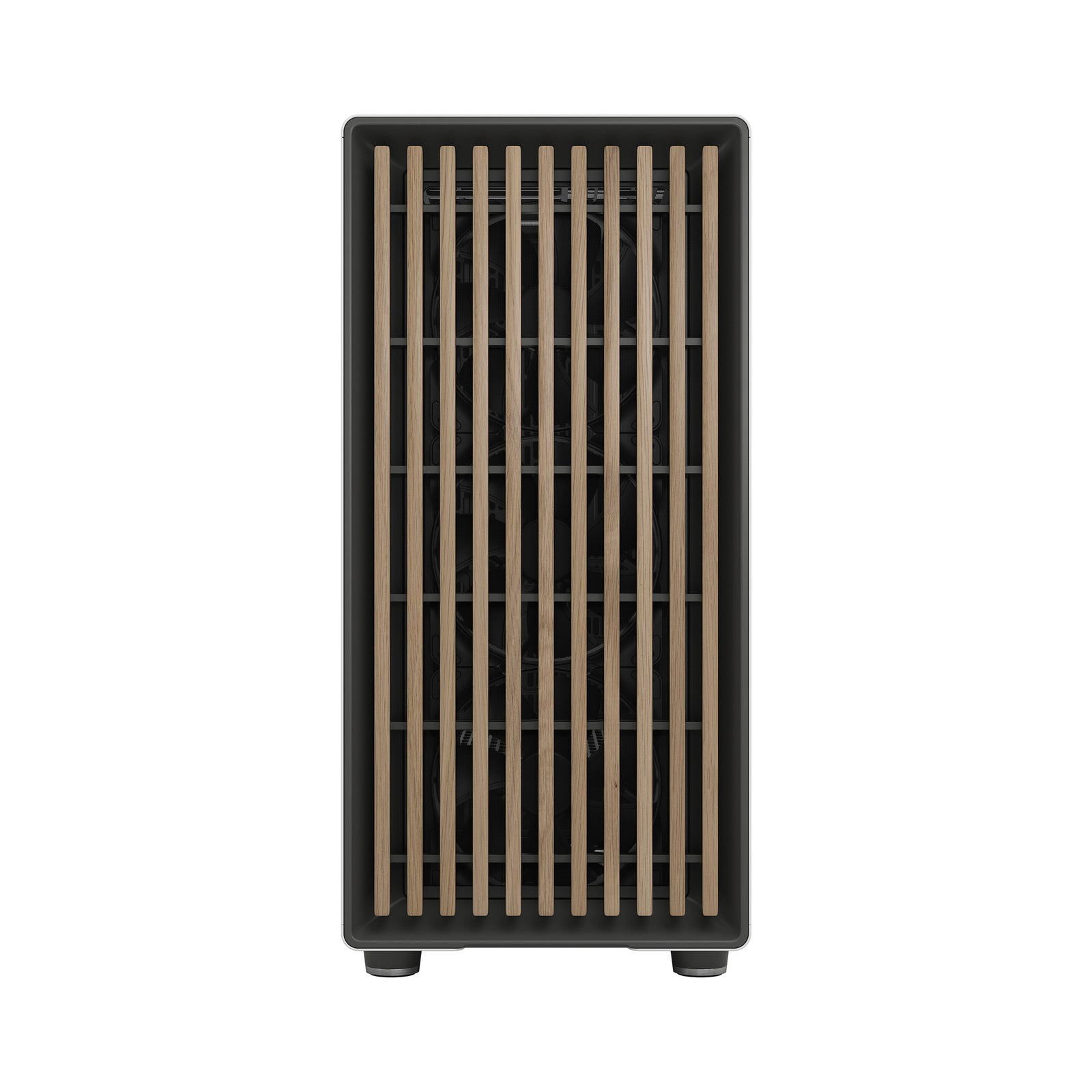

| Front Fan | 3 x 120 mm, 3 x 140 mm (3 x Aspect 140mm PWM included) |
| Top Fan | 3 x 120 mm, 2 x 140 mm or 2 x 180 mm |
| Rear Fan | 1 x 120/140 mm |
| Dust Filters | Front, PSU |
| Fixed Cable Straps | Yes |
| Cable Routing Grommets | Yes |

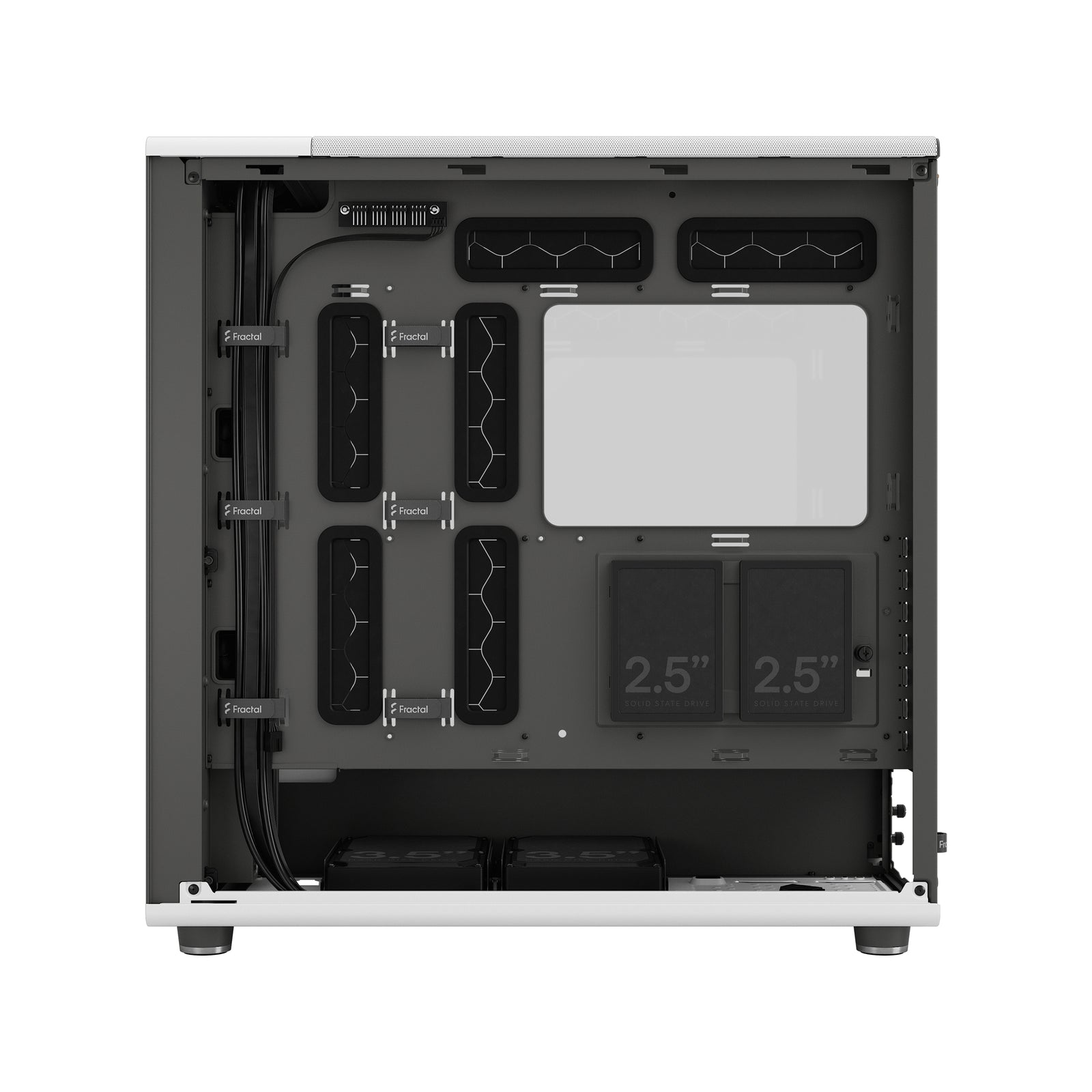

| Captive Thumbscrews | HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket |
| Left Side Panel | Mesh |

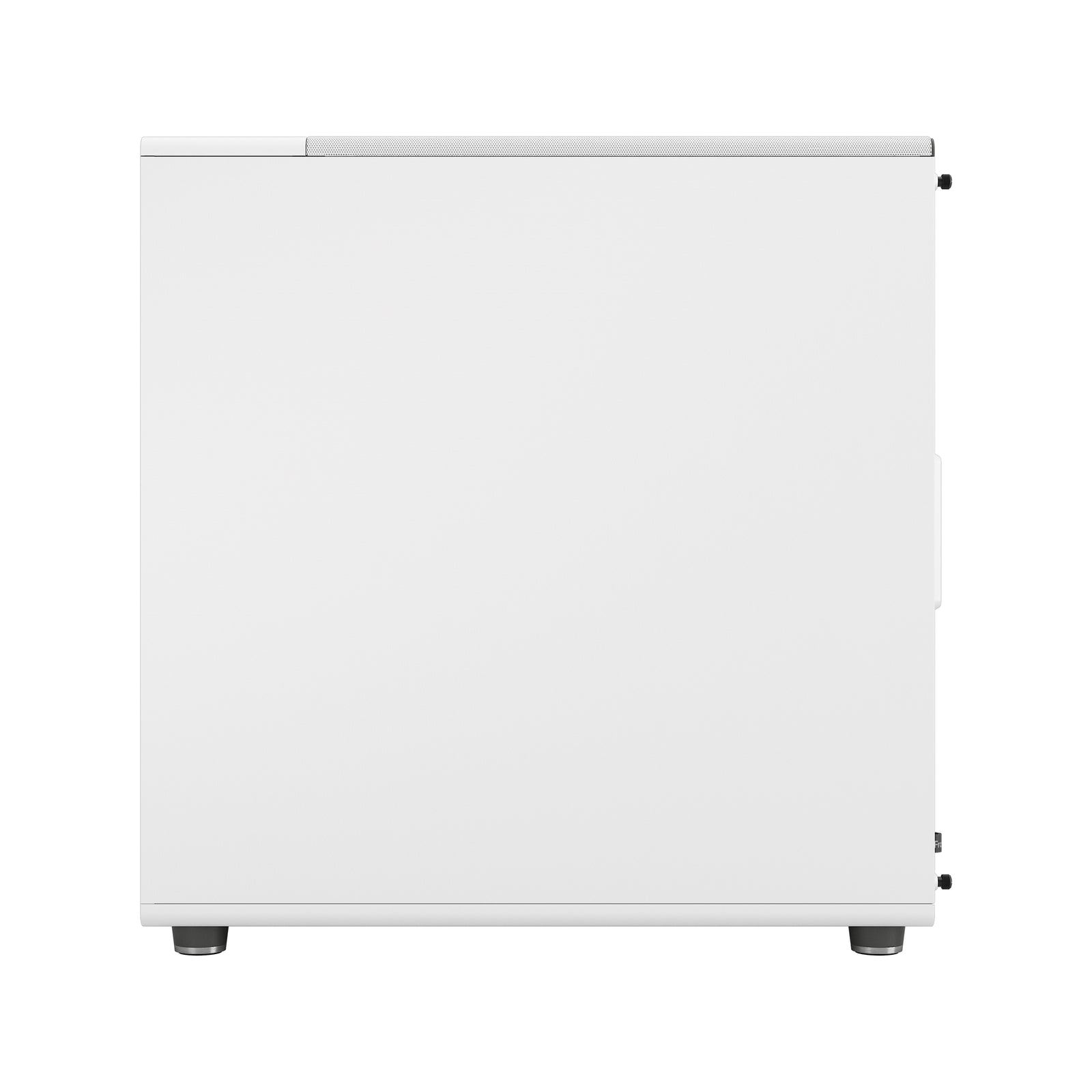

| Right Side Panel | Steel |
| Motherboard Compatibility | E-ATX / ATX / mATX / Mini-ITX |
| Power Supply Type | ATX |
| PSU Max Length | 1 HDD Tray: 290mm max, 2 HDD Trays: 175 mm |
| GPU Max Length | 413 mm with front fan mounted / 380 mm with a 33 mm-thick 420/360 mm front mounted radiator |
| CPU Cooler Max Height | 155 mm with Fan Bracket / 185 mm w.o. |
| Front Radiator | Up to 420/360 mm |
| Top Radiator | Up to 280/360 mm |
| Rear Radiator | 1 x 120/140 mm |

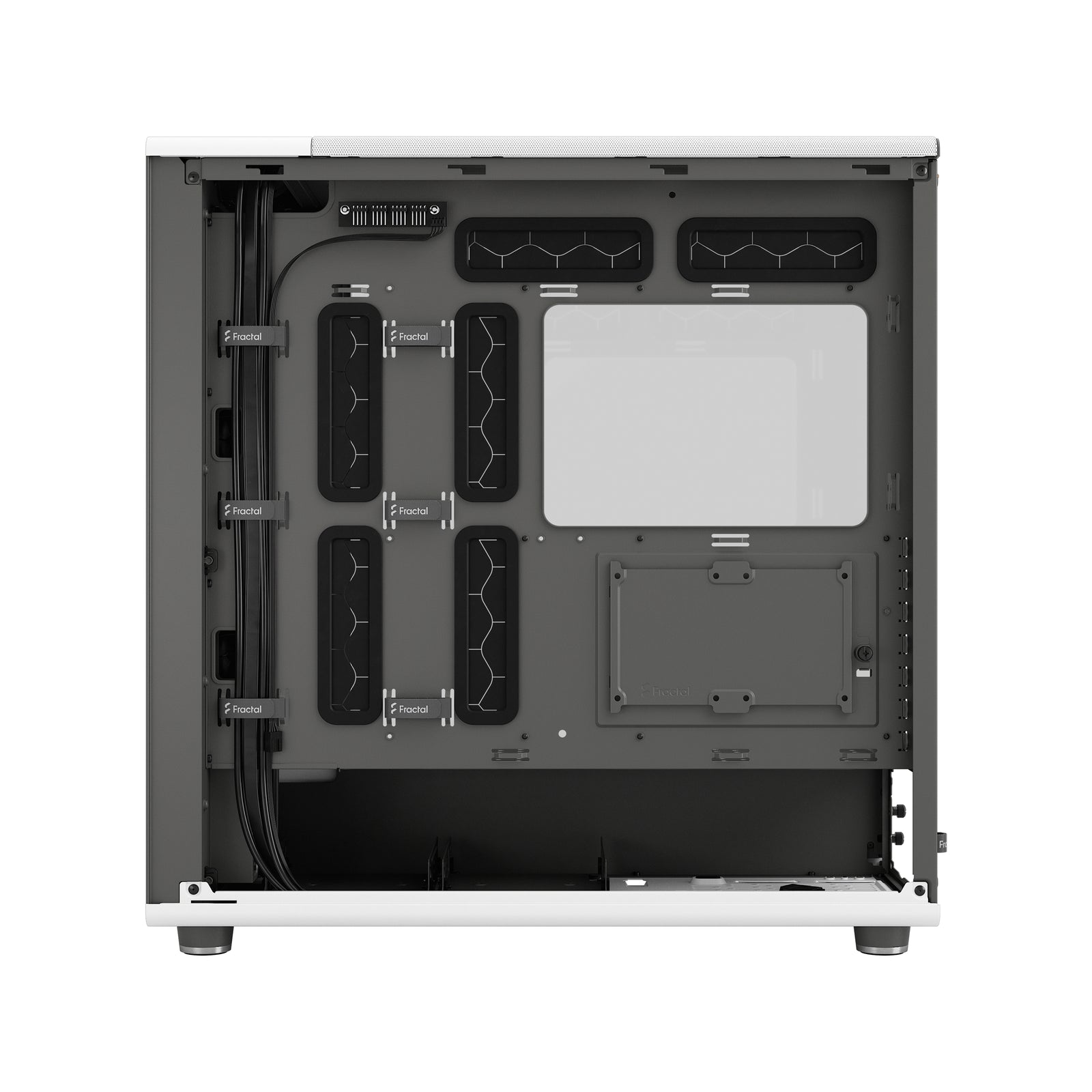

| Cable Routing Space | 29 mm |
| Case Dimensions (LxWxH) | 503 x 240 x 509 mm |
| Case Dimensions w/o Feet/Protrusions/Screws | 490 x 240 x 490 mm |
| Net Weight | 9.7 kg (Mesh) / 9.5 kg (TG) |
| Package Dimensions (LxWxH) | 604 x 355 x 608 mm |
| Gross Weight | 11.9 kg (Mesh) / 11.7 kg (TG) |
Specifications
| Case Features | I/O position Top Side panel with window Vertical GPU Mount No Adjustable Vertical GPU Bracket No Front door No Cable Management Yes Filters Included Yes Filter Position Bottom, Front Noise dampening No Mainboard slide / tray No Transport System No Back Connect Back Connect No Radiator Support Radiator/AIO Support (Rear) 120mm Radiator, 140mm Radiator Max. Radiator Compatibility 1x Single (140 mm), 1x Triple (360 mm), 1x Triple (420 mm) Radiator/AIO Support (Front) 360mm Radiator, 420mm Radiator Radiator/AIO Support (Top) 280mm Radiator, 360mm Radiator Colour Primary Colour White Motherboard Support Compatible Motherboard Formats E-ATX, ATX, Micro-ATX, Mini-ITX Max. Motherboard Format E-ATX Power Supply PSU included No PSU Format ATX Power Supply Position rear bottom Fan Support Max. Number of Fans 7 Case Fan Support (Rear) 120mm Fan (1x), 140mm Fan (1x) Case Fan Support (Front) 120mm Fan (3x), 140mm Fan (3x) Case Fan Support (Top) 120mm Fan (3x), 140mm Fan (2x), 180mm Fan (2x) 120 mm fans 7 140 mm fans 6 180 mm fans 2 Drive Bays Max. 2.5 Inch Drives 4 Max. 3.5 Inch Drives 2 Max. 5.25 Inch Drives 0 2.5 inch internal drive bay 2 1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) 2 Hot swap drive bays No Display Display Included No Dimensions Length / Depth 503 mm Width 240 mm Height 509 mm Weight 9.5 kg External Ports Front I/O – USB Type C Ports Total 1 Front I/O – USB Type A Ports Total 2 USB 3.2 (external) Type C 1 USB 3.0 (external) Type A 2 Audio outputs & inputs 1x output + 1x input (3.5 mm jack, 3-pin, TRS) Expansion Slots Expansion slots / PCI slots 7 Materials Materials Plastic, Steel, Wood Internal Dimensions Max. CPU Cooler Height 185 mm Max. GPU Length 413 mm Max. PSU Length / Depth 290 mm Lighting Lighting / RGB No Additional Contents Fans Included Yes Included fans 3x 140 mm Mounting Internal Monitor Mount No Case VESA Mountable No Case Case Type Mid Tower Features Housing Feedthrough No Fan Header Fan Controller / Fan Hub No Cable Specifications Riser Cable Included No Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Connectivity Card reader No |
|---|---|
| I/O position | Top |
| Side panel | with window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Filter Position | Bottom, Front |
| Noise dampening | No |
| Mainboard slide / tray | No |
| Transport System | No |
| Back Connect | No |
| Radiator/AIO Support (Rear) | 120mm Radiator, 140mm Radiator |
| Max. Radiator Compatibility | 1x Single (140 mm), 1x Triple (360 mm), 1x Triple (420 mm) |
| Radiator/AIO Support (Front) | 360mm Radiator, 420mm Radiator |
| Radiator/AIO Support (Top) | 280mm Radiator, 360mm Radiator |
| Primary Colour | White |
| Compatible Motherboard Formats | E-ATX, ATX, Micro-ATX, Mini-ITX |
| Max. Motherboard Format | E-ATX |
| PSU included | No |
| PSU Format | ATX |
| Power Supply Position | rear bottom |
| Max. Number of Fans | 7 |
| Case Fan Support (Rear) | 120mm Fan (1x), 140mm Fan (1x) |
| Case Fan Support (Front) | 120mm Fan (3x), 140mm Fan (3x) |
| Case Fan Support (Top) | 120mm Fan (3x), 140mm Fan (2x), 180mm Fan (2x) |
| 120 mm fans | 7 |
| 140 mm fans | 6 |
| 180 mm fans | 2 |
| Max. 2.5 Inch Drives | 4 |
| Max. 3.5 Inch Drives | 2 |
| Max. 5.25 Inch Drives | 0 |
| 2.5 inch internal drive bay | 2 |
| 1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) | 2 |
| Hot swap drive bays | No |
| Display Included | No |
| Length / Depth | 503 mm |
| Width | 240 mm |
| Height | 509 mm |
| Weight | 9.5 kg |
| Front I/O – USB Type C Ports Total | 1 |
| Front I/O – USB Type A Ports Total | 2 |
| USB 3.2 (external) Type C | 1 |
| USB 3.0 (external) Type A | 2 |
| Audio outputs & inputs | 1x output + 1x input (3.5 mm jack, 3-pin, TRS) |
| Expansion slots / PCI slots | 7 |
| Materials | Plastic, Steel, Wood |
| Max. CPU Cooler Height | 185 mm |
| Max. GPU Length | 413 mm |
| Max. PSU Length / Depth | 290 mm |
| Lighting / RGB | No |
| Fans Included | Yes |
| Included fans | 3x 140 mm |
| Internal Monitor Mount | No |
| Case VESA Mountable | No |
| Case Type | Mid Tower |
| Housing Feedthrough | No |
| Fan Controller / Fan Hub | No |
| Riser Cable Included | No |
| Compatibility Note | Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. |
| Card reader | No |
Specifications
| Manufacturer | Fractal Design |
|---|---|
| Manufacturer part number | FD-C-NOR1X-04 |
| OcUK SKU | CAS-FTL-02138 |
| EAN | 7340172706564 |
| Back Connect | No |
| Case Type | Mid Tower |
| Included fans | 3x 140 mm |
| Lighting / RGB | No |
| Power Supply Position | rear bottom |
| Primary Colour | White |
| PSU Format | ATX |
