SKU CAS-FTL-03591EAN 7340172707196MPN FD-C-MES3A-04
Overview
Experience advanced cooling and expressive, aerodynamic design. An evolution of our mesh performance series, Meshify 3 offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting in Ambience Pro RGB versions.

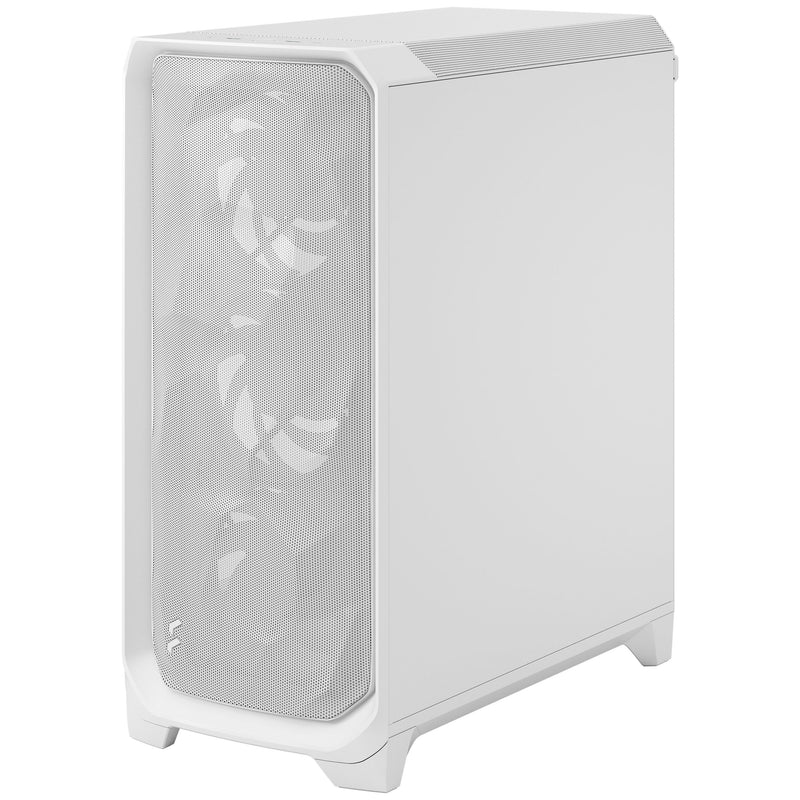

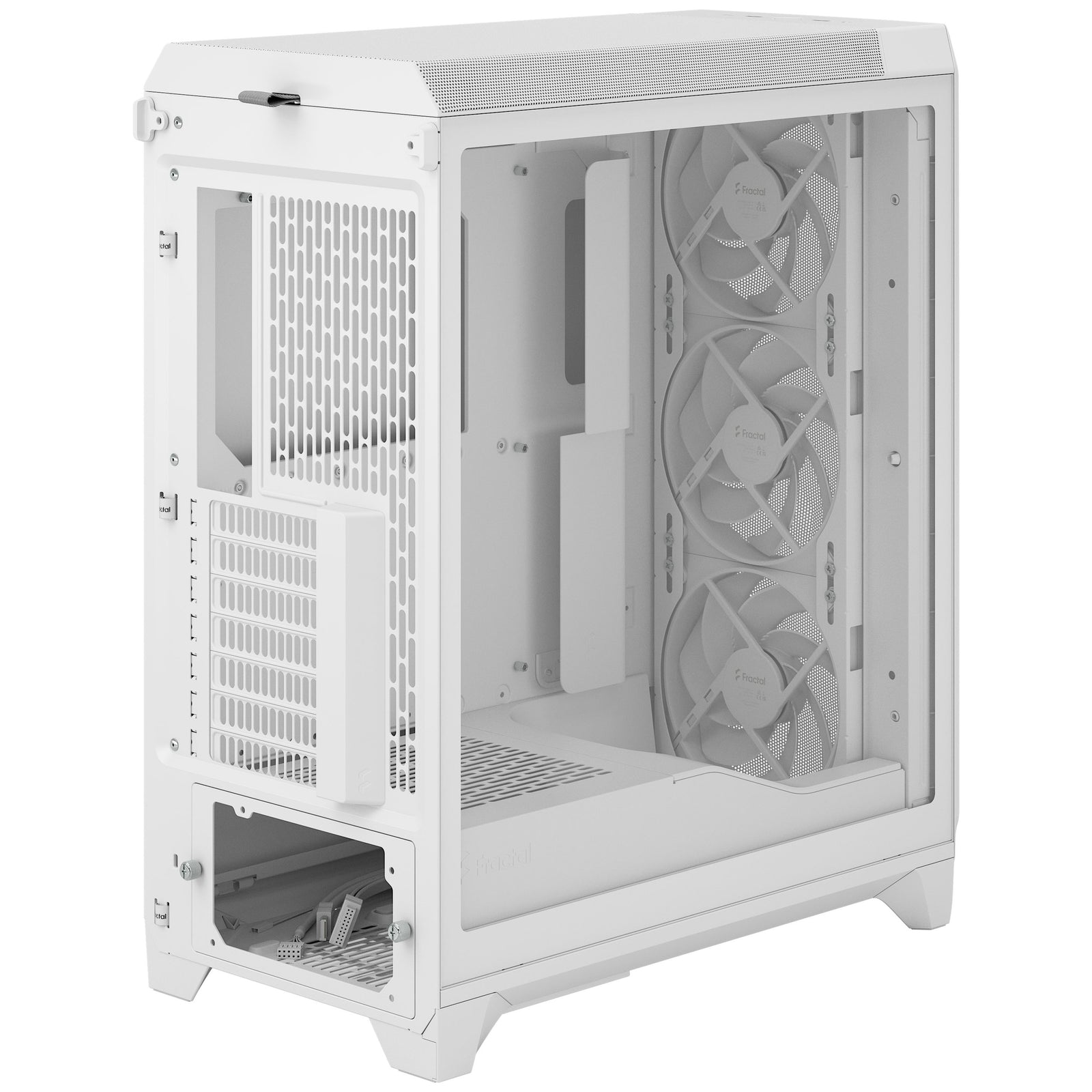

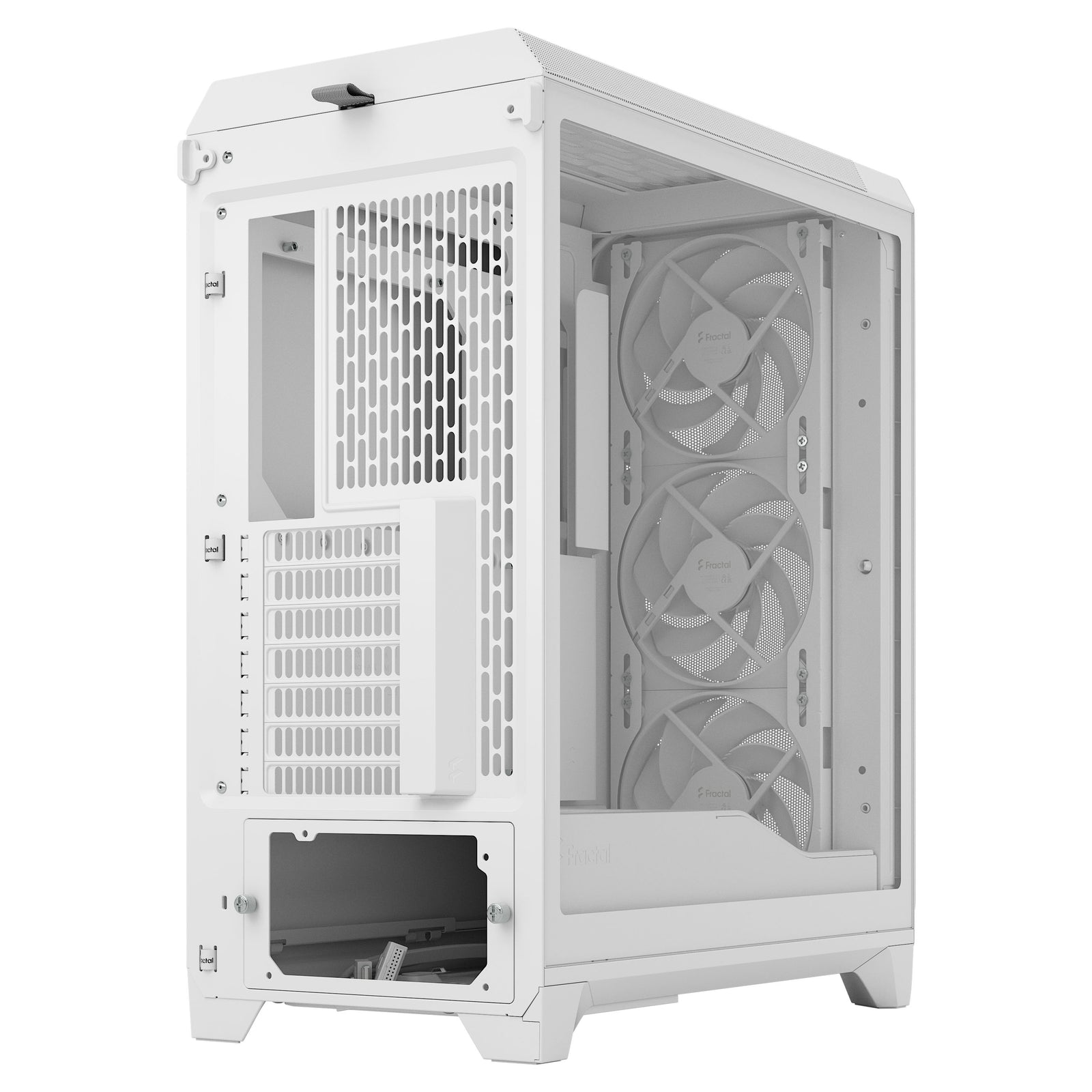

Fractal Design Meshify 3 – White with Clear-Tint Tempered Glass
The Meshify 3 – White TG Clear Tint delivers best-in-class airflow hidden behind minimalist style. Combining rock-inspired mesh front cooling with a crystal-clear tempered glass side panel, it supports E-ATX motherboards and long GPUs—making it a perfect blend of elegance and performance.
Key Features:

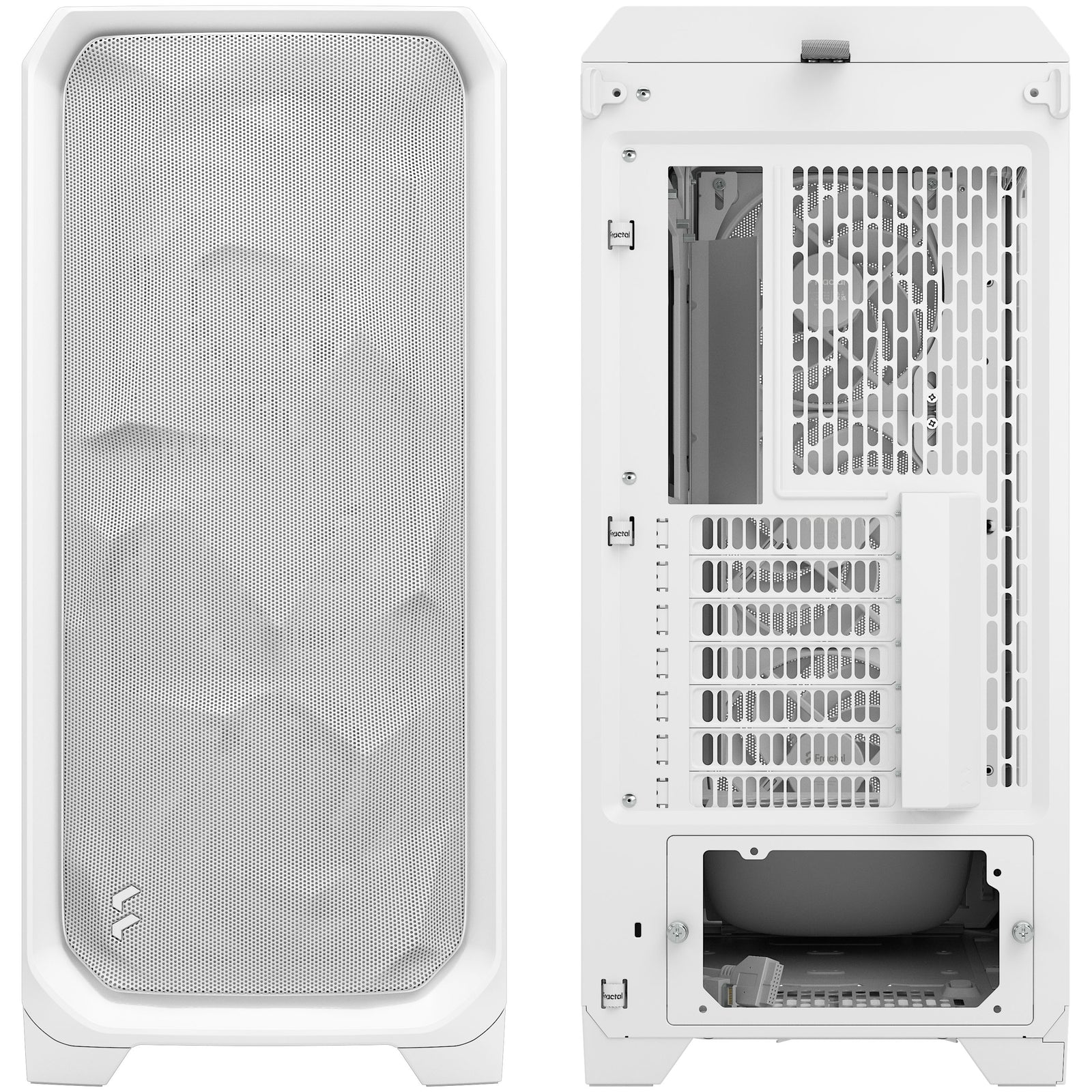

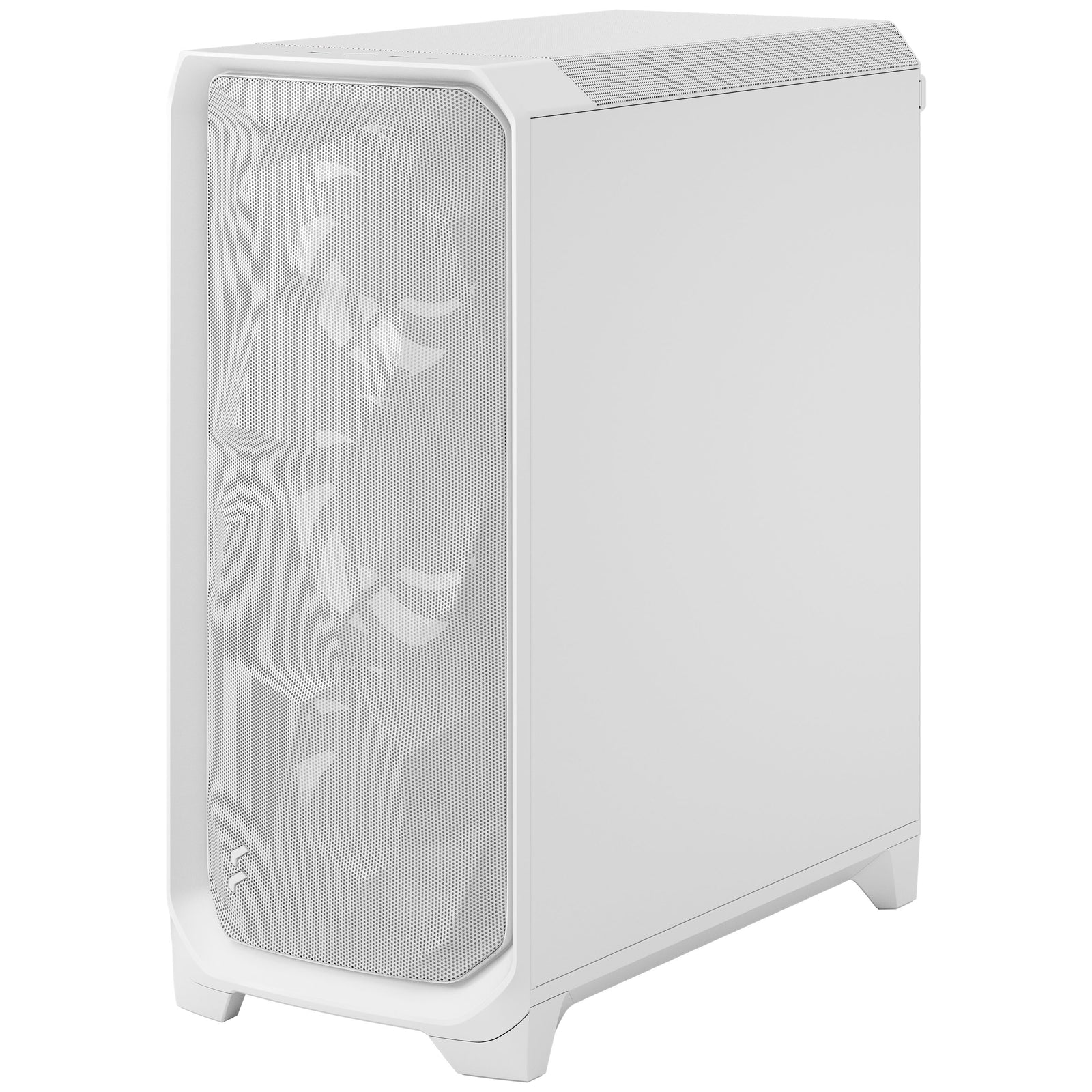

- Efficient Thermal Design – Rock-mesh front panel with air-guiding enhancements for superior GPU cooling

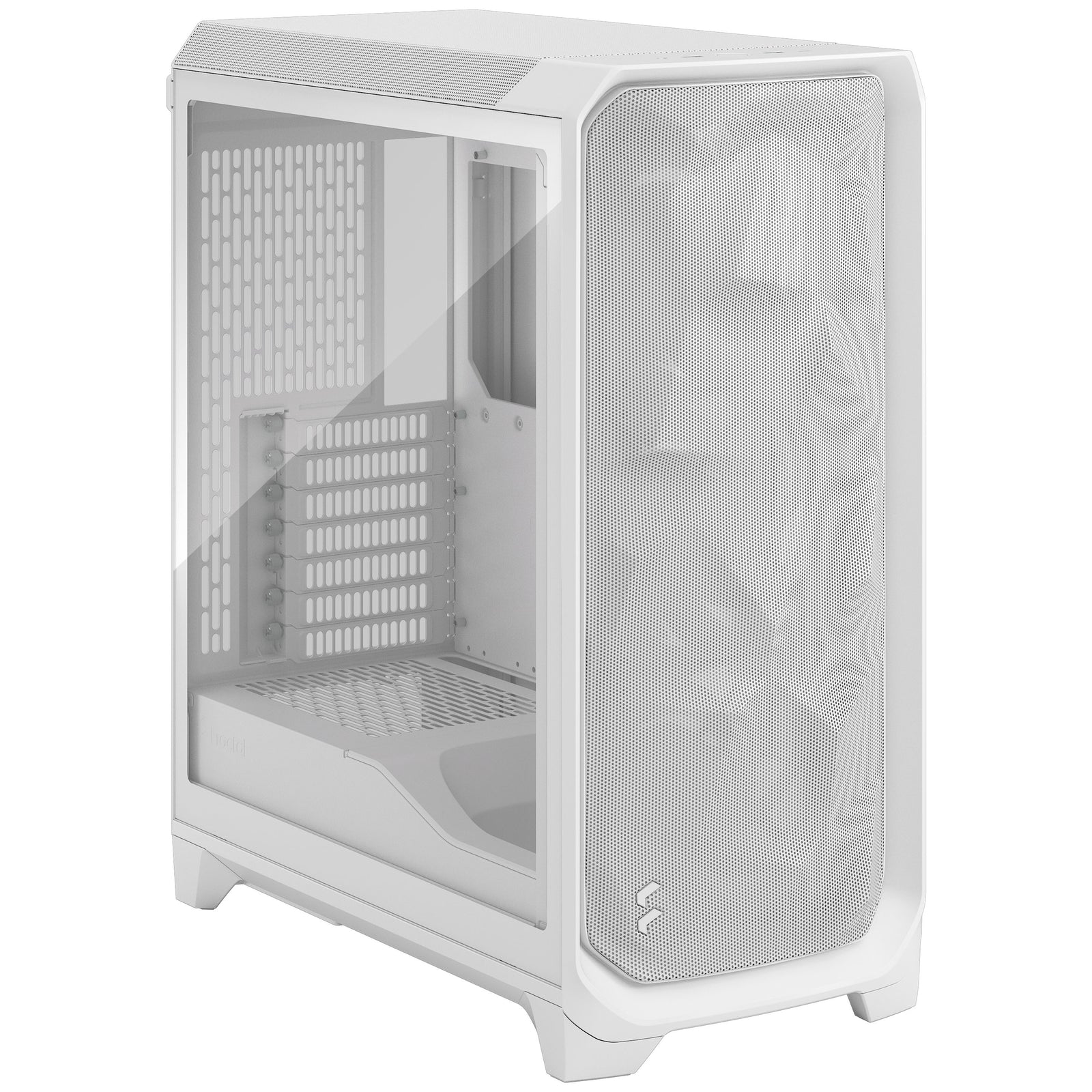

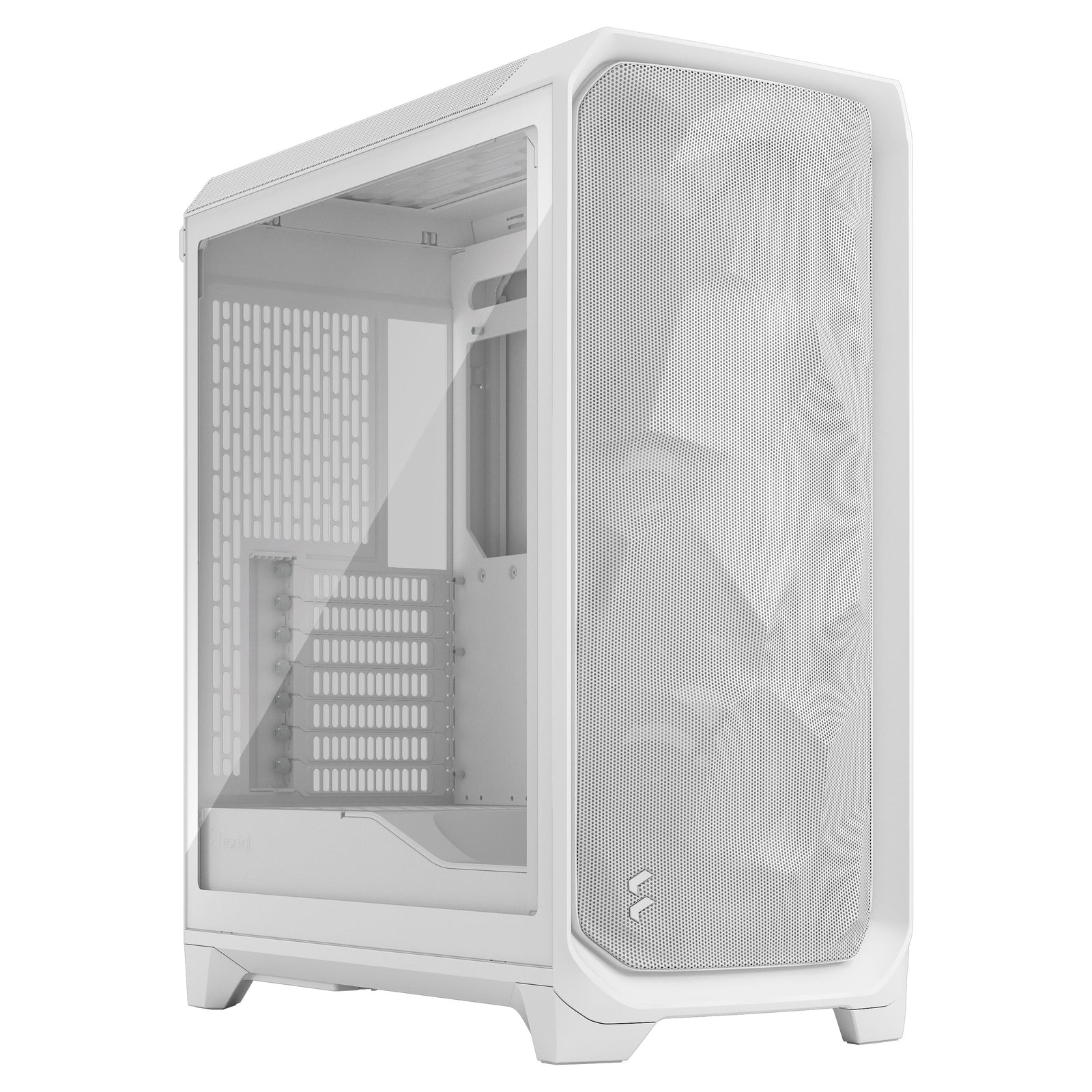

- Sleek Aesthetics – White chassis paired with a fully transparent TG side panel
- Momentum 140 mm Fans Included – Three whisper-quiet fans with LCP blades and fluid-dynamic bearings
- Comprehensive Radiator Support – Accommodates front 360 mm, top 280 mm, and rear 120 mm radiators
- Large Component Compatibility – Fits E-ATX boards (up to 277 mm), GPUs up to 349 mm, and coolers up to 173 mm tall

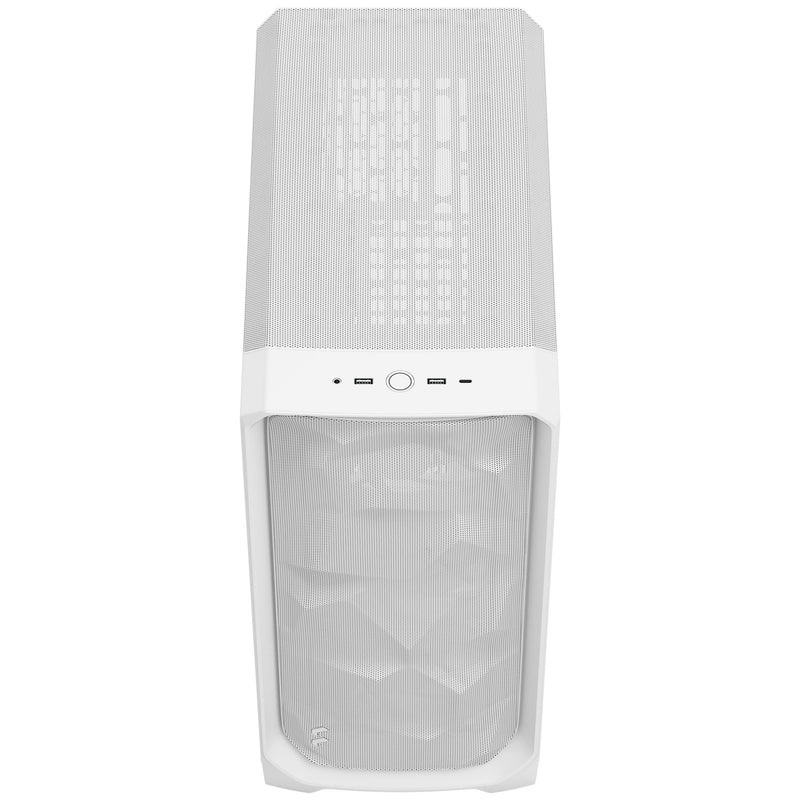

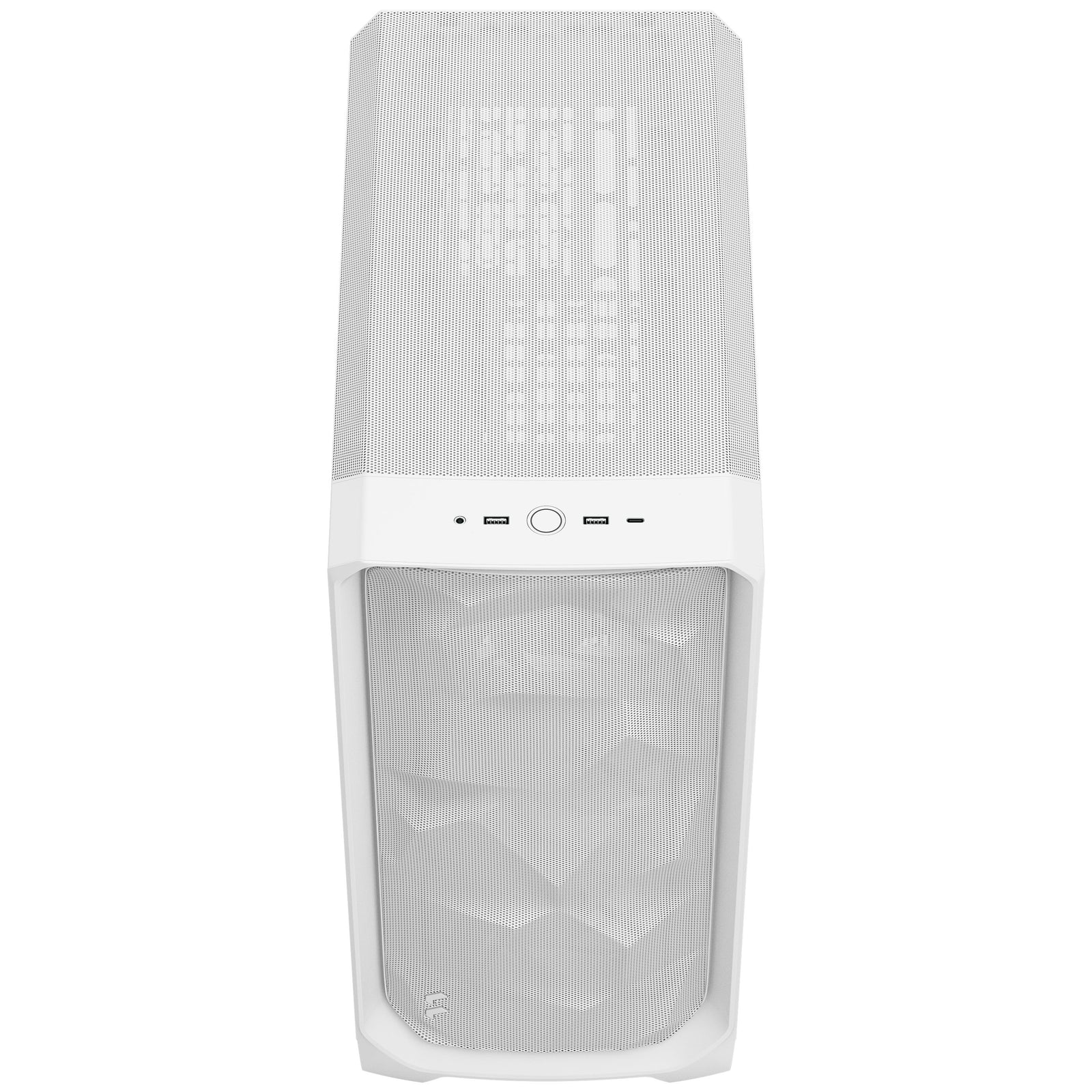

- Modern I/O Suite – Top panel includes 20 Gbps USB-C, two USB-A ports, and a headphone/mic jack

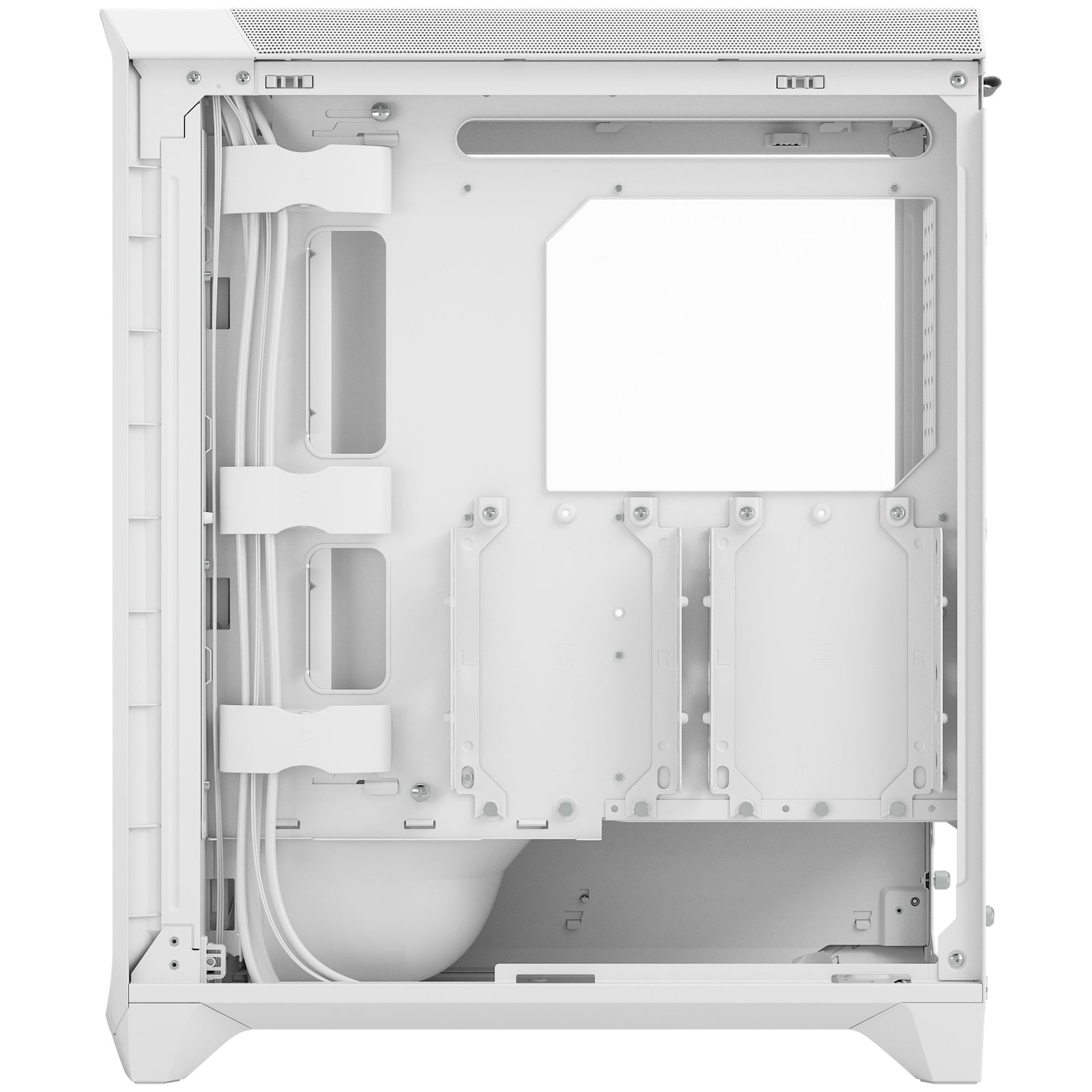

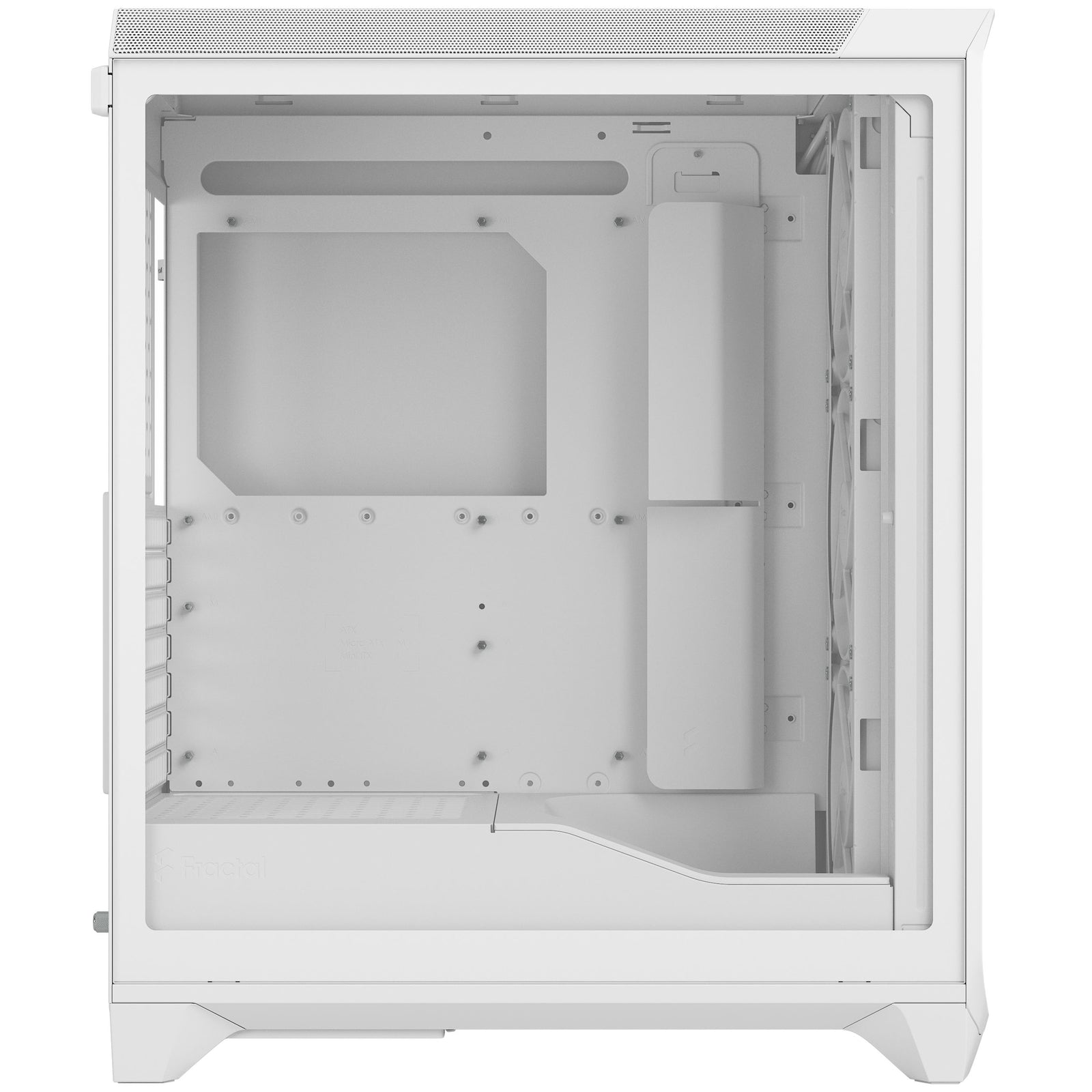

- Clean Cable Management – Integrated 34.5 mm routing space with covers, aligners, and straps included

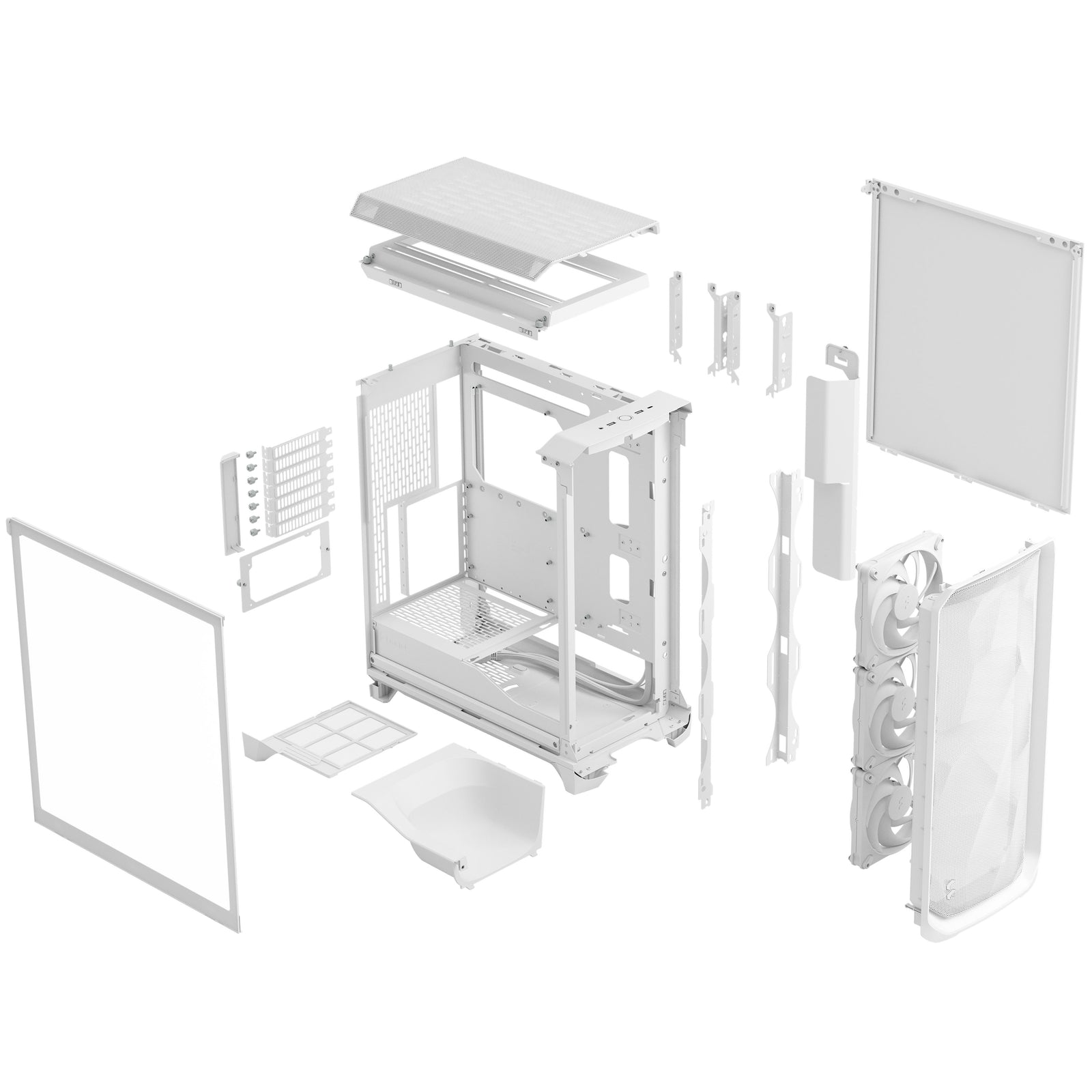

- Tool-Free Construction – Push-to-lock side, front, and top panels for easy access
Technical Specifications:
| Specification | Details |
|---|---|
| Model | Meshify 3 – White TG Clear Tint (FD-C-MES3A-04) |
| Motherboard Support | E-ATX (≤277 mm), ATX, micro-ATX, Mini-ITX |
| Included Fans | 3× Momentum 140 mm (LCP, FDB) |
| Cooling Options | Front: up to 360 mm Top: up to 280 mm Rear: 120 mm |
| Max GPU Length | 349 mm |
| Max CPU Cooler Height | 173 mm |
| PSU Max Length | 180 mm |
| Storage Bays | 2× 3.5″ or 4× 2.5″ behind MB + 2× 2.5″ on PSU cover |
| I/O | 1× USB-C (20 Gbps), 2× USB-A, audio combo jack |
| Cable Management | 34.5 mm routing + covers, aligners, straps |
| Dimensions (H × W × D) | 507 × 229 × 433 mm |
| Weight | 8.8 kg |
| Warranty | 2 Years |
Stylish and functional—the Meshify 3 White TG Clear Tint combines high-airflow performance, clean build-space, and showcase-ready aesthetics.
Specifications
| Back Connect | Back Connect No Power Supply PSU included No PSU Format ATX Power Supply Position rear bottom Colour Primary Colour White Case Features I/O position Top Side panel with window Vertical GPU Mount No Adjustable Vertical GPU Bracket No Front door No Cable Management Yes Filters Included Yes Filter Position Bottom Noise dampening No Mainboard slide / tray No Transport System No Radiator Support Max. Radiator Compatibility 1x Triple (360 mm) Radiator/AIO Support (Front) 280mm Radiator, 360mm Radiator Radiator/AIO Support (Top) 240mm Radiator, 280mm Radiator Radiator/AIO Support (Rear) 120mm Radiator Motherboard Support Compatible Motherboard Formats E-ATX, ATX, Micro-ATX, Mini-ITX Max. Motherboard Format E-ATX Drive Bays Max. 2.5 Inch Drives 6 Max. 3.5 Inch Drives 4 Max. 5.25 Inch Drives 0 2.5 inch internal drive bay 2 1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) 4 Hot swap drive bays No Fan Support Case Fan Support (Front) 120mm Fan (3x), 140mm Fan (3x) Case Fan Support (Rear) 120mm Fan (1x) Case Fan Support (Top) 120mm Fan (2x), 140mm Fan (2x) Max. Number of Fans 6 120 mm fans 6 140 mm fans 5 Fan Header Fan Controller / Fan Hub No Display Display Included No Mounting Internal Monitor Mount No Case VESA Mountable No Dimensions Length / Depth 433 mm Width 229 mm Height 507 mm Weight 8.8 kg External Ports Front I/O – USB Type C Ports Total 1 Front I/O – USB Type A Ports Total 2 USB 3.2 (external) Type C 1 USB 3.0 (external) Type A 2 Audio outputs & inputs 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) Expansion Slots Expansion slots / PCI slots 7 Lighting Lighting / RGB No Internal Dimensions Max. CPU Cooler Height 173 mm Max. GPU Length 349 mm Max. GPU Width 176 mm Max. PSU Length / Depth 180 mm Additional Contents Fans Included Yes Included fans 3x 140 mm Materials Materials Steel, Tempered Glass Case Case Type Mid Tower Features Housing Feedthrough No Cable Specifications Riser Cable Included No Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Connectivity Card reader No |
|---|---|
| Back Connect | No |
| PSU included | No |
| PSU Format | ATX |
| Power Supply Position | rear bottom |
| Primary Colour | White |
| I/O position | Top |
| Side panel | with window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Filter Position | Bottom |
| Noise dampening | No |
| Mainboard slide / tray | No |
| Transport System | No |
| Max. Radiator Compatibility | 1x Triple (360 mm) |
| Radiator/AIO Support (Front) | 280mm Radiator, 360mm Radiator |
| Radiator/AIO Support (Top) | 240mm Radiator, 280mm Radiator |
| Radiator/AIO Support (Rear) | 120mm Radiator |
| Compatible Motherboard Formats | E-ATX, ATX, Micro-ATX, Mini-ITX |
| Max. Motherboard Format | E-ATX |
| Max. 2.5 Inch Drives | 6 |
| Max. 3.5 Inch Drives | 4 |
| Max. 5.25 Inch Drives | 0 |
| 2.5 inch internal drive bay | 2 |
| 1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) | 4 |
| Hot swap drive bays | No |
| Case Fan Support (Front) | 120mm Fan (3x), 140mm Fan (3x) |
| Case Fan Support (Rear) | 120mm Fan (1x) |
| Case Fan Support (Top) | 120mm Fan (2x), 140mm Fan (2x) |
| Max. Number of Fans | 6 |
| 120 mm fans | 6 |
| 140 mm fans | 5 |
| Fan Controller / Fan Hub | No |
| Display Included | No |
| Internal Monitor Mount | No |
| Case VESA Mountable | No |
| Length / Depth | 433 mm |
| Width | 229 mm |
| Height | 507 mm |
| Weight | 8.8 kg |
| Front I/O – USB Type C Ports Total | 1 |
| Front I/O – USB Type A Ports Total | 2 |
| USB 3.2 (external) Type C | 1 |
| USB 3.0 (external) Type A | 2 |
| Audio outputs & inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
| Expansion slots / PCI slots | 7 |
| Lighting / RGB | No |
| Max. CPU Cooler Height | 173 mm |
| Max. GPU Length | 349 mm |
| Max. GPU Width | 176 mm |
| Max. PSU Length / Depth | 180 mm |
| Fans Included | Yes |
| Included fans | 3x 140 mm |
| Materials | Steel, Tempered Glass |
| Case Type | Mid Tower |
| Housing Feedthrough | No |
| Riser Cable Included | No |
| Compatibility Note | Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. |
| Card reader | No |
Specifications
| Manufacturer | Fractal Design |
|---|---|
| Manufacturer part number | FD-C-MES3A-04 |
| OcUK SKU | CAS-FTL-03591 |
| EAN | 7340172707196 |
| Case Type | Mid Tower |
| Included fans | 3x 140 mm |
| Lighting / RGB | No |
| Power Supply Position | rear bottom |
| Primary Colour | White |
| PSU Format | ATX |
