SKU CAS-CRS-02922EAN 0840006688907MPN CC-9011288-WW
Overview

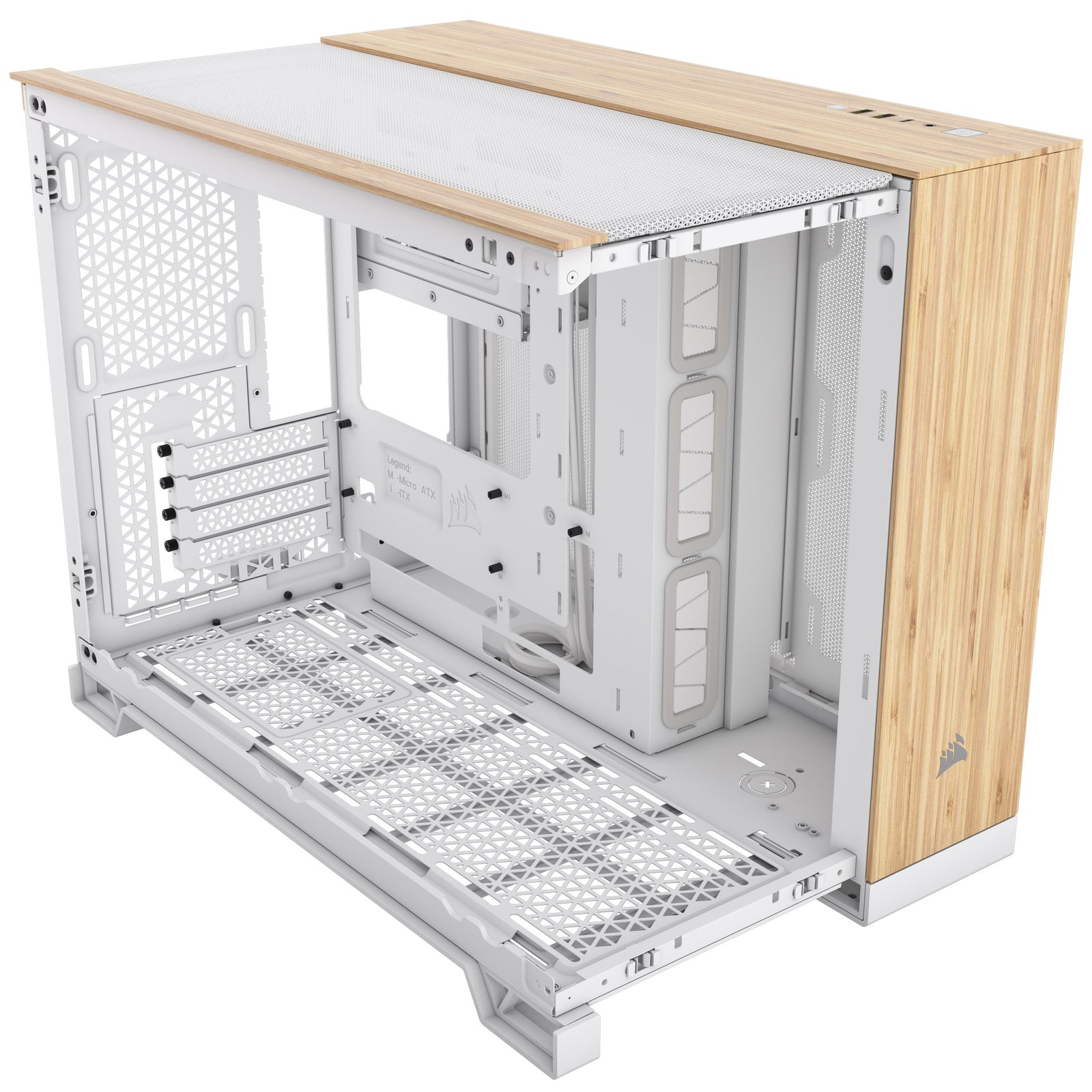

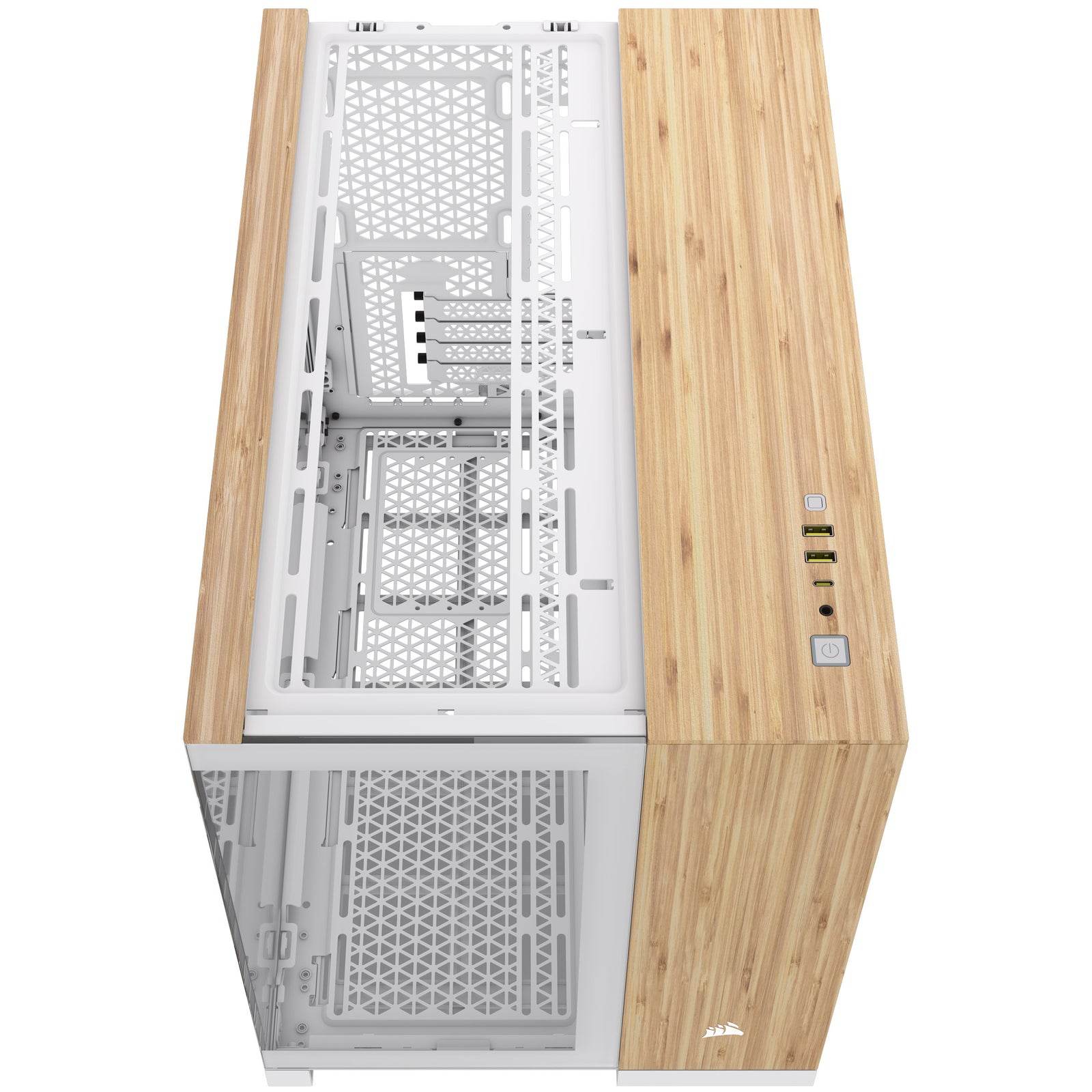

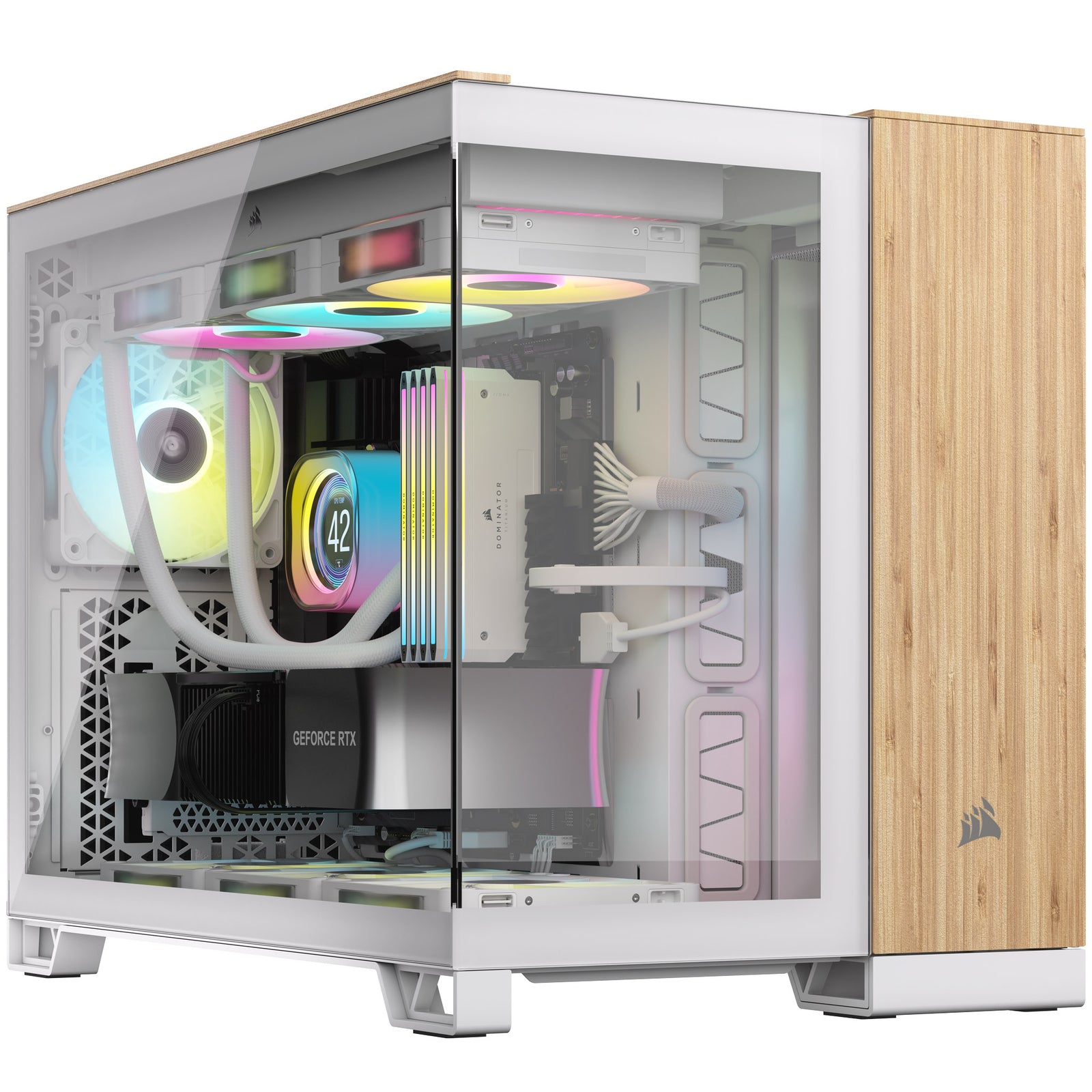

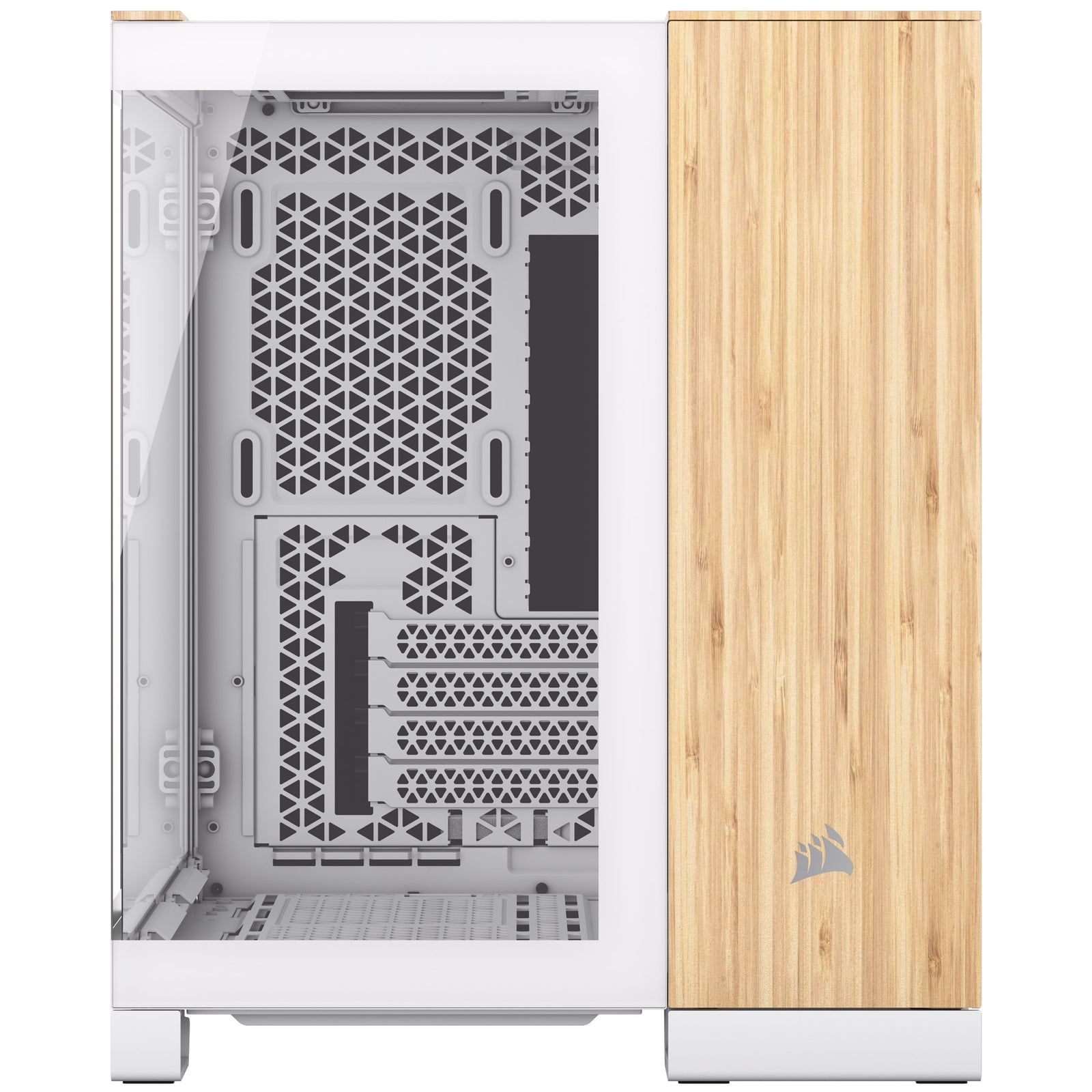

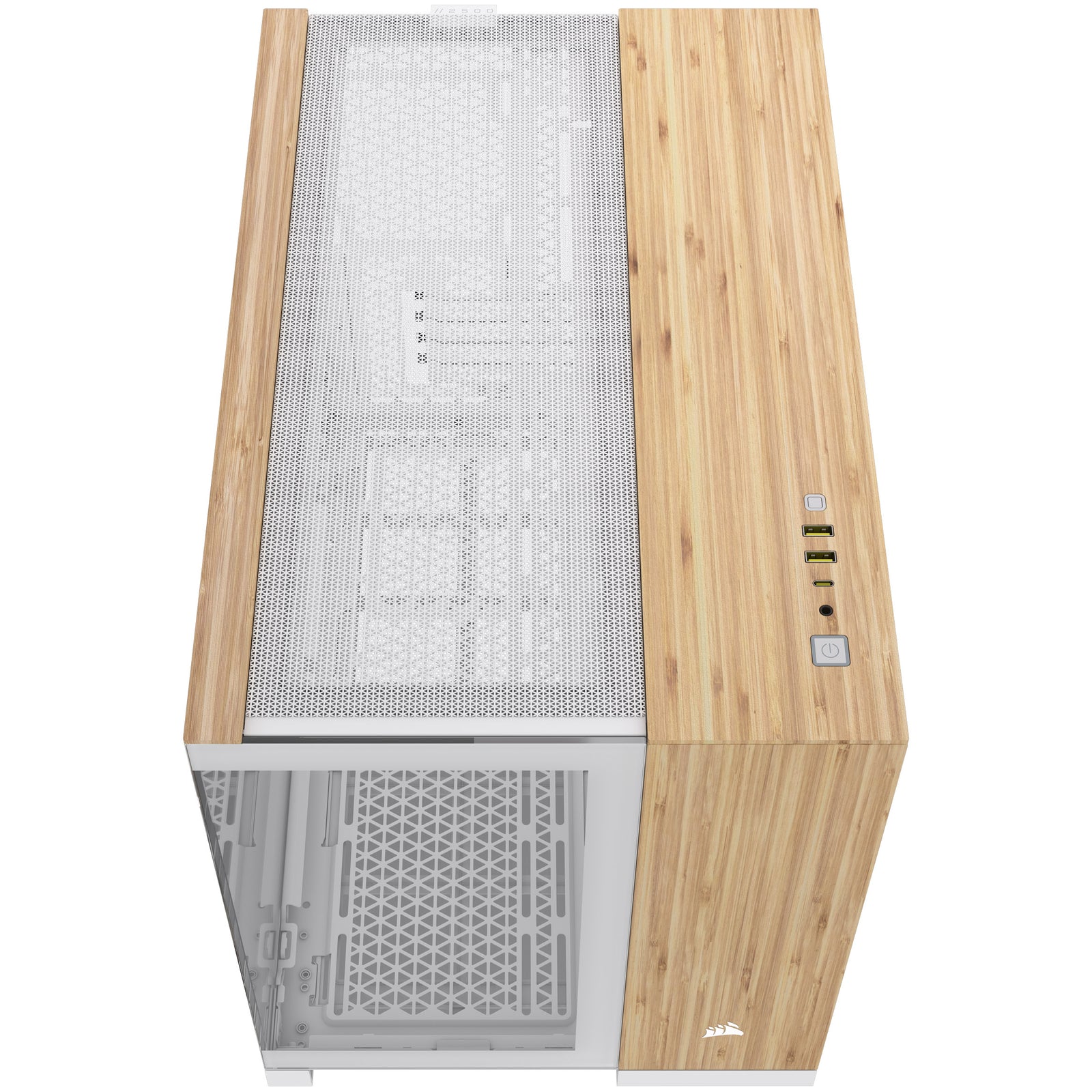

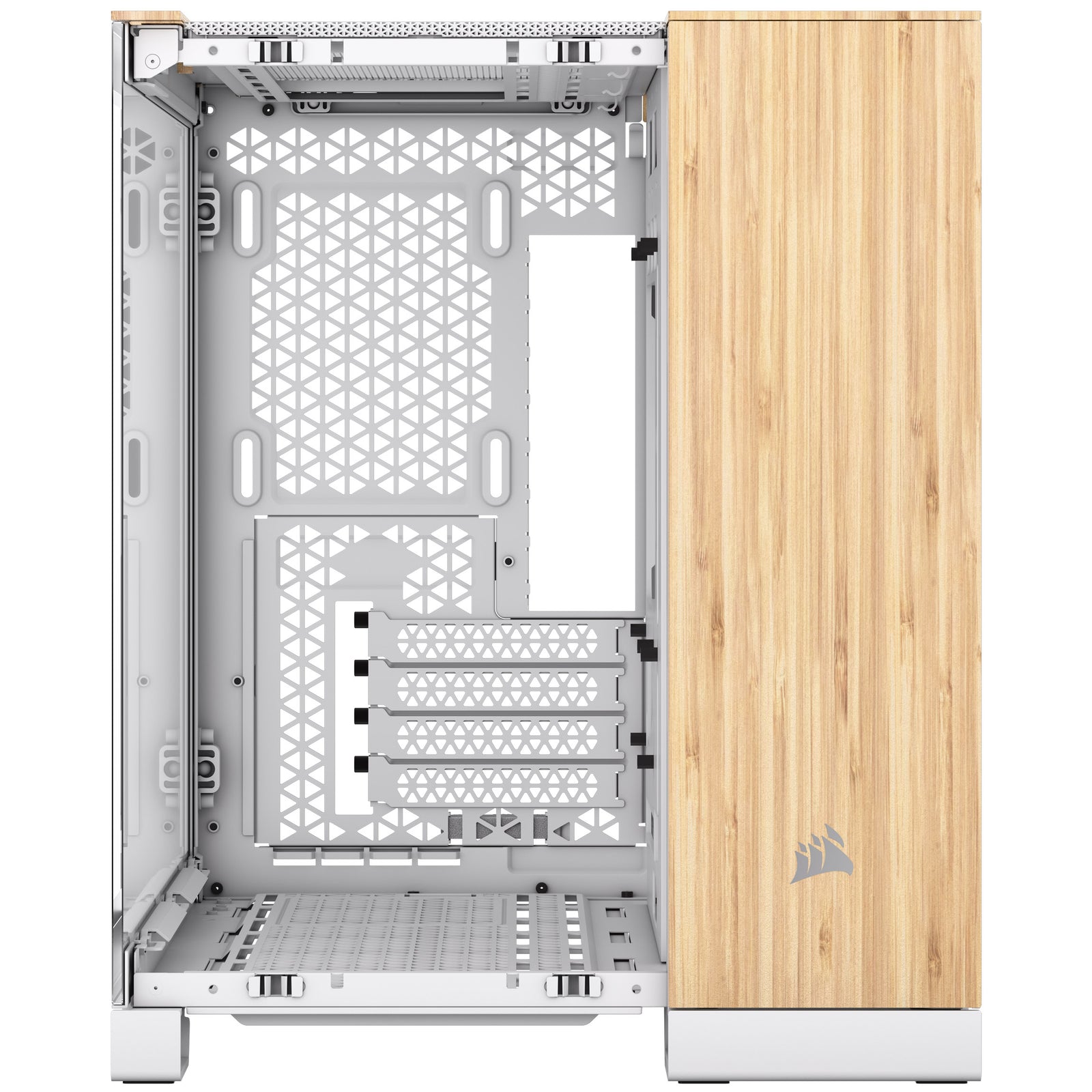

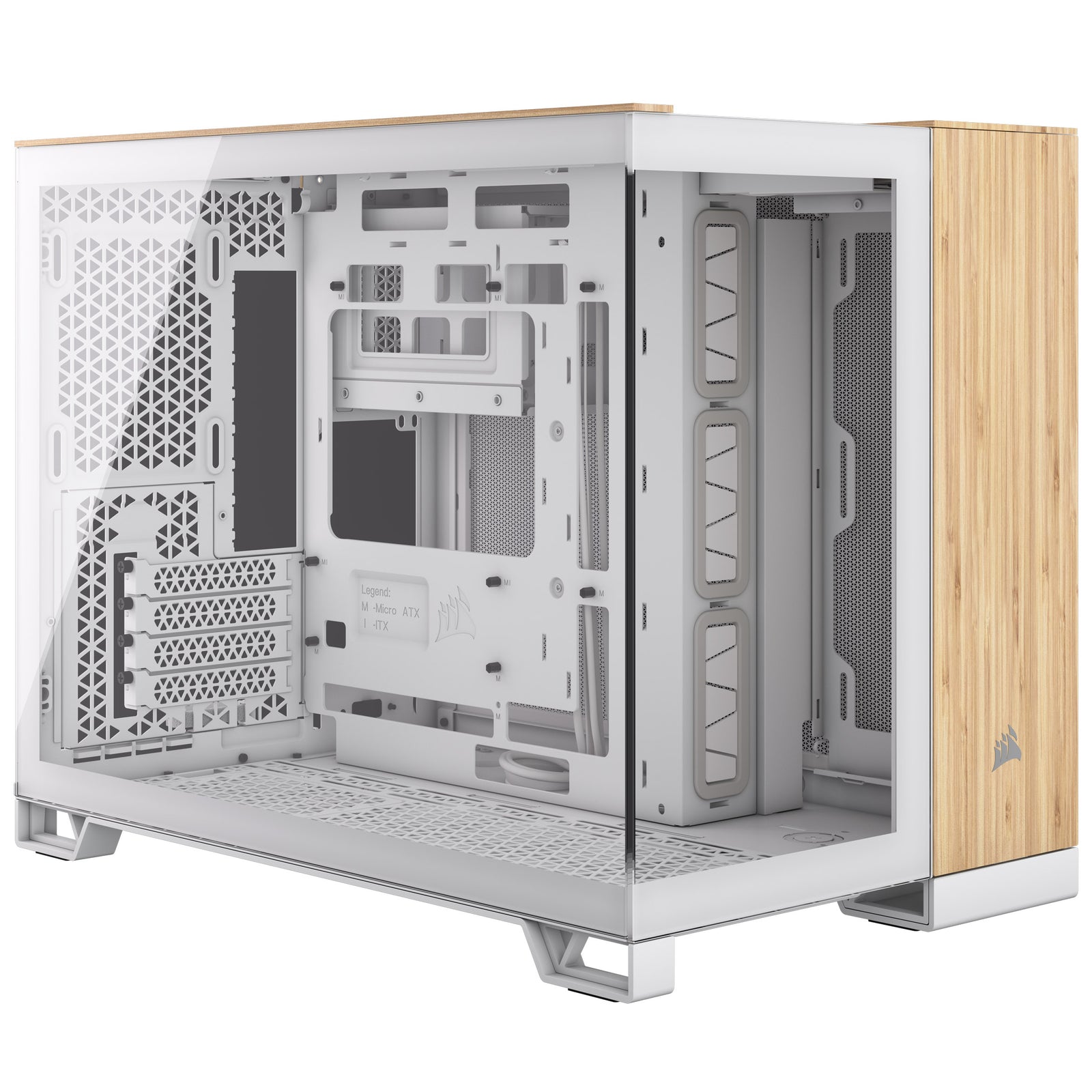

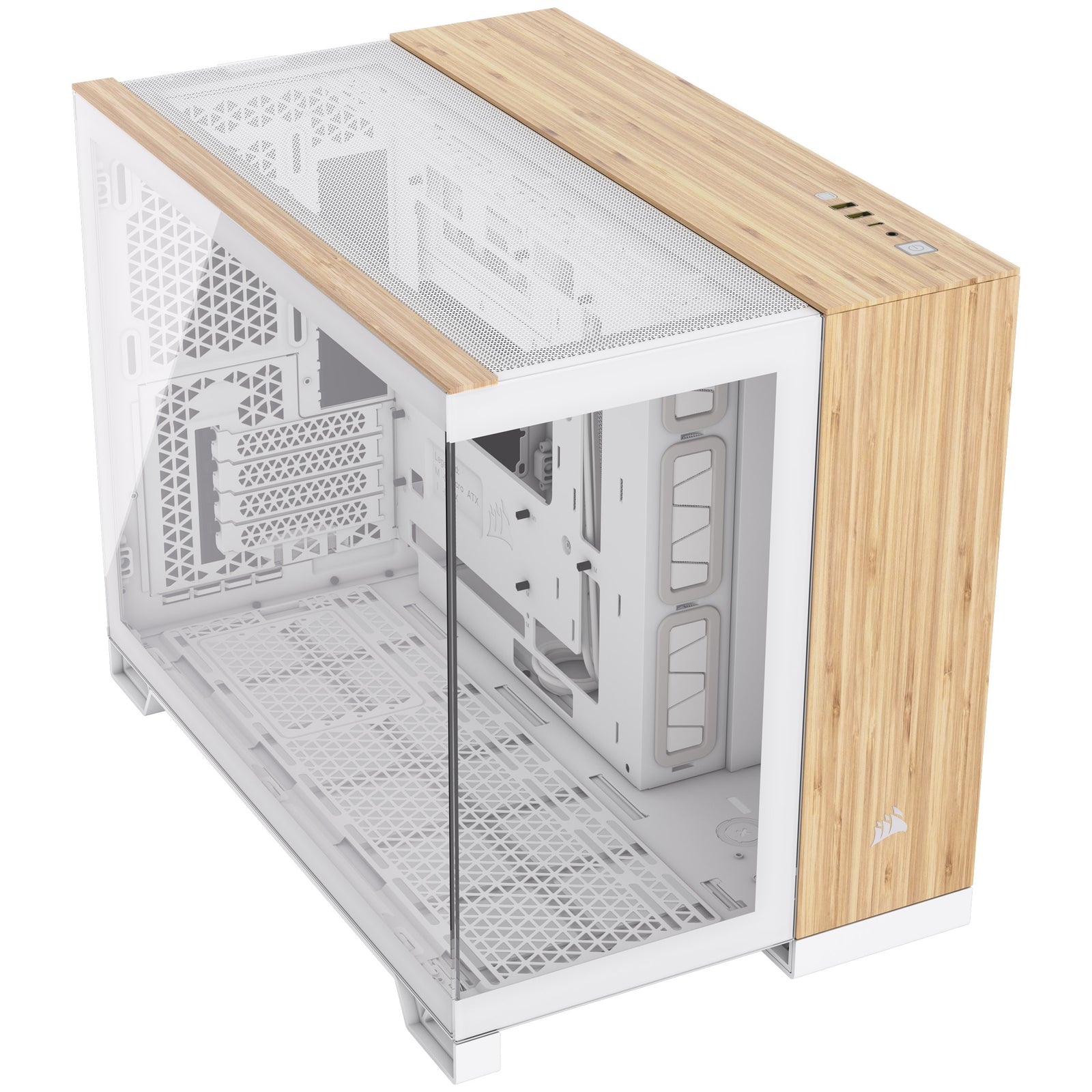

The CORSAIR 2500X Micro ATX Dual Chamber PC Case provides a clean and organized view of your SFF PC through dual tempered glass front panels. Enjoy a clutter-free look with a dedicated chamber for cables.
The CORSAIR 2500X Micro ATX Dual Chamber PC Case provides a clean and organized view of your SFF PC through dual tempered glass front panels. Enjoy a clutter-free look with a dedicated chamber for cables, hard drives and controllers. The 2500X’s small size hides plenty of options for your cooling setup, with room for up to 9x 120mm or 4x 140mm fans and versatile radiator mounting positions in the roof, bottom, and side. Compatibility with reverse connection motherboards gives you a cable-free view of your system. Easy tool-free drive mounts accommodate up to 2x 3.5in or 2x 2.5in storage drives, while a modern front panel I/O including USB 3.2 Gen-2 Type-C offers convenient device access. Built for simplicity and offering a range of customization options, the 2500X ensures your SFF PC looks and performs at its best.
CORSAIR 2500X at a Glance
- Unobstructed view with wraparound front and side glass panels mATX form-factor for SFF builds
- mATX form-factor for SFF builds
- Dual chamber design for strong cooling and an organized look
- Compatible with reverse connection motherboards such as ASUS BTF and MSI Project Zero
- Fits 9x 120mm or 4x 140mm fans
- Versatile mounting positions for front, roof, bottom, and side radiators
CORSAIR 2500X Specification
| Feature | Specification |
|---|---|
| Case Height | 376 mm |
| Case Length | 469 mm |
| Case Width | 304 mm |
| Motherboard Support | Mini-ITX, Micro-ATX |
| Color | Black |
| Weight | 13.39 kg |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Maximum GPU Length | 400 mm |
| Maximum CPU Cooler Height | 180 mm |
| Maximum PSU Length | 225 mm |
| Compatible Liquid Coolers | H60, H100i, H115i, H150i (All Series) |
| Case Size | NA |
| Case Power Supply | ATX |
| Case Expansion Slots | 4 horizontal (4 vertical with accessory) |

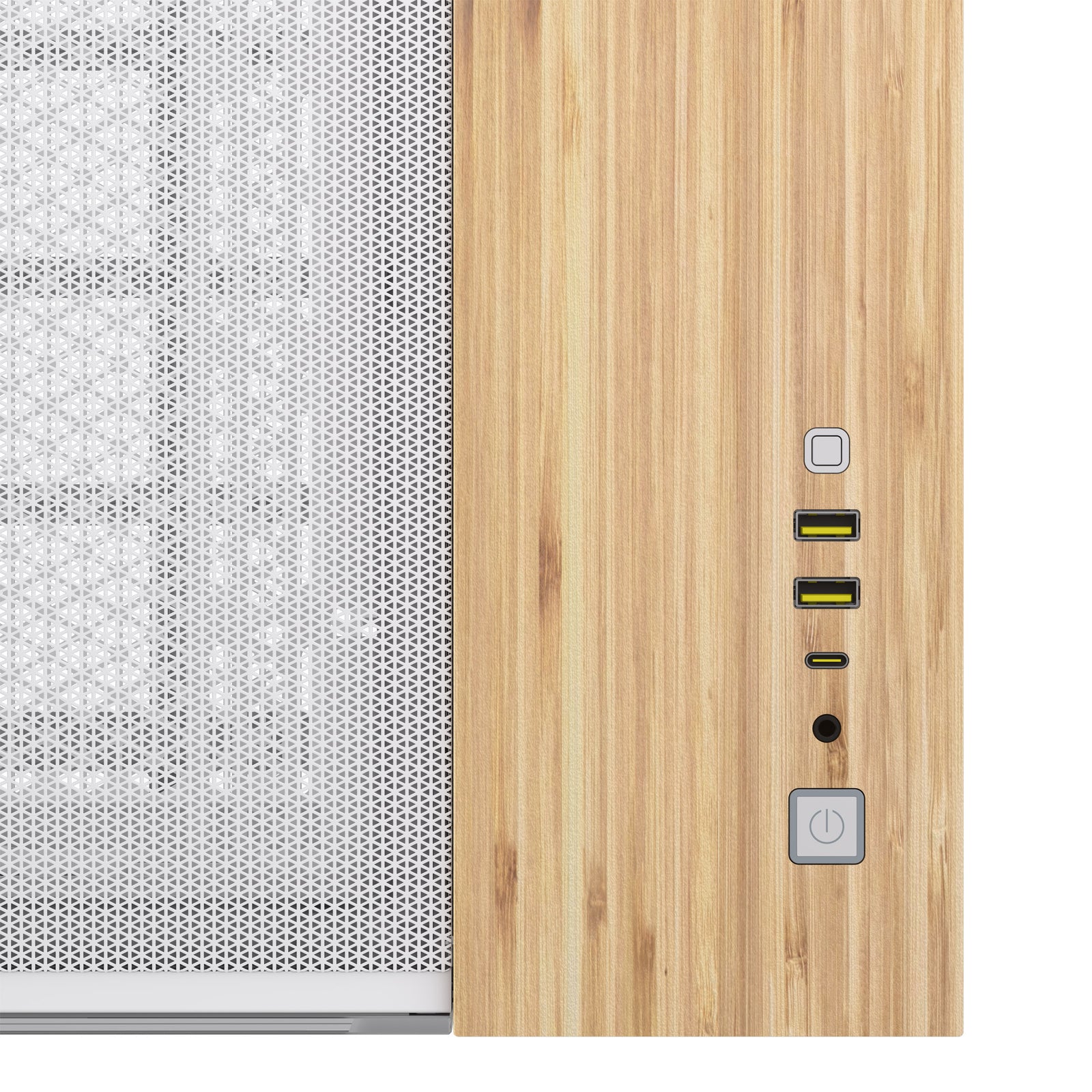

| Case Front IO | (1x) USB 3.1 Type-C, (2x) USB 3.0, (1x) Audio in/out |
| Case Window | Tempered Glass |
| Case Warranty | 2 Year |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 2 |
Specifications
| Back Connect | Back Connect Yes Back-Connect Compatibility ASUS BTF, MSI Project Zero, Gigabyte Project Stealth Colour Primary Colour White Secondary Colour Wood Case Features I/O position Top Side panel with window Vertical GPU Mount No Adjustable Vertical GPU Bracket No Front door No Cable Management Yes Filters Included Yes Noise dampening No Mainboard slide / tray No Transport System No Radiator Support Max. Radiator Compatibility 1x Single (120 mm), 1x Dual (240 mm), 2x Triple (360 mm) Radiator/AIO Support (Bottom) 240mm Radiator, 280mm Radiator, 360mm Radiator Radiator/AIO Support (Top) 240mm Radiator, 280mm Radiator, 360mm Radiator Radiator/AIO Support (Side) 240mm Radiator Radiator/AIO Support (Rear) 120mm Radiator Motherboard Support Compatible Motherboard Formats Micro-ATX, Mini-ITX Max. Motherboard Format Micro-ATX Power Supply PSU included No PSU Format ATX Power Supply Position rear side Fan Support Case Fan Support (Rear) 120mm Fan (1x) Case Fan Support (Bottom) 120mm Fan (3x), 140mm Fan (3x) Case Fan Support (Side) 120mm Fan (2x) Max. Number of Fans 9 Case Fan Support (Top) 120mm Fan (3x), 140mm Fan (3x) 120 mm fans 9 140 mm fans 6 External Ports Front I/O – USB Type C Ports Total 1 Front I/O – USB Type A Ports Total 2 USB 3.2 (external) Type C 1 USB 3.0 (external) Type A 2 Audio outputs & inputs 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) Display Display Included No Dimensions Length / Depth 469 mm Width 304 mm Height 376 mm Weight 13.39 kg Expansion Slots Expansion slots / PCI slots 4 Drive Bays Max. 2.5 Inch Drives 4 Max. 3.5 Inch Drives 2 Max. 5.25 Inch Drives 0 2.5 inch internal drive bay 2 1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) 2 Hot swap drive bays No Features Housing Feedthrough No Additional Contents Fans Included No Included fans None Lighting Lighting / RGB No Materials Materials Plastic, Steel, Tempered Glass, Wood Case Case Type Mini Case Mounting Internal Monitor Mount No Case VESA Mountable No Fan Header Fan Controller / Fan Hub No Internal Dimensions Max. CPU Cooler Height 180 mm Max. GPU Length 400 mm Max. PSU Length / Depth 225 mm Cable Specifications Riser Cable Included No Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Connectivity Card reader No |
|---|---|
| Back Connect | Yes |
| Back-Connect Compatibility | ASUS BTF, MSI Project Zero, Gigabyte Project Stealth |
| Primary Colour | White |
| Secondary Colour | Wood |
| I/O position | Top |
| Side panel | with window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Noise dampening | No |
| Mainboard slide / tray | No |
| Transport System | No |
| Max. Radiator Compatibility | 1x Single (120 mm), 1x Dual (240 mm), 2x Triple (360 mm) |
| Radiator/AIO Support (Bottom) | 240mm Radiator, 280mm Radiator, 360mm Radiator |
| Radiator/AIO Support (Top) | 240mm Radiator, 280mm Radiator, 360mm Radiator |
| Radiator/AIO Support (Side) | 240mm Radiator |
| Radiator/AIO Support (Rear) | 120mm Radiator |

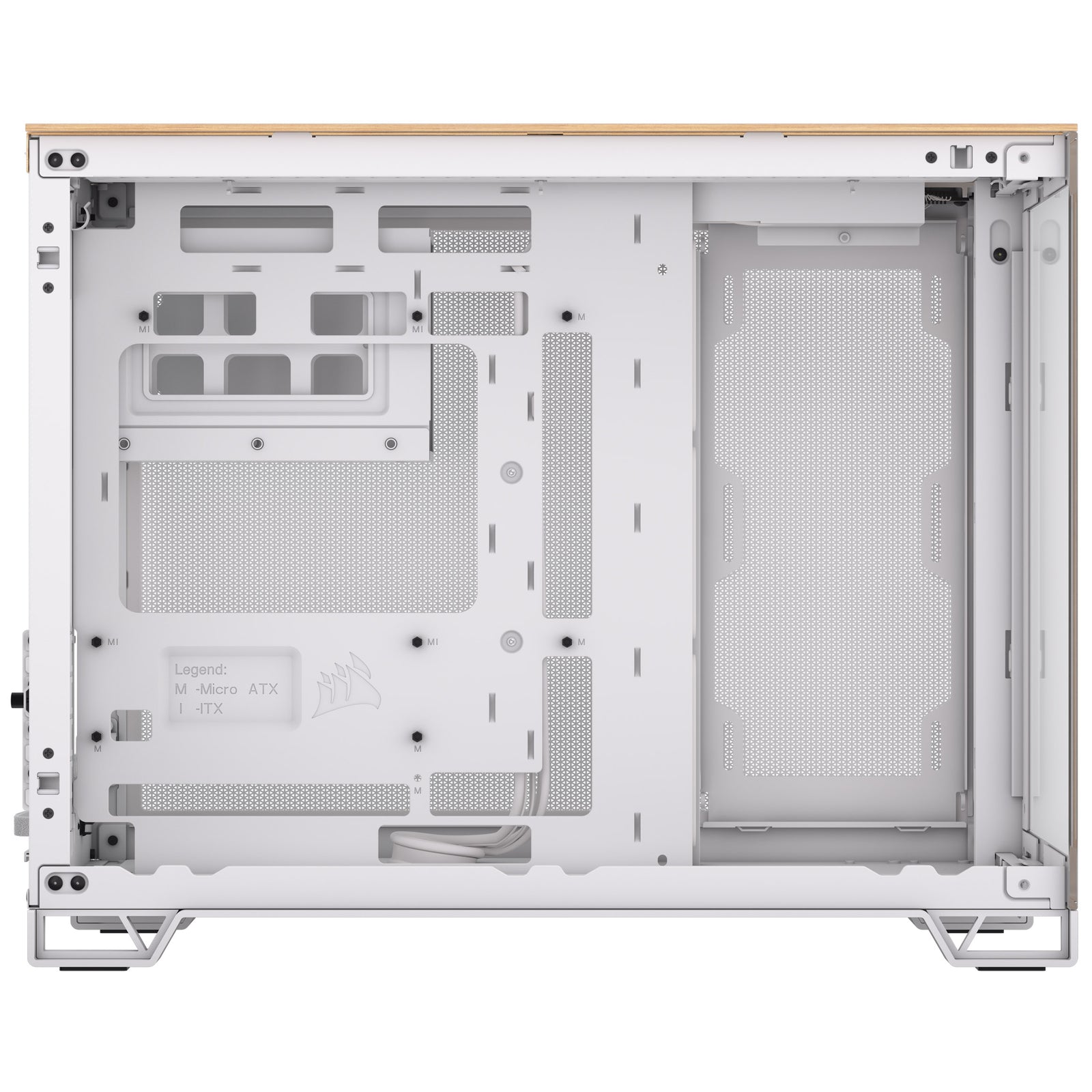

| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| PSU included | No |
| PSU Format | ATX |
| Power Supply Position | rear side |
| Case Fan Support (Rear) | 120mm Fan (1x) |
| Case Fan Support (Bottom) | 120mm Fan (3x), 140mm Fan (3x) |
| Case Fan Support (Side) | 120mm Fan (2x) |
| Max. Number of Fans | 9 |
| Case Fan Support (Top) | 120mm Fan (3x), 140mm Fan (3x) |
| 120 mm fans | 9 |
| 140 mm fans | 6 |
| Front I/O – USB Type C Ports Total | 1 |
| Front I/O – USB Type A Ports Total | 2 |
| USB 3.2 (external) Type C | 1 |
| USB 3.0 (external) Type A | 2 |
| Audio outputs & inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
| Display Included | No |
| Length / Depth | 469 mm |
| Width | 304 mm |
| Height | 376 mm |
| Weight | 13.39 kg |
| Expansion slots / PCI slots | 4 |
| Max. 2.5 Inch Drives | 4 |
| Max. 3.5 Inch Drives | 2 |
| Max. 5.25 Inch Drives | 0 |
| 2.5 inch internal drive bay | 2 |
| 1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) | 2 |
| Hot swap drive bays | No |
| Housing Feedthrough | No |
| Fans Included | No |
| Included fans | None |
| Lighting / RGB | No |
| Materials | Plastic, Steel, Tempered Glass, Wood |
| Case Type | Mini Case |
| Internal Monitor Mount | No |
| Case VESA Mountable | No |
| Fan Controller / Fan Hub | No |
| Max. CPU Cooler Height | 180 mm |
| Max. GPU Length | 400 mm |
| Max. PSU Length / Depth | 225 mm |
| Riser Cable Included | No |
| Compatibility Note | Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. |
| Card reader | No |
Specifications
| Manufacturer | CORSAIR |
|---|---|
| Manufacturer part number | CC-9011288-WW |
| OcUK SKU | CAS-CRS-02922 |
| EAN | 0840006688907 |
| Case Type | Mini Case |
| Included fans | None |
| Lighting / RGB | No |
| Power Supply Position | rear side |
| Primary Colour | White |
| PSU Format | ATX |
| Secondary Colour | Wood |
