Overview

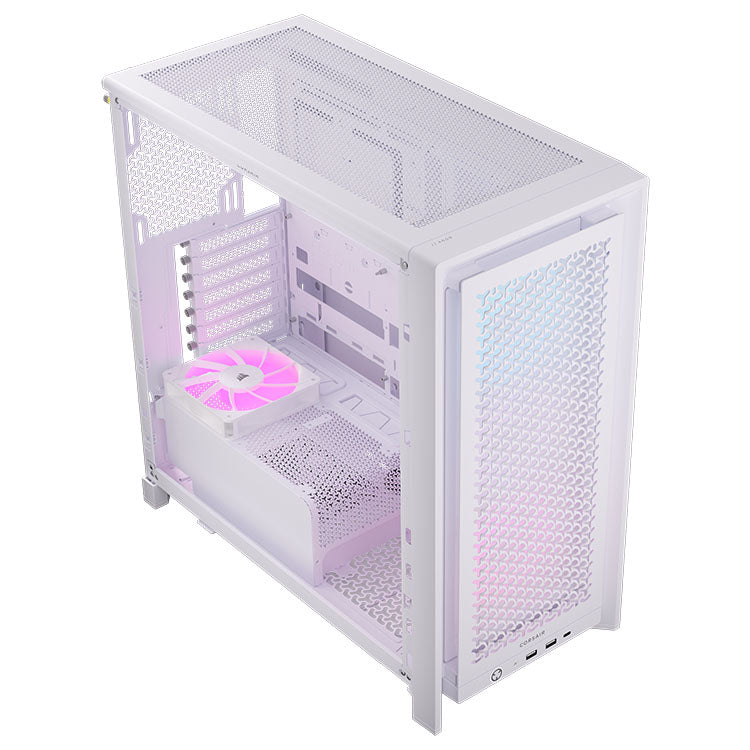

Make your next PC build a breeze, with the CORSAIR FRAME 4000D LCD RS PC Case. Featuring extensive support for high-end components and advanced cooling solutions, this premium chassis is engineered for enthusiasts who demand exceptional performance and gorgeous aesthetics. Showcase your gaming hardware behind the two-thirds tempered glass side panel. Plus, the stunning 14.5” LCD touchscreen is equipped with a range of features, from adjusting Spotify playlists to amending Stream Deck settings. Meanwhile, flexible cooling support and refined cable management solutions keep your computer running cool and clean. Perfect for optimised PC gaming.
CORSAIR FRAME 4000D LCD RS PC Case at a Glance:
- Pre-installed XENEON EDGE 14.5” LCD touchscreen
- Four RS120 PWM ARGB fans included for quiet, high-performance cooling
- Corsair InfiniRail fan mounting system provides flexible installation options
- The GPU Anti-sag Stabilization Arm protects the PCB and PCIe slot
- Compatible with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth reverse connector motherboards
- Cable shroud to keep your longer cables out of sight

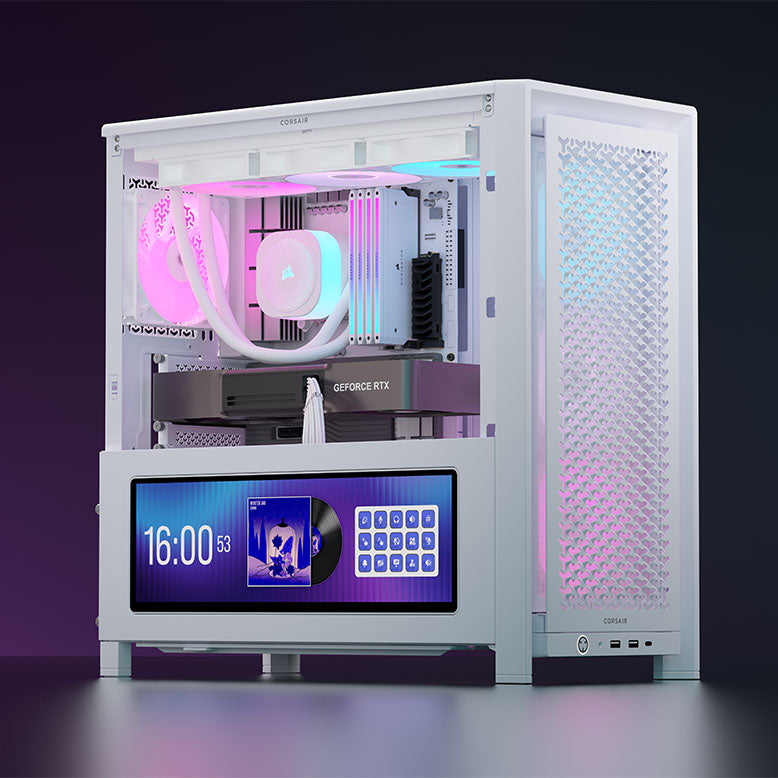

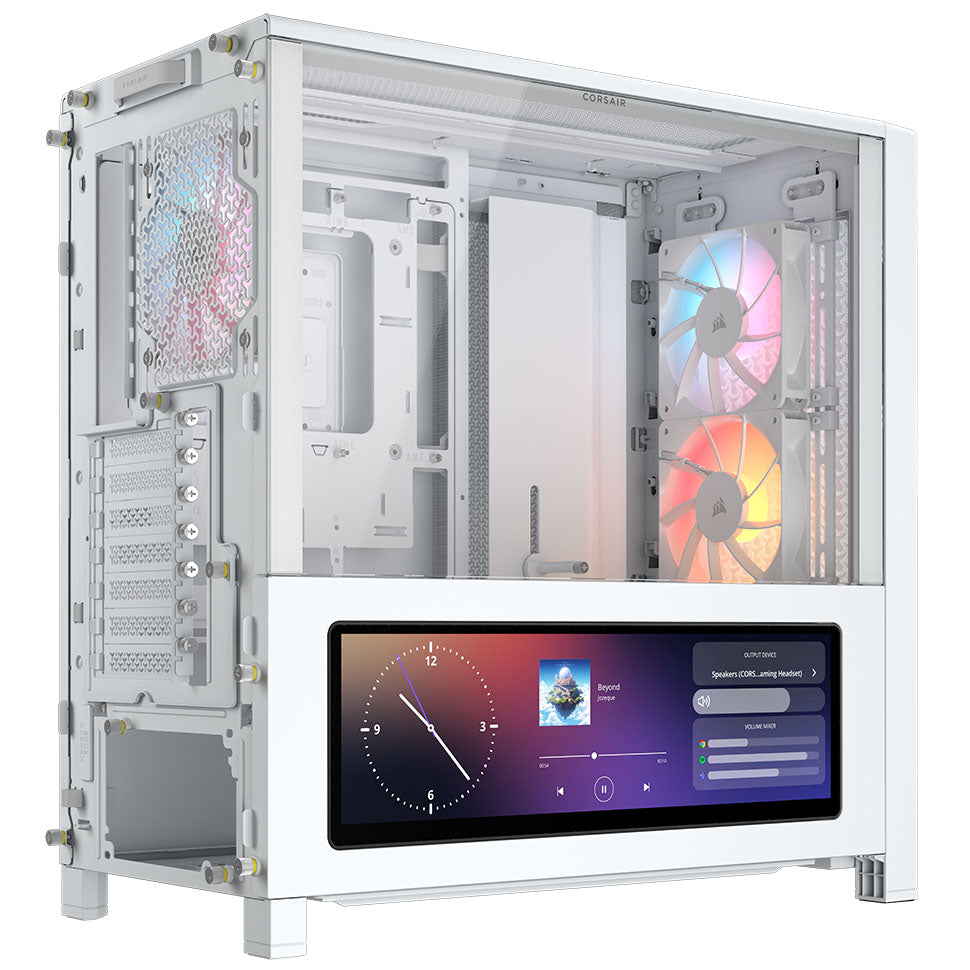

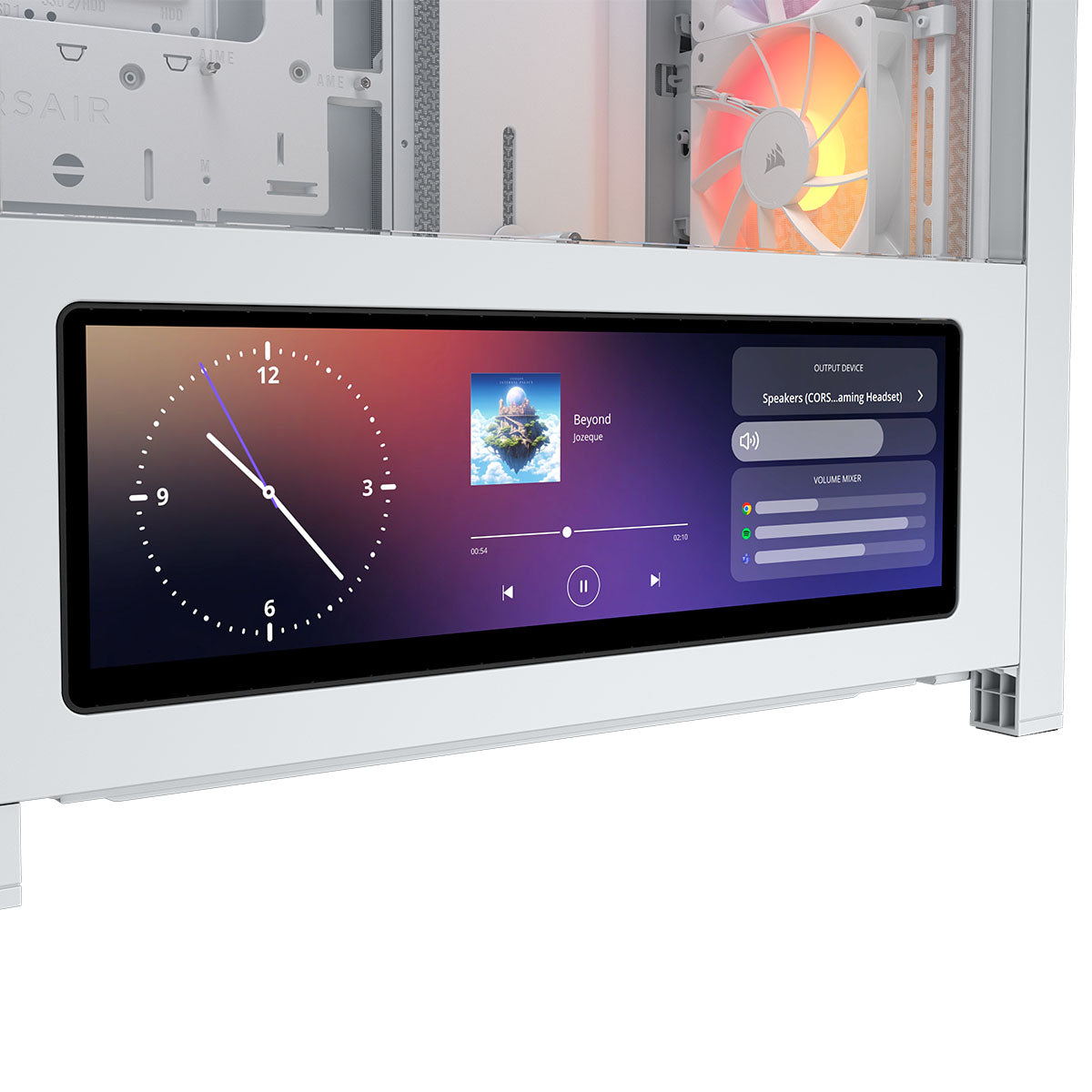

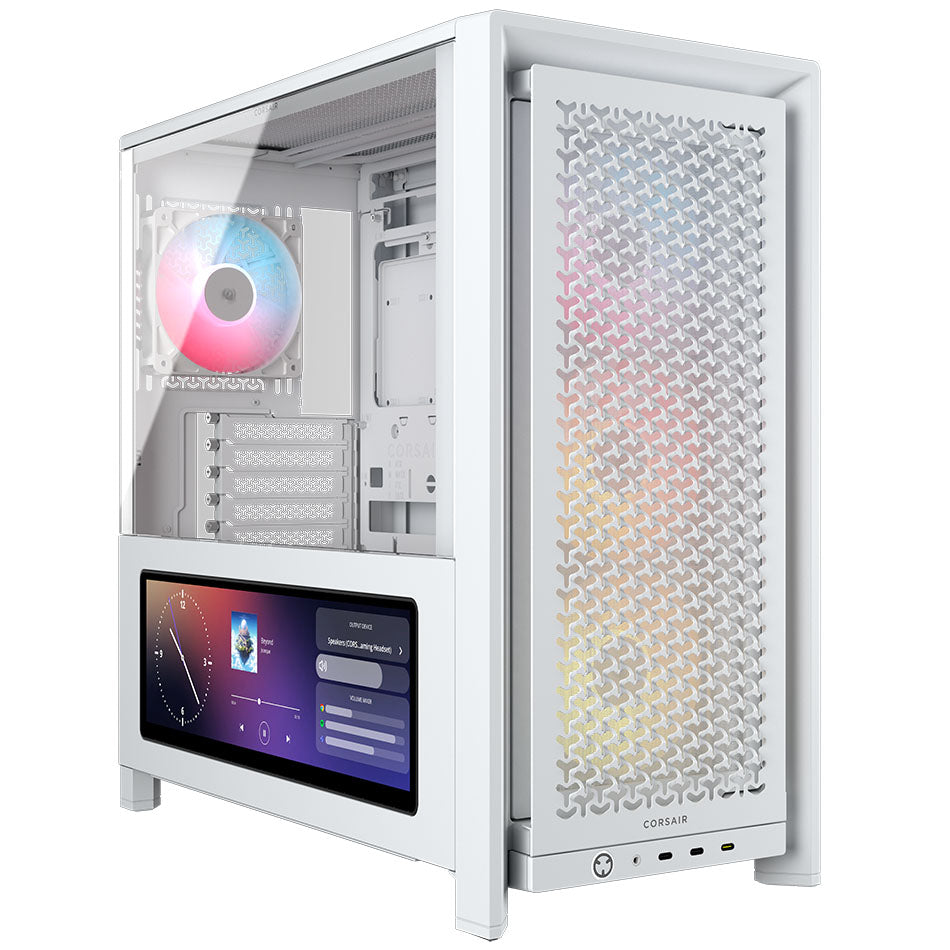

XENEON EDGE 14.5” LCD Touchscreen

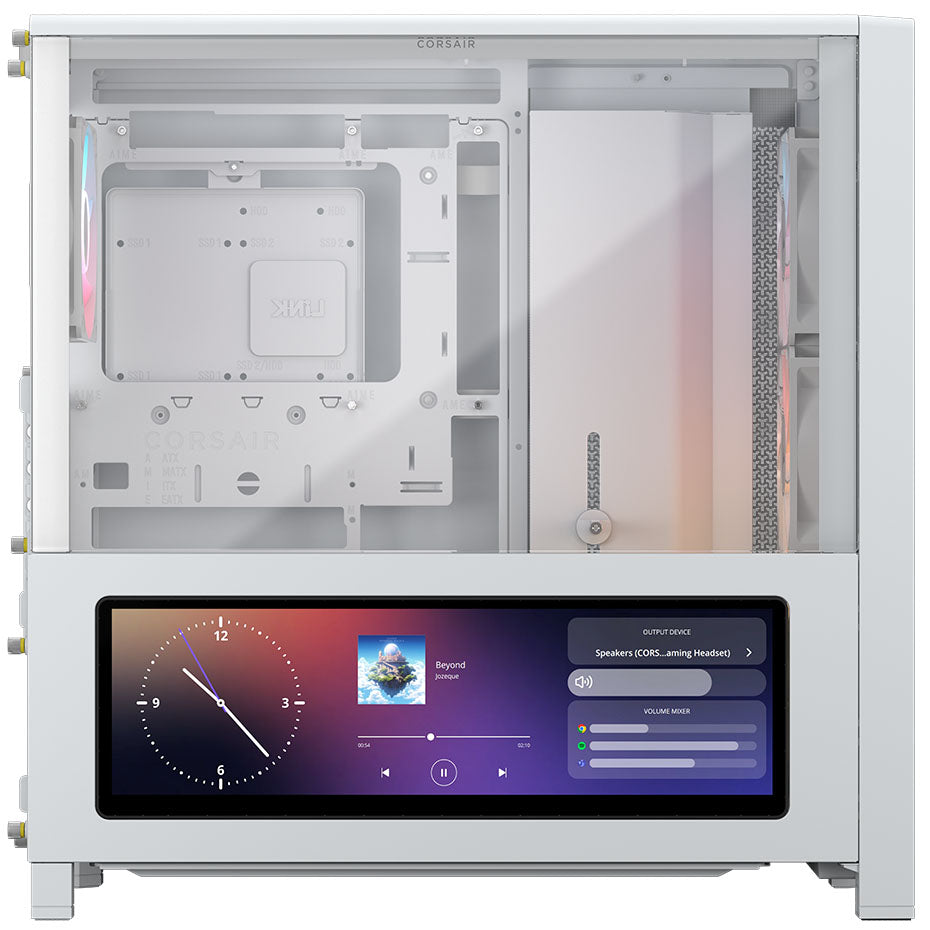

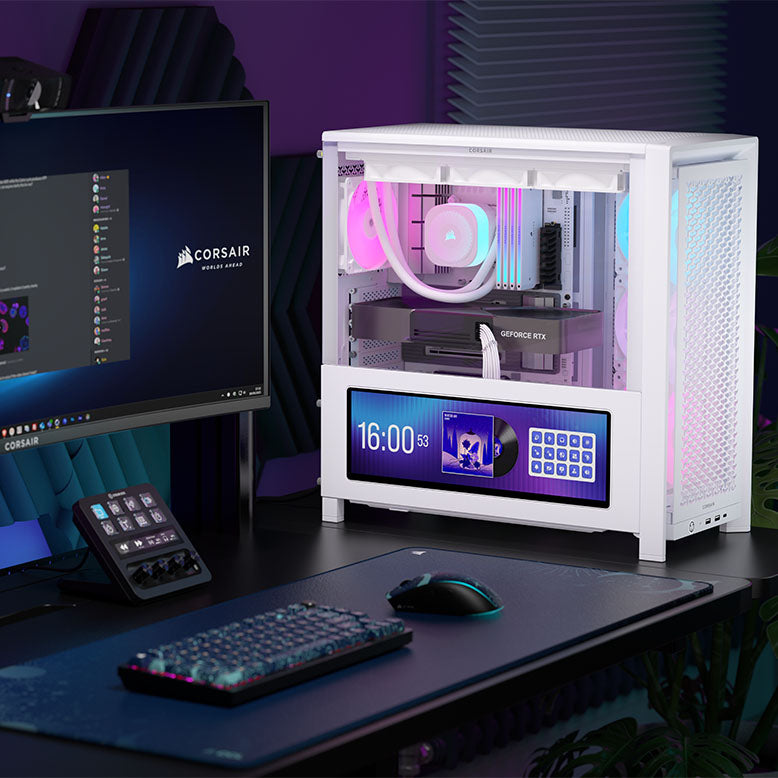

Keep tabs on your gaming PC’s performance in real-time. The CORSAIR FRAME 4000D LCD RS PC Case is equipped with a 14.5” LCD touchscreen, which can display key system metrics, in-game chat windows, calendar reminders, and even weather updates. Alongside adding a bold centrepiece to your build, this screen has almost limitless utility. Use it as a second monitor, amend your Spotify queues, tweak Stream Deck settings, and more right from this display.
Extensive Cooling Options

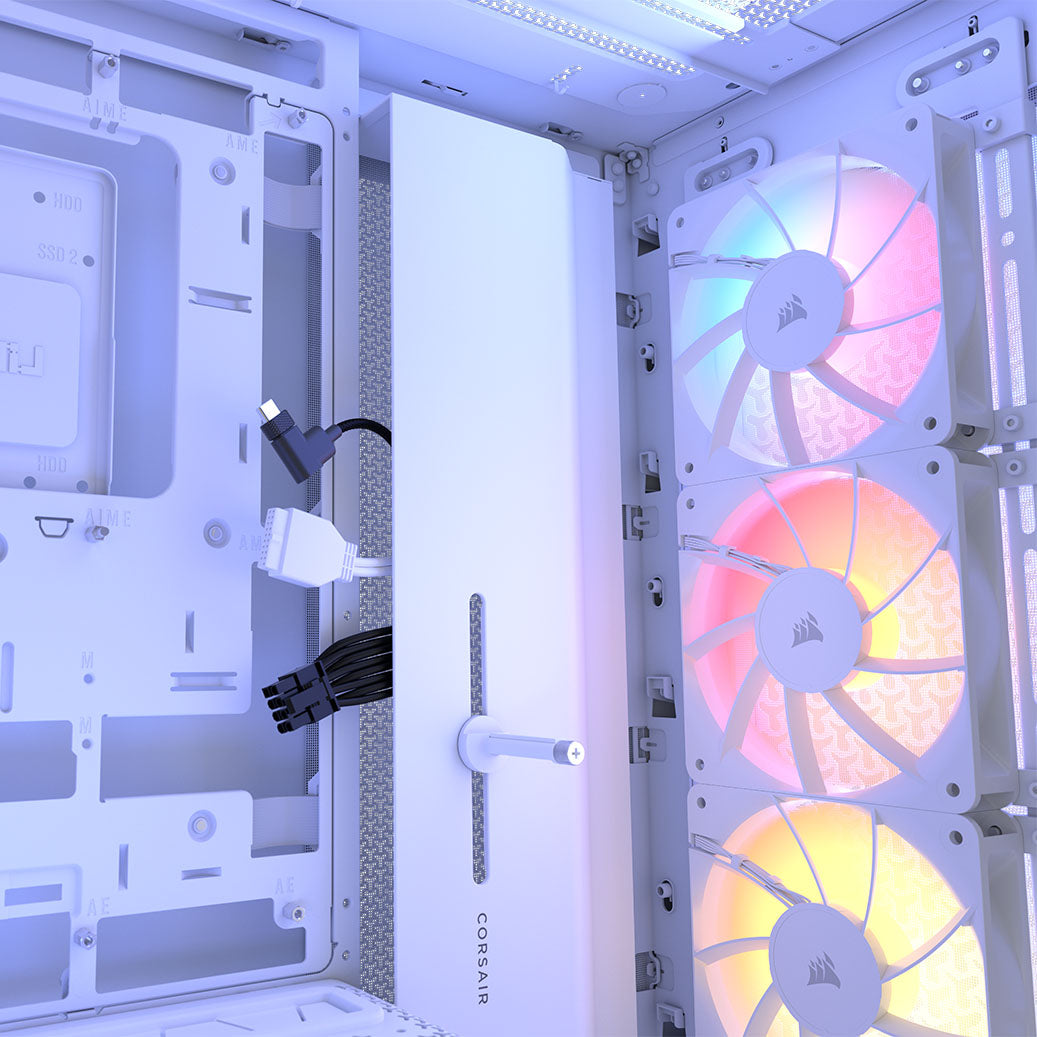

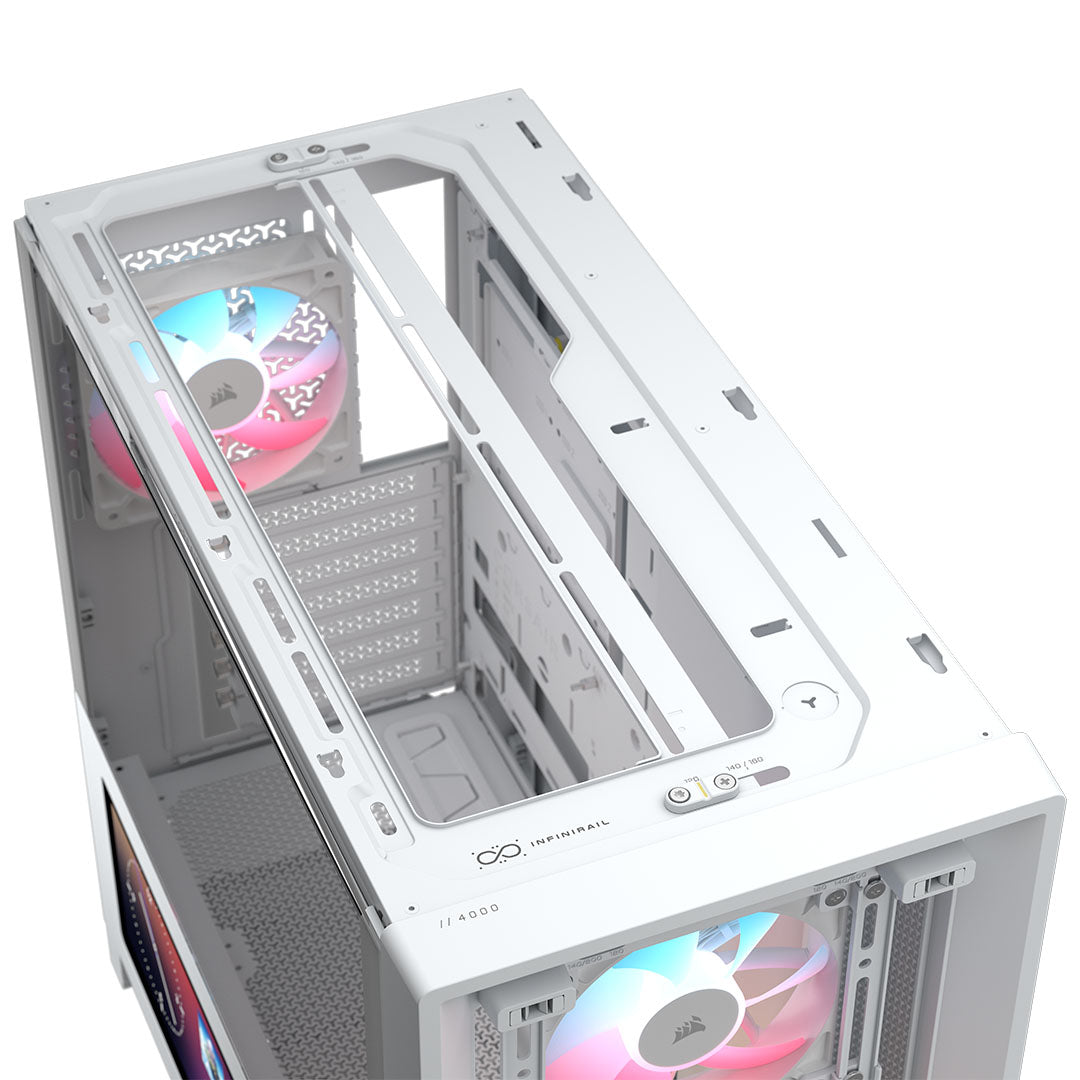

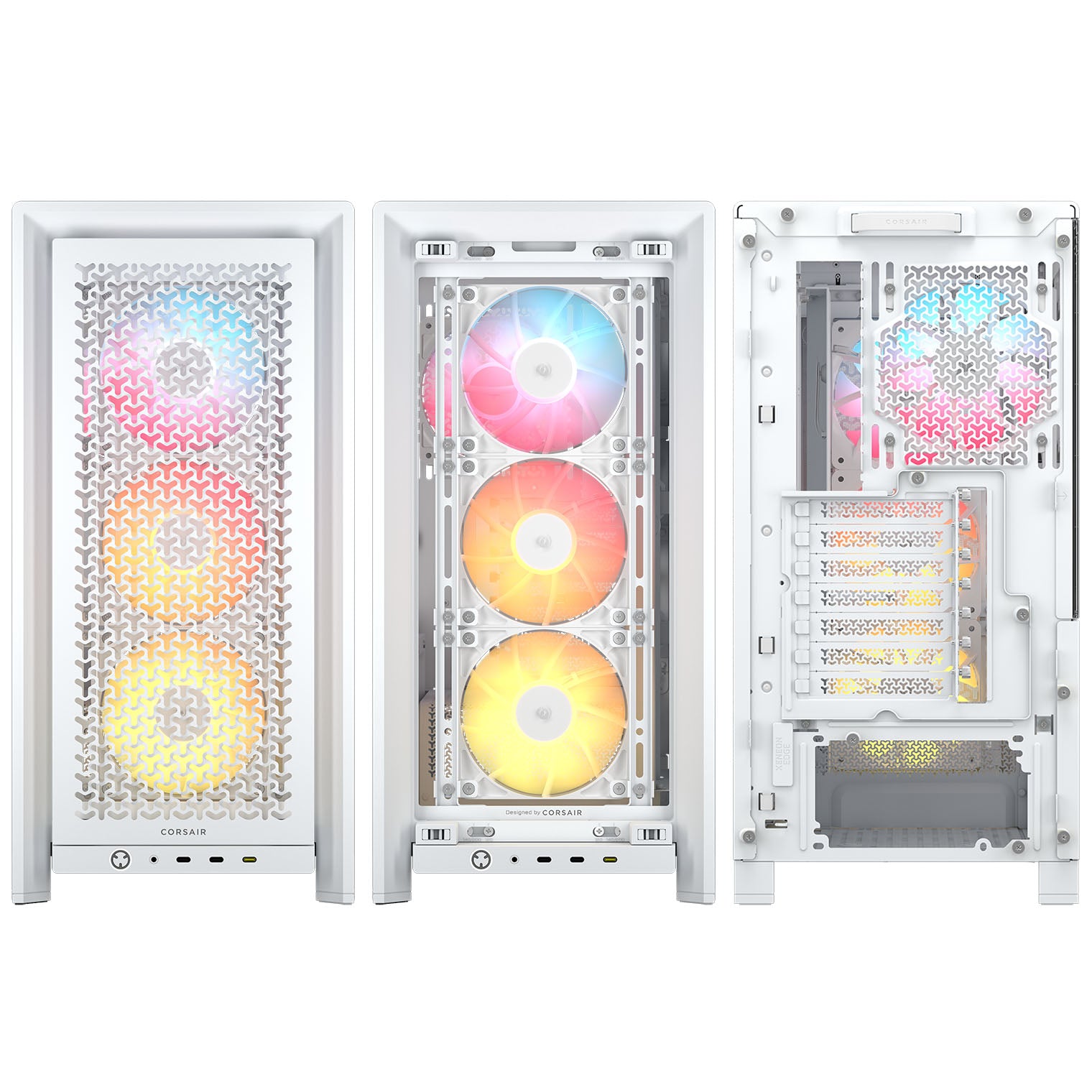

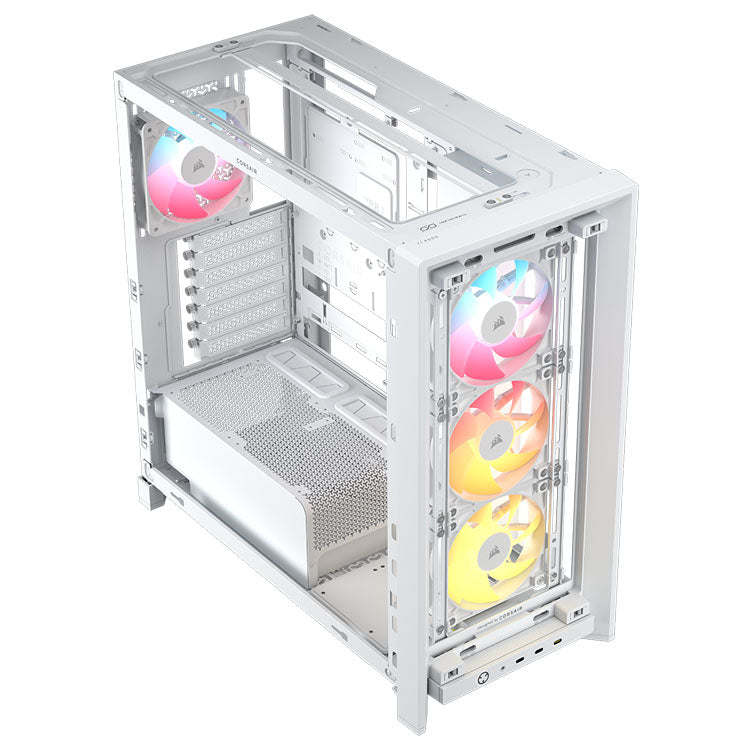

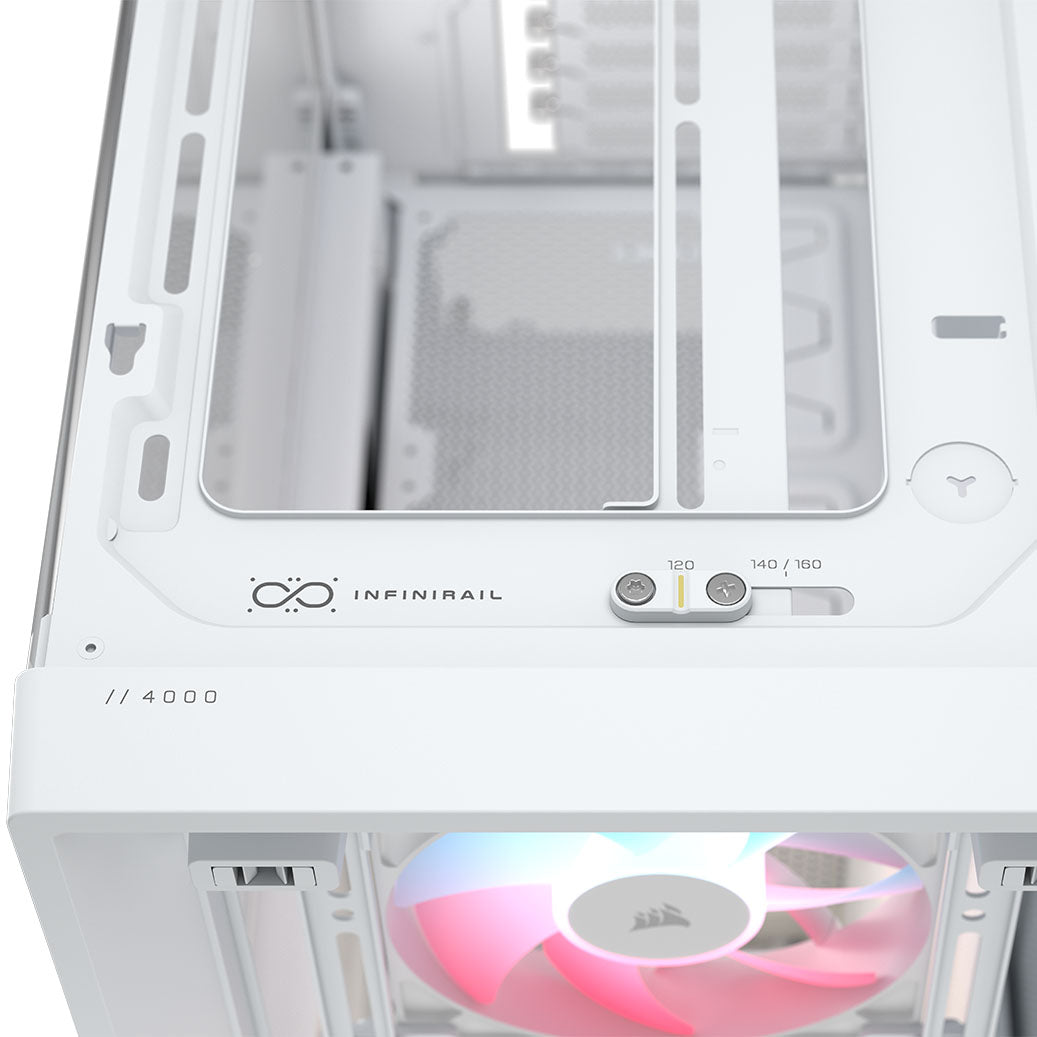

The CORSAIR FRAME 4000D LCD RS PC Case is optimised for air cooling right out of the box. Three RS120 ARGB intake fans and one RS120 ARGB exhaust have been pre-installed for concentrated yet quiet airflow. When installing additional fans, the steel multi-point InfiniRail system allows for flexible mounting along the front and roof panels. Simply slide the rail to fine-tune fan sizes and positioning, surpassing the limitations of traditional fixed mounting points. All in all, up to thirteen 120mm fans can be mounted simultaneously, or you can install fewer 140mm fans as needed.

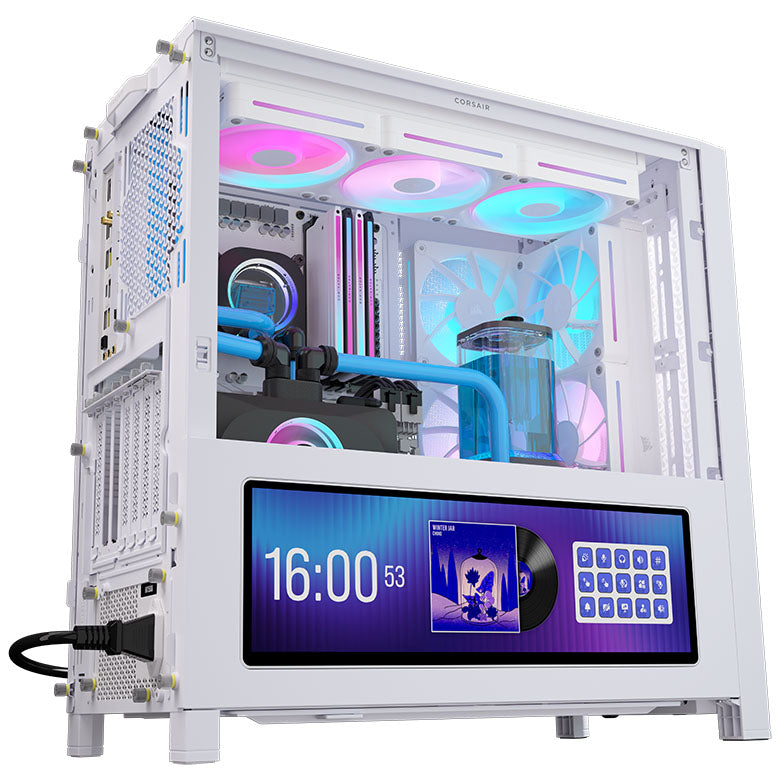

Better yet, the CORSAIR FRAME 4000D LCD RS PC Case provides extensive water-cooling support, with mounting points for three 360mm radiators located on the front, roof, and side panels. This versatile layout gives you the freedom to build a powerful custom loop, or curate a hybrid cooling configuration that balances airflow and liquid cooling.
Showcase Design

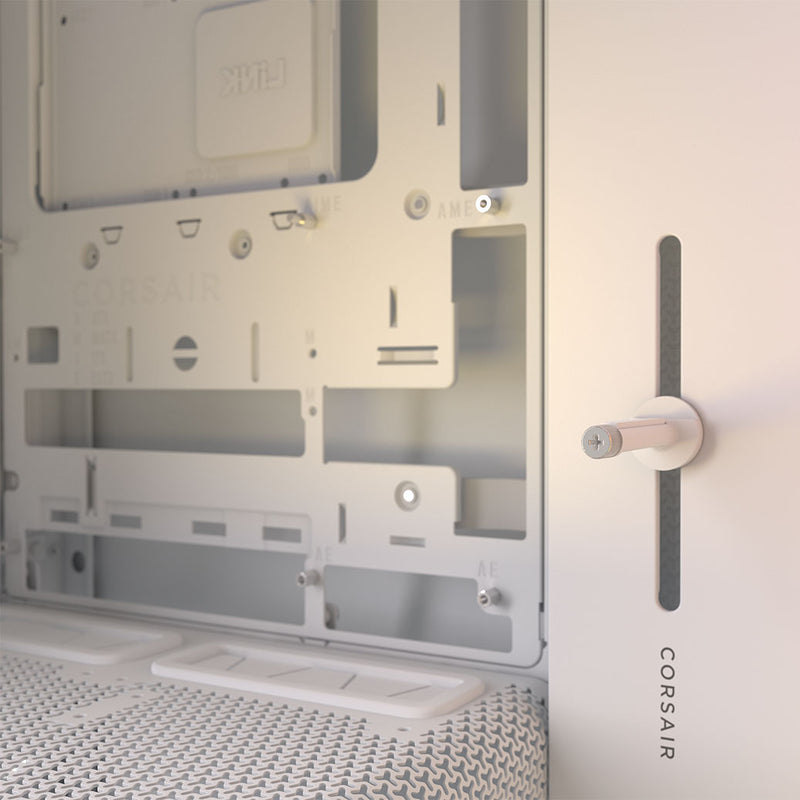

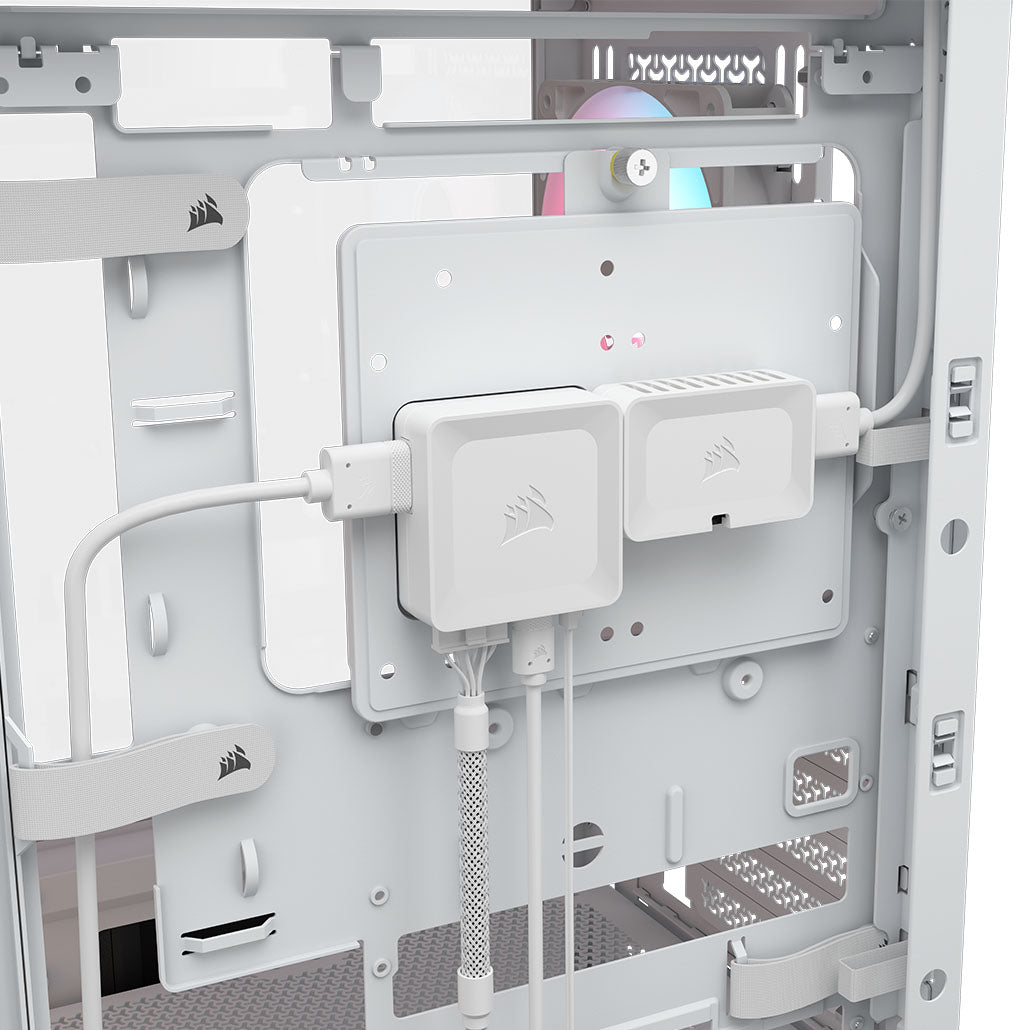

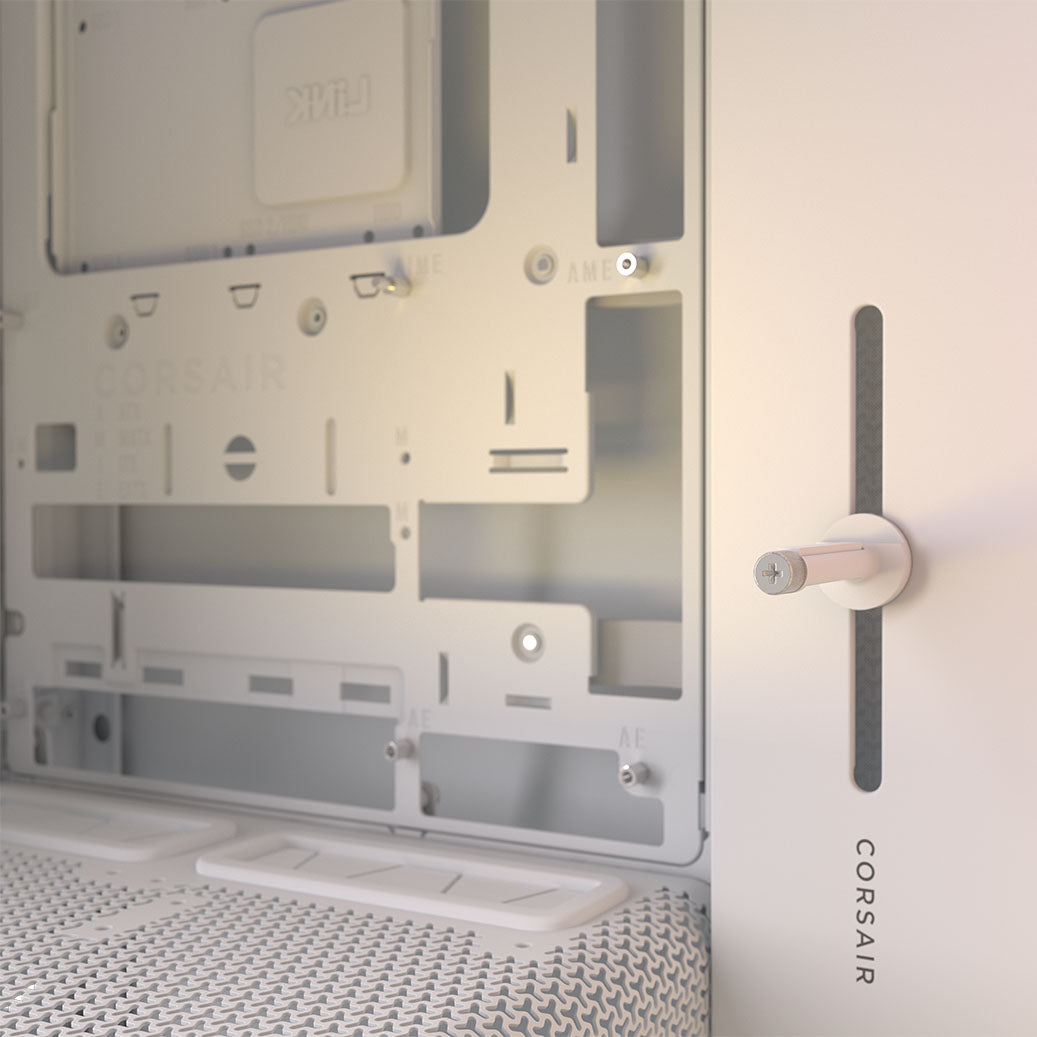

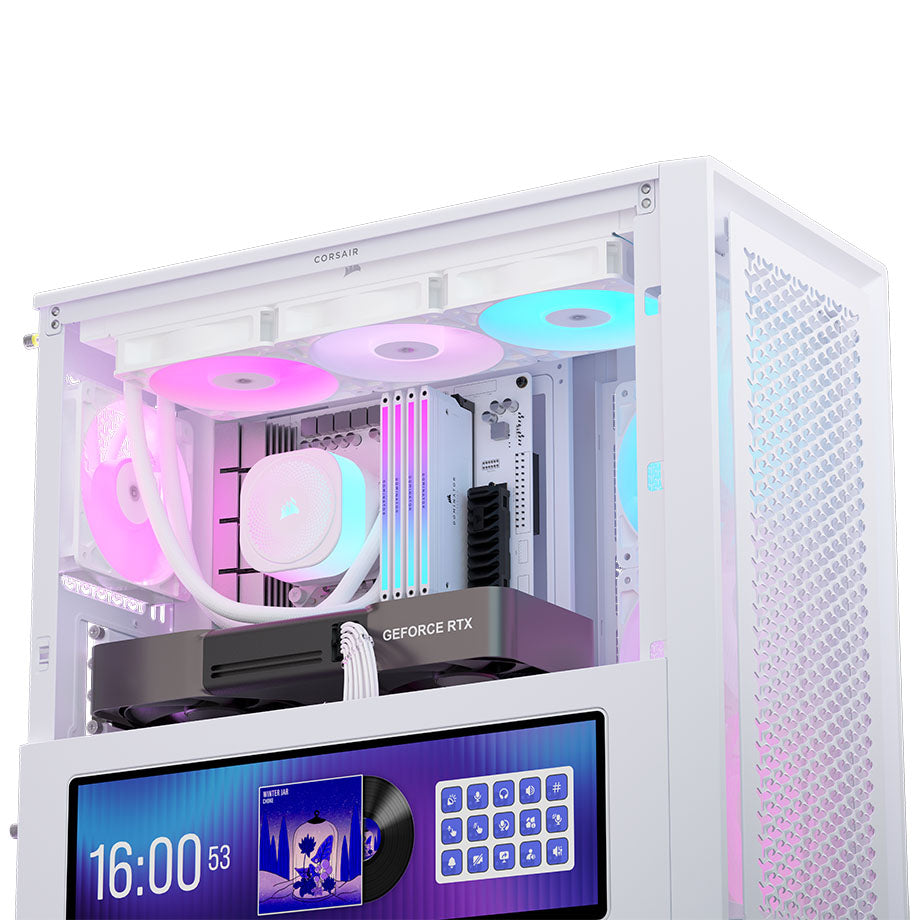

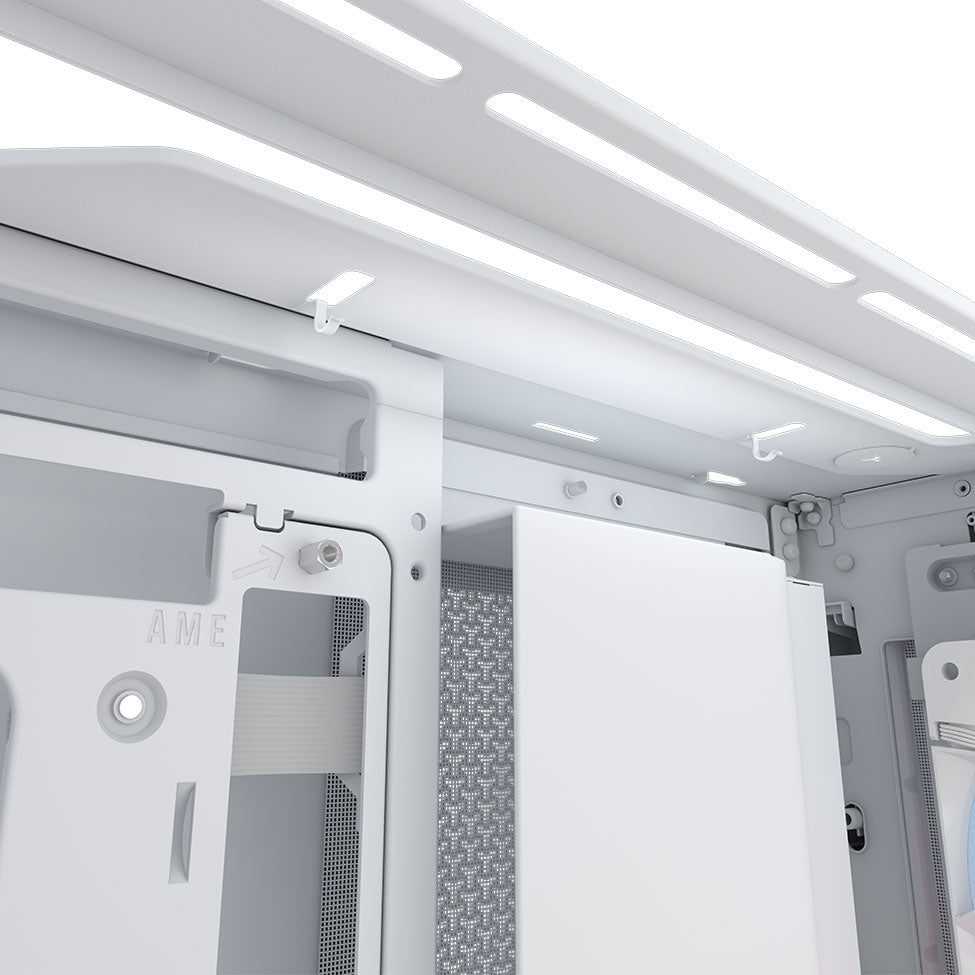

The CORSAIR FRAME 4000D LCD RS PC Case is designed to showcase impeccable PC builds within a sleek white frame. This chassis is perfect for minimising visible clutter, as it supports rear connector motherboards. What’s more, the Anti-sag Stabilization Arm ensures your graphics card is secure and stable, putting less stress on the PCB and your motherboard's PCIe slots. The result of these innovations is a clean and organised interior, which you can display through the two-thirds tempered glass side panel.
Specifications
| Fan Header | Fan Controller / Fan Hub No Lighting Lighting / RGB Yes RGB Controller No Back Connect Back Connect Yes Power Supply PSU included No PSU Format ATX Power Supply Position rear bottom Case Features I/O position Front Side panel with window Vertical GPU Mount No Adjustable Vertical GPU Bracket No Front door No Cable Management Yes Filters Included Yes Noise dampening No Mainboard slide / tray No Transport System No Internal Dimensions Max. CPU Cooler Height 170 mm Max. GPU Length 430 mm Max. PSU Length / Depth 220 mm Motherboard Support Max. Motherboard Format E-ATX Compatible Motherboard Formats E-ATX, ATX, Micro-ATX, ITX Colour Primary Colour White Radiator Support Radiator/AIO Support (Front) 280mm Radiator, 360mm Radiator Radiator/AIO Support (Top) 280mm Radiator, 360mm Radiator Radiator/AIO Support (Rear) 120mm Radiator, 140mm Radiator Max. Radiator Compatibility 3x Triple (360 mm) Fan Support Max. Number of Fans 12 Features Housing Feedthrough No Drive Bays Max. 2.5 Inch Drives 4 Max. 3.5 Inch Drives 2 Max. 5.25 Inch Drives 0 Hot swap drive bays No Display Display Included Yes Materials Materials Steel, Glass Case Case Type Mid Tower Dimensions Length / Depth 490 mm Width 239 mm Height 486 mm Weight 12.36 kg Mounting Case VESA Mountable No Internal Monitor Mount No Expansion Slots Expansion slots / PCI slots 7 Additional Contents Included fans 4x 120 mm Cable Specifications Riser Cable Included No External Ports Audio outputs & inputs 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) Connectivity Card reader No |
|---|---|
| Fan Controller / Fan Hub | No |
| Lighting / RGB | Yes |
| RGB Controller | No |
| Back Connect | Yes |
| PSU included | No |
| PSU Format | ATX |
| Power Supply Position | rear bottom |
| I/O position | Front |
| Side panel | with window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Noise dampening | No |
| Mainboard slide / tray | No |
| Transport System | No |
| Max. CPU Cooler Height | 170 mm |
| Max. GPU Length | 430 mm |
| Max. PSU Length / Depth | 220 mm |
| Max. Motherboard Format | E-ATX |
| Compatible Motherboard Formats | E-ATX, ATX, Micro-ATX, ITX |
| Primary Colour | White |
| Radiator/AIO Support (Front) | 280mm Radiator, 360mm Radiator |
| Radiator/AIO Support (Top) | 280mm Radiator, 360mm Radiator |
| Radiator/AIO Support (Rear) | 120mm Radiator, 140mm Radiator |
| Max. Radiator Compatibility | 3x Triple (360 mm) |
| Max. Number of Fans | 12 |
| Housing Feedthrough | No |
| Max. 2.5 Inch Drives | 4 |
| Max. 3.5 Inch Drives | 2 |
| Max. 5.25 Inch Drives | 0 |
| Hot swap drive bays | No |
| Display Included | Yes |
| Materials | Steel, Glass |
| Case Type | Mid Tower |
| Length / Depth | 490 mm |
| Width | 239 mm |
| Height | 486 mm |
| Weight | 12.36 kg |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Expansion slots / PCI slots | 7 |
| Included fans | 4x 120 mm |
| Riser Cable Included | No |

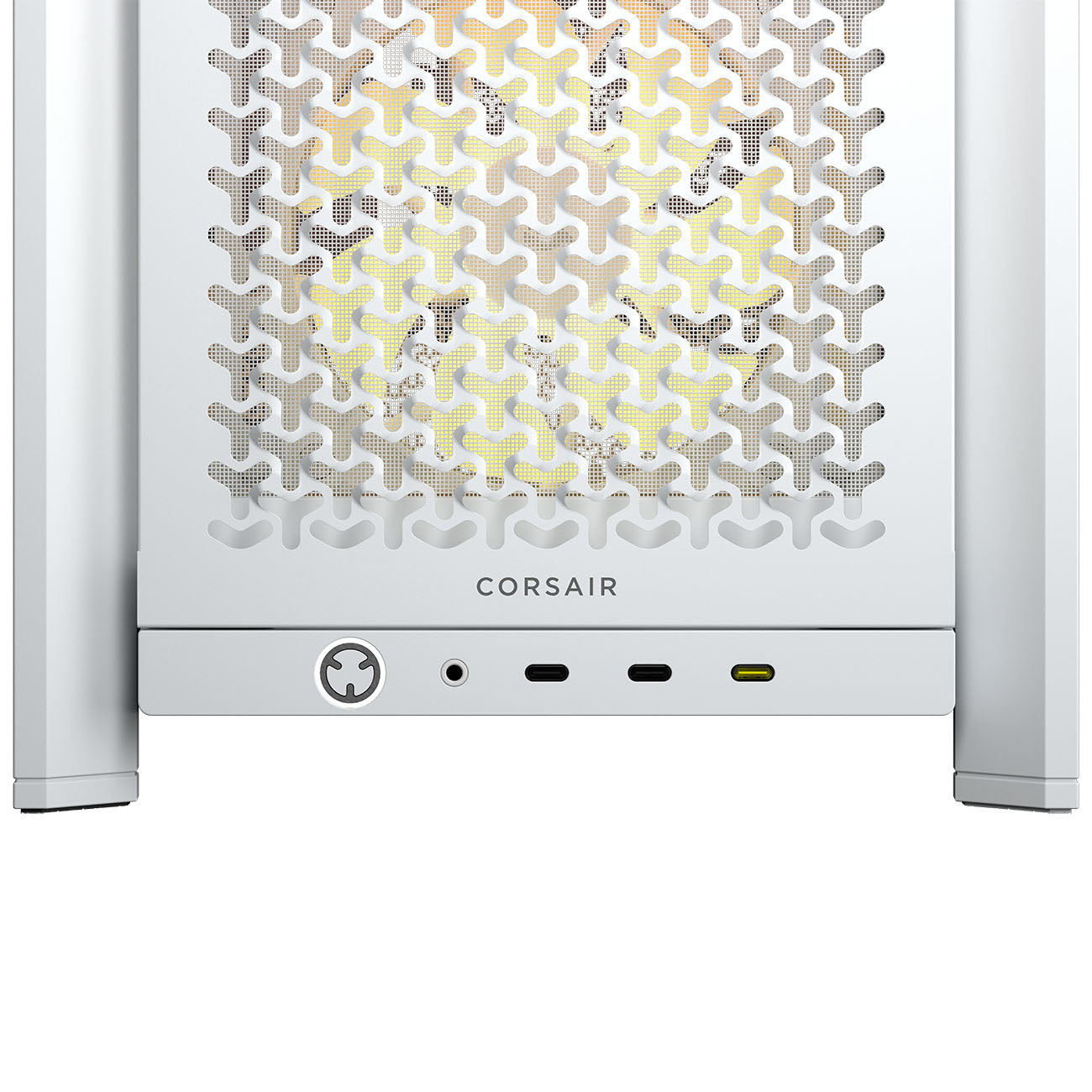

| Audio outputs & inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
| Card reader | No |
Specifications
| Manufacturer | CORSAIR |
|---|---|
| Manufacturer part number | CC-9011327-WW |
| OcUK SKU | CAS-CRS-06869 |
| EAN | 0840440408031 |
| Back Connect | Yes |
| Case Type | Mid Tower |
| Included fans | 4x 120 mm |
| Lighting / RGB | Yes |
| Power Supply Position | rear bottom |
| Primary Colour | White |
| PSU Format | ATX |
