Overview

The Corsair AIR 5400 LX-R RGB LINK is a high-end mid-tower gaming PC case featuring a triple-chamber layout that separates CPU, GPU/motherboard and PSU/storage for superior cooling performance. It includes three pre-installed LX120-R RGB LINK fans and supports iCUE LINK for streamlined RGB & fan control. With wraparound curved tempered glass panels, compatibility with E-ATX, GPUs up to 430 mm and radiators up to 360 mm, it’s built to showcase and support advanced hardware.


CURVED GLASS MID-TOWER PC CASE - TRIPLE-CHAMBER CHAMPION

  • Triple-chamber design for peak thermal performance
  • Dedicated chamber for CPU cooling
  • Dual airflow ducts for powerful main chamber airflow
  • Dual curved glass French door panels
  • Compatible with reverse connector motherboards
  • RapidRoute 2.0 cable management system
  • 3x iCUE LINK LX-R RGB 120mm reverse-rotor fans and System Hub

THREE IS BETTER THAN TWO - TRIPLE-CHAMBER DESIGN

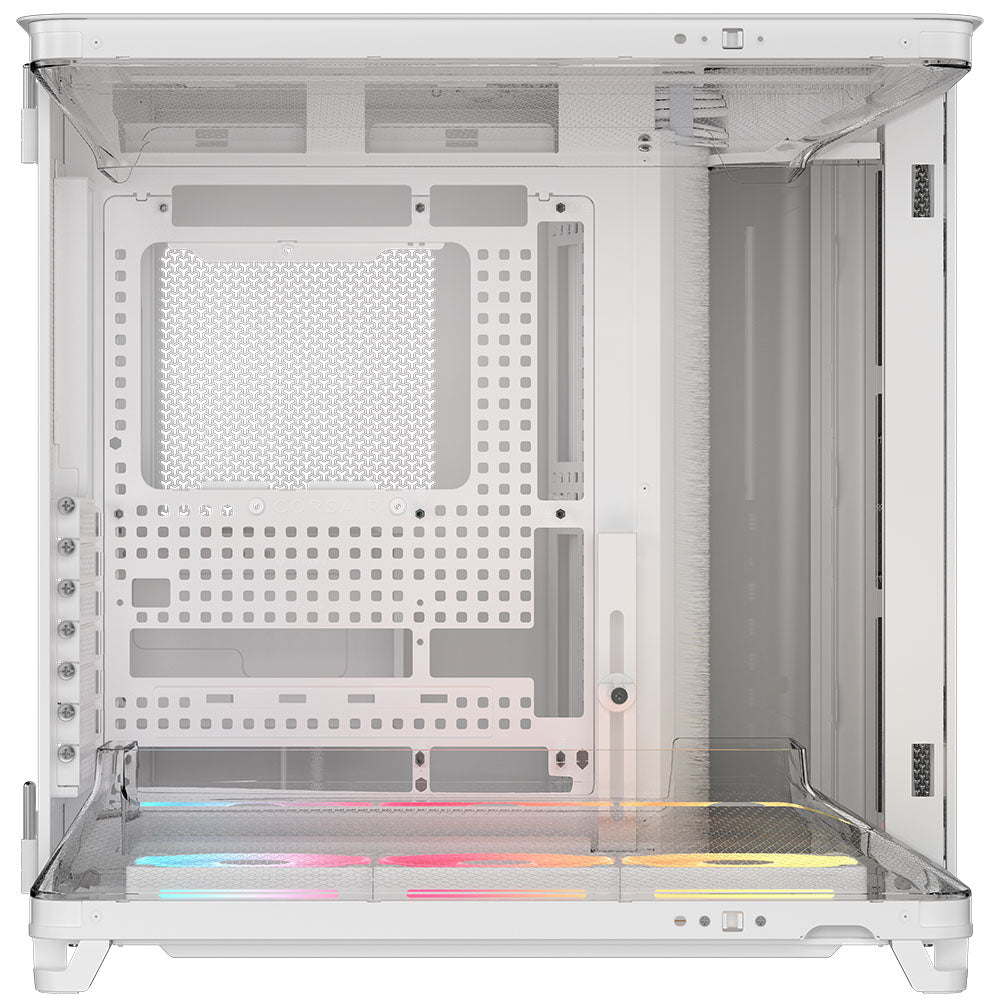

A unique triple-chamber design was created to isolate hot components for effective cooling and maximum performance at all times. Separate chambers for the CPU, GPU/motherboard, and PSU, cables, and storage allow for exceptional thermals and an easy PC building process.

UNRIVALED PERFORMANCE
Reimagined from the ground up by our world-class engineers, the AIR 5400 is a masterclass in precision, performance, and purposeful design.

POWERFUL GPU AIRFLOW
The roomy interior was designed specifically for the most powerful GPUs with plenty of room to breathe and dual airflow ducts to channel cool air through the GPU for maximum performance.



REVERSE-ROTOR iCUE LINK LX-R FANS

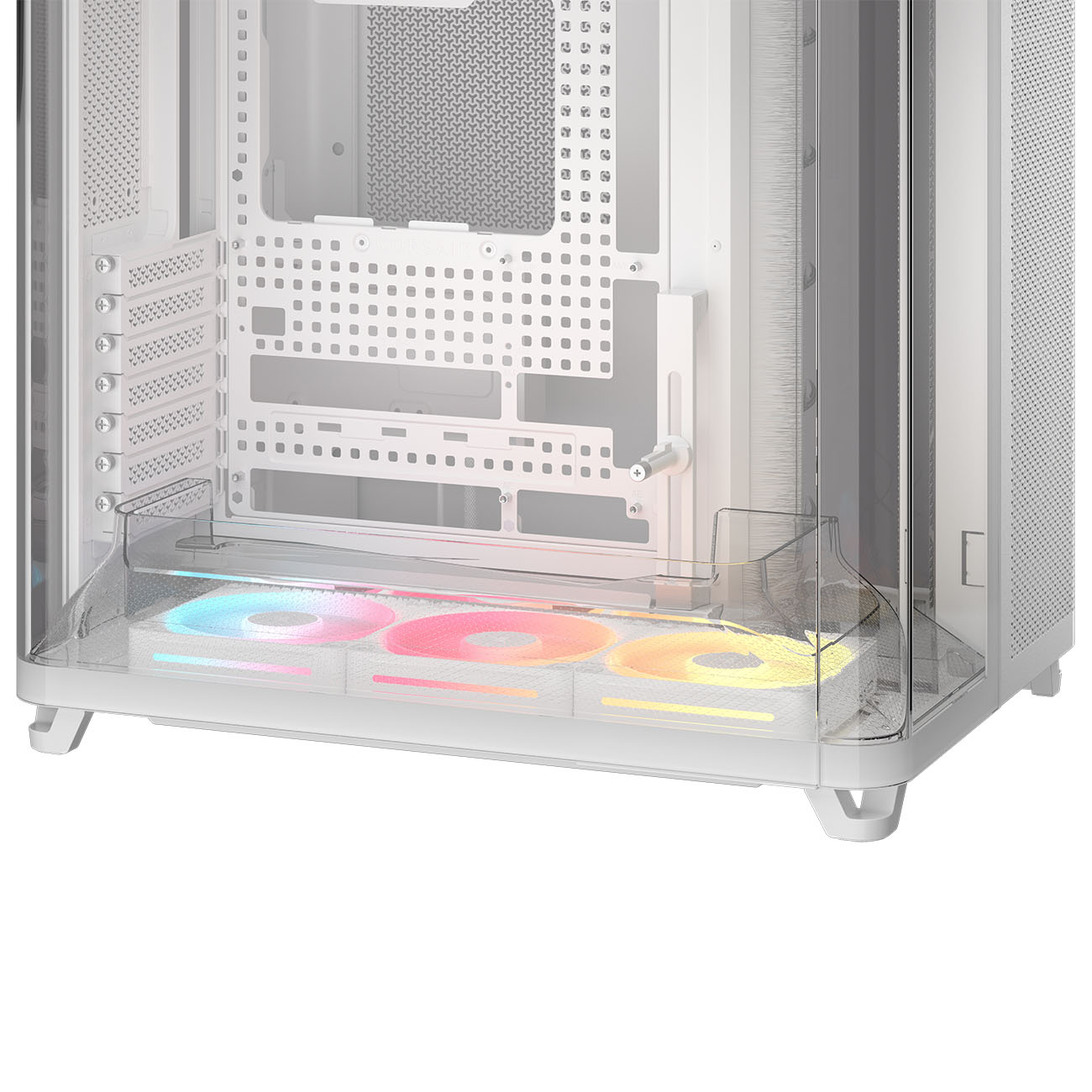

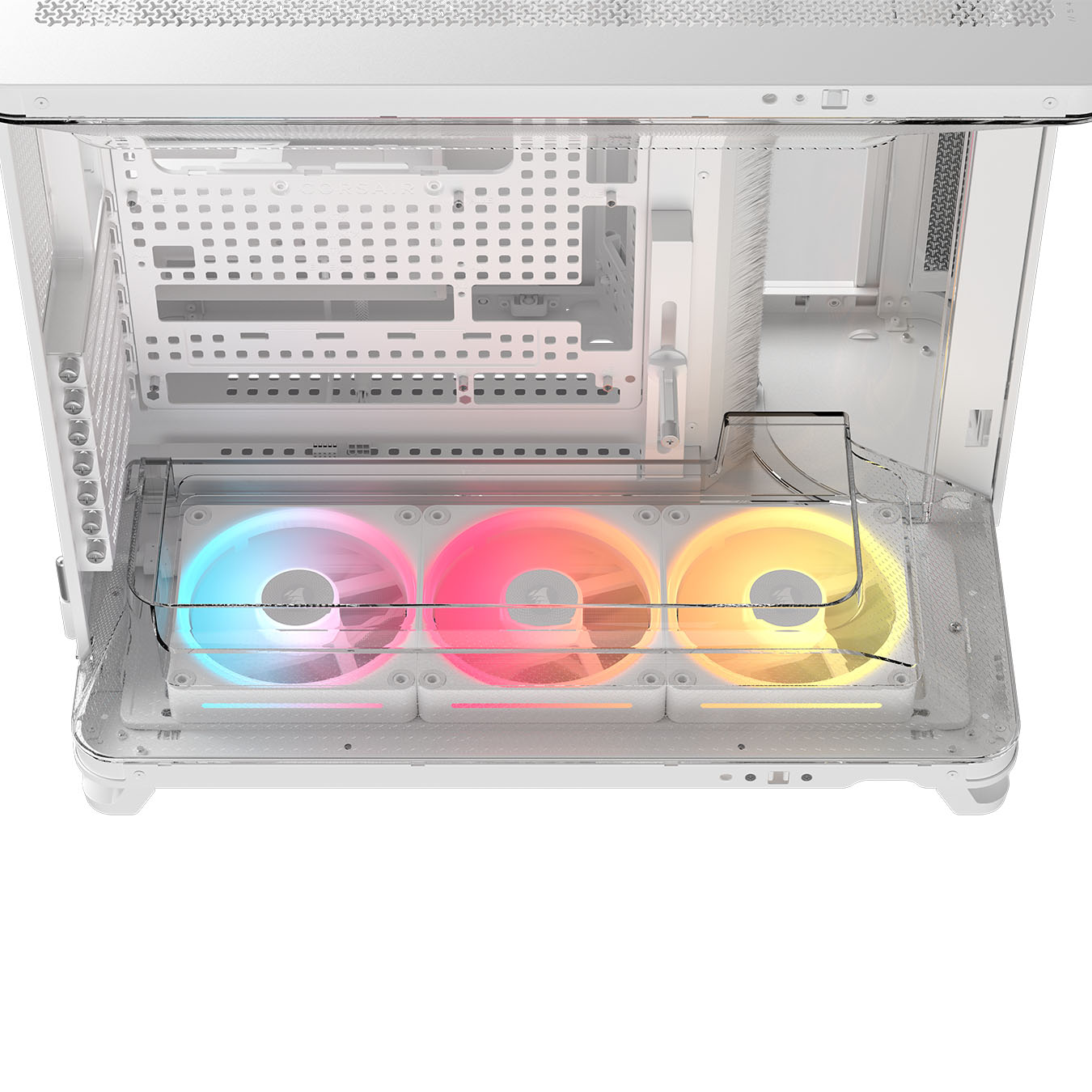

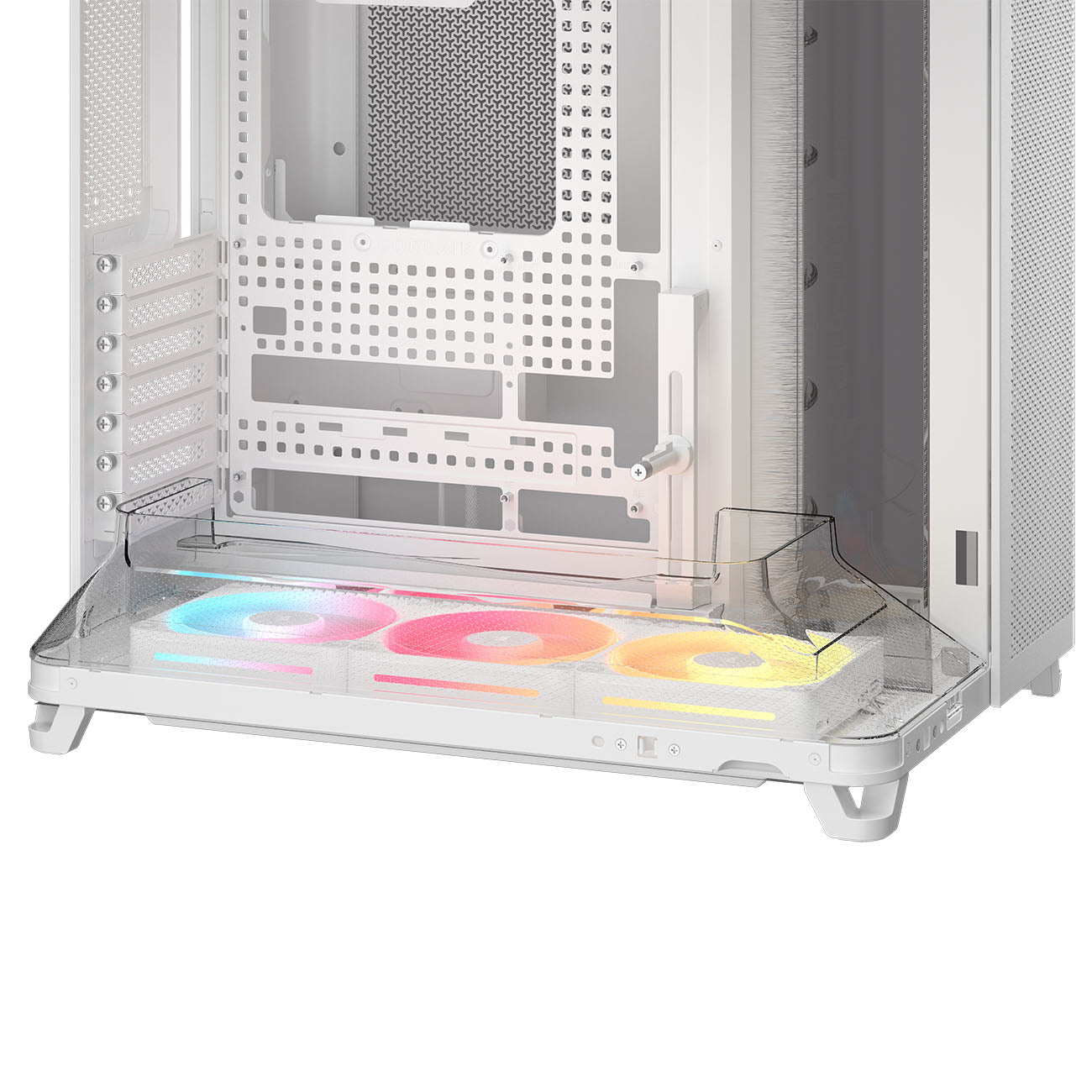

Preinstalled reverse-rotor iCUE LINK LX-R RGB 120mm fans in the bottom of the chassis allow for efficient, low-noise cooling with glorious, unobstructed RGB lighting.

The included System Hub supports up to 24 iCUE LINK devices, so you can easily power any additional iCUE LINK fans with just one cable.

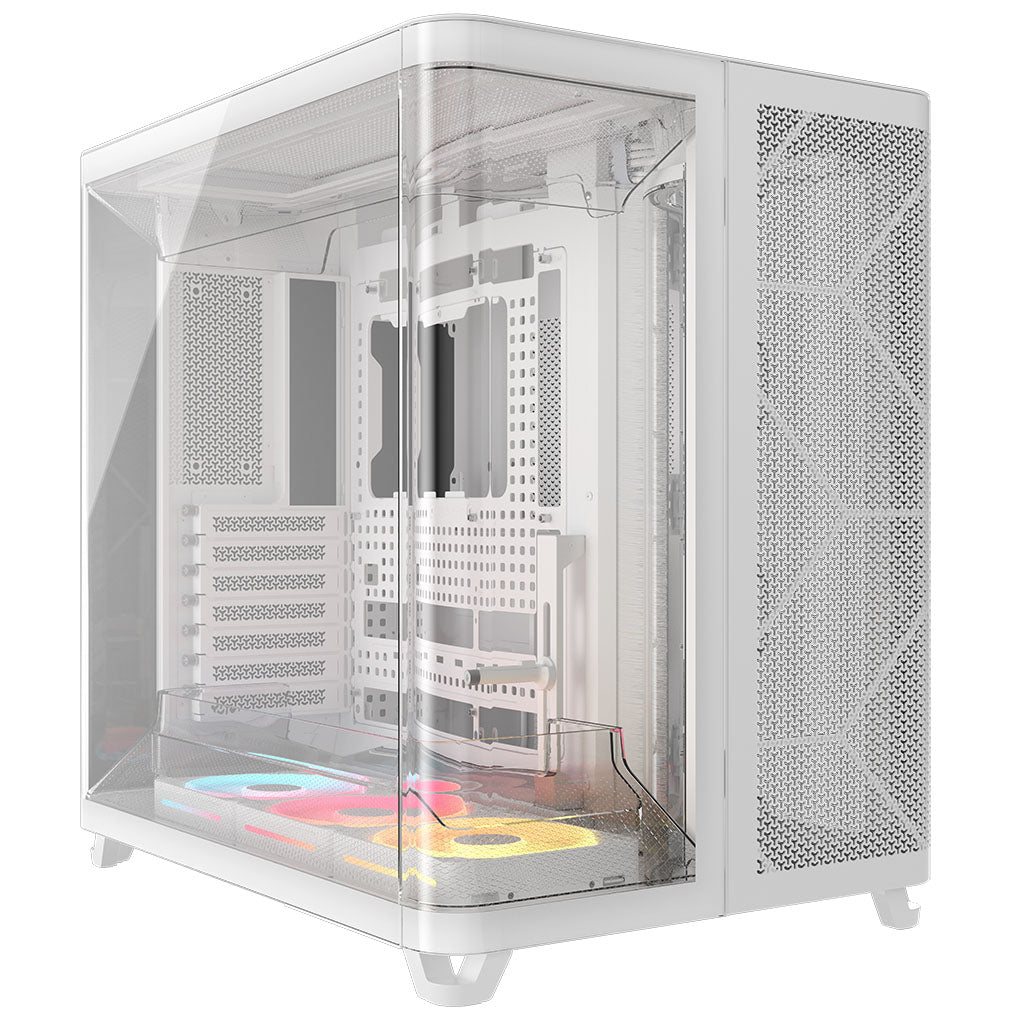

DUAL CURVED GLASS FRENCH DOOR PANELS
Two glass panels connect in the corner of the chassis and open outwards with hinges that disappear for a seamless look and easy access to your hardware.

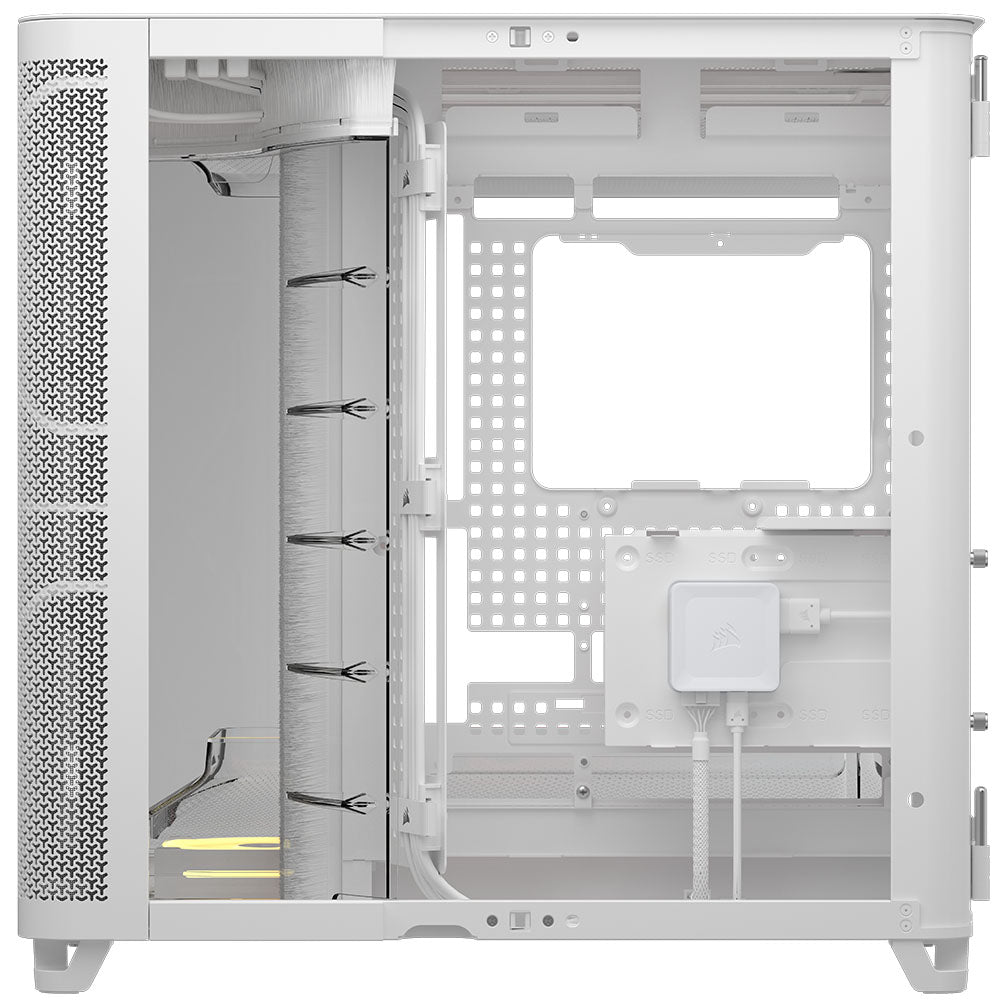

ADVANCED CABLE MANAGEMENT - RAPIDROUTE 2.0
Cable management has never been easier with RapidRoute 2.0. It features a new pegboard motherboard tray so you can easily move and rotate cable ties wherever you like for a tidy build.

Specifications

Internal Dimensions Max. CPU Cooler Height 180 mm Max. GPU Length 360 mm Max. PSU Length / Depth 200 mm Fan Support Case Fan Support (Top) 120mm Fan (3x) Case Fan Support (Bottom) 120mm Fan (3x) Case Fan Support (Front) 120mm Fan (3x) Case Fan Support (Rear) 120mm Fan (1x) Max. Number of Fans 10 120 mm fans 10 Back Connect Back Connect Yes Back-Connect Compatibility ASUS BTF, MSI Project Zero, Gigabyte Project Stealth Case Features I/O position Top Side panel with window Vertical GPU Mount No Adjustable Vertical GPU Bracket No Front door Yes Cable Management Yes Filters Included Yes Noise dampening No Mainboard slide / tray No Transport System No Power Supply PSU included No PSU Format ATX Power Supply Position rear side Colour Primary Colour White Lighting Lighting / RGB Yes RGB Controller Yes Lighting Colour RGB Case Case Type Mid Tower Radiator Support Radiator/AIO Support (Front) 240mm Radiator, 360mm Radiator Radiator/AIO Support (Bottom) 240mm Radiator, 360mm Radiator Max. Radiator Compatibility 1x Single (120 mm), 3x Triple (360 mm) Radiator/AIO Support (Rear) 120mm Radiator Radiator/AIO Support (Top) 360mm Radiator Dimensions Length / Depth 470 mm Width 340 mm Height 467 mm Weight 16.7 kg Materials Materials Steel, Tempered Glass Display Display Included No Motherboard Support Max. Motherboard Format E-ATX Compatible Motherboard Formats E-ATX, ATX, Micro-ITX, ITX Fan Header Fan Controller / Fan Hub Yes Additional Contents Fans Included Yes Included fans 3x 120 mm Expansion Slots Expansion slots / PCI slots 7 Mounting Case VESA Mountable No Internal Monitor Mount No External Ports Front I/O – USB Type C Ports Total 3 USB 3.2 (external) Type C 3 Audio outputs & inputs 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) Features Housing Feedthrough No Drive Bays Max. 2.5 Inch Drives 2 Max. 3.5 Inch Drives 1 Max. 5.25 Inch Drives 0 Hot swap drive bays No Cable Specifications Riser Cable Included No Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Connectivity Card reader No
Max. CPU Cooler Height 180 mm
Max. GPU Length 360 mm
Max. PSU Length / Depth 200 mm
Case Fan Support (Top) 120mm Fan (3x)
Case Fan Support (Bottom) 120mm Fan (3x)
Case Fan Support (Front) 120mm Fan (3x)
Case Fan Support (Rear) 120mm Fan (1x)
Max. Number of Fans 10
120 mm fans 10
Back Connect Yes
Back-Connect Compatibility ASUS BTF, MSI Project Zero, Gigabyte Project Stealth
I/O position Top
Side panel with window
Vertical GPU Mount No
Adjustable Vertical GPU Bracket No
Front door Yes
Cable Management Yes
Filters Included Yes
Noise dampening No
Mainboard slide / tray No
Transport System No
PSU included No
PSU Format ATX
Power Supply Position rear side
Primary Colour White
Lighting / RGB Yes
RGB Controller Yes
Lighting Colour RGB
Case Type Mid Tower
Radiator/AIO Support (Front) 240mm Radiator, 360mm Radiator
Radiator/AIO Support (Bottom) 240mm Radiator, 360mm Radiator
Max. Radiator Compatibility 1x Single (120 mm), 3x Triple (360 mm)
Radiator/AIO Support (Rear) 120mm Radiator
Radiator/AIO Support (Top) 360mm Radiator
Length / Depth 470 mm
Width 340 mm
Height 467 mm
Weight 16.7 kg
Materials Steel, Tempered Glass
Display Included No
Max. Motherboard Format E-ATX
Compatible Motherboard Formats E-ATX, ATX, Micro-ITX, ITX
Fan Controller / Fan Hub Yes
Fans Included Yes
Included fans 3x 120 mm
Expansion slots / PCI slots 7
Case VESA Mountable No
Internal Monitor Mount No
Front I/O – USB Type C Ports Total 3
USB 3.2 (external) Type C 3
Audio outputs & inputs 1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Housing Feedthrough No
Max. 2.5 Inch Drives 2
Max. 3.5 Inch Drives 1
Max. 5.25 Inch Drives 0
Hot swap drive bays No
Riser Cable Included No
Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Card reader No

Specifications

ManufacturerCORSAIR
Manufacturer part numberCC-9011321-WW
OcUK SKUCAS-CRS-06628
EAN0840440406587
Back Connect Yes
Case Type Mid Tower
Included fans 3x 120 mm
Lighting Colour RGB
Lighting / RGB Yes
Power Supply Position rear side
Primary Colour White
PSU Format ATX
