Overview

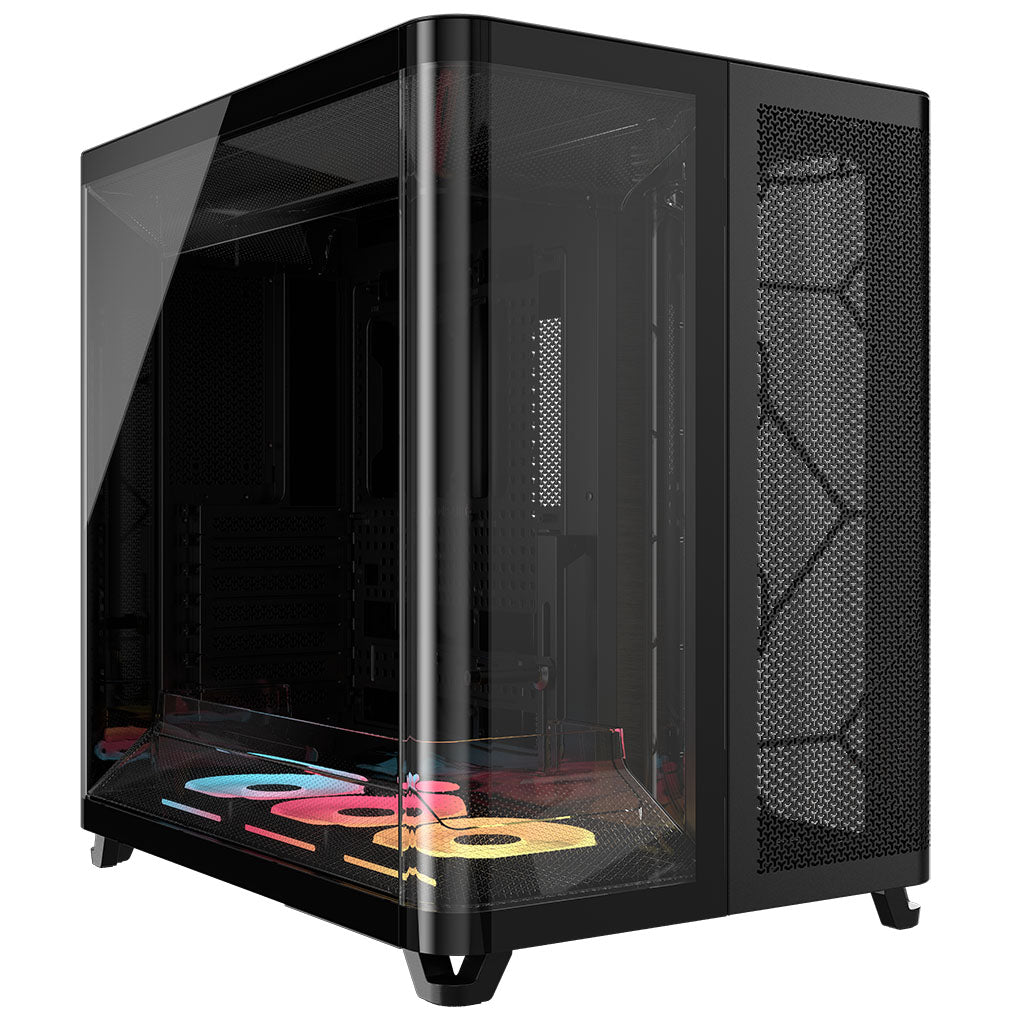

CURVED GLASS MID-TOWER PC CASE - TRIPLE-CHAMBER CHAMPION
- Triple-chamber design for peak thermal performance
- Dedicated chamber for CPU cooling
- Dual airflow ducts for powerful main chamber airflow
- Dual curved glass French door panels
- Compatible with reverse connector motherboards
- RapidRoute 2.0 cable management system
- 3x iCUE LINK LX-R RGB 120mm reverse-rotor fans and System Hub
THREE IS BETTER THAN TWO - TRIPLE-CHAMBER DESIGN

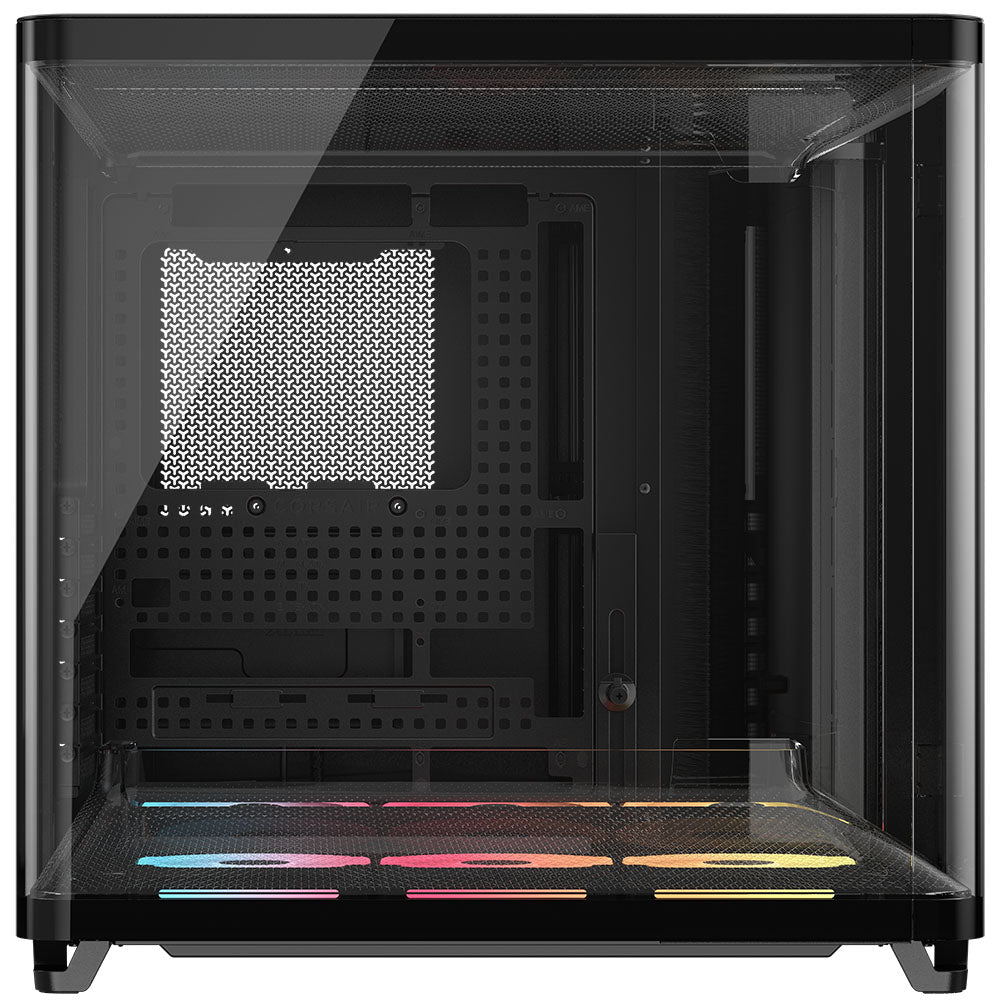

A unique triple-chamber design was created to isolate hot components for effective cooling and maximum performance at all times. Separate chambers for the CPU, GPU/motherboard, and PSU, cables, and storage allow for exceptional thermals and an easy PC building process.
UNRIVALED PERFORMANCE
Reimagined from the ground up by our world-class engineers, the AIR 5400 is a masterclass in precision, performance, and purposeful design.
POWERFUL GPU AIRFLOW
The roomy interior was designed specifically for the most powerful GPUs with plenty of room to breathe and dual airflow ducts to channel cool air through the GPU for maximum performance.
REVERSE-ROTOR iCUE LINK LX-R FANS

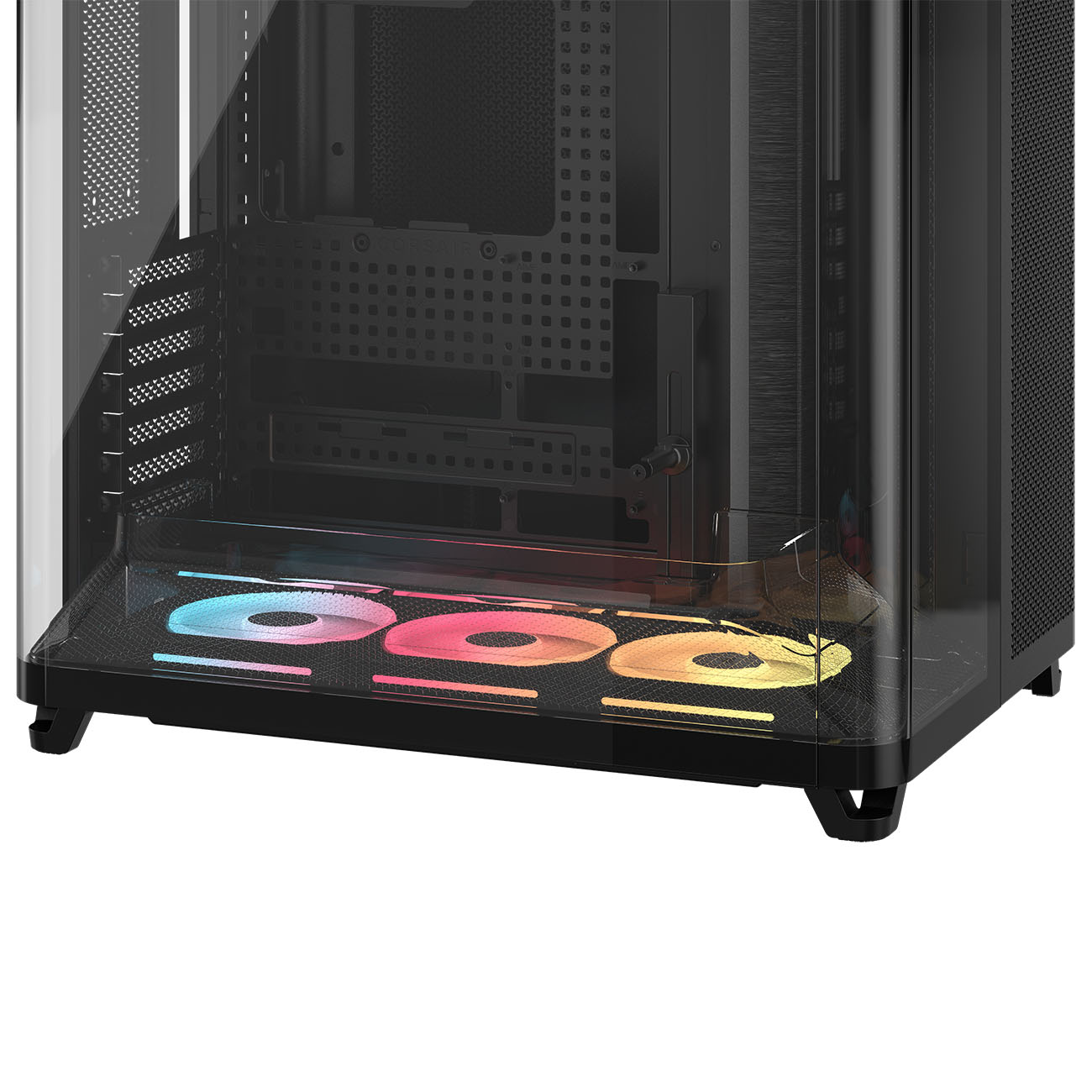

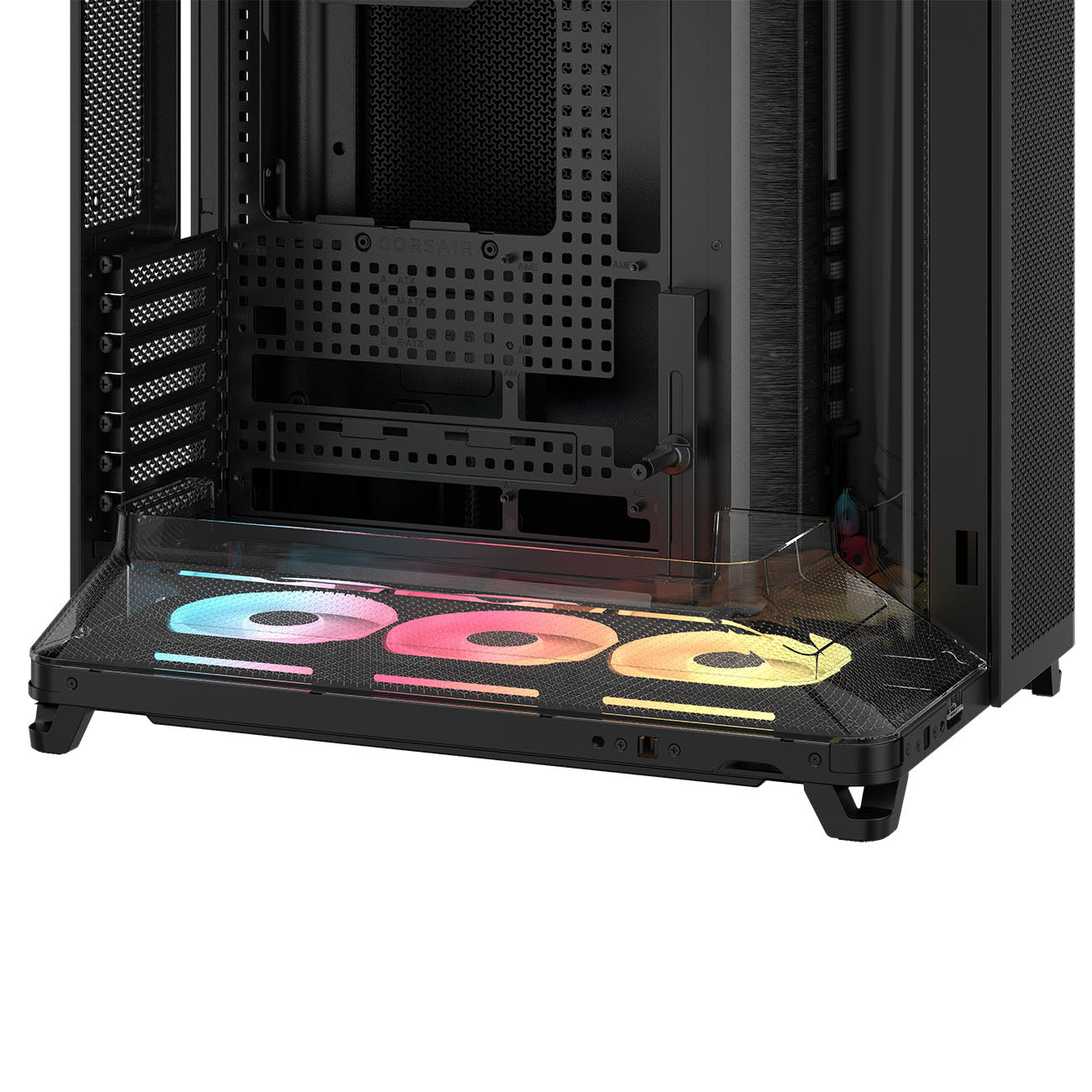

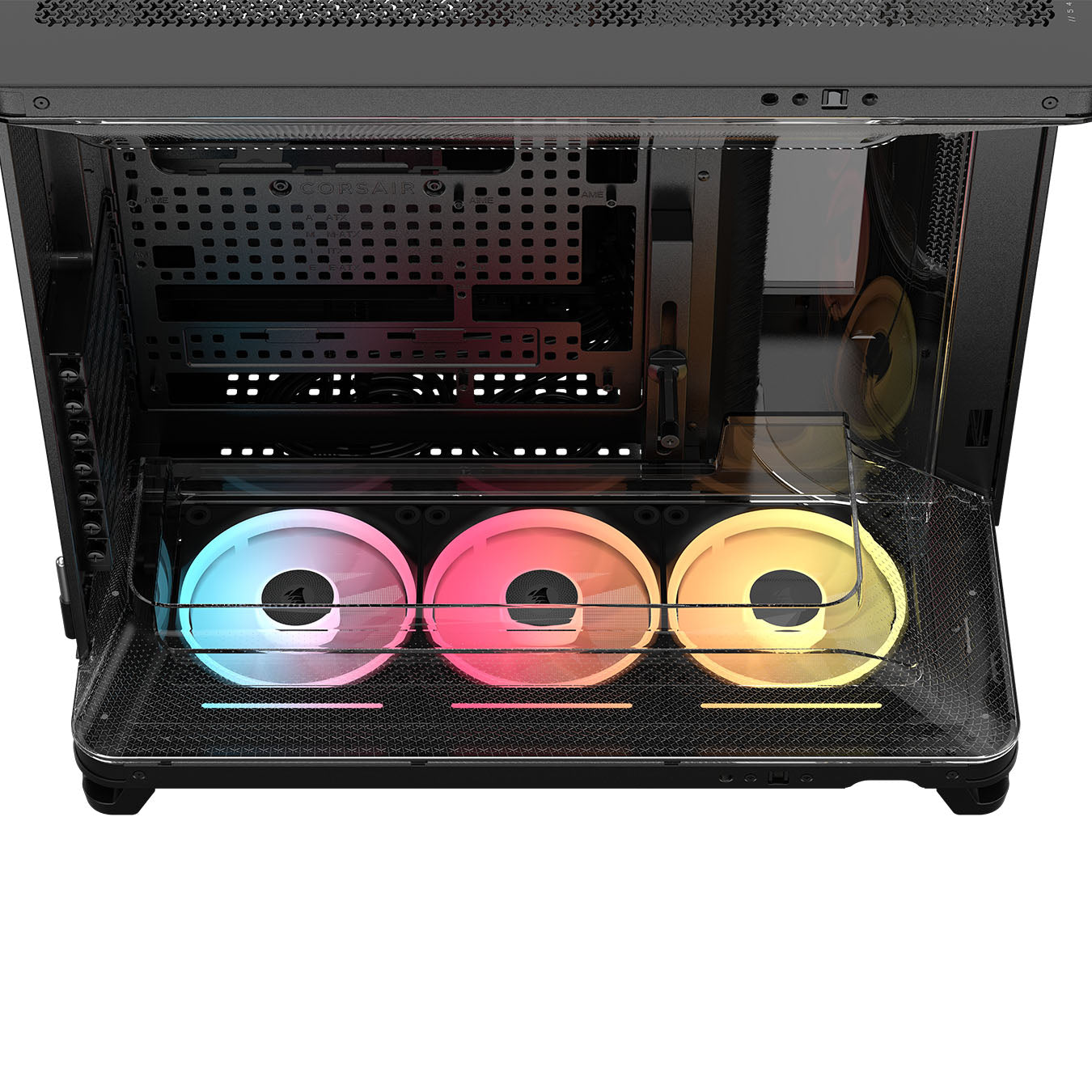

Preinstalled reverse-rotor iCUE LINK LX-R RGB 120mm fans in the bottom of the chassis allow for efficient, low-noise cooling with glorious, unobstructed RGB lighting.
The included System Hub supports up to 24 iCUE LINK devices, so you can easily power any additional iCUE LINK fans with just one cable.

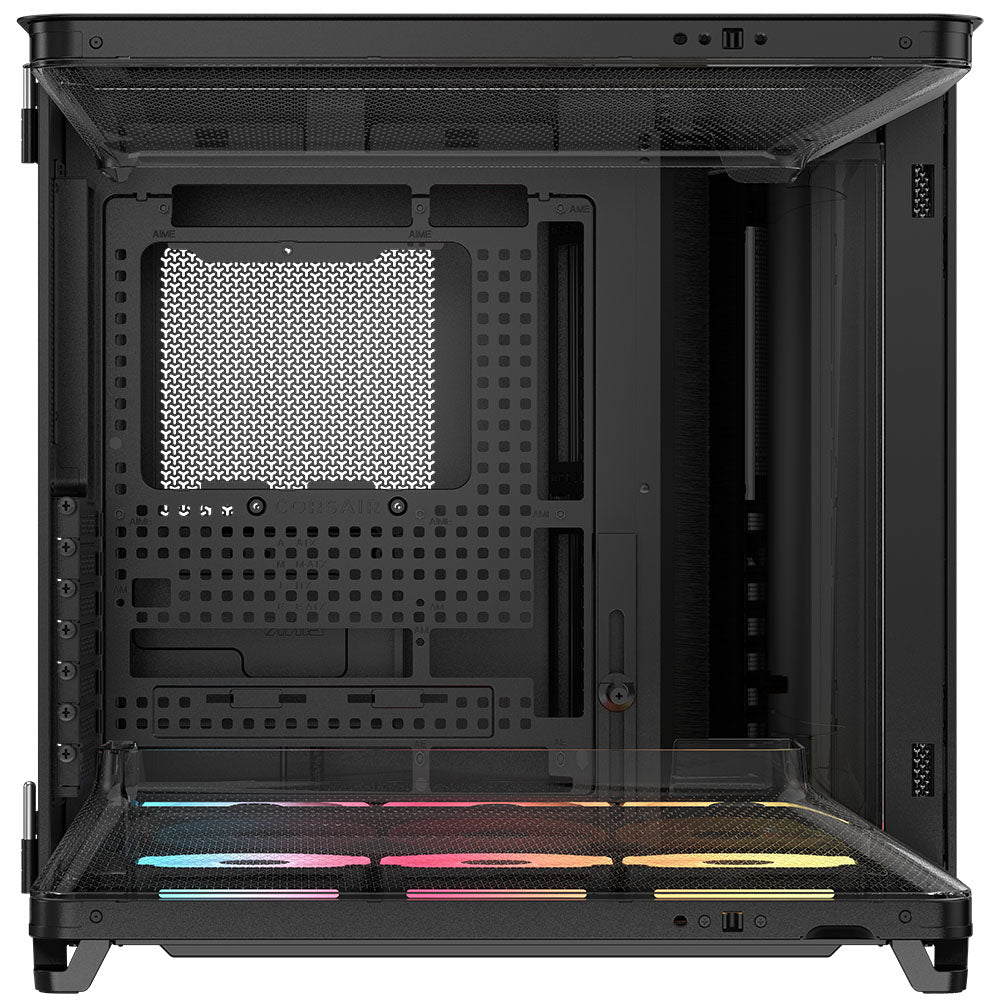

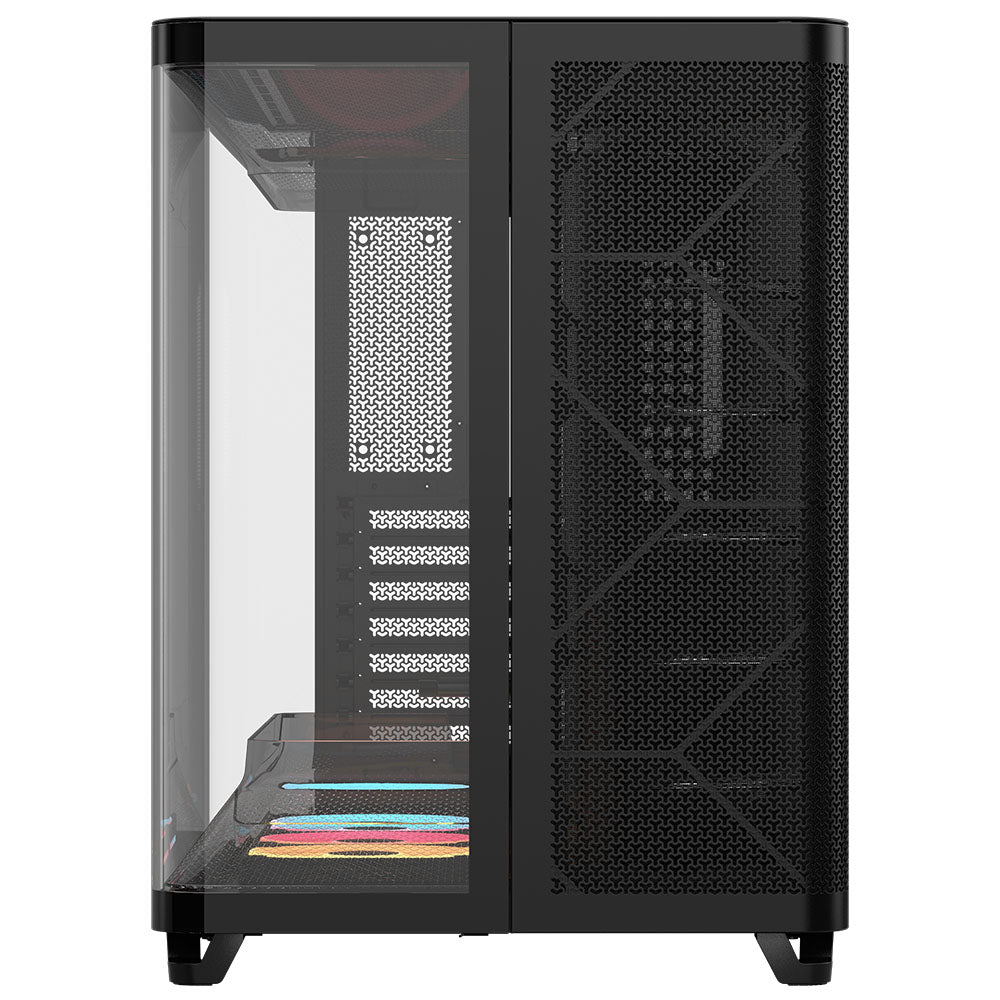

DUAL CURVED GLASS FRENCH DOOR PANELS
Two glass panels connect in the corner of the chassis and open outwards with hinges that disappear for a seamless look and easy access to your hardware.

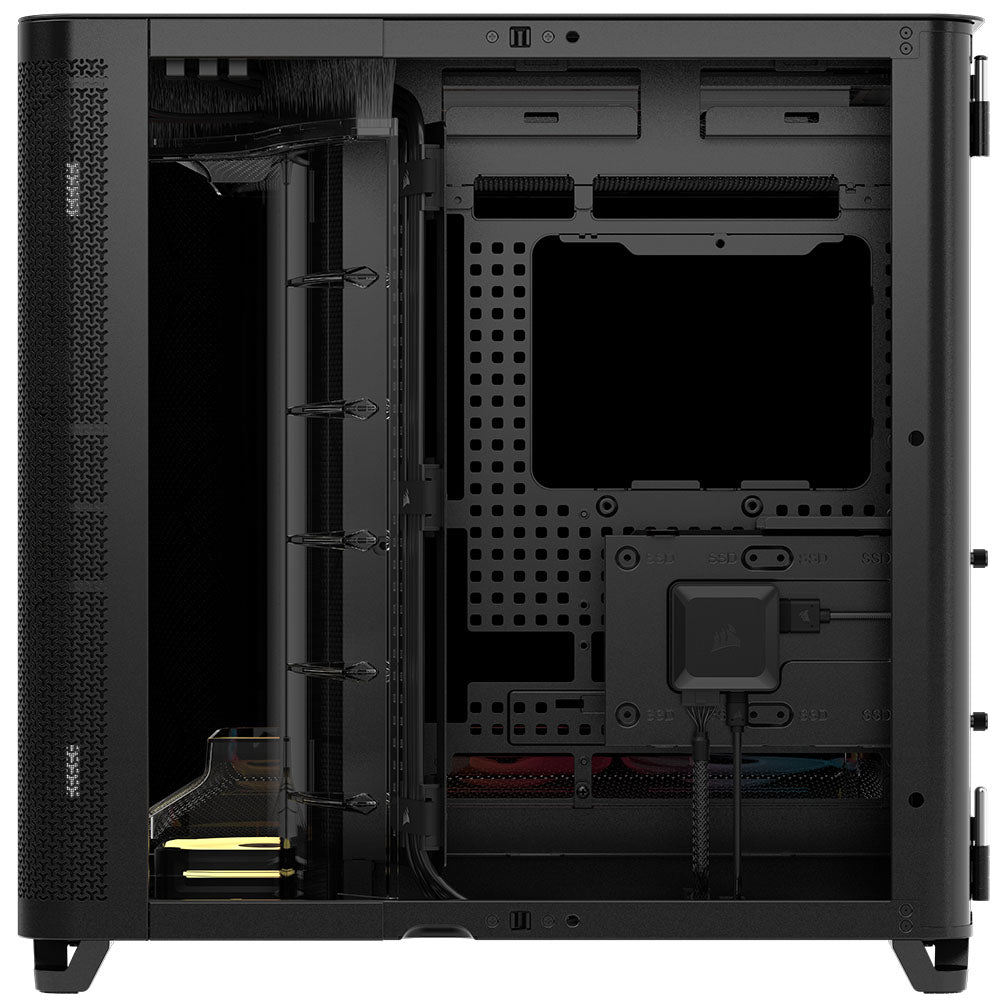

ADVANCED CABLE MANAGEMENT - RAPIDROUTE 2.0
Cable management has never been easier with RapidRoute 2.0. It features a new pegboard motherboard tray so you can easily move and rotate cable ties wherever you like for a tidy build.
Specifications
| Internal Dimensions | Max. CPU Cooler Height 180 mm Max. GPU Length 360 mm Max. PSU Length / Depth 200 mm Fan Support Case Fan Support (Top) 120mm Fan (3x) Case Fan Support (Bottom) 120mm Fan (3x) Case Fan Support (Front) 120mm Fan (3x) Case Fan Support (Rear) 120mm Fan (1x) Max. Number of Fans 10 120 mm fans 10 Back Connect Back Connect Yes Back-Connect Compatibility ASUS BTF, MSI Project Zero, Gigabyte Project Stealth Case Features I/O position Top Side panel with window Vertical GPU Mount No Adjustable Vertical GPU Bracket No Front door Yes Cable Management Yes Filters Included Yes Noise dampening No Mainboard slide / tray No Transport System No Power Supply PSU included No PSU Format ATX Power Supply Position rear side Colour Primary Colour Black Lighting Lighting / RGB Yes RGB Controller Yes Lighting Colour RGB Case Case Type Mid Tower Radiator Support Radiator/AIO Support (Front) 240mm Radiator, 360mm Radiator Radiator/AIO Support (Bottom) 240mm Radiator, 360mm Radiator Max. Radiator Compatibility 1x Single (120 mm), 3x Triple (360 mm) Radiator/AIO Support (Rear) 120mm Radiator Radiator/AIO Support (Top) 360mm Radiator Dimensions Length / Depth 470 mm Width 340 mm Height 467 mm Weight 16.7 kg Materials Materials Steel, Tempered Glass Display Display Included No Motherboard Support Max. Motherboard Format E-ATX Compatible Motherboard Formats E-ATX, ATX, Micro-ATX, ITX Fan Header Fan Controller / Fan Hub Yes Additional Contents Fans Included Yes Included fans 3x 120 mm Expansion Slots Expansion slots / PCI slots 7 Mounting Case VESA Mountable No Internal Monitor Mount No External Ports Front I/O – USB Type C Ports Total 3 USB 3.2 (external) Type C 3 Audio outputs & inputs 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) Features Housing Feedthrough No Drive Bays Max. 2.5 Inch Drives 2 Max. 3.5 Inch Drives 1 Max. 5.25 Inch Drives 0 Hot swap drive bays No Cable Specifications Riser Cable Included No Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Connectivity Card reader No |
|---|---|
| Max. CPU Cooler Height | 180 mm |
| Max. GPU Length | 360 mm |
| Max. PSU Length / Depth | 200 mm |
| Case Fan Support (Top) | 120mm Fan (3x) |
| Case Fan Support (Bottom) | 120mm Fan (3x) |
| Case Fan Support (Front) | 120mm Fan (3x) |
| Case Fan Support (Rear) | 120mm Fan (1x) |
| Max. Number of Fans | 10 |
| 120 mm fans | 10 |
| Back Connect | Yes |
| Back-Connect Compatibility | ASUS BTF, MSI Project Zero, Gigabyte Project Stealth |
| I/O position | Top |
| Side panel | with window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front door | Yes |
| Cable Management | Yes |
| Filters Included | Yes |
| Noise dampening | No |
| Mainboard slide / tray | No |
| Transport System | No |
| PSU included | No |
| PSU Format | ATX |
| Power Supply Position | rear side |
| Primary Colour | Black |
| Lighting / RGB | Yes |
| RGB Controller | Yes |
| Lighting Colour | RGB |
| Case Type | Mid Tower |
| Radiator/AIO Support (Front) | 240mm Radiator, 360mm Radiator |
| Radiator/AIO Support (Bottom) | 240mm Radiator, 360mm Radiator |
| Max. Radiator Compatibility | 1x Single (120 mm), 3x Triple (360 mm) |
| Radiator/AIO Support (Rear) | 120mm Radiator |
| Radiator/AIO Support (Top) | 360mm Radiator |
| Length / Depth | 470 mm |
| Width | 340 mm |
| Height | 467 mm |
| Weight | 16.7 kg |
| Materials | Steel, Tempered Glass |
| Display Included | No |
| Max. Motherboard Format | E-ATX |
| Compatible Motherboard Formats | E-ATX, ATX, Micro-ATX, ITX |
| Fan Controller / Fan Hub | Yes |
| Fans Included | Yes |
| Included fans | 3x 120 mm |
| Expansion slots / PCI slots | 7 |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Front I/O – USB Type C Ports Total | 3 |
| USB 3.2 (external) Type C | 3 |
| Audio outputs & inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
| Housing Feedthrough | No |
| Max. 2.5 Inch Drives | 2 |
| Max. 3.5 Inch Drives | 1 |
| Max. 5.25 Inch Drives | 0 |
| Hot swap drive bays | No |
| Riser Cable Included | No |
| Compatibility Note | Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. |
| Card reader | No |
Specifications
| Manufacturer | CORSAIR |
|---|---|
| Manufacturer part number | CC-9011320-WW |
| OcUK SKU | CAS-CRS-06627 |
| EAN | 0840440406570 |
| Back Connect | Yes |
| Case Type | Mid Tower |
| Included fans | 3x 120 mm |
| Lighting Colour | RGB |
| Lighting / RGB | Yes |
| Power Supply Position | rear side |
| Primary Colour | Black |
| PSU Format | ATX |
