SKU CAS-CRS-01585EAN 0840006671428MPN CC-9011264-WW
Overview

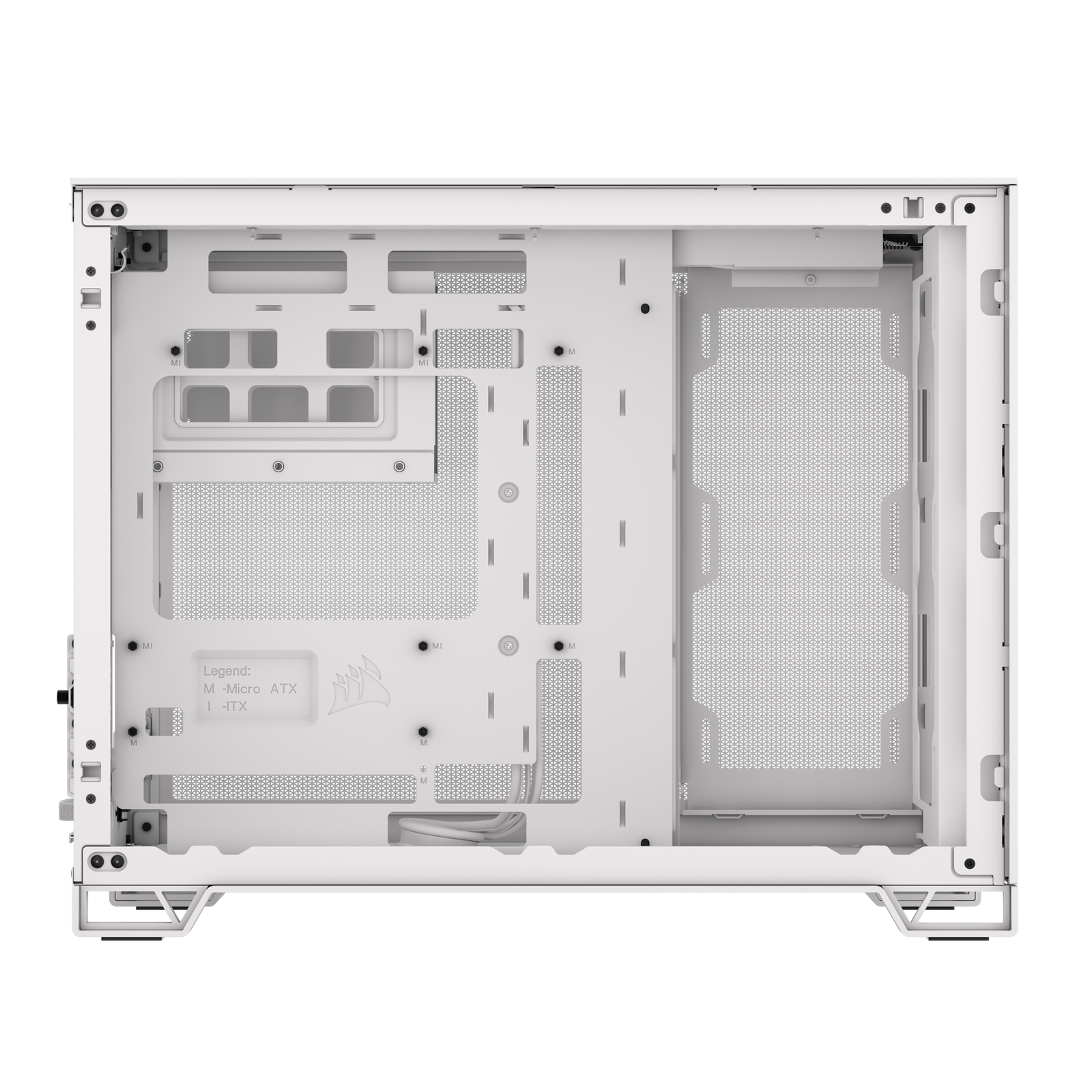

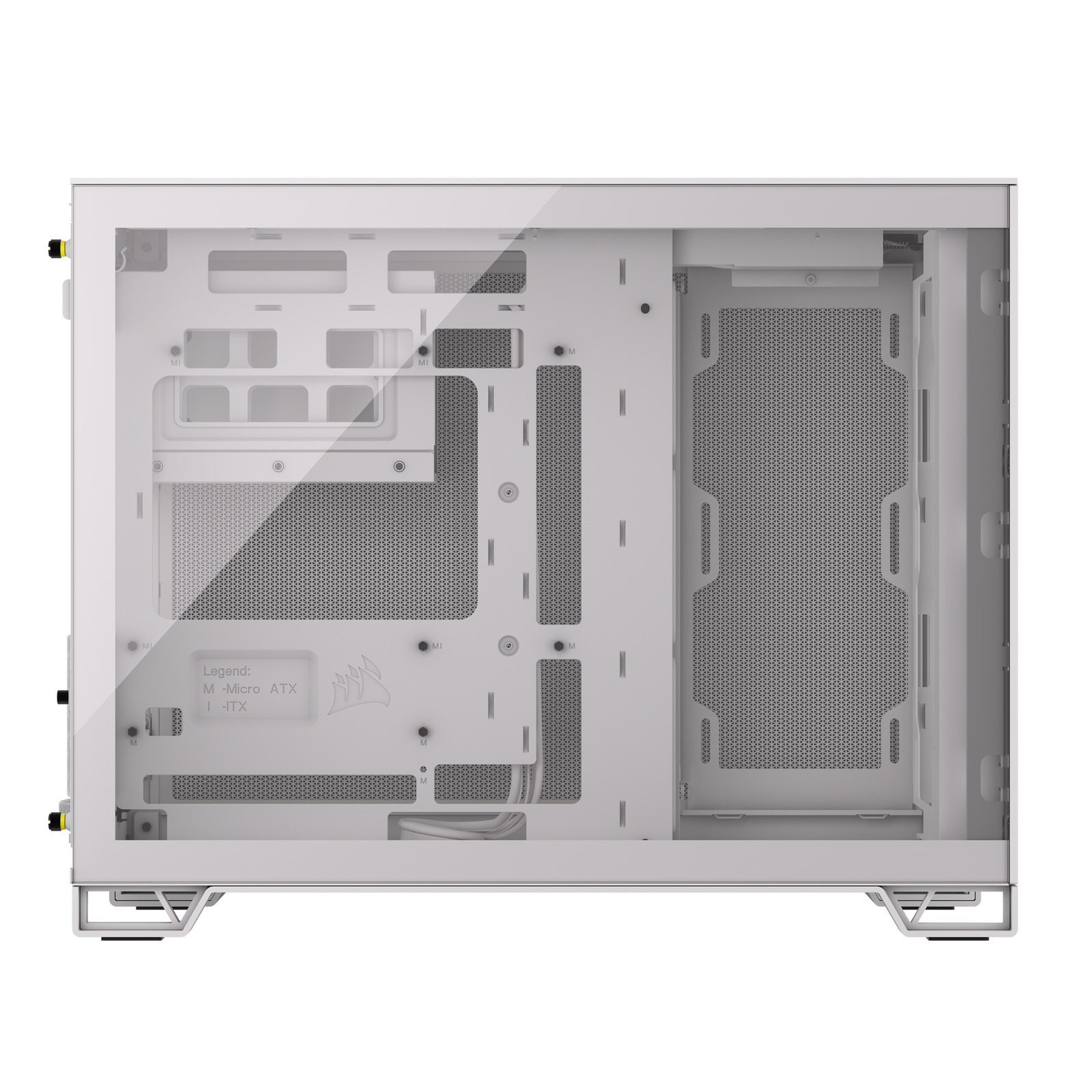

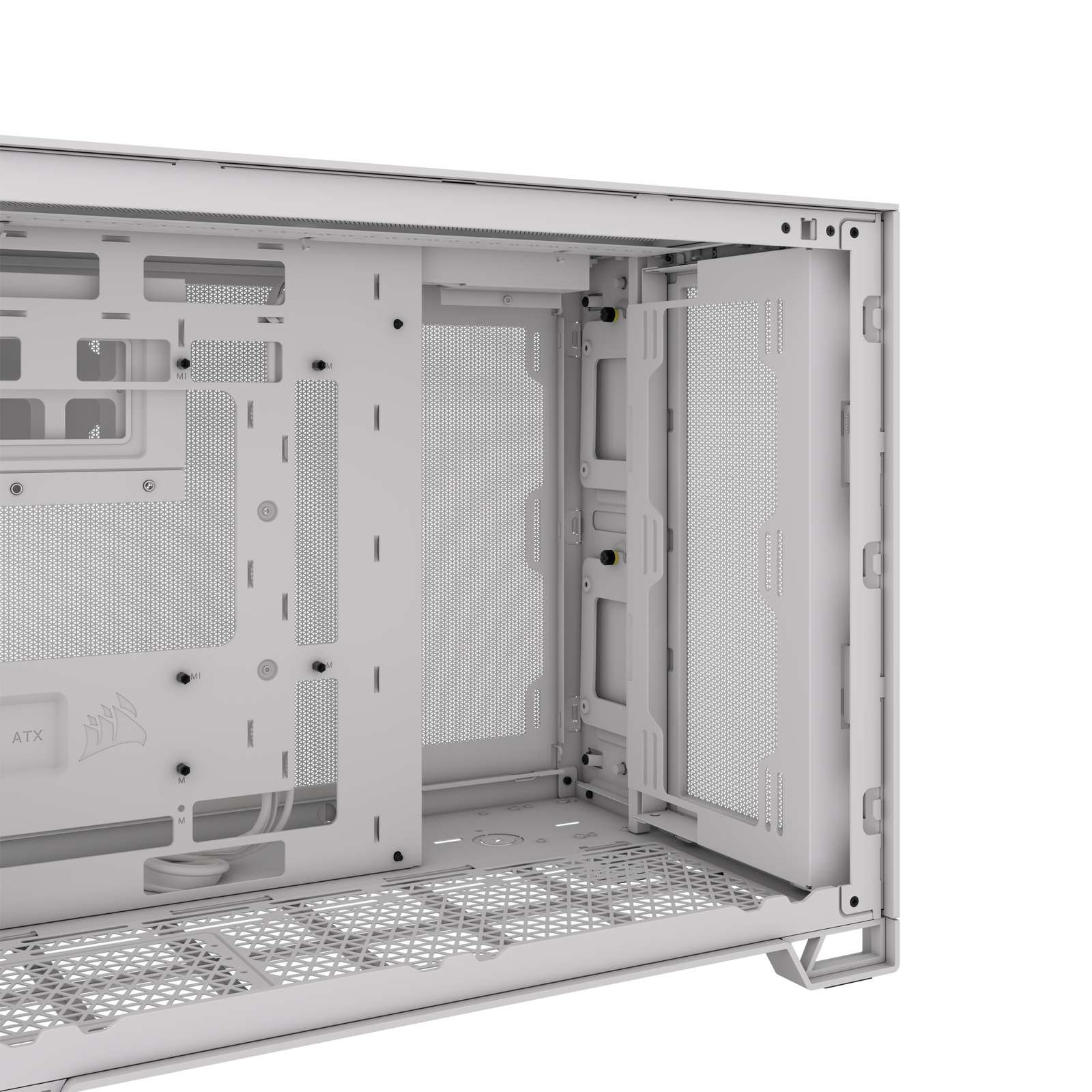

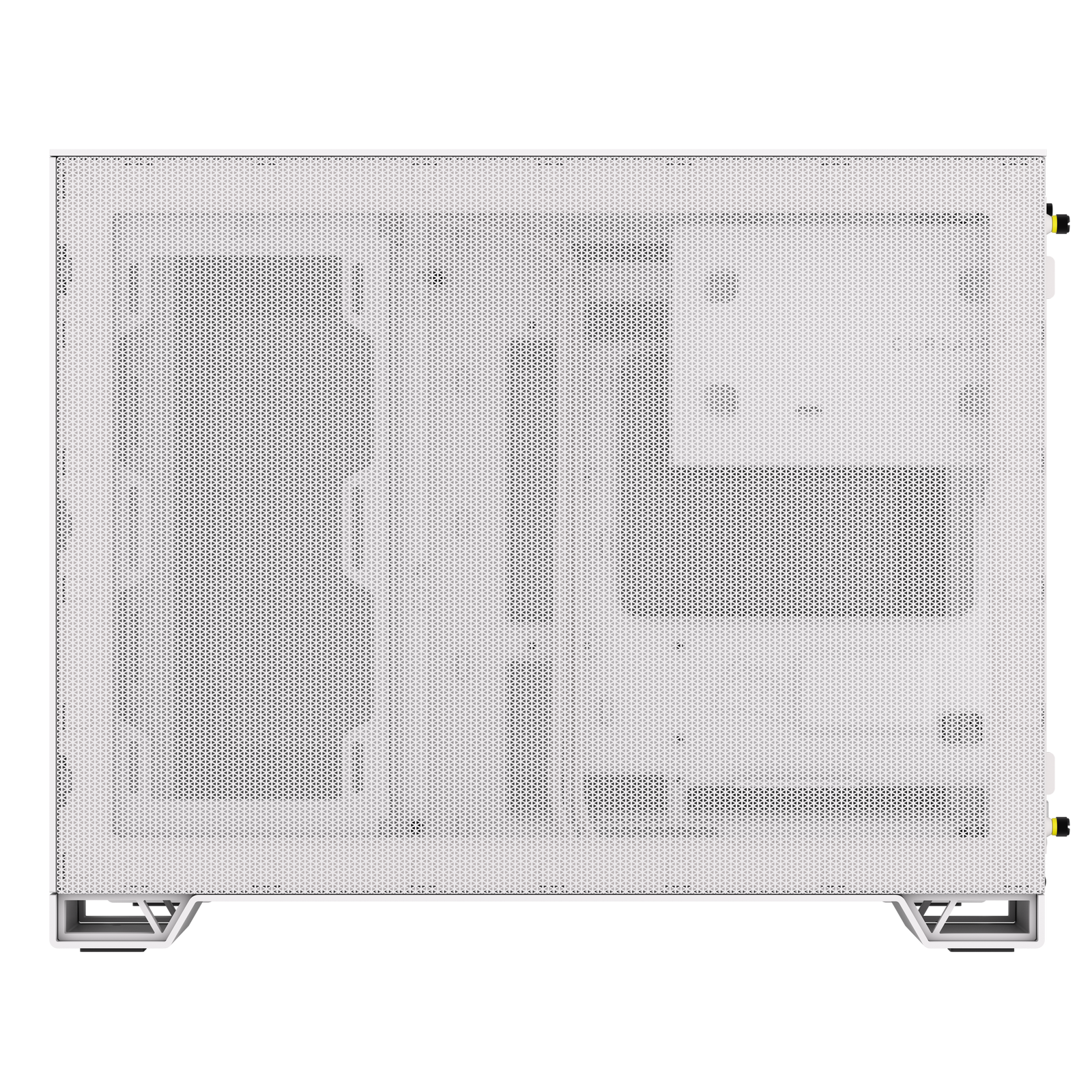

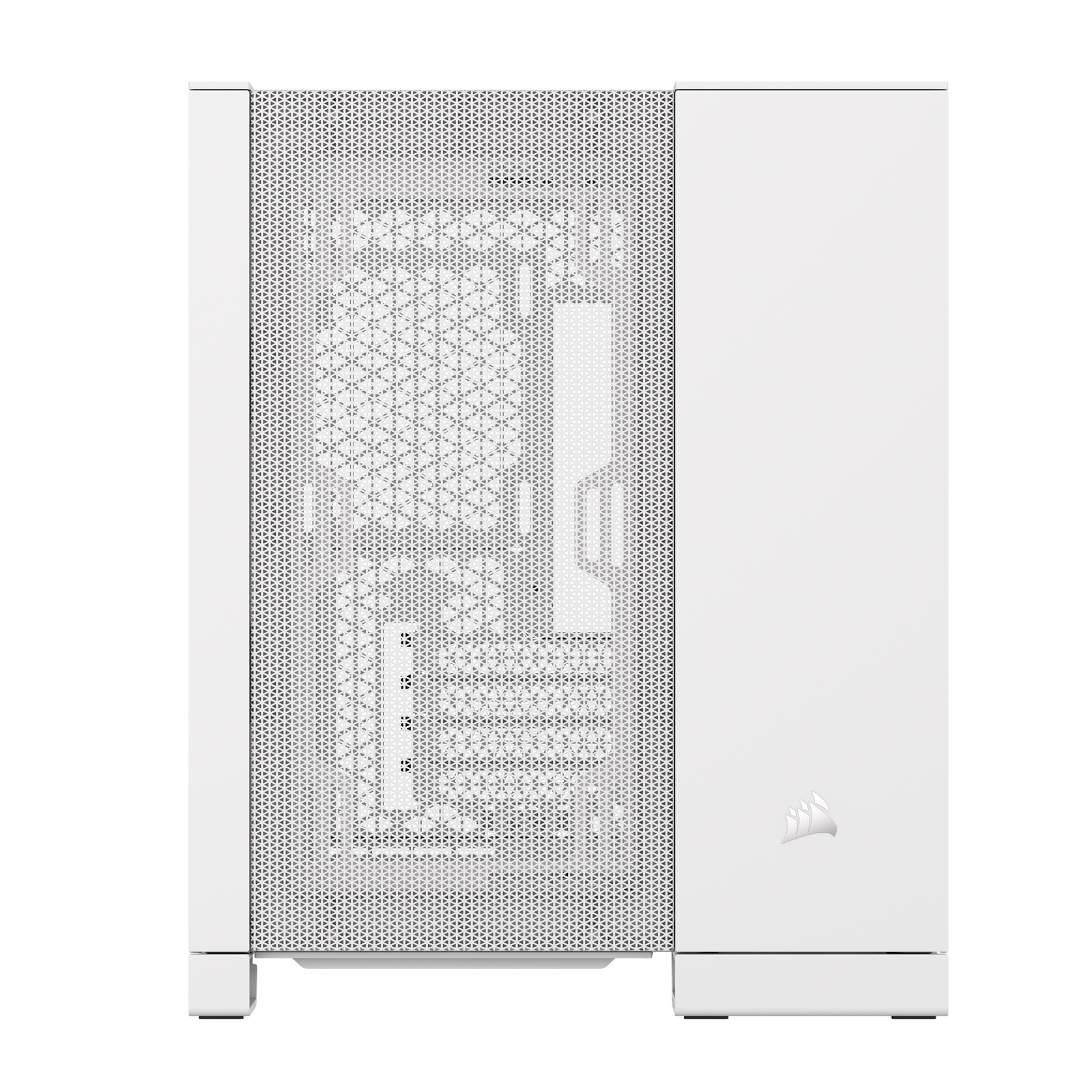

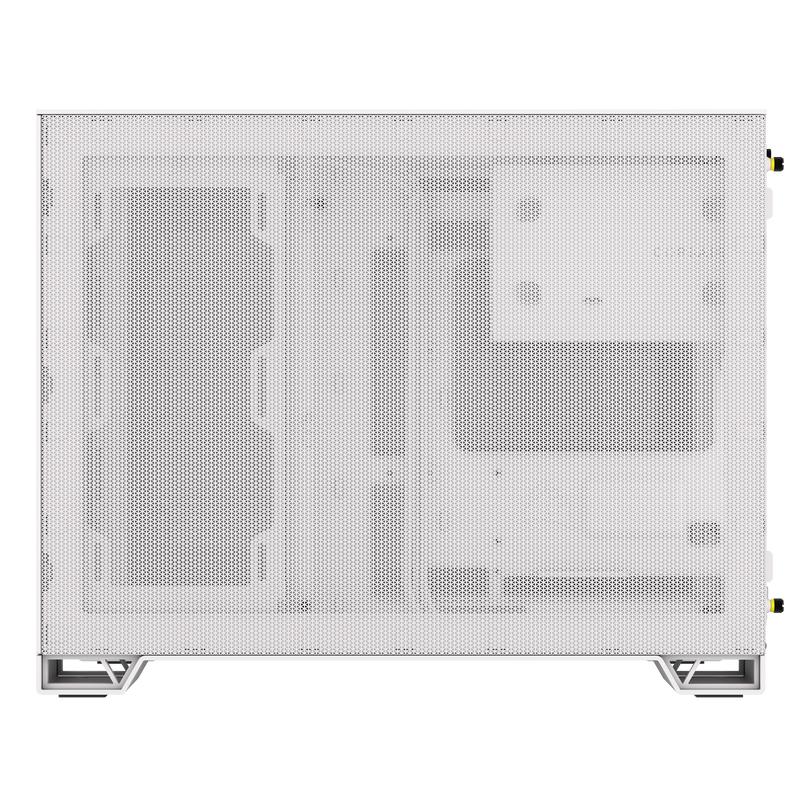

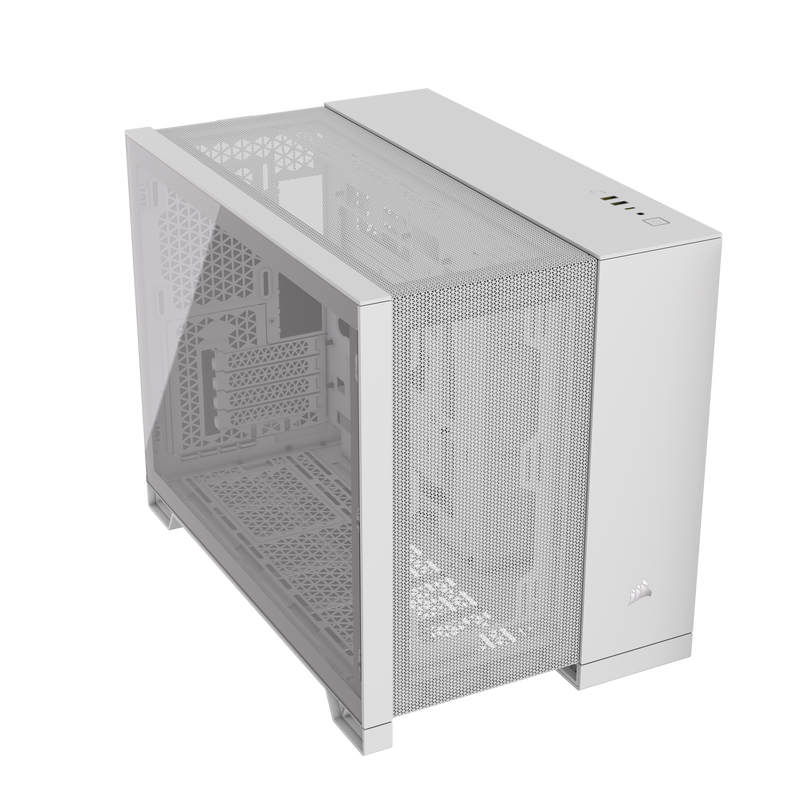

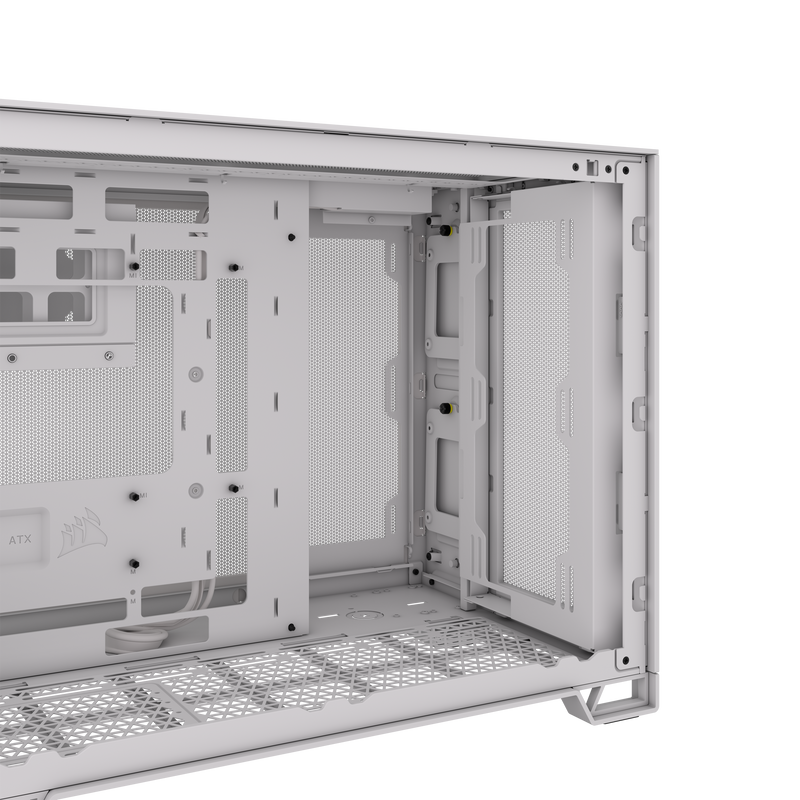

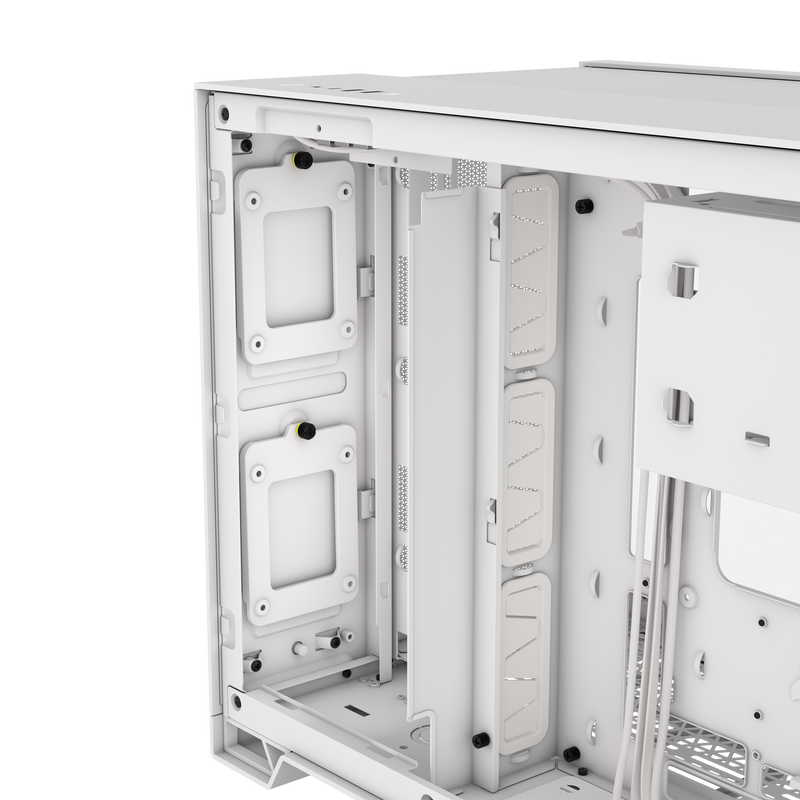

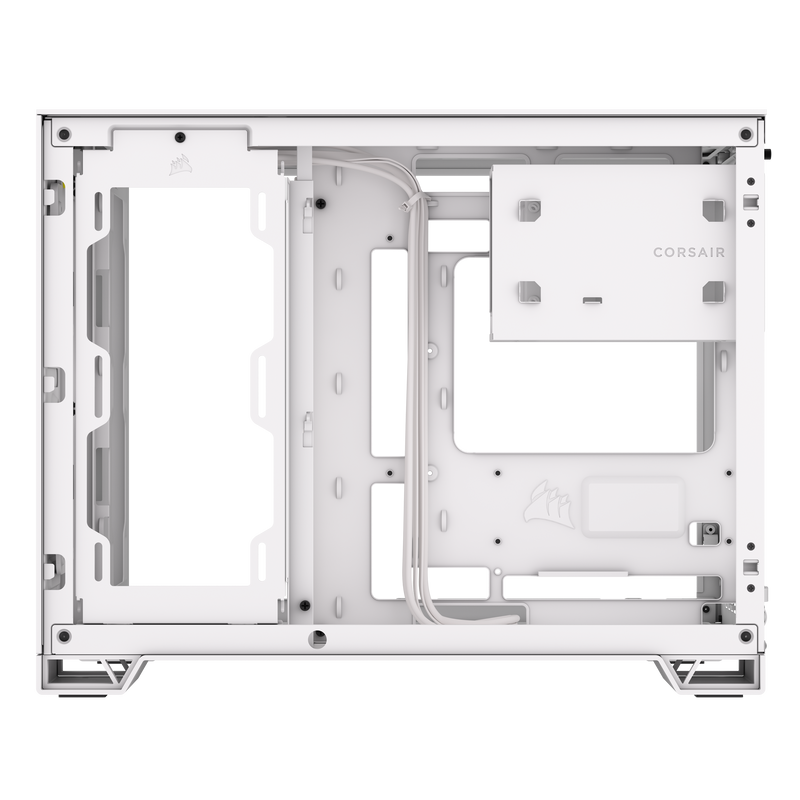

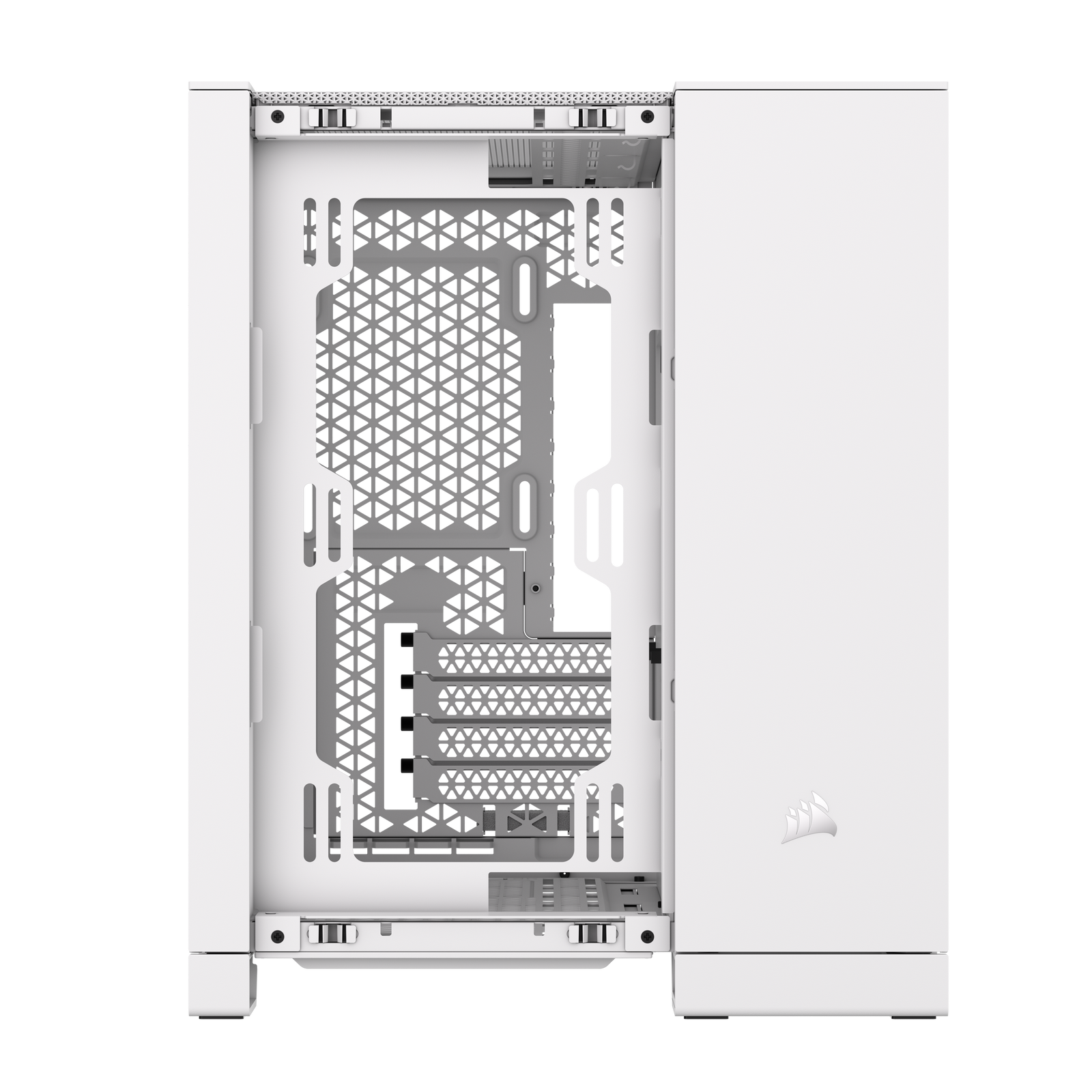

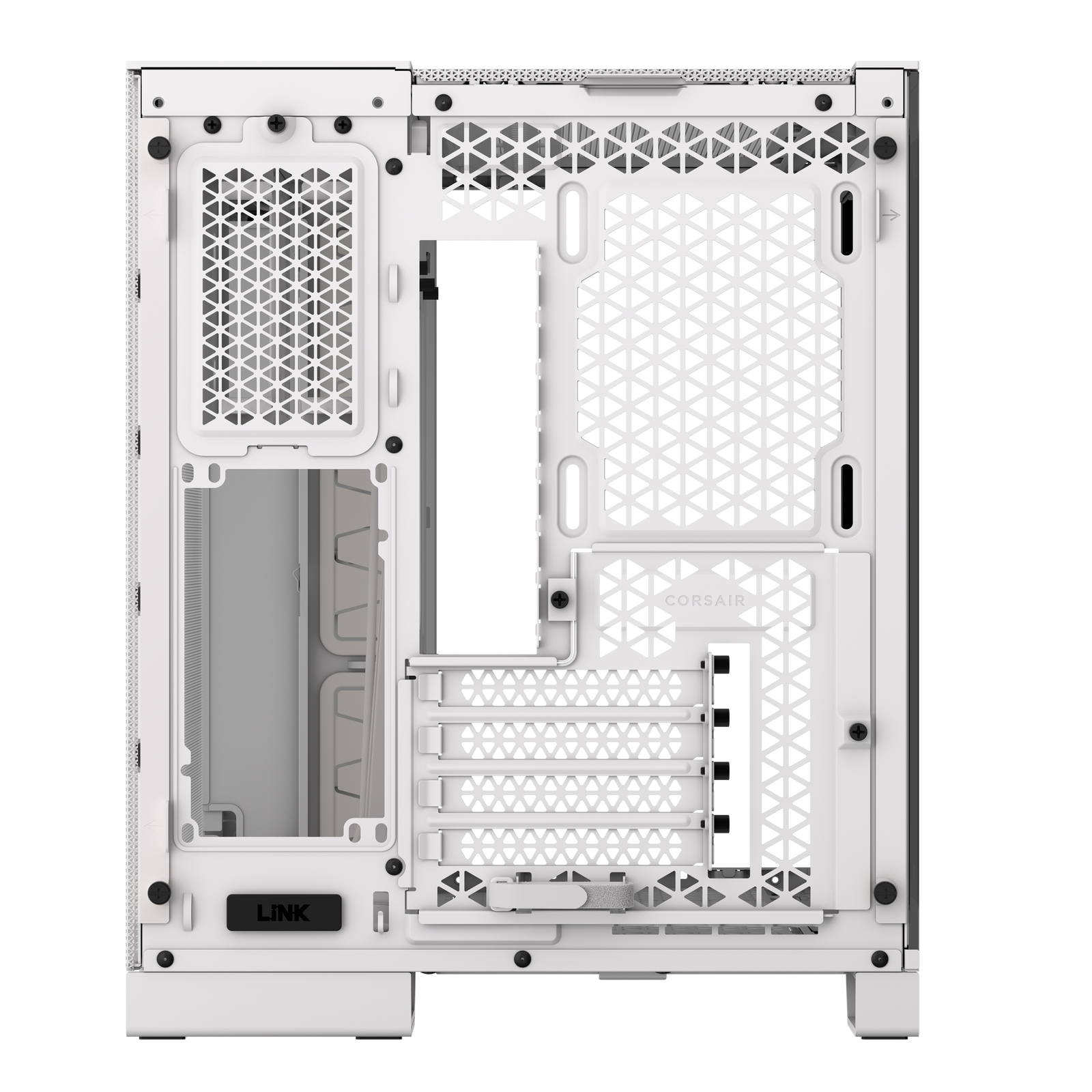

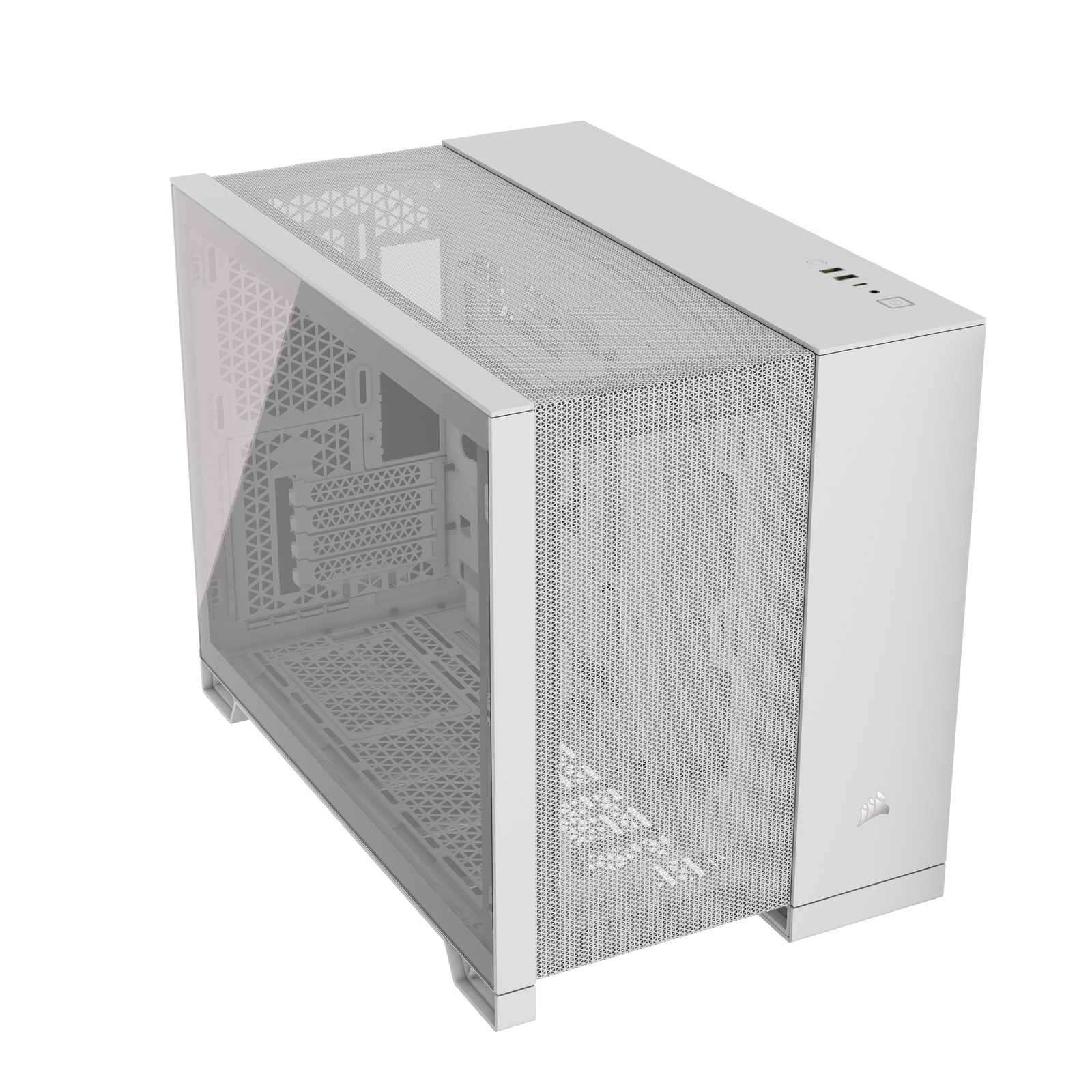

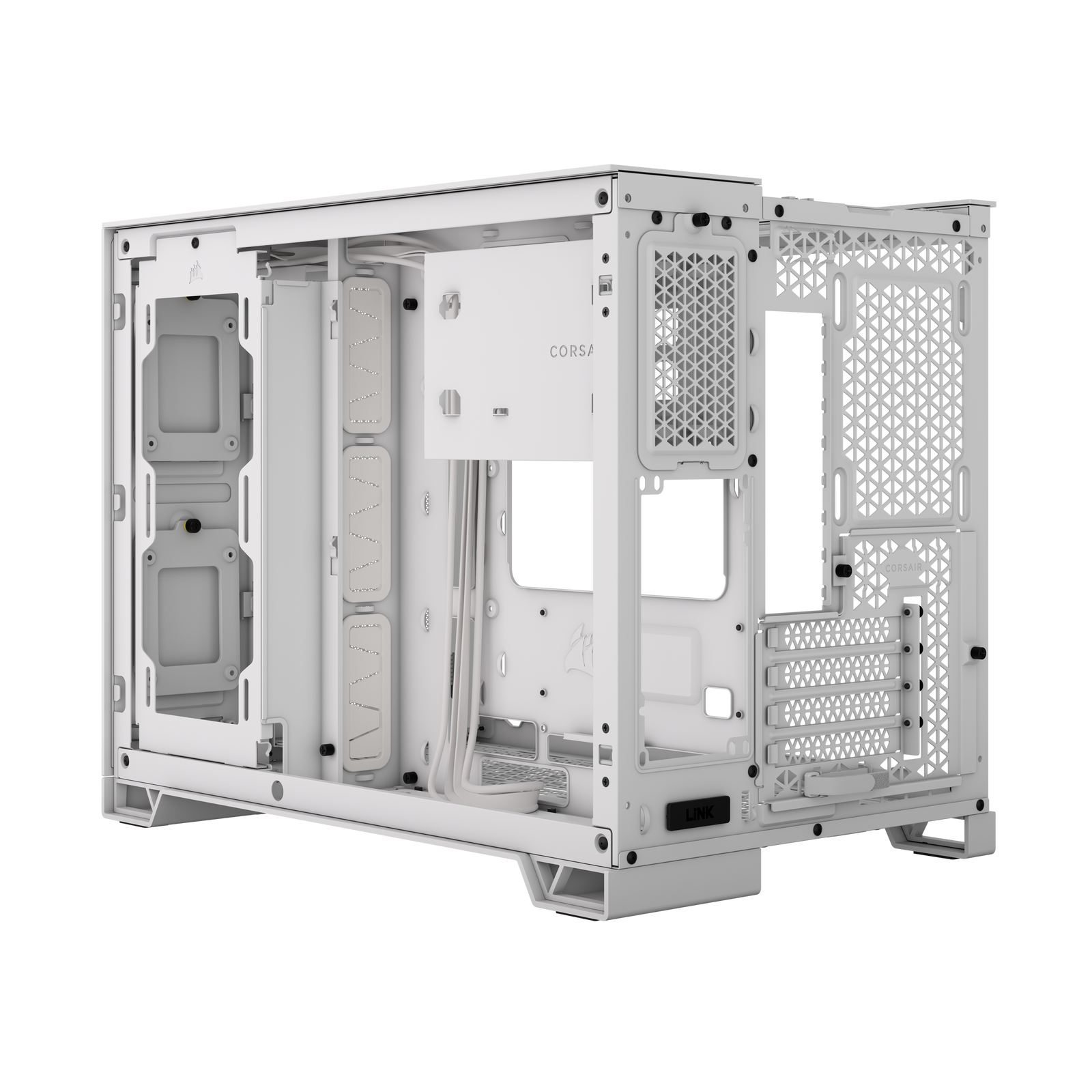

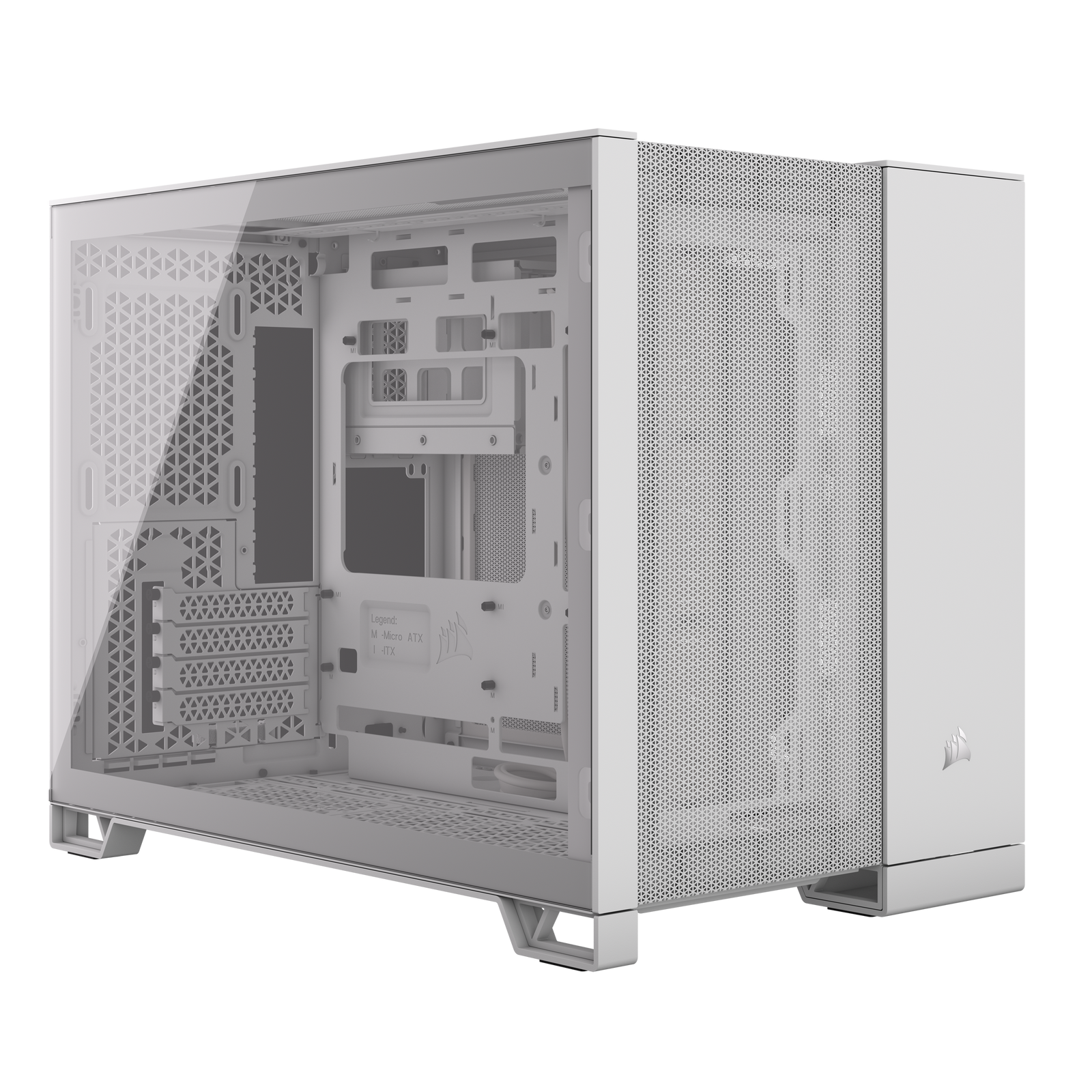

The CORSAIR 2500D AIRFLOW Micro ATX Dual Chamber PC Case is an mATX case with mesh paneling, room for up to eleven fans, versatile AIO options, and incredible cable management.
"
The CORSAIR 2500D AIRFLOW Micro ATX Dual Chamber PC Case is an mATX form-factor case made for high-powered SFF builds in need of heavy airflow. The 2500D AIRFLOW’s small size hides plenty of options for your cooling setup with fully mesh paneling, room for up to 11x 120mm or 6x 140mm fans, and versatile AIO radiator mounting options in the front, roof, bottom, and side. Compatibility with reverse connection motherboards gives you a cablefree view of your system. Keep the cables out of sight by routing them in the second chamber. Easy tool-free drive mounts accommodate up to 2x 3.5in or 2x 2.5in storage drives, while a modern front panel I/O including USB 3.2 Gen-2 Type-C offers convenient device access. Engineered for effortless building and with a wide range of optional accessories for extensive customization, the 2500D AIRFLOW is a best-case scenario for your next small-formfactor PC.
"2500D at a Glance
- Optimal airflow with fully mesh paneling
- mATX form-factor for SFF builds

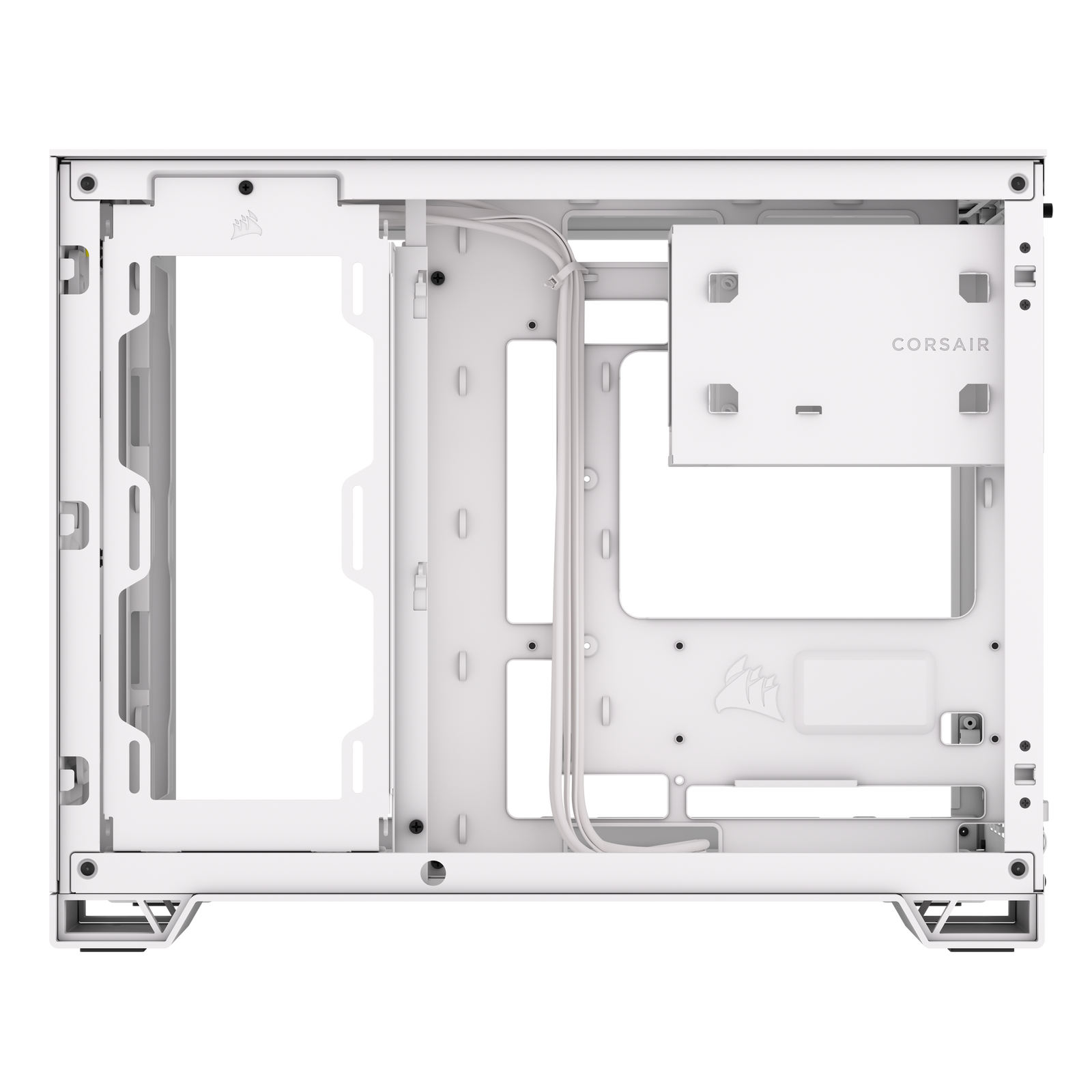

- Dual chamber design for strong cooling and an organized look
- Compatible with reverse connection motherboards such as ASUS BTF and MSI Project Zero
- Fits 11x 120mm or 6x 140mm fans
- Versatile mounting positions for front, roof, bottom, and side radiators
2500D Specification
| Dimensions (mm) | 479 x 304 x 376 mm |
| Material | Steel, Tempered Glass |
| Cooling Layout |
Front: 2x 120mm; 2x 140mm Top: 3x 120mm; 2x 140mm Side: 2x 120mm Bottom: 3x 120mm; 2x 140mm Rear: 1x 120mm |
| Radiator Compatibility |
Front: 240mm, 280mm Top: 360mm, 280mm, 240mm Side: 240mm Bottom: 360mm, 280mm, 240mm Rear: 120mm |
| Expansion Slots (Main) | 4 Horizontal (Vertical GPU Mount Sold Separately) |
| Motherboard (Main) | Mini-ITX, Micro-ATX |
| Storage | 2x 2.5" SSDs; 2x 3.5" HDDs |
| Clearances |
PSU: 225mm CPU Cooler: 183mm GPU: 425mm |
| Dust Filters | Front, Bottom, Side |

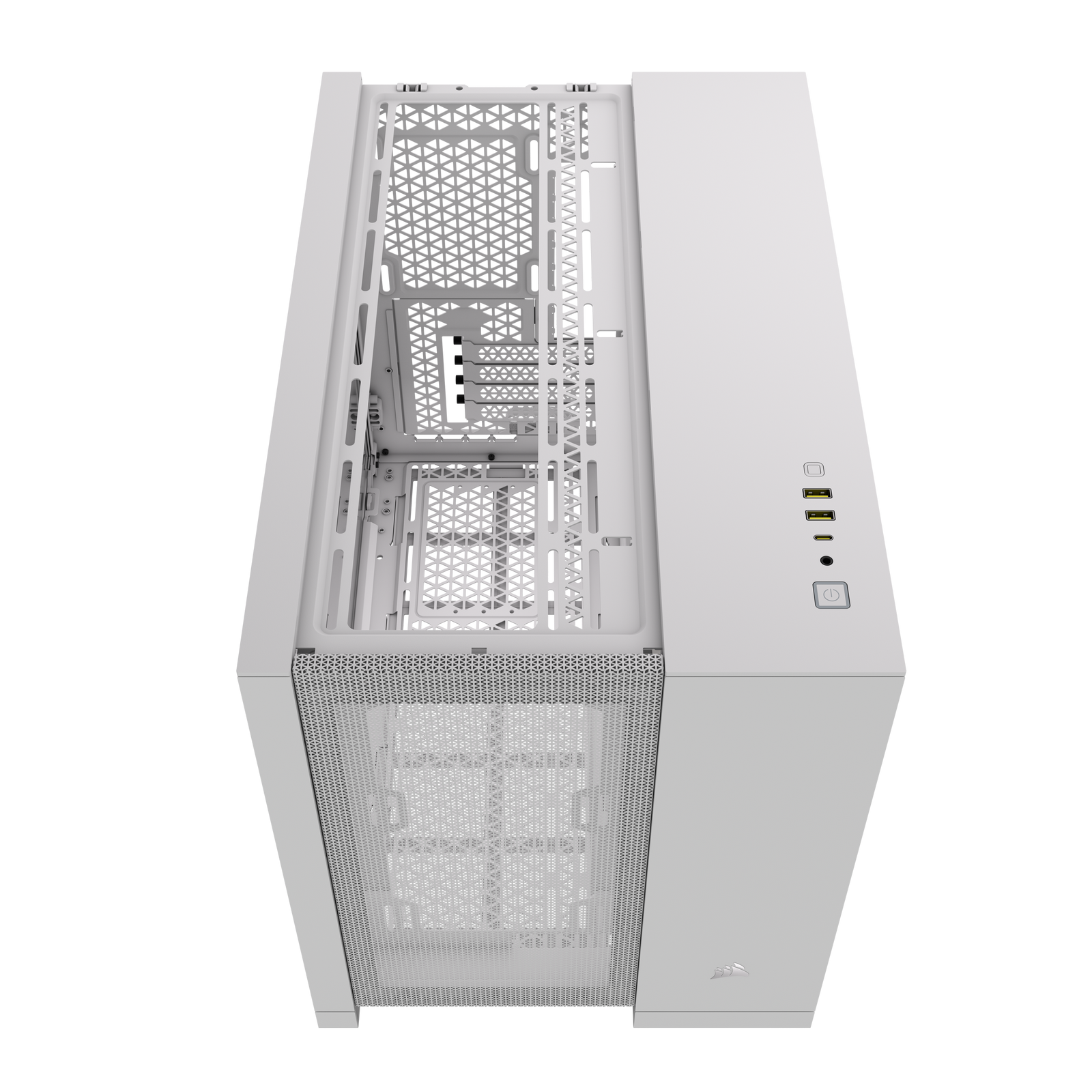

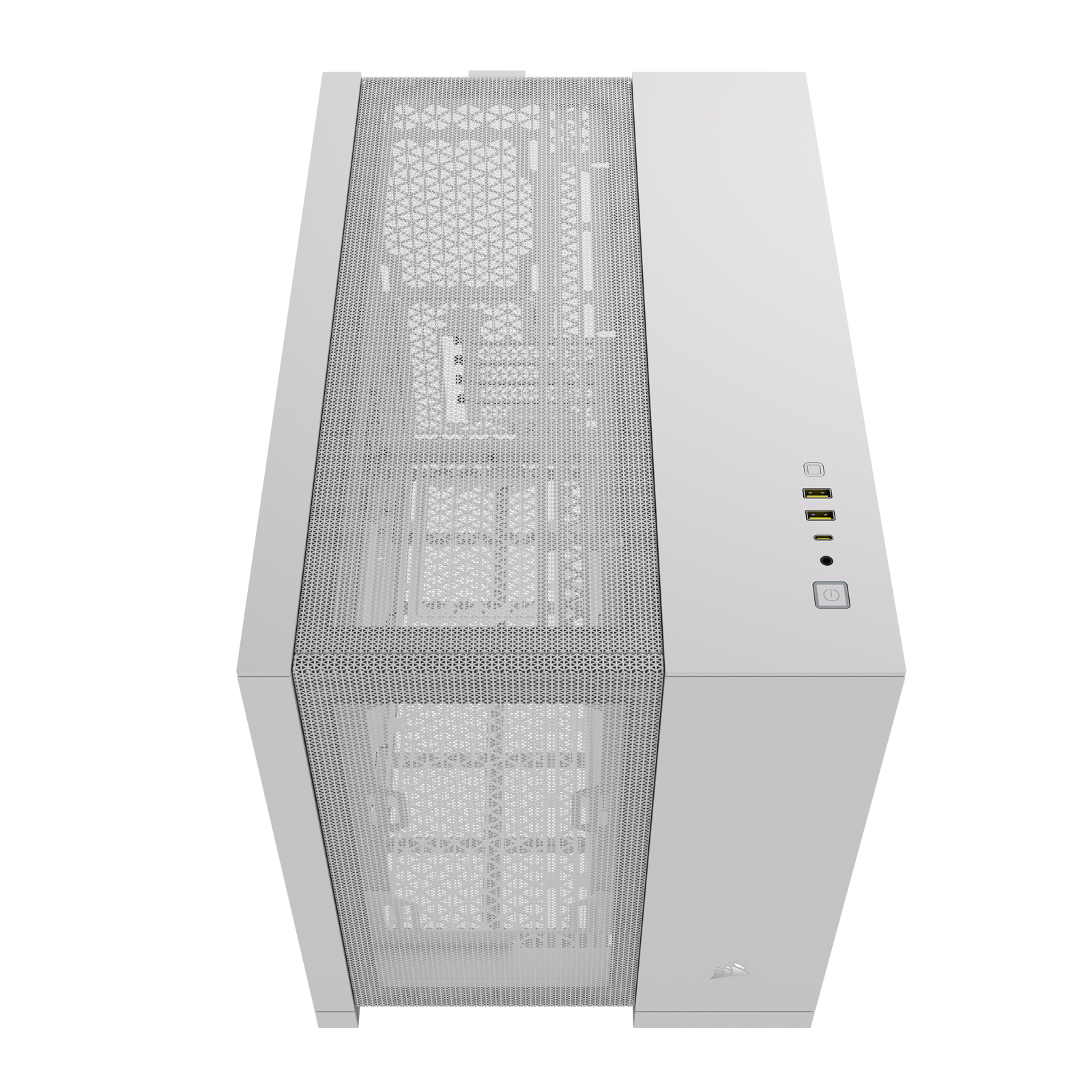

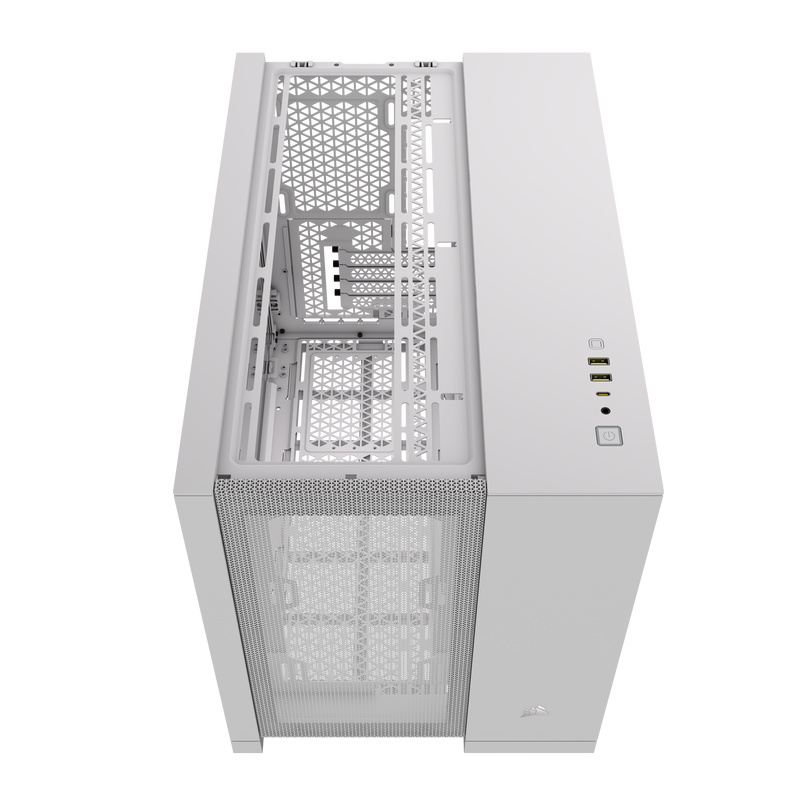

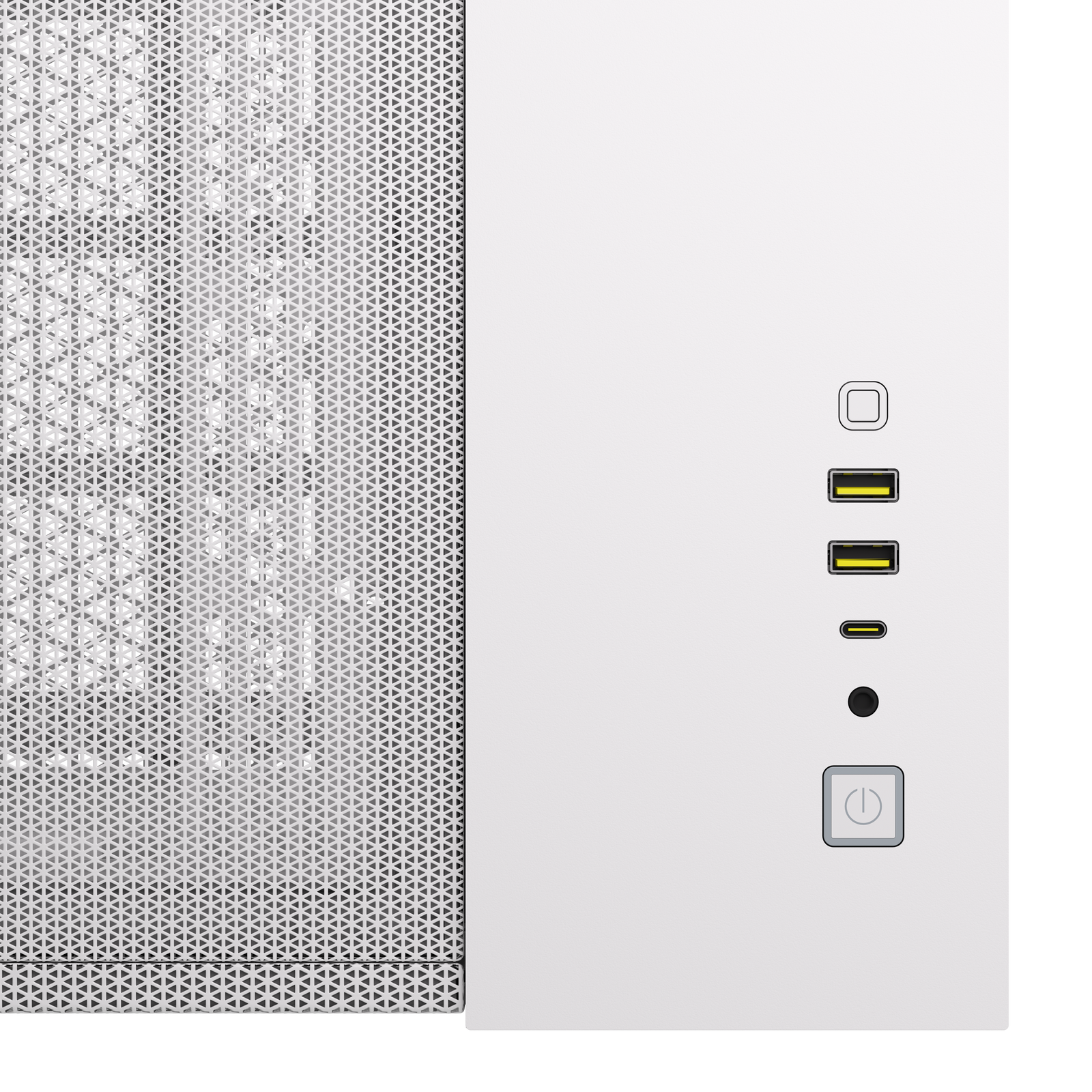

| Front I/O |
USB 3.2 Gen1 Type-A (x2) USB Gen2 Type-C (x1) Headphone/Microphone (x1) Power |
| Power Supply | ATX (Not Included) |
| Warranty | 2 Years |
Specifications
| Back Connect | Back Connect Yes Back-Connect Compatibility ASUS BTF, MSI Project Zero, Gigabyte Project Stealth Colour Primary Colour White Case Features I/O position Top Side panel with window Vertical GPU Mount No Adjustable Vertical GPU Bracket No Front door No Cable Management Yes Filters Included Yes Noise dampening No Mainboard slide / tray No Transport System No Radiator Support Radiator/AIO Support (Front) 240mm Radiator, 280mm Radiator Radiator/AIO Support (Bottom) 240mm Radiator, 280mm Radiator, 360mm Radiator Radiator/AIO Support (Top) 240mm Radiator, 280mm Radiator, 360mm Radiator Radiator/AIO Support (Rear) 120mm Radiator Radiator/AIO Support (Side) 240mm Radiator Max. Radiator Compatibility 1x Single (120 mm), 1x Dual (240 mm), 1x Dual (280 mm), 2x Triple (360 mm) Motherboard Support Compatible Motherboard Formats Micro-ATX, Mini-ITX Max. Motherboard Format Micro-ATX Power Supply PSU included No PSU Format ATX Power Supply Position rear side Materials Materials Plastic, Steel, Tempered Glass Fan Support Case Fan Support (Front) 120mm Fan (2x), 140mm Fan (2x) Max. Number of Fans 11 Case Fan Support (Bottom) 120mm Fan (3x), 140mm Fan (3x) Case Fan Support (Top) 120mm Fan (3x), 140mm Fan (3x) Case Fan Support (Rear) 120mm Fan (1x) Case Fan Support (Side) 120mm Fan (2x) 120 mm fans 11 140 mm fans 8 Case Case Type Mini Case Display Display Included No Dimensions Length / Depth 469 mm Width 304 mm Height 376 mm Weight 13.87 kg Drive Bays Max. 2.5 Inch Drives 2 Max. 3.5 Inch Drives 2 Max. 5.25 Inch Drives 0 Hot swap drive bays No External Ports Front I/O – USB Type C Ports Total 1 Front I/O – USB Type A Ports Total 2 USB 3.2 (external) Type C 1 USB 3.0 (external) Type A 2 Audio outputs & inputs 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) Mounting Case VESA Mountable No Internal Monitor Mount No Lighting Lighting / RGB No Features Housing Feedthrough No Fan Header Fan Controller / Fan Hub No Internal Dimensions Max. CPU Cooler Height 180 mm Max. GPU Length 400 mm Max. PSU Length / Depth 225 mm Additional Contents Fans Included No Included fans None Expansion Slots Expansion slots / PCI slots 4 Cable Specifications Riser Cable Included No Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Connectivity Card reader No |
|---|---|
| Back Connect | Yes |
| Back-Connect Compatibility | ASUS BTF, MSI Project Zero, Gigabyte Project Stealth |
| Primary Colour | White |
| I/O position | Top |
| Side panel | with window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Noise dampening | No |
| Mainboard slide / tray | No |
| Transport System | No |
| Radiator/AIO Support (Front) | 240mm Radiator, 280mm Radiator |
| Radiator/AIO Support (Bottom) | 240mm Radiator, 280mm Radiator, 360mm Radiator |
| Radiator/AIO Support (Top) | 240mm Radiator, 280mm Radiator, 360mm Radiator |
| Radiator/AIO Support (Rear) | 120mm Radiator |
| Radiator/AIO Support (Side) | 240mm Radiator |
| Max. Radiator Compatibility | 1x Single (120 mm), 1x Dual (240 mm), 1x Dual (280 mm), 2x Triple (360 mm) |
| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| PSU included | No |
| PSU Format | ATX |
| Power Supply Position | rear side |
| Materials | Plastic, Steel, Tempered Glass |
| Case Fan Support (Front) | 120mm Fan (2x), 140mm Fan (2x) |
| Max. Number of Fans | 11 |
| Case Fan Support (Bottom) | 120mm Fan (3x), 140mm Fan (3x) |
| Case Fan Support (Top) | 120mm Fan (3x), 140mm Fan (3x) |
| Case Fan Support (Rear) | 120mm Fan (1x) |
| Case Fan Support (Side) | 120mm Fan (2x) |
| 120 mm fans | 11 |
| 140 mm fans | 8 |
| Case Type | Mini Case |
| Display Included | No |
| Length / Depth | 469 mm |
| Width | 304 mm |
| Height | 376 mm |
| Weight | 13.87 kg |
| Max. 2.5 Inch Drives | 2 |
| Max. 3.5 Inch Drives | 2 |
| Max. 5.25 Inch Drives | 0 |
| Hot swap drive bays | No |
| Front I/O – USB Type C Ports Total | 1 |
| Front I/O – USB Type A Ports Total | 2 |
| USB 3.2 (external) Type C | 1 |
| USB 3.0 (external) Type A | 2 |
| Audio outputs & inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Lighting / RGB | No |
| Housing Feedthrough | No |
| Fan Controller / Fan Hub | No |
| Max. CPU Cooler Height | 180 mm |
| Max. GPU Length | 400 mm |
| Max. PSU Length / Depth | 225 mm |
| Fans Included | No |
| Included fans | None |
| Expansion slots / PCI slots | 4 |
| Riser Cable Included | No |
| Compatibility Note | Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. |
| Card reader | No |
Specifications
| Manufacturer | CORSAIR |
|---|---|
| Manufacturer part number | CC-9011264-WW |
| OcUK SKU | CAS-CRS-01585 |
| EAN | 0840006671428 |
| Case Type | Mini Case |
| Included fans | None |
| Lighting / RGB | No |
| Power Supply Position | rear side |
| Primary Colour | White |
| PSU Format | ATX |
Product reviews
No review for this product yet.
Warranty & Delivery
Click & Collect
Collect from OcUK HQ, or one of thousands of DPD Pickup Points around the UK.*
Full Delivery InformationIE Delivery
We ship to Ireland, with tax and customs included in the price you pay.*
Full Delivery Information*Exclusions and product restrictions apply
CORSAIR

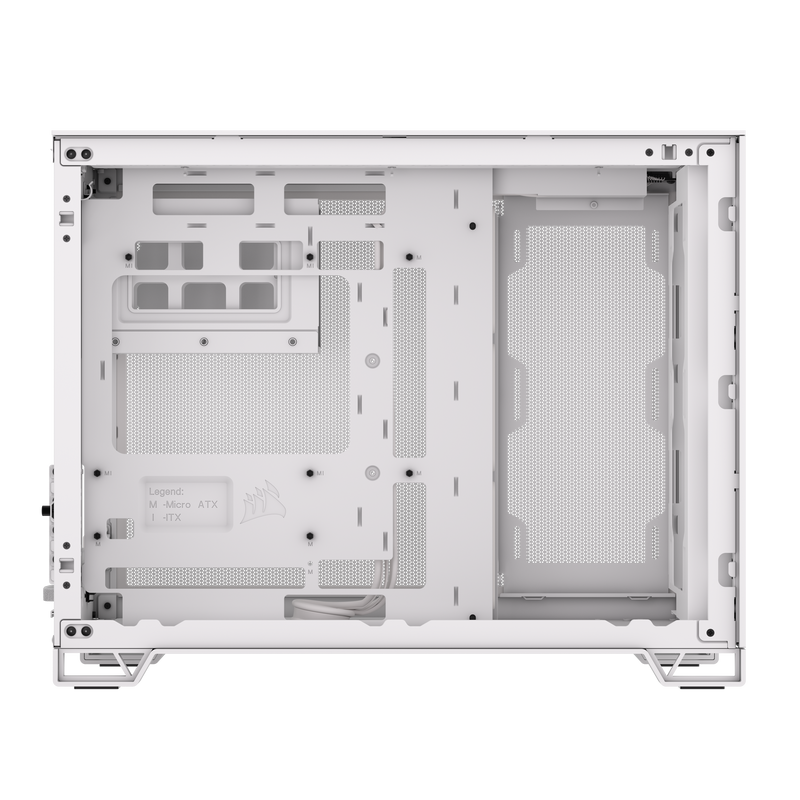

Corsair 2500D AIRFLOW Micro ATX Dual Chamber PC Case – White CC-9011264-WW
