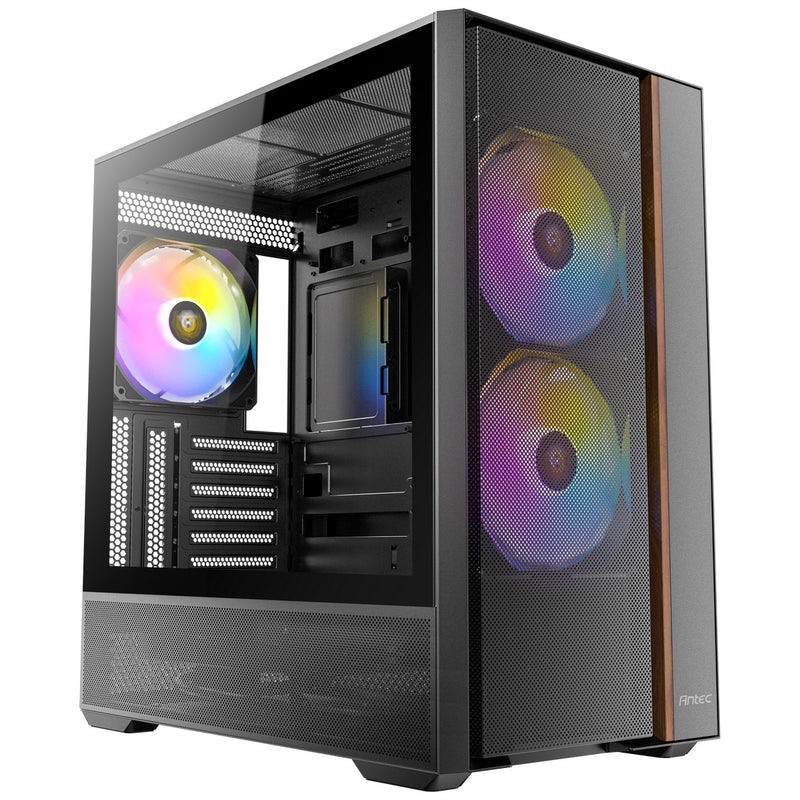

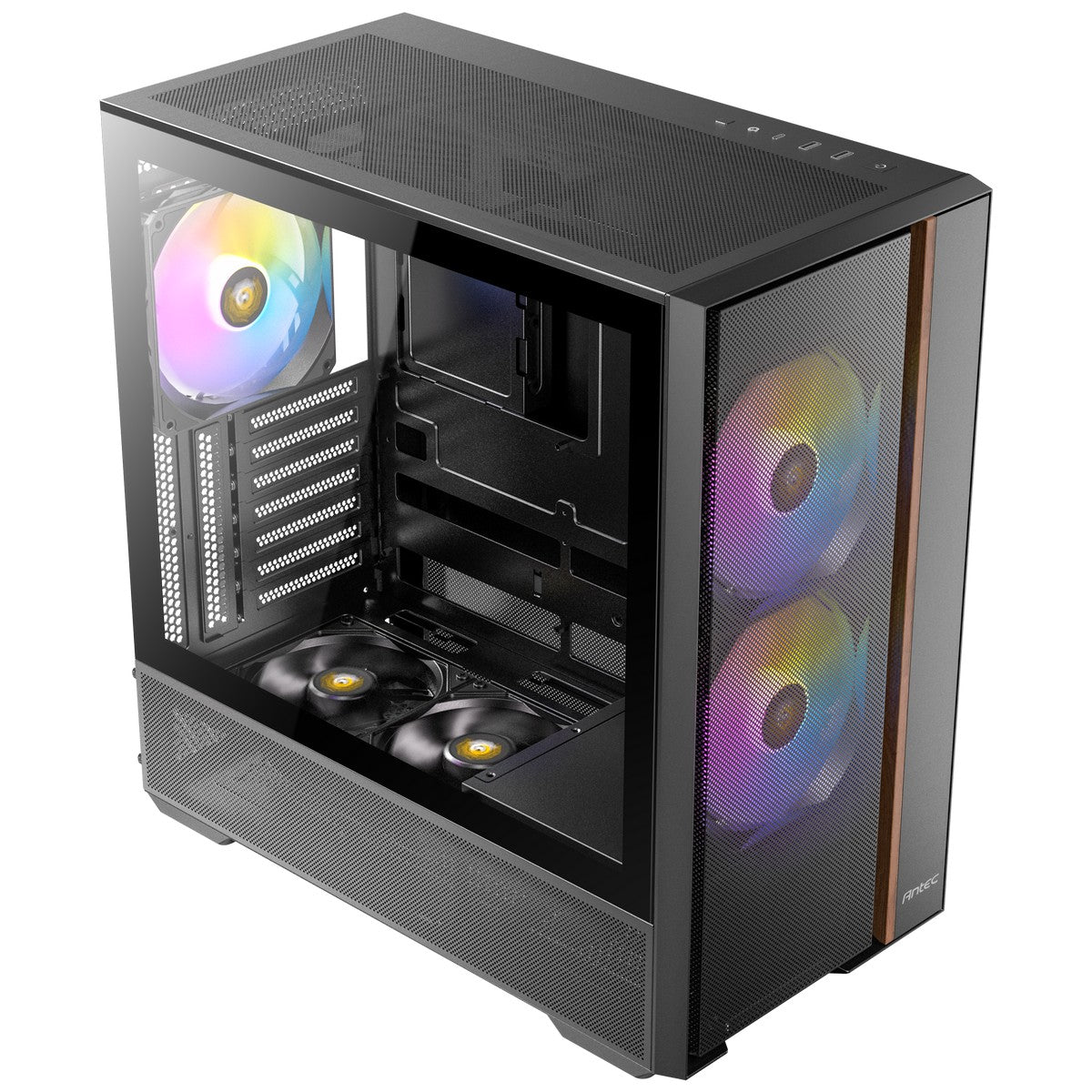

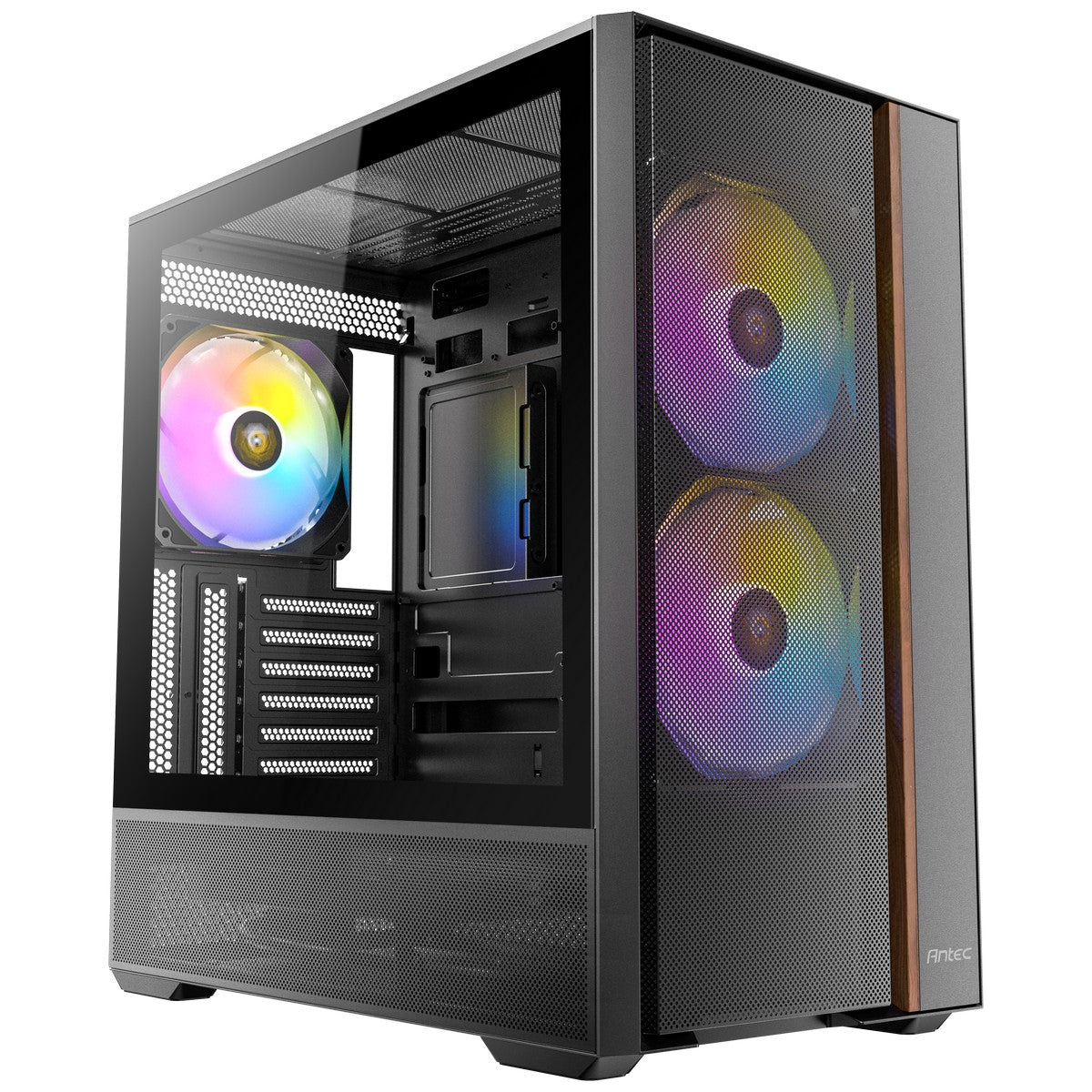

Introducing the FLUX REAR from Antec - a high airflow, mesh case featuring a multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

Introducing the FLUX REAR from Antec - a high airflow, mesh case featuring a multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 5 fans included, delivering enhanced GPU cooling performance.

Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

Flux Vertical Cooling
Designed with a front-mounted PSU chamber, this layout opens up space for improved airflow at the bottom of the case, enhancing heat dissipation around the graphics card.

Flux Horizontal Cooling
Air intake via the front mesh provides a smooth venting channel throughout the case.

Optimized Chassis Design
The recessed front design enhances airflow while minimizing noise for better thermal and acoustic performance.

Recommended Water Cooling
Supports installation of a top 360mm radiator and 120mm rear radiator.

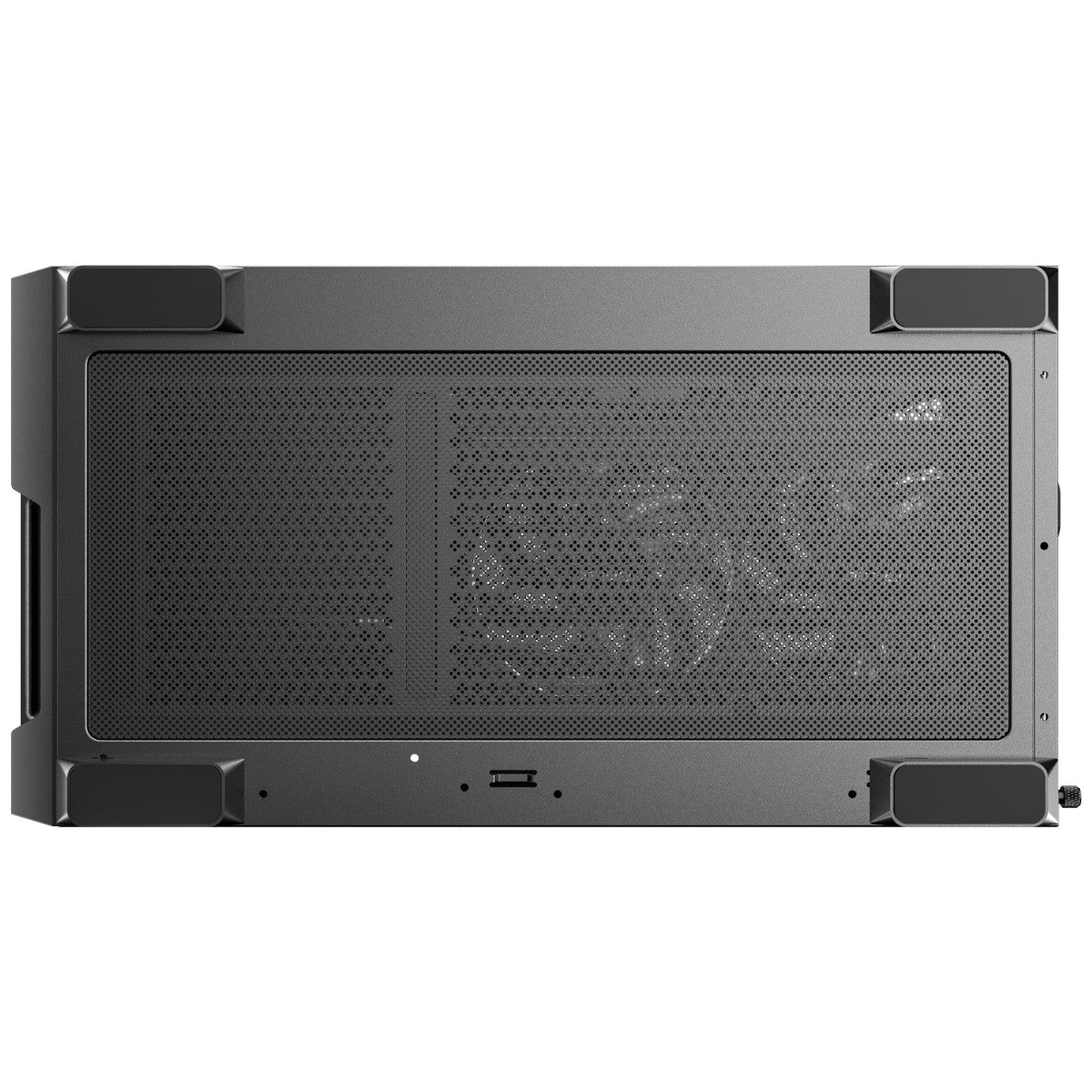

Bottom Air Intake Optimization
The front-mounted PSU chamber preserves an open, spacious airflow path at the bottom that is free of hard drives, enabling efficient, direct cooling of the GPU through reverse fans.

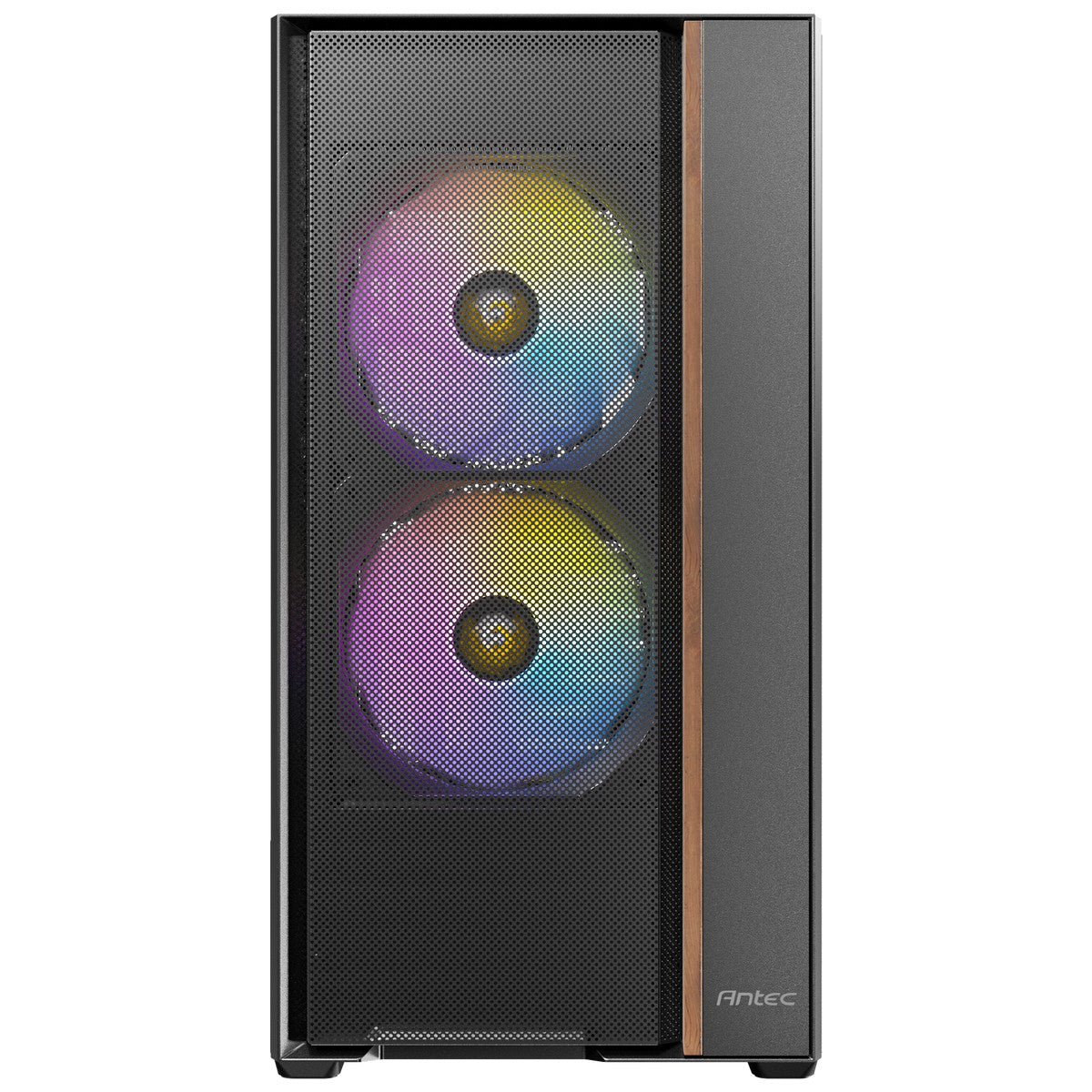

Premium Wood Material

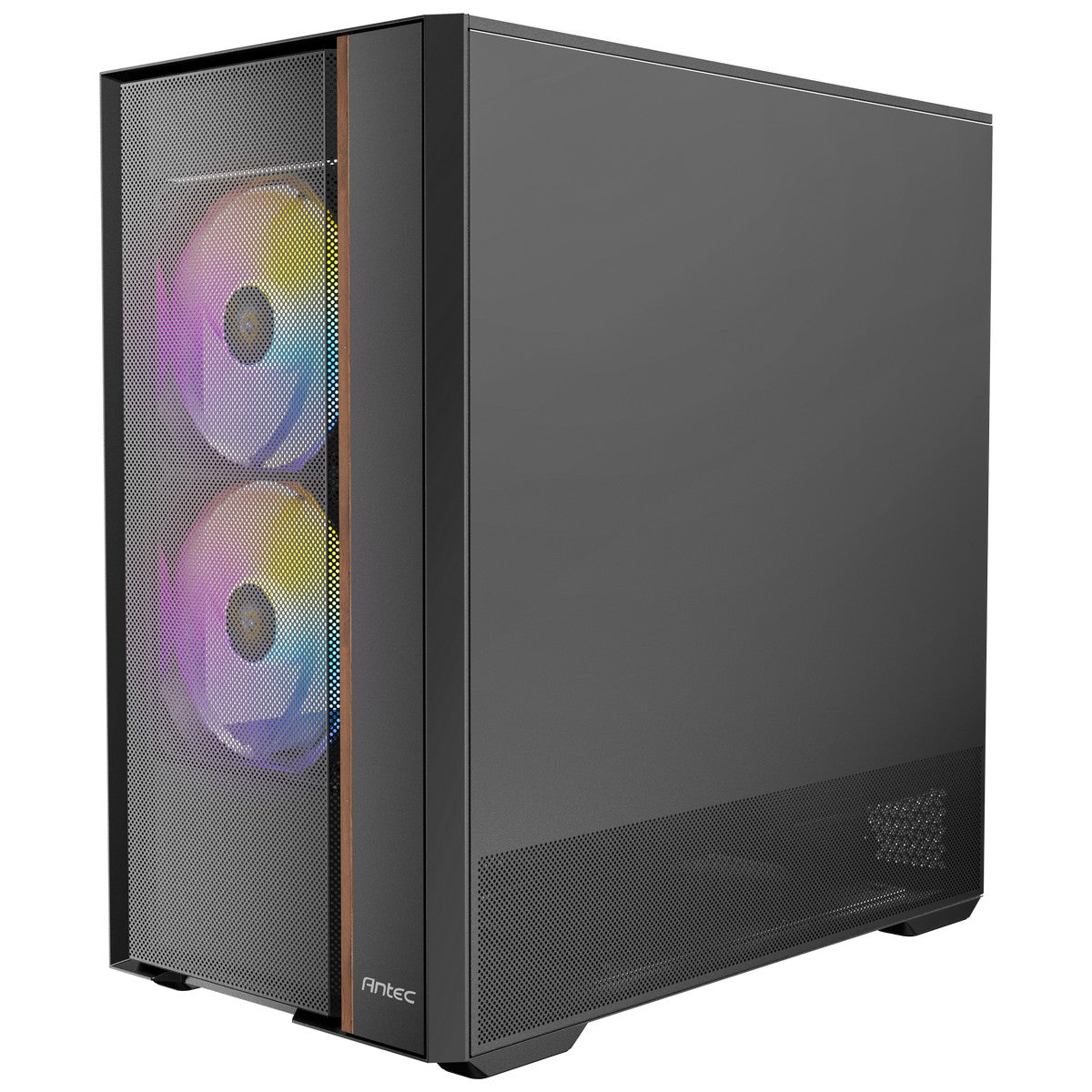

The front panel is crafted with a combination of metal mesh and premium wood to create a high-quality texture.

Built-in GPU Bracket
Includes a support bracket compatible with high-performance graphics cards.

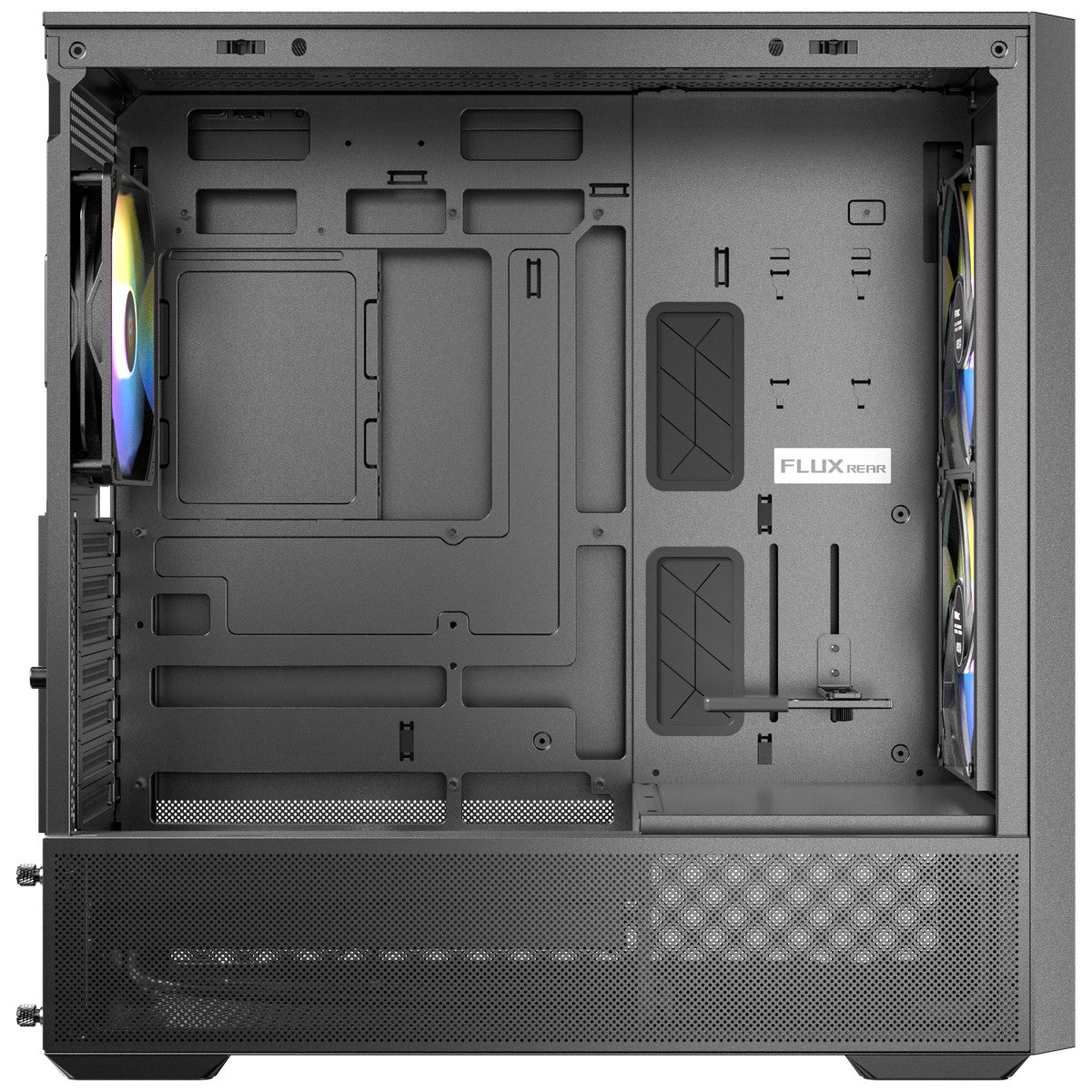

Support Back-Connect Motherboards
Plug in cables from behind to give front a cleaner look and a smoother airflow channel.

Front-Mounted PSU Chamber & 13A Extension Cable
The front-mounted PSU chamber improves airflow by freeing up internal space, while the included 13A extension cable ensures stable power delivery for high-wattage PSUs.

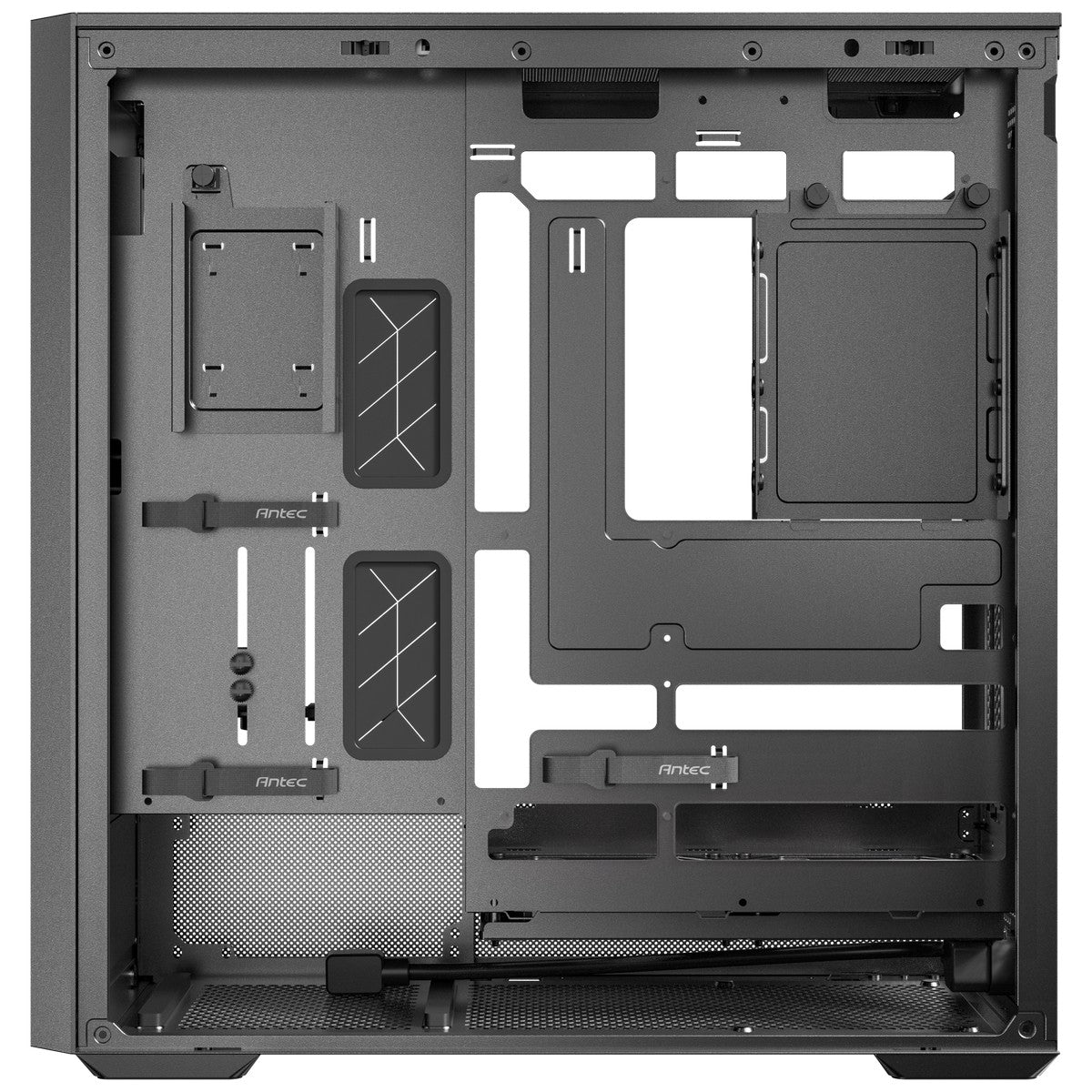

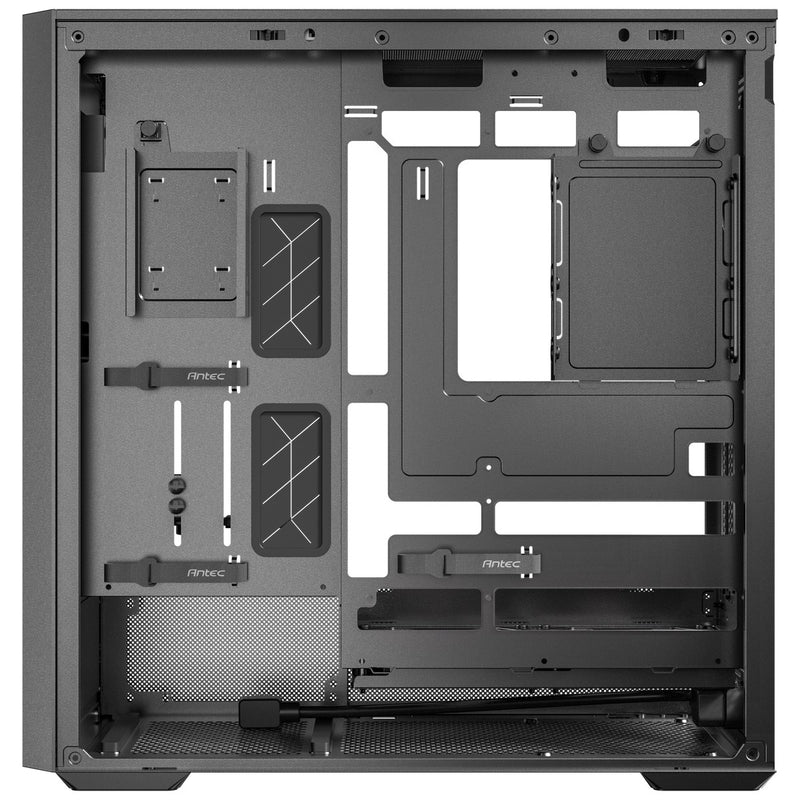

Cable Management
Equipped with grommets and Velcro straps for easy, secure cable management, enhancing airflow and creating a cleaner look.


• F-LUX Platform with front-mounted PSU Chamber for enhanced GPU cooling.

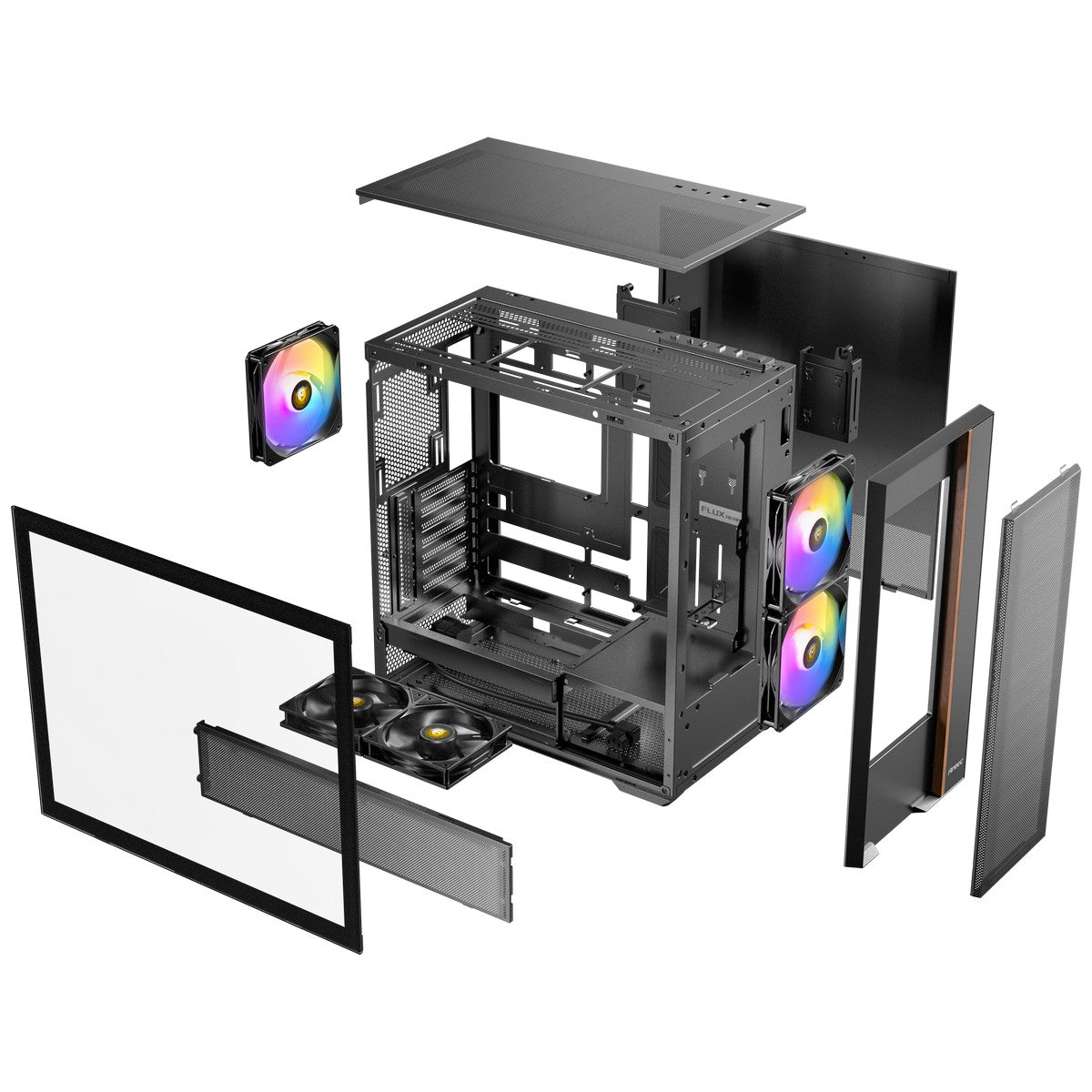

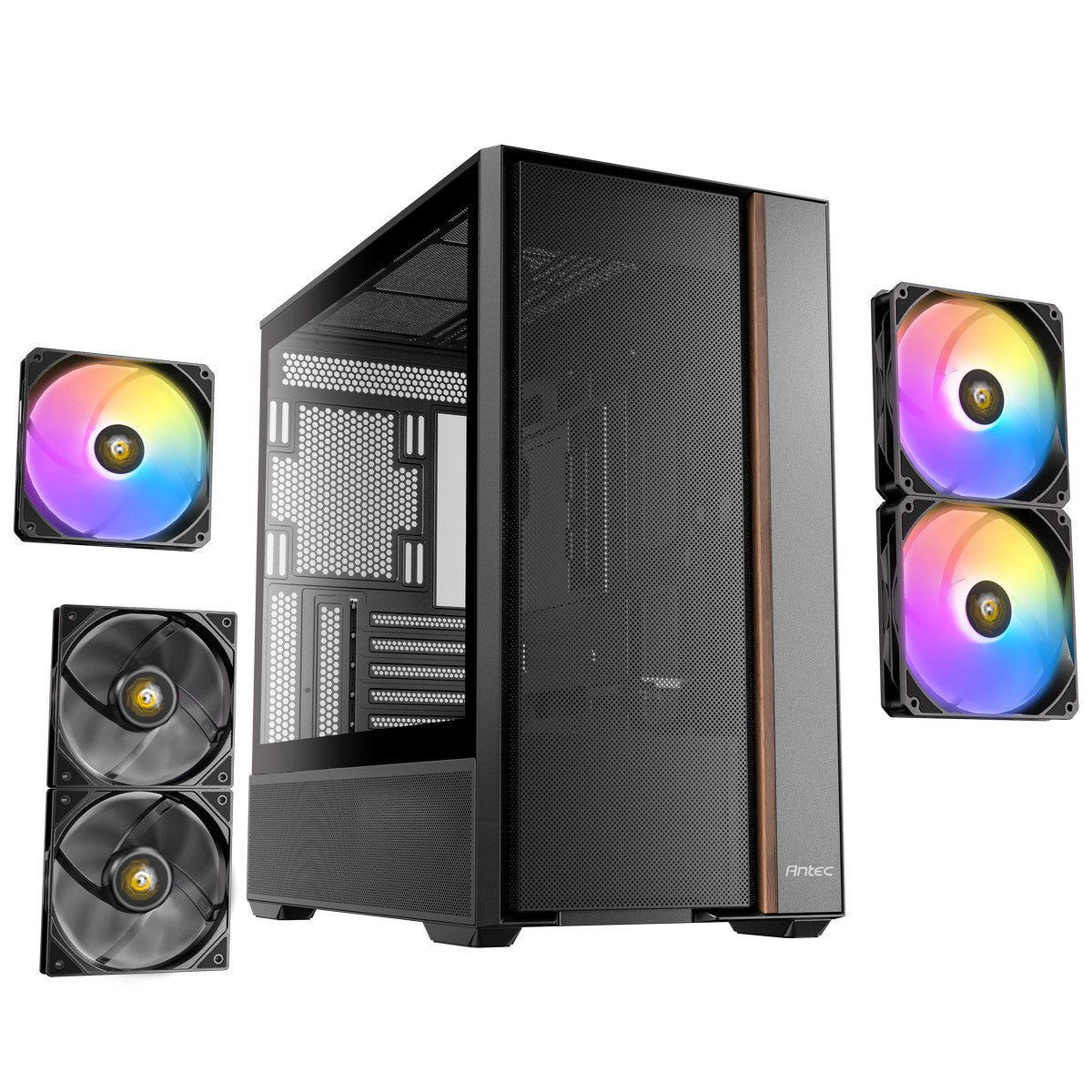

• Pre-installed: 2 × 140mm ARGB PWM fans (front), 2 × 120mm PWM reverse fans (PSU shroud), 1 × 140mm ARGB PWM fan (rear).
• Supports up to 360mm radiator at the top.
• Widely supports various back-connect motherboards available on the market.
• Premium wood-style accents with 4mm tempered glass side panel.

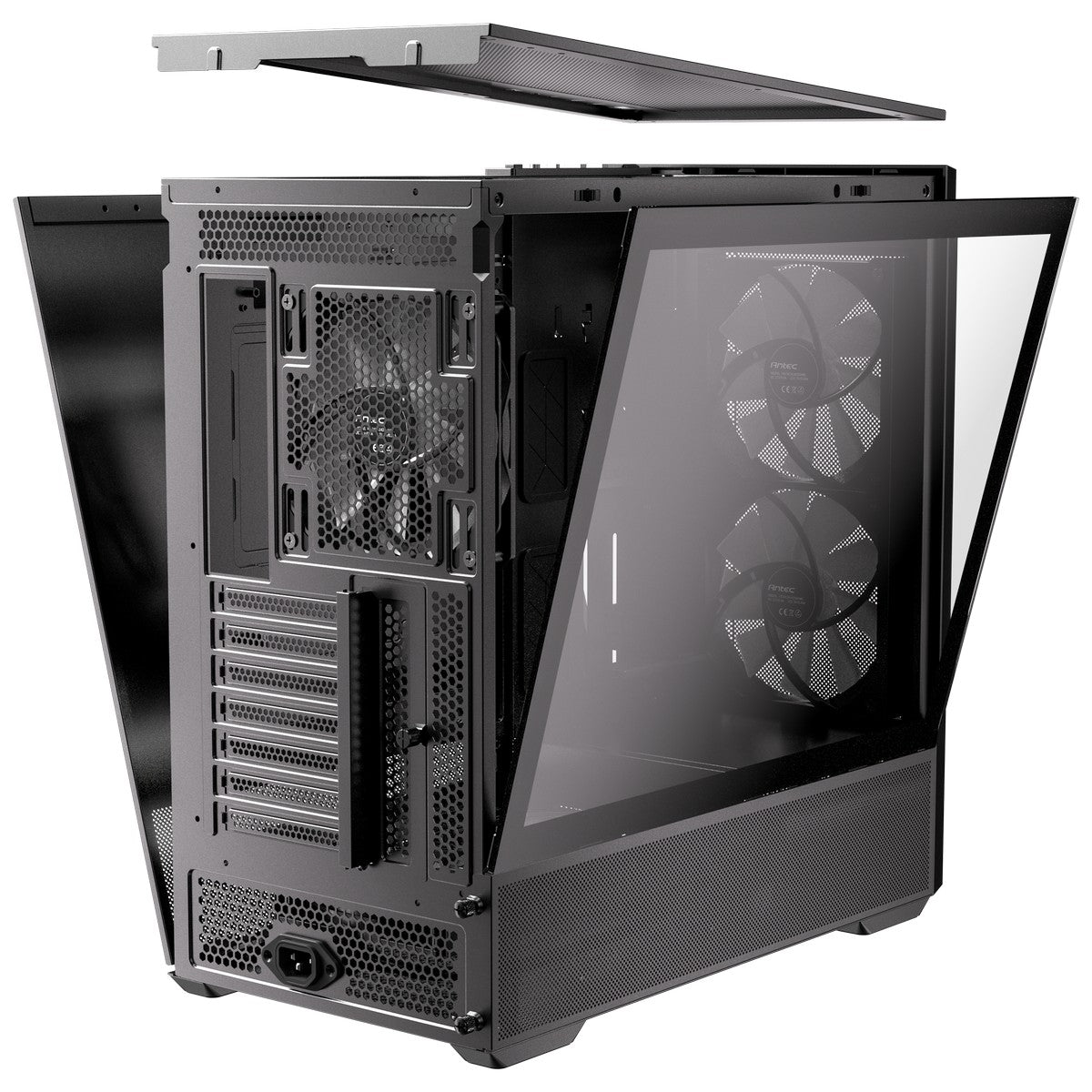

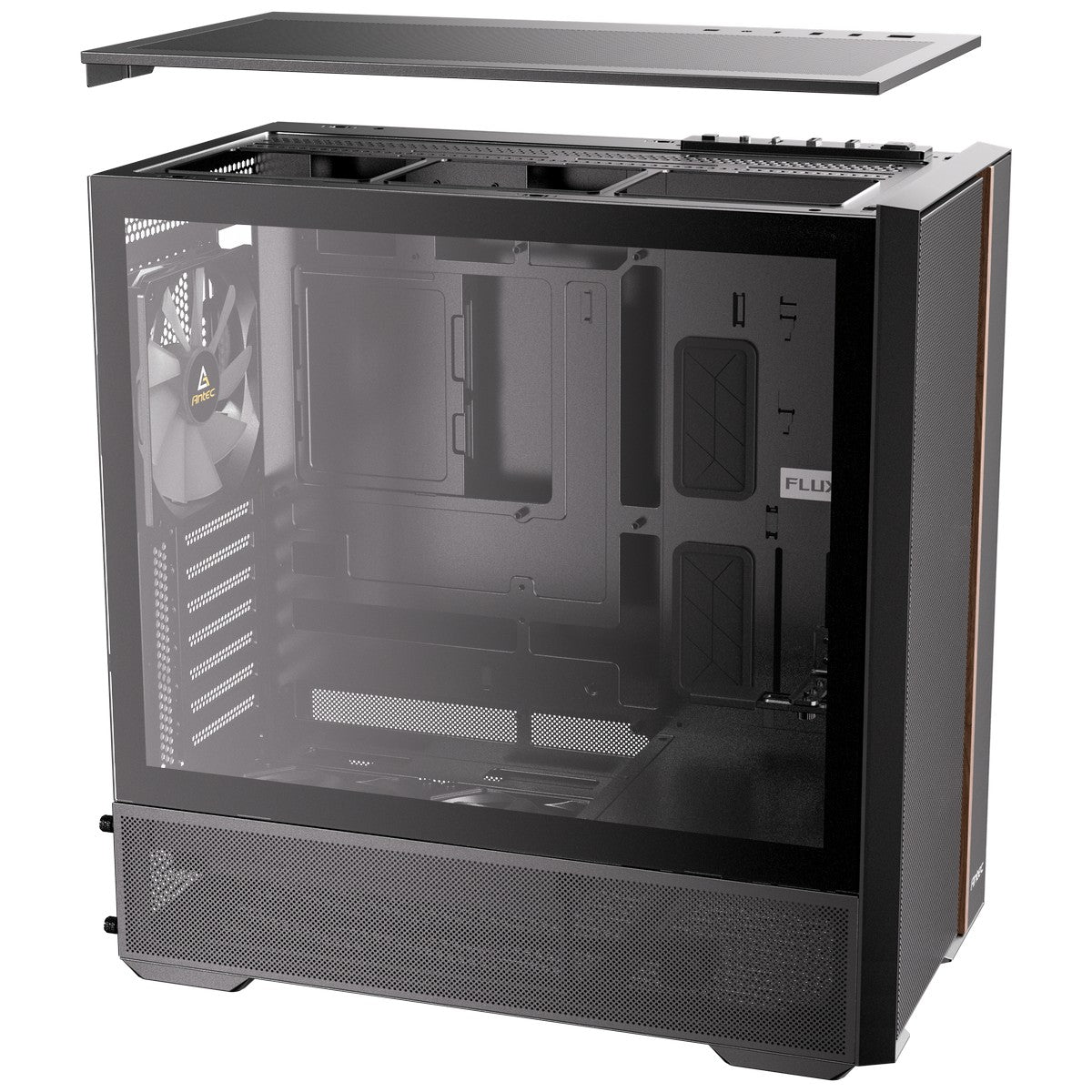

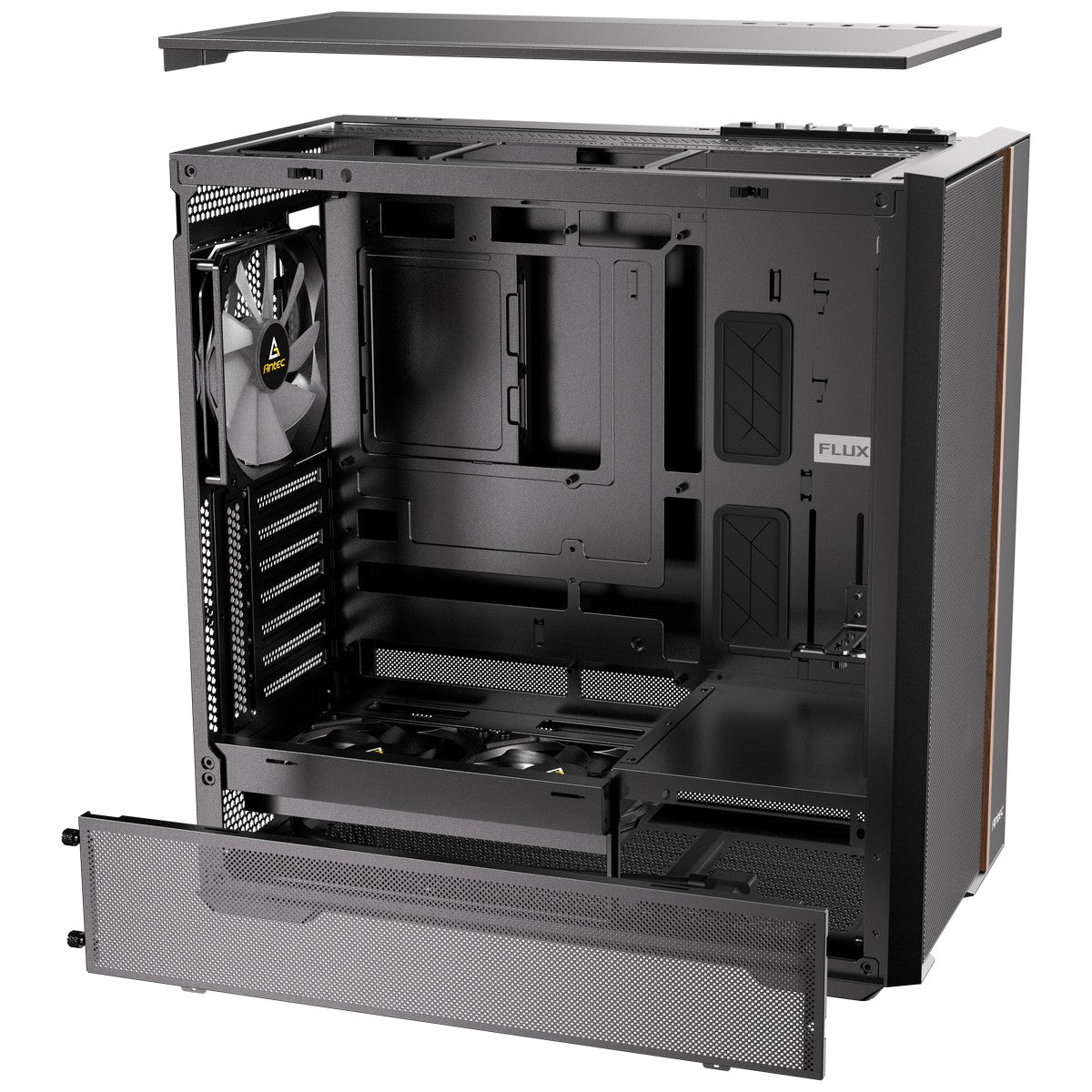

• Tool-free tempered glass and steel side panels.
• Includes built-in GPU support bracket and 13A extension cable.

Specifications

Back Connect	Back Connect Yes Colour Primary Colour Black Case Features I/O position Top Side panel with window Vertical GPU Mount No Adjustable Vertical GPU Bracket No Front door No Cable Management Yes Filters Included Yes Filter Position Bottom Noise dampening No Mainboard slide / tray No Transport System No Radiator Support Max. Radiator Compatibility 1x Single (120 mm), 1x Triple (360 mm) Radiator/AIO Support (Top) 120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator Radiator/AIO Support (Rear) 120mm Radiator Motherboard Support Compatible Motherboard Formats ATX, Micro-ATX, Mini-ITX Max. Motherboard Format ATX Power Supply PSU included No PSU Format ATX Power Supply Position front Drive Bays Max. 2.5 Inch Drives 2 Max. 3.5 Inch Drives 1 Max. 5.25 Inch Drives 0 Hot swap drive bays No Internal Dimensions Max. CPU Cooler Height 180 mm Max. GPU Length 400 mm Max. PSU Length / Depth 170 mm External Ports Front I/O – USB Type C Ports Total 1 Front I/O – USB Type A Ports Total 2 USB 3.2 (external) Type C 1 USB 3.0 (external) Type A 2 Audio outputs & inputs 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) Additional Contents Fans Included Yes Included fans 2x 120 mm, 2x 140 mm Display Display Included No Case Case Type Mid Tower Dimensions Length / Depth 460 mm Width 240 mm Height 460 mm Weight 8.18 kg Materials Materials Plastic, Steel, Tempered Glass, Wood Fan Support Case Fan Support (Bottom) 120mm Fan (2x) Case Fan Support (Rear) 120mm Fan (1x), 140mm Fan (1x) Case Fan Support (Top) 120mm Fan (3x), 140mm Fan (2x) Case Fan Support (Front) 140mm Fan (2x) Max. Number of Fans 8 120 mm fans 8 140 mm fans 3 Expansion Slots Expansion slots / PCI slots 7 Lighting Lighting / RGB Yes RGB Controller No Fan Header Fan Controller / Fan Hub No Mounting Internal Monitor Mount No Case VESA Mountable No Features Housing Feedthrough No Cable Specifications Riser Cable Included No Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Connectivity Card reader No
Back Connect	Yes
Primary Colour	Black
I/O position	Top
Side panel	with window
Vertical GPU Mount	No
Adjustable Vertical GPU Bracket	No
Front door	No
Cable Management	Yes
Filters Included	Yes
Filter Position	Bottom
Noise dampening	No
Mainboard slide / tray	No
Transport System	No
Max. Radiator Compatibility	1x Single (120 mm), 1x Triple (360 mm)
Radiator/AIO Support (Top)	120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
Radiator/AIO Support (Rear)	120mm Radiator
Compatible Motherboard Formats	ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format	ATX
PSU included	No
PSU Format	ATX
Power Supply Position	front
Max. 2.5 Inch Drives	2
Max. 3.5 Inch Drives	1
Max. 5.25 Inch Drives	0
Hot swap drive bays	No
Max. CPU Cooler Height	180 mm
Max. GPU Length	400 mm
Max. PSU Length / Depth	170 mm
Front I/O – USB Type C Ports Total	1
Front I/O – USB Type A Ports Total	2
USB 3.2 (external) Type C	1
USB 3.0 (external) Type A	2
Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fans Included	Yes
Included fans	2x 120 mm, 2x 140 mm
Display Included	No
Case Type	Mid Tower
Length / Depth	460 mm
Width	240 mm
Height	460 mm
Weight	8.18 kg
Materials	Plastic, Steel, Tempered Glass, Wood
Case Fan Support (Bottom)	120mm Fan (2x)
Case Fan Support (Rear)	120mm Fan (1x), 140mm Fan (1x)
Case Fan Support (Top)	120mm Fan (3x), 140mm Fan (2x)
Case Fan Support (Front)	140mm Fan (2x)
Max. Number of Fans	8
120 mm fans	8
140 mm fans	3
Expansion slots / PCI slots	7
Lighting / RGB	Yes
RGB Controller	No
Fan Controller / Fan Hub	No
Internal Monitor Mount	No
Case VESA Mountable	No
Housing Feedthrough	No
Riser Cable Included	No
Compatibility Note	Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Card reader	No
