SKU CAS-BEQ-04725EAN 4260052192849MPN BGW77
Overview

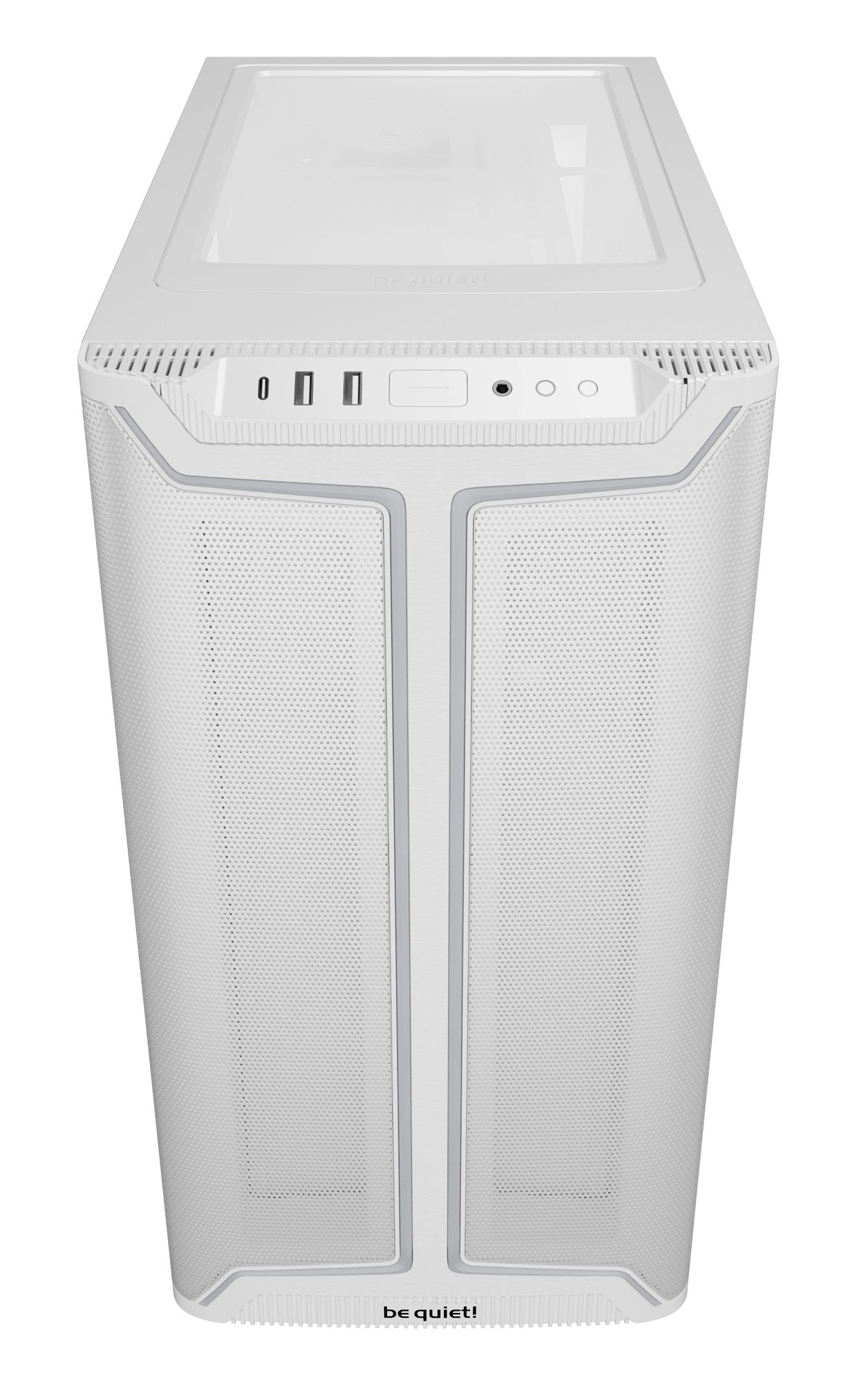

Pure Base 501 DX White is an impressively illuminated be quiet! ATX case with compact dimensions and high airflow for any application.
Pure Base 501 DX White is an impressively illuminated be quiet! ATX case with compact dimensions and high airflow for any application. Elevate your system with the elegant ARGB lighting and relish the show.
Pure Base 501 DX White at a Glance
- High airflow intake front panel and top cover for maximum performance
- 3 preinstalled Pure Wings 3 140mm PWM White fans for extraordinary air pressure

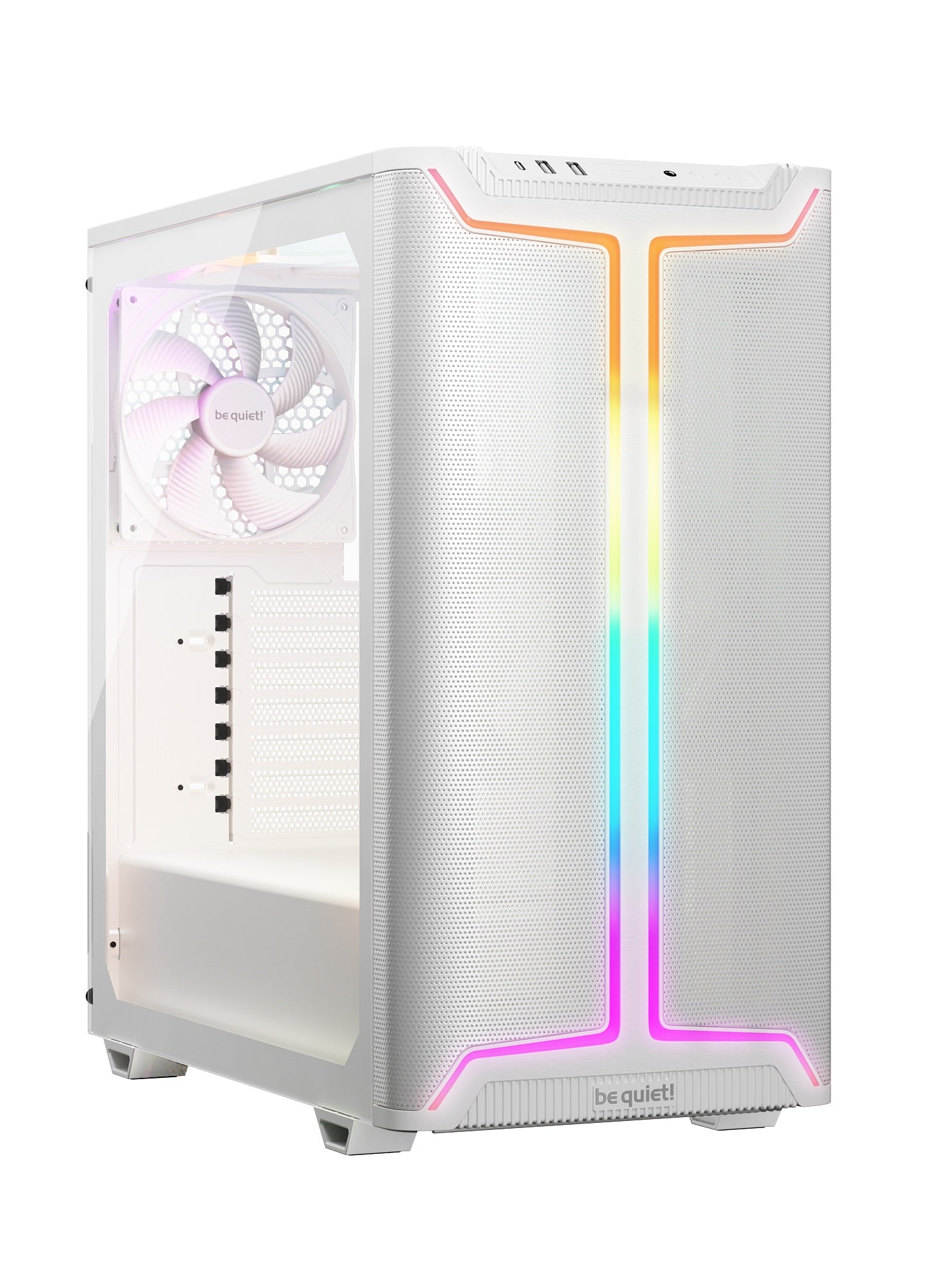

- Dynamic case front design with elegant ARGB lighting inside and outside of the case
- ARGB controller with motherboard sync option

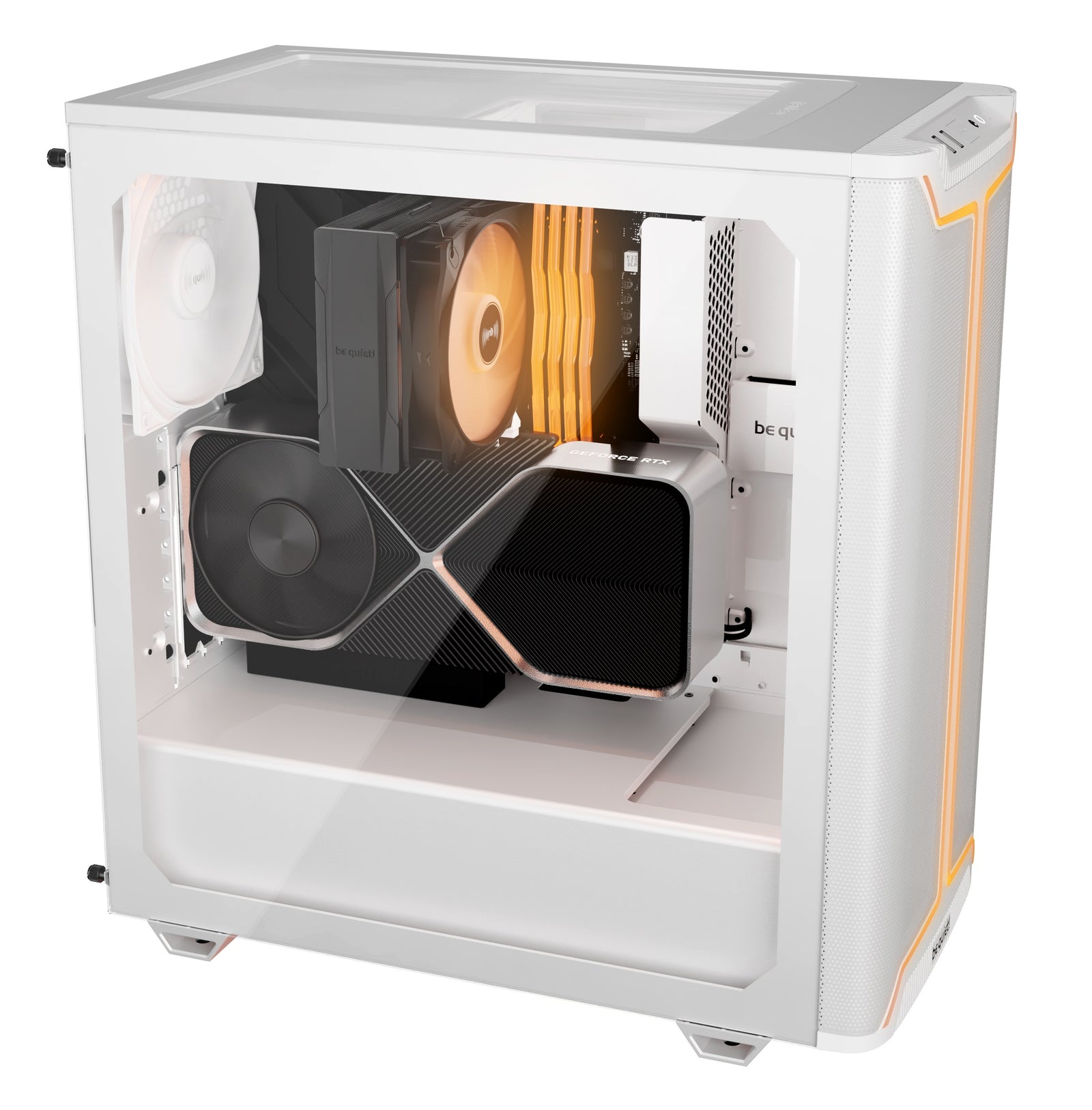

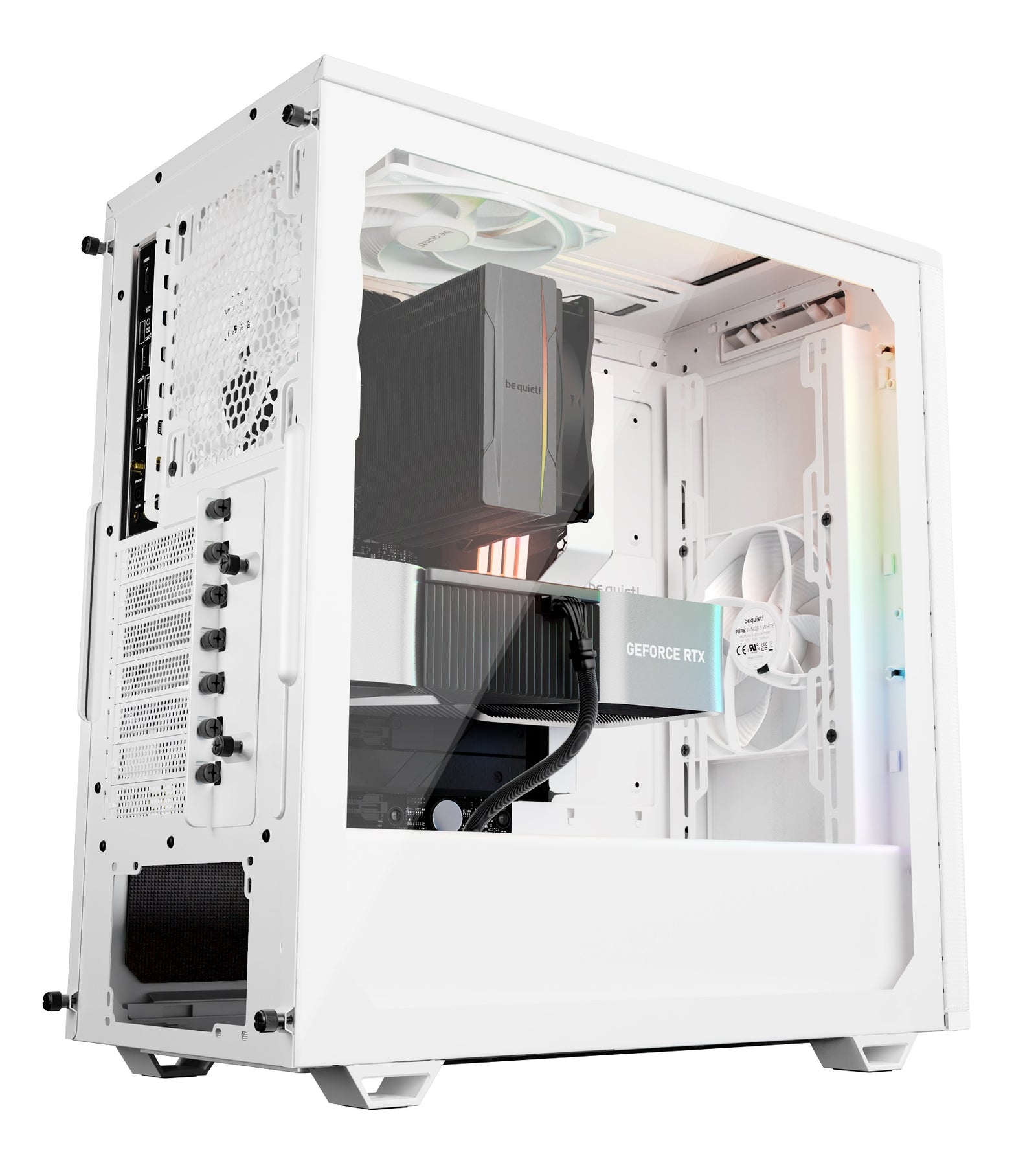

- Generous space for high-end graphics cards and large coolers, despite compact footprint
- Optional vertical graphics card installation
Pure Base 501 DX White Specification
General data
| Model | Pure Base 501 DX Black |
| Color option | Black |
| Motherboard compatibility | ATX / M-ATX / Mini-ATX |

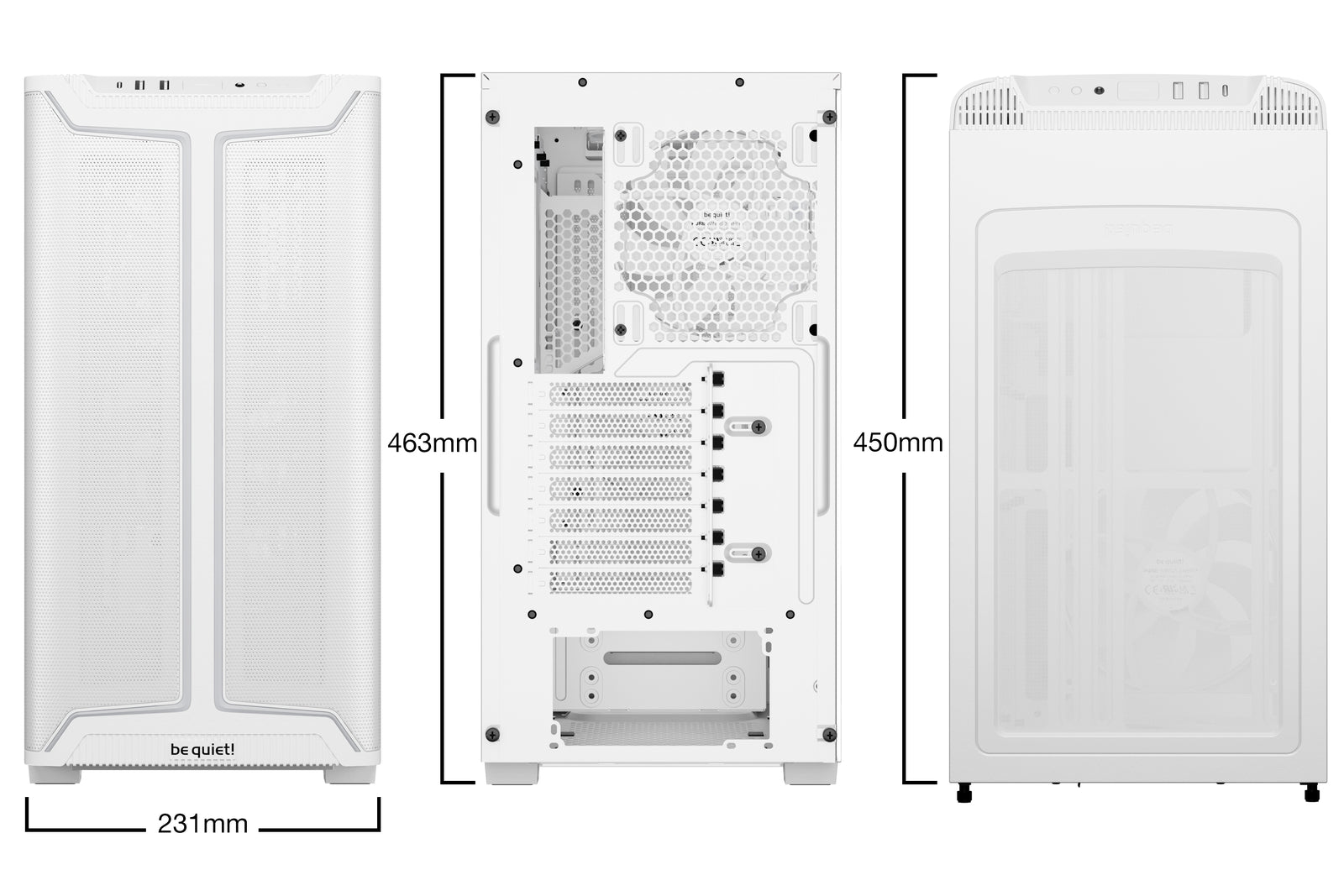

| Case size excl. stands (L x W x H), (mm) | 450 x 231 x 449 |
| Case size incl. stands (L x W x H), (mm) | 450 x 231 x 463 |
| Volume (l) | 24.4 |
| PSU form factor | ATX PS/2 |
| Net weight (kg) | 7.8 |
| Expansion slots | 7 |

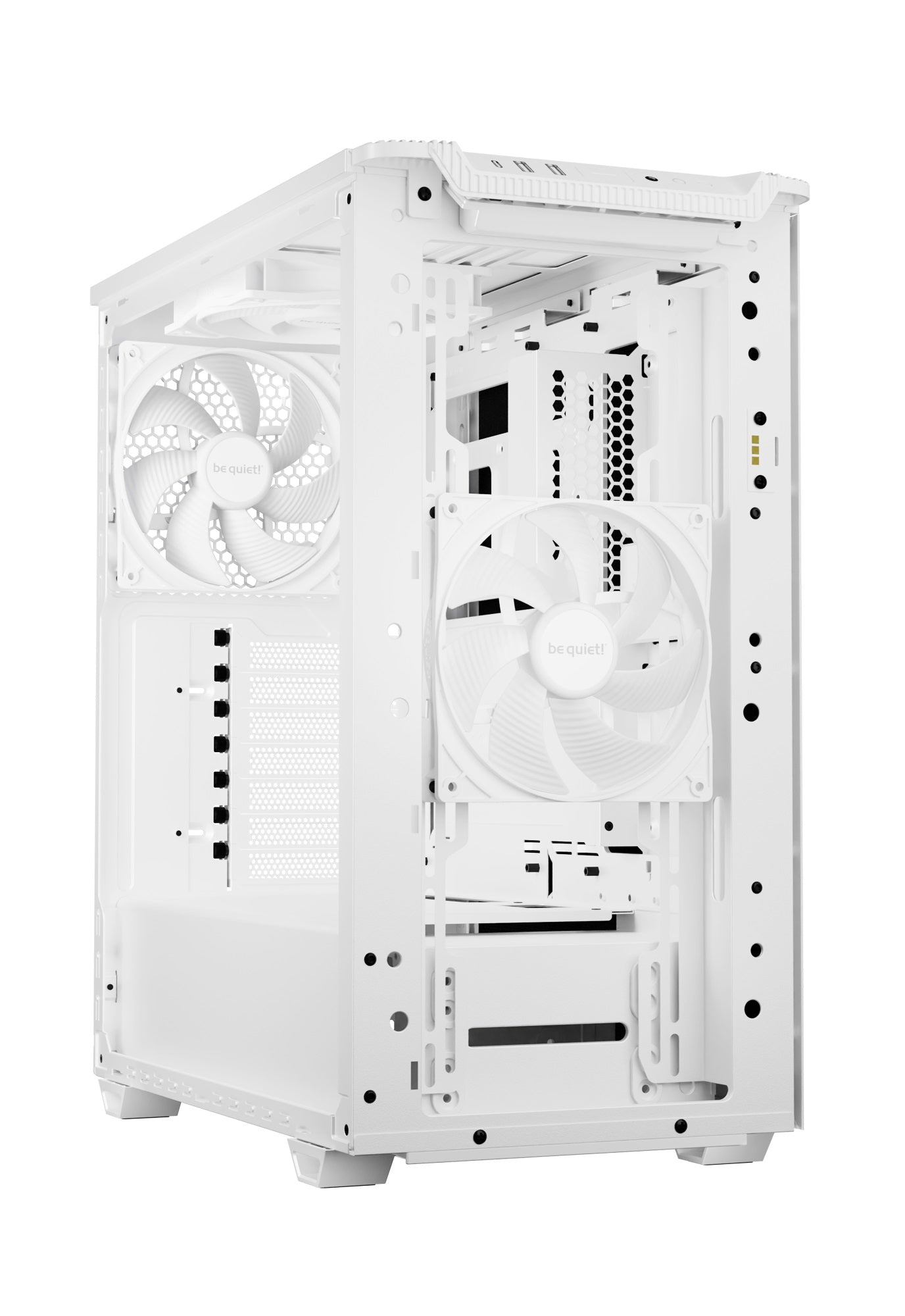

Pre-installed fans
| Fan at top | 1x Pure Wings 3 140mm PWM |
| Fan at front | 1x Pure Wings 3 140mm PWM |
| Fan at side | - |
| Fan at rear | 1x Pure Wings 3 140mm PWM |
| Fan at bottom | - |
| Dimensions (L x W x H), (mm) | 140 x 25 x 140 |
| Fan speed at 100% PWM / 12V (rpm) | 1200 |
| Airflow at 100% PWM / 12V (cfm / m3/h) | 57.4 / 97.5 |
| Air pressure at 100% PWM / 12V (mm H2O) | 0.96 |
| Noise level at 100% PWM / 12V (dB(A)) | 21.9 |
| Voltage range (V DC) | 5 - 13.2 |
| Input power (W) | 3.6 |
| Input current (A) | 0.06 |
| Connector | 4-pin PWM |
| Lifespan (h / 25°C) | 80,000 |
| Fan controller | - |
Maximum fan installation
| Maximum fans | 6 |
| Top (mm) | 2x 140 / 2x 120 |
| Front (mm) | 2x 140 / 3x 120 |
| Side (mm) | - |
| Rear (mm) | 1x 140 / 1x 120 |
| Bottom (mm) | - |
| PSU shroud | - |
Optional radiator installation
| Top (mm) | 120 / 240 |
| Front (mm) | 120 / 140 / 240 / 280 / 360 |
| Side (mm) | - |
| Rear (mm) | 120 / 140 |
| Bottom (mm) | - |
PSU compatibility
| Maximum dimensions excl. bottom fan (mm) | 200 |
| Maximum dimensions incl. bottom fan (mm) | 180 |
Graphics card
| HDD cage (in height of graphics card) installed (mm) | 368 |
| HDD cage (in height of graphics card) removed (mm) | 368 |
| Maximum PCIe slots with vertical graphics card (pcs.) | 5 |
Drive bay capacity
| 5.25 bays (pcs.) | - |
| 3.5 slots (scope of delivery) | 2 |
| 3.5 slots (max.) | 2 |
| 2.5 slots (scope of delivery) | 5 |
| 2.5 slots (max.) | 5 |
Cooling
| Max.construction height of CPU cooler unit (mm) | - |
| Airflow channel | - |
Lighting
| LED illumination | - |
| LEDs (pcs.) | - |
| LED type | - |
| LEDs synchronizable with controller/motherboard | - |
I/O Panel
| USB 3.2 Gen. 2 Type C | 1 |
| USB 3.2 Type A | 2 |
| USB 2.0 | - |
| HD Audio I/O | Mic + Audio |
| Qi charger / Quick Charging Option (W) | - |
Insulation and damping
| Top panel insulation mats | - |
| Front panel insulation mats | - |
| Side panel insulation mats | ✓ |
| Anti-vibration decoupled HDD | ✓ |
| Anti-vibration decoupled fan | - |
| Anti-vibration decoupled PSU | ✓ |
| Anti-vibration decoupled motherboard-tray | - |

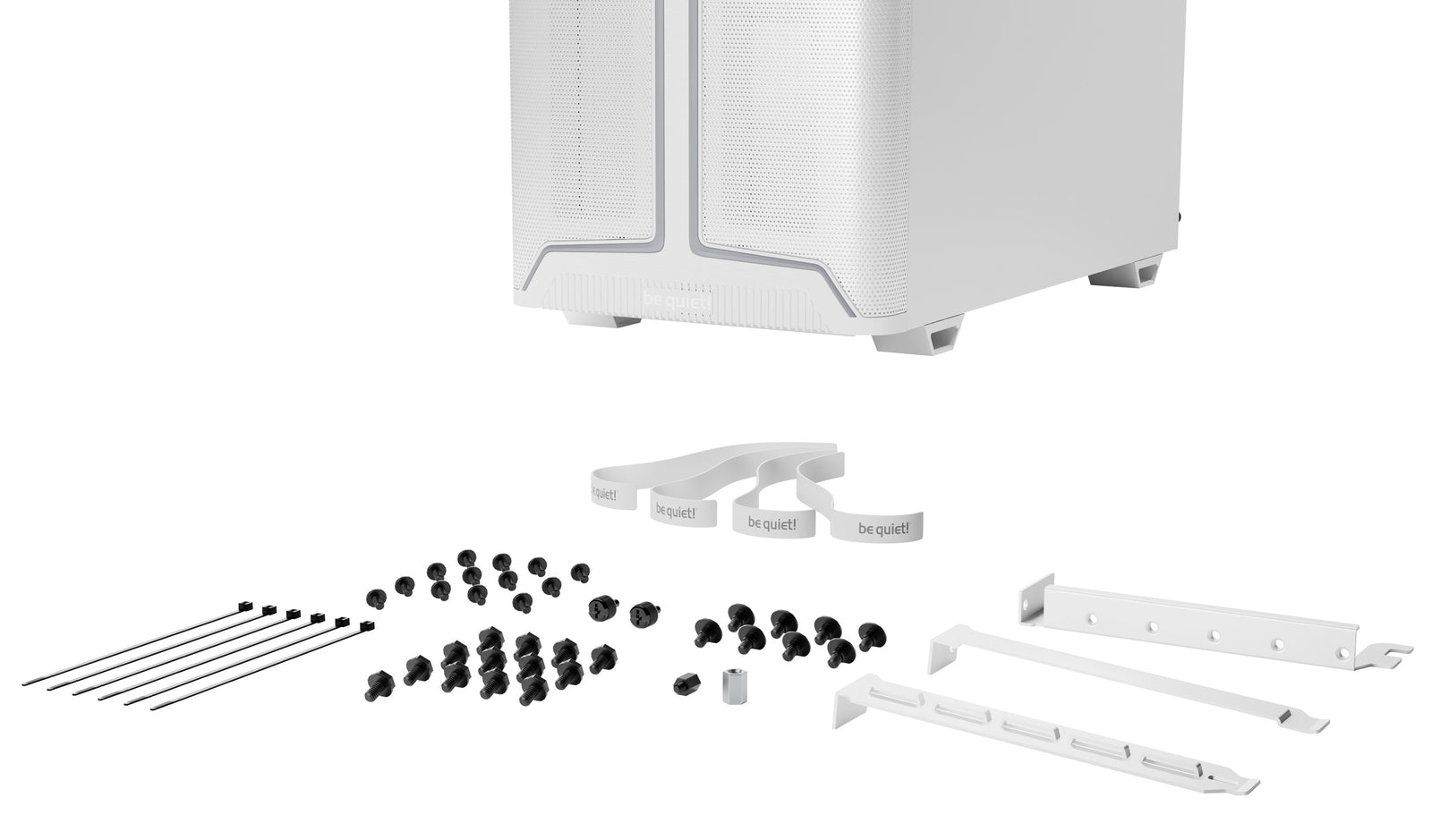

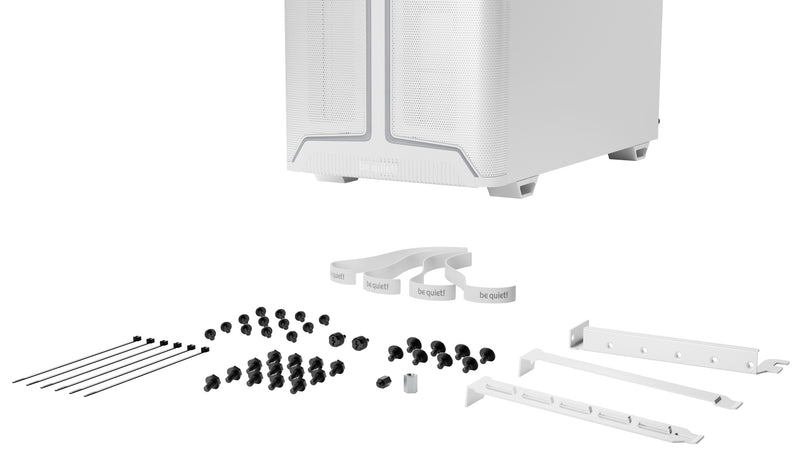

Scope of delivery
| Screw set (Drives/Motherboard) | ✓ |
| Additional standoffs (pcs.) | 1 |
| SSD bracket for PSU shroud | - |
| LED strips (pcs.) | 2 |
| Cable ties (pcs.) | 12 |
| Screw box | - |
| VGA holder | - |
| VGA holder for inverted layout | - |
| Mesh Front Panel | - |
| ODD Bracket | - |
| Fan / Radiator bracket for multi mounting panel | - |

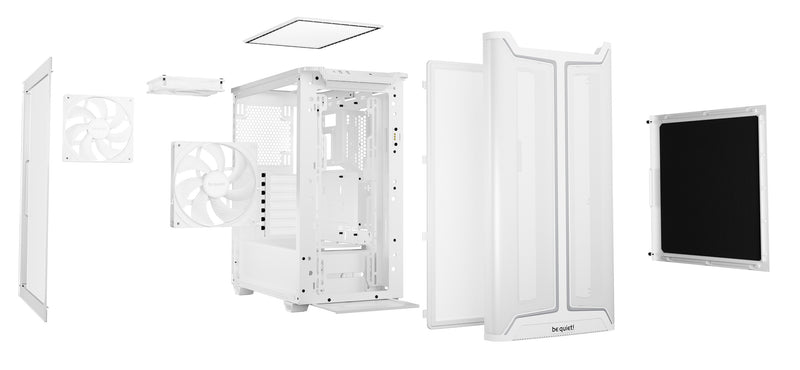

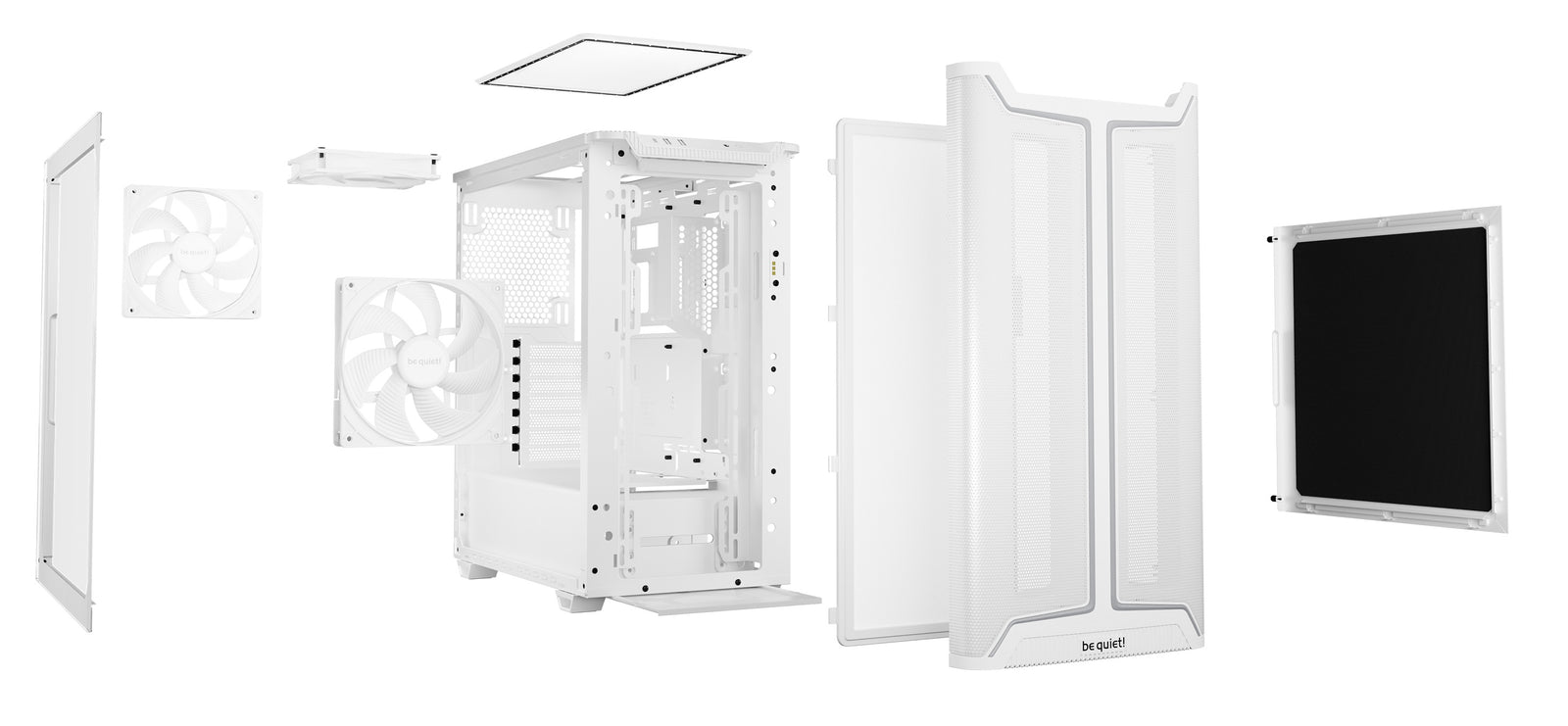

Removeable dust filters
| Top | 1 |
| Front | 1 |
| Side | - |
| Bottom | 1 |
Material
| Top cover | Steel |
| Front panel | ABS |
| Side panel | Steel |
| Side panel window | Glass |
| Stands | ABS |
Safety certification
| Approvals | CE, UKCA |
Environmental directives
| RoHS | ✓ |
| Reach | - |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BGW76 |
| EAN code | 4260052192832 |
| Dimensions, package (L x W x H), (mm) | 518 x 292 x 503 |
| Gross weight, package (kg) | 9.2 |
| Pieces per packaging unit | 1 |
| RRP (£) | 104.99 |
Specifications
| Colour | Primary Colour White Case Features I/O position Front / Lid Side panel with window Vertical GPU Mount No Adjustable Vertical GPU Bracket No Front door No Cable Management Yes Filters Included Yes Filter Position Top, Bottom, Front Noise dampening Yes Mainboard slide / tray No Transport System No Radiator Support Max. Radiator Compatibility 1x Single (140 mm), 1x Dual (240 mm), 1x Triple (360 mm) Radiator/AIO Support (Front) 120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator Radiator/AIO Support (Top) 120mm Radiator, 240mm Radiator Radiator/AIO Support (Rear) 120mm Radiator, 140mm Radiator Motherboard Support Compatible Motherboard Formats ATX, Micro-ATX, Mini-ATX Max. Motherboard Format ATX Back Connect Back Connect No Mounting Case VESA Mountable No Internal Monitor Mount No Lighting Lighting / RGB Yes RGB Controller Yes RGB Type RGB Fan Support Max. Number of Fans 6 Case Fan Support (Top) 120mm Fan (2x), 140mm Fan (2x) Case Fan Support (Front) 120mm Fan (3x), 140mm Fan (2x) Case Fan Support (Rear) 120mm Fan (1x), 140mm Fan (1x) 120 mm fans 6 140 mm fans 5 Case Case Type Mid Tower Product Series Product Series/Family Pure Base Display Display Included No Dimensions Length / Depth 450 mm Width 231 mm Height 463 mm Weight 7.8 kg Materials Materials ABS, Steel, Tempered Glass Fan Header Fan Controller / Fan Hub No Internal Dimensions Max. CPU Cooler Height 178 mm Max. GPU Length 368 mm Max. PSU Length / Depth 200 mm Inner Volume 39.2 l Additional Contents Fans Included Yes Included fans 3x 140 mm Expansion Slots Expansion slots / PCI slots 7 Power Supply PSU included No PSU Format ATX Power Supply Position rear bottom Drive Bays Max. 2.5 Inch Drives 5 Max. 3.5 Inch Drives 2 Max. 5.25 Inch Drives 0 2.5 inch internal drive bay 5 3.5 inch internal drive bay 2 Hot swap drive bays No External Ports Front I/O – USB Type C Ports Total 1 Front I/O – USB Type A Ports Total 2 USB 3.2 (external) Type C 1 USB 3.0 (external) Type A 2 Audio outputs & inputs 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) Features Housing Feedthrough No Cable Specifications Riser Cable Included No Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Connectivity Card reader No |
|---|---|
| Primary Colour | White |
| I/O position | Front / Lid |
| Side panel | with window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Filter Position | Top, Bottom, Front |
| Noise dampening | Yes |
| Mainboard slide / tray | No |
| Transport System | No |
| Max. Radiator Compatibility | 1x Single (140 mm), 1x Dual (240 mm), 1x Triple (360 mm) |
| Radiator/AIO Support (Front) | 120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator |
| Radiator/AIO Support (Top) | 120mm Radiator, 240mm Radiator |
| Radiator/AIO Support (Rear) | 120mm Radiator, 140mm Radiator |
| Compatible Motherboard Formats | ATX, Micro-ATX, Mini-ATX |
| Max. Motherboard Format | ATX |
| Back Connect | No |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Lighting / RGB | Yes |
| RGB Controller | Yes |
| RGB Type | RGB |
| Max. Number of Fans | 6 |
| Case Fan Support (Top) | 120mm Fan (2x), 140mm Fan (2x) |
| Case Fan Support (Front) | 120mm Fan (3x), 140mm Fan (2x) |
| Case Fan Support (Rear) | 120mm Fan (1x), 140mm Fan (1x) |
| 120 mm fans | 6 |
| 140 mm fans | 5 |
| Case Type | Mid Tower |
| Product Series/Family | Pure Base |
| Display Included | No |
| Length / Depth | 450 mm |
| Width | 231 mm |
| Height | 463 mm |
| Weight | 7.8 kg |
| Materials | ABS, Steel, Tempered Glass |
| Fan Controller / Fan Hub | No |
| Max. CPU Cooler Height | 178 mm |
| Max. GPU Length | 368 mm |
| Max. PSU Length / Depth | 200 mm |
| Inner Volume | 39.2 l |
| Fans Included | Yes |
| Included fans | 3x 140 mm |
| Expansion slots / PCI slots | 7 |
| PSU included | No |
| PSU Format | ATX |
| Power Supply Position | rear bottom |
| Max. 2.5 Inch Drives | 5 |
| Max. 3.5 Inch Drives | 2 |
| Max. 5.25 Inch Drives | 0 |
| 2.5 inch internal drive bay | 5 |
| 3.5 inch internal drive bay | 2 |
| Hot swap drive bays | No |
| Front I/O – USB Type C Ports Total | 1 |
| Front I/O – USB Type A Ports Total | 2 |
| USB 3.2 (external) Type C | 1 |
| USB 3.0 (external) Type A | 2 |
| Audio outputs & inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
| Housing Feedthrough | No |
| Riser Cable Included | No |
| Compatibility Note | Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. |
| Card reader | No |
Specifications
| Manufacturer | be quiet! |
|---|---|
| Manufacturer part number | BGW77 |
| OcUK SKU | CAS-BEQ-04725 |
| EAN | 4260052192849 |
| Back Connect | No |
| Case Type | Mid Tower |
| Included fans | 3x 140 mm |
| Lighting / RGB | Yes |
| Power Supply Position | rear bottom |
| Primary Colour | White |
| Product Series/Family | Pure Base |
| PSU Format | ATX |
