SKU MOT-ASU-03089EAN 4711387718148MPN 90MB1IS0-M0EAY0
Overview
Socket AM5, X870 Chipset, Supports 7000/8000/9000 series AMD Ryzen, 4x DIMM Slots, DDR5, PCIe Gen 5, 2x SATA 6Gb/s connectors, 4x M.2 Slot, 2.5GB LAN, WIFI 7, USB Type-C
| Component | Details |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors * Refer to support site for CPU support list. |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 up to 8000+MT/s (OC), ECC and Non-ECC, Un-buffered Memory Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP) * Memory support varies depending on the CPU and configuration. Refer to support site for details. |
| Graphics | 1 x HDMI™ port 2 x USB4® (40Gbps) ports (USB Type-C® display outputs) * HDMI supports 4K@60Hz, DisplayPort supports max. 4K@60Hz as per DisplayPort 1.4a specifications. |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset: 3 x PCIe 4.0 x16 slots (support x1 mode) * Detailed specs available on support site. |
| Storage | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports M.2 slots support various PCIe modes depending on the processor (details on support site). |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2x2, supports 2.4/5/6GHz Bluetooth® v5.4 * Wi-Fi features depend on OS and region-specific regulations. |
| USB | Rear: 2 x USB4® (40Gbps) ports, 1 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A Front: 1 x USB 10Gbps Type-C®, 1 x USB 5Gbps header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC, supports up to 24-Bit/192 kHz playback * Front HD audio panel required for 7.1 Surround Sound support. |

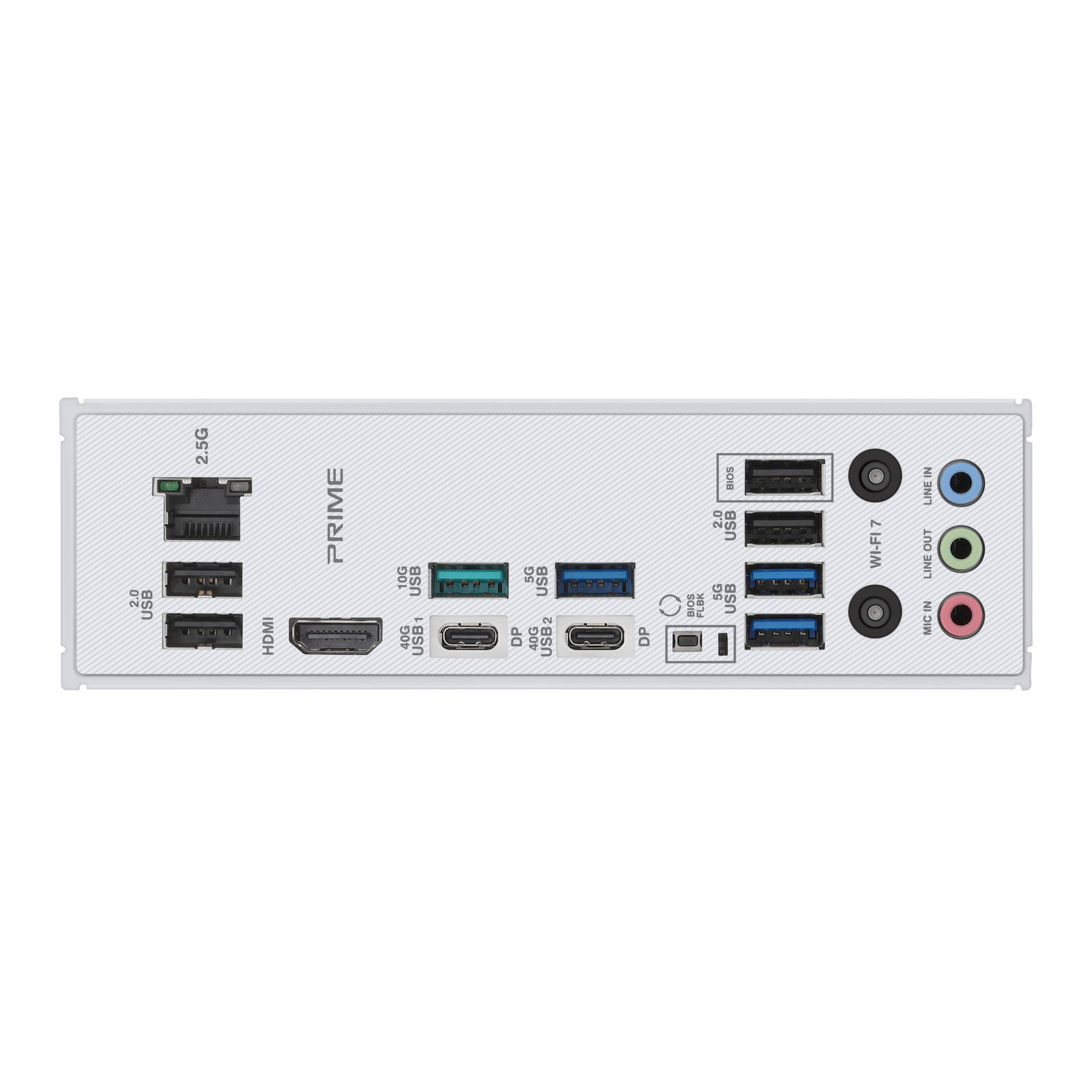

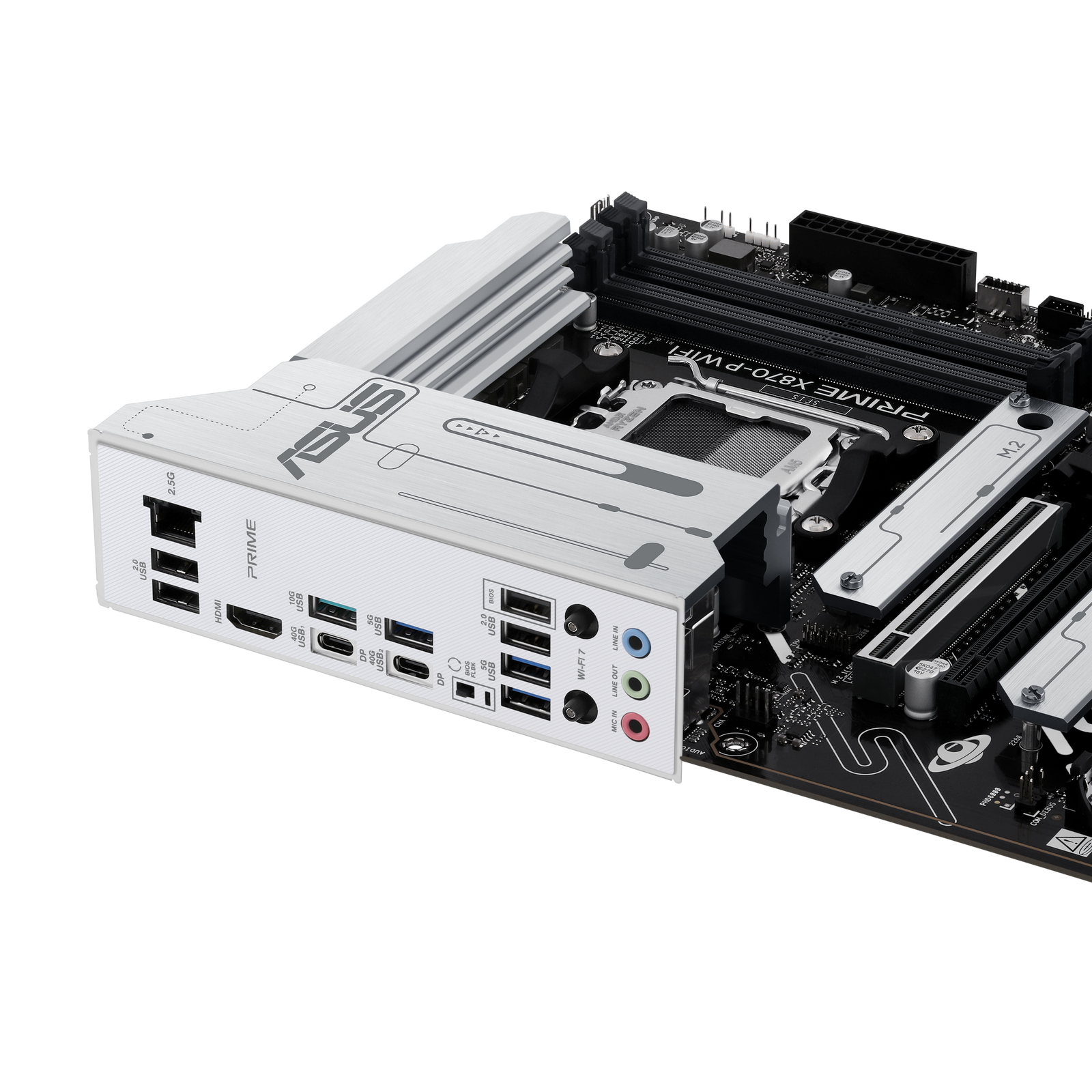

| Back Panel I/O Ports | 2 x USB4® (40Gbps), 1 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers Power: 1 x 24-pin Main Power, 2 x 8-pin +12V CPU Power Storage: 4 x M.2 slots, 2 x SATA 6Gb/s Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Clear CMOS, 1 x COM Port, 1 x Front Panel Audio, 1 x S/PDIF Out, 1 x SPI TPM (14-1 pin), 1 x System Panel |
| Special Features | ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-DIMM, Q-LED Core, Q-Slot ASUS Thermal Solution: Flexible M.2 heatsink, VRM heatsink design ASUS EZ DIY: BIOS FlashBack™ button, Pre-mounted I/O shield, SafeSlot Aura Sync: Addressable Gen 2 headers |
| Software Features | Armoury Crate: Aura Creator, Aura Sync, Fan Xpert 4 (with AI Cooling II), Power Saving, ASUS Driver Hub, GlideX, TurboV Core, ASUS CPU-Z, Norton 360 for Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial), UEFI BIOS |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 2 x M.2 rubber packages, 2 x M.2 SSD screw packages, 1 x Quick start guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
Specifications
| Form Factor | Motherboard Form Factor ATX Wi-Fi & LAN LAN Yes LAN Ports 1x 2.5 Gbit/s Wi-Fi / Bluetooth Yes CPU CPU Manufacturer AMD CPU Socket AM5 Motherboard Motherboard Chipset AMD X870 Colour Primary Colour Black Secondary Colour White Product Series Product Series/Family Prime Lighting Lighting / RGB Yes Memory Max. Memory 192 GB Memory Type DDR5 Memory Form Factor DIMM Max. Memory Speed (OC) 8000 MB/s EEC Support Yes Memory slots 4x Fan Header 4 Pin Fan Connectors 7 External Ports USB4 Gen 3x2 (external) Type C 2 USB 3.1 (external) Type A 2 USB 3.0 (external) Type A 3 USB 2.0 (external) Type A 4 Expansion Slots PCIe x16 slots (total) 3 PCIe 5.0 x16 mechanical slot 1 PCIe 4.0 x1 mechanical slot 2 Internal Ports CPU Power Supply 2x 8-Pin USB 3.0 / 3.1 / 3.2 (internal) Type C Header 1 USB 2.0 (internal) Header 2 Front Panel Audio Header Yes Storage Ports M.2 PCIe 3.0 x2 1 M.2 PCIe 4.0 x4 2 M.2 PCIe 5.0 x4 1 SATA 6G (internal) 2 |
|---|---|
| Motherboard Form Factor | ATX |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Motherboard Chipset | AMD X870 |
| Primary Colour | Black |
| Secondary Colour | White |
| Product Series/Family | Prime |
| Lighting / RGB | Yes |
| Max. Memory | 192 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Max. Memory Speed (OC) | 8000 MB/s |
| EEC Support | Yes |
| Memory slots | 4x |
| 4 Pin Fan Connectors | 7 |
| USB4 Gen 3x2 (external) Type C | 2 |
| USB 3.1 (external) Type A | 2 |
| USB 3.0 (external) Type A | 3 |
| USB 2.0 (external) Type A | 4 |
| PCIe x16 slots (total) | 3 |
| PCIe 5.0 x16 mechanical slot | 1 |
| PCIe 4.0 x1 mechanical slot | 2 |
| CPU Power Supply | 2x 8-Pin |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
| USB 2.0 (internal) Header | 2 |
| Front Panel Audio Header | Yes |
| M.2 PCIe 3.0 x2 | 1 |
| M.2 PCIe 4.0 x4 | 2 |
| M.2 PCIe 5.0 x4 | 1 |
| SATA 6G (internal) | 2 |
Specifications
| Manufacturer | Asus |
|---|---|
| Manufacturer part number | 90MB1IS0-M0EAY0 |
| OcUK SKU | MOT-ASU-03089 |
| EAN | 4711387718148 |
| CPU Socket | AM5 |
| Lighting / RGB | Yes |
| Memory Form Factor | DIMM |
| Memory Type | DDR5 |
| Primary Colour | Black |
| Product Series/Family | Prime |
| Secondary Colour | White |
Product reviews
No review for this product yet.
Warranty & Delivery
Click & Collect
Collect from OcUK HQ, or one of thousands of DPD Pickup Points around the UK.*
Full Delivery InformationIE Delivery
We ship to Ireland, with tax and customs included in the price you pay.*
Full Delivery Information*Exclusions and product restrictions apply
Asus

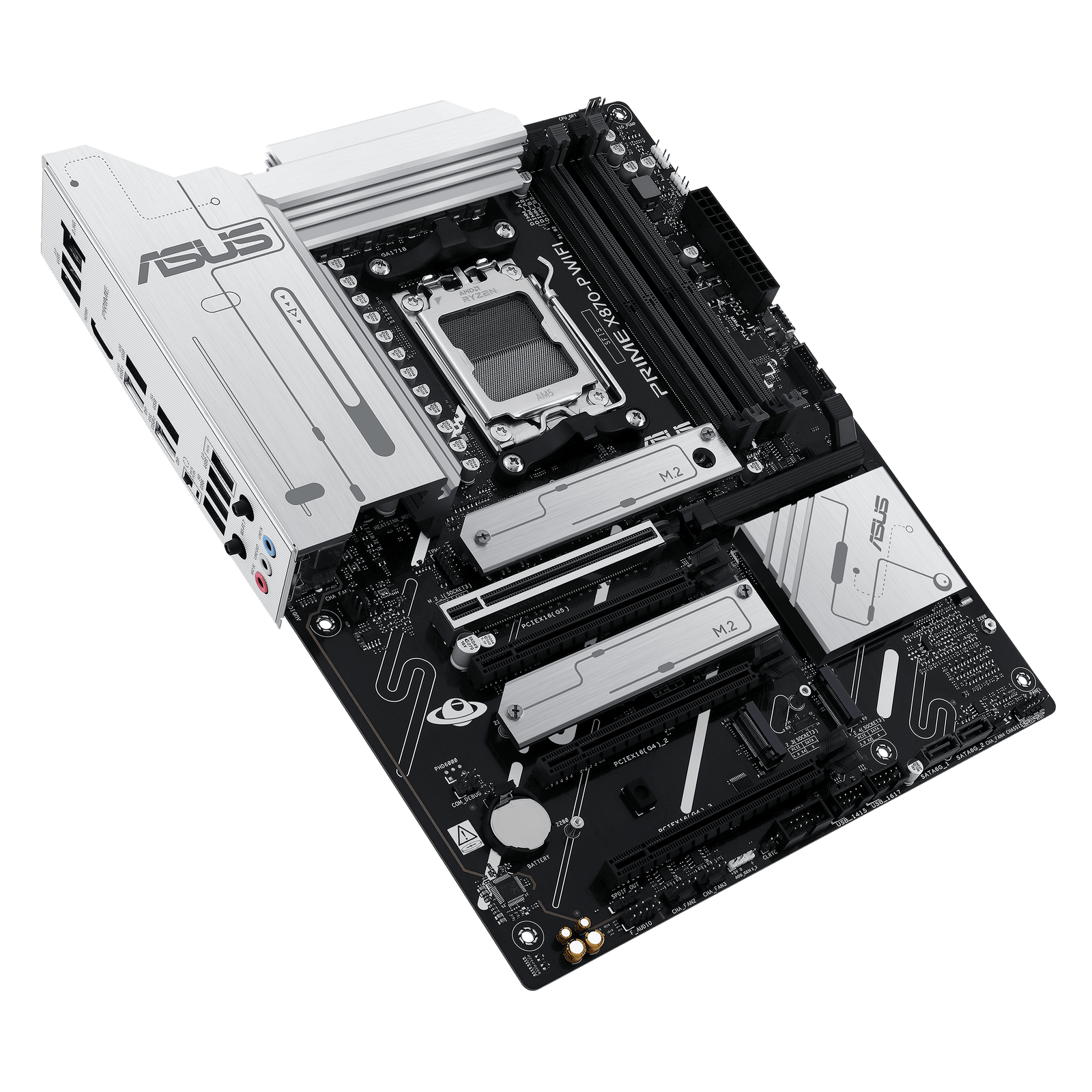

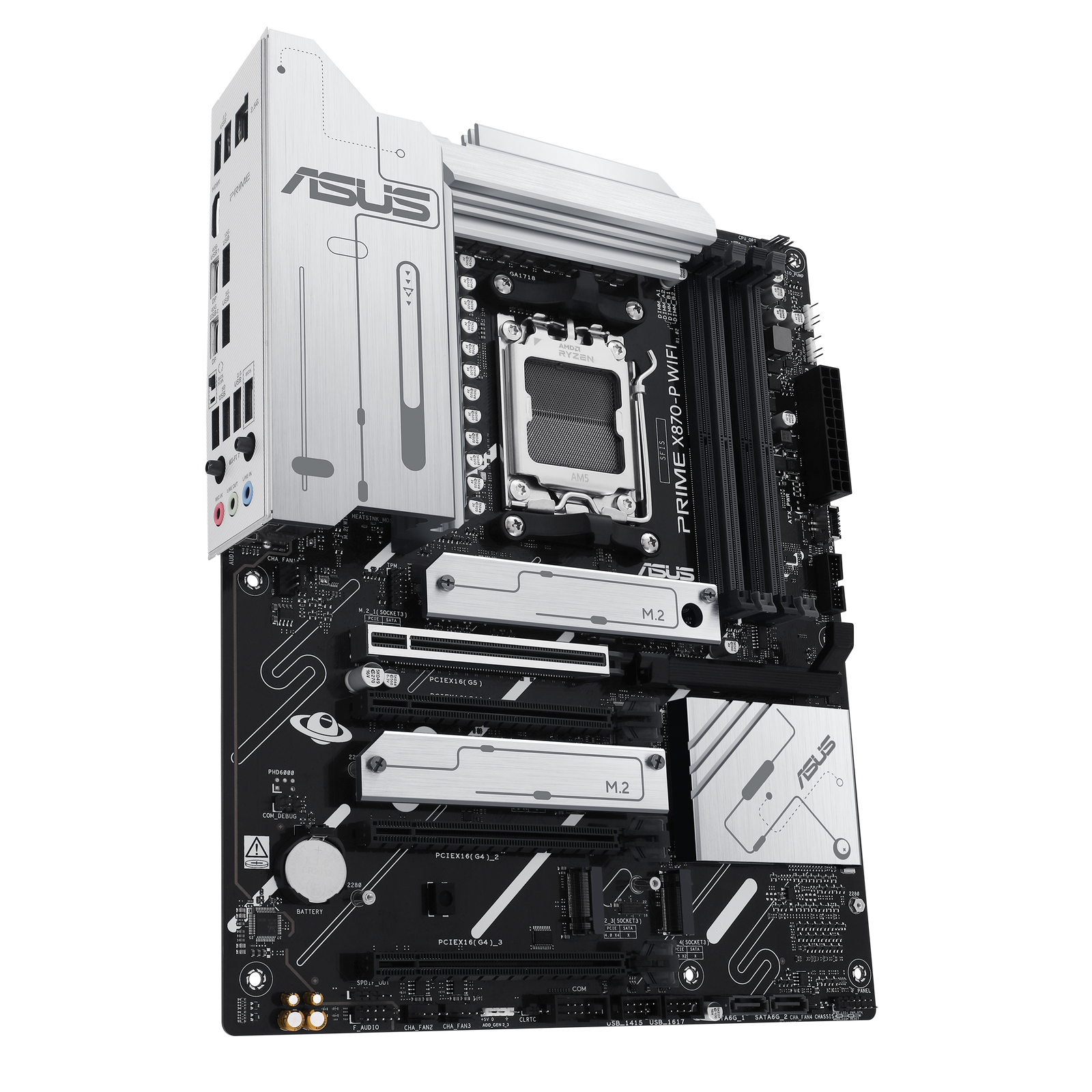

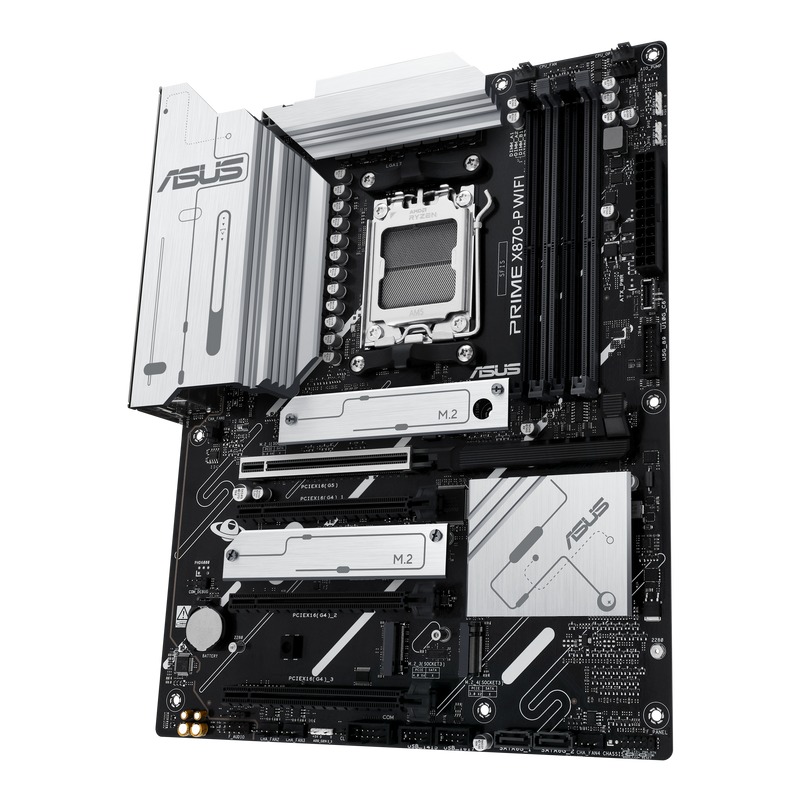

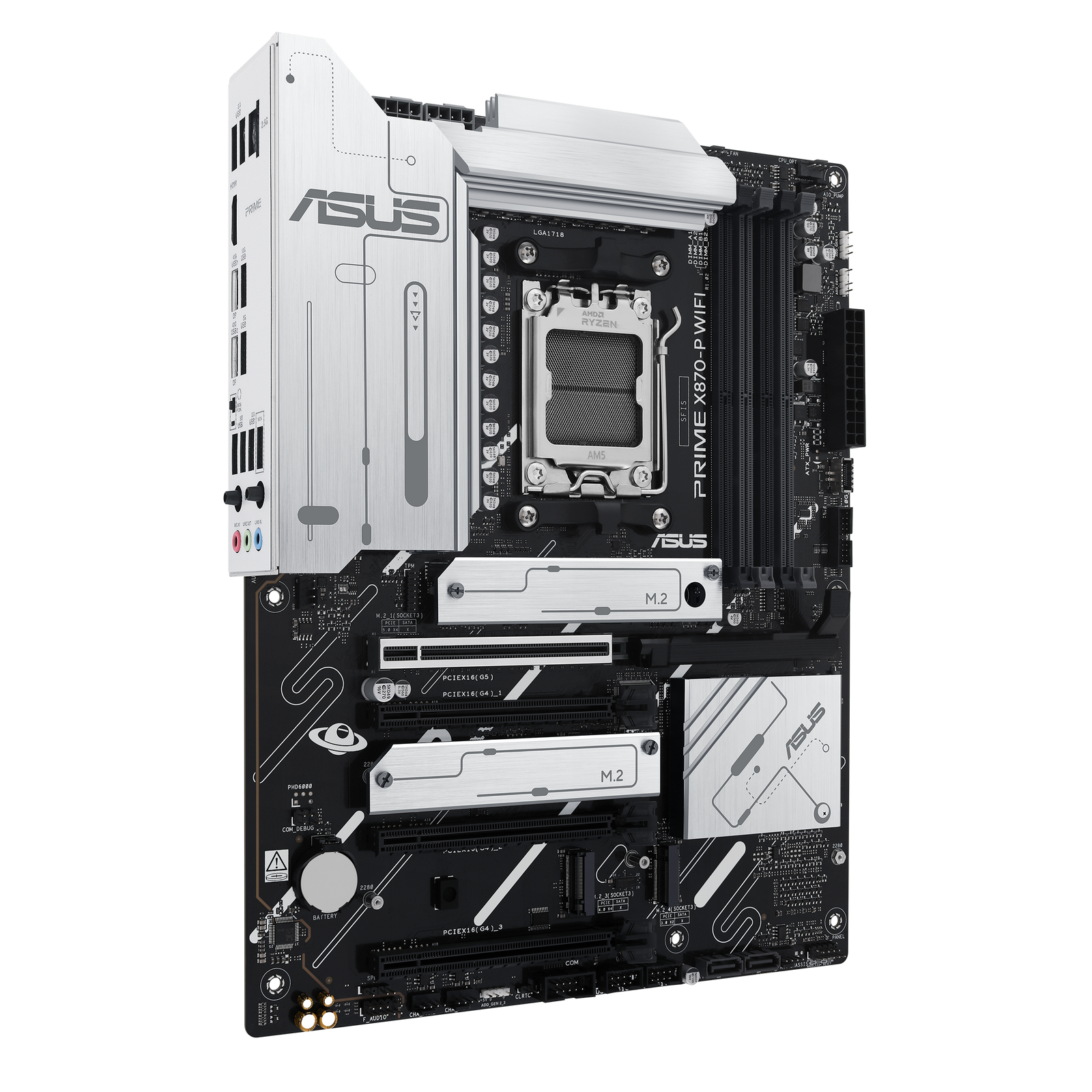

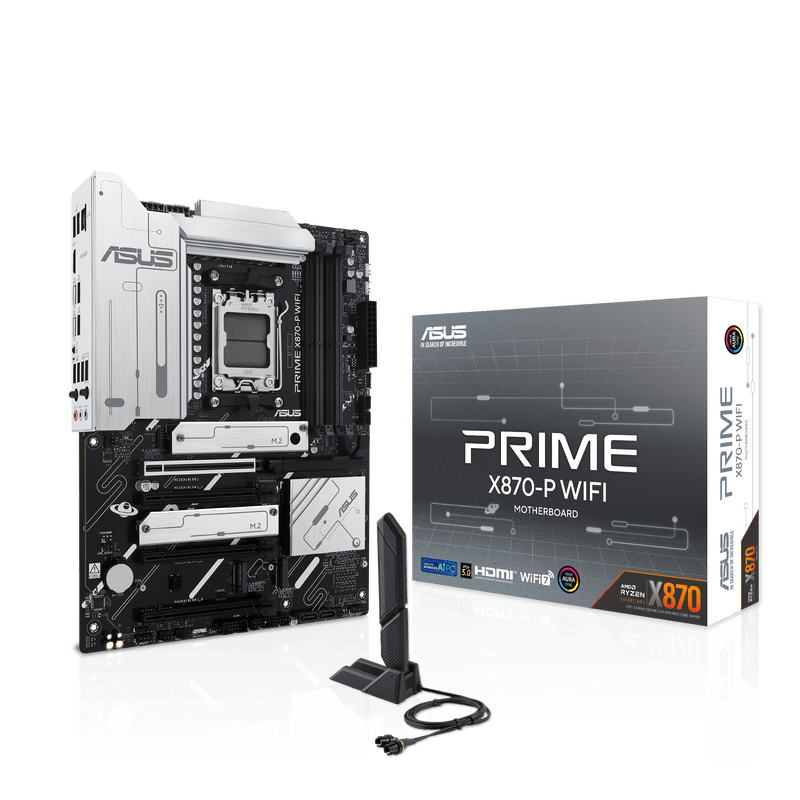

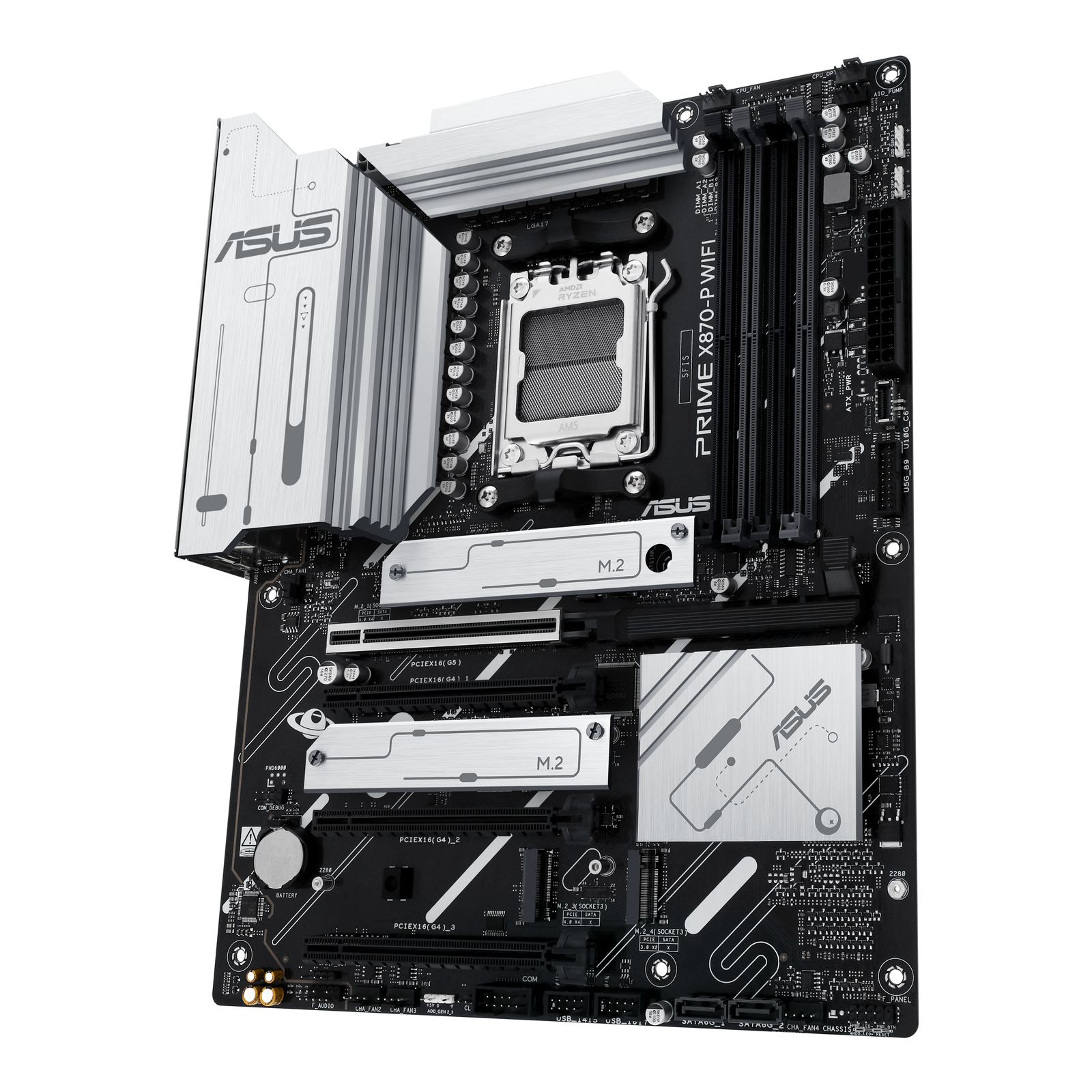

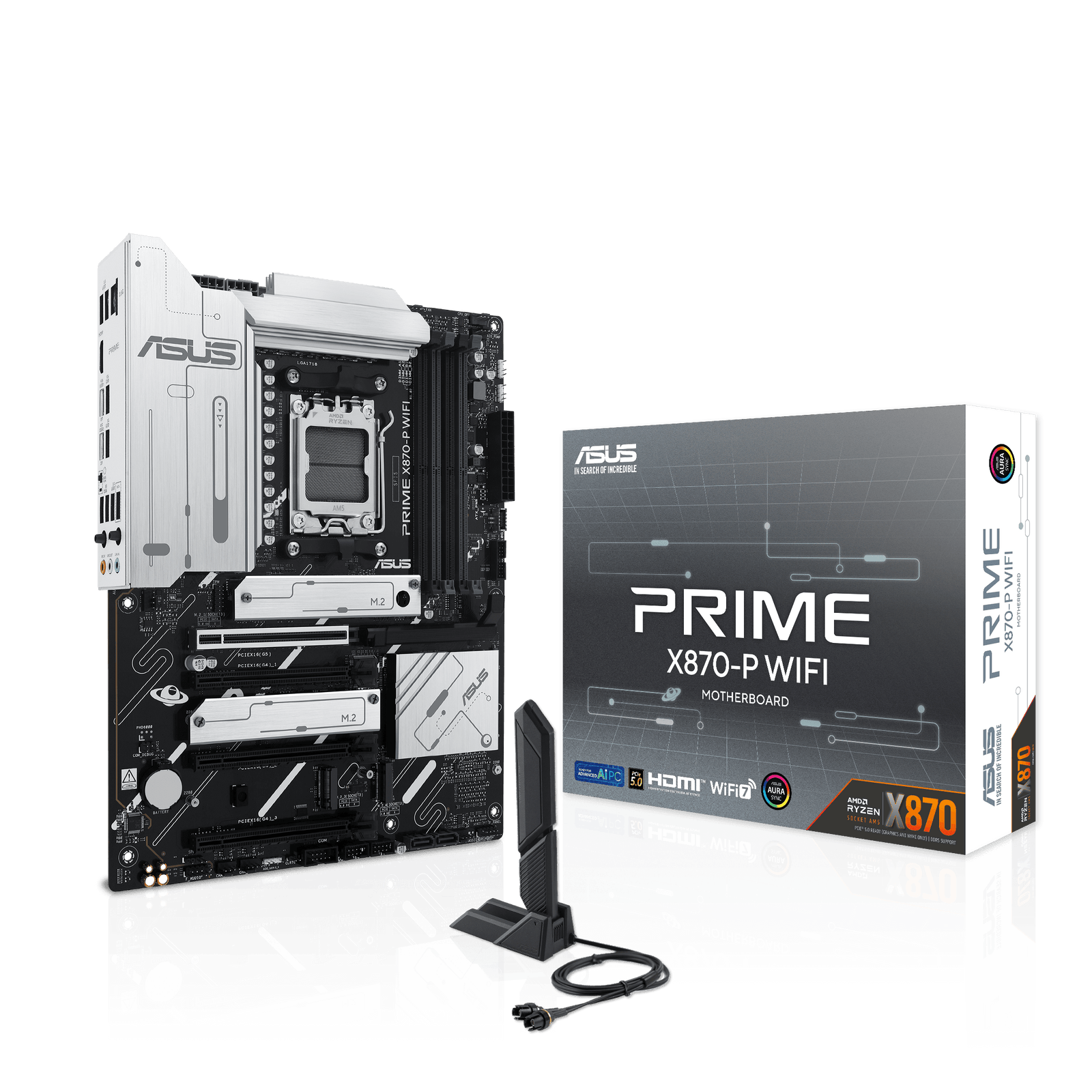

Asus PRIME X870-P WIFI (Socket AM5) DDR5 ATX Motherboard
No review for this product yet.
Socket AM5, X870 Chipset, Supports 7000/8000/9000 series AMD Ryzen, 4x DIMM Slots, DDR5, PCIe Gen 5, 2x SATA 6Gb/s connectors, 4x M.2 Slot, 2.5GB LAN, WIFI 7, USB Type-C Component Deta...
£229.99(incl. VAT)
£191.66 (ex. VAT)
Only available to UK and IE
Want your order tomorrow?
Order within — with Premium Delivery (arriving 1 working day, Mon–Fri) for UK mainland delivery.
Klarna Pay in 3 interest-free instalments, or pay in 30 days.
In stock
SIMILAR PRODUCTS

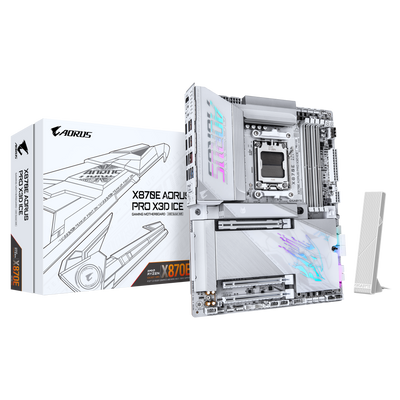

Gigabyte X870E AORUS PRO X3D ICE(Socket AM5) DDR5 ATX MotherboardMOT-GIG-07213
£343.99
(incl. VAT)
In stock

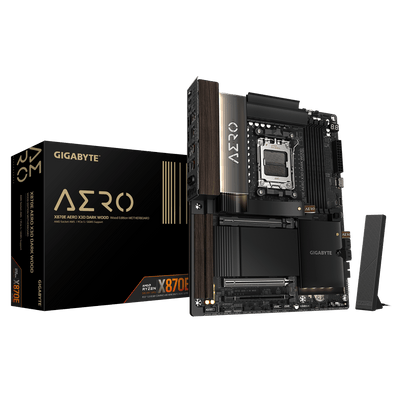

Gigabyte X870E AERO X3D DARK WOOD (Socket AM5) DDR5 ATX MotherboardMOT-GIG-08244
£385.99
(incl. VAT)
In stock

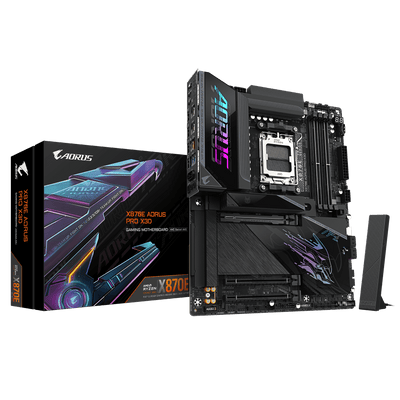

Gigabyte X870E AORUS PRO X3D (Socket AM5) DDR5 ATX MotherboardMOT-GIG-07212
£343.99
(incl. VAT)
In stock

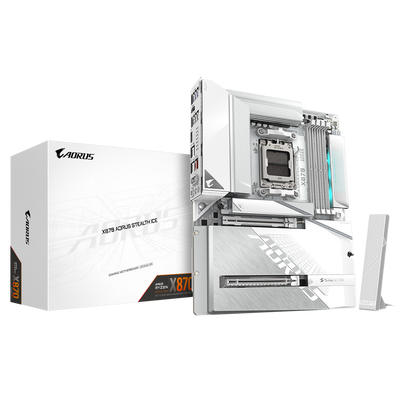

Gigabyte X870 Aorus Stealth Ice (Socket AM5) DDR5 ATX MotherboardMOT-GIG-06633
£299.99
(incl. VAT)
In stock
Gigabyte X870E AORUS MASTER X3D (Socket AM5) DDR5 ATX MotherboardMOT-GIG-07209
£458.99
(incl. VAT)
In stock
Gigabyte X870 GAMING WIFI6 (Socket AM5) DDR5 ATX MotherboardMOT-GIG-03347
£175.99
(incl. VAT)
In stock
Gigabyte X870E Aorus Elite WIFI7 (Socket AM5) DDR5 ATX MotherboardMOT-GIG-03318
£259.99
(incl. VAT)
In stock

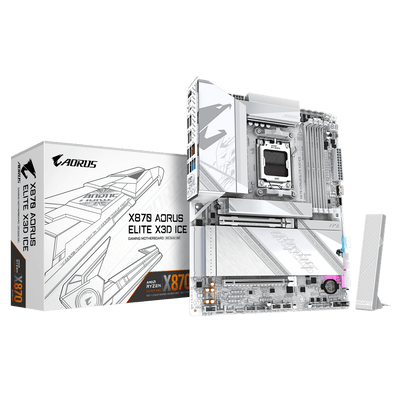

Gigabyte X870 AORUS ELITE X3D ICE (Socket AM5) DDR5 ATX MotherboardMOT-GIG-07216
