SKU MOT-GIG-07213EAN 4719331876487MPN X870E AORUS PRO X3D ICE
Overview
Socket AM5, X870 Chipset, Supports 7000/8000/9000 series AMD Ryzen, 4x DIMM Slots, DDR5 5200MHz, PCIe Gen 5, 4x SATA 6Gb/s connectors, 4x M.2 Slot, 2.5GB LAN, USB Type-C, WIFI 7, ATX
| Category | Details |
|---|---|
| CPU | AMD Socket AM5, supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors. (Check GIGABYTE website for latest CPU support list.) |
| Chipset | AMD X870E |
| Memory | DDR5 9000(O.C)–4800 MT/s support, 4 DIMM slots up to 256 GB (64 GB per DIMM), dual channel, non-ECC 1Rx8/2Rx8/1Rx16, AMD EXPO™ & XMP compatible. |
| Onboard Graphics |
Integrated AMD Radeon™ Graphics + ASMedia USB4® Controller: - 2 x USB4® Type-C (3840x2160@240Hz, DisplayPort 1.4 & HDR) - 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) - 1 x Front HDMI (1920x1080@30Hz, HDMI 1.4) |
| Audio | Realtek® ALC1220 CODEC, 2/4/5.1/7.1-channel, S/PDIF Out, back panel line out supports DSD audio |
| LAN | Realtek® 5GbE LAN chip (5/2.5/1/0.1 Gbps) |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865, 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, Bluetooth 5.4, Wi-Fi 7 channels availability depends on region |
| Expansion Slots |
CPU: 1 x PCIe x16 (PCIe 5.0/4.0/4.0 depending on CPU) Chipset: 1 x PCIe x16 (PCIe 4.0 x4), 1 x PCIe x16 (PCIe 3.0 x2) |
| Storage Interface |
CPU: 2 x M.2 connectors (PCIe 5.0/4.0 depending on CPU) Chipset: 2 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s RAID: NVMe 0/1/5/10 (RAID 5 only Ryzen 9000), SATA 0/1/10 |
| USB |
CPU+ASMedia USB4®: 2 x USB4 Type-C (back panel) CPU: 1 x USB Type-C 3.2 Gen2 (back panel) Chipset: 1 x USB Type-C 3.2 Gen2x2 (internal), 1 x USB Type-C 3.2 Gen2 (back), 5 x USB 3.2 Gen2 Type-A (red, back), 3 x USB 3.2 Gen1 (back), 4 x USB 3.2 Gen1 (internal), 4 x USB 2.0/1.1 (internal) |
| Internal I/O Connectors | 1 x 24-pin ATX, 2 x 8-pin CPU, 1 x PCIe power, CPU/system fan & pump headers, 3 x addressable RGB headers, 1 x RGB header, 4 x SATA 6Gb/s, 4 x M.2 sockets, front panel headers, USB Type-C 3.2 Gen2x2 header, noise detection, TPM header, HDMI port, reset & Clear CMOS jumpers, 2 x temp sensor headers |

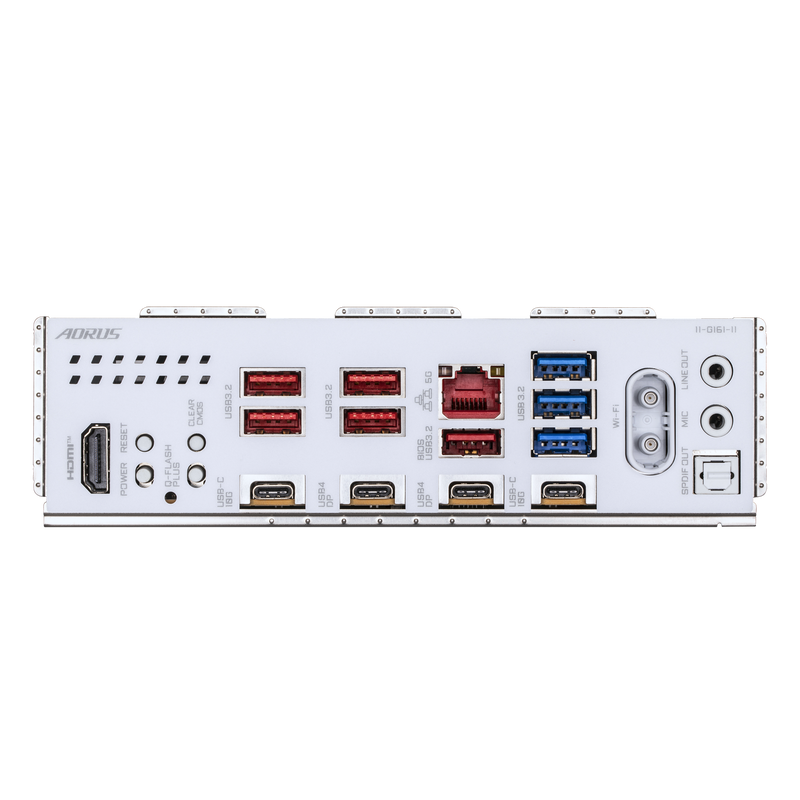

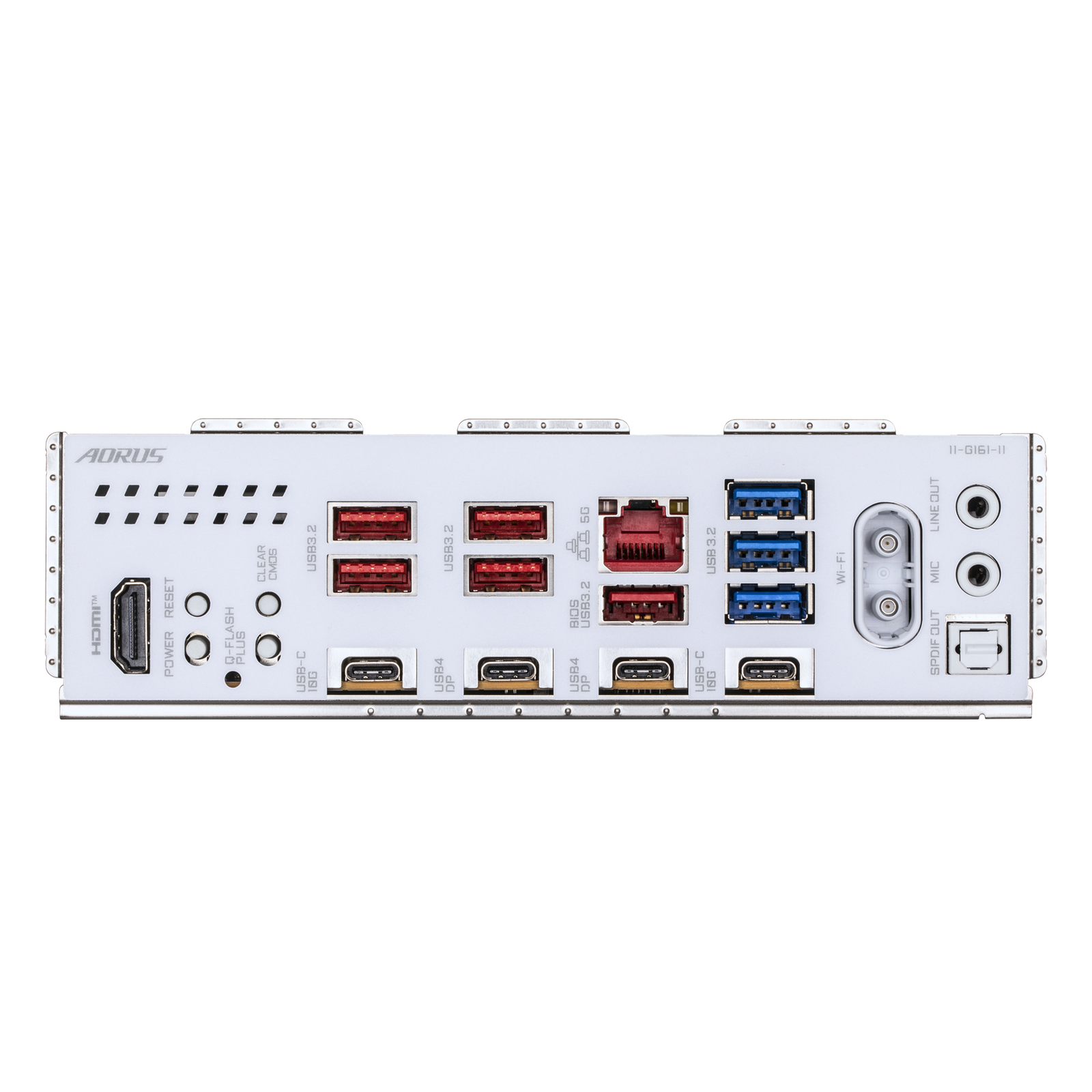

| Back Panel Connectors | 1 x HDMI, 1 x Reset, 1 x Power, 1 x Clear CMOS, 1 x Q-Flash Plus, 5 x USB 3.2 Gen2 Type-A (red), 2 x USB Type-C 3.2 Gen2, 2 x USB4 Type-C (DisplayPort), 1 x RJ-45, 3 x USB 3.2 Gen1, 2 x antenna connectors (2T2R), 2 x audio jacks, 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water flow, Fan fail warning, Fan speed control, Noise detection |
| BIOS | 512 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX, 30.5cm x 24.4cm |
Specifications
| Form Factor | Motherboard Form Factor ATX Motherboard Motherboard Chipset AMD X870E CPU CPU Manufacturer AMD CPU Socket AM5 Colour Primary Colour White Lighting Lighting / RGB Yes Wi-Fi & LAN LAN Yes LAN Ports 1x 5 Gbit/s Wi-Fi / Bluetooth Yes Fan Header 4 Pin Fan Connectors 8 Memory Max. Memory 256 GB Memory Type DDR5 Memory Form Factor DIMM Memory slots 4x Internal Ports CPU Power Supply 2x 8-Pin |
|---|---|
| Motherboard Form Factor | ATX |
| Motherboard Chipset | AMD X870E |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Primary Colour | White |
| Lighting / RGB | Yes |
| LAN | Yes |
| LAN Ports | 1x 5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| 4 Pin Fan Connectors | 8 |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 4x |
| CPU Power Supply | 2x 8-Pin |
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Manufacturer part number | X870E AORUS PRO X3D ICE |
| OcUK SKU | MOT-GIG-07213 |
| EAN | 4719331876487 |
| CPU Socket | AM5 |
| Lighting / RGB | Yes |
| Memory Form Factor | DIMM |
| Memory Type | DDR5 |
| Primary Colour | White |
Product reviews
No review for this product yet.
Warranty & Delivery
Click & Collect
Collect from OcUK HQ, or one of thousands of DPD Pickup Points around the UK.*
Full Delivery InformationIE Delivery
We ship to Ireland, with tax and customs included in the price you pay.*
Full Delivery Information*Exclusions and product restrictions apply
Gigabyte

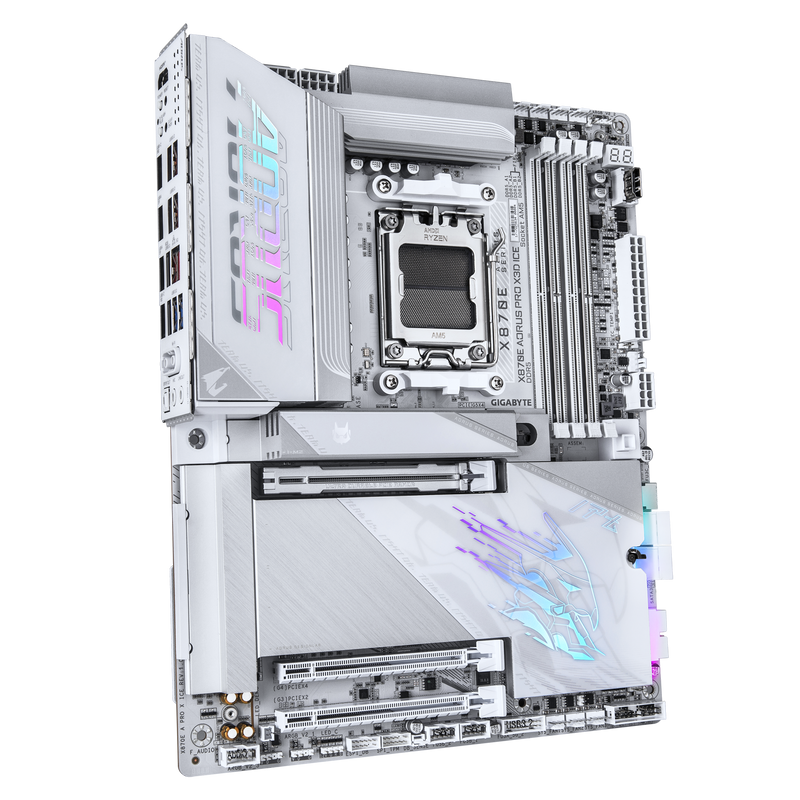

Gigabyte X870E AORUS PRO X3D ICE(Socket AM5) DDR5 ATX Motherboard
No review for this product yet.
Socket AM5, X870 Chipset, Supports 7000/8000/9000 series AMD Ryzen, 4x DIMM Slots, DDR5 5200MHz, PCIe Gen 5, 4x SATA 6Gb/s connectors, 4x M.2 Slot, 2.5GB LAN, USB Type-C, WIFI 7, ATX Categ...
£343.99(incl. VAT)
£286.66 (ex. VAT)
Only available to UK and IE
Want your order tomorrow?
Order within — with Premium Delivery (arriving 1 working day, Mon–Fri) for UK mainland delivery.
Spread the cost with V12 Finance
From £28.66/mo over 12 months.Learn more
Klarna Pay in 3 interest-free instalments, or pay in 30 days.
In stock
SIMILAR PRODUCTS
Gigabyte X870E AERO X3D DARK WOOD (Socket AM5) DDR5 ATX MotherboardMOT-GIG-08244
£385.99
(incl. VAT)
In stock
Gigabyte X870E AORUS PRO X3D (Socket AM5) DDR5 ATX MotherboardMOT-GIG-07212
£343.99
(incl. VAT)
In stock
Gigabyte X870 Aorus Stealth Ice (Socket AM5) DDR5 ATX MotherboardMOT-GIG-06633
£299.99
(incl. VAT)
In stock
Gigabyte X870E AORUS MASTER X3D (Socket AM5) DDR5 ATX MotherboardMOT-GIG-07209
£458.99
(incl. VAT)
In stock
Gigabyte X870 GAMING WIFI6 (Socket AM5) DDR5 ATX MotherboardMOT-GIG-03347
£175.99
(incl. VAT)
In stock
Gigabyte X870E Aorus Elite WIFI7 (Socket AM5) DDR5 ATX MotherboardMOT-GIG-03318
£259.99
(incl. VAT)
In stock
Gigabyte X870 AORUS ELITE X3D ICE (Socket AM5) DDR5 ATX MotherboardMOT-GIG-07216
£266.99
(incl. VAT)
In stock

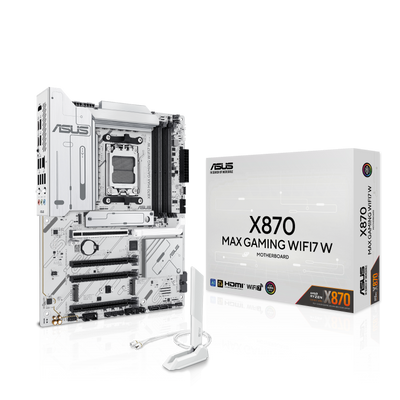

Asus X870 Max Gaming WIFI7 White (Socket AM5) DDR5 ATX MotherboardMOT-ASU-05168
