Water cooling distribution plate with pre-installed VPP pump, easy to install, integrated RGB lighting

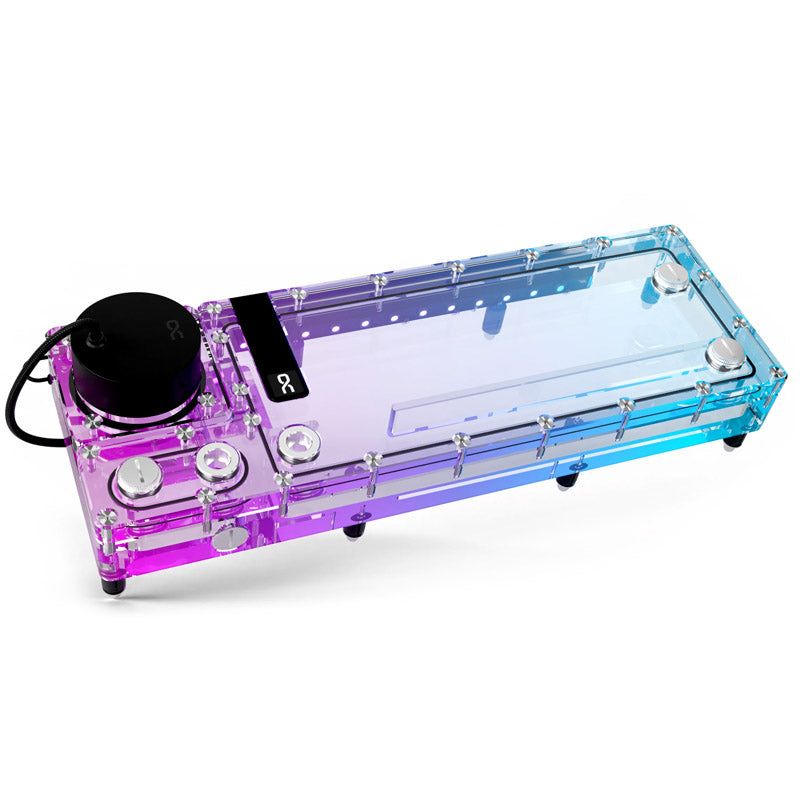

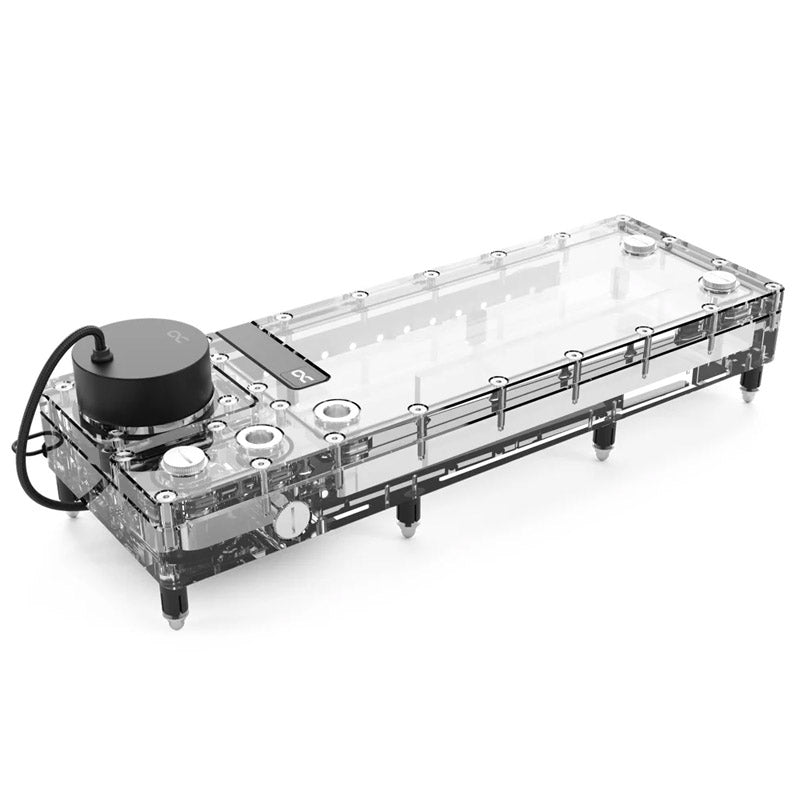

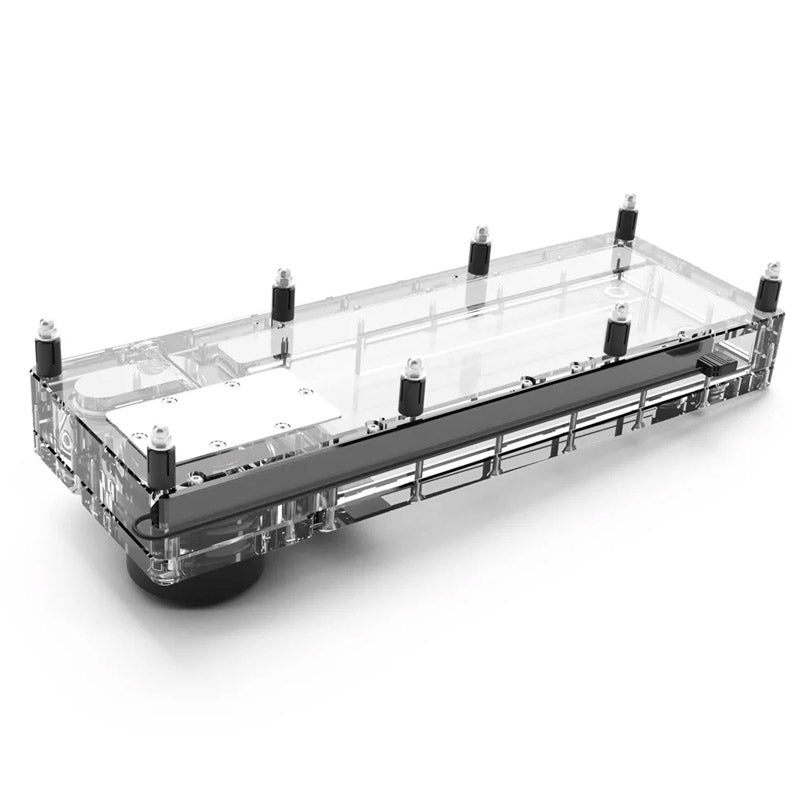

The Alphacool Core Flat Reservoir not only looks sleek with its aRGB lighting, but also offers flexibility with a total of 5 connections. The reservoir is made entirely of acrylic. Due to its flat design, the Core Flat Reservoir also fits in small cases. A VPP Pump is already pre-mounted.

Core Design
A key element of Alphacool's Core Design series are the chrome-plated G1/4" connections made of brass. In the Core Flat Reservoir, the connections are recessed rather than screwed into a thread, bypassing the problem of possible leaks due to cracking from the direct screwing of the connections into the acrylic. The connections are in two parts, fitted with an O-ring and counter each other when mounted in the acrylic. This not only ensures absolute sealing of each connection, but also allows for the clear and functional appearance of the Alphacool Core Design series.

Easy installation

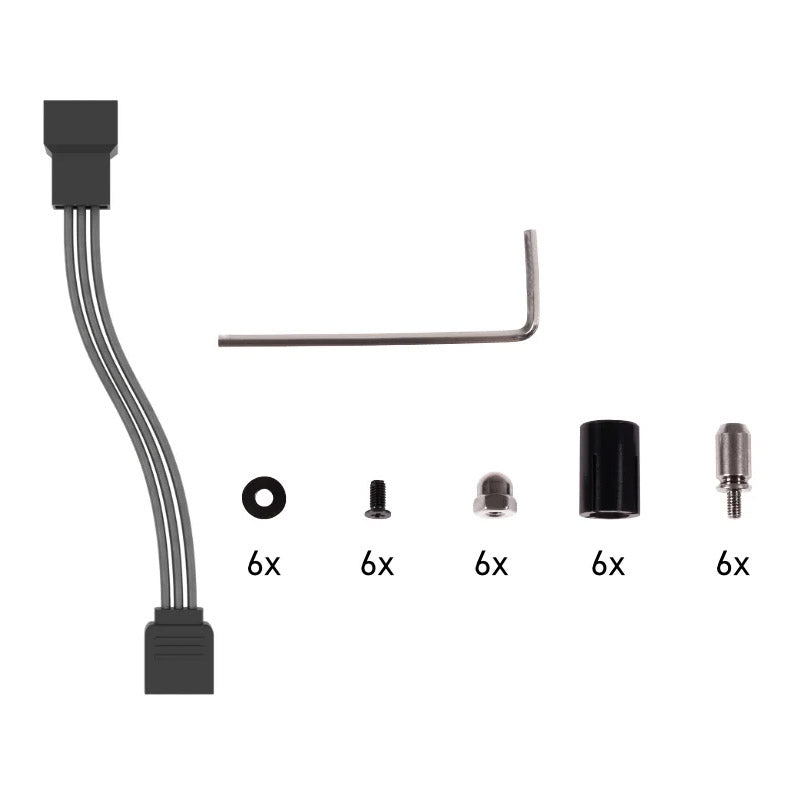

With the included Core Push Mounting kit, the Core Flat Reservoir can be mounted on the case panel or on a radiator. The metal pins are attached to the radiator or case panel and the matching female sleeves are attached to the Flat Reservoir (see manual). In the next installation step, the Flat Reservoir is simply and tool-free pushed onto the pins. Alphacool's Push-Mounting allows for a secure fit of the reservoir on the case panel or on the radiator and allows for easy disassembly for maintenance or expansion projects.

Gamechanger
The Core Flat Reservoir is offered as a 240mm or 360mm version, with right positioning of the pump top. This makes the reservoir ideal for custom water loops. An additional drain port is located on the side, allowing for easy and uncomplicated draining of the Flat Reservoir.

High-quality material selection & brilliant lighting

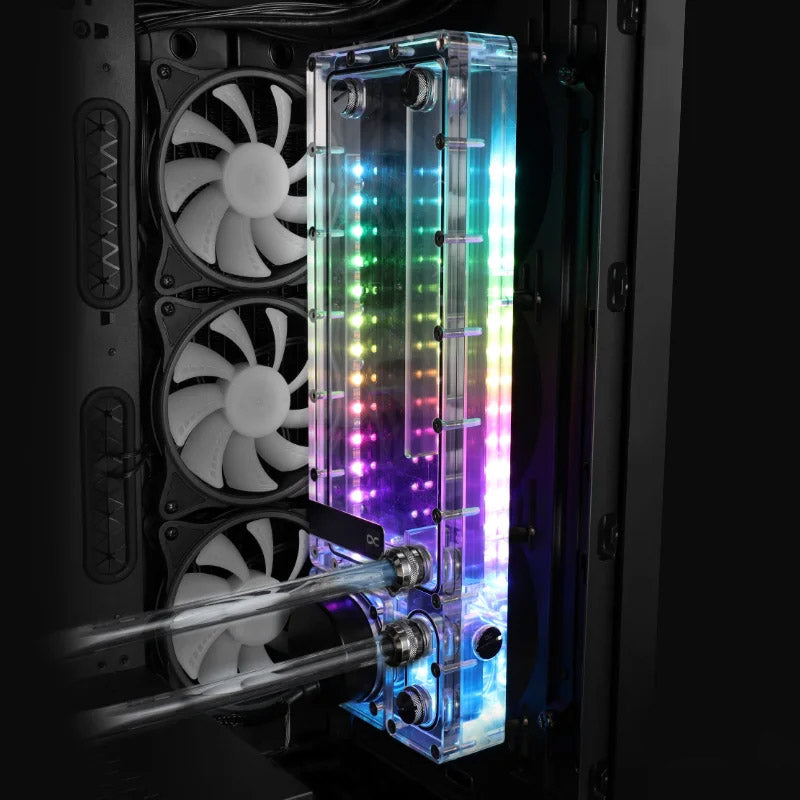

Alphacool's Core Flat Reservoir is made of high-quality acrylic glass, allowing for an unobstructed view of the coolant and brilliant illumination by the built-in digital addressable aRGB LEDs. The lighting can be controlled via a digital aRGB header on the motherboard or optionally through Alphacool's Aurora Eiscontrol aRGB controller (item number: 15360).

Compatibility:
- Can be mounted on the radiator or panel

Technical data
- Dimensions (L x W x H): 360,00 x 125,00 x 45,14mm
- Volume (reservoir): 500ml
- Material: Acryl
- Pump compatibility: D5/VPP
- Threads: 5x G1/4" inner thread / 1x drain port
- Maximum working temperature: 60 °C
- Pressure tested: 0,8 Bar
- Quantity digital aRGB LEDs: 17
- Voltage digital aRGB LEDs: 5V
- Power connection digital aRGB LEDs: 3-Pin JST + 3-Pin 5V
- Color: transparent

Technical data pump
- Dimensions (Flat Reservoir with pump) (L x W x H): 360,00 x 125,00 x 91,79mm
- Material pump: synthetic material
- Material pump cover: aluminium
- Material axle: ceramics
- Connections: 4-Pin PWM | SATA
- Rotational speed: 2500 - 4500 RPM
- Cable lengths: 4-Pin PWM - 48cm | SATA - 48cm
- Operating voltage: 8-13V DC / 14W IP32
- Starting voltage: 12V DC
- Maximum pumping head: 4,25m
- Maximum flow rate: 340L/h
- Maximum working temperature: 60°C
- Weight: 276g
- Color: black

Specifications

Type	Pump type D5 Pump Specifications Max. Pressure Head 4.25 m Max. Water Flow 340 l/h Materials Materials Plastic, Acrylic, Aluminium, Ceramic Dimensions Length / Depth 360 mm Width 125 mm Height 45.14 mm Volume 500 ml Weight 276 g Colour Primary Colour Transparent Lighting Lighting / RGB Yes Lighting Colour RGB Number of RGB LEDs 17 Thermal Specifications Max. System Temperature 60 °C Water Cooling Water cooling component Pump + Reservoir Water cooling connectors G1/4" inner thread 5x Power Specifications Power Consumption 14 W Rated voltage 13 V Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Internal Ports Pump connectors 4 Pin (PWM control), SATA (power) RGB / LED connectors 1x Digital RGB (3-Pin 5VDG), 3-Pin
Pump type	D5
Max. Pressure Head	4.25 m
Max. Water Flow	340 l/h
Materials	Plastic, Acrylic, Aluminium, Ceramic
Length / Depth	360 mm
Width	125 mm
Height	45.14 mm
Volume	500 ml
Weight	276 g
Primary Colour	Transparent
Lighting / RGB	Yes
Lighting Colour	RGB
Number of RGB LEDs	17
Max. System Temperature	60 °C
Water cooling component	Pump + Reservoir
Water cooling connectors	G1/4" inner thread 5x
Power Consumption	14 W
Rated voltage	13 V
Compatibility Note	Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Pump connectors	4 Pin (PWM control), SATA (power)
RGB / LED connectors	1x Digital RGB (3-Pin 5VDG), 3-Pin
