Overview

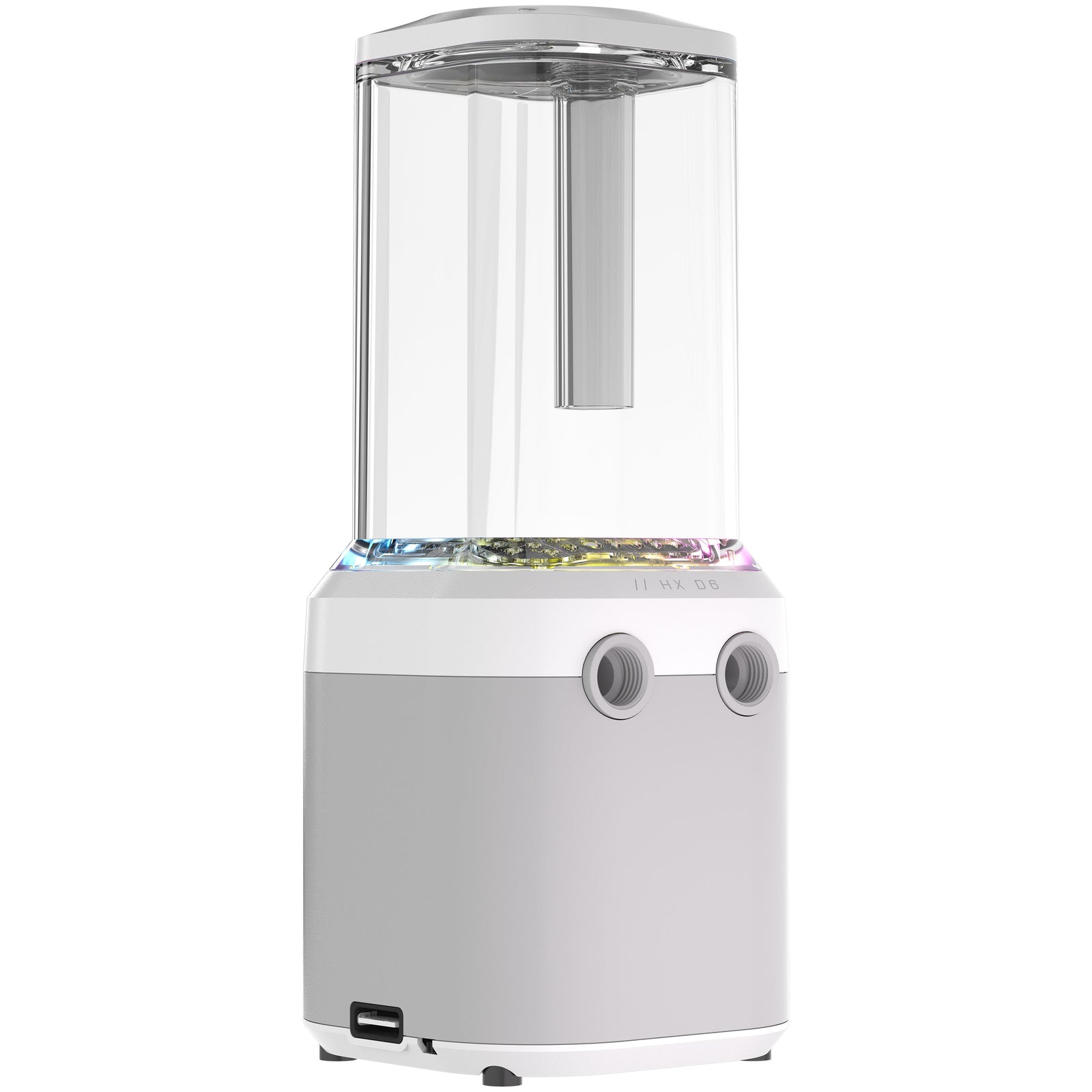

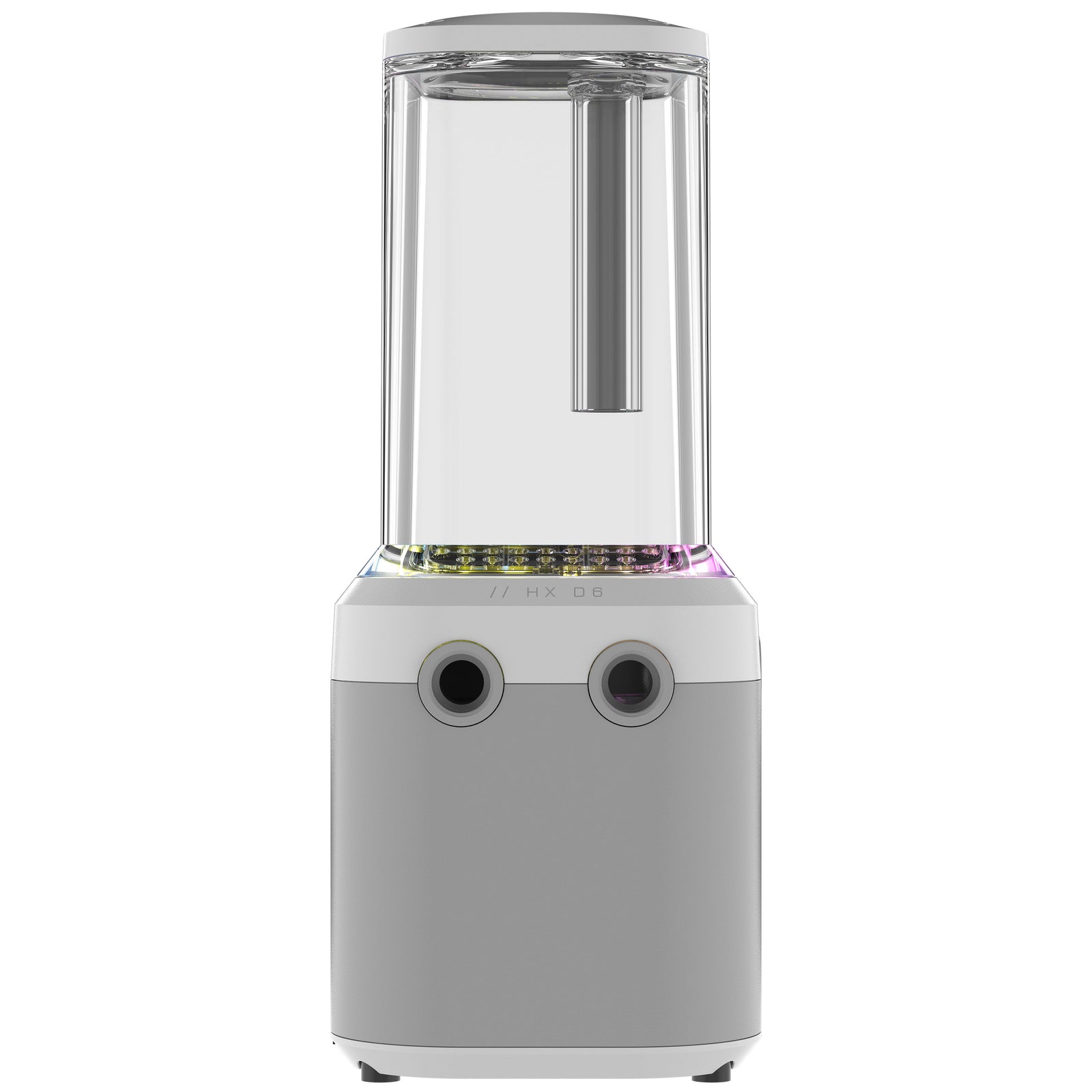

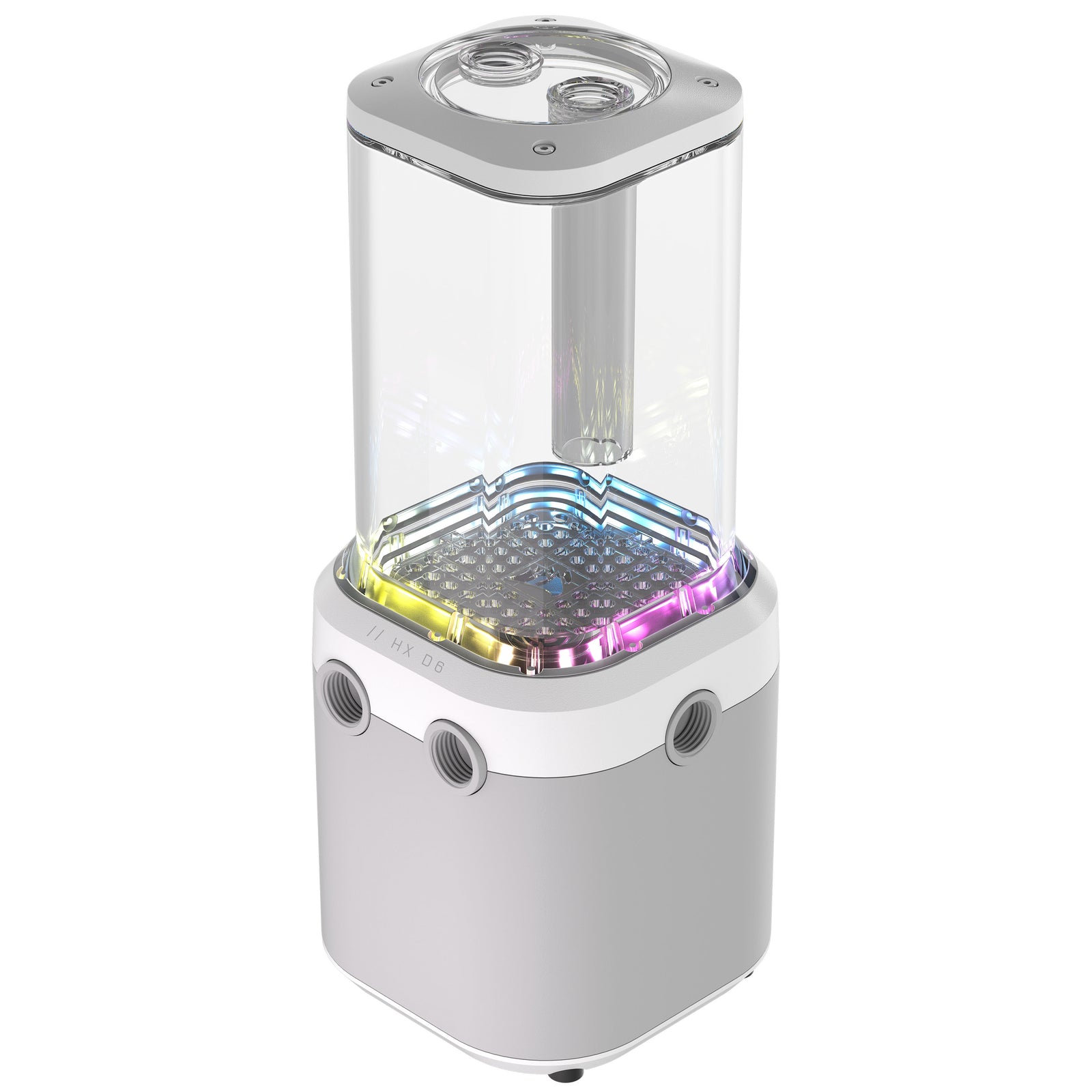

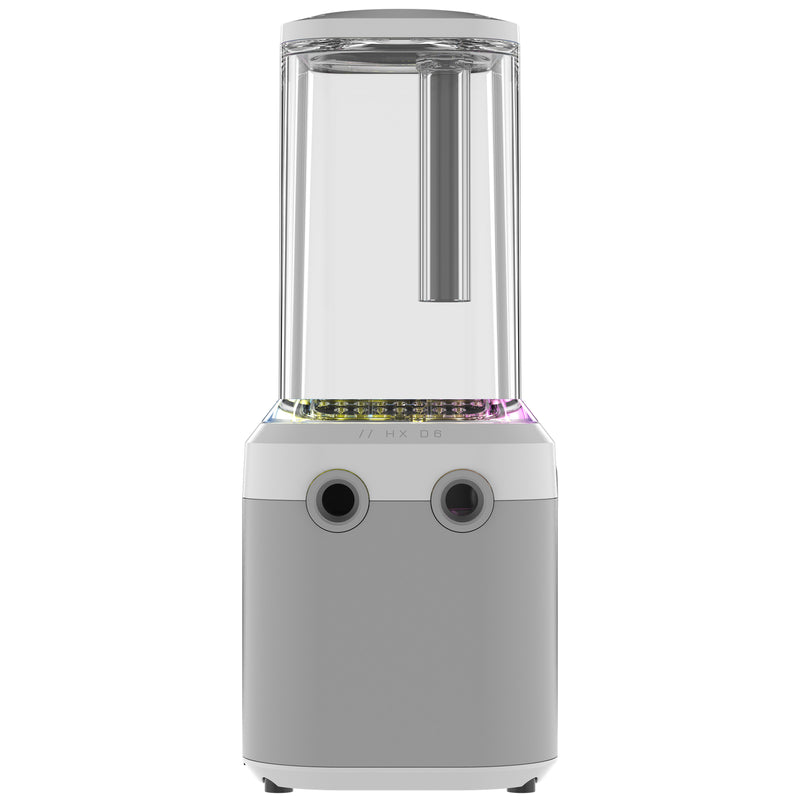

The CORSAIR iCUE LINK XD6 RGB ELITE Pump/Reservoir delivers both performance and style, with its FlowDrive Max pump ensuring high coolant flow and its sleek metallic body and transparent nylon reservoir creating a striking aesthetic. The 440ml reservoir, featuring an anti-vortex mesh, enables efficient coolant management, while the built-in temperature sensor offers precise cooling control. Customization is enhanced by 22 addressable RGB LEDs, all managed through iCUE software. A single iCUE LINK cable connects it to the iCUE LINK System Hub (sold separately), for a streamlined, modern setup.
Features:
Controlled Cooling – High-performance FlowDrive Max pump delivers optimal flow in any situation. Benefit from consistent performance, longevity, and CORSAIR's three-year warranty for peace of mind.
Smart In-Loop Temperature Control – Fine-tune your pump flow rate using the integrated coolant temperature sensor and CORSAIR iCUE software.

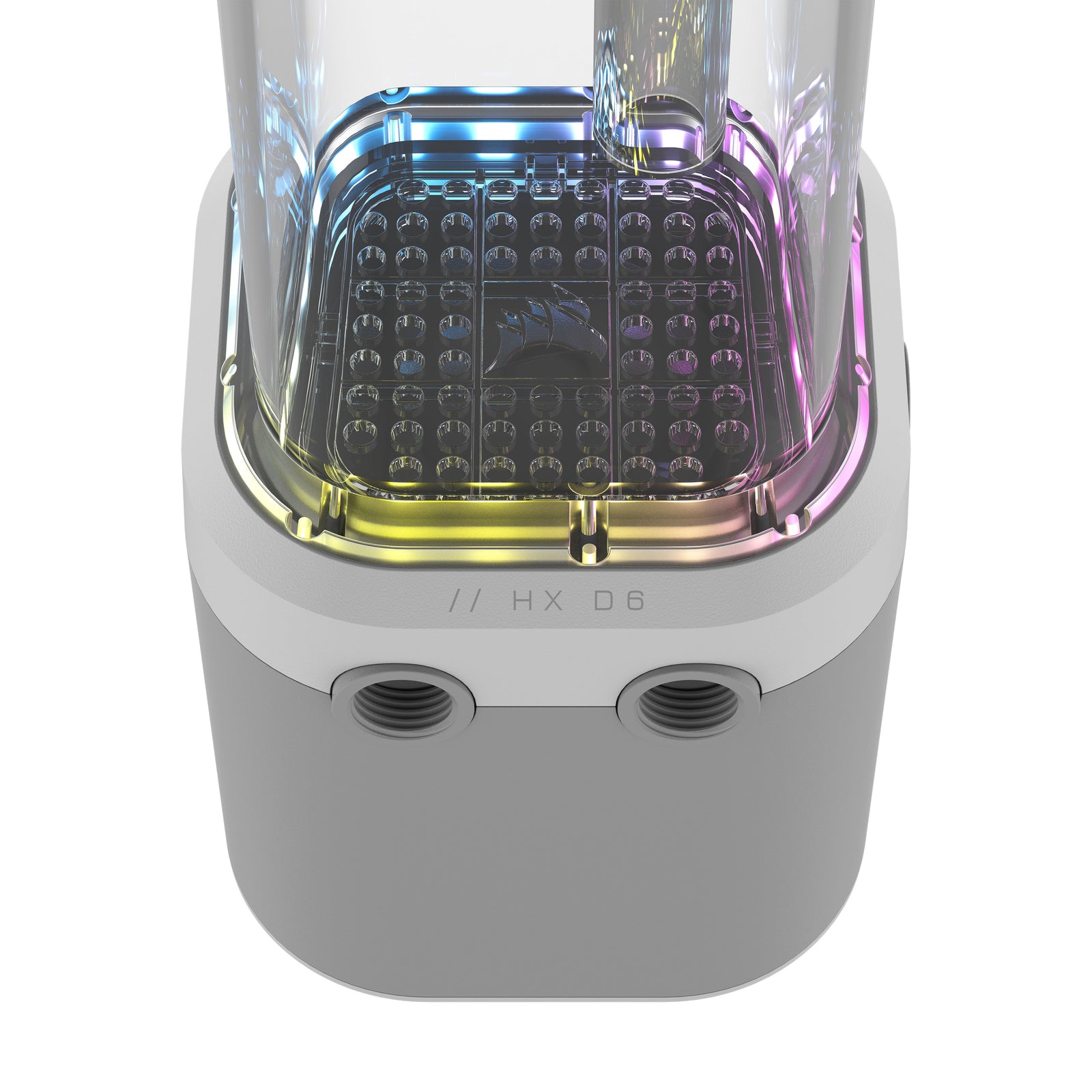

Transparent Nylon Reservoir – The integrated 440ml reservoir with an anti-vortex mesh puts your coolant front-and-center, with stunning angular design and an integrated fill port that makes filling easy

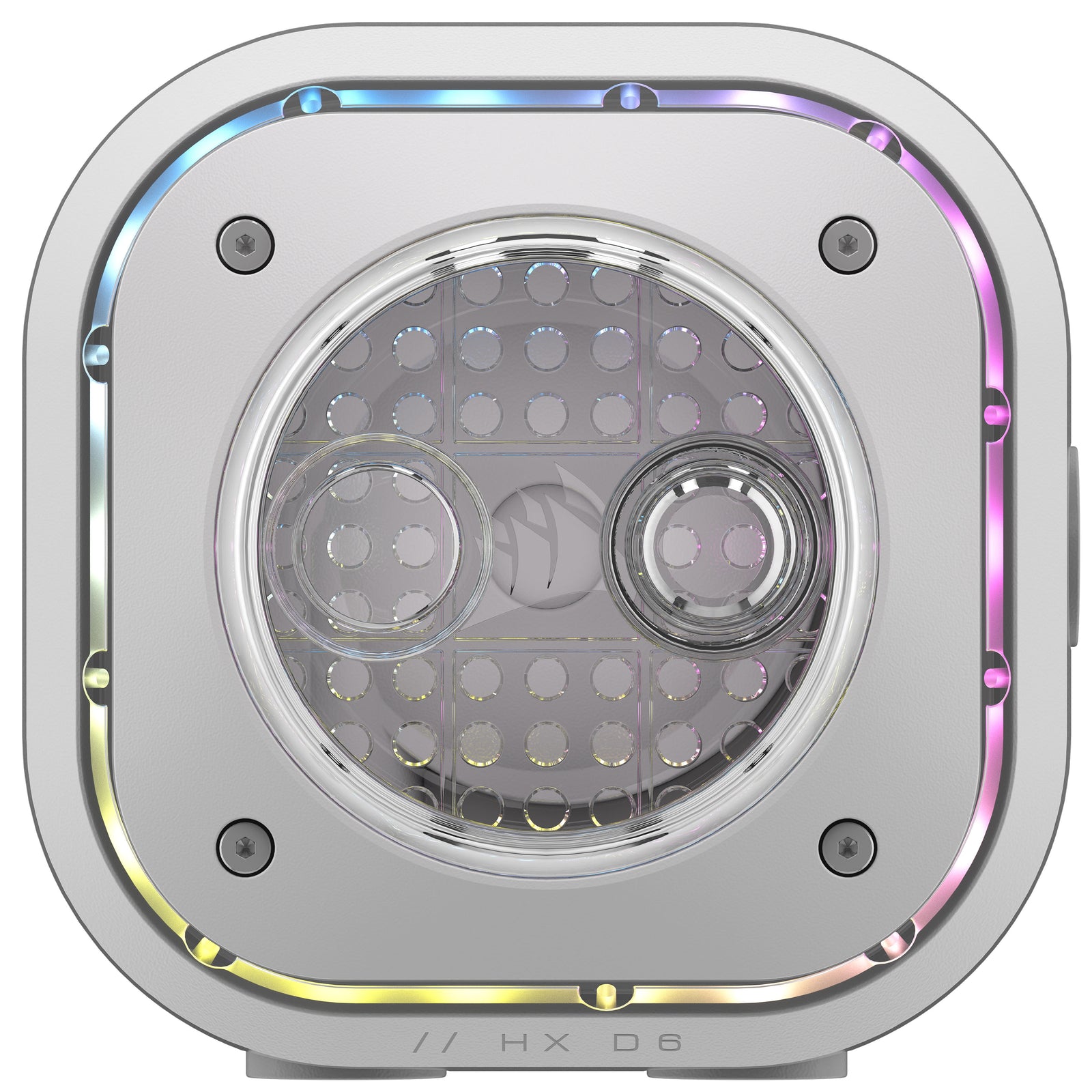

Stunning RGB Lighting – 22 Individually addressable RGB LEDs deliver customizable, immersive visual experience enhanced by the powerful CORSAIR iCUE software.
Premium Materials – The XD6 RGB ELITE makes your build stand out, featuring an aluminum housing for the main pump body and a transparent nylon reservoir to keep your lines clean.
Effortless Connectivity and Intelligent Design – Take your build to the next level with the patent-pending iCUE LINK ecosystem, letting you connect all your components together using universal connectors, all plugged into a single port on the iCUE LINK System Hub (sold separately). Build faster, reduce cable clutter, and create a more intelligent, cohesive system setup.
Rubberized Mounting System – Experience quiet, stable performance with the rubberized mounting system that reduces pump vibrations, ensuring your custom cooling loop is visually impressive yet discreetly silent.

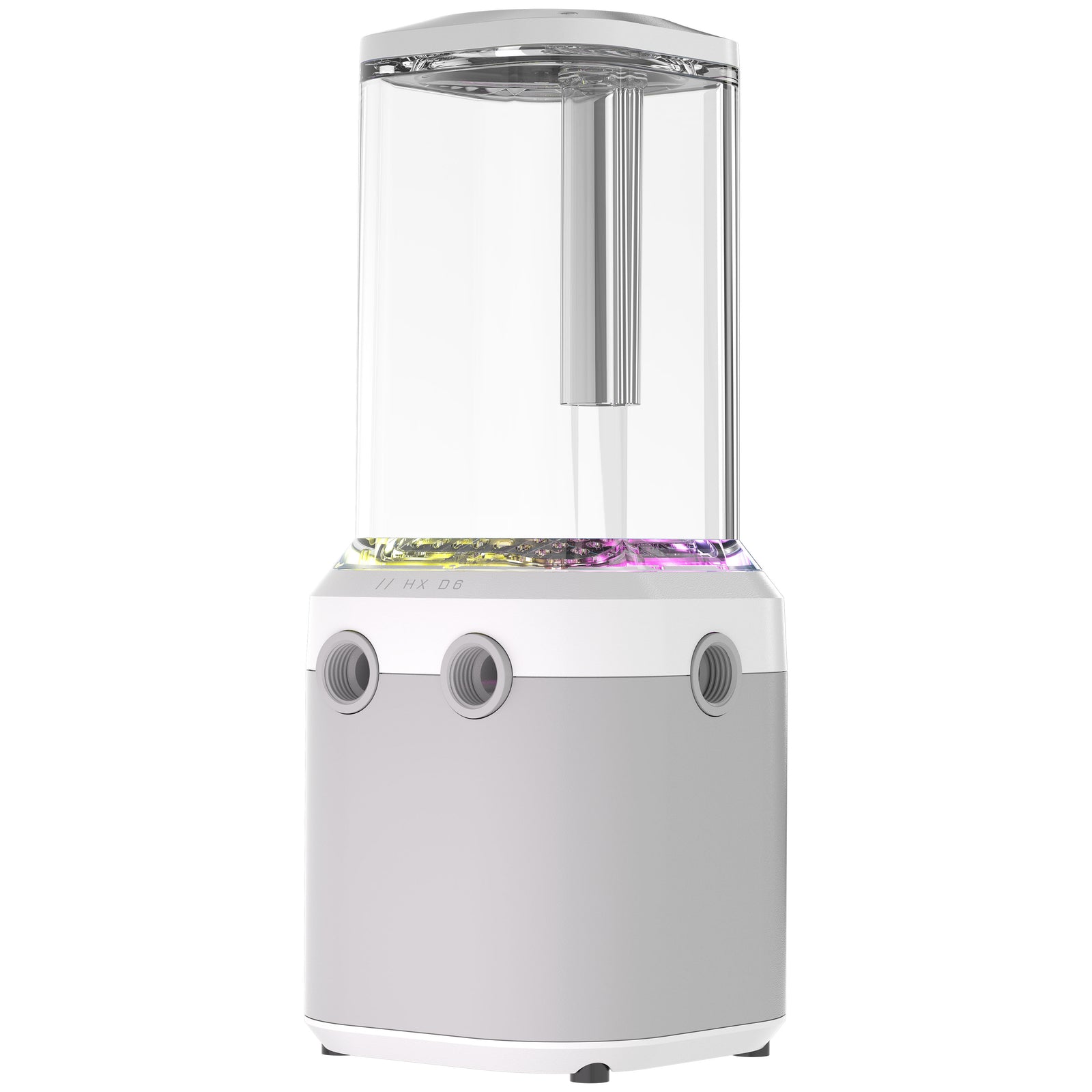

Diverse Port Configurations – Utilize multiple G1/4 inlet ports and an integrated fill port for versatile installation and customization to suit your unique cooling loop design.

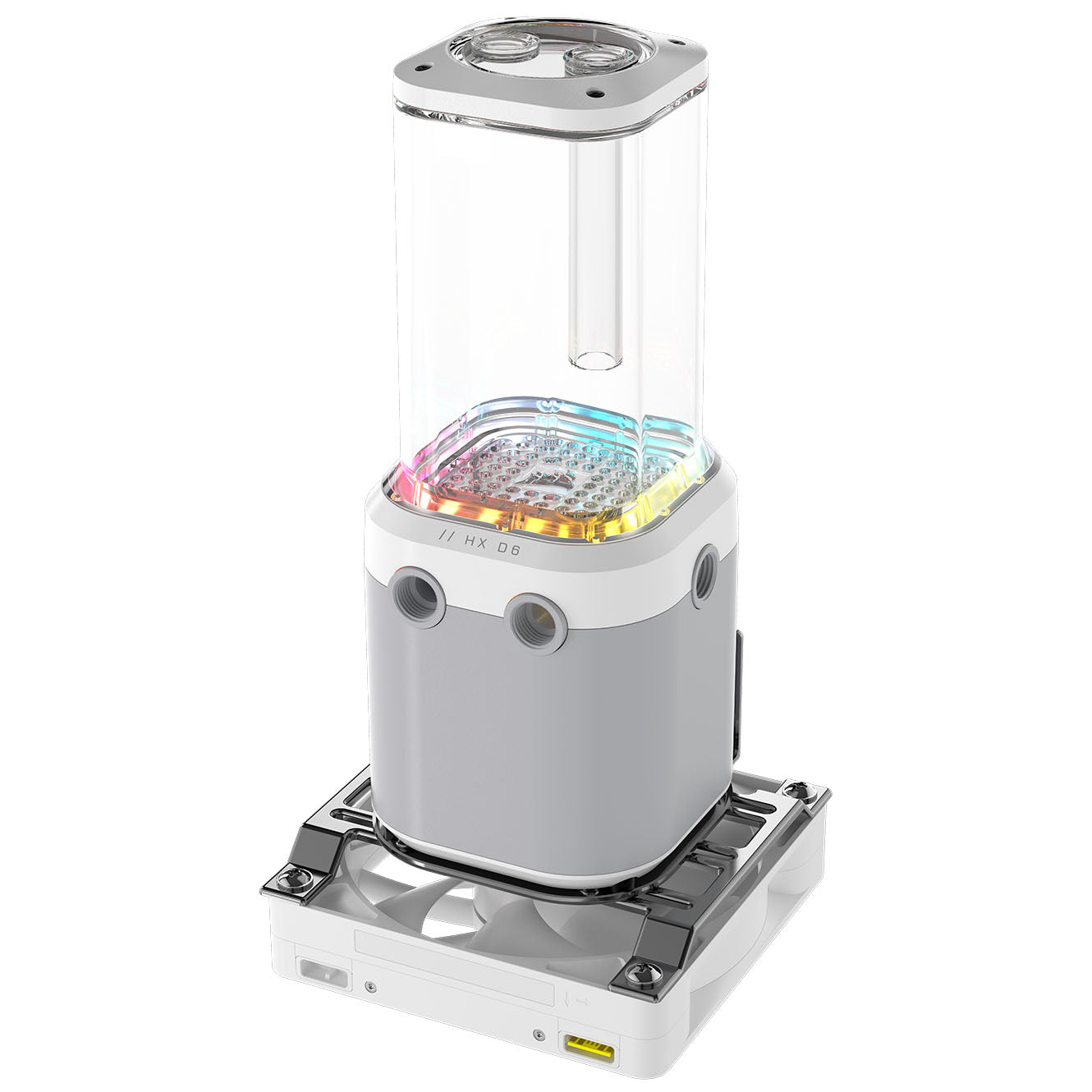

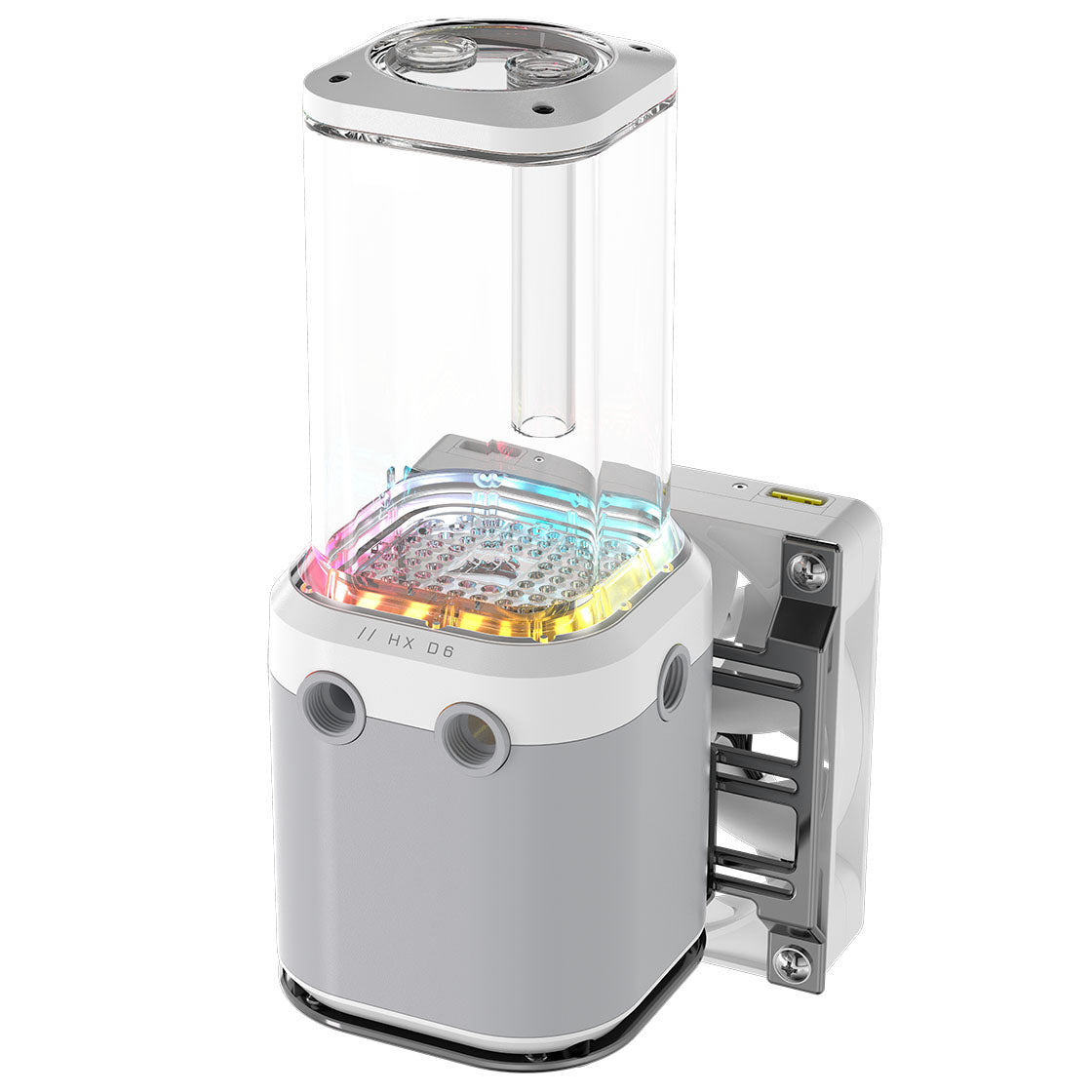

Multiple Installation Brackets – Easily mount the unit to a 120mm or 140mm fan mount or fan for wide chassis compatibility.
Standard G1/4” Threads – All inlet/outlet ports provide universal fitting compatibility.
Specification:
- Product Type: Pump/Reservoir Unit
- Pump Type: FlowDrive Max Pump
- Coolant Capacity: 440mL
- Max Hydraulic Performance: 500L/h at 3m pressure head
- Max RPM: 4500RPM
- PWM Duty Cycle Range: 20-100%
- Pump Voltage: 12V
- Fluid Chamber Material: Nylon
- Compatible Materials: Only mix with other cooper / brass products
- Compatible Coolants: CORSAIR XL or equivalent
- Port Thread: G1/4” BSPP
- Max Operating Temperature: 50º C
- Required Controller For iCUE Support: CORSAIR iCUE LINK System Hub
- Lighting: RGB
- Color: White
Specifications
| Colour | Primary Colour White Materials Materials Nylon, Aluminium Lighting Lighting / RGB Yes Lighting Colour RGB Lighting Compatibility Corsair iCUE Number of RGB LEDs 22 Pump Specifications Max. Water Flow 500 l/h Max. Pressure Head 3 m Type Pump type other Water Cooling Water cooling component Pump + Reservoir Water cooling connectors 3x G1/4" Thermal Specifications Max. System Temperature 50 °C Dimensions Volume 440 ml Power Specifications Rated voltage 12 V Internal Ports Pump connectors iCUE LINK |
|---|---|
| Primary Colour | White |
| Materials | Nylon, Aluminium |
| Lighting / RGB | Yes |
| Lighting Colour | RGB |
| Lighting Compatibility | Corsair iCUE |
| Number of RGB LEDs | 22 |
| Max. Water Flow | 500 l/h |
| Max. Pressure Head | 3 m |
| Pump type | other |
| Water cooling component | Pump + Reservoir |
| Water cooling connectors | 3x G1/4" |
| Max. System Temperature | 50 °C |
| Volume | 440 ml |
| Rated voltage | 12 V |
| Pump connectors | iCUE LINK |
Specifications
| Manufacturer | CORSAIR |
|---|---|
| Manufacturer part number | CX-9040014-WW |
| OcUK SKU | COO-CRS-05261 |
| EAN | 0840440484585 |
| Lighting Colour | RGB |
| Lighting / RGB | Yes |
| Primary Colour | White |
| Water cooling connectors | 3x G1/4" |
Product reviews
No review for this product yet.
Warranty & Delivery
Click & Collect
Collect from OcUK HQ, or one of thousands of DPD Pickup Points around the UK.*
Full Delivery InformationIE Delivery
We ship to Ireland, with tax and customs included in the price you pay.*
Full Delivery Information*Exclusions and product restrictions apply
Corsair Hydro X Series XD6 RGB White Reservoir / Pump Combo - 440ml
CX-9040014-WW, Pump and Reservoir Combo, 440ml Coolant Capacity, RGB Lighting, 3 Year Warranty The CORSAIR iCUE LINK XD6 RGB ELITE Pump/Reservoir delivers both performance and style, with its FlowD...
Only available to UK and IE
Order within — with Premium Delivery (arriving 1 working day, Mon–Fri) for UK mainland delivery.
Klarna Pay in 3 interest-free instalments, or pay in 30 days.
SIMILAR PRODUCTS
EK Water Blocks EK-Quantum Kinetic3 FLT 140 D-RGB Pump/Reservoir Combo - Plexi
EK Water Blocks EK-Quantum Kinetic3 FLT 360 D-RGB Pump/Reservoir Combo - Plexi
EK Water Blocks EK-Quantum Kinetic TBE 200 D5 PWM D-RGB Pump / Reservoir Combo - Plexi
EK Water Blocks EK-Quantum Kinetic TBE 200 D5 PWM D-RGB Pump / Reservoir Combo - Acetal
Corsair iCUE LINK XD6 RGB ELITE LCD Reservoir / Pump Combo - Black
Corsair Hydro X Series XD6 RGB Black Reservoir / Pump Combo - 440ml

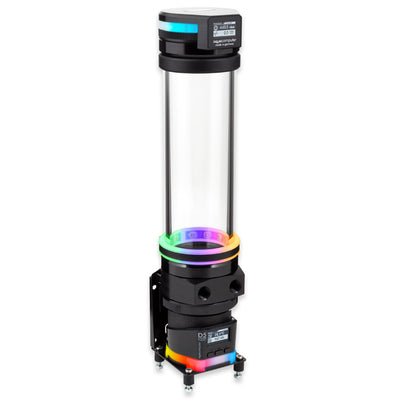

Aqua Computer ULTITUBE D5 200 PRO Pump / Reservoirs Combo with Leak Prevention System
