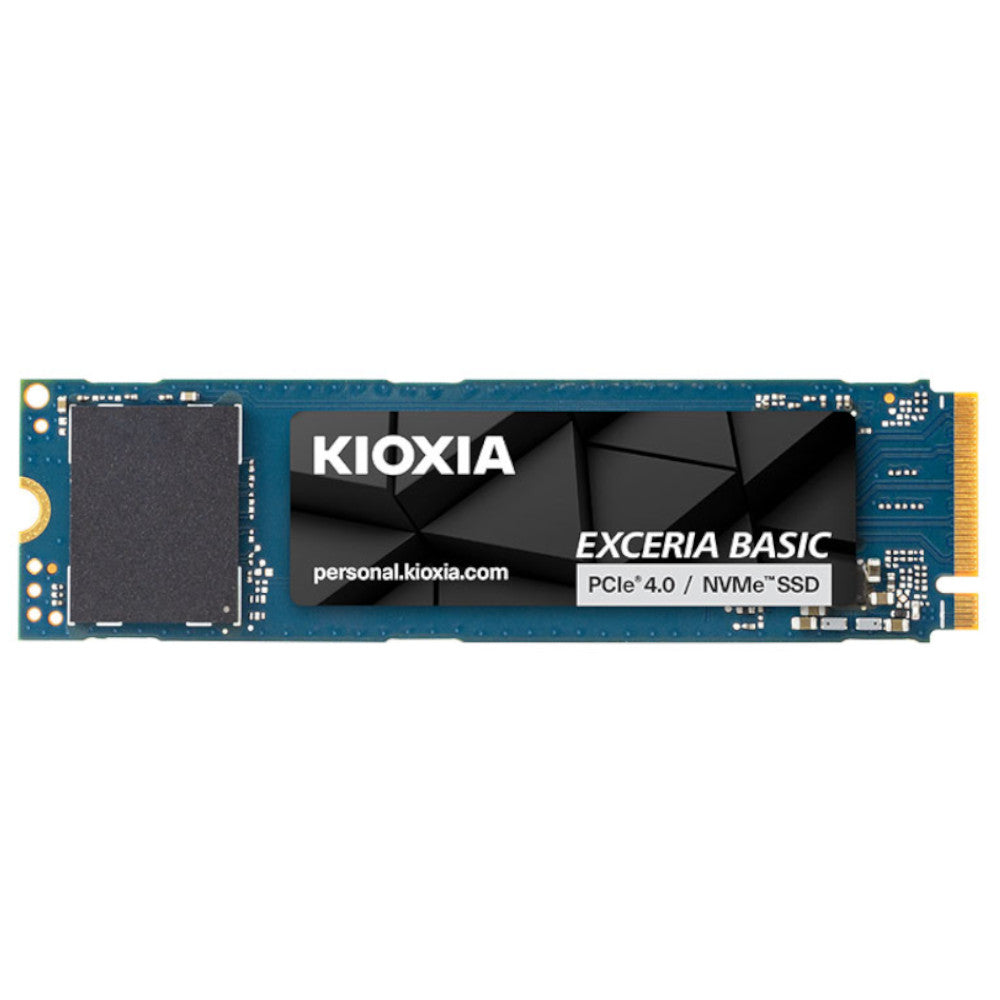

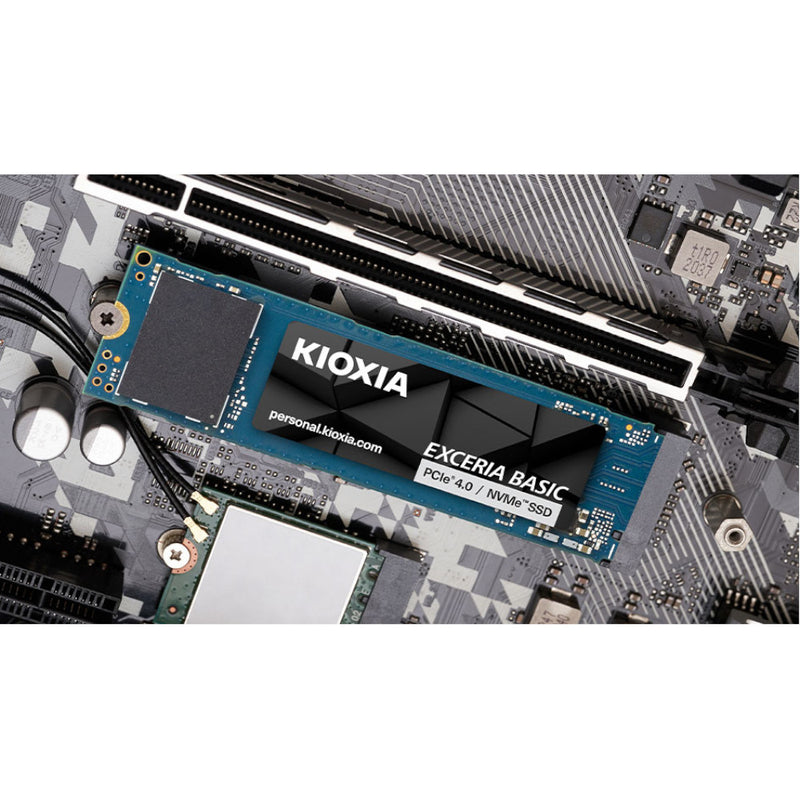

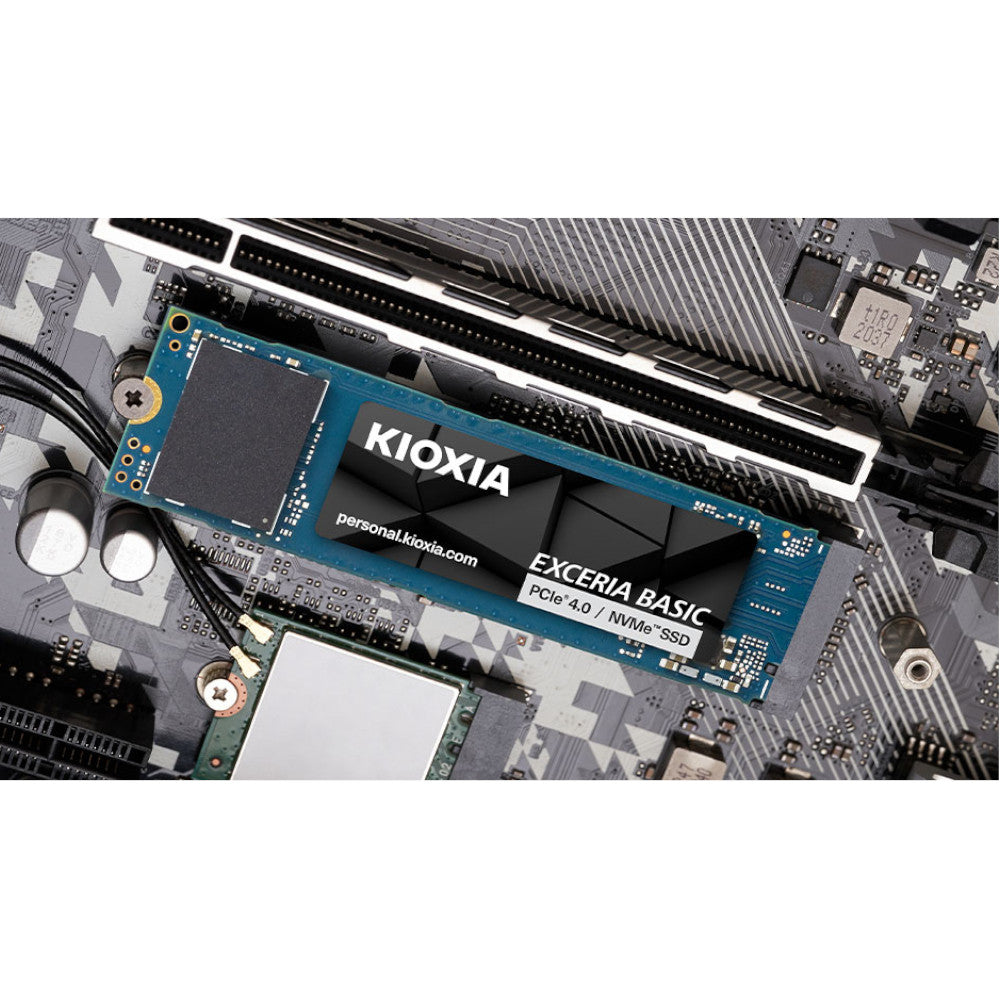

LSF10Z002TG8, 2TB Gen 4 M.2, 7300MB/s Read, 6800MB/s Write, 300 TBW

Performance Made Affordable
Upgrading from a SATA SSD or PCIe® 3.0 SSD can feel like you've purchased an entirely new system. EXCERIA BASIC SSD series balance price and performance so you have enough funds left over for other.

NVMe™ Technology
Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe™ 2.0d technology, EXCERIA BASIC SSDs reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting-edge storage experience.

SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

Specification:
- Capacity: 2TB
- Form Factor: M.2 Type 2280-S3-M
- Interface: PCI Express® Base Specification Revision 4.0 (PCIe®)
- Flash Memory type: BiCS FLASH™ QLC
- Interface Maximum Speed: 64 GT/s (PCIe® Gen4x4)
- Dimension (Max: LxWxH): 80.15 x 22.15 x 2.38 mm
- Interface Protocol: NVM Express™ Base Specification 2.0c
- Weight: 5.6 g (typ.)
- Max Sequential Read Speed: 7,300 MB/s
- Max Sequential Write Speed: 6,800 MB/s
- Max Random Read Speed: 1,000,000 IOPS
- Max Random Write Speed: 1,250,000 IOPS
- Endurance: : 600 TB
- MTTF: 1.5 million hours
- Operating Temperature: 0 ℃ (Ta) to 85 ℃ (Tc)
- Storage Temperature: -40 ℃ to 85 ℃
- Certification: RoHS compliant
- Shock Resistance: 9.806 km/s {1,000 G} 0.5 ms half sine wave
- Vibration: 25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis
- Supply Voltage: 3.3 V ±5 %
- Power Consumption (Active): 4.3 W (typ.)

Specifications
