Overview
GIGABYTE Radeon RX 9070 XT Gaming 16G GPU at a Glance:
- Advanced AMD RDNA 4 architecture
- Blazing-fast performance with a boost clock of 2970MHz
- 16GB GDDR6 VRAM on a 256-bit memory bus
- High-speed interface using PCIe 5 connectivity

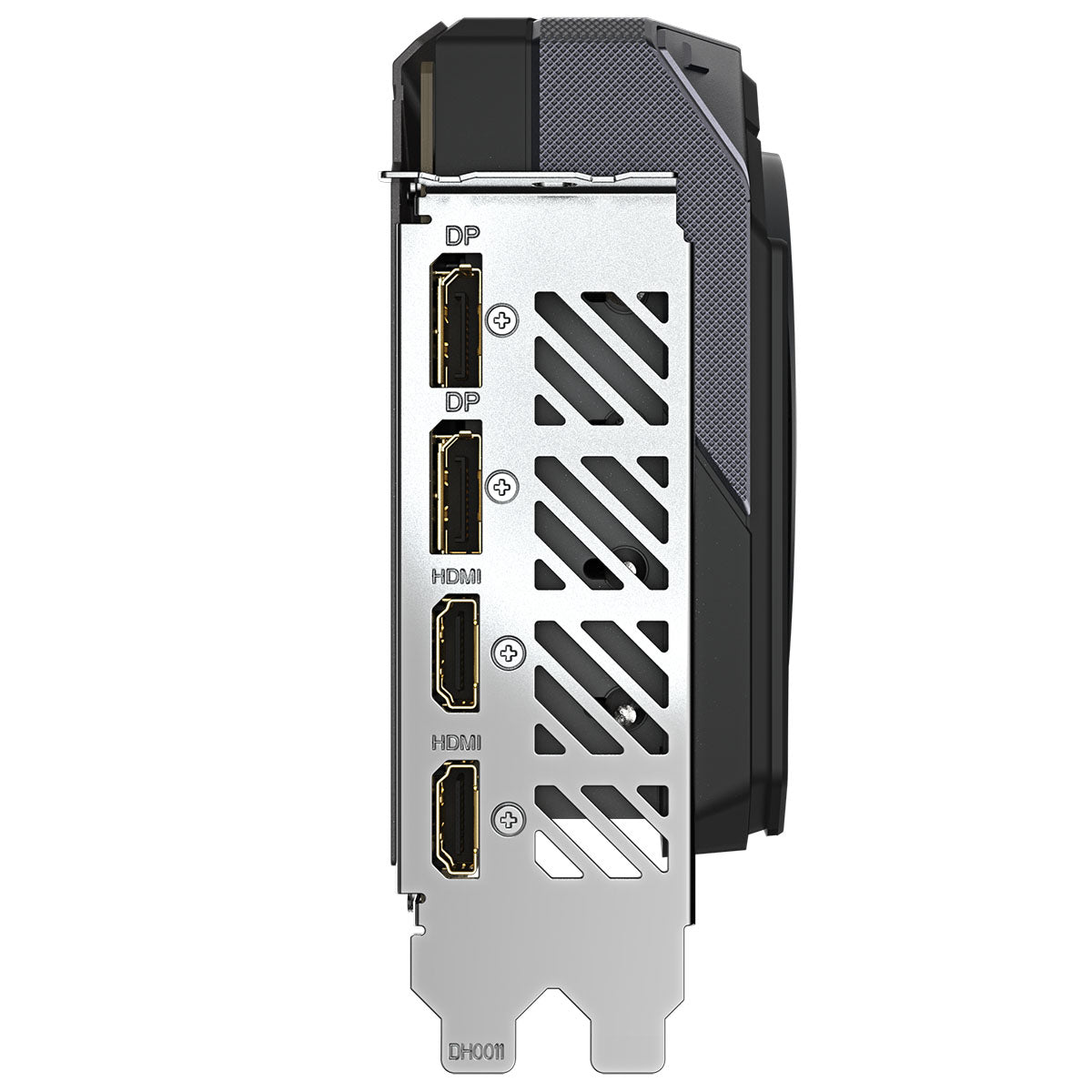

- Equipped with two DisplayPort and two HDMI video outputs
- Efficient triple-fan cooler design with semi-passive cooling
The Radeon RX 9060 XT 16GB Graphics Card in Detail
Level up your gaming PC, with the GIGABYTE Radeon RX 9060 XT Gaming 16G GPU. Built using advanced AMD RDNA 4 architecture, this graphics card delivers incredible gaming performance coupled with fantastic efficiency. The 4096 Stream Processors can reach impressive boost speeds of up to 2970MHz, ideal for rendering your favourite worlds in exquisite detail and super smooth frame rates. Plus, with 16GB of GDDR6 VRAM on a wide 256-bit memory bus, this GPU can effectively process even the most complex workloads with minimal lag or latency.

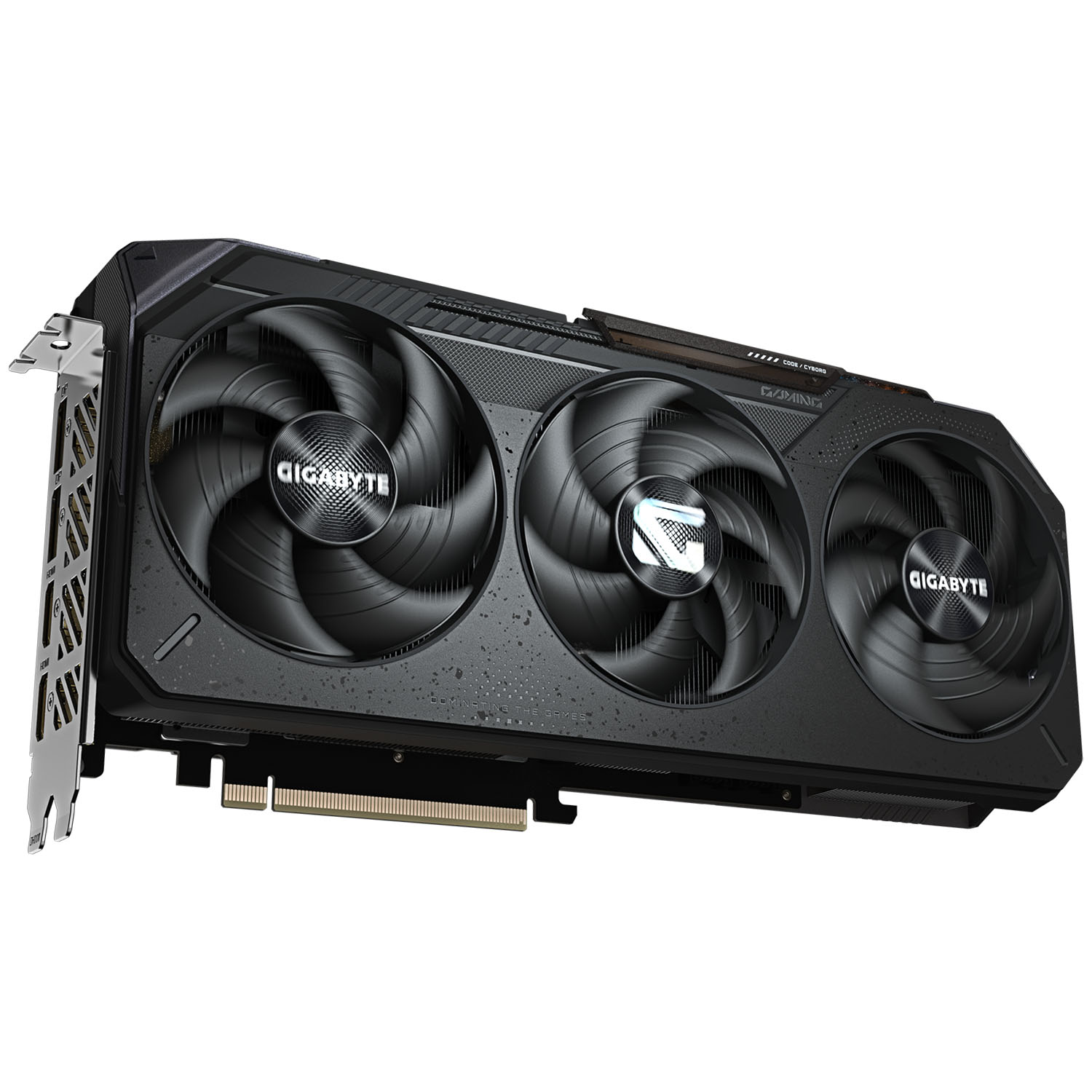

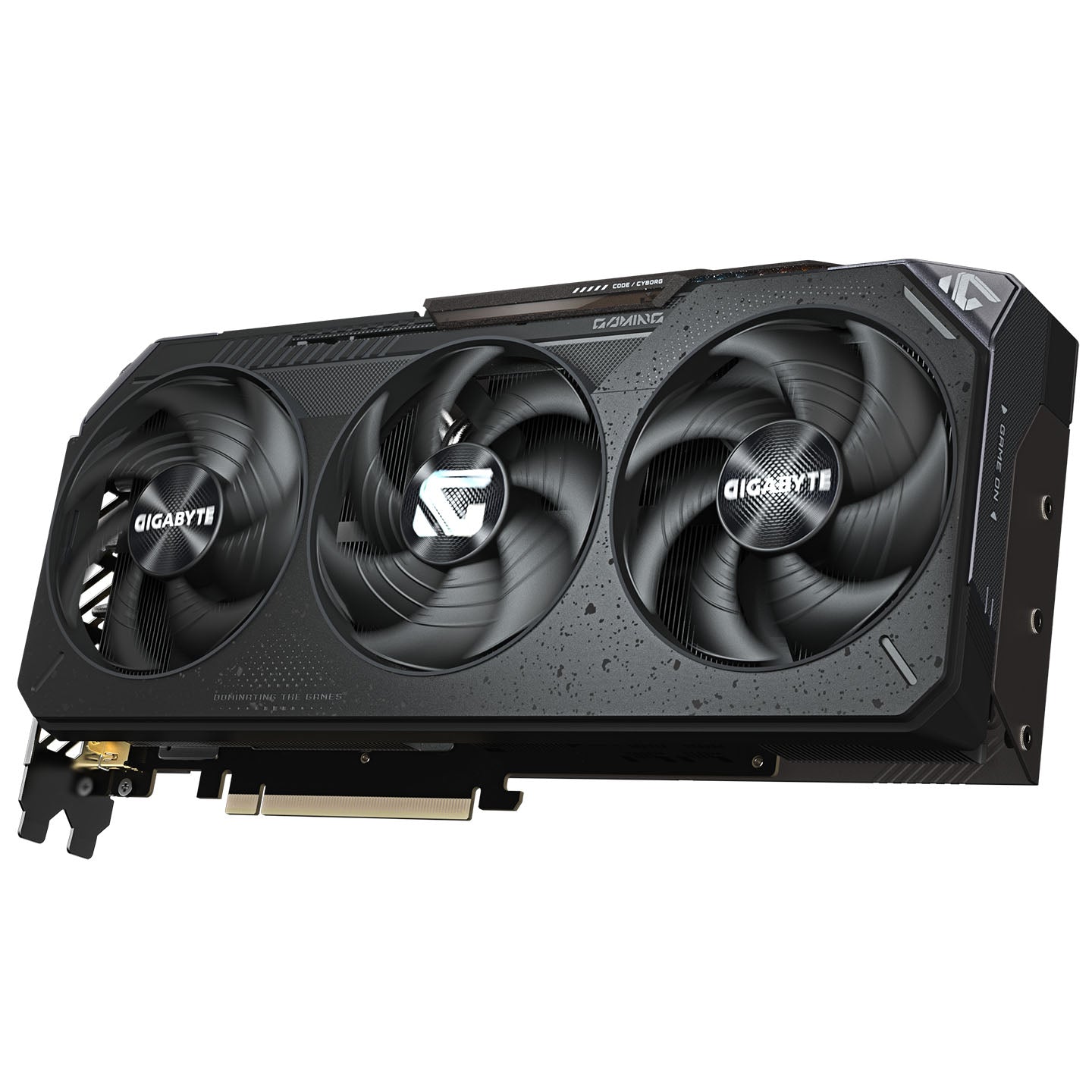

WINDFORCE Cooling System
The GIGABYTE Radeon RX 9060 XT Gaming 16G GPU boasts an advanced cooling solution, ideal for maintaining optimum temperatures even under heavy loads. Waste heat is efficiently transferred from the core components of the card to the large vapour chamber contact plate via server-grade thermal conductive gel. From here, it is efficiently dissipated into the large heatsink through eight composite heat pipes. The heatsink fins offer a large surface area, ideal for passive cooling when under light loads, However, when pushed harder, the GIGABYTE Radeon RX 9060 XT Gaming 16G GPU utilises three powerful Hawk fans to actively cool the card.
Specifications
| Water Cooling | Watercooling No Back Connect Back Connect No Lighting Lighting / RGB Yes Lighting Colour RGB AI AI Accelerator AMD AI-Accelerator AI Acceleration Yes Standards / Specifications Adaptive Sync Technology (G-SYNC / FreeSync) AMD Freesync Dimensions Length / Depth 288 mm Width 132 mm Height 56 mm Colour Primary Colour Black Graphics Card GPU Series RX 9000 Series Cooling Number of GPU Fans 3 Expansion Slots Expansion Slots Required 3 Slots Clock Speeds Max. GPU Clock (Base) 1660 MHz Max. GPU Clock (Game) 2400 MHz Max. GPU Clock (Boost) 2970 MHz Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Internal Ports Required Power Connectors 8-pin PCIe (3x) External Ports Display Connectors HDMI (2x), Display Port (2x) Display Connector Standards HDMI 2.1, DisplayPort 2.1 GPU Model GPU Series Name AMD Radeon RX 9070 XT Graphics Chip Navi 48 XTX Manufacturing Process 4 nm Shader Units 4096 Raytracing Cores / Ray Acceleratorss 64 GPU Memory Type GDDR6 Slot Type Standard PCIe 5.0 Compute Units 64 GPU Memory Size (GB) 16 GPU Memory Interface (bit) 256 GPU Memory Bandwidth (GB/s) 644.6 GPU Memory Clock (MHz) 2518 GPU Memory Clock Effective (Gbps) 20.1 |
|---|---|
| Watercooling | No |
| Back Connect | No |
| Lighting / RGB | Yes |
| Lighting Colour | RGB |
| AI Accelerator | AMD AI-Accelerator |
| AI Acceleration | Yes |
| Adaptive Sync Technology (G-SYNC / FreeSync) | AMD Freesync |
| Length / Depth | 288 mm |
| Width | 132 mm |
| Height | 56 mm |
| Primary Colour | Black |
| GPU Series | RX 9000 Series |
| Number of GPU Fans | 3 |
| Expansion Slots Required | 3 Slots |
| Max. GPU Clock (Base) | 1660 MHz |
| Max. GPU Clock (Game) | 2400 MHz |
| Max. GPU Clock (Boost) | 2970 MHz |
| Compatibility Note | Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. |
| Required Power Connectors | 8-pin PCIe (3x) |
| Display Connectors | HDMI (2x), Display Port (2x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| GPU Series Name | AMD Radeon RX 9070 XT |
| Graphics Chip | Navi 48 XTX |
| Manufacturing Process | 4 nm |
| Shader Units | 4096 |
| Raytracing Cores / Ray Acceleratorss | 64 |
| GPU Memory Type | GDDR6 |
| Slot Type Standard | PCIe 5.0 |
| Compute Units | 64 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 256 |
| GPU Memory Bandwidth (GB/s) | 644.6 |
| GPU Memory Clock (MHz) | 2518 |
| GPU Memory Clock Effective (Gbps) | 20.1 |
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Manufacturer part number | Radeon RX 9070 XT Gaming 16GB |
| OcUK SKU | GRA-GIG-06380 |
| EAN | 4719331356149 |
| Adaptive Sync Technology (G-SYNC / FreeSync) | AMD Freesync |
| Back Connect | No |
| Display Connectors | HDMI (2x), Display Port (2x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Expansion Slots Required | 3 Slots |
| GPU Series | RX 9000 Series |
| Lighting Colour | RGB |
| Lighting / RGB | Yes |
| Max. GPU Clock (Base) | 1660 MHz |
| Max. GPU Clock (Boost) | 2970 MHz |
| Number of GPU Fans | 3 |
| Primary Colour | Black |
| Required Power Connectors | 8-pin PCIe (3x) |
| Watercooling | No |
Product reviews
No review for this product yet.
Warranty & Delivery
Click & Collect
Collect from OcUK HQ, or one of thousands of DPD Pickup Points around the UK.*
Full Delivery InformationIE Delivery
We ship to Ireland, with tax and customs included in the price you pay.*
Full Delivery Information*Exclusions and product restrictions apply

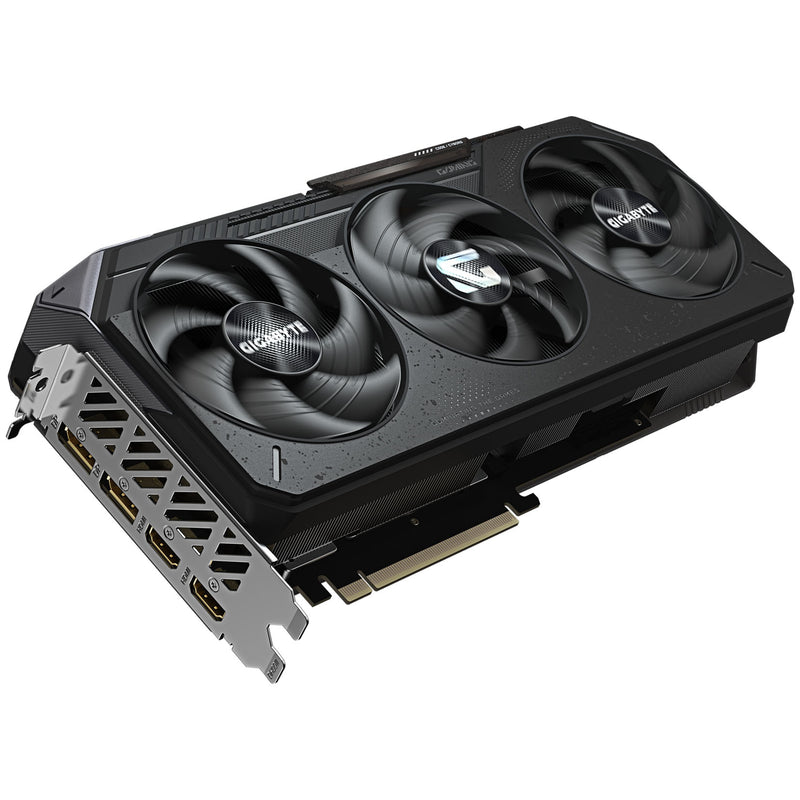

Gigabyte Radeon RX 9070 XT Gaming 16GB GDDR6 PCI-Express Graphics Card
RDNA 4 architecture, 4096 Stream Processors, 2970MHz boost clock speed, 16GB GDDR6 VRAM, 256-bit wide memory bus, PCIe 5.0 x16 interface GIGABYTE Radeon RX 9070 XT Gaming 16G GPU at a Glance: Ad...
Only available to UK and IE
Order within — with Premium Delivery (arriving 1 working day, Mon–Fri) for UK mainland delivery.
From £57.49/mo over 12 months.Learn more
Klarna Pay in 3 interest-free instalments, or pay in 30 days.
SIMILAR PRODUCTS
Asus Radeon RX 9070 XT TUF Gaming Call Of Duty Black Ops 7 Edition OC 16GB GDDR6 Graphics Card
Asrock Radeon RX 9070 XT Taichi OC 16GB GDDR6 PCI-Express Graphics Card
Asrock Radeon RX 9070 XT Monster Hunter Wilds Edition 16GB GDDR6 Graphics Card

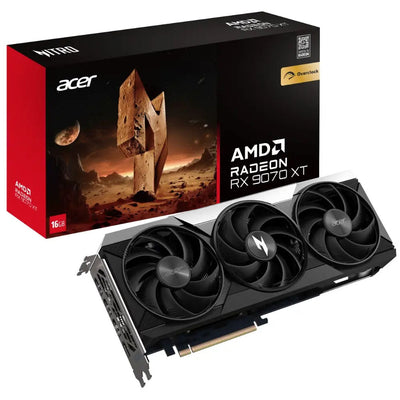

Acer Nitro Radeon RX 9070 XT OC 16GB GDDR6 PCI-Express Graphics Card
