SKU GRA-GIG-05230EAN 4719331355180MPN W7800 AI TOP 48G
Overview
The Gigabyte Radeon™ PRO W7800 delivers 48GB GDDR6 ECC memory, 45.2 TFLOPS Peak Single Precision Matrix performance, advanced ray tracing, and multi-display 12K support for professional workflows.
Using this for professional or business use? Please contact our dedicated B2B team to enhance your IT infrastructure - Renda Business Solutions | OcUK Using this for professional or business use? Please contact our dedicated B2B team to enhance your IT infrastructure - Renda Business Solutions | OcUK
Using this for professional or business use? Please contact our dedicated B2B team to enhance your IT infrastructure - Renda Business Solutions | OcUK Using this for professional or business use? Please contact our dedicated B2B team to enhance your IT infrastructure - Renda Business Solutions | OcUK
| Specification | Details |
|---|---|
| Graphics Processing | Radeon™ PRO W7800 |
| Stream Processors | 4480 |
| Computing Units | 70 |
| AI Accelerators | 140 |
| Ray Accelerators | 70 |
| Peak FP32 Performance | 45.2 TFLOPS |
| Peak FP16 Performance | 90.5 TFLOPS |
| Memory Size | 48 GB |
| Memory Type | GDDR6 with ECC |
| Memory Bus | 384 bit |
| Memory Bandwidth | 864 GB/s |
| Card Bus | PCI-E 4.0 x16 |
| Max Digital Resolution |
4x 4096x2160 (4K DCI) @ 120Hz with DSC 2x 6144x3456 (6K) 12-bit HDR @ 60Hz Uncompressed 1x 7680x4320 (8K) 12-bit HDR @ 60Hz Uncompressed 1x 12288x6912 (12K) @ 120Hz with DSC |
| Multi-view | 4 |
| Card Size | L=293 mm, W=126 mm, H=42 mm, Dual Slot |
| Product Weight | 1.25 kg |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| OpenGL | 4.6 |
| Max Power Consumption | 281W Peak |
| Recommended PSU | 700W |
| Power Connectors | 2x 8 Pin |

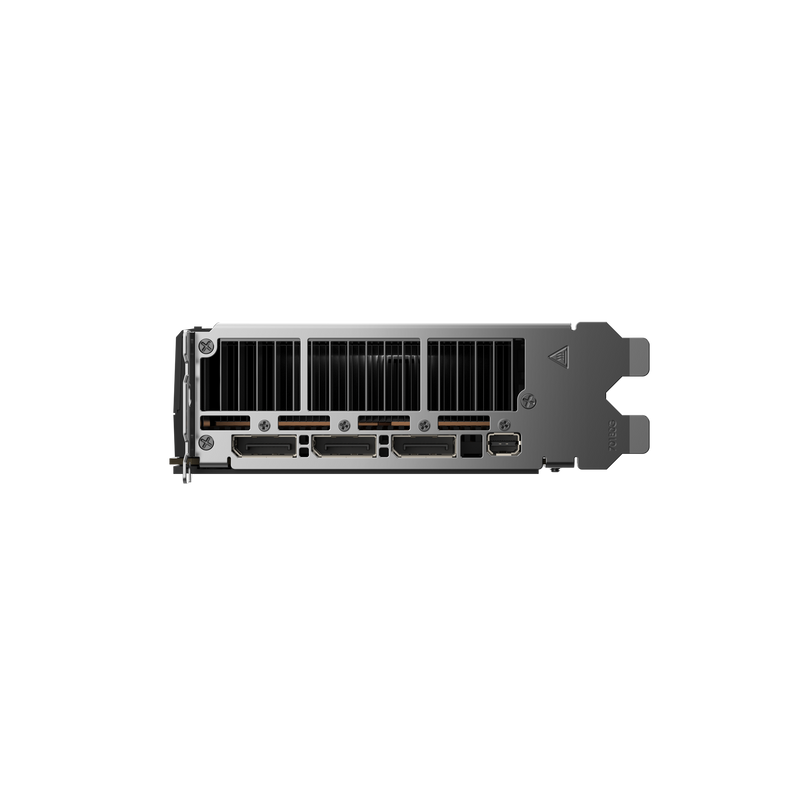

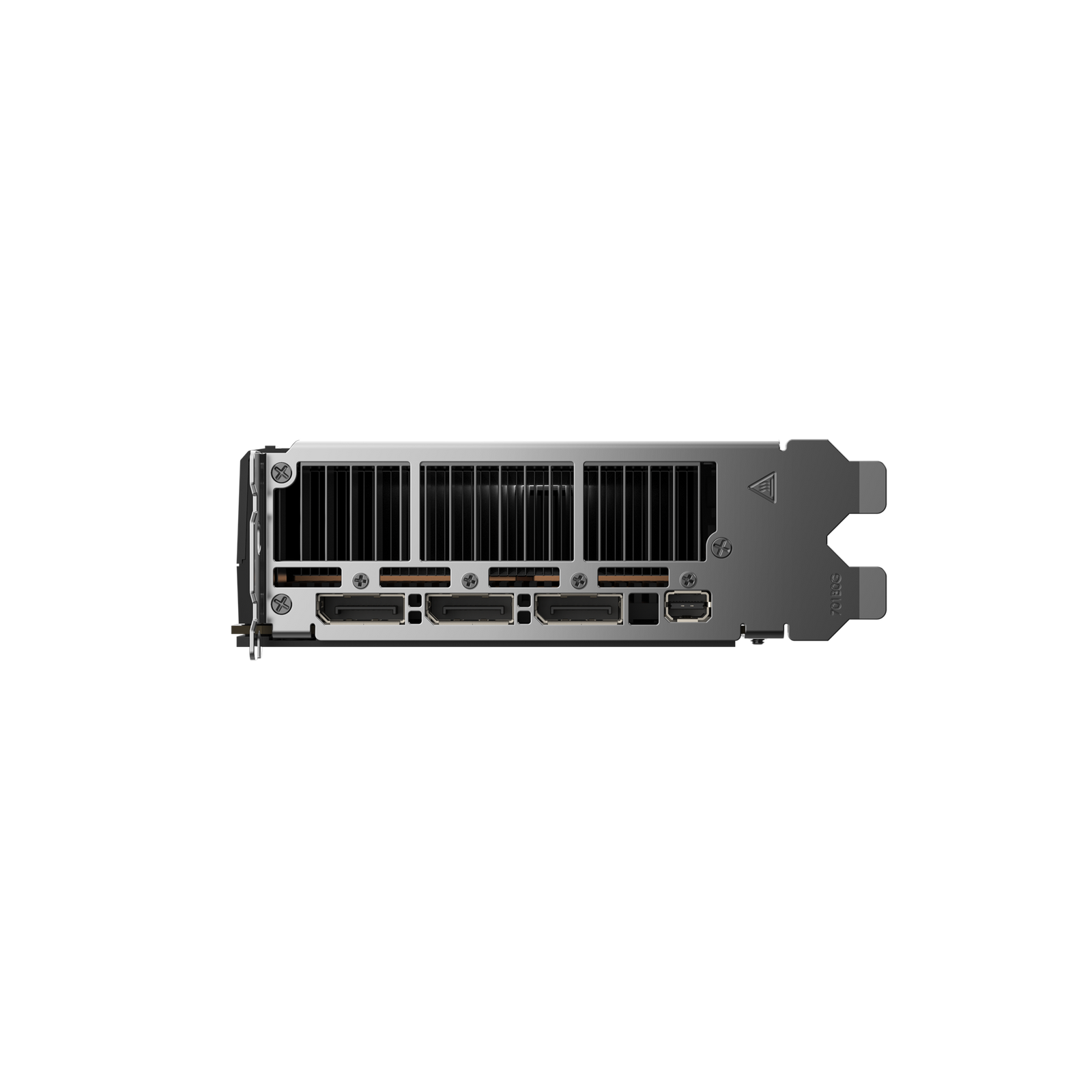

| Output | DisplayPort 2.1 x3, Mini DisplayPort 2.1 x1 |
| Accessories | Manual |
| Supported Rendering Formats |
1x Encode & Decode (AV1) 2x Decode (H265/HEVC, 4K H264) 2x Encode (incl. AV1 Encode and Decode) |
| Supported Technologies |
AMD Viewport Boost AMD Remote Workstation AMD Radeon™ Media Engine AMD Software PRO Edition AMD Radeon™ VR Ready Creator AMD Radeon™ ProRender |
Specifications
| AI | AI Accelerator AMD AI-Accelerator AI Acceleration Yes Water Cooling Watercooling No Lighting Lighting / RGB No Colour Primary Colour Black Standards / Specifications Adaptive Sync Technology (G-SYNC / FreeSync) NVIDIA G-SYNC Dimensions Length / Depth 293 mm Width 126 mm Height 42 mm Graphics Card GPU Series AMD Radeon Pro Cooling Number of GPU Fans 1 Expansion Slots Expansion Slots Required 2 Slots Clock Speeds Max. GPU Clock (Base) 1895 MHz Max. GPU Clock (Boost) 2525 MHz Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Internal Ports Required Power Connectors 8-pin PCIe (2x) External Ports Display Connectors Display Port (3x), mini Display Port (1x) Display Connector Standards DisplayPort 2.1 GPU Model GPU Series Name AMD Radeon PRO W7800 48GB Graphics Chip Navi 31 Manufacturing Process 5 nm Shader Units 4480 Raytracing Cores / Ray Acceleratorss 70 GPU Memory Type GDDR6 Slot Type Standard PCIe 4.0 Compute Units 70 GPU Memory Size (GB) 48 GPU Memory Interface (bit) 384 GPU Memory Bandwidth (GB/s) 864 GPU Memory Clock (MHz) 2250 GPU Memory Clock Effective (Gbps) 18 |
|---|---|
| AI Accelerator | AMD AI-Accelerator |
| AI Acceleration | Yes |
| Watercooling | No |
| Lighting / RGB | No |
| Primary Colour | Black |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Length / Depth | 293 mm |
| Width | 126 mm |
| Height | 42 mm |
| GPU Series | AMD Radeon Pro |
| Number of GPU Fans | 1 |
| Expansion Slots Required | 2 Slots |
| Max. GPU Clock (Base) | 1895 MHz |
| Max. GPU Clock (Boost) | 2525 MHz |
| Compatibility Note | Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. |
| Required Power Connectors | 8-pin PCIe (2x) |
| Display Connectors | Display Port (3x), mini Display Port (1x) |
| Display Connector Standards | DisplayPort 2.1 |
| GPU Series Name | AMD Radeon PRO W7800 48GB |
| Graphics Chip | Navi 31 |
| Manufacturing Process | 5 nm |
| Shader Units | 4480 |
| Raytracing Cores / Ray Acceleratorss | 70 |
| GPU Memory Type | GDDR6 |
| Slot Type Standard | PCIe 4.0 |
| Compute Units | 70 |
| GPU Memory Size (GB) | 48 |
| GPU Memory Interface (bit) | 384 |
| GPU Memory Bandwidth (GB/s) | 864 |
| GPU Memory Clock (MHz) | 2250 |
| GPU Memory Clock Effective (Gbps) | 18 |
Specifications
| Manufacturer | Over Clocker Store |
|---|---|
| Manufacturer part number | W7800 AI TOP 48G |
| OcUK SKU | GRA-GIG-05230 |
| EAN | 4719331355180 |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Display Connectors | Display Port (3x), mini Display Port (1x) |
| Display Connector Standards | DisplayPort 2.1 |
| Expansion Slots Required | 2 Slots |
| GPU Series | AMD Radeon Pro |
| Lighting / RGB | No |
| Max. GPU Clock (Base) | 1895 MHz |
| Max. GPU Clock (Boost) | 2525 MHz |
| Number of GPU Fans | 1 |
| Primary Colour | Black |
| Required Power Connectors | 8-pin PCIe (2x) |
| Watercooling | No |
Product reviews
No review for this product yet.
Warranty & Delivery
Click & Collect
Collect from OcUK HQ, or one of thousands of DPD Pickup Points around the UK.*
Full Delivery InformationIE Delivery
We ship to Ireland, with tax and customs included in the price you pay.*
Full Delivery Information*Exclusions and product restrictions apply
Over Clocker Store

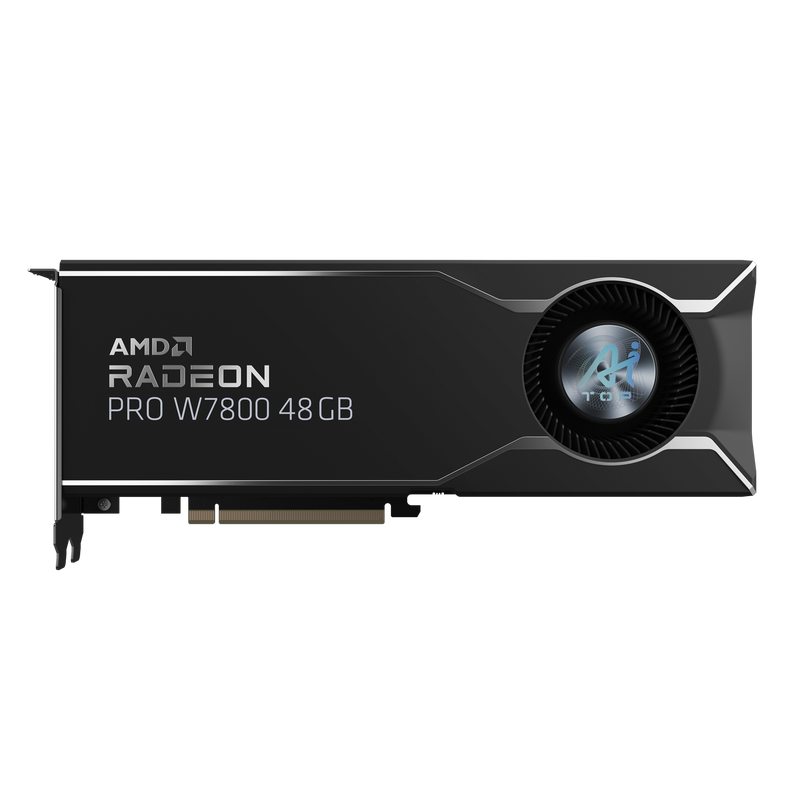

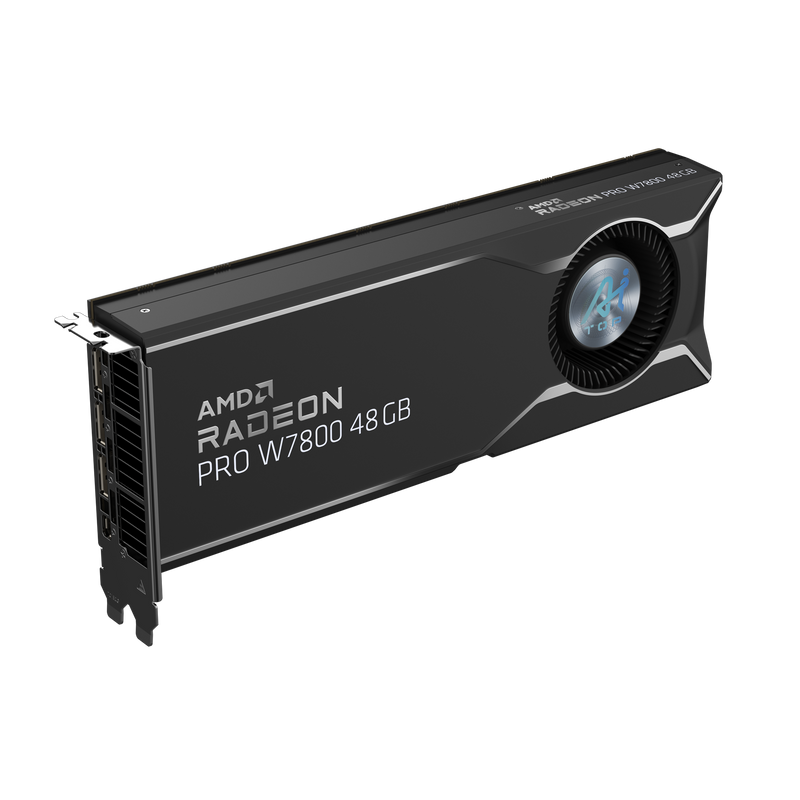

Gigabyte Radeon PRO W7800 AI TOP 48GB Graphics Card
No review for this product yet.
The Gigabyte Radeon™ PRO W7800 delivers 48GB GDDR6 ECC memory, 45.2 TFLOPS Peak Single Precision Matrix performance, advanced ray tracing, and multi-display 12K support for professional workflows. ...
£2,399.99(incl. VAT)
£1,999.99 (ex. VAT)
Only available to UK and IE
Want your order tomorrow?
Order within — with Premium Delivery (arriving 1 working day, Mon–Fri) for UK mainland delivery.
Spread the cost with V12 Finance
From £199.99/mo over 12 months.Learn more
Klarna Pay in 3 interest-free instalments, or pay in 30 days.
In stock
SIMILAR PRODUCTS

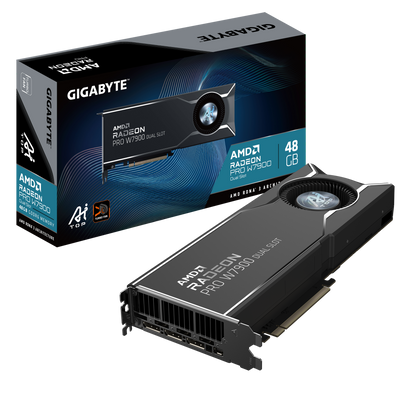

Gigabyte Radeon PRO W7900 DUAL SLOT AI TOP 48GB Graphics CardGRA-GIG-05229
