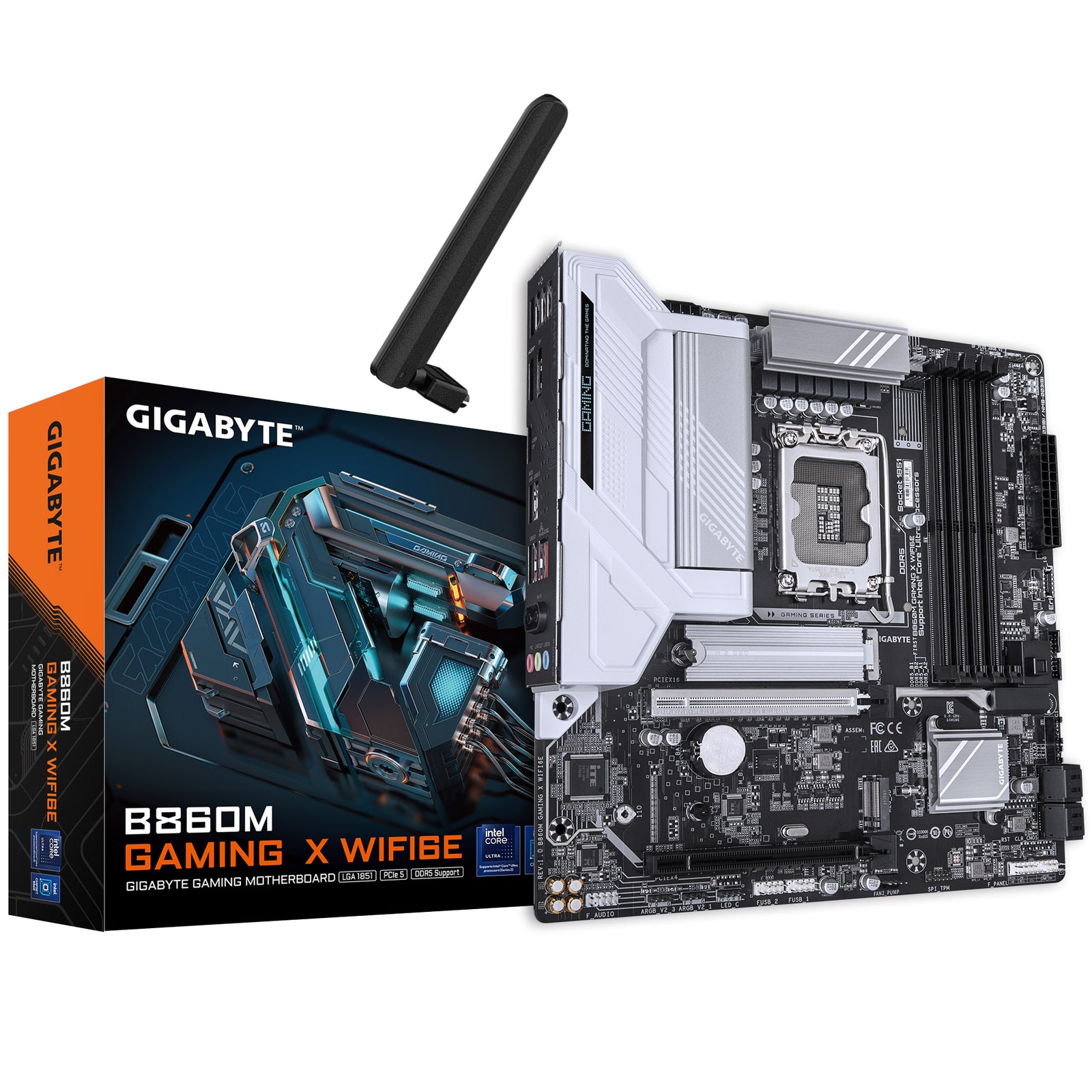

SKU MOT-GIG-04110EAN 4719331867133MPN B860M GAMING X WIFI6E
Overview
Intel Core Ultra compatible, LGA 1851 Socket, B860, PCIe Gen 5, Micro-ATX, 4x DIMM slots, DDR5, 2 x M.2 , 4 x SATA, 2.5Gb LAN, WIFI 6E, Type-C
| Specifications | |
|---|---|
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list). L3 cache varies with CPU |
| Chipset | Intel® B860 Express Chipset |
| Memory |
Support for DDR5 9200(O.C)/8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C.) / 7950(O.C.) / 7900(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for Extreme Memory Profile (XMP) memory modules. |
| Onboard Graphics |
Integrated Graphics Processor - Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. Support for up to triple-display at the same time. |
| Audio | Realtek® Audio CODEC. High Definition Audio. 2/4/5.1/7.1-channel. Support for S/PDIF Out. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module |

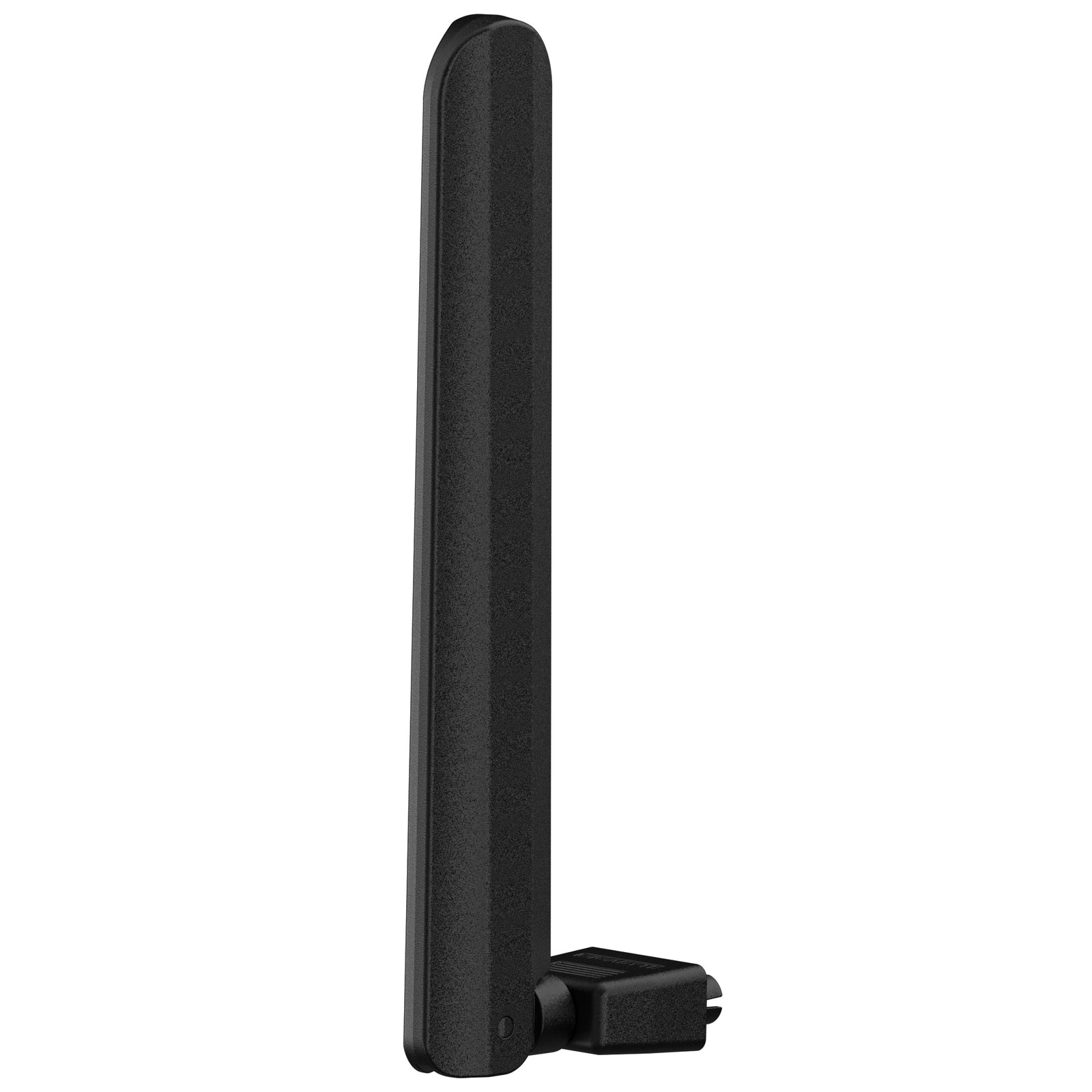

Intel® Wi-Fi 6E AX211 (PCB rev. 1.0/2.0) - WIFI a/b/g/n/ac/ax, supporting 2.4/5/6 GHz frequency bands, Bluetooth 5.3, 11ax 160MHz wireless standard. Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1) - WIFI a/b/g/n/ac/ax, supporting 2.4/5/6 GHz frequency bands, Bluetooth 5.3, 11ax 160MHz wireless standard. Actual data rate may vary depending on environment and equipment. |
| Expansion Slots |
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16). Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4). |
| Storage Interface |
CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support). Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support). - 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices. |
| USB |
CPU: - 1 x USB4® USB Type-C® port on the back panel. Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support (internal header). - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header). Chipset+2 USB 2.0 Hubs: - 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through internal USB headers). |
| Internal I/O Connectors |

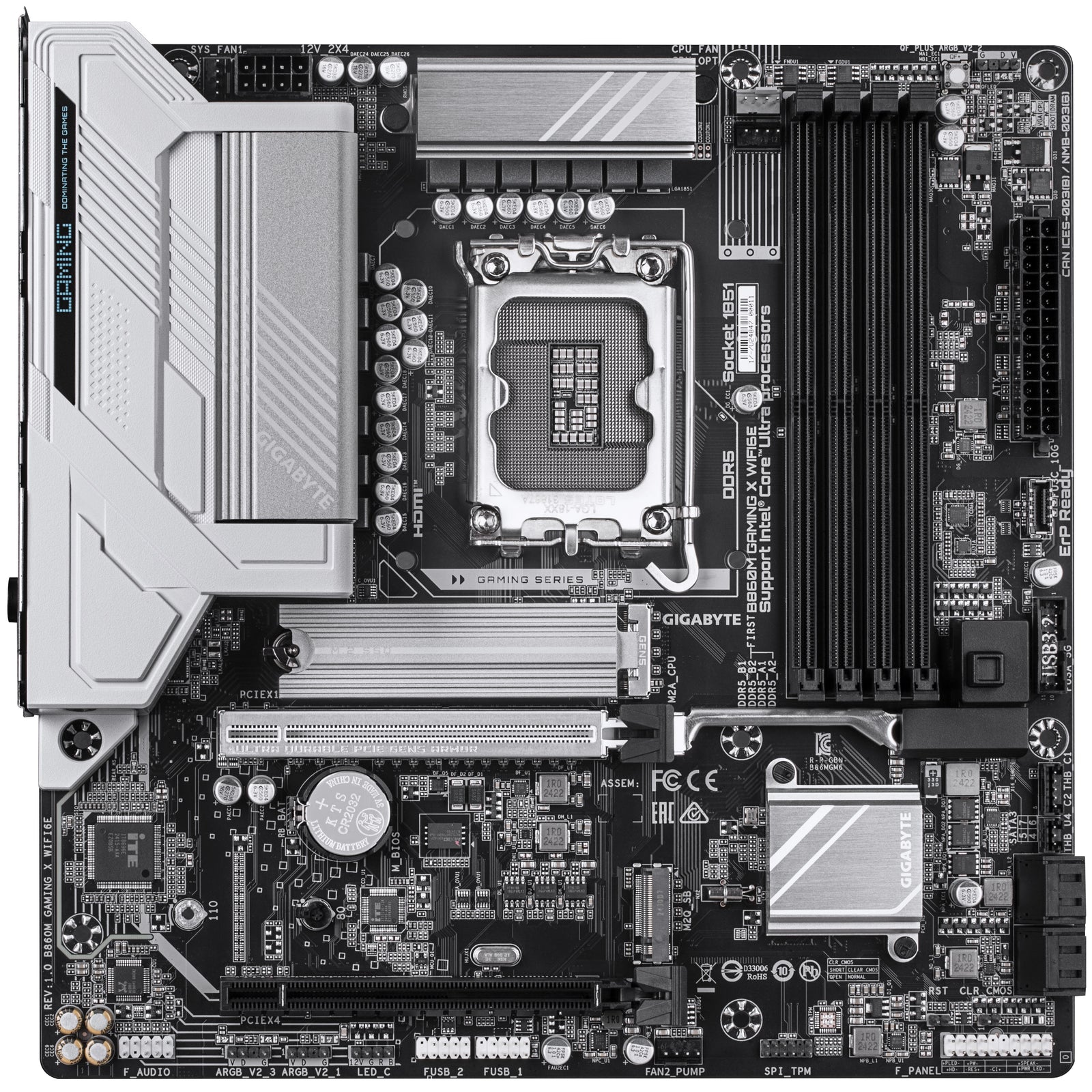

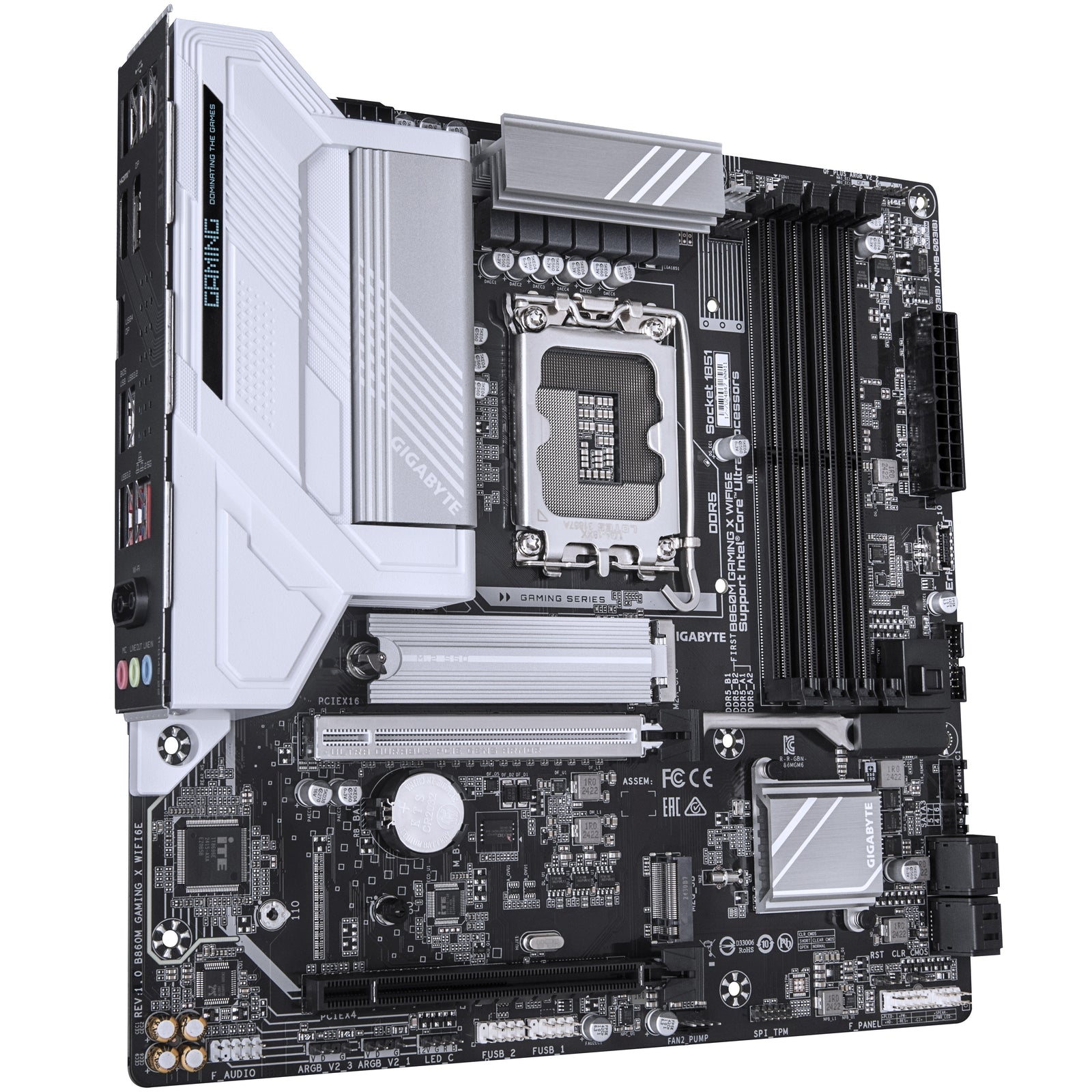

- 1 x 24-pin ATX main power connector. - 1 x 8-pin ATX 12V power connectors. - 1 x CPU fan header. - 1 x CPU fan/water cooling pump header. - 1 x system fan header. - 1 x system fan/water cooling pump header. - 3 x addressable RGB Gen2 LED strip headers. - 1 x RGB LED strip header. - 2 x M.2 Socket 3 connectors. - 4 x SATA 6Gb/s connectors. - 1 x front panel header. - 1 x front panel audio header. - 1 x USB Type-C® header, with USB 3.2 Gen 2 support. - 1 x USB 3.2 Gen 1 header. - 2 x USB 2.0/1.1 headers. - 1 x Trusted Platform Module header (for GC-TPM2.0 SPI module only). - 2 x Thunderbolt™ add-in card connectors (for GIGABYTE Thunderbolt™ 5 add-in card). - 1 x Q-Flash Plus button. - 1 x reset jumper. - 1 x Clear CMOS jumper. |
| Back Panel Connectors |

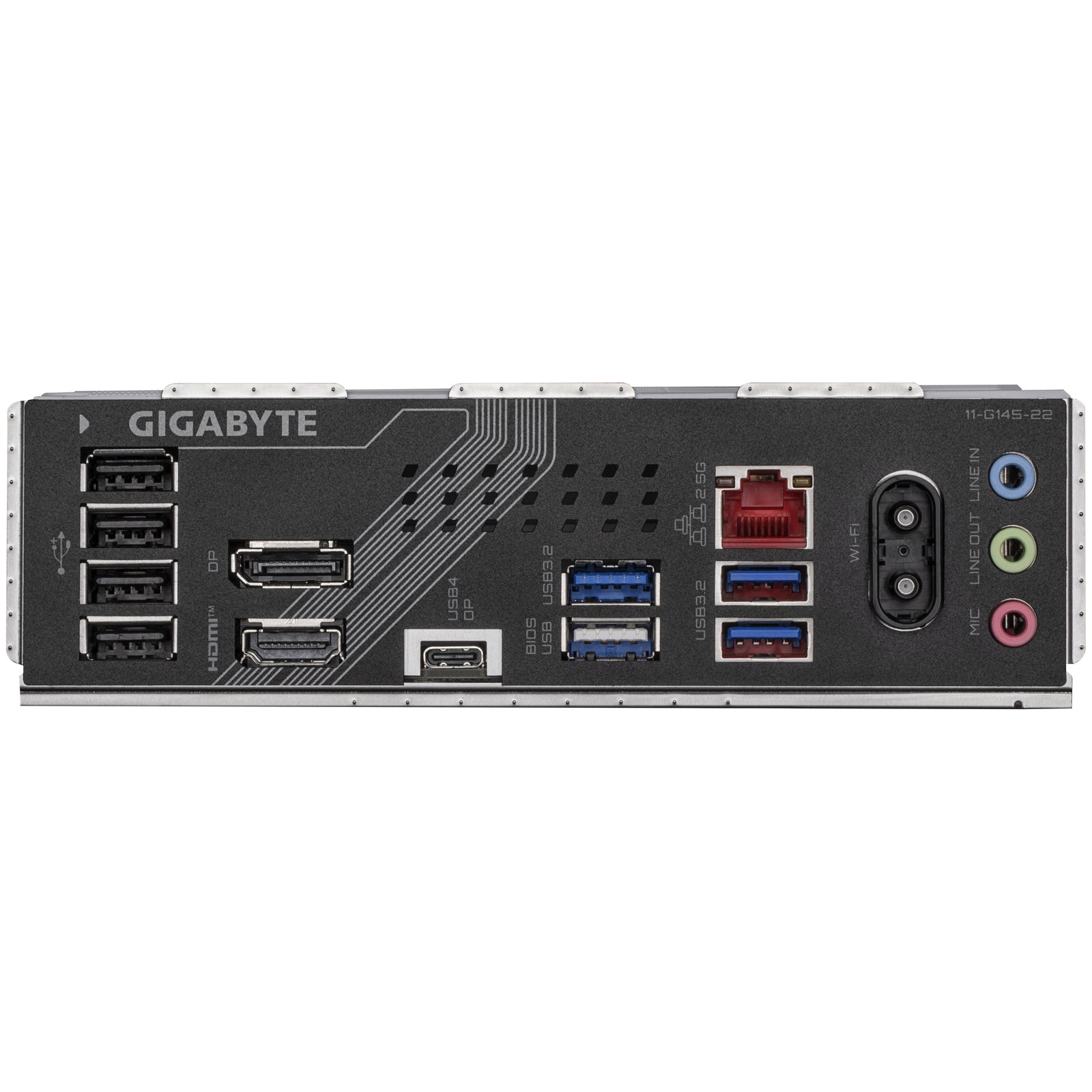

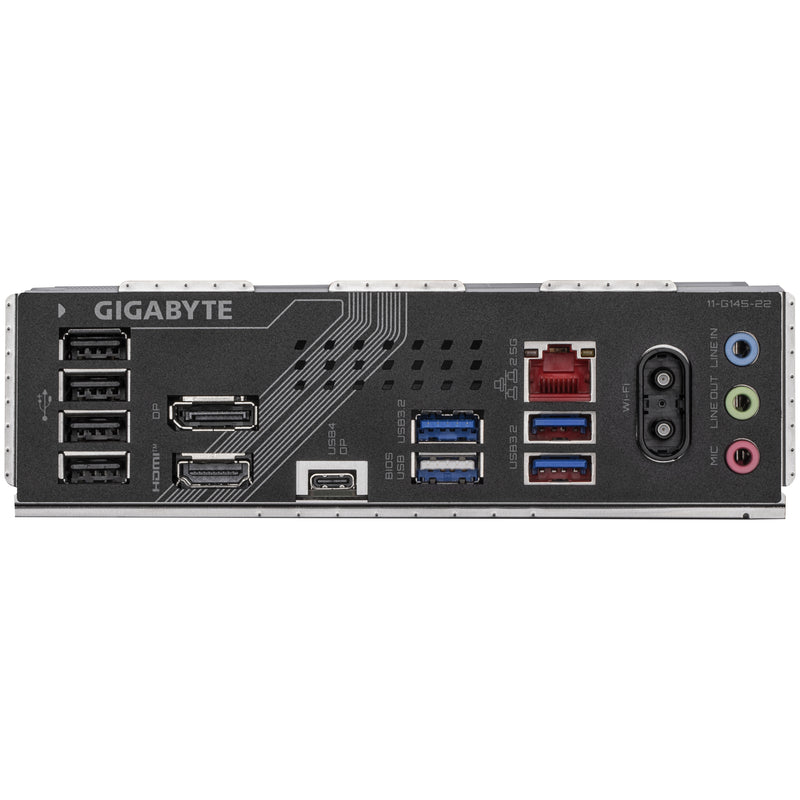

- 1 x HDMI port (Note: Actual support may vary by CPU). - 1 x DisplayPort (Note: Actual support may vary by CPU). - 1 x USB4® USB Type-C® port (DisplayPort). - 3 x USB 3.2 Gen 1 ports. - 5 x USB 2.0/1.1 ports. - 2 x antenna connectors (2T2R). - 1 x RJ-45 port. - 3 x audio jacks. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, fan fail warning, fan speed control (depends on the fan/pump installed). |
| BIOS | 1 x 256 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup. |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software. |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Specifications
| Lighting | Lighting / RGB Yes Lighting Colour RGB Lighting Compatibility GIGABYTE RGB Fusion Wi-Fi & LAN LAN Yes LAN Ports 1x 2.5 Gbit/s Wi-Fi / Bluetooth Yes Wi-Fi Standard Wi-Fi 6E Bluetooth Standard 5.3 Wi-Fi Chip Realtek RTL8852CE CPU CPU Manufacturer Intel CPU Socket 1851 Form Factor Motherboard Form Factor Micro-ATX Back Connect Back Connect No Motherboard Motherboard Chipset Intel B860 Dual BIOS No Built-In I/O Shield Yes Colour Primary Colour Black Secondary Colour Light grey, White Fan Header 4 Pin Fan Connectors 4 External Ports USB4 Gen 3x2 (external) Type C 1 USB 3.0 (external) Type A 3 USB 2.0 (external) Type A 5 Display Connectors HDMI (1x), Display Port (1x) Memory Max. Memory 256 GB Memory Type DDR5 Memory Form Factor DIMM Max. Memory Speed (Standard) 6400 MT/s Max. Memory Speed (OC) 9200 MT/s EEC Support No Memory slots 4x Performance Profile Intel XMP Expansion Slots PCIe x16 slots (total) 2 PCIe 5.0 x16 mechanical slot 1 PCIe 4.0 x4 mechanical slot 1 Internal Ports CPU Power Supply 1x 8-Pin USB 3.0 / 3.1 / 3.2 (internal) Type C Header 1 USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports 1 USB 3.0 (internal) Header 1 USB 3.0 (internal) Possible Ports 2 USB 2.0 (internal) Header 2 USB 2.0 (internal) Possible Ports 4 RGB / LED connectors 1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG) Front Panel Audio Header Yes SPI TPM Header Yes Cooling M.2 Heatsinks Yes VRM Heatsinks Yes Storage Ports M.2 PCIe 4.0 x4 1 M.2 PCIe 5.0 x4 1 SATA 6G (internal) 4 |
|---|---|
| Lighting / RGB | Yes |
| Lighting Colour | RGB |
| Lighting Compatibility | GIGABYTE RGB Fusion |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Wi-Fi Standard | Wi-Fi 6E |
| Bluetooth Standard | 5.3 |
| Wi-Fi Chip | Realtek RTL8852CE |
| CPU Manufacturer | Intel |
| CPU Socket | 1851 |
| Motherboard Form Factor | Micro-ATX |
| Back Connect | No |
| Motherboard Chipset | Intel B860 |
| Dual BIOS | No |
| Built-In I/O Shield | Yes |
| Primary Colour | Black |
| Secondary Colour | Light grey, White |
| 4 Pin Fan Connectors | 4 |
| USB4 Gen 3x2 (external) Type C | 1 |
| USB 3.0 (external) Type A | 3 |
| USB 2.0 (external) Type A | 5 |
| Display Connectors | HDMI (1x), Display Port (1x) |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Max. Memory Speed (Standard) | 6400 MT/s |
| Max. Memory Speed (OC) | 9200 MT/s |
| EEC Support | No |
| Memory slots | 4x |
| Performance Profile | Intel XMP |
| PCIe x16 slots (total) | 2 |
| PCIe 5.0 x16 mechanical slot | 1 |
| PCIe 4.0 x4 mechanical slot | 1 |
| CPU Power Supply | 1x 8-Pin |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
| USB 3.0 (internal) Header | 1 |
| USB 3.0 (internal) Possible Ports | 2 |
| USB 2.0 (internal) Header | 2 |
| USB 2.0 (internal) Possible Ports | 4 |
| RGB / LED connectors | 1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG) |
| Front Panel Audio Header | Yes |
| SPI TPM Header | Yes |
| M.2 Heatsinks | Yes |
| VRM Heatsinks | Yes |
| M.2 PCIe 4.0 x4 | 1 |
| M.2 PCIe 5.0 x4 | 1 |
| SATA 6G (internal) | 4 |
Specifications
| Manufacturer | Over Clocker Store |
|---|---|
| Manufacturer part number | B860M GAMING X WIFI6E |
| OcUK SKU | MOT-GIG-04110 |
| EAN | 4719331867133 |
| Back Connect | No |
| CPU Socket | 1851 |
| Display Connectors | HDMI (1x), Display Port (1x) |
| Lighting Colour | RGB |
| Lighting / RGB | Yes |
| Memory Form Factor | DIMM |
| Memory Type | DDR5 |
| Primary Colour | Black |
| RGB / LED connectors | 1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG) |
| Secondary Colour | Light grey, White |
Product reviews
No review for this product yet.
Warranty & Delivery
Click & Collect
Collect from OcUK HQ, or one of thousands of DPD Pickup Points around the UK.*
Full Delivery InformationIE Delivery
We ship to Ireland, with tax and customs included in the price you pay.*
Full Delivery Information*Exclusions and product restrictions apply
Over Clocker Store
Gigabyte B860M GAMING X WIFI6E (LGA 1851) DDR5 Micro-ATX Motherboard
No review for this product yet.
Intel Core Ultra compatible, LGA 1851 Socket, B860, PCIe Gen 5, Micro-ATX, 4x DIMM slots, DDR5, 2 x M.2 , 4 x SATA, 2.5Gb LAN, WIFI 6E, Type-C Specifications CP...
£149.99(incl. VAT)
£124.99 (ex. VAT)
Only available to UK and IE
Want your order tomorrow?
Order within — with Premium Delivery (arriving 1 working day, Mon–Fri) for UK mainland delivery.
Klarna Pay in 3 interest-free instalments, or pay in 30 days.
In stock
SIMILAR PRODUCTS

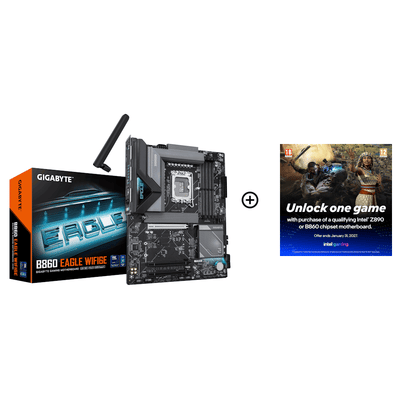

Gigabyte B860 EAGLE WIFI6E (LGA 1851) DDR5 ATX MotherboardMOT-GIG-04111
