SKU MOT-GIG-07199EAN 4719331872809MPN B760M DS3H WIFI6E GEN5
Overview
Intel 12th + 13th + 14th Gen compatible, LGA 1700 Socket, B760, PCIe Gen 5, Micro-ATX, 4x DIMM slots, DDR5 7600MHz (OC), 2 x M.2 , 4 x SATA, 2.5Gb LAN, WIFI 6E, HDMI, 2x DP, 5x USB, 1x Type-C
| Item | Specification |
|---|---|
| CPU |
LGA1700 socket: Supports 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors L3 cache varies by CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory |
4 × DDR5 DIMM slots, up to 256 GB (64 GB per DIMM) Dual-channel memory architecture 14th / 13th Gen Intel® Core™ i9/i7: DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5200 / 4800 / 4400 MT/s 13th Gen Intel® Core™ i5/i3 & 12th Gen Intel® Core™, Pentium® Gold, Celeron®: DDR5 4800 / 4400 MT/s Support for ECC & non-ECC Un-buffered DIMM (non-ECC mode) Support for XMP memory modules |
| Onboard Graphics |
Intel® HD Graphics support (varies by CPU) HDMI 2.1 × 1 (4096 × 2160 @ 60 Hz, HDCP 2.3) DisplayPort 1.2 × 2 (4096 × 2304 @ 60 Hz) Supports up to triple-display simultaneously |
| Audio |
Realtek® Audio CODEC High Definition Audio 2 / 4 / 5.1 / 7.1-channel S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless Communication |
Intel® Wi-Fi 6E AX210 Wi-Fi a/b/g/n/ac/ax (2.4 / 5 / 6 GHz) Bluetooth® 5.3 Supports 11ax 160 MHz |
| Expansion Slots |
CPU: 1 × PCIe x16 slot (PCIe 5.0, x16) Chipset: 2 × PCIe x1 slots (PCIe 3.0) |
| Storage Interface |
CPU: 1 × M.2 (PCIe 4.0 x4/x2, type 2280) Chipset: 1 × M.2 (PCIe 4.0 x4/x2, type 2280) 4 × SATA 6 Gb/s RAID 0 / 1 / 5 / 10 support (SATA) |
| USB |
Rear panel: 1 × USB Type-C® (USB 3.2 Gen 2) 3 × USB 3.2 Gen 1 2 × USB 2.0/1.1 Internal: 2 × USB 3.2 Gen 1 4 × USB 2.0/1.1 |
| Internal I/O Connectors |
24-pin ATX power × 1 8-pin ATX 12V power × 1 CPU fan header × 1 System fan headers × 3 Addressable RGB Gen2 headers × 2 RGB header × 1 M.2 sockets × 2 SATA 6 Gb/s × 4 Front panel header × 1 Front panel audio × 1 USB 3.2 Gen 1 header × 1 USB 2.0/1.1 headers × 2 TPM header × 1 S/PDIF Out header × 1 Q-Flash Plus button × 1 Reset jumper × 1 Clear CMOS jumper × 1 |

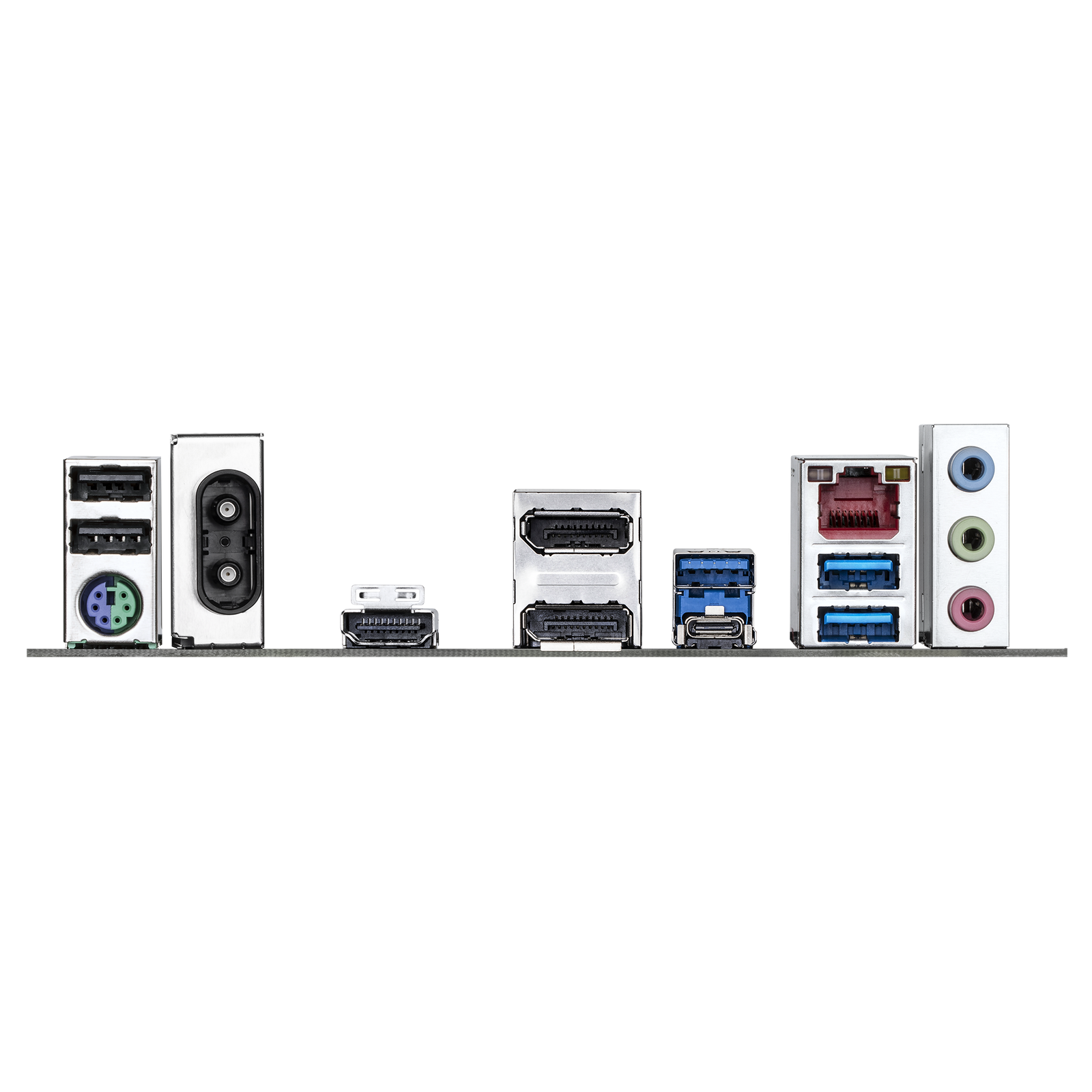

| Back Panel Connectors |
USB 2.0/1.1 × 2 PS/2 keyboard/mouse × 1 Antenna connectors × 2 HDMI × 1 DisplayPort × 2 USB 3.2 Gen 1 × 3 USB Type-C® (USB 3.2 Gen 2) × 1 RJ-45 × 1 Audio jacks × 3 |
| BIOS |
128 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | Micro ATX (24.4 cm × 24.4 cm) |
Specifications
| Form Factor | Motherboard Form Factor Micro-ATX Motherboard Motherboard Chipset Intel B760 CPU CPU Manufacturer Intel CPU Socket 1700 Colour Primary Colour Grey Lighting Lighting / RGB Yes Wi-Fi & LAN LAN Yes LAN Ports 1x 2.5 Gbit/s Wi-Fi / Bluetooth Yes Fan Header 4 Pin Fan Connectors 4 Memory Max. Memory 256 GB Memory Type DDR5 Memory Form Factor DIMM Memory slots 4x Internal Ports CPU Power Supply 1x 8-Pin |
|---|---|
| Motherboard Form Factor | Micro-ATX |
| Motherboard Chipset | Intel B760 |
| CPU Manufacturer | Intel |
| CPU Socket | 1700 |
| Primary Colour | Grey |
| Lighting / RGB | Yes |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| 4 Pin Fan Connectors | 4 |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 4x |
| CPU Power Supply | 1x 8-Pin |
Specifications
| Manufacturer | Over Clocker Store |
|---|---|
| Manufacturer part number | B760M DS3H WIFI6E GEN5 |
| OcUK SKU | MOT-GIG-07199 |
| EAN | 4719331872809 |
| CPU Socket | 1700 |
| Lighting / RGB | Yes |
| Memory Form Factor | DIMM |
| Memory Type | DDR5 |
| Primary Colour | Grey |
Product reviews
No review for this product yet.
Warranty & Delivery
Click & Collect
Collect from OcUK HQ, or one of thousands of DPD Pickup Points around the UK.*
Full Delivery InformationIE Delivery
We ship to Ireland, with tax and customs included in the price you pay.*
Full Delivery Information*Exclusions and product restrictions apply
Over Clocker Store

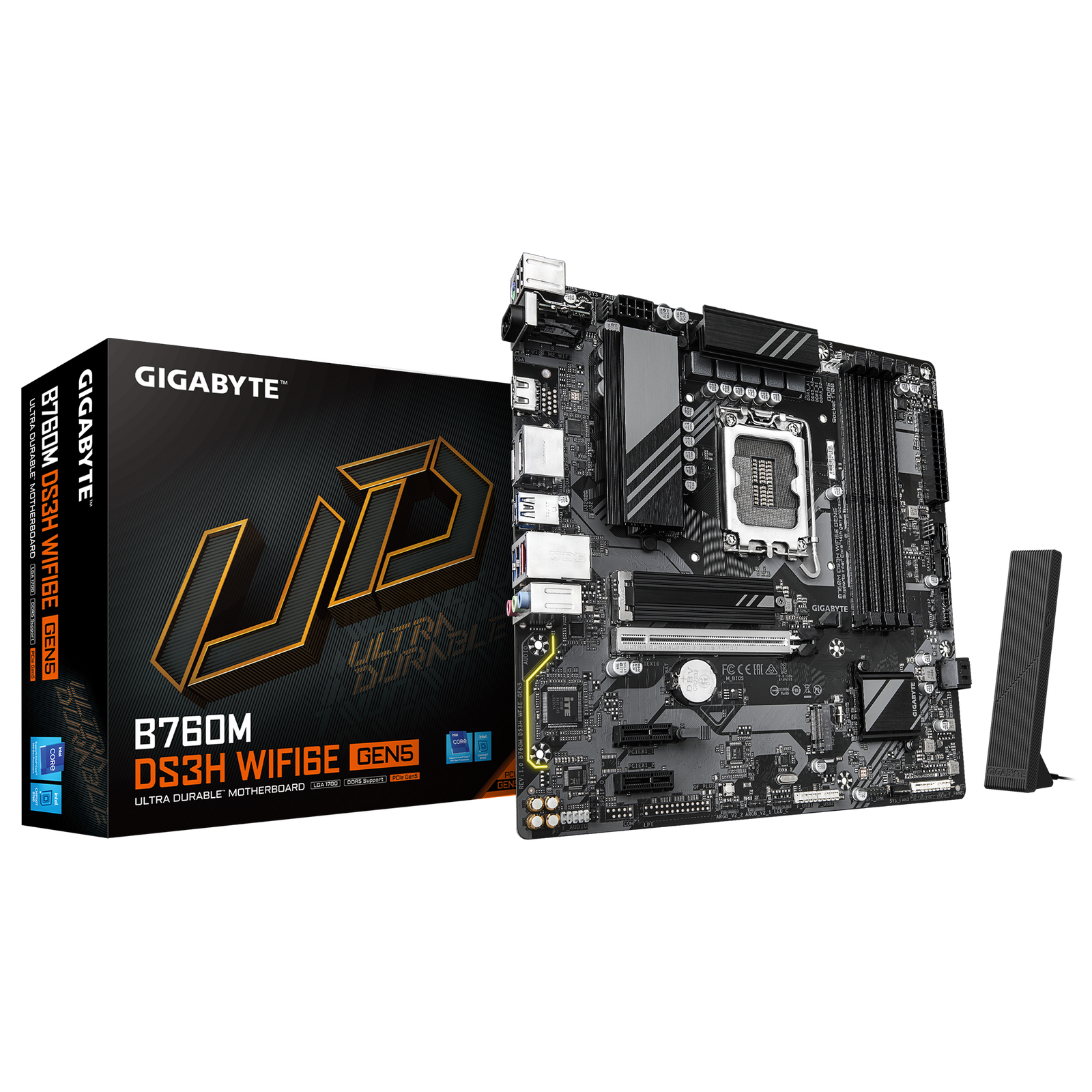

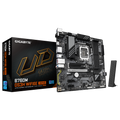

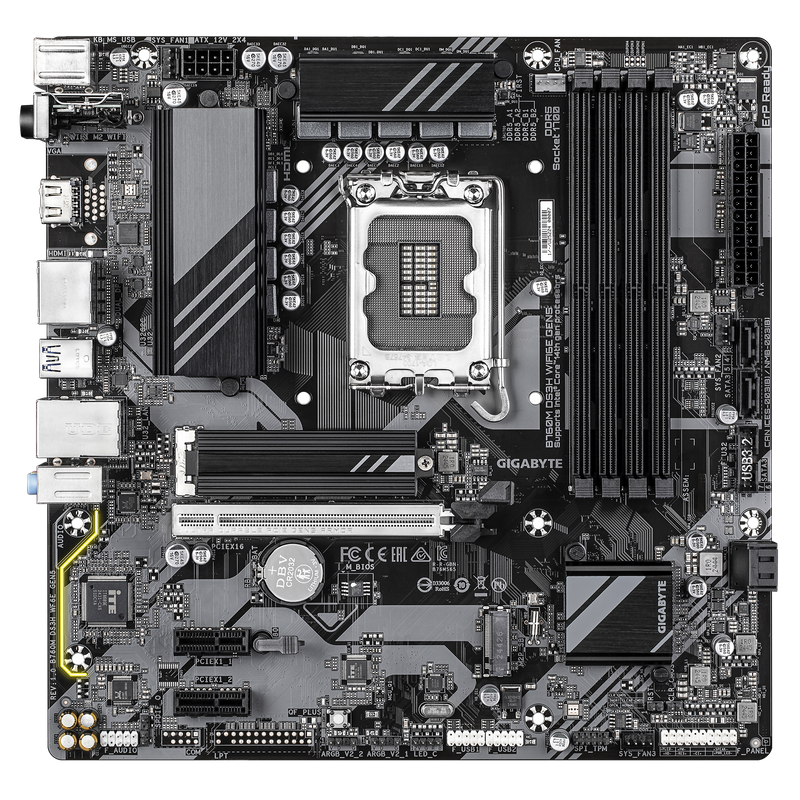

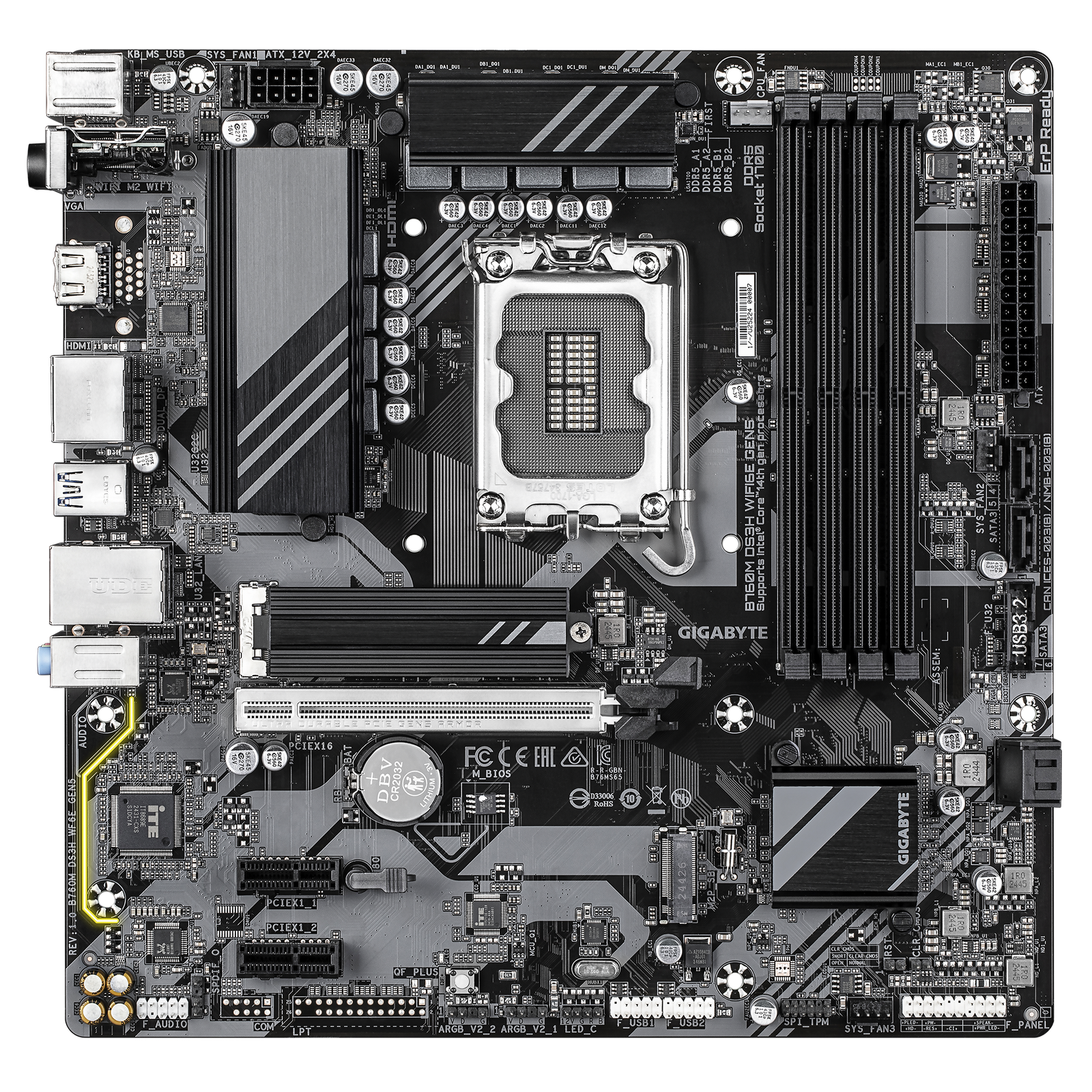

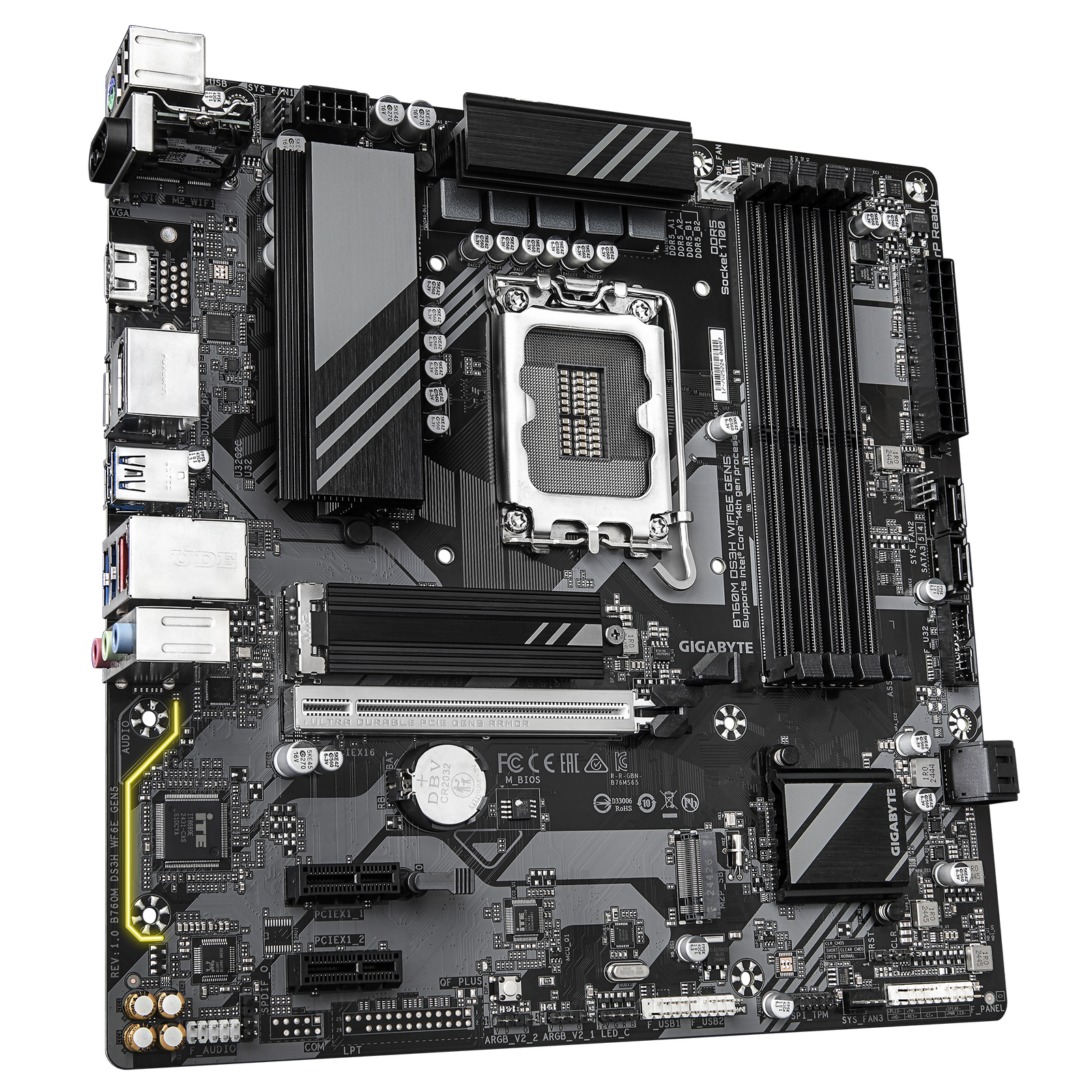

Gigabyte B760M DS3H WIFI6E GEN5 (LGA 1700) DDR5 Micro-ATX Motherboard
No review for this product yet.
Intel 12th + 13th + 14th Gen compatible, LGA 1700 Socket, B760, PCIe Gen 5, Micro-ATX, 4x DIMM slots, DDR5 7600MHz (OC), 2 x M.2 , 4 x SATA, 2.5Gb LAN, WIFI 6E, HDMI, 2x DP, 5x USB, 1x Type-C ...
£115.00(incl. VAT)
£95.83 (ex. VAT)
Only available to UK and IE
Want your order tomorrow?
Order within — with Premium Delivery (arriving 1 working day, Mon–Fri) for UK mainland delivery.
Klarna Pay in 3 interest-free instalments, or pay in 30 days.
In stock
SIMILAR PRODUCTS

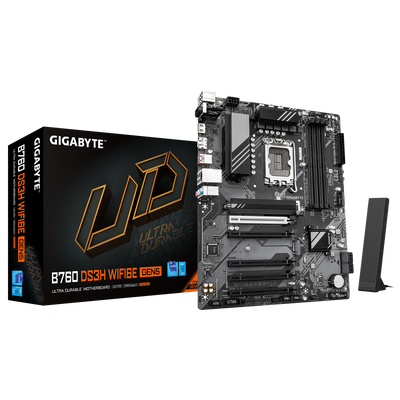

Gigabyte B760 DS3H WIFI6E GEN5 (LGA 1700) DDR5 ATX MotherboardMOT-GIG-07198
