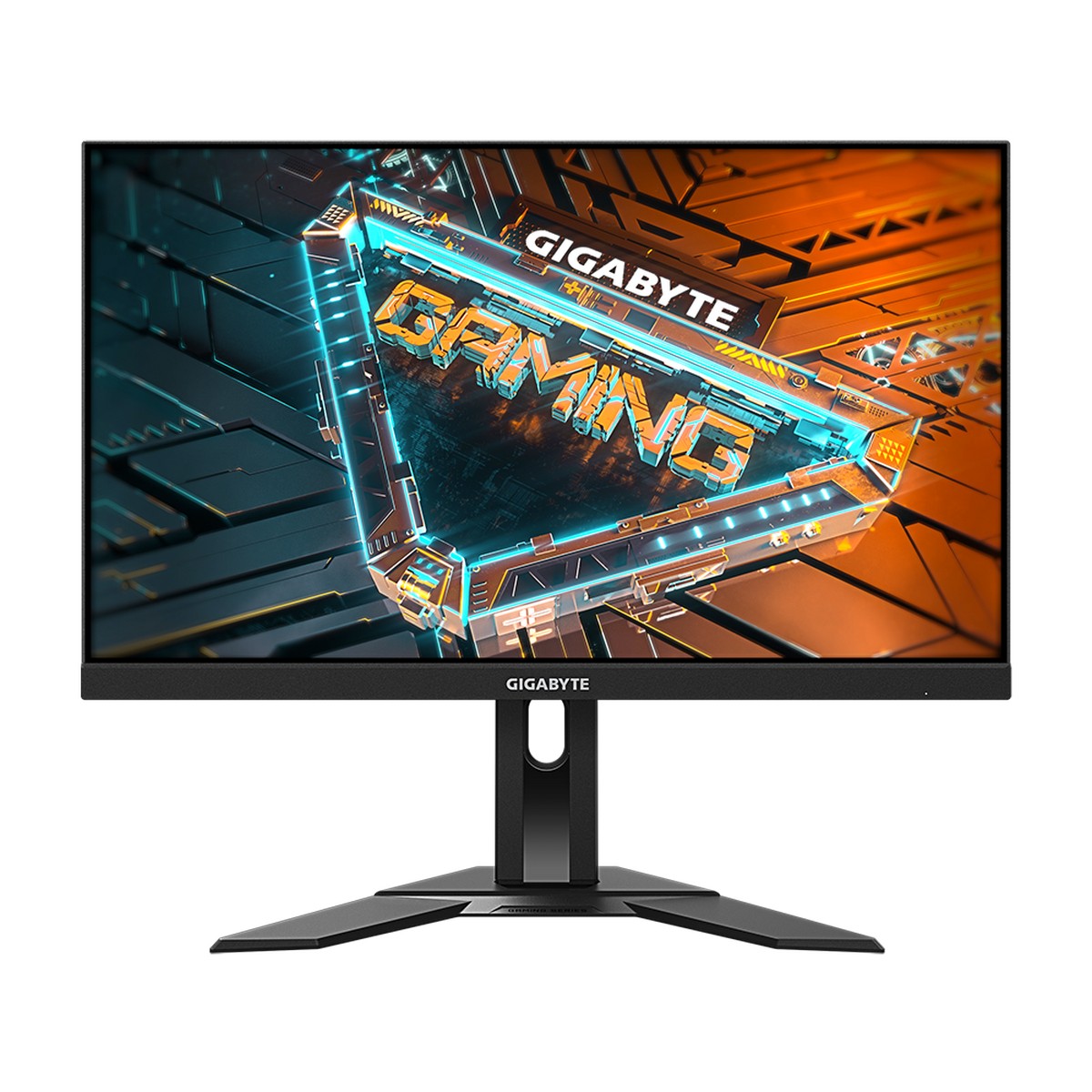

Display Resolution 1920x1080, Display Size 24", Refresh Rate 165Hz (180Hz OC), FreeSync, A-Sync, 1ms Response Time, Contrast Ratio 1000:1, Panel Type SS IPS, It's time
THE LAST MILE FOR YOUR GAMING SYSTEM
As an unseen player, monitor is often being underestimated. The truth is monitors form as a synergistic effect and bring out the best performance of PC components. GIGABYTE gaming monitors offer the ultimate specifications and quality, users can truly enjoy upscale performance without the need for extravagance.

Supports Adaptive-Sync Technology

1ms MPRT Response Time
Super fast 1ms response time for the most smooth gaming experience ever!
FHD with 165Hz (OC 180Hz)
High resolution and fast refresh rate, giving you the detailed display quality and fluid gaming experience!

Performance
95% DCI-P3
Fantastic color display and 95% DCI-P3 super wide-gamut color.

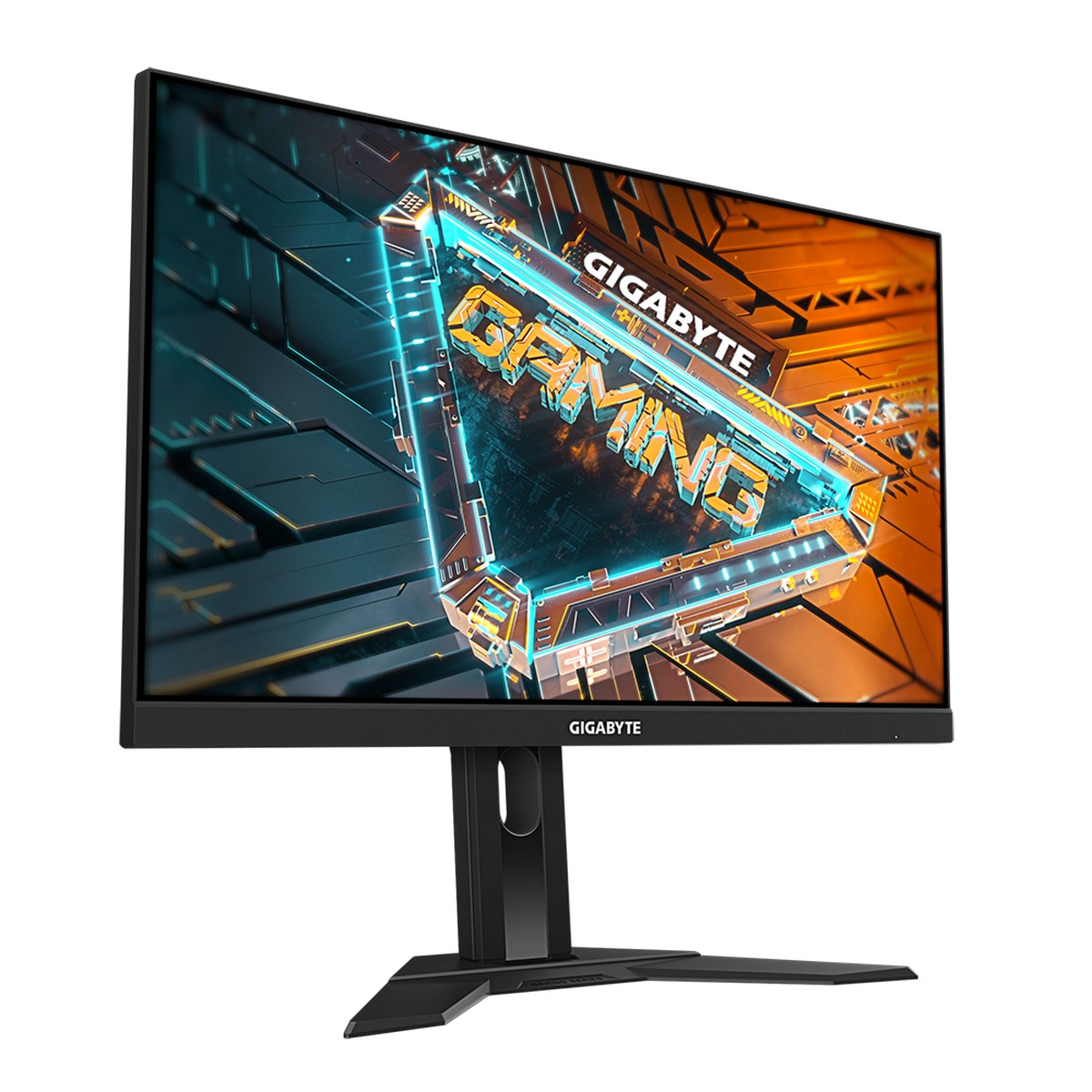

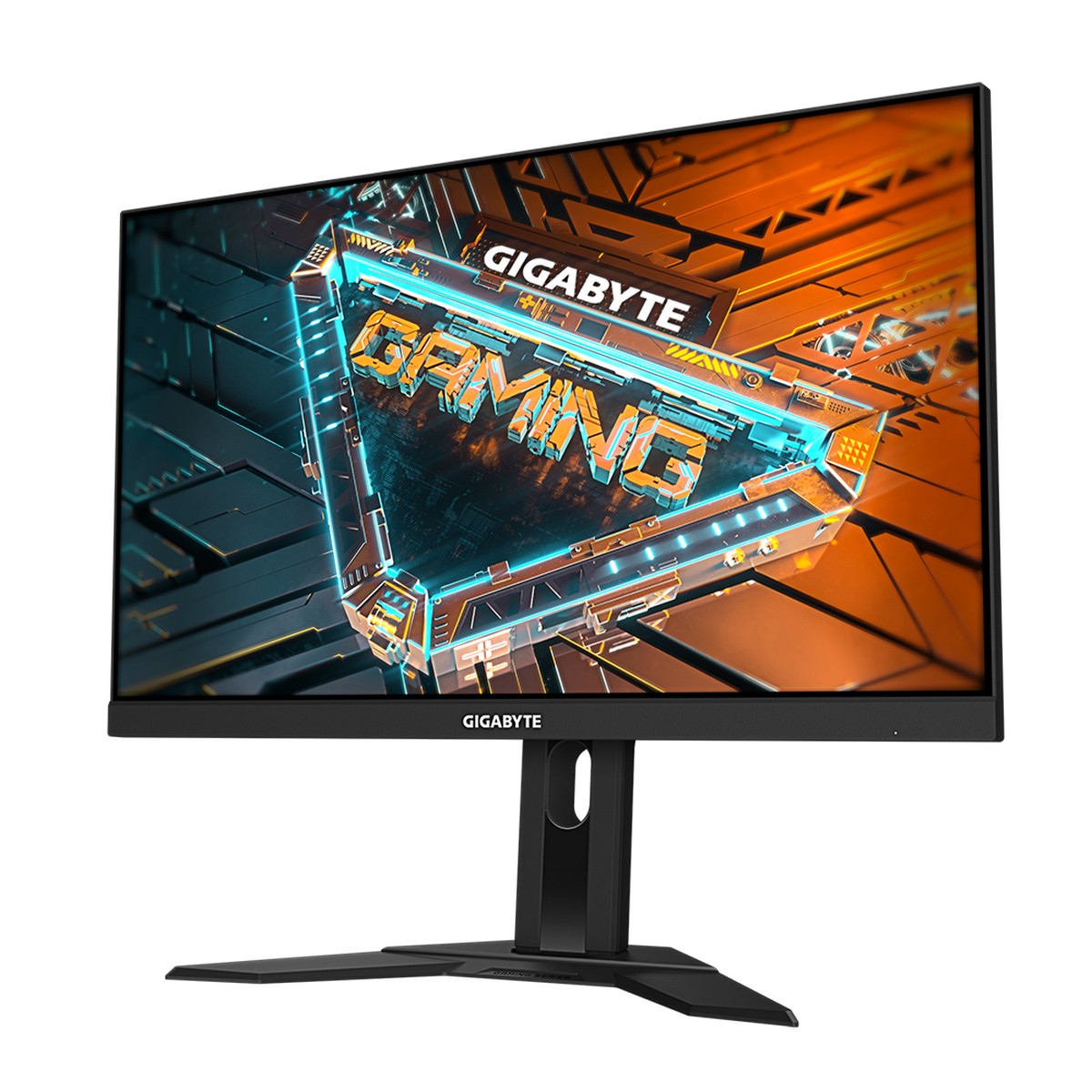

SIMPLE BUT STYLISH
The streamline appearance represents the simplicity of the GIGABYTE gaming series design philosophy, sturdy stand and matte finish built for functional and aesthetic features adding more to the characteristics.

Gaming Features

OSD Sidekick
GIGABYTE OSD Sidekick allows you to set the display options with keyboard and mouse, giving you the easiest way to adjust monitor settings.
Timer
Onscreen timer will assist you on tracking the elapsed game time.
Counter
The gaming counter will help you calculate the time more easily.
Crosshair
This feature will allow you to customize crosshairs that helps improve your aim in the shooting game.
Alignment
The display alignment function will facilitate you on the multi-display set-up, monitors will line up perfectly.
Aim Stabilizer
This feature will reduce motion blur so you will have a better visual clarity that helps tracing the track of bullet and aim the target easily.
Dashboard
The dashboard reveals your real-time hardware information including CPU voltages, clock speed, temperatures, etc. The best part is that it won’t be blocked by any games.
Black Equalizer
This feature allows you to have more details of the dark side without overexposing the bright side at the same time.
Auto-Update
Users can effortlessly enjoy the finest gaming experience with features GIGABYTE continues to develop and upgrade while giving extra protection to your monitor.

TECH FEATURES
Flicker-Free
Preventing eye strain and fatigue.
Low Blue Light
Certified by TÜV Rheinland for eye health protection.

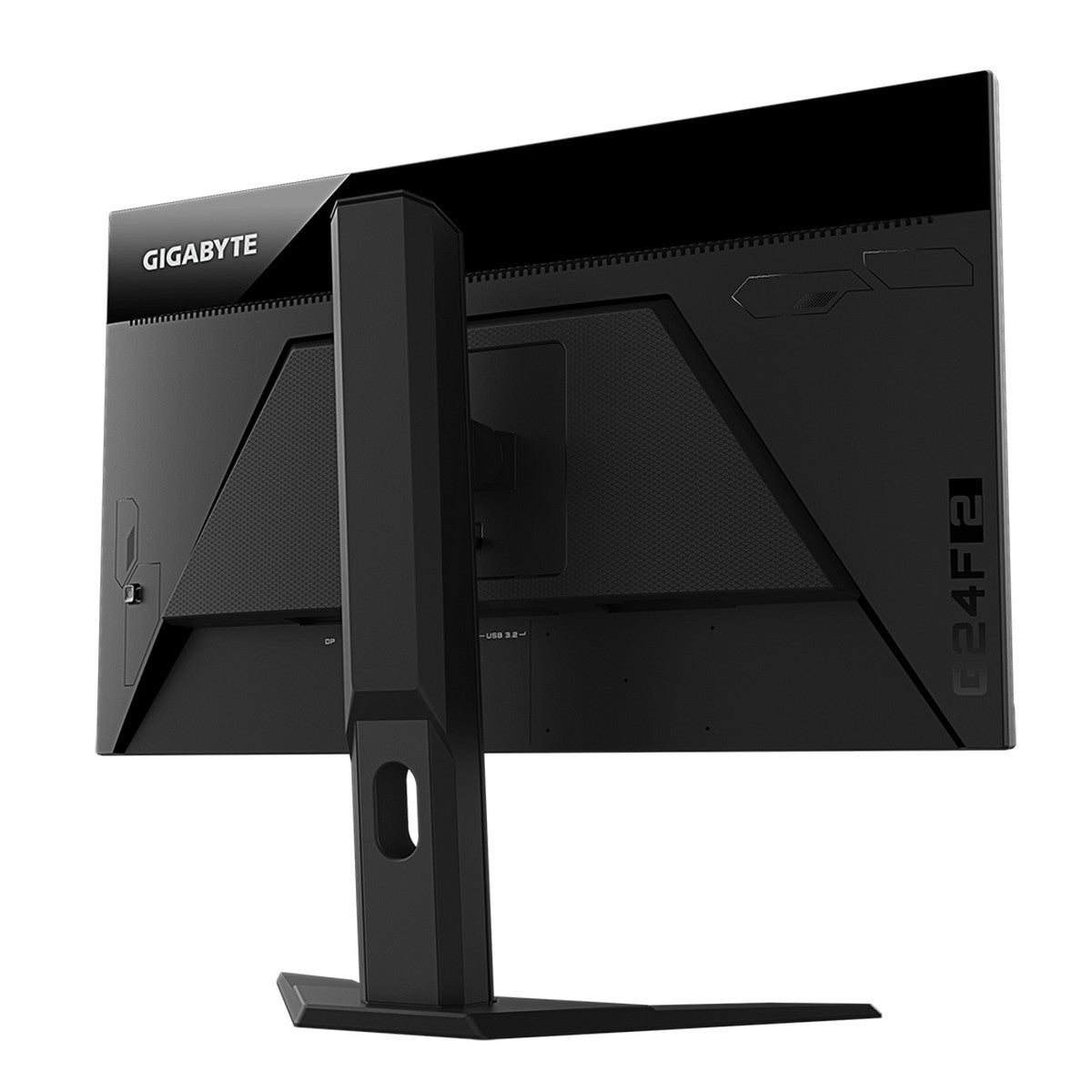

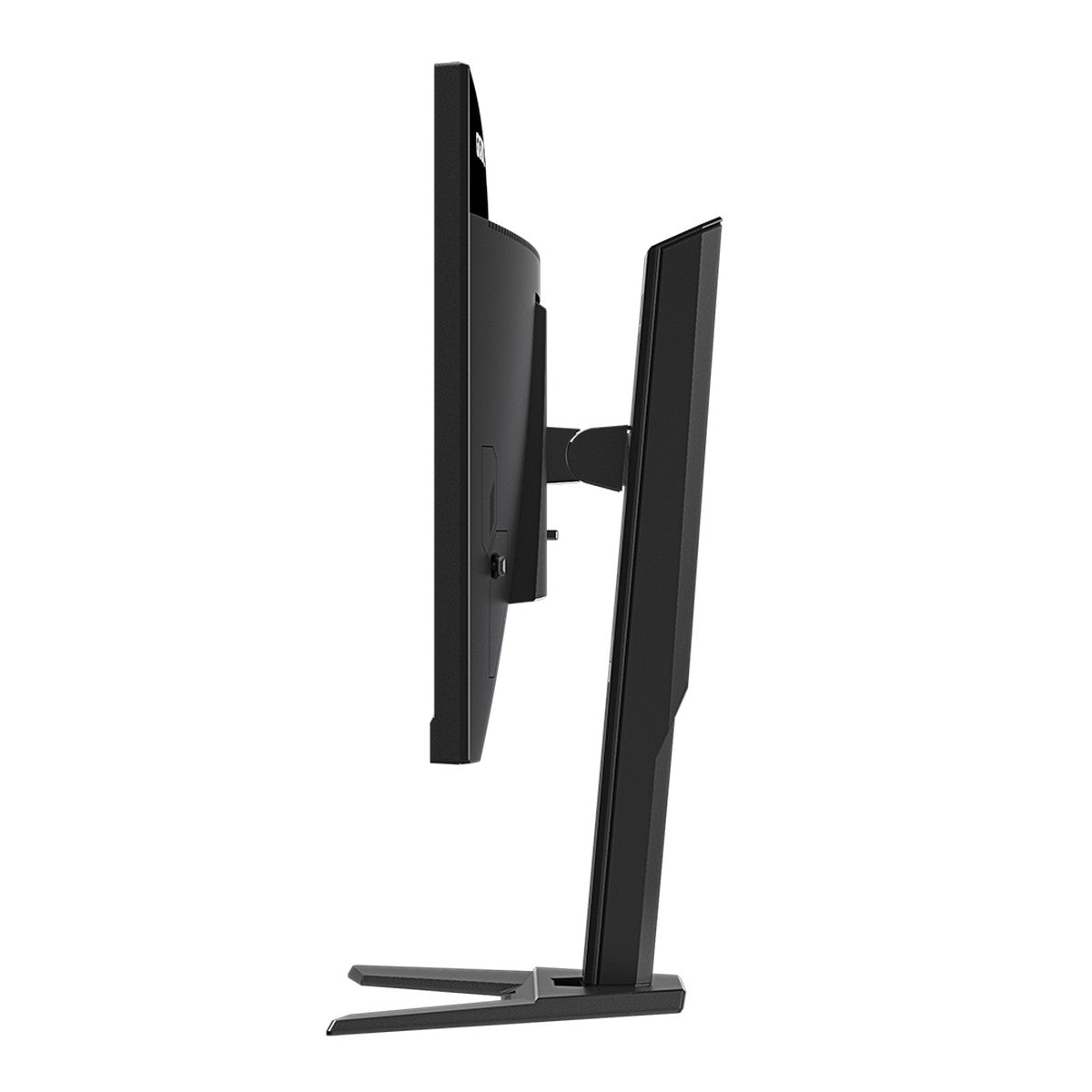

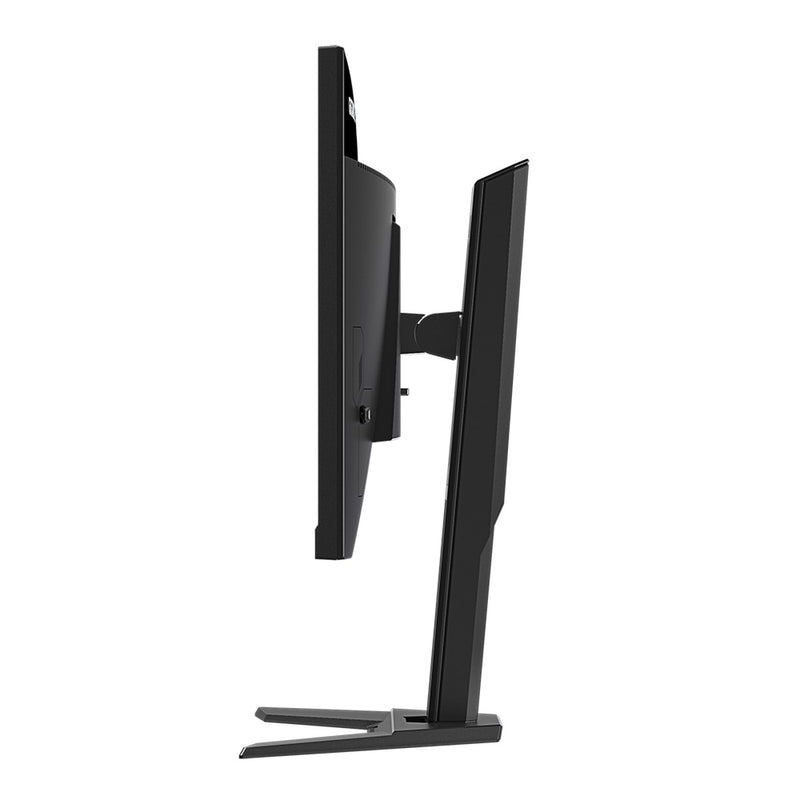

Ergonomic Design
PERFECT VIEWING ANGLE
GIGABYTE Gaming monitor features an exclusive stand that's ergonomically designed to offer extensive range of height and tilt adjustments.

Height Adjustment:130mm
Tilt:-5°~+20°


Specification

Panel Size (diagonal)
23.8”SS IPS
Display Viewing Area (HxV)
527.04x296.46 mm
Panel Backlight/ Type
Edge
Display Surface(non-glare/ glare)
Non-glare
Color Saturation
95% DCI-P3, 125% sRGB
True Resolution
1920 x 1080(FHD)
Pixel Pitch
0.2745(H) x 0.2745(V) mm
Brightness
300 cd/m2(TYP)
Contrast Ratio
1100:1
Viewing Angle
178°(H)/178°(V)
Display Colors
16.7M
Response Time
1ms MPRT
Refresh Rate
165Hz/OC 180Hz
HDR
HDR ready
Flicker-free
Yes
HBR3
No

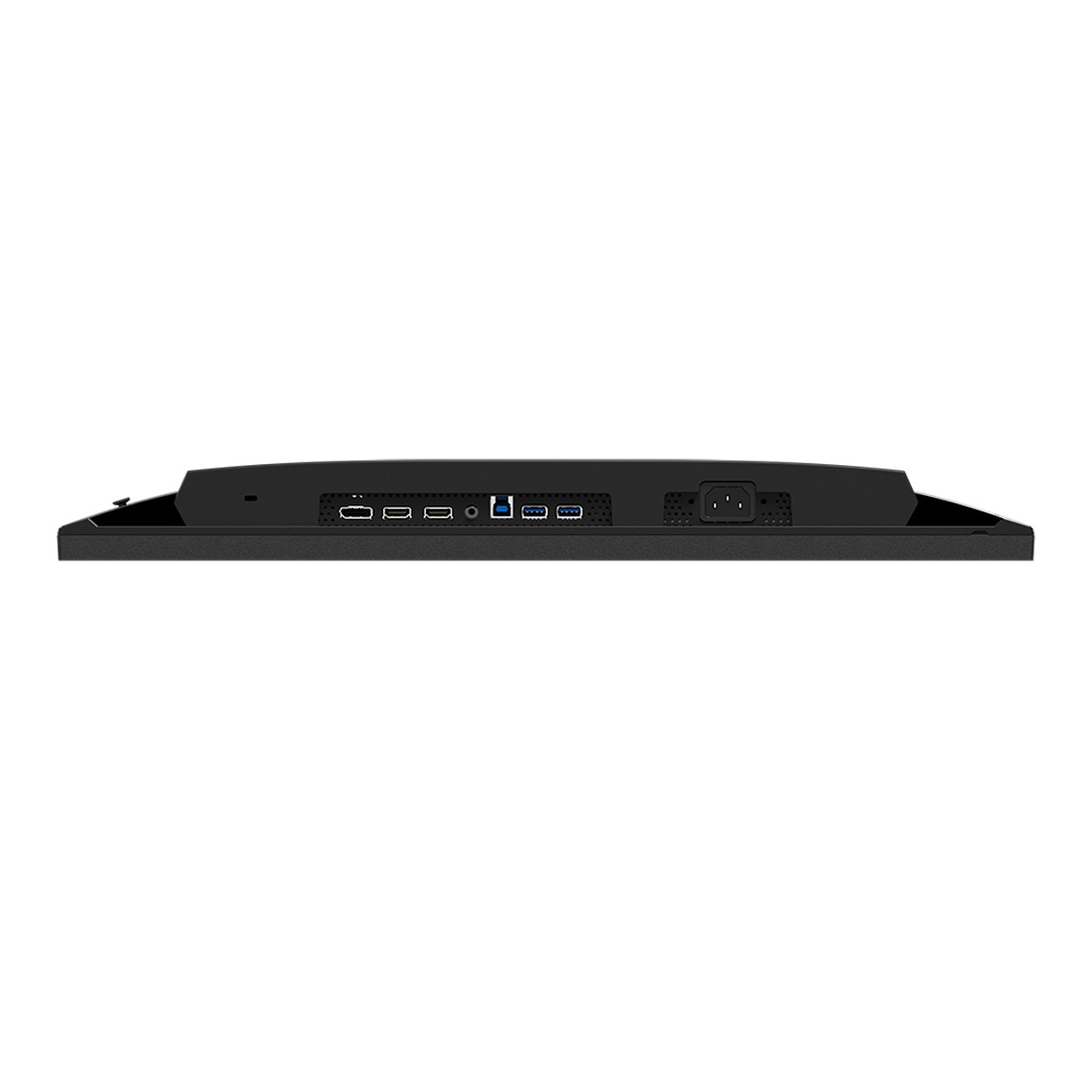

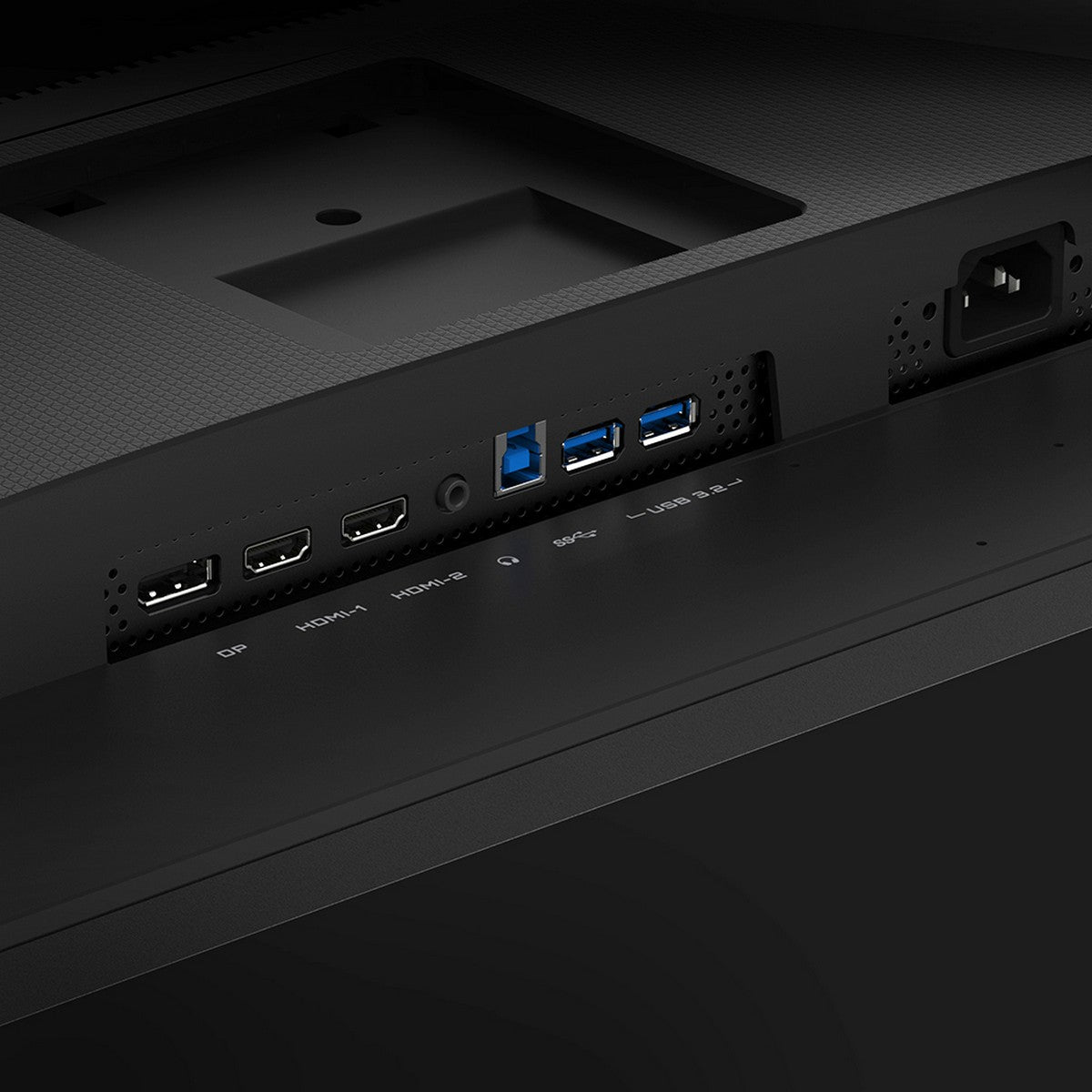

Connectivity
2 x HDMI 2.0
1 x Displayport 1.2 (capable for HDR)
2 x USB 3.2 Gen 1 Downstream ports
1 x USB 3.2 Gen 1 Upstream port
1 x Earphone Jack
Speaker
N/A
Unique Features
OSD Sidekick**
Aim Stabilizer
Black Equalizer
Dashboard
Crosshair
Timer
Counter
Auto-Update
Smart OD
Power Type
Power Board Build-in
Power Consumption
17.5W*
Power Saving Mode
0.5W
Power Off Mode
0.3W
Voltage
100~240Vac
Tilt(angle)
-5°~+20°
Swivel(angle)
N/A
Pivot(angle/direction)
N/A
Height Adjustment (mm)
130 mm
VESA Wall Mounting(mm)
100*100 mm
Kensington lock
Yes
Phys. Dimension with Stand(WxHxD)
541*519.3*136.75 mm
Phys. Dimension w/o stand (WxHxD)
541*326.4*53.4 mm
Box Dimension (WxHxD)
755(W)*470(H)*148(D) mm
Net Weight with stand (Esti.)
4.8 kg
Net Weight without stand (Esti.)
3.2 kg
Gross Weight (Esti.)
7.83 kg
Accessories
Power cable/HDMI cable/USB cable/QSG/Warranty card
Note
*The test condition follows CEC standards.
** To enable OSD Sidekick, it requires connection between PC and monitor with USB (A-Male to B-Male) cable.

Specifications

Dimensions	Length / Depth 136.75 mm Width 541 mm Height 519.3 mm Weight 4.8 kg Standards / Specifications Adaptive Sync Technology (G-SYNC / FreeSync) AMD Freesync, adaptiveSync Efficiency Class EU Energy Efficiency Class E Colour Primary Colour Black Lighting Lighting / RGB No Display Display Size in Inch 24 " Display Resolution Full-HD (1920 x 1080 Pixel) Display Refresh Rate 165 Hz Display Panel Type IPS Colour depth max. 16.7 million colours (8 bit) Colour space 125% sRGB, 95% DCI-P3 Contrast Ratio (Static) 1000:1 Display Response Time 1 ms (MPRT) Display Response Time (MPRT) 1 ms HDR Yes Screen Brightness HDR 300 cd/m² Viewing angle 178° horizontal / 178° vertical Ergonomics Height adjustment Yes Max. Adjustable Height 130 mm Power Supply Power Supply Position Internal Connectivity Peripheral connectors 3.5 mm jack 3-pole, TRS (1x), USB 3.2 Typ-A (2x) External Ports Display Connectors HDMI (2x), Display Port (1x) USB Hub Yes Mounting Vesa standard 100 x 100 mm
Length / Depth	136.75 mm
Width	541 mm
Height	519.3 mm
Weight	4.8 kg
Adaptive Sync Technology (G-SYNC / FreeSync)	AMD Freesync, adaptiveSync

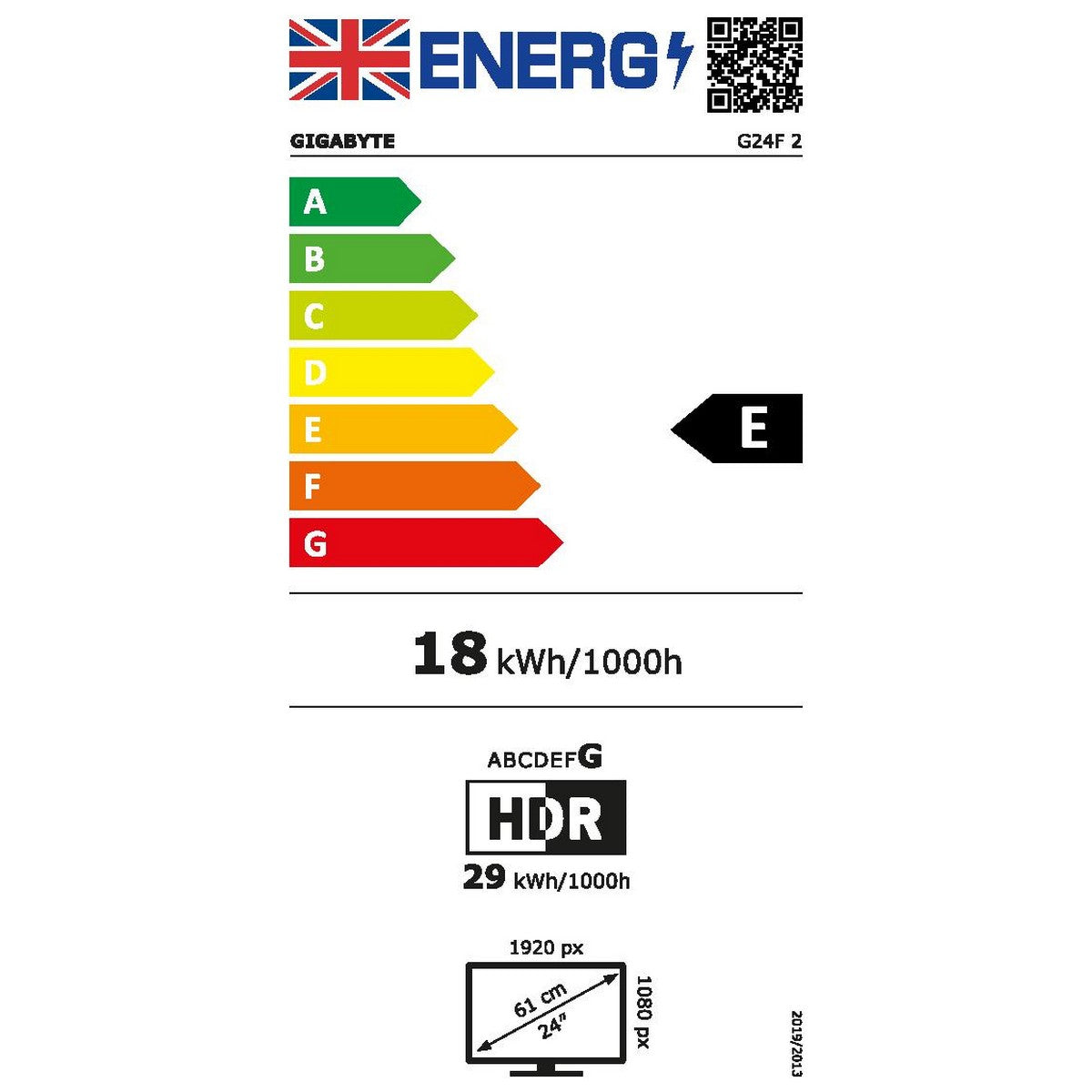

EU Energy Efficiency Class	E
Primary Colour	Black
Lighting / RGB	No
Display Size in Inch	24 "
Display Resolution	Full-HD (1920 x 1080 Pixel)
Display Refresh Rate	165 Hz
Display Panel Type	IPS
Colour depth	max. 16.7 million colours (8 bit)
Colour space	125% sRGB, 95% DCI-P3
Contrast Ratio (Static)	1000:1
Display Response Time	1 ms (MPRT)
Display Response Time (MPRT)	1 ms
HDR	Yes
Screen Brightness HDR	300 cd/m²
Viewing angle	178° horizontal / 178° vertical
Height adjustment	Yes
Max. Adjustable Height	130 mm
Power Supply Position	Internal
Peripheral connectors	3.5 mm jack 3-pole, TRS (1x), USB 3.2 Typ-A (2x)
Display Connectors	HDMI (2x), Display Port (1x)
USB Hub	Yes
Vesa standard	100 x 100 mm
