NED408SS19T2-1032Z, Boost Clock: 2550MHz, Memory 16GB 23000MHz GDDR6X, Cuda Cores: 10240, VR Ready, PhysX/CUDA Enabled, NVIDIA Ada LoveLace, 4nm Process, Real-Time Ray Tracing, 3 Years Warranty. Gamers Reborn. Fly Your Gaming DNA.

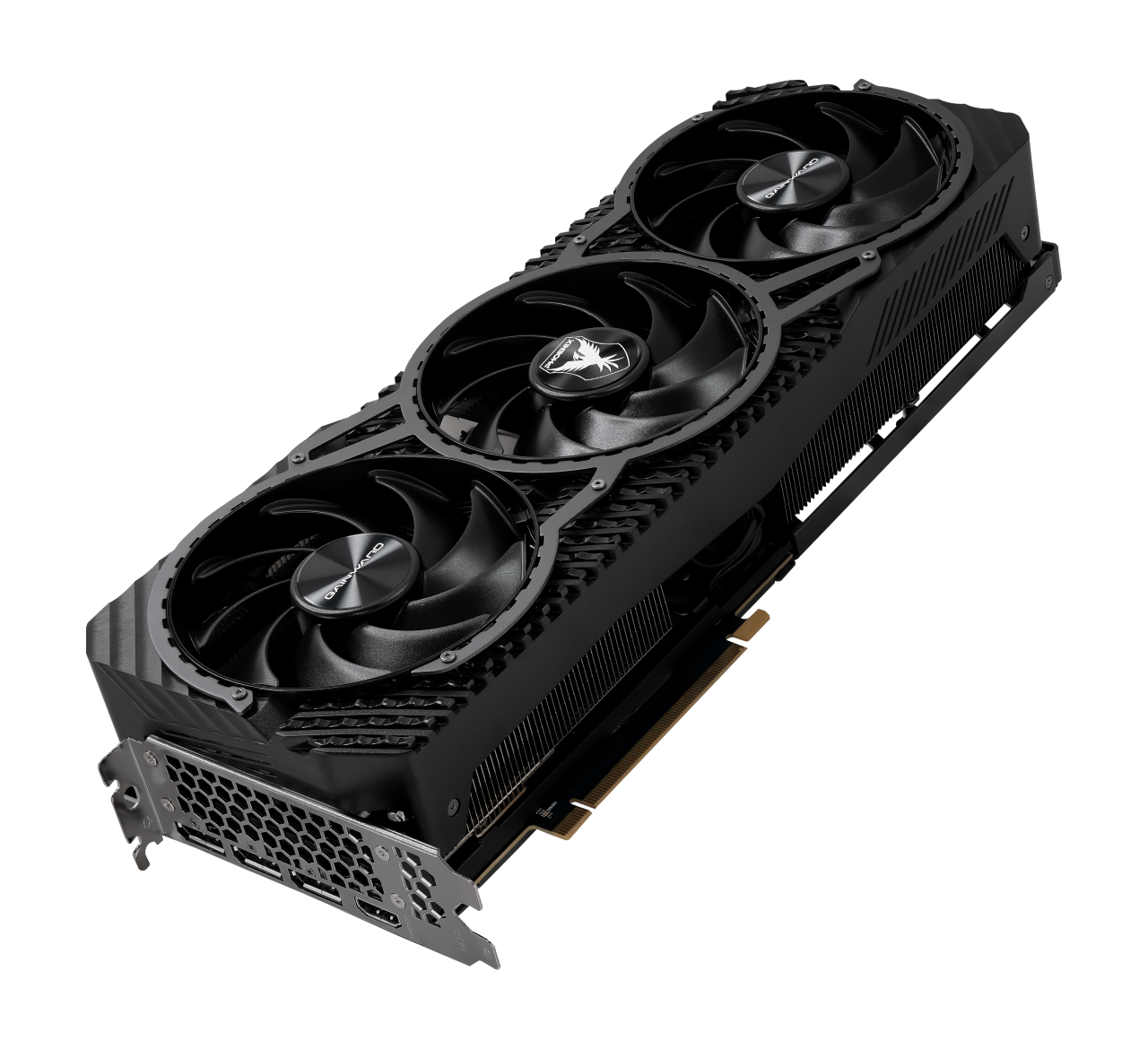

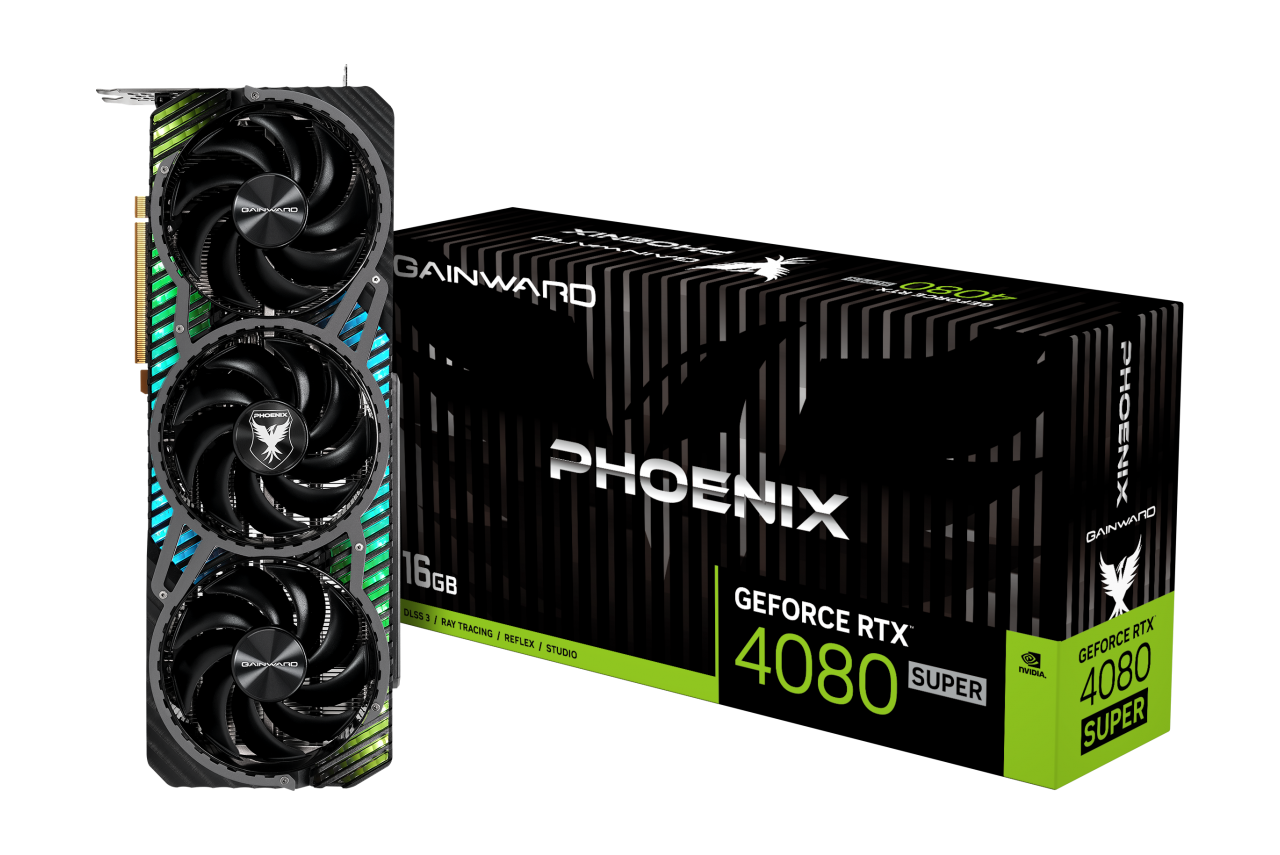

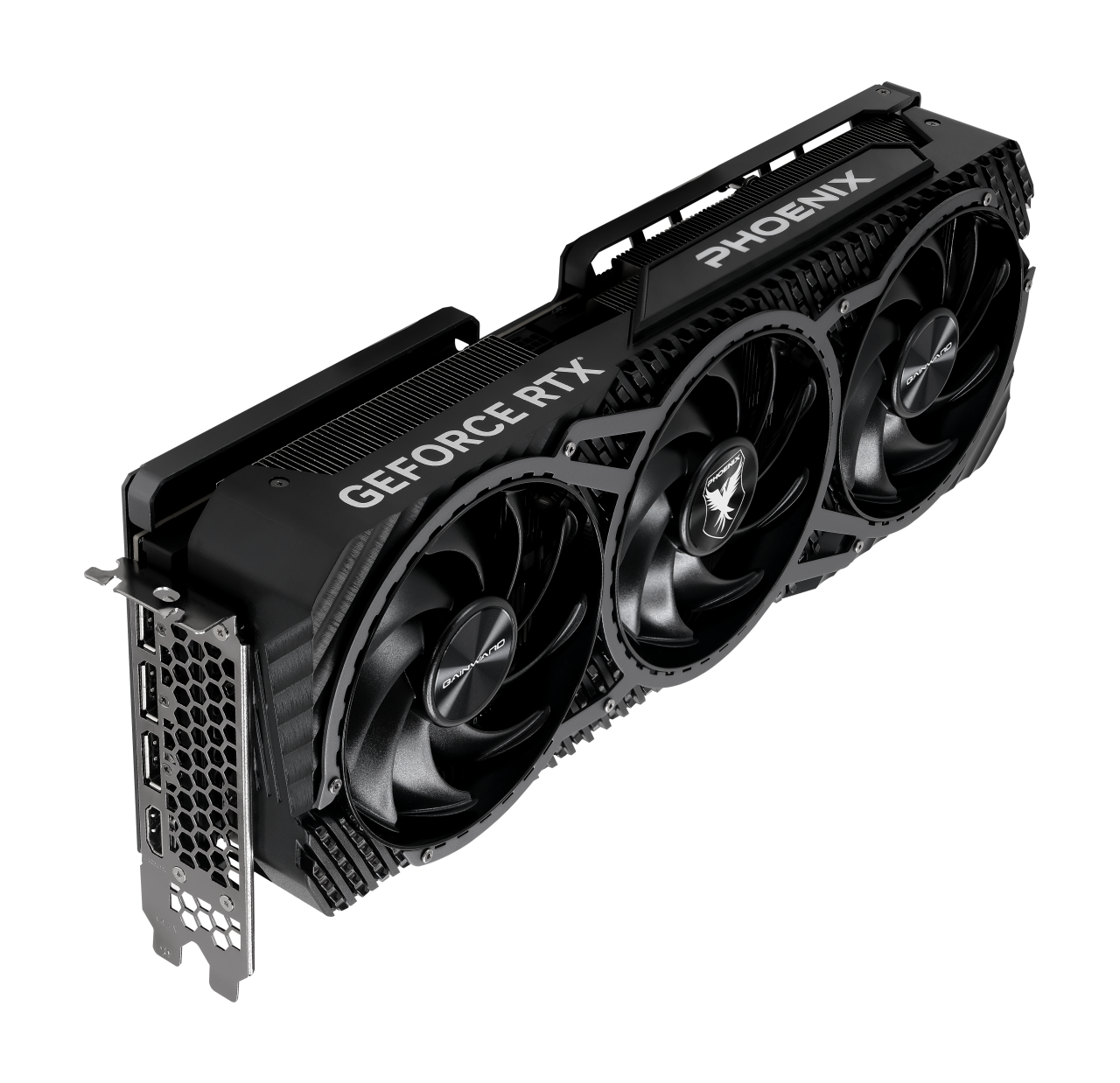

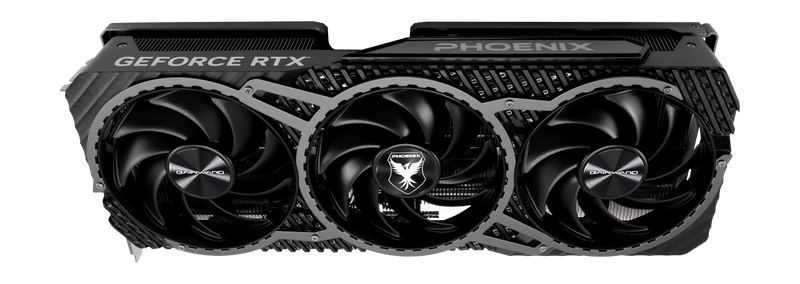

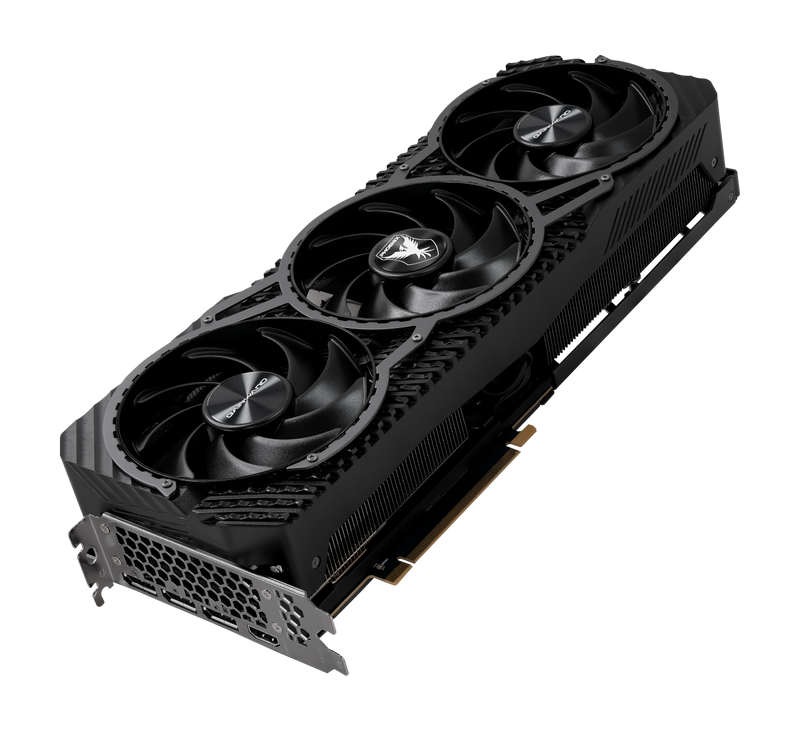

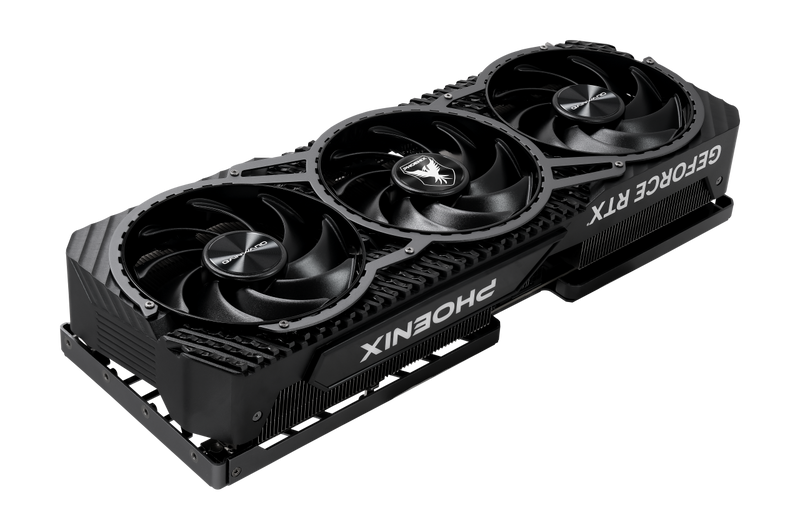

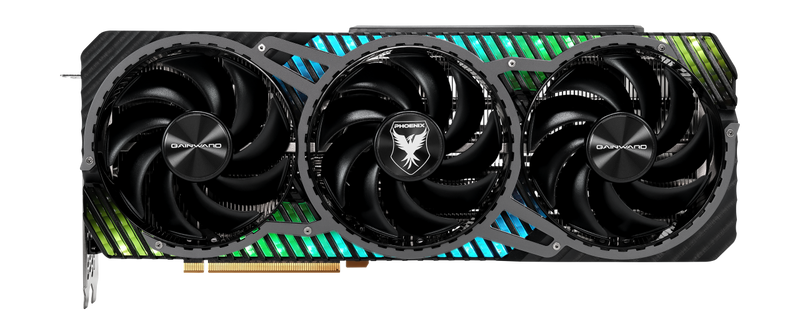

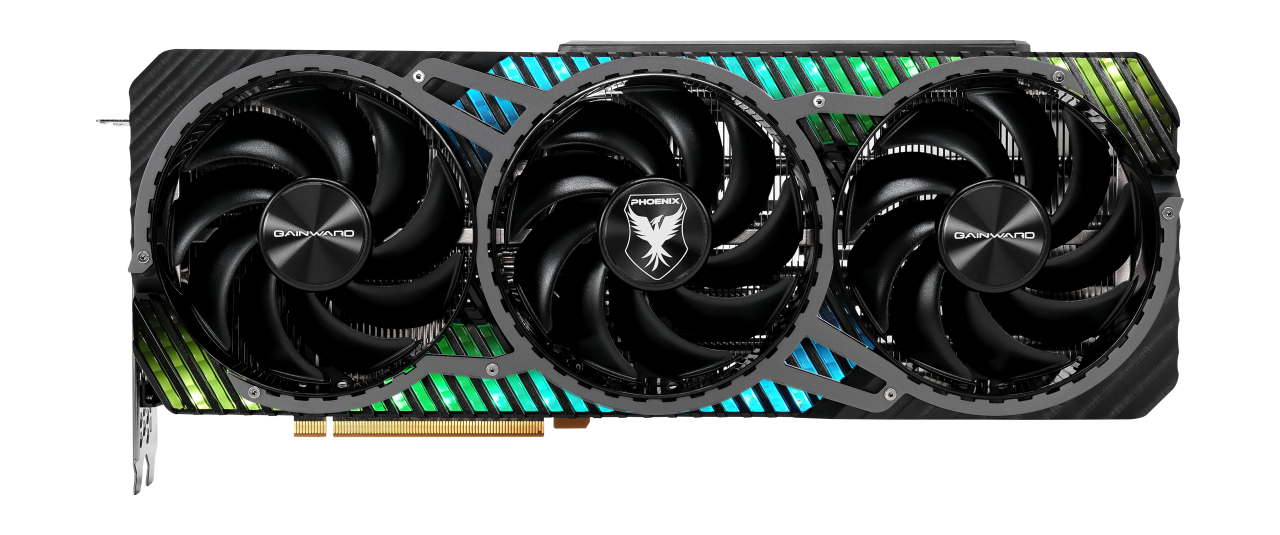

The GeForce RTX 4080 SUPER Phoenix with DLSS 3 is an excellent alternative to the stealthy black Phantom lineup. The large ARGB lighting capacity on the Phoenix suits the users who prefer a more lively gaming style.

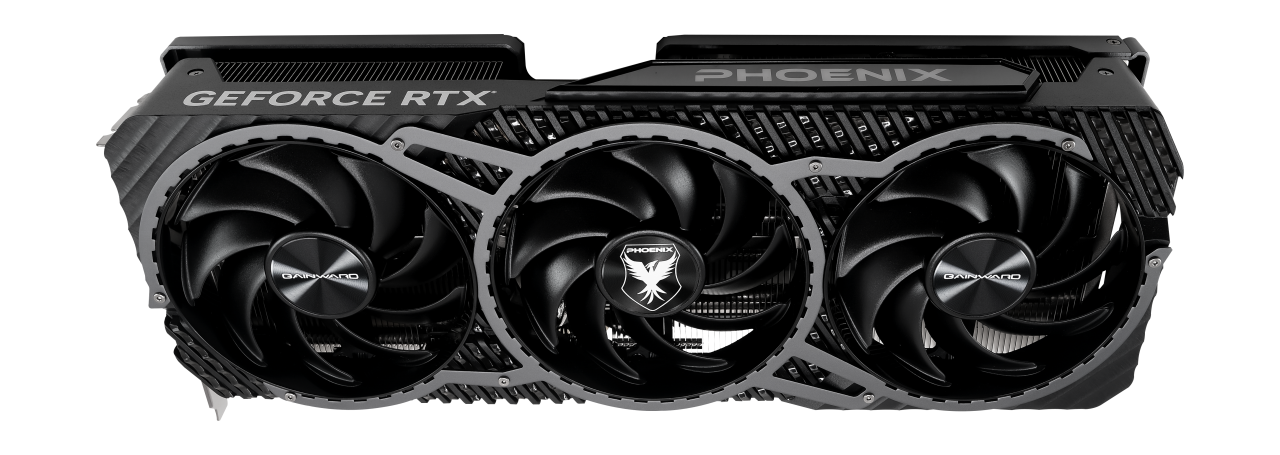

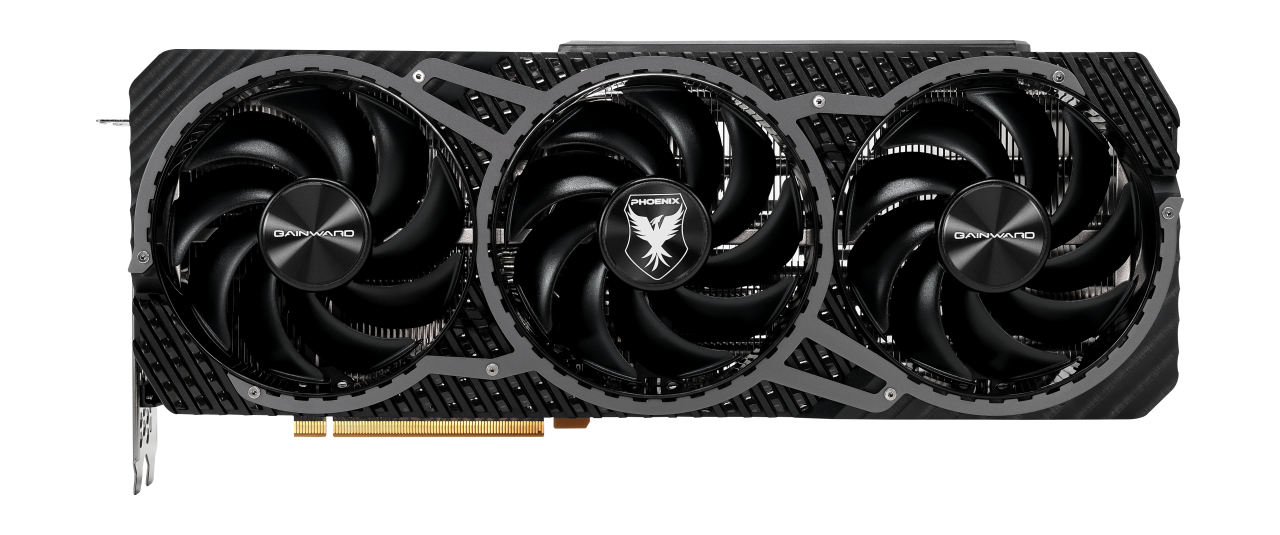

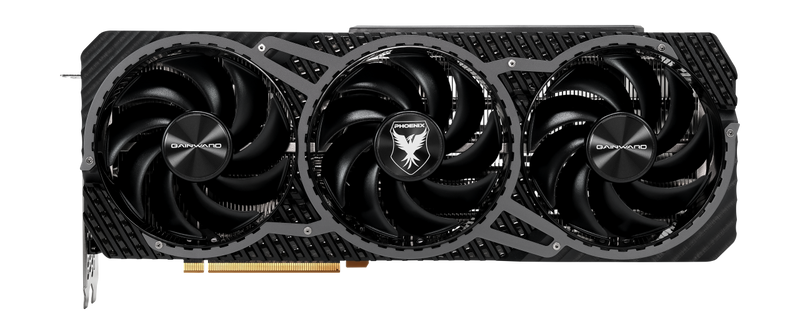

Utilizing the whole new Cyclone Fan and Diffuser Fins, the thermal design on the GeForce RTX 4080 SUPER Phoenix ensures steady airflow, efficient heat dissipation and low acoustic level even under heavy-loading gaming environment.

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture, and full ray tracing.

Specifications

Processor	CUDA Yes CUDA cores 10240 Graphics processor family NVIDIA Graphics processor GeForce RTX 4080 SUPER Processor frequency 2295 MHz Processor boost clock speed 2550 MHz Maximum resolution 7680 x 4320 pixels Parallel processing technology support Not supported Maximum displays per videocard 4 Memory Discrete graphics card memory 16 GB Graphics card memory type GDDR6X Memory bus 256 bit Memory clock speed 11500 MHz Data transfer rate 23 Gbit/s Memory bandwidth (max) 736 GB/s Ports & interfaces Interface type PCI Express x16 4.0 HDMI ports quantity 1 HDMI version 2.1a DisplayPorts quantity 3 DisplayPort version 1.4a Performance TV tuner integrated No DirectX version 12 Ultimate OpenGL version 4.6 HDCP Yes HDCP version 2.3 Dual Link DVI No NVIDIA G-SYNC Yes NVIDIA Ansel Yes Design Cooling type Active Number of fans 3 fan(s) Form factor Full-Height/Full-Length (FH/FL) Number of slots 3.1 Illumination Yes Illumination colour Multi Product colour Black Power Minimum system power supply 850 W Power consumption (typical) 320 W Supplementary power connectors 1x 16-pin System requirements Windows operating systems supported Windows 10, Windows 11 Linux operating systems supported Yes Weight & dimensions Length 328.9 mm Depth 63.6 mm Height 131.1 mm Packaging content Cables included Power GPU Model GPU Series Name NVIDIA GeForce RTX 4080 Super Graphics Chip AD103-400 Manufacturing Process 5 nm Shader Units 10240 Tensor Cores 320 Raytracing Cores / Ray Acceleratorss 80 GPU Memory Type GDDR6X Slot Type Standard PCIe 4.0 GPU Memory Size (GB) 16 GPU Memory Interface (bit) 256 GPU Memory Bandwidth (GB/s) 736.3 GPU Memory Clock (MHz) 1438 GPU Memory Clock Effective (Gbps) 23
CUDA	Yes
CUDA cores	10240
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4080 SUPER
Processor frequency	2295 MHz
Processor boost clock speed	2550 MHz
Maximum resolution	7680 x 4320 pixels
Parallel processing technology support	Not supported
Maximum displays per videocard	4
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR6X
Memory bus	256 bit
Memory clock speed	11500 MHz
Data transfer rate	23 Gbit/s
Memory bandwidth (max)	736 GB/s

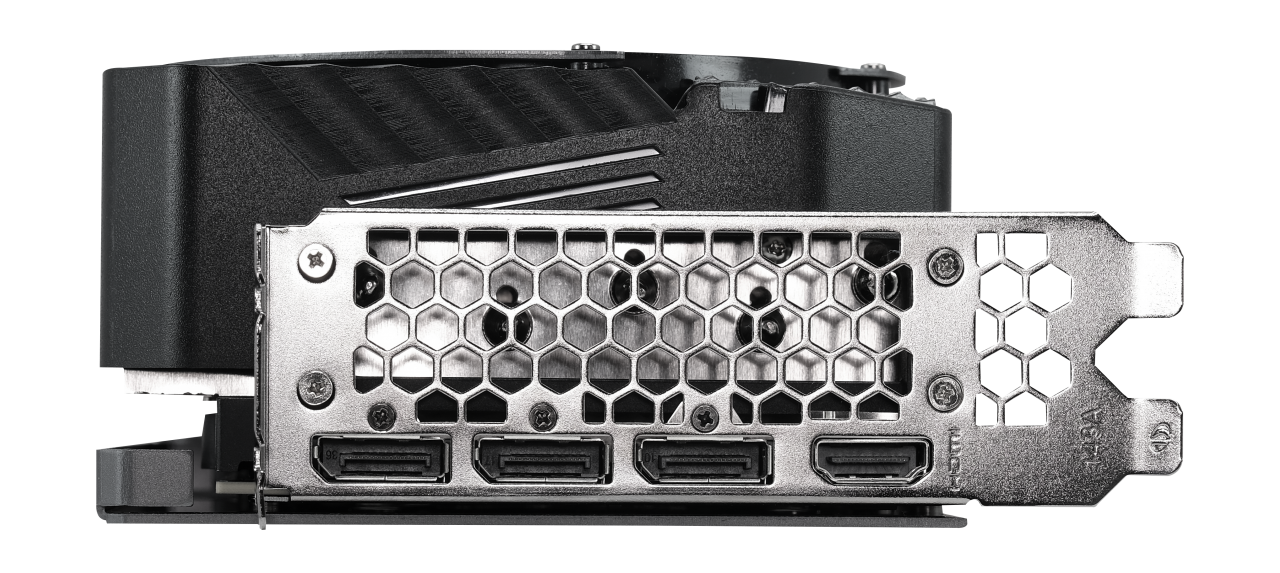

Interface type	PCI Express x16 4.0
HDMI ports quantity	1
HDMI version	2.1a
DisplayPorts quantity	3
DisplayPort version	1.4a
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
HDCP version	2.3
Dual Link DVI	No
NVIDIA G-SYNC	Yes
NVIDIA Ansel	Yes
Cooling type	Active
Number of fans	3 fan(s)
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	3.1
Illumination	Yes
Illumination colour	Multi
Product colour	Black
Minimum system power supply	850 W
Power consumption (typical)	320 W
Supplementary power connectors	1x 16-pin
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Length	328.9 mm
Depth	63.6 mm
Height	131.1 mm
Cables included	Power
GPU Series Name	NVIDIA GeForce RTX 4080 Super
Graphics Chip	AD103-400
Manufacturing Process	5 nm
Shader Units	10240
Tensor Cores	320
Raytracing Cores / Ray Acceleratorss	80
GPU Memory Type	GDDR6X
Slot Type Standard	PCIe 4.0
GPU Memory Size (GB)	16
GPU Memory Interface (bit)	256
GPU Memory Bandwidth (GB/s)	736.3
GPU Memory Clock (MHz)	1438
GPU Memory Clock Effective (Gbps)	23
