SKU GCH-FTL-06188EAN 7340172706700MPN FD-CH-RE1M-03
Overview

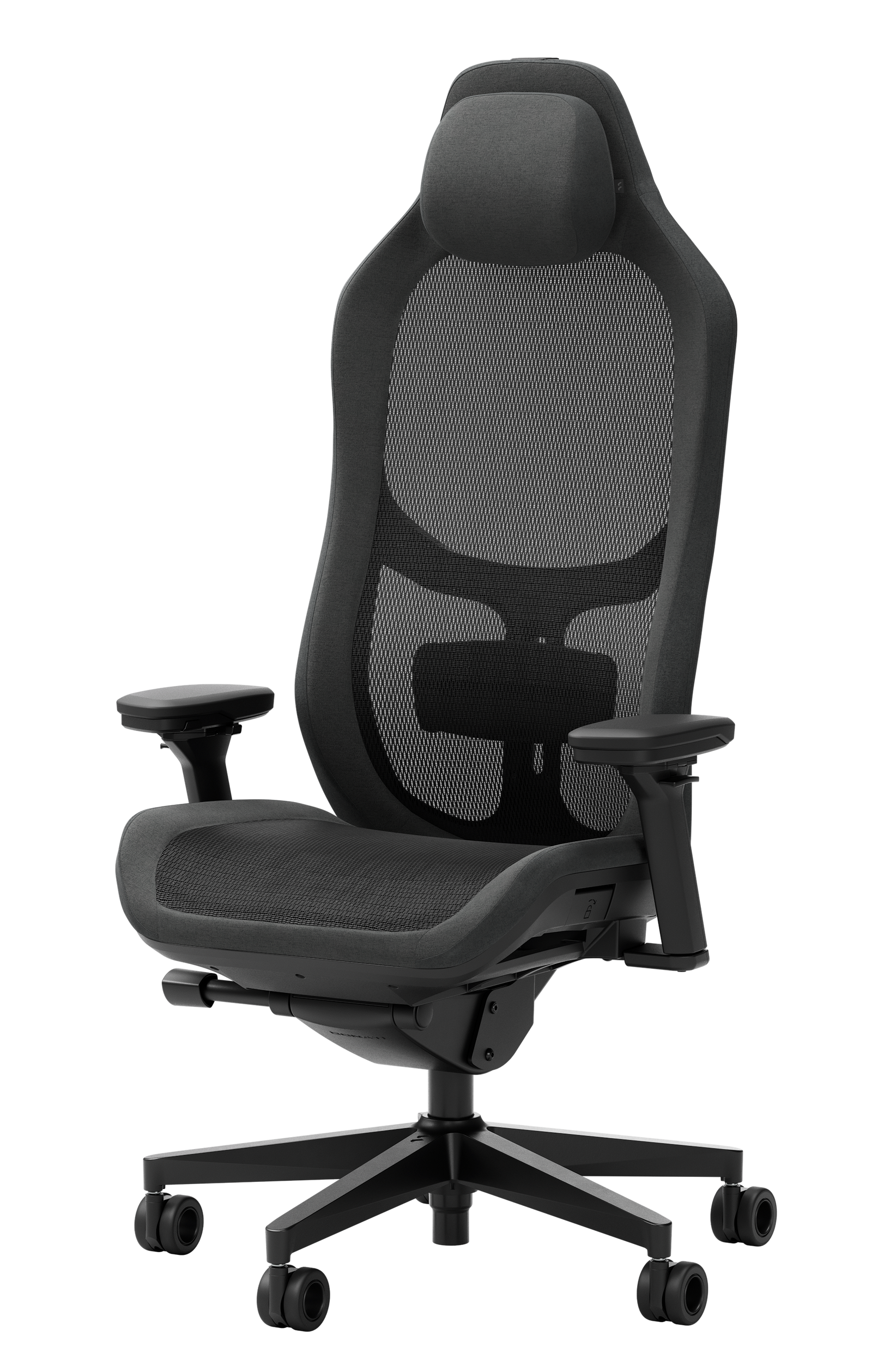

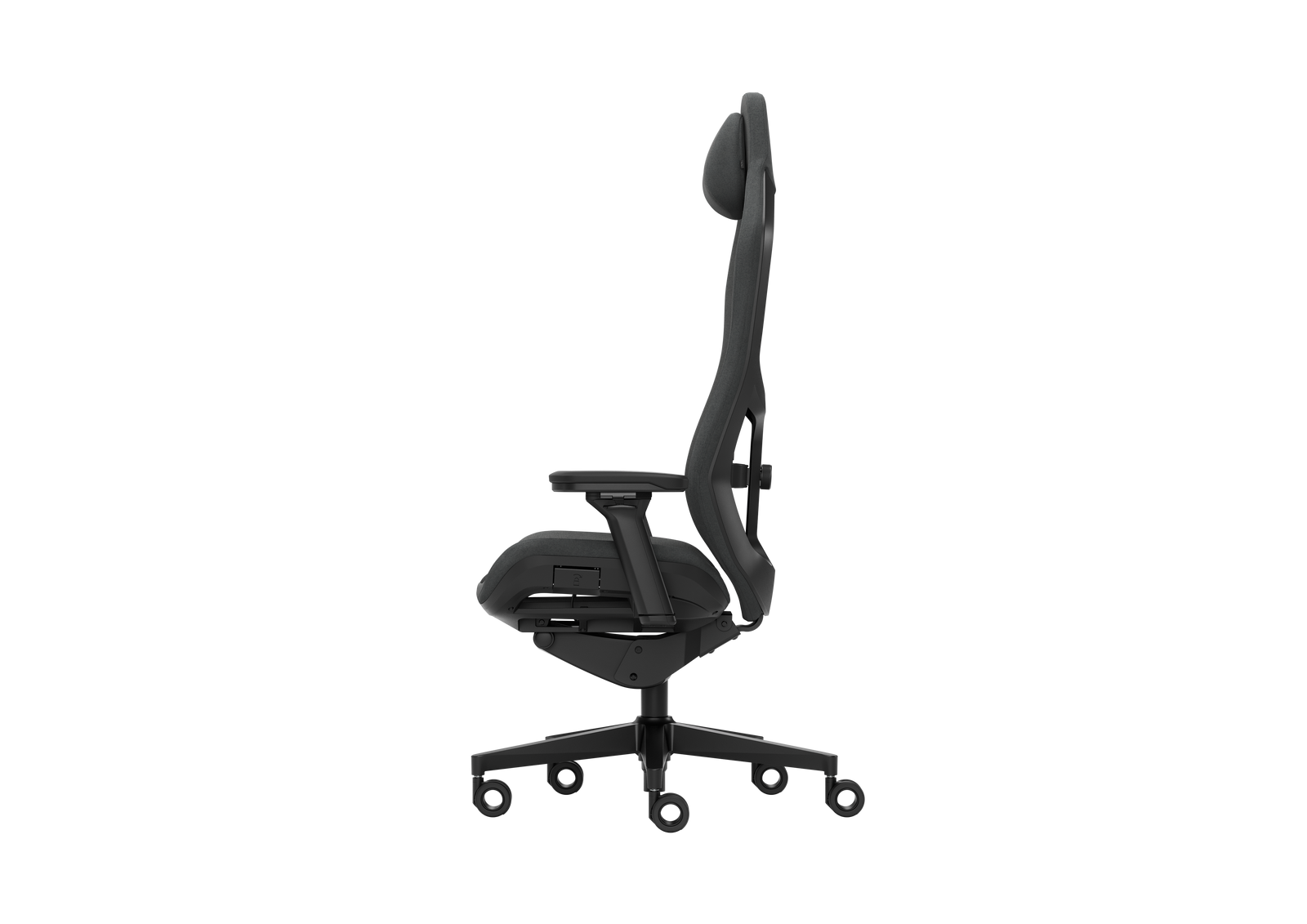

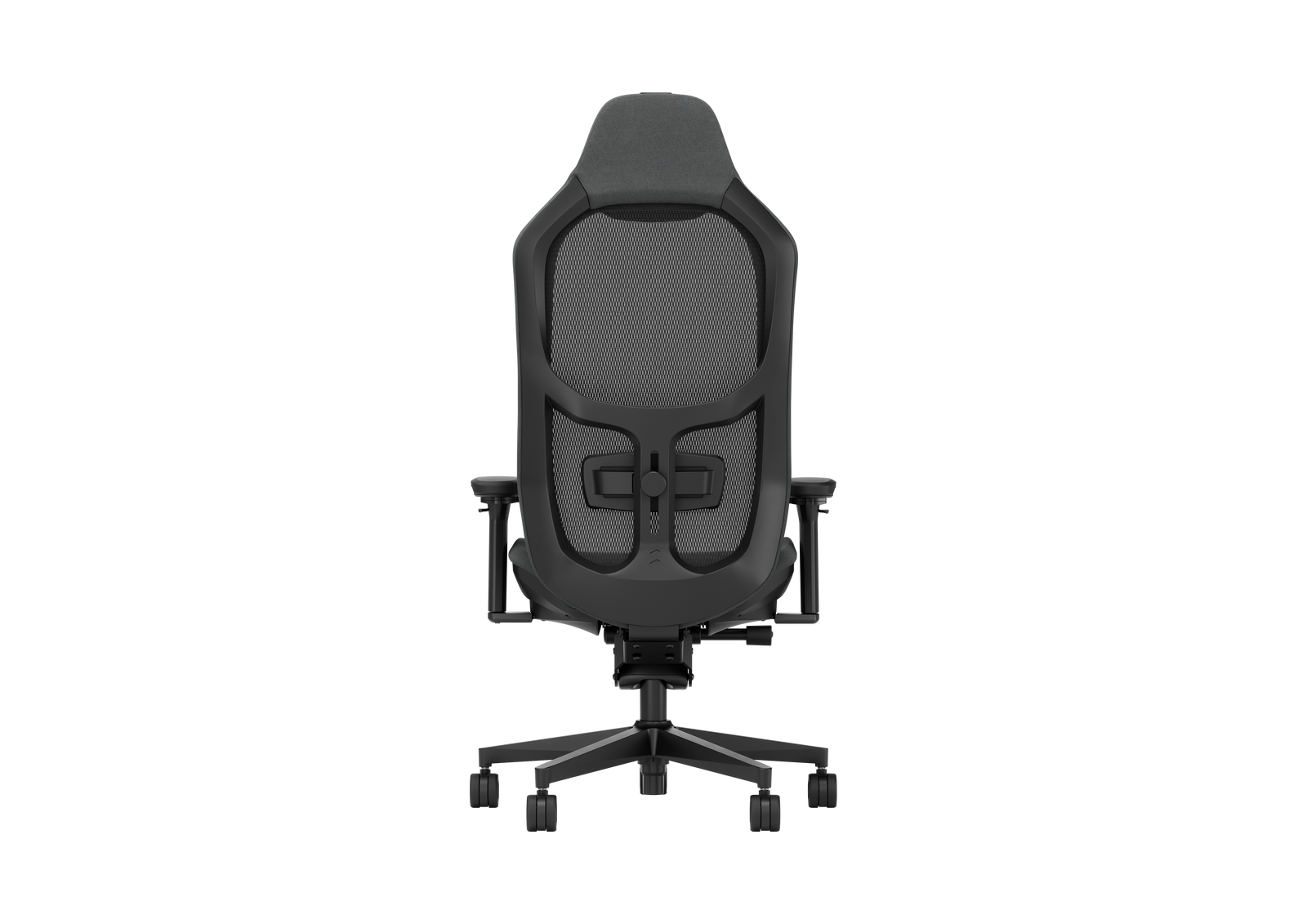

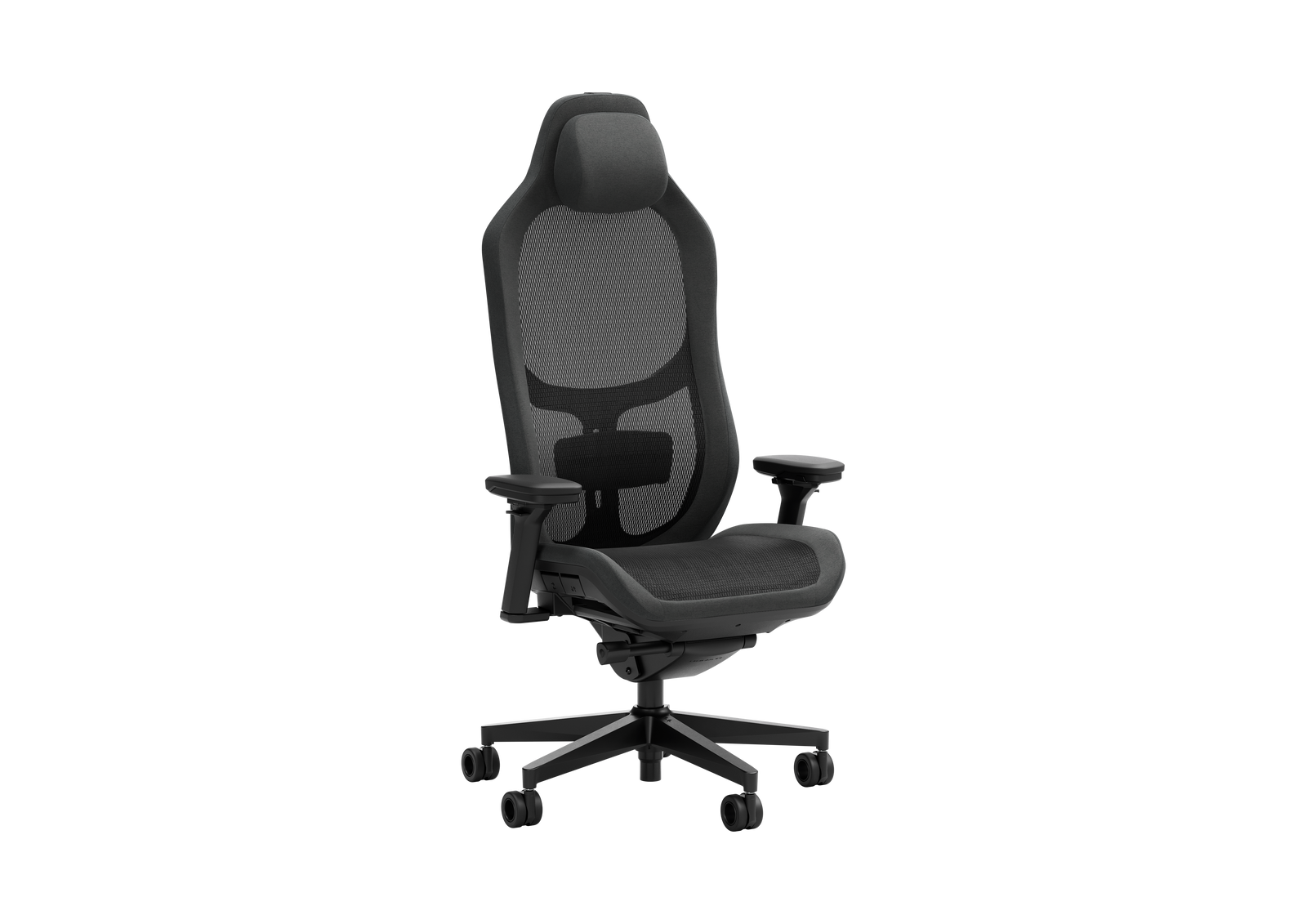

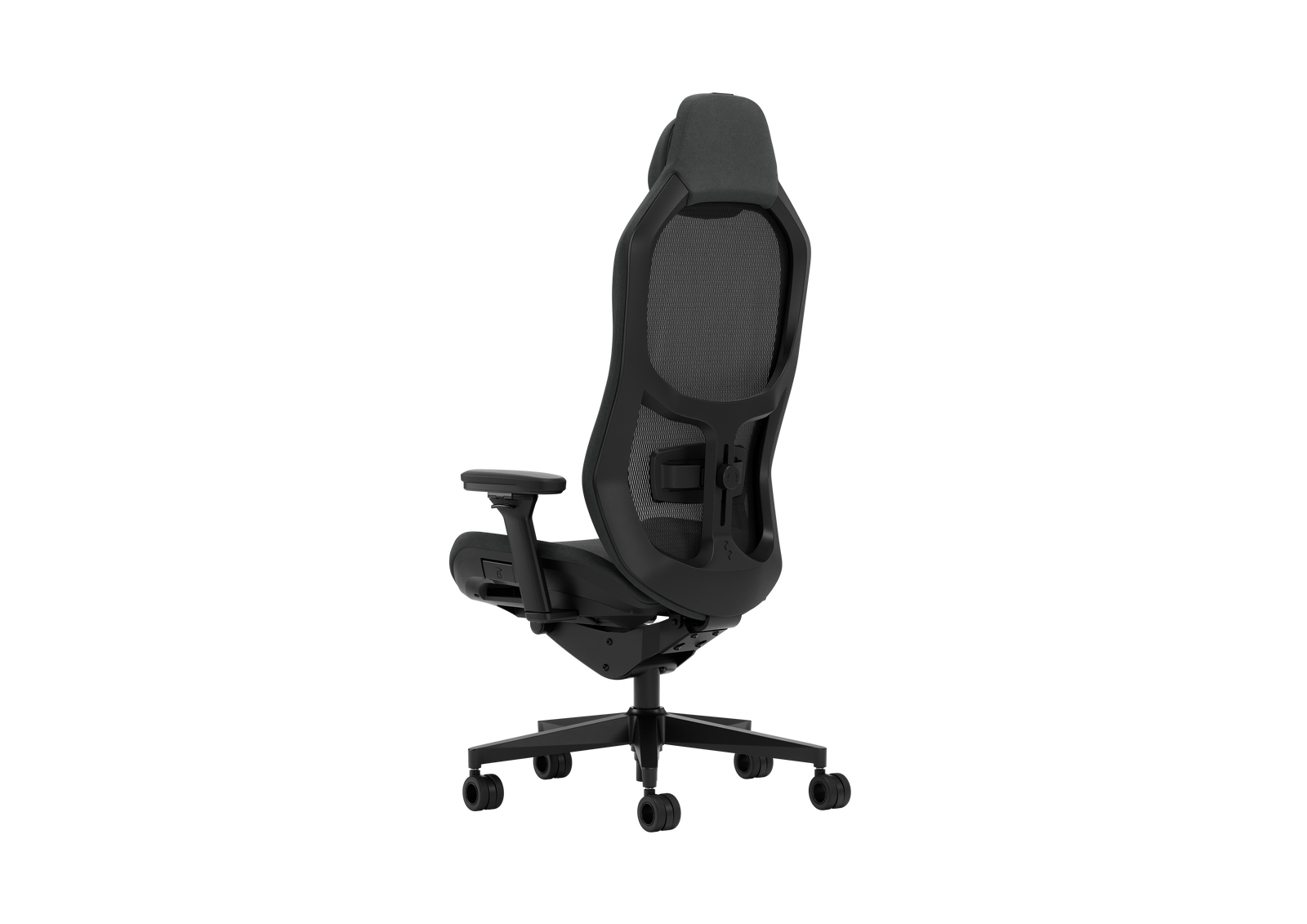

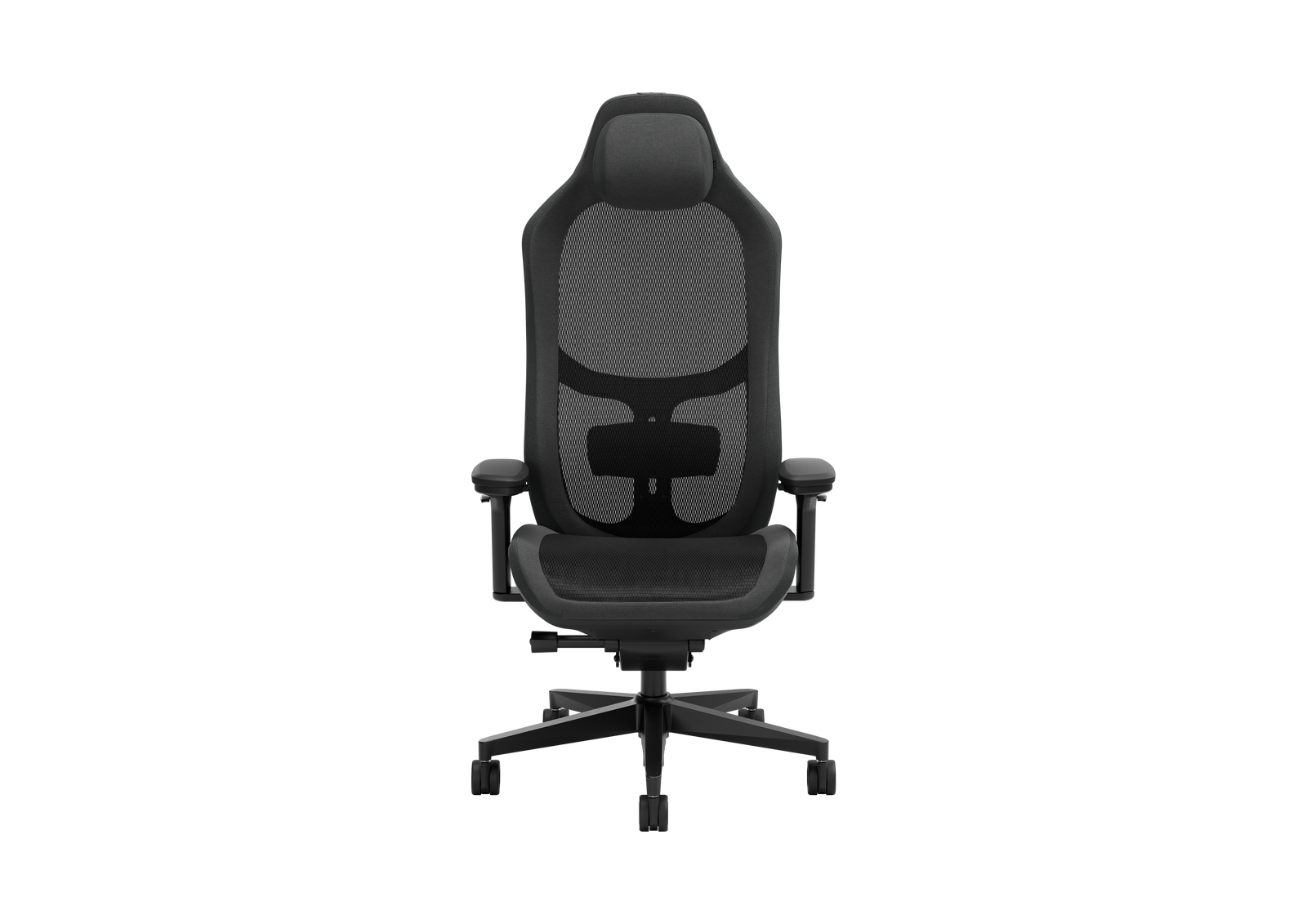

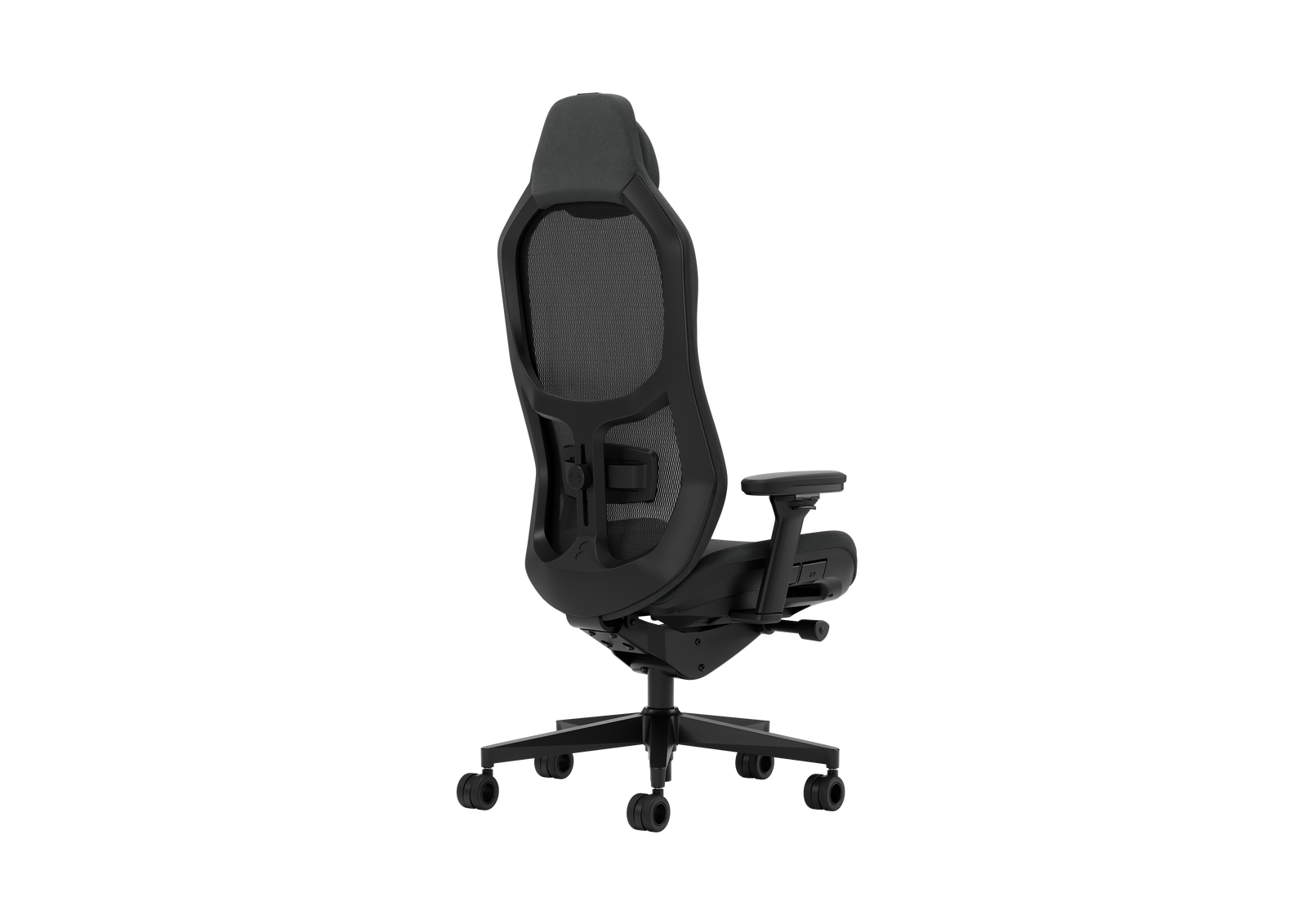

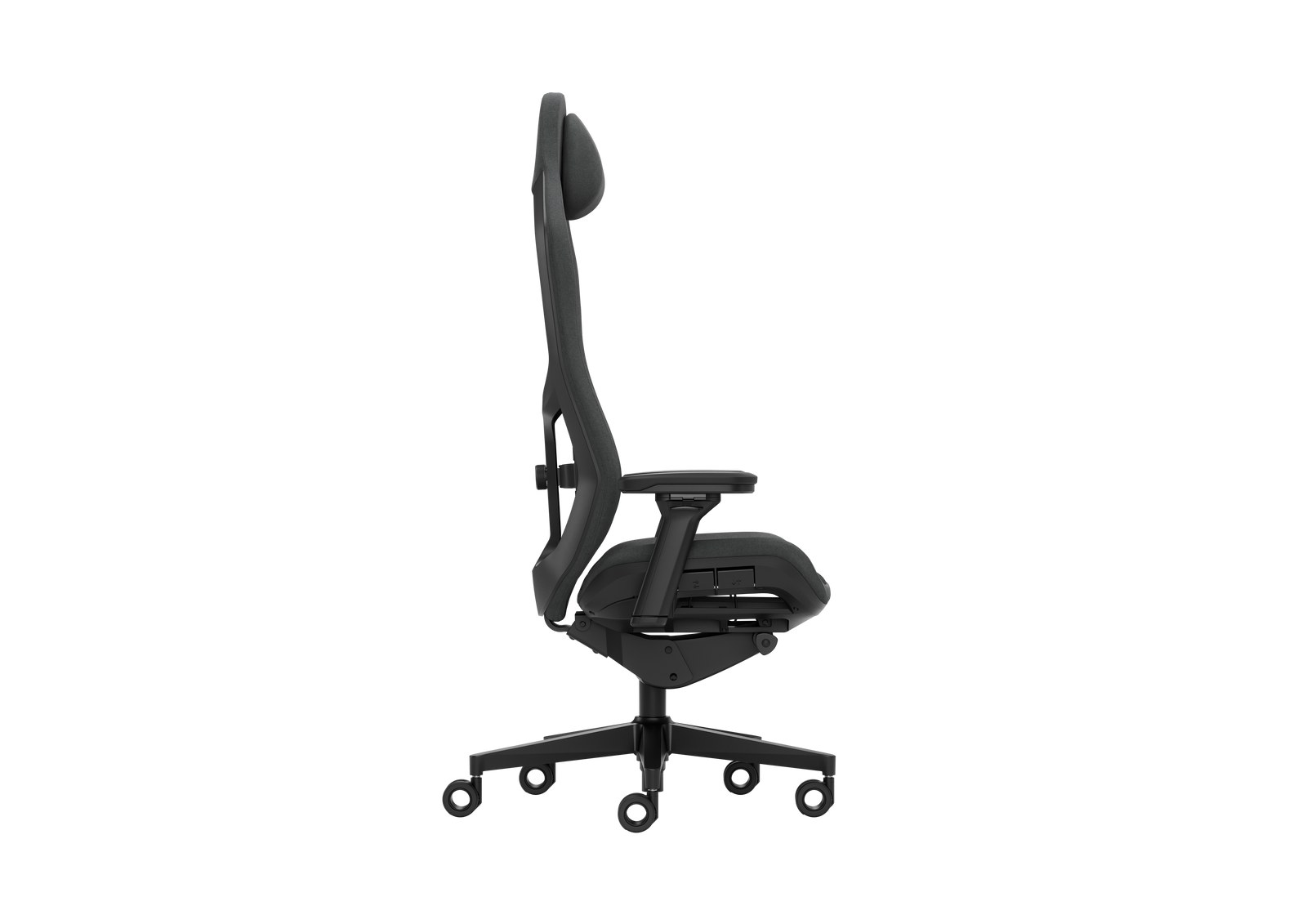

Fractal Design Refine Mesh Dark: premium gaming-chair blending sleek ergonomic design, adjustable, breathable mesh, memory foam headrest, lumbar support and 5-year frame warranty.
| Category | Specification |
|---|---|
| Frame | Glass fiber reinforced (20-30%) PP/PA |
| Seat | Cold cured foam (Mesh: Mesh) |
| Back | Cold cured foam (Mesh: Mesh) |
| Headrest | Memory foam |
| Wheelbase | Aluminum |
| Casters | Hubless 65 mm with soft PU wheels |
| Gas Piston | 120 mm Class 4 |
| Mechanism | Synchro-tilt |
| Armrests | Plastic cover with aluminum mechanism and steel bracket |
| Arm Caps | Soft PU foam with TPU cover |
| Lumbar Support | Height and depth adjustable |
| Fabric Cover | Mesh: Nylon reinforced mesh, Fabric: Woven non-organic fabric, Alcantara®: Alcantara® |
| Seat Height | 475–595 mm (Mesh: 490–610 mm) |
| Seat Depth | 425–480 mm (Mesh: 450–505 mm) |
| Armrest Height | 160–270 mm (Mesh: 145–255 mm) |
| Armrest to Armrest | 420–560 mm (Mesh: 430–560 mm) |
| Armrest Rotation | ±15° |
| Armrest Depth Adjustability | 60 mm |
| Lumbar Height Adjustability | 110 mm |
| Lumbar Depth Adjustability | 20 mm |
| Max Back Tilt | 125° (~130° under load) |
| Tilt Mechanism | Donati Dynamic |
| Back/Seat Tilt Ratio | 2:1 |
| Lockable Tilt Positions | 11 |
| Free Tilt | Yes |
| Headrest Height Adjustability | 120 mm |
| Headrest Width | 210 mm |
| Headrest Depth | 80 mm |
| Headrest Height | 185 mm |
| Lumbar Support Pad | 110 mm (H), 260 mm (W) |
| Seat Pad | 540 mm × 460 mm (Mesh: 550 mm × 465 mm) |
| Seat Width | 435 mm (between seams) |
| Arm Cap | 250 mm × 110 mm |
| Back Height (floor) | 1340–1465 mm |
| Back Height (seat) | 875 mm (Mesh: 860 mm) |
| Back Width | 530 mm |
| Caster Size | 65 mm |
| Wheelbase Diameter | 700 mm |
| Certifications | Bifma X5.1, EN1335-1, BS5852 OR CAL TB 117 + EN1021-1/-2 |
| Weight Capacity | 125 kg |
| Warranty | 5 years (mechanical), 3 years (upholstery/fabric/mesh) |
| Recommended User Height | 1.65 m – 2.0 m |
| Recommended User Weight | 60–125 kg |
| Net Weight | 25.7 kg (Alcantara®: 25.8 kg) |
| Gross Weight | 35.7 kg (Alcantara®: 35.8 kg) |
| Package Dimensions | 107 × 68 × 39 cm |
| Package Contents | Seat base, backrest, wheelbase, headrest, accessory box, Quick Start Guide, Designers' Note |
| Large Accessory Box | Gas lift, casters (5x), Small Accessory Box, armrests (2x), User Manual, Red Stop Note |
| Small Accessory Box | Allen Key, 6x armrest screws, 2x backrest screws |
Specifications
| Adjustability | Tilt function Yes Adjustable Back Yes Adjustable armrests Yes Adjustable height Yes Colour Primary Colour Black Chair Specifications Backrest Height 86 cm Backrest Width (Inner Dimension) 53 cm Highest Seating Position (Adjustable) 61 cm Lowest Seating Position (Adjustable) 49 cm Armrest Height (Minimum) 145 cm Seat Width (Inner Dimension) 43.5 cm Seat Width (Outer Dimension) 55 cm Standards / Specifications Weight Limit 125 kg Materials Upholstery Mesh Base Material Aluminium Dimensions Weight 25.7 kg |
|---|---|
| Tilt function | Yes |
| Adjustable Back | Yes |
| Adjustable armrests | Yes |
| Adjustable height | Yes |
| Primary Colour | Black |
| Backrest Height | 86 cm |
| Backrest Width (Inner Dimension) | 53 cm |
| Highest Seating Position (Adjustable) | 61 cm |
| Lowest Seating Position (Adjustable) | 49 cm |
| Armrest Height (Minimum) | 145 cm |
| Seat Width (Inner Dimension) | 43.5 cm |
| Seat Width (Outer Dimension) | 55 cm |
| Weight Limit | 125 kg |
| Upholstery | Mesh |
| Base Material | Aluminium |
| Weight | 25.7 kg |
Specifications
| Manufacturer | Fractal Design |
|---|---|
| Manufacturer part number | FD-CH-RE1M-03 |
| OcUK SKU | GCH-FTL-06188 |
| EAN | 7340172706700 |
| Primary Colour | Black |
Product reviews
No review for this product yet.
Warranty & Delivery
Click & Collect
Collect from OcUK HQ, or one of thousands of DPD Pickup Points around the UK.*
Full Delivery InformationIE Delivery
We ship to Ireland, with tax and customs included in the price you pay.*
Full Delivery Information*Exclusions and product restrictions apply
Fractal Design

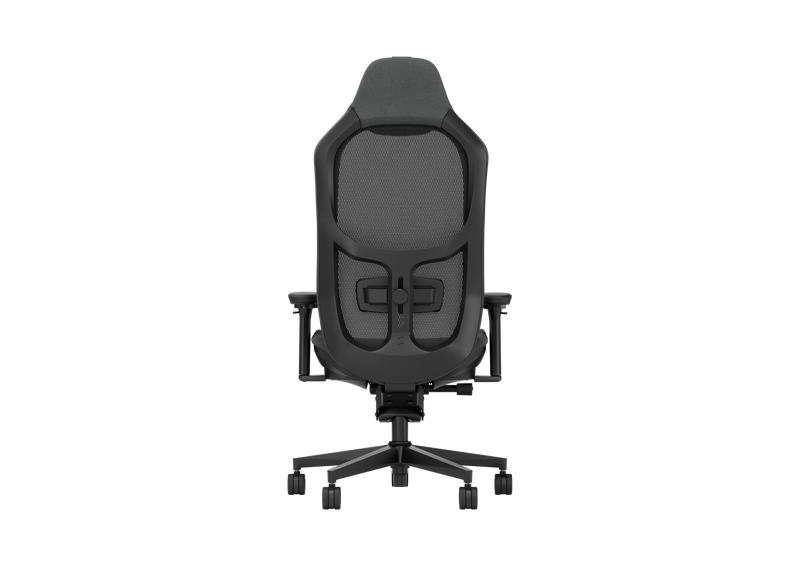

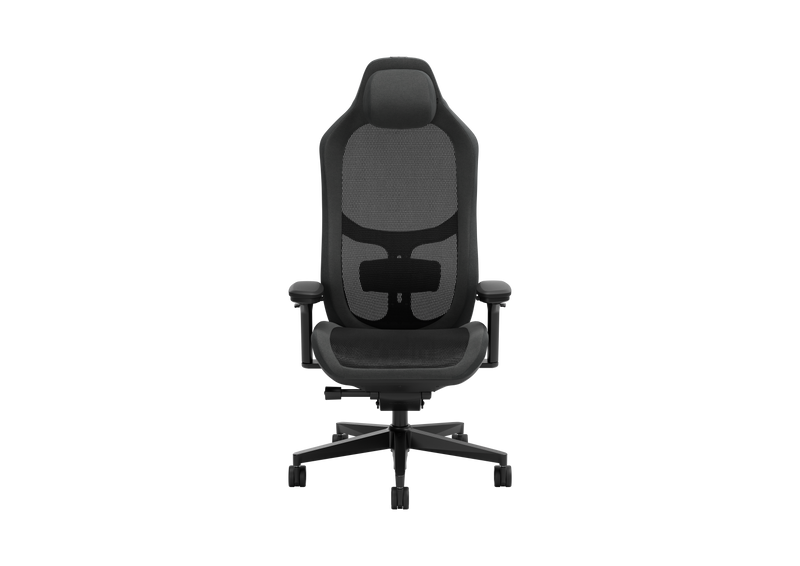

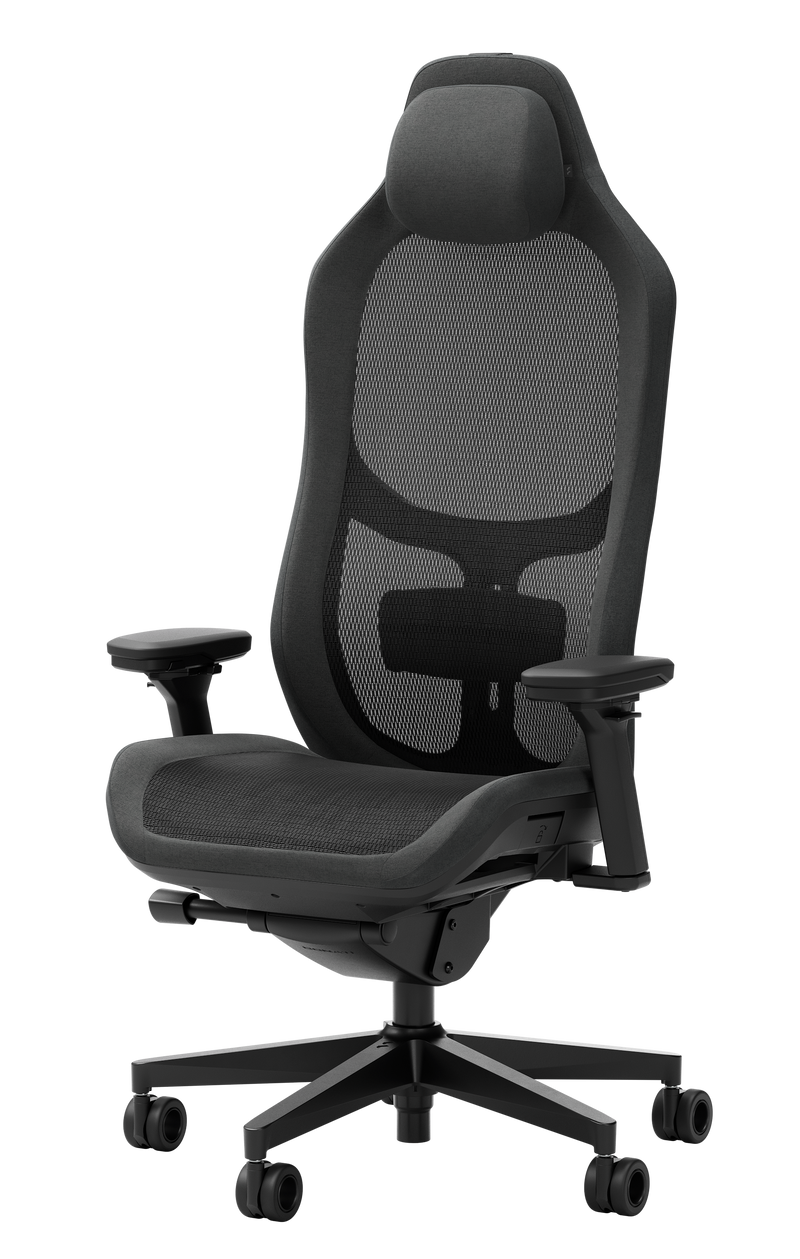

Fractal Design Refine Chair - Mesh Dark
