SKU CAS-FTL-03590EAN 7340172707189MPN FD-C-MES3A-03
Overview
Experience advanced cooling and expressive, aerodynamic design. An evolution of our mesh performance series, Meshify 3 offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting in Ambience Pro RGB versions.

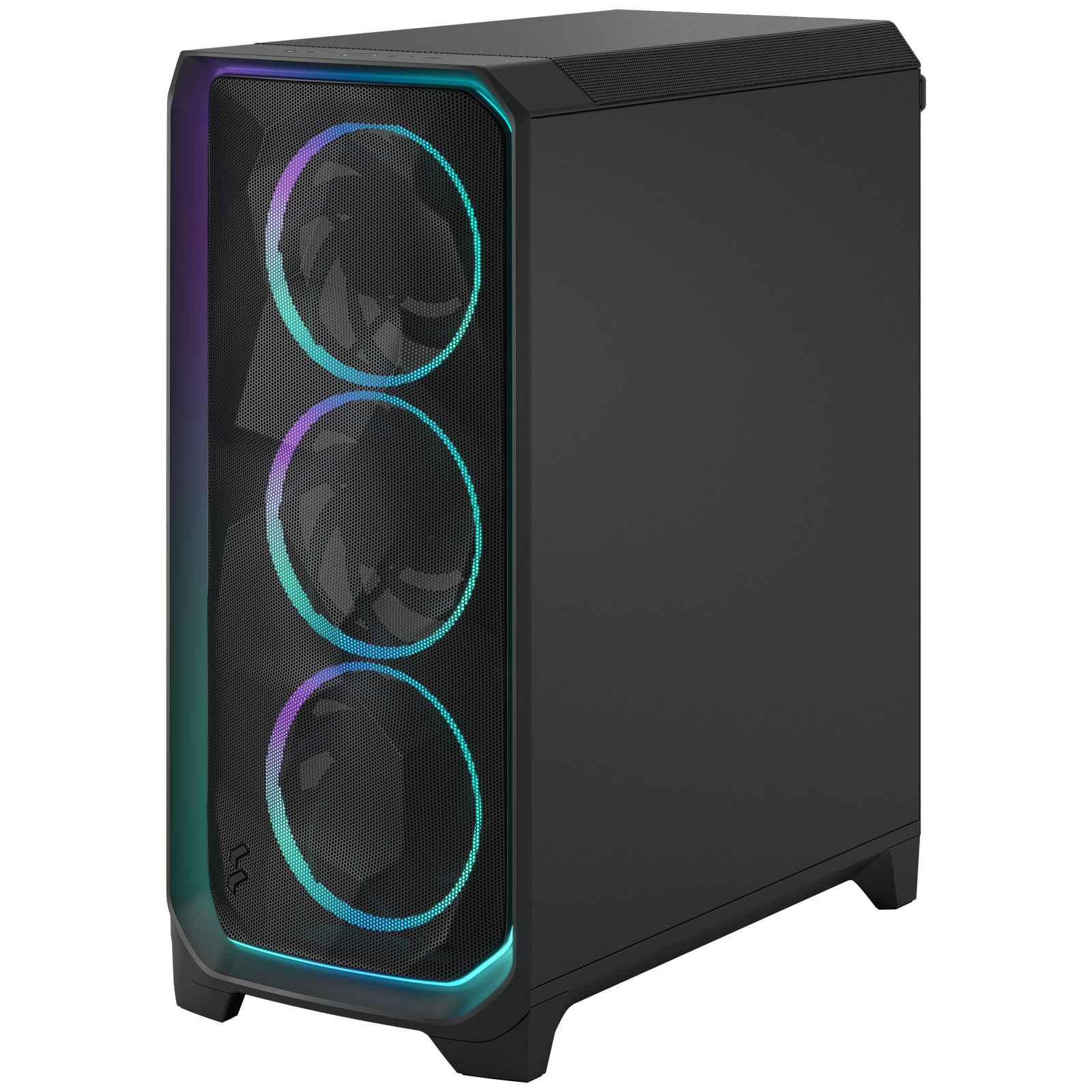

Fractal Design Meshify 3 Ambience Pro RGB – Black TG Light Tint

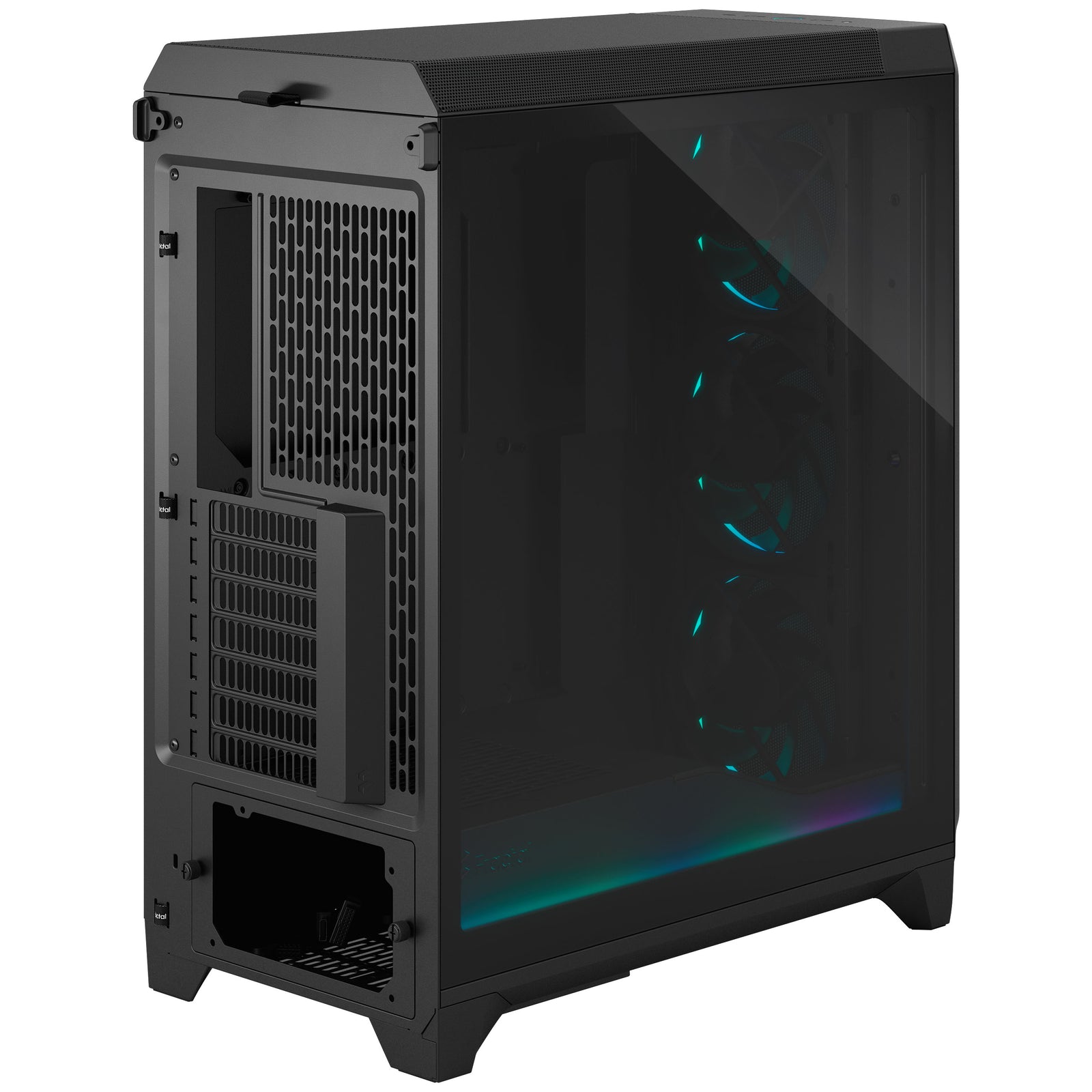

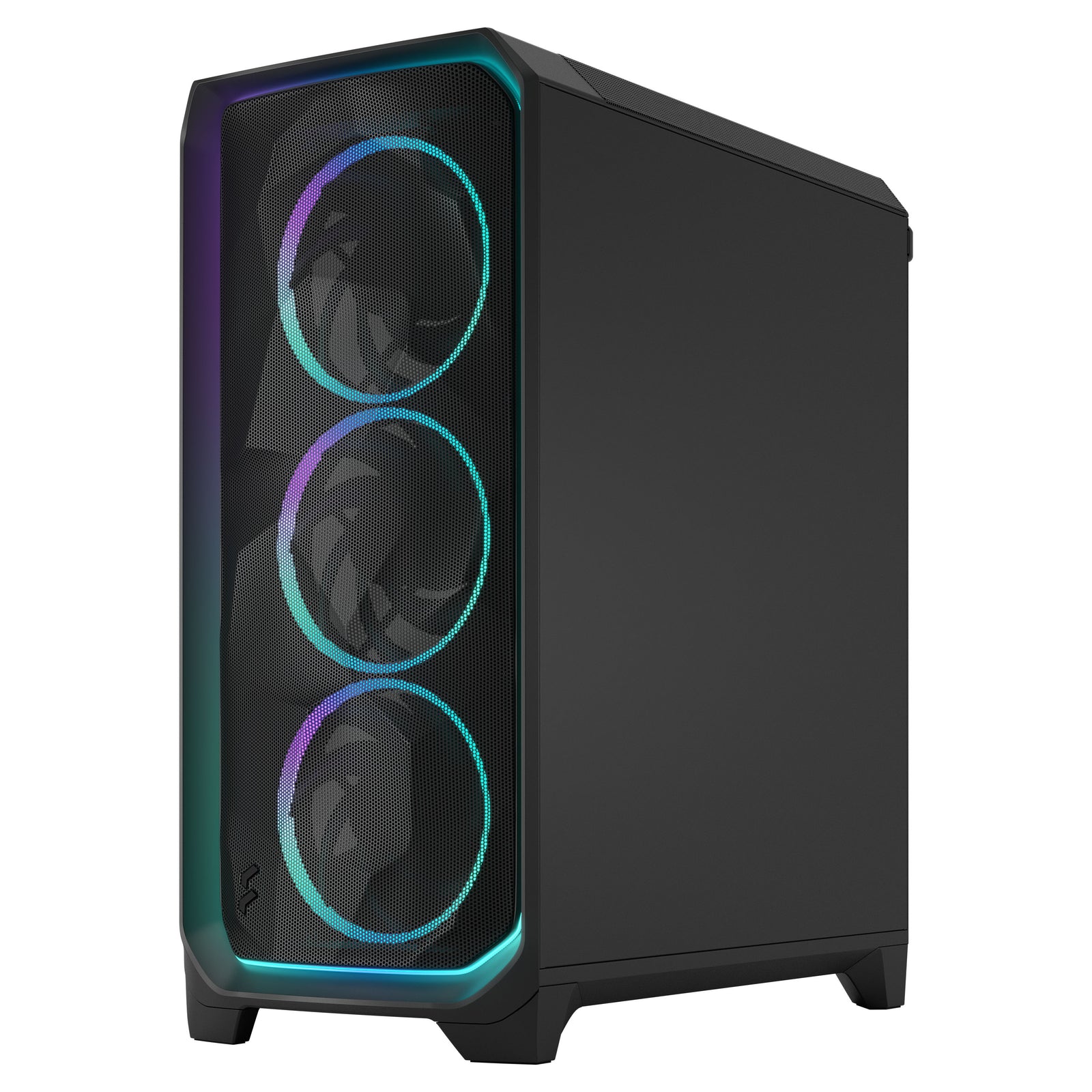

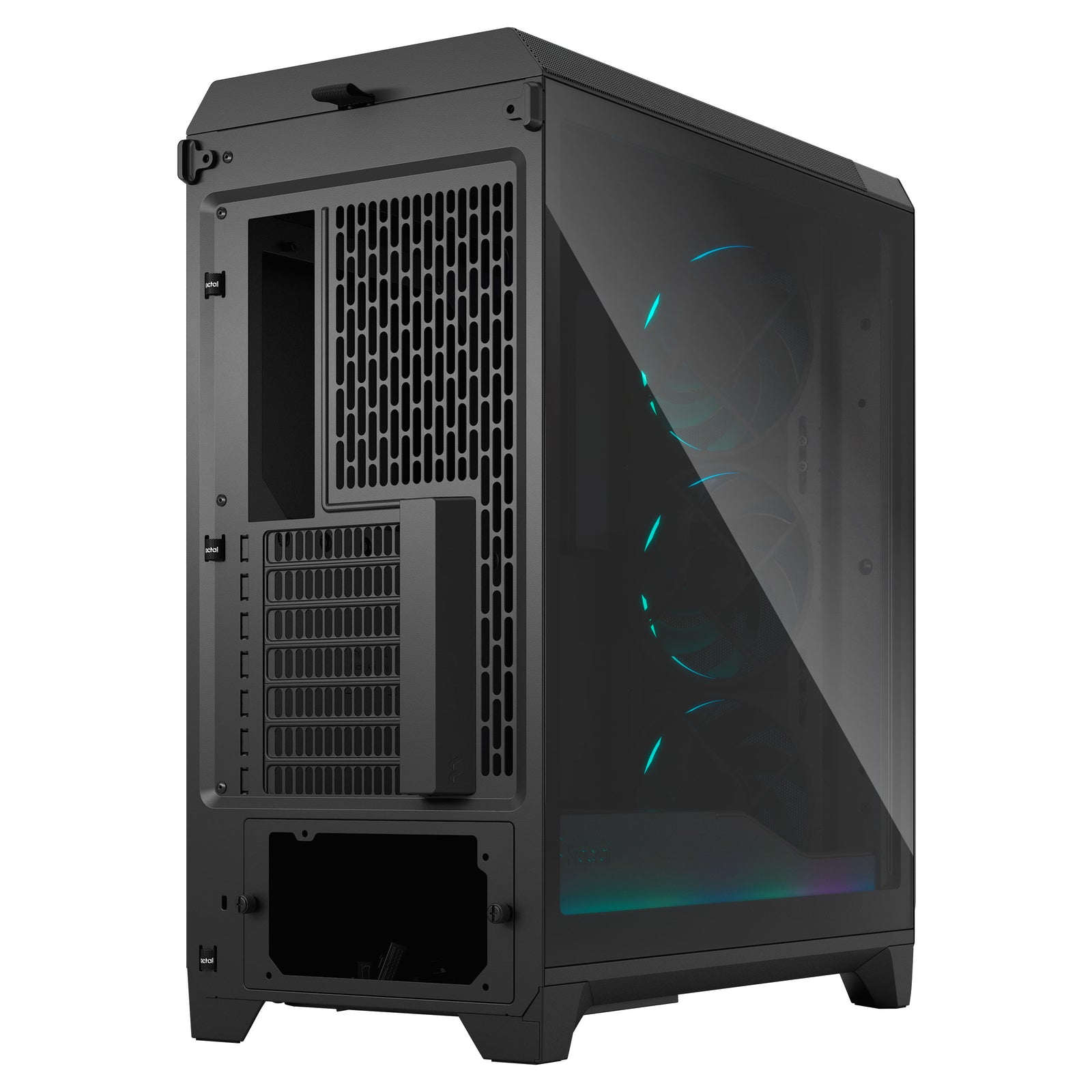

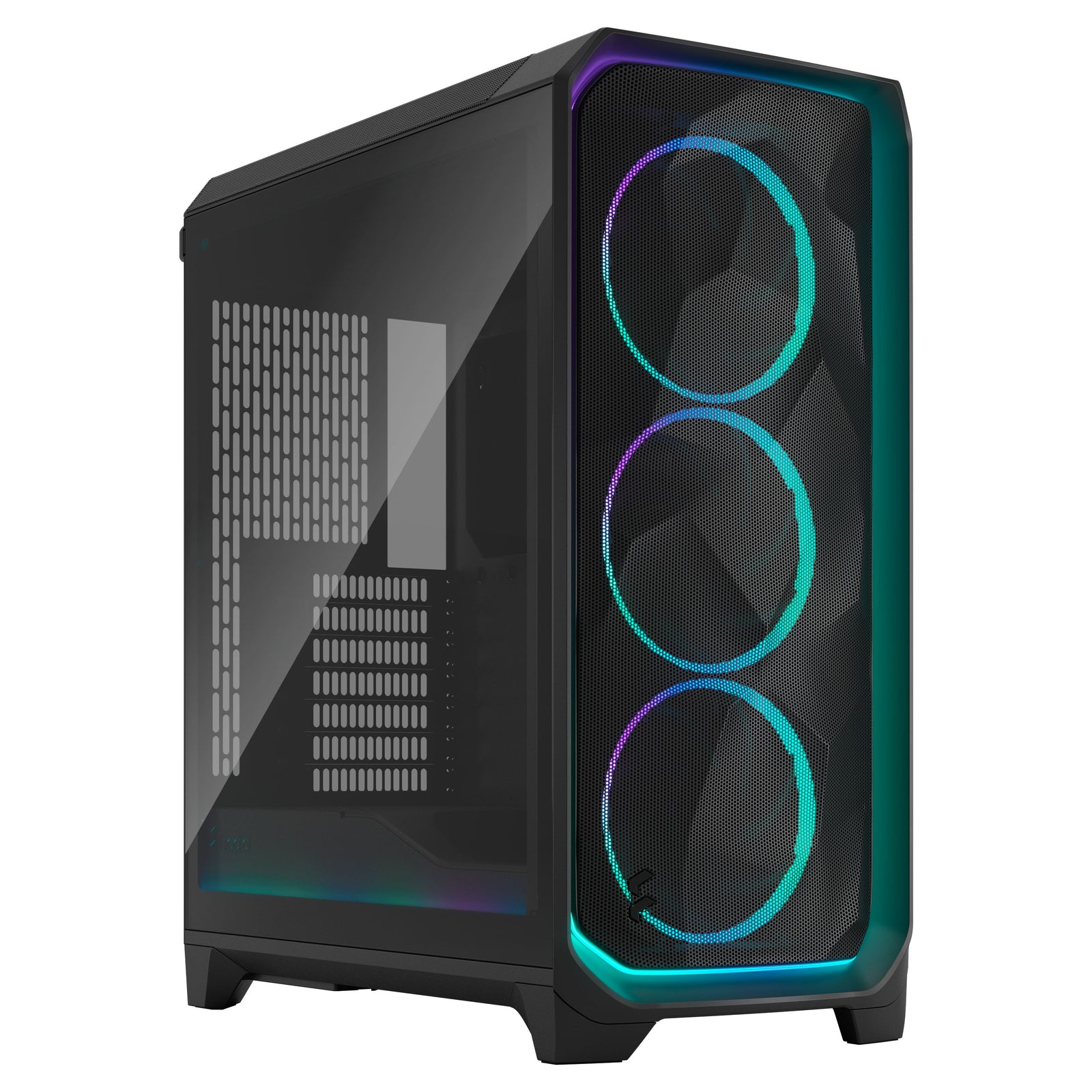

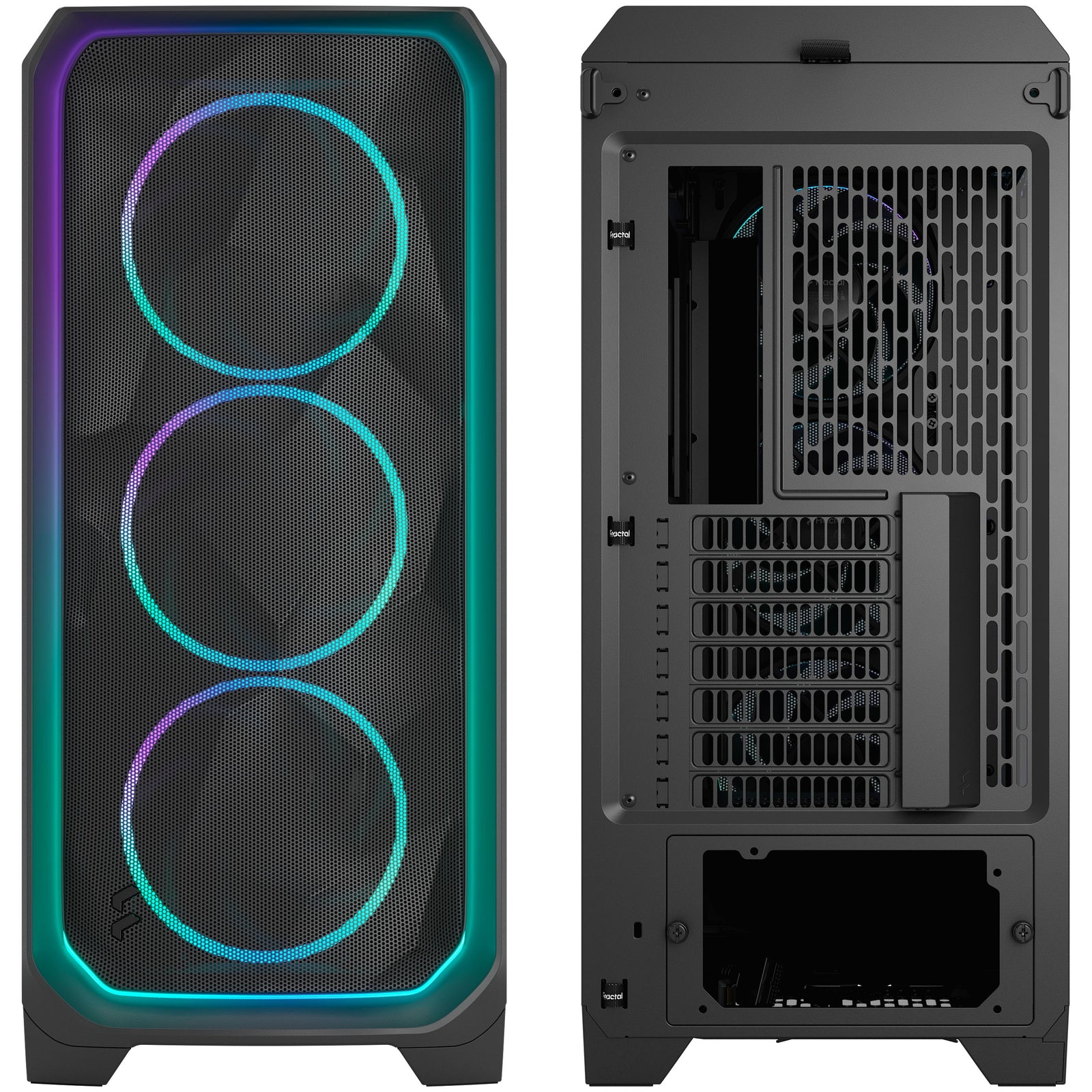

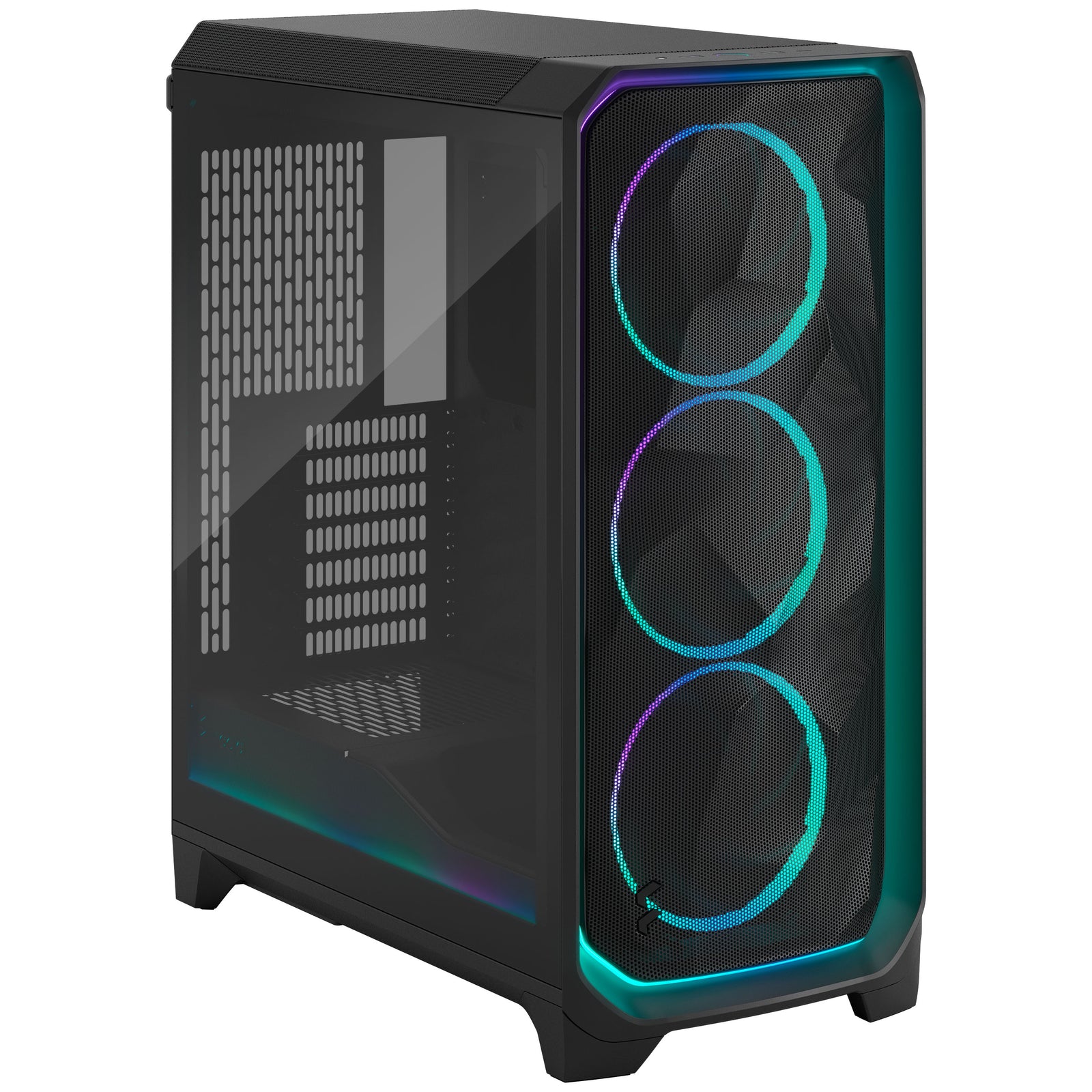

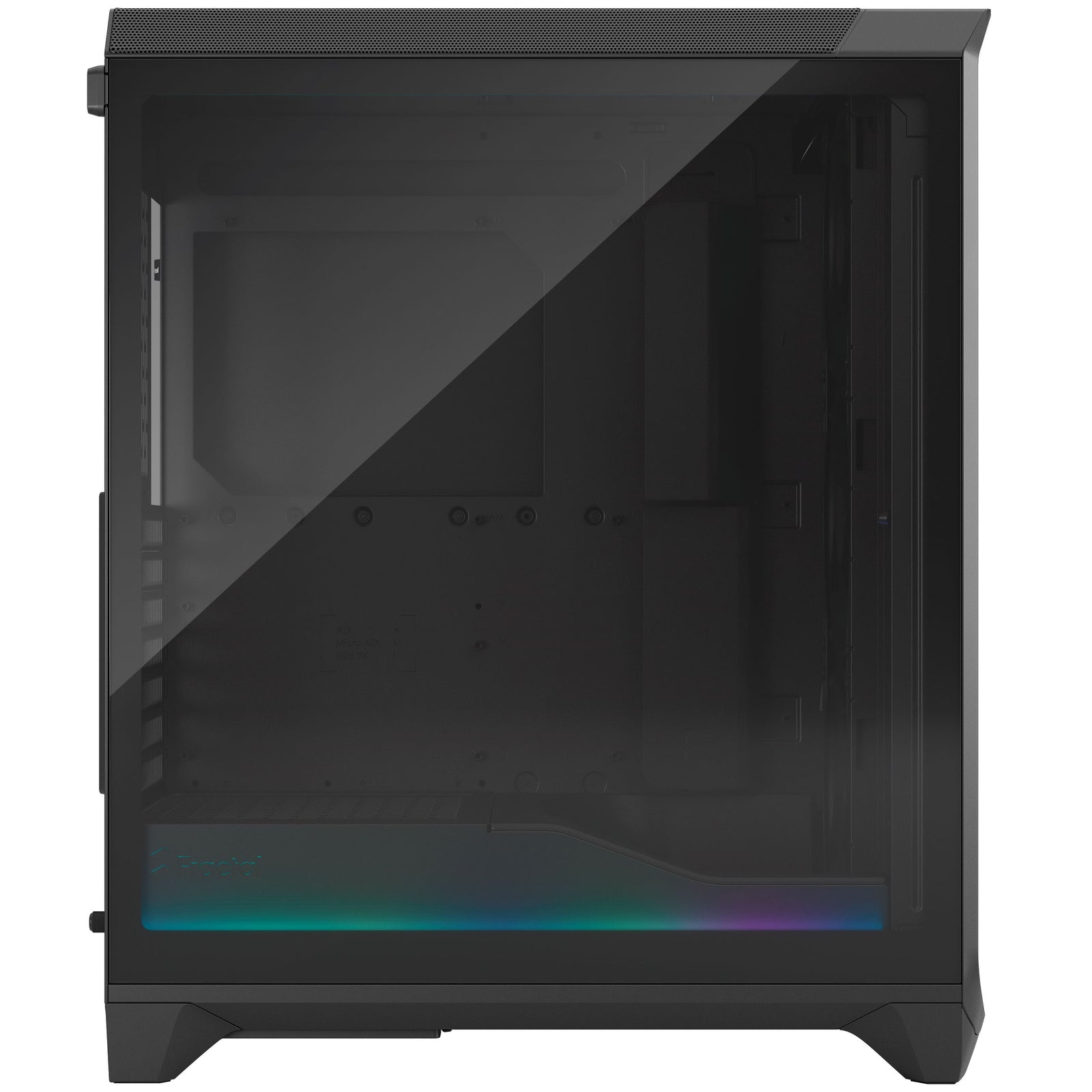

The Fractal Design Meshify 3 Ambience Pro RGB combines high-performance airflow with eye-catching ambient lighting. It features a rock-style mesh front panel, three ARGB Momentum 140mm fans, and a tempered glass side panel with light tint for a refined aesthetic. The included Adjust Pro Hub enables browser-based fan and lighting control—no extra software needed. Designed for powerful builds, it supports E-ATX motherboards, long GPUs, and robust cooling configurations.
Key Features:
- Advanced Airflow Design – Rockface mesh front panel with internal air guide enhances GPU cooling
- ARGB Gen-2 Ambient Lighting – Includes animated startup effect and full RGB control via Adjust Pro Hub
- Momentum 140mm ARGB Fans – High-performance LCP blades with fluid-bearing for quiet, efficient airflow
- Spacious Hardware Compatibility – Supports E-ATX (up to 277 mm), GPUs up to 349 mm, and coolers up to 180 mm tall
- Flexible Cooling Options – Mount front radiators up to 360 mm, top up to 280 mm, and rear 120 mm

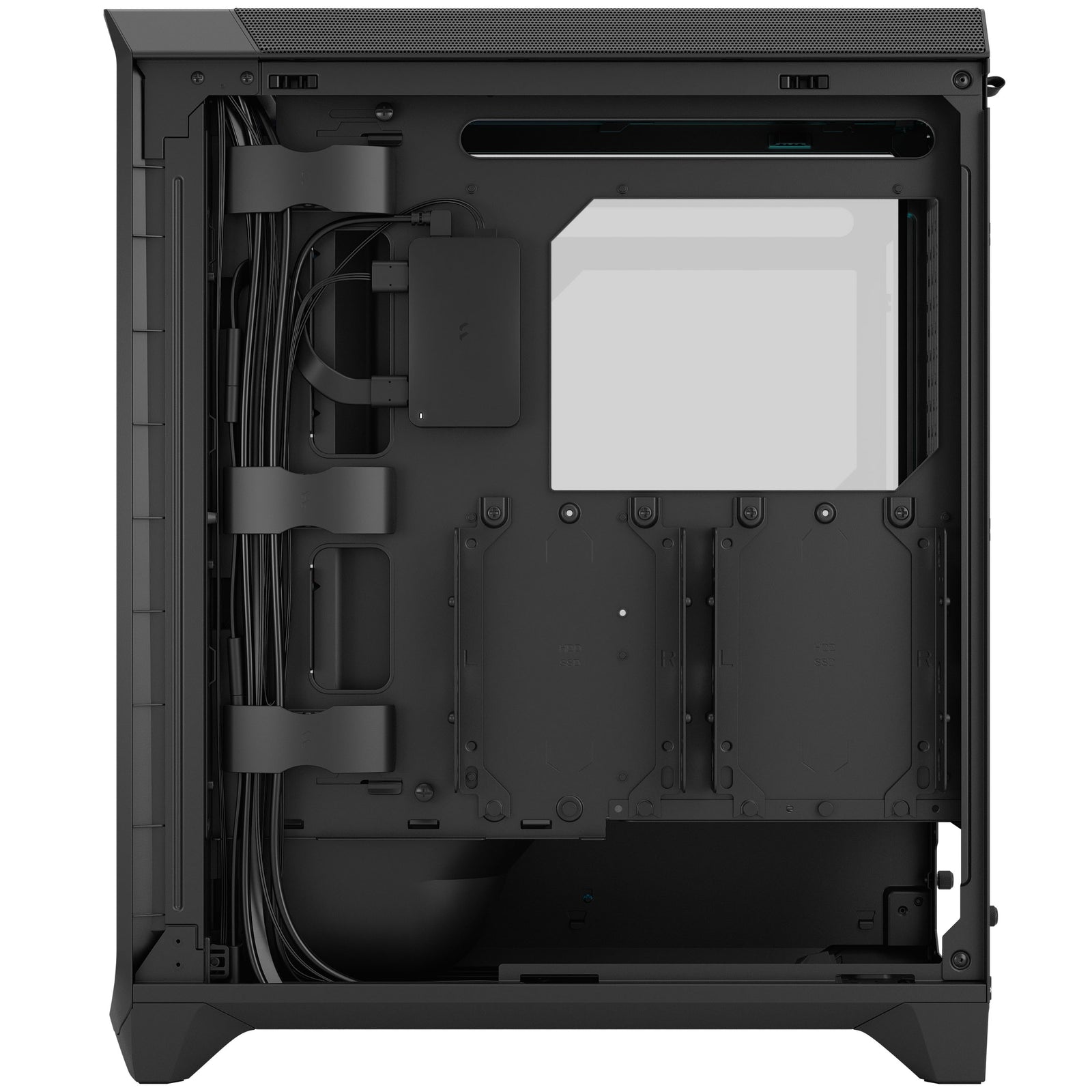

- Clean Cable Management – 34.5 mm routing space, with cable cover, aligners, and straps included

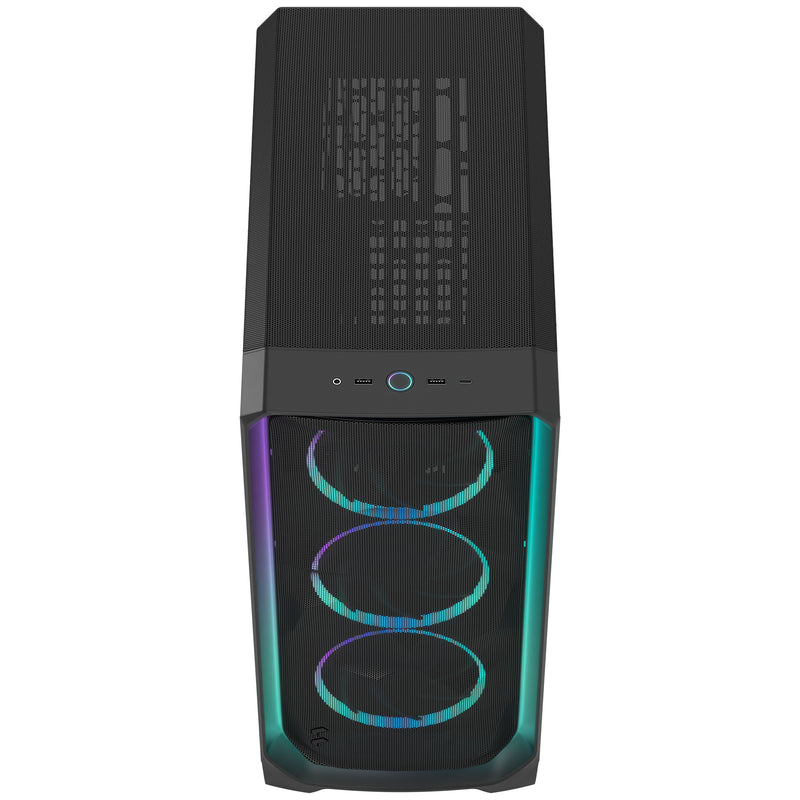

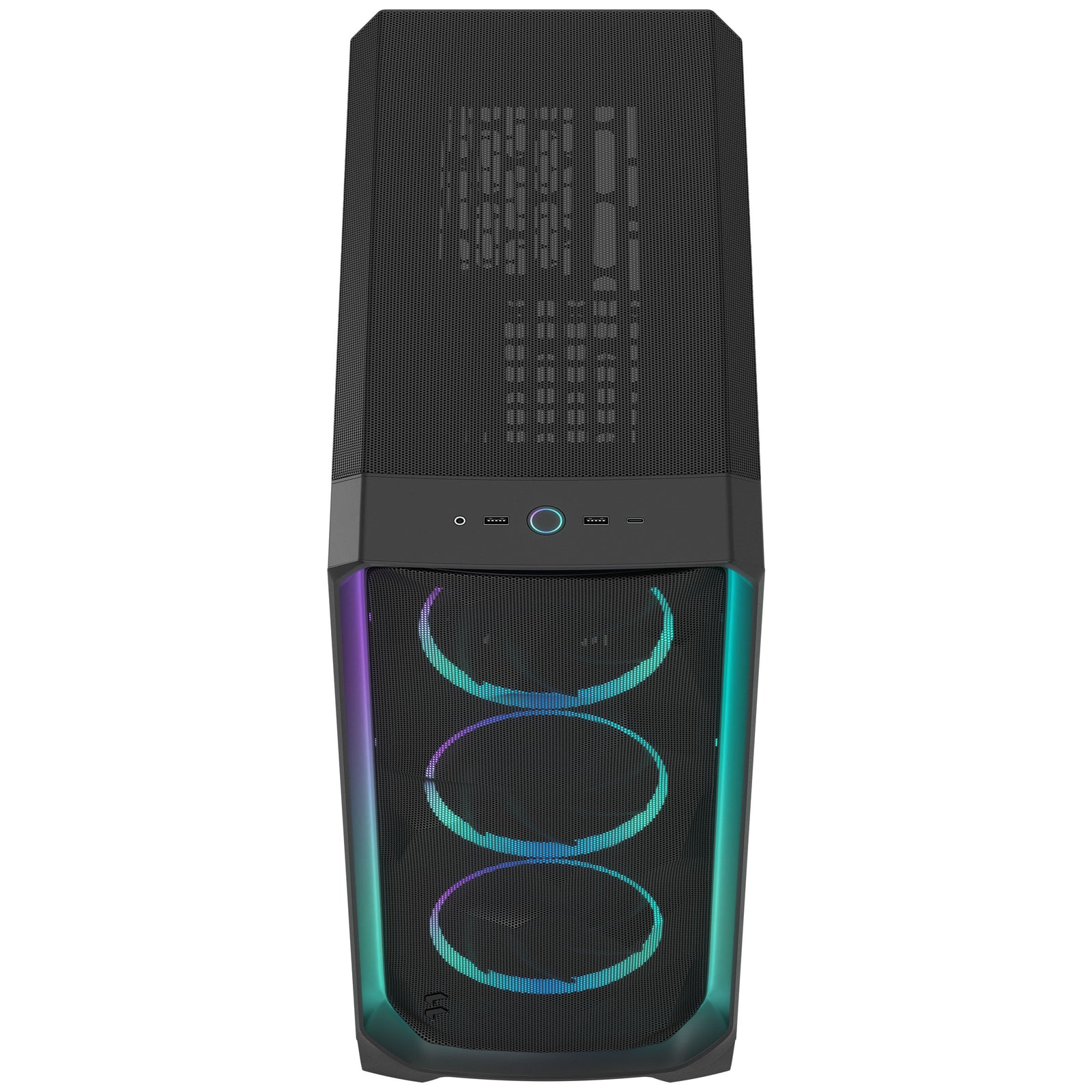

- Fast I/O Access – Top I/O includes USB-C (20 Gbps), two USB-A ports, and a combo audio jack

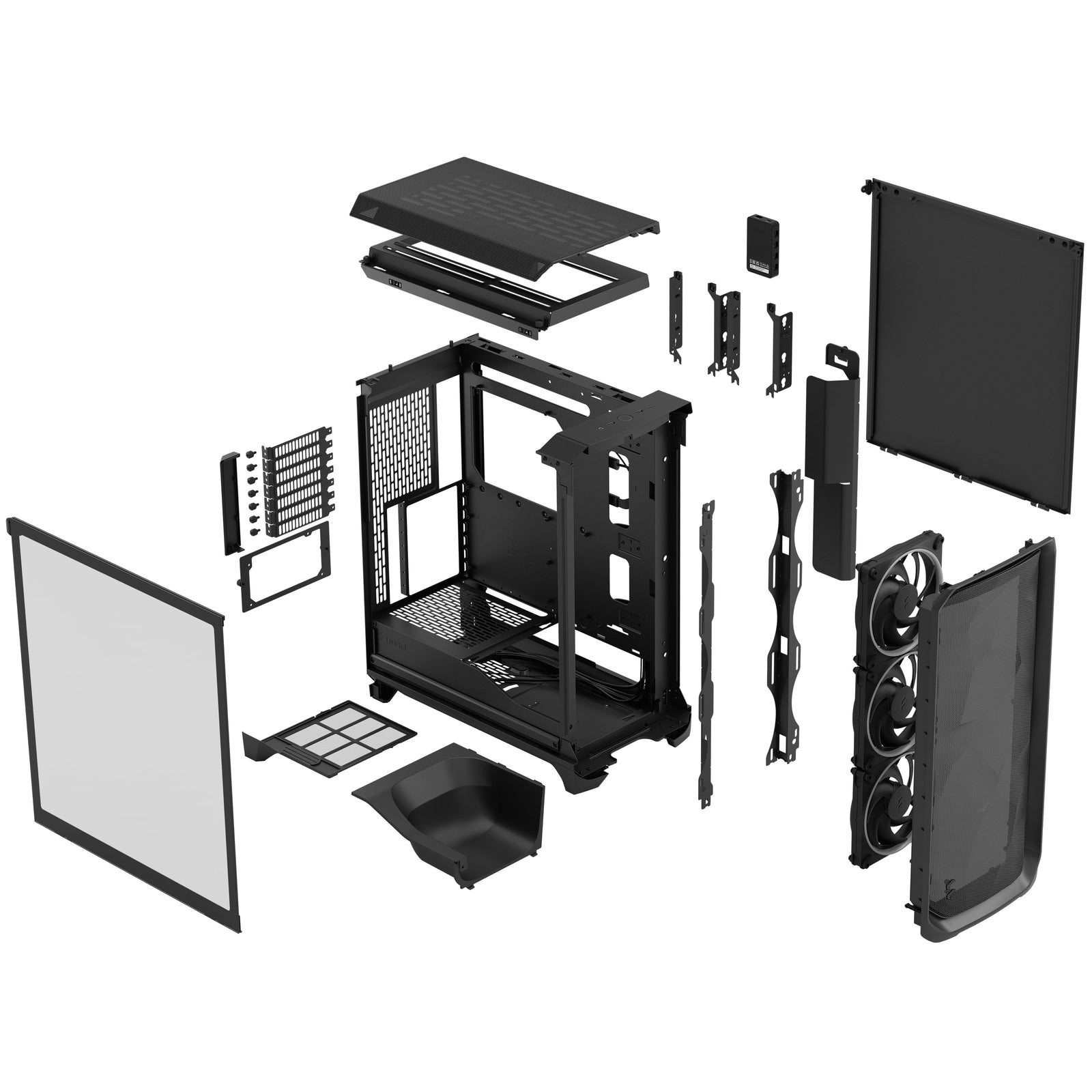

- Tool-Free Access – Push-to-lock panels and easy-to-remove top/front panels simplify building
Technical Specifications:
| Specification | Details |
|---|---|
| Model | Meshify 3 Ambience Pro RGB – Black TG Light Tint |
| Form Factor | Mid-Tower ATX |
| Motherboard Support | E-ATX (≤277 mm), ATX, Micro-ATX, Mini-ITX |
| Included Fans | 3× 140 mm Momentum ARGB (Gen-2) |
| Fan Mounts | Front: 3×120/140 mm Top: 2×120/140 mm Rear: 1×120 mm |
| Radiator Support | Front: up to 360 mm Top: up to 280 mm Rear: 120 mm |
| Max GPU Length | 349 mm |
| Max CPU Cooler Height | 180 mm |
| PSU Max Length | 180 mm |
| Storage Bays | 2× 3.5″ + 4× 2.5″ (6× total 2.5″) |
| Front I/O | USB-C 20 Gbps, 2× USB-A, Audio Jack, Power Button |
| Cable Management | 34.5 mm routing, cable cover, aligners, straps |
| Dimensions (L×W×H) | 423 × 229 × 507 mm |
| Net Weight | ~8.0 kg |
| Warranty | 2 Years |
Delivering airflow, style, and simplicity—the Meshify 3 Ambience Pro RGB lets you build quietly, beautifully, and with total control from your browser.
Specifications
| Back Connect | Back Connect No Colour Primary Colour Black Case Features I/O position Top Side panel with window Vertical GPU Mount No Adjustable Vertical GPU Bracket No Front door No Cable Management Yes Filters Included Yes Filter Position Bottom Noise dampening No Mainboard slide / tray No Transport System No Radiator Support Max. Radiator Compatibility 1x Triple (360 mm) Radiator/AIO Support (Front) 280mm Radiator, 360mm Radiator Radiator/AIO Support (Top) 240mm Radiator, 280mm Radiator Radiator/AIO Support (Rear) 120mm Radiator Motherboard Support Compatible Motherboard Formats E-ATX, ATX, Micro-ATX, Mini-ITX Max. Motherboard Format E-ATX Power Supply PSU included No PSU Format ATX Power Supply Position rear bottom Fan Support Max. Number of Fans 6 Case Fan Support (Rear) 120mm Fan (1x) Case Fan Support (Top) 120mm Fan (2x), 140mm Fan (2x) Case Fan Support (Front) 120mm Fan (3x), 140mm Fan (3x) 120 mm fans 6 140 mm fans 5 Lighting Lighting / RGB Yes RGB Controller Yes Case Case Type Mid Tower Expansion Slots Expansion slots / PCI slots 7 Features Housing Feedthrough No Internal Dimensions Max. CPU Cooler Height 173 mm Max. GPU Length 349 mm Max. GPU Width 176 mm Max. PSU Length / Depth 180 mm Drive Bays Max. 2.5 Inch Drives 6 Max. 3.5 Inch Drives 4 Max. 5.25 Inch Drives 0 2.5 inch internal drive bay 2 1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) 4 Hot swap drive bays No Display Display Included No External Ports Front I/O – USB Type C Ports Total 1 Front I/O – USB Type A Ports Total 2 USB 3.2 (external) Type C 1 USB 3.0 (external) Type A 2 Audio outputs & inputs 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) Dimensions Length / Depth 433 mm Width 229 mm Height 507 mm Weight 9.1 kg Mounting Case VESA Mountable No Internal Monitor Mount No Fan Header Fan Controller / Fan Hub Yes Additional Contents Fans Included Yes Included fans 3x 140 mm Materials Materials Steel, Tempered Glass Cable Specifications Riser Cable Included No Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Connectivity Card reader No |
|---|---|
| Back Connect | No |
| Primary Colour | Black |
| I/O position | Top |
| Side panel | with window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Filter Position | Bottom |
| Noise dampening | No |
| Mainboard slide / tray | No |
| Transport System | No |
| Max. Radiator Compatibility | 1x Triple (360 mm) |
| Radiator/AIO Support (Front) | 280mm Radiator, 360mm Radiator |
| Radiator/AIO Support (Top) | 240mm Radiator, 280mm Radiator |
| Radiator/AIO Support (Rear) | 120mm Radiator |
| Compatible Motherboard Formats | E-ATX, ATX, Micro-ATX, Mini-ITX |
| Max. Motherboard Format | E-ATX |
| PSU included | No |
| PSU Format | ATX |
| Power Supply Position | rear bottom |
| Max. Number of Fans | 6 |
| Case Fan Support (Rear) | 120mm Fan (1x) |
| Case Fan Support (Top) | 120mm Fan (2x), 140mm Fan (2x) |
| Case Fan Support (Front) | 120mm Fan (3x), 140mm Fan (3x) |
| 120 mm fans | 6 |
| 140 mm fans | 5 |
| Lighting / RGB | Yes |
| RGB Controller | Yes |
| Case Type | Mid Tower |
| Expansion slots / PCI slots | 7 |
| Housing Feedthrough | No |
| Max. CPU Cooler Height | 173 mm |
| Max. GPU Length | 349 mm |
| Max. GPU Width | 176 mm |
| Max. PSU Length / Depth | 180 mm |
| Max. 2.5 Inch Drives | 6 |
| Max. 3.5 Inch Drives | 4 |
| Max. 5.25 Inch Drives | 0 |
| 2.5 inch internal drive bay | 2 |
| 1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) | 4 |
| Hot swap drive bays | No |
| Display Included | No |
| Front I/O – USB Type C Ports Total | 1 |
| Front I/O – USB Type A Ports Total | 2 |
| USB 3.2 (external) Type C | 1 |
| USB 3.0 (external) Type A | 2 |
| Audio outputs & inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
| Length / Depth | 433 mm |
| Width | 229 mm |
| Height | 507 mm |
| Weight | 9.1 kg |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Fan Controller / Fan Hub | Yes |
| Fans Included | Yes |
| Included fans | 3x 140 mm |
| Materials | Steel, Tempered Glass |
| Riser Cable Included | No |
| Compatibility Note | Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. |
| Card reader | No |
Specifications
| Manufacturer | Fractal Design |
|---|---|
| Manufacturer part number | FD-C-MES3A-03 |
| OcUK SKU | CAS-FTL-03590 |
| EAN | 7340172707189 |
| Case Type | Mid Tower |
| Included fans | 3x 140 mm |
| Lighting / RGB | Yes |
| Power Supply Position | rear bottom |
| Primary Colour | Black |
| PSU Format | ATX |
