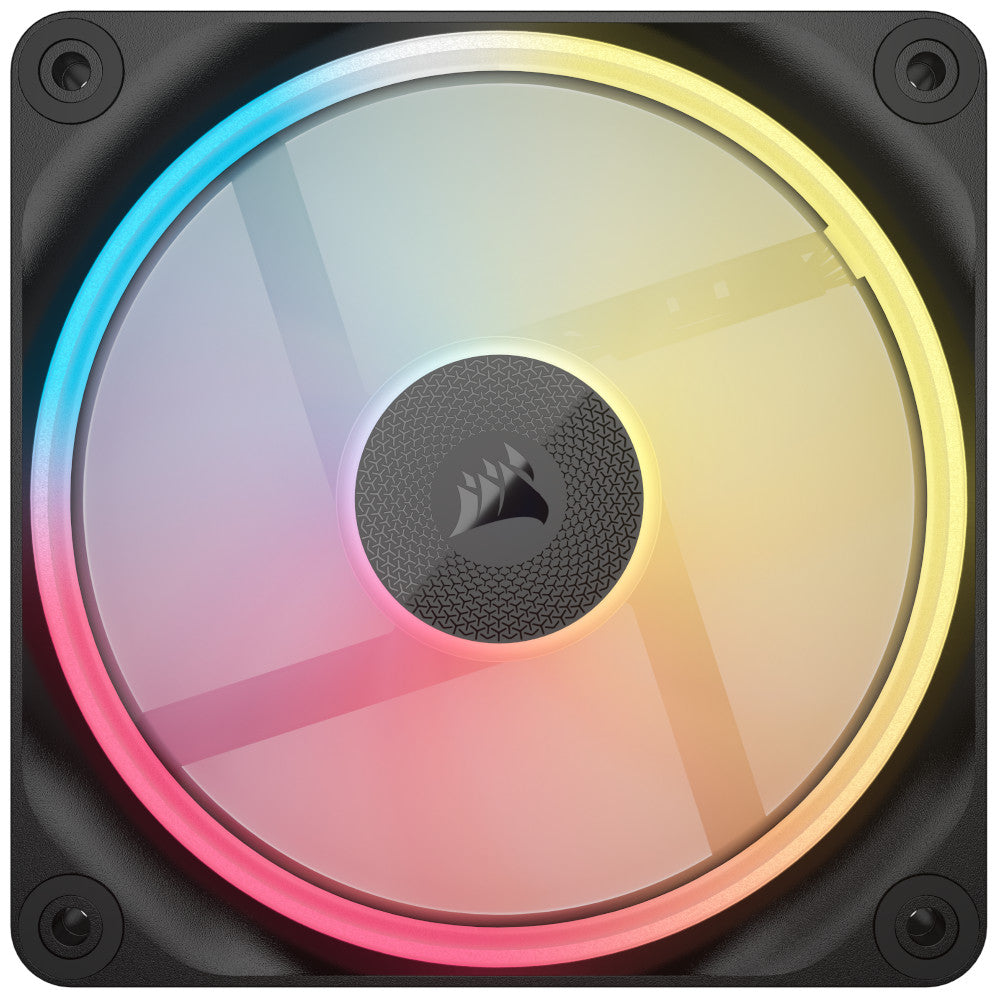

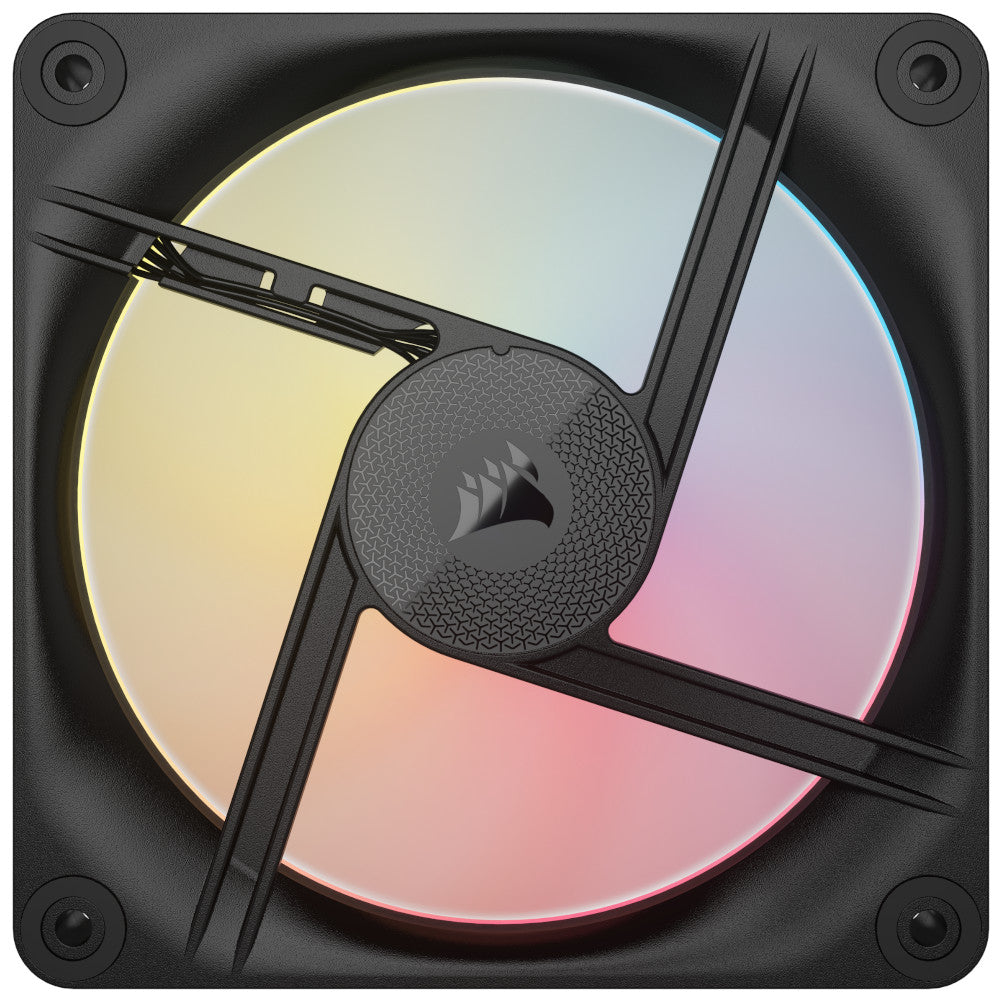

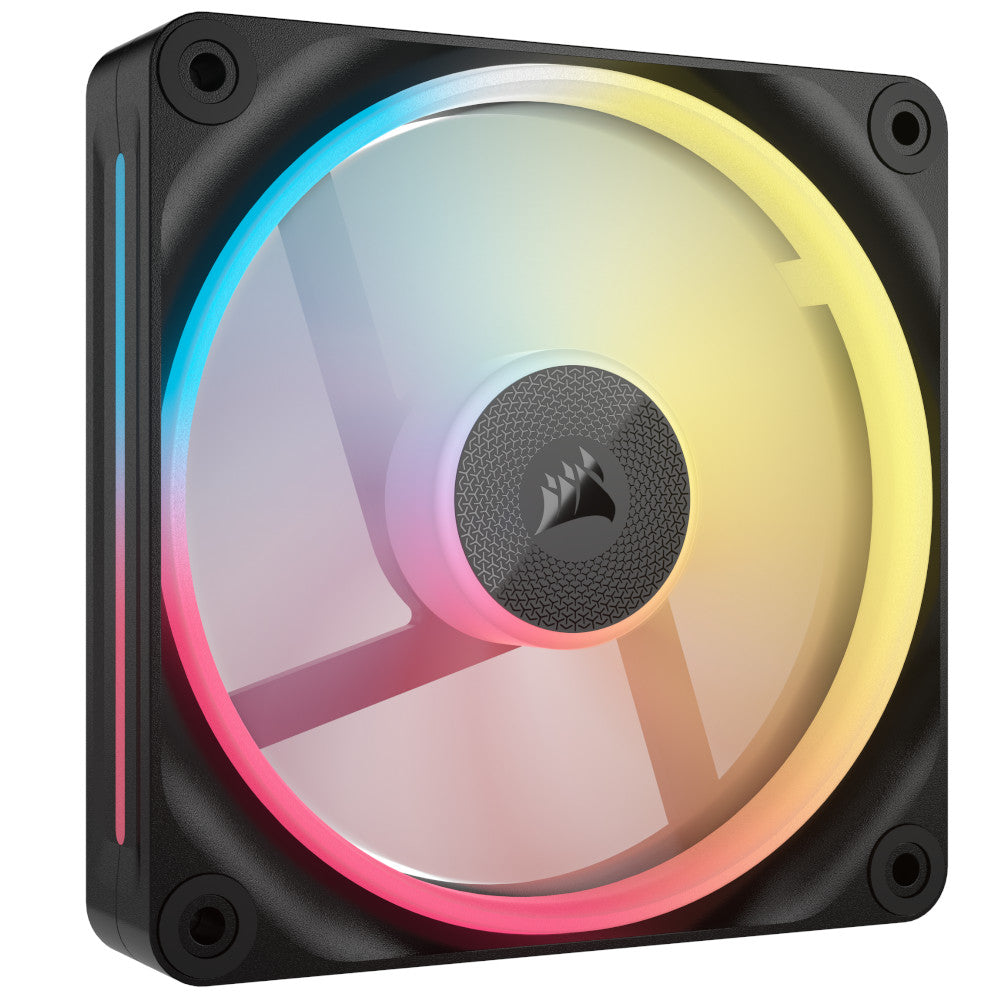

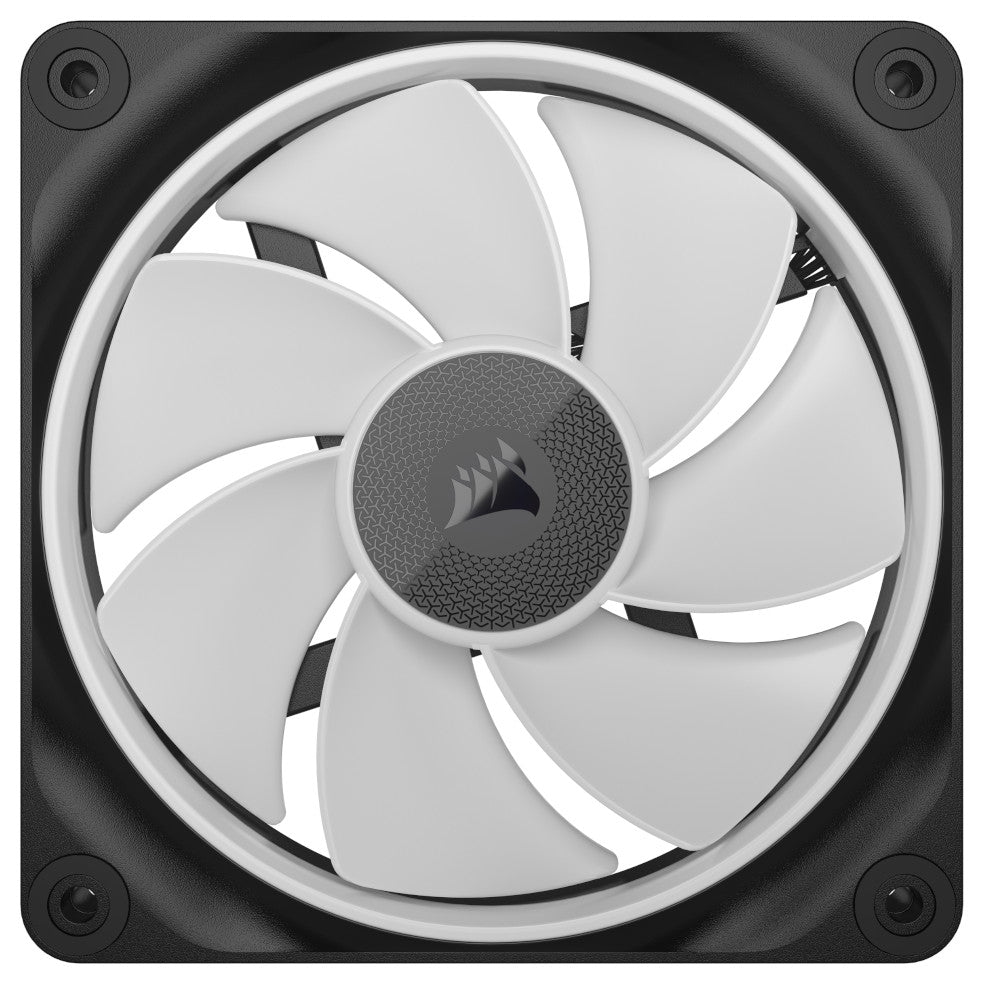

CO-9051049-WW, 1 x 120mm ARGB, Upto 2400 RPM, Upto 66.7 CFM, Black, 5 Year Warranty

Add another CORSAIR LX120-R RGB 120mm PWM Reverse Fan to your iCUE LINK setup, featuring a reverse rotor design that keeps the RGB ring fully visible when used for intake. 18 RGB LEDs across dual light loops bring amazing lighting to your PC with the refreshingly simple setup of iCUE LINK. With PWM fan speeds up to 2,400 RPM, 5.53mm H2O static pressure, and 67 CFM airflow, the LX-R RGB has the cooling power to match its looks. Enjoy quieter operation and extended fan life thanks to CORSAIR Magnetic Dome bearings. The revolutionary iCUE LINK ecosystem connects all your components with fewer cables – including the ability to connect your fans together directly into a single seamless block.

Features:
- Reversed Rotor for Flawless Looks: Flip the script on your build with reversed rotor fans that ensure the RGB ring remains fully visible, even when mounted for intake.
- Stunning RGB Lighting with Dual Light Loops:18 LEDs per fan spread across an inner and outer loop enable brilliant, customizable lighting that can be synchronized with all your iCUE RGB devices.
- Effective and Efficient Cooling: Deliver superb airflow to your system with precise PWM controlled speeds up to 2,400 RPM, pushing 66.7 CFM of air. An impressive 4.72mm H2O static pressure also gives the LX-R RGB the force it needs for mounting to radiators.
- LINK Your Fans Together: The included iCUE LINK bridge connectors can connect your fans directly to each other, creating a seamless bank of fans all connected to the iCUE LINK System Hub (sold separately) with just a single cable.
- Quiet Operation with Magnetic Dome Bearing: CORSAIR’s Magnetic Dome bearing is a refinement of the renowned magnetic levitation bearing, minimizing noise and reducing friction for greater longevity.
- One-Twist CORSAIR QuikTurn™ Screws: You’ll never want to go back to regular screws after installing a full set of fans in seconds. QuikTurn screws save both your precious time and your hands.
- Zero RPM Mode: Supports Zero RPM PWM signals to completely eliminate fan noise at low loads.
- Time Warp Lighting Mode: This eye-popping effect makes your fans appear to be frozen in place or even spin backwards, exclusive to iCUE LINK thanks to an individual MCU in each fan.
- Unite Your Setup: Create automated fan curves with powerful CORSAIR iCUE software, for intelligent cooling that responds to your system’s needs.
- Part of the iCUE LINK Ecosystem: iCUE LINK is the next leap forward in PC building, spanning across fans, coolers, PSUs, and more, letting you neatly chain all of these components together for clean cabling, less mess, and a faster build.

Specification:
- Dimensions (mm): 120x120x25 mm
- Rated Current - Fan: 0.35A
- Speed: 2400 ±10% RPM
- Airflow: 11.5 - 66.7 CFM
- Static Pressure: 0.14 - 4.72 mmH2O
- Sound Level: 10 - 37.7 dBA
- Connection cable: iCUE Link
- PWM Control: 0%, 20 - 100%
- Bearing Type: Magnetic Dome
- Cable Length: 135mm
- MTBF - Life Expectation: 50000 hours
- Warranty: 5

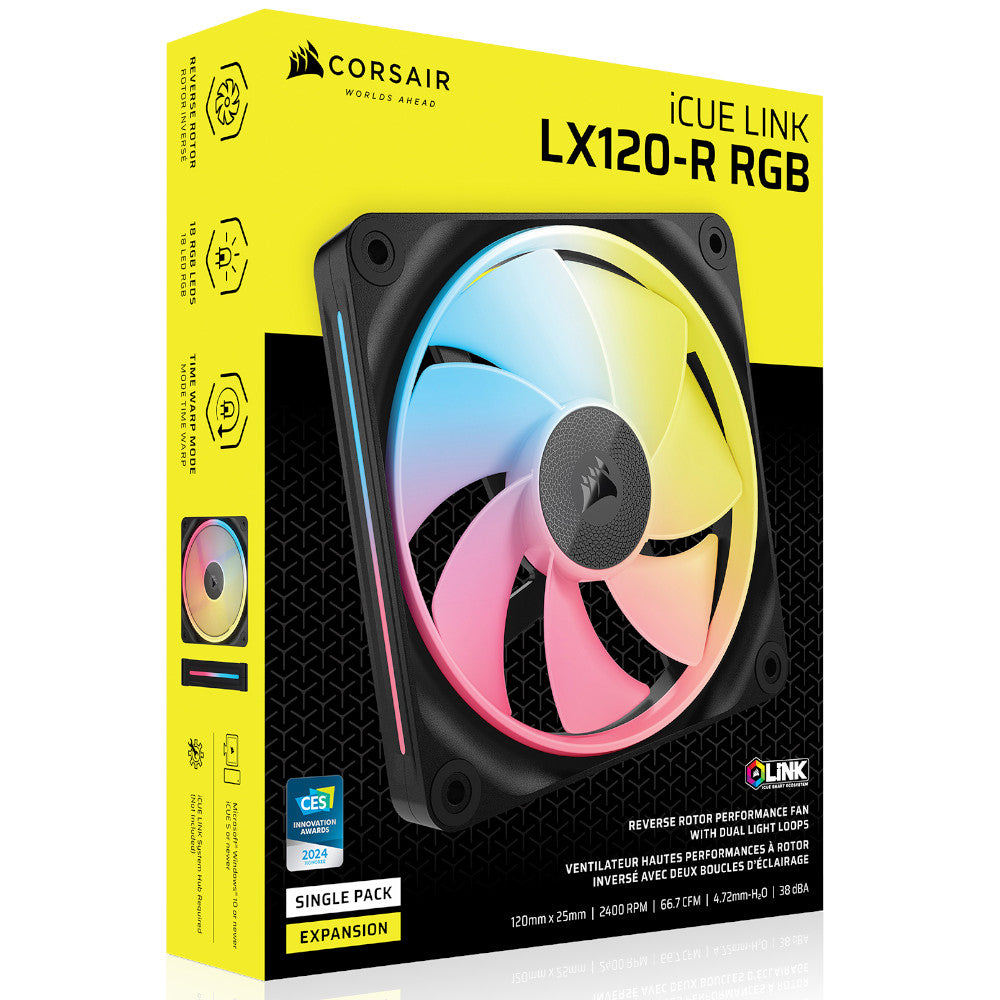

Contents:
- 1x LX120-R RGB Fan
- 1x Active Connector
- 1x Passive Connector
- 1x iCUE LINK Cable, 135mm, Slim-Slim Cable Head
- 4x QuikTurn Mounting Screws

Specifications

Fan Specifications	Fan Size 120 mm Fan Blade Direction Reverse Fan Bearing Magnetic Dome Bearing Min. Fan RPM 400 rpm Max. Fan RPM 2400 rpm Min. Single Fan Airflow 11.5 cfm Max. Single Fan Airflow 66.7 cfm Min. Static Pressure 0.14 mmH2O Max. Static Pressure 4.72 mmH2O Colour Primary Colour Black Fan Main Colour (Frame) Black Fan Main Colour (Rotor) Black Lighting Lighting / RGB Yes Lighting Colour RGB Lighting Compatibility Corsair iCUE Dimensions Length / Depth 120 mm Width 120 mm Weight 255 g Fan height 25 mm Noise Max. Single Fan Noise 37.7 dB(A) Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Internal Ports Fan connectors iCUE LINK
Fan Size	120 mm
Fan Blade Direction	Reverse
Fan Bearing	Magnetic Dome Bearing
Min. Fan RPM	400 rpm
Max. Fan RPM	2400 rpm
Min. Single Fan Airflow	11.5 cfm
Max. Single Fan Airflow	66.7 cfm
Min. Static Pressure	0.14 mmH2O
Max. Static Pressure	4.72 mmH2O
Primary Colour	Black
Fan Main Colour (Frame)	Black
Fan Main Colour (Rotor)	Black
Lighting / RGB	Yes
Lighting Colour	RGB
Lighting Compatibility	Corsair iCUE
Length / Depth	120 mm
Width	120 mm
Weight	255 g
Fan height	25 mm
Max. Single Fan Noise	37.7 dB(A)
Compatibility Note	Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Fan connectors	iCUE LINK
