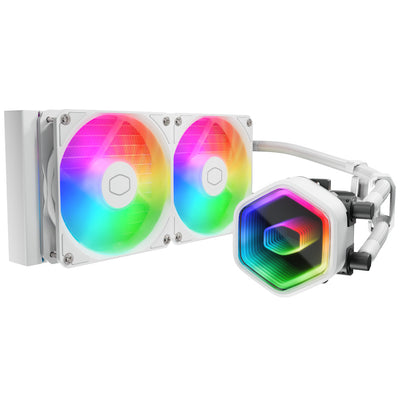

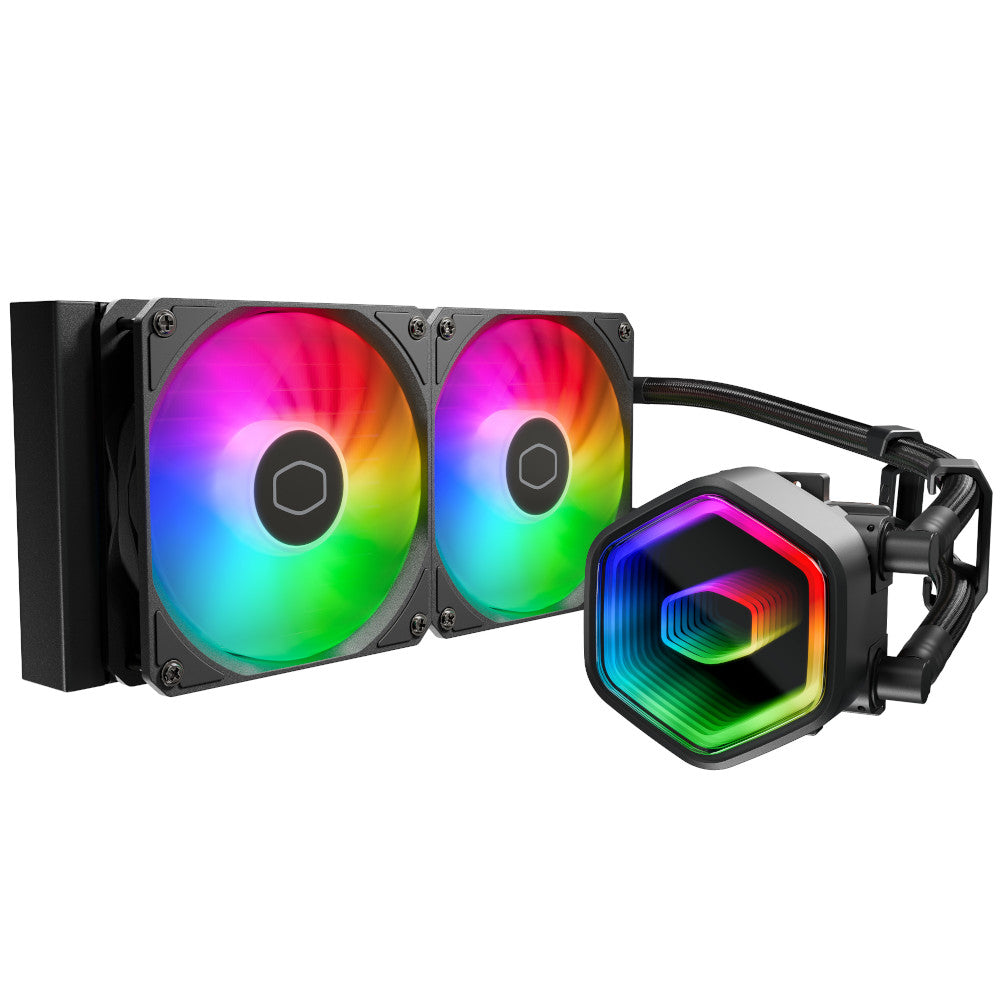

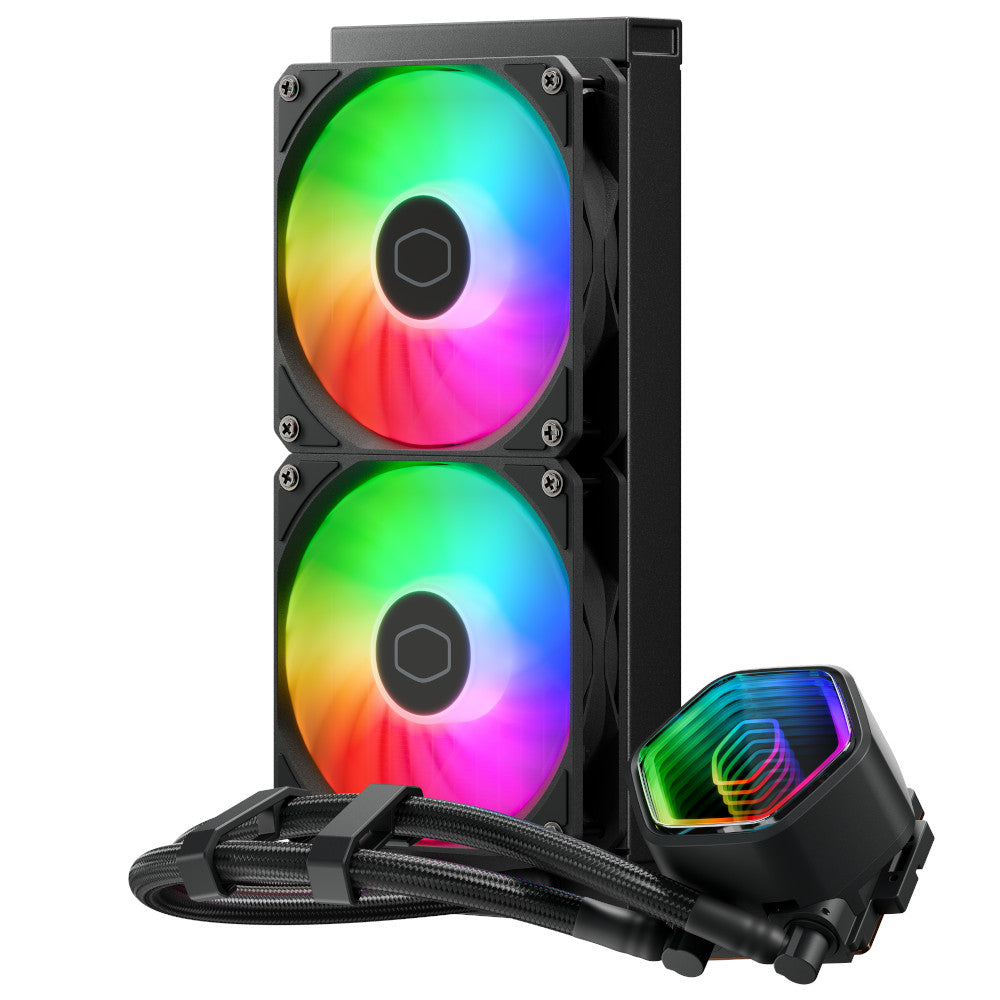

MLW-D24M-A18PA-R1, All in One Cooler. 240mm Radiator, 1 x 120mm ARGB Fans, Intel and AMD Socket Support. 5 Year Warranty

MasterLiquid Core II Series
Building upon the success of the MasterLiquid series, Cooler Master presents the newly redesigned MasterLiquid Core II Series. Features such as a refined G9R dual chamber pump for silent performance and updated CPU compatibility for total build flexibility make the Core II a next level liquid cooler. With an infinity mirror design on the pump cover, overhauled and enhanced fans, and optimized tubes for easy installation, the Core II is the epitome of powerfully elegant design. Take the cooling power of your setup into the modern era with the MasterLiquid Core II Series.

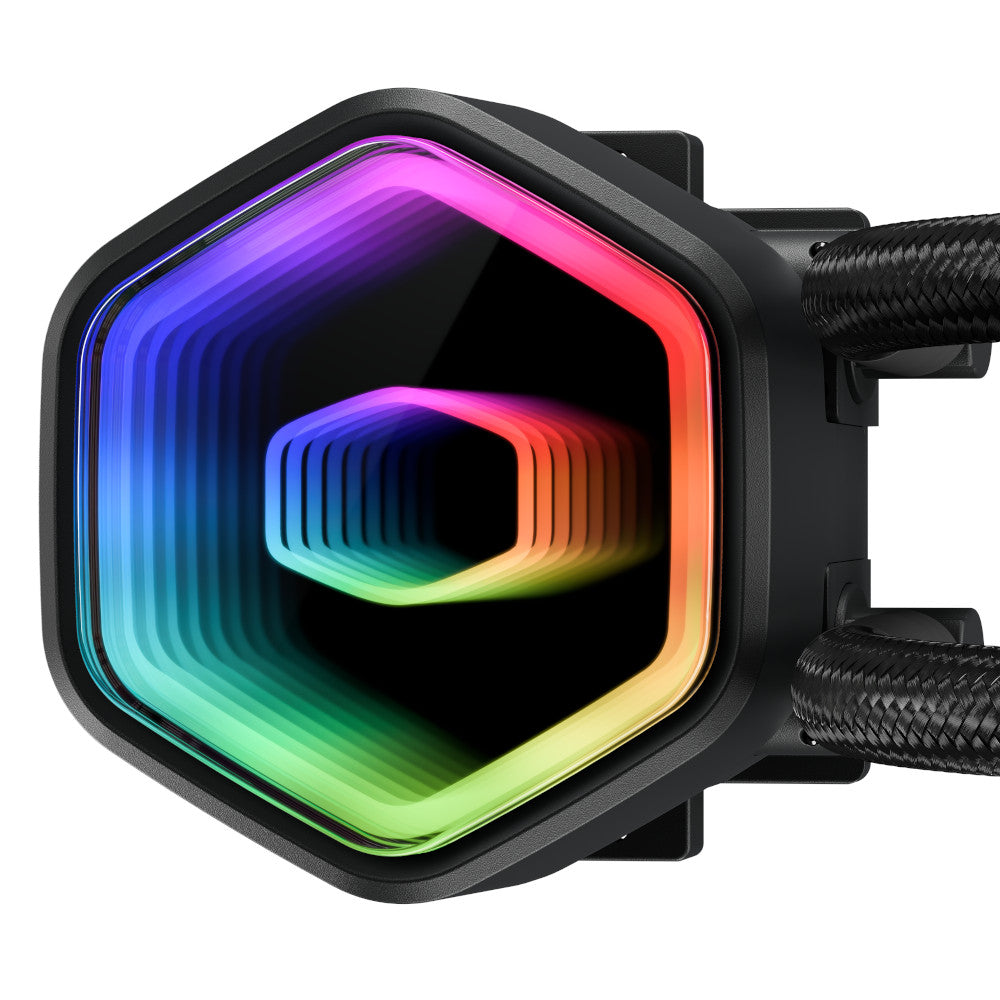

Innovative Design
An infinity mirror pump cover gives the pump a stellar aesthetics

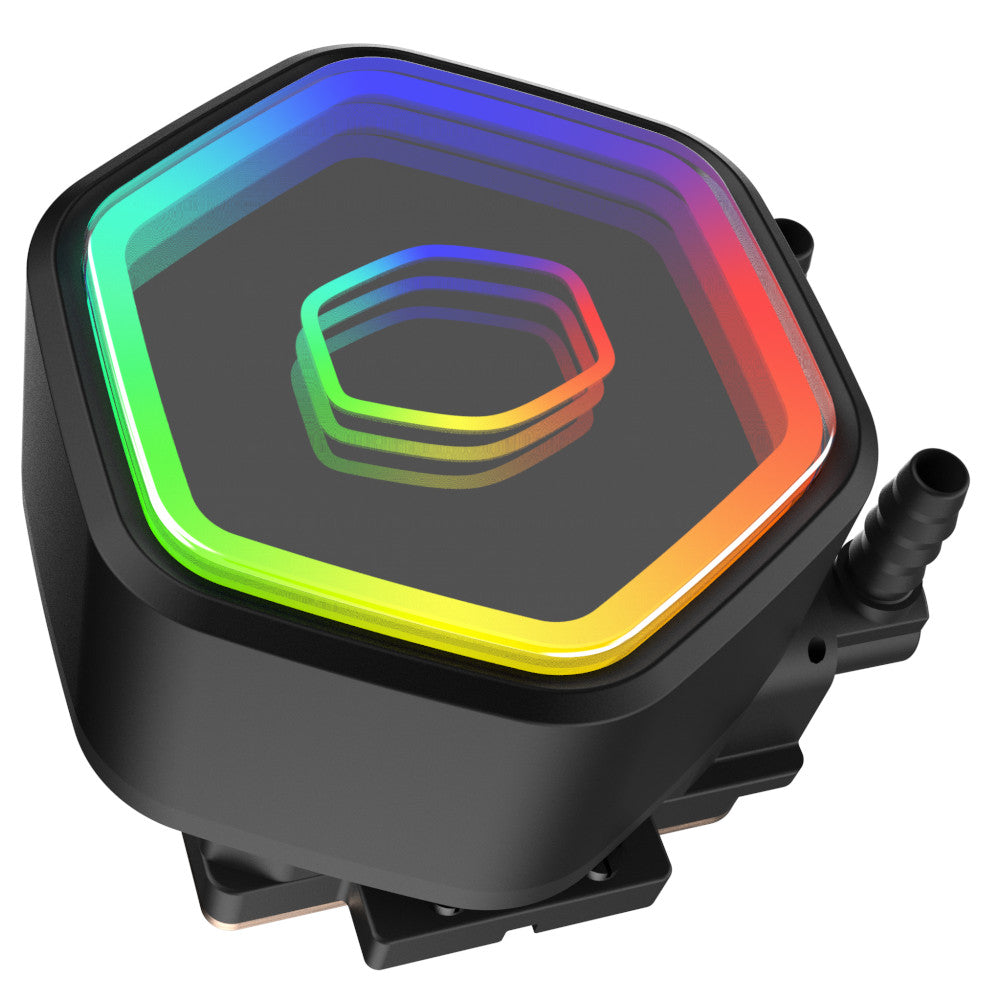

Dual Chamber Pump
Upgraded design resulting in a compact cooler with superior performance

Optimum Tubing Length
400 mm long tubing enables effortless mounting of the cooler in any orientation

Revamped fans
The brand-new fan blades and revamped aesthetics deliver outstanding performance and a fresh look

UPDATED CPU COMPATIBILITY
The Core II is compatible with all of the latest AMD and Intel CPUs

- SUPPORT LGA 1851 RL-ILM SOCKET DESIGN

Specification
- Product Name: MasterLiquid 240 Core II
- Product Name: MLW-D24M-A18PA-R1
- Exterior Colour: Black
- CPU Socket Support: Intel® LGA 1851 / 1700 / 1200 / 2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 socket​, AMD® AM5 / AM4 sockets
- Radiator Material: Aluminum
- Radiator Dimensions: 277 x 119.2 x 27.2 mm​ / 10.9 x 4.7 x 1.1 inch
- Pump Dimensions: 83 x 76.2 x 52.3 mm / 3.3 x 3 x 2.1 inch
- Pump MTTF: >50,000 Hours
- Pump Noise Level: 25 dBA (Max)
- Pump Profiles: Addressable RGB
- Pump Speed: 3100 ± 300 RPM
- Pump Connector: 3-Pin
- Pump Rated Voltage: 12 VDC
- Pump Power Consumption: 3.6 W
- Fan Dimenions: 120 x 120 x 25 mm 4.7 x 4.7 x 1.0 inch
- Fan Quantity: 2 PCS
- Fan LED: Addressable RGB
- Fan Speed: 650-1750 RPM ± 10%
- Airflow (max.): 120m³/h (70.7CFM)
- Fan Noise Level: 30 dBA
- Fan Air Pressure: 2 mmH₂O
- Bearing: Sleeve Bearings
- Fan MTTF: >160,000 Hours
- Fan Connector: 7-Pin PWM + ARGB
- Rated Voltage: 12 VDC
- Fan Rated Current: 0.23 A
- Fan Safety Current: 0.45 A
- Power Consumption: 2.76 W
- Warranty: 5 years

Specifications

Performance	Suitable location Processor Type Liquid cooling kit Fan diameter 12 cm Supported processor sockets LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 Rotational speed (min) 650 RPM Rotational speed (max) 1750 RPM Noise level 30 sone Airflow 120 m³/h Maximum air pressure 2 mmH2O Pulse-width modulation (PWM) support Yes Bearing type Sleeve bearing Pump noise level 25 dB Pump connector 3-pin + 4-pin Pump motor speed 3100 RPM Pump's mean time to failure (MTTF) 50000 h Fan's mean time to failure (MTTF) 160000 h Design Product colour Black Radiator material Aluminum Number of fans 2 fan(s) Illumination LED Yes Illumination colour Multi Power Rated voltage 12 V Fan power consumption 2.76 W Pump power consumption 3.6 W Rated current 0.23 A Safety current 0.45 Ah Pump voltage 12 V Weight & dimensions Radiator width 27.7 cm Radiator depth 11.9 cm Radiator height 2.72 cm Pump width 8.3 cm Pump depth 7.62 cm Pump height 5.23 cm Fan dimensions (W x D x H) 120 x 120 x 25 mm CPU CPU Socket 1700, AM4, AM5, 1851
Suitable location	Processor
Type	Liquid cooling kit
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Rotational speed (min)	650 RPM
Rotational speed (max)	1750 RPM
Noise level	30 sone
Airflow	120 m³/h
Maximum air pressure	2 mmH2O
Pulse-width modulation (PWM) support	Yes
Bearing type	Sleeve bearing
Pump noise level	25 dB
Pump connector	3-pin + 4-pin
Pump motor speed	3100 RPM
Pump's mean time to failure (MTTF)	50000 h
Fan's mean time to failure (MTTF)	160000 h
Product colour	Black
Radiator material	Aluminum
Number of fans	2 fan(s)
Illumination LED	Yes
Illumination colour	Multi
Rated voltage	12 V
Fan power consumption	2.76 W
Pump power consumption	3.6 W
Rated current	0.23 A
Safety current	0.45 Ah
Pump voltage	12 V
Radiator width	27.7 cm
Radiator depth	11.9 cm
Radiator height	2.72 cm
Pump width	8.3 cm
Pump depth	7.62 cm
Pump height	5.23 cm
Fan dimensions (W x D x H)	120 x 120 x 25 mm
CPU Socket	1700, AM4, AM5, 1851
