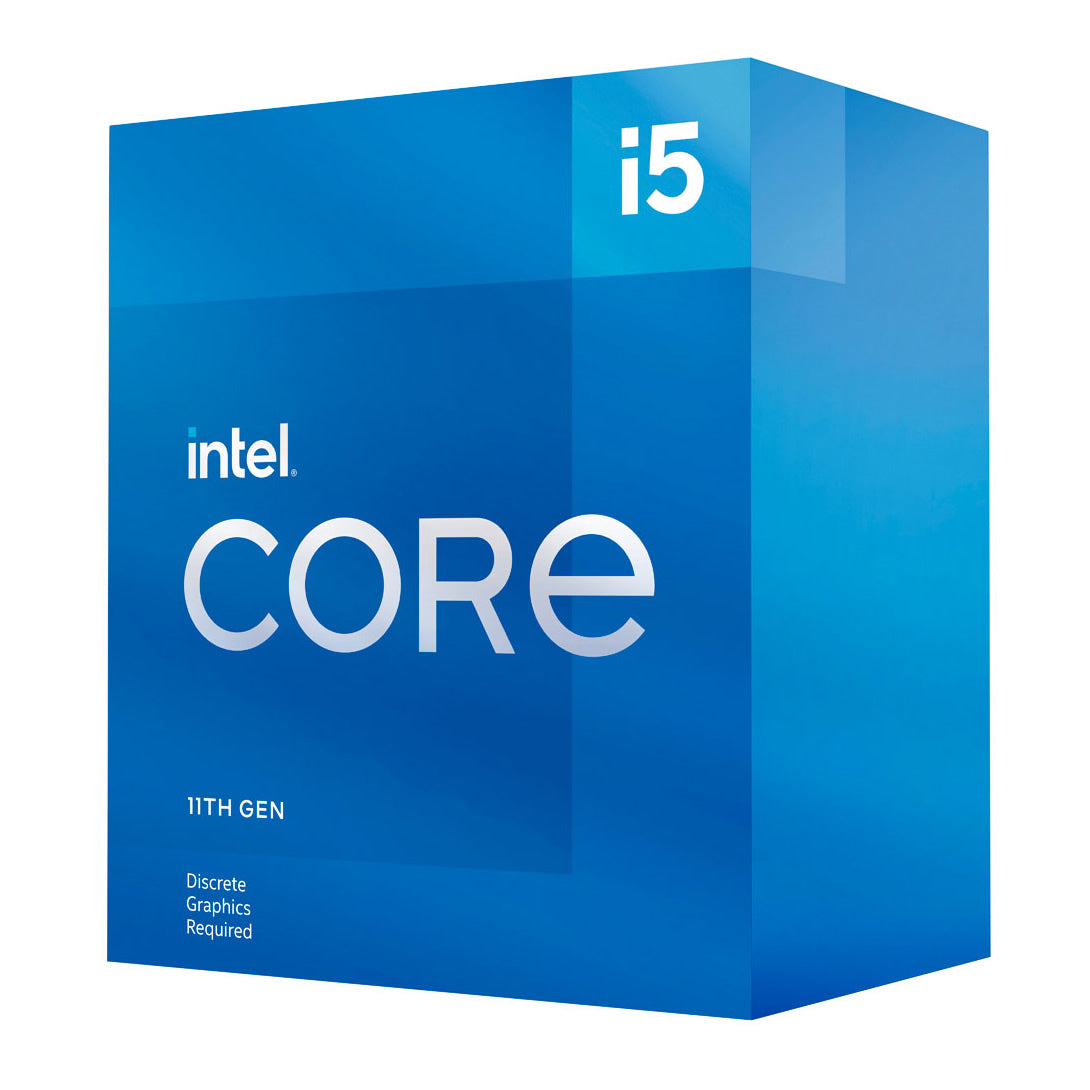

BX8070811400, 6/12 Cores / Threads, 2.60GHz Clock Speed, 4.4GHz Single Core Max Turbo, 12mb Cache, 65W TDP, Dual Channel DDR4 Controller, Onboard Graphics: Yes, 3 Year Warranty 11th Gen Intel® Core™ i5-11400 desktop processor optimized for gaming, creating, and productivity. Featuring PCIe Gen 4.0 support. Thermal solution included in the box. Compatible with 500 series & select 400 series chipset based motherboards. Refer to motherboard vendor for compatiblity details. 65W.


Specification:
- Socket: 1200
- Base Frequency: 2.60GHz
- Intel Smart Cache: 12M
- Cores / Threads: 6/12
- Memory speed support: 2933-3600MHz
- Intel Single Core Turbo frequency: 4.4GHz
- Intel Turbo Boost Max 3.0 Single core frequency: NA
- Intel Thermal Velocity Boost single / all core turbo frequency: NA
- Intel ALL core turbo frequency: 4.2GHz
- Max PCI-Express Lanes: 20
- PCI Gen 4.0 Support: YES
- Onboard Graphics: YES Intel UHD Graphics 750
- Integrated memory controller: Yes - Dual Channel
- TDP: 65W
- Intel SIPP: NO
- Intel vPro Technology: NIO
- ISM: YES
- Intel Optane memory: YES
- Warranty: 3yr

Specifications

Processor	Processor manufacturer Intel Processor generation 11th gen Intel® Core™ i5 Processor model i5-11400 Processor base frequency 2.6 GHz Processor family Intel® Core™ i5 Processor cores 6 Processor socket LGA 1200 (Socket H5) Component for PC Processor lithography 14 nm Processor threads 12 System bus rate 8 GT/s Processor operating modes 64-bit Processor boost frequency 4.4 GHz Processor cache 12 MB Processor cache type Smart Cache Thermal Design Power (TDP) 65 W Box Yes Memory bandwidth supported by processor (max) 50 GB/s Processor ARK ID 212270 Memory Maximum internal memory supported by processor 128 GB Memory types supported by processor DDR4-SDRAM Memory clock speeds supported by processor 3200 MHz Memory channels Dual-channel ECC No Memory bandwidth (max) 50 GB/s Graphics On-board graphics card Yes Discrete graphics card No On-board graphics card model Intel UHD Graphics 730 Maximum on-board graphics card memory 64 GB On-board graphics card base frequency 350 MHz On-board graphics card dynamic frequency (max) 1300 MHz Number of displays supported (on-board graphics) 3 On-board graphics card 4K support Yes On-board graphics card OpenGL version 4.5 On-board graphics card maximum resolution (DisplayPort) 5120 x 3200 pixels On-board graphics card maximum resolution (eDP - Integrated Flat Panel) 5120 x 3200 pixels On-board graphics card maximum resolution (HDMI) 4096 x 2160 pixels On-board graphics card refresh rate at maximum resolution (DisplayPort) 60 Hz On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) 60 Hz On-board graphics card refresh rate at maximum resolution (HDMI) 60 Hz On-board graphics card ID 0x4C8B Discrete graphics card model Not available Number of execution units 24 Features Execute Disable Bit Yes Idle States Yes Thermal Monitoring Technologies Yes Market segment Desktop Use conditions PC/Client/Tablet Maximum number of PCI Express lanes 20 PCI Express slots version 4.0 PCI Express configurations 1x16+1x4, 2x8+1x4, 1x8+3x4 Supported instruction sets SSE4.1, SSE4.2, AVX 2.0, AVX-512 Scalability 1S CPU configuration (max) 1 Embedded options available No Export Control Classification Number (ECCN) 5A992CN3 Commodity Classification Automated Tracking System (CCATS) G167599 Processor special features Intel® Hyper Threading Technology (Intel® HT Technology) Yes Intel® Identity Protection Technology (Intel® IPT) Yes Intel® Turbo Boost Technology 2.0 Intel® Quick Sync Video Technology Yes Intel® InTru™ 3D Technology Yes Intel® Clear Video HD Technology (Intel® CVT HD) Yes Intel® AES New Instructions (Intel® AES-NI) Yes Enhanced Intel SpeedStep Technology Yes Intel Trusted Execution Technology No Intel® Thermal Velocity Boost No Intel® Turbo Boost Technology 2.0 frequency 4.4 GHz Intel® Gaussian & Neural Accelerator (Intel® GNA) 2.0 Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel® Secure Key Yes Intel Stable Image Platform Program (SIPP) No Intel® OS Guard Yes Intel Clear Video Technology Yes Intel Software Guard Extensions (Intel SGX) No Intel 64 Yes Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel Turbo Boost Max Technology 3.0 No Intel® Optane™ Memory Ready Yes Intel® Boot Guard Yes Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes Intel® vPro™ Platform Eligibility No Operational conditions Tjunction 100 °C Technical details Target market Gaming Launch date Q1'21 Status Launched Supported memory types DDR4-SDRAM Packaging data Package type Retail box Weight & dimensions Processor package size 37.5 x 37.5 mm Other features Maximum internal memory 128 GB
Processor manufacturer	Intel
Processor generation	11th gen Intel® Core™ i5
Processor model	i5-11400
Processor base frequency	2.6 GHz
Processor family	Intel® Core™ i5
Processor cores	6
Processor socket	LGA 1200 (Socket H5)
Component for	PC
Processor lithography	14 nm
Processor threads	12
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor boost frequency	4.4 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Thermal Design Power (TDP)	65 W
Box	Yes
Memory bandwidth supported by processor (max)	50 GB/s
Processor ARK ID	212270
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	3200 MHz
Memory channels	Dual-channel
ECC	No
Memory bandwidth (max)	50 GB/s
On-board graphics card	Yes
Discrete graphics card	No
On-board graphics card model	Intel UHD Graphics 730
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1300 MHz
Number of displays supported (on-board graphics)	3
On-board graphics card 4K support	Yes
On-board graphics card OpenGL version	4.5
On-board graphics card maximum resolution (DisplayPort)	5120 x 3200 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	5120 x 3200 pixels
On-board graphics card maximum resolution (HDMI)	4096 x 2160 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card ID	0x4C8B
Discrete graphics card model	Not available
Number of execution units	24
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Desktop
Use conditions	PC/Client/Tablet
Maximum number of PCI Express lanes	20
PCI Express slots version	4.0
PCI Express configurations	1x16+1x4, 2x8+1x4, 1x8+3x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0, AVX-512
Scalability	1S
CPU configuration (max)	1
Embedded options available	No
Export Control Classification Number (ECCN)	5A992CN3
Commodity Classification Automated Tracking System (CCATS)	G167599
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	No
Intel® Thermal Velocity Boost	No
Intel® Turbo Boost Technology 2.0 frequency	4.4 GHz
Intel® Gaussian & Neural Accelerator (Intel® GNA) 2.0	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Secure Key	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel® OS Guard	Yes
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Turbo Boost Max Technology 3.0	No
Intel® Optane™ Memory Ready	Yes
Intel® Boot Guard	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel® vPro™ Platform Eligibility	No
Tjunction	100 °C
Target market	Gaming
Launch date	Q1'21
Status	Launched
Supported memory types	DDR4-SDRAM
Package type	Retail box
Processor package size	37.5 x 37.5 mm
Maximum internal memory	128 GB
