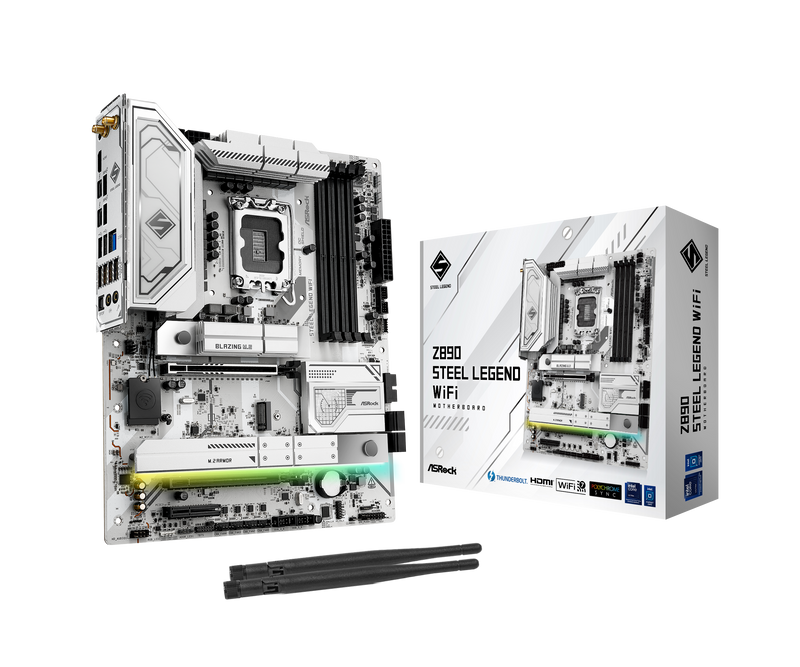

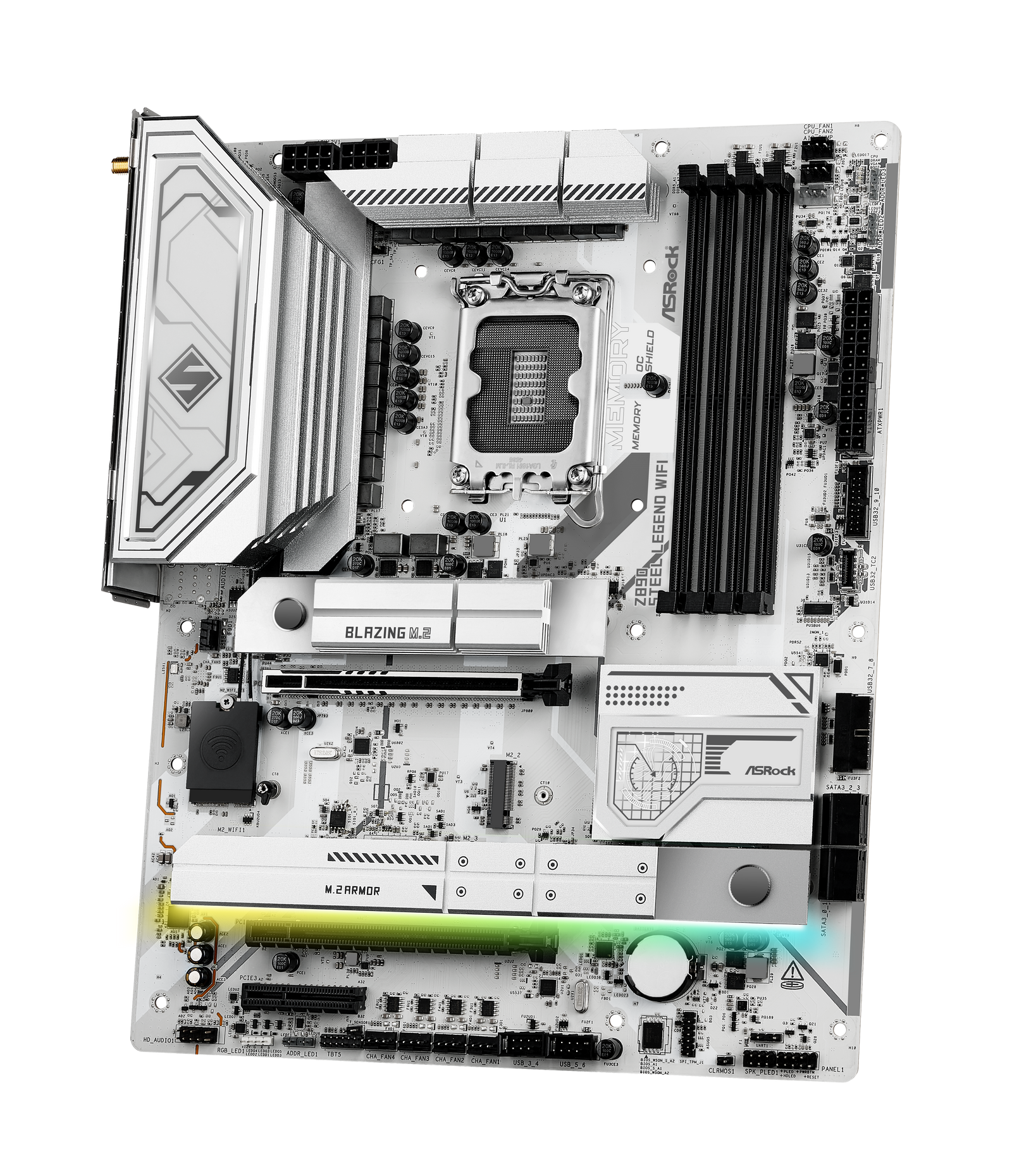

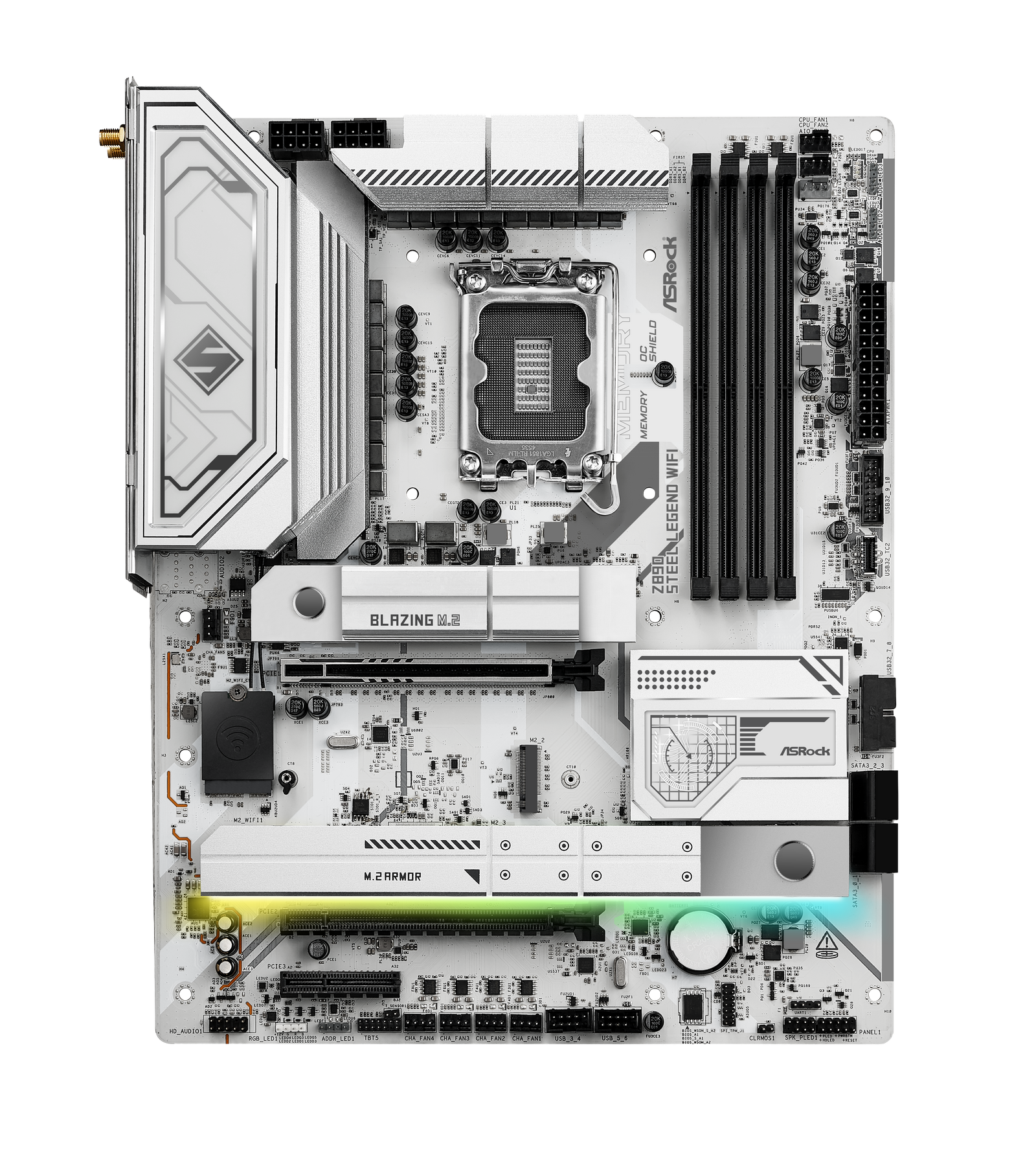

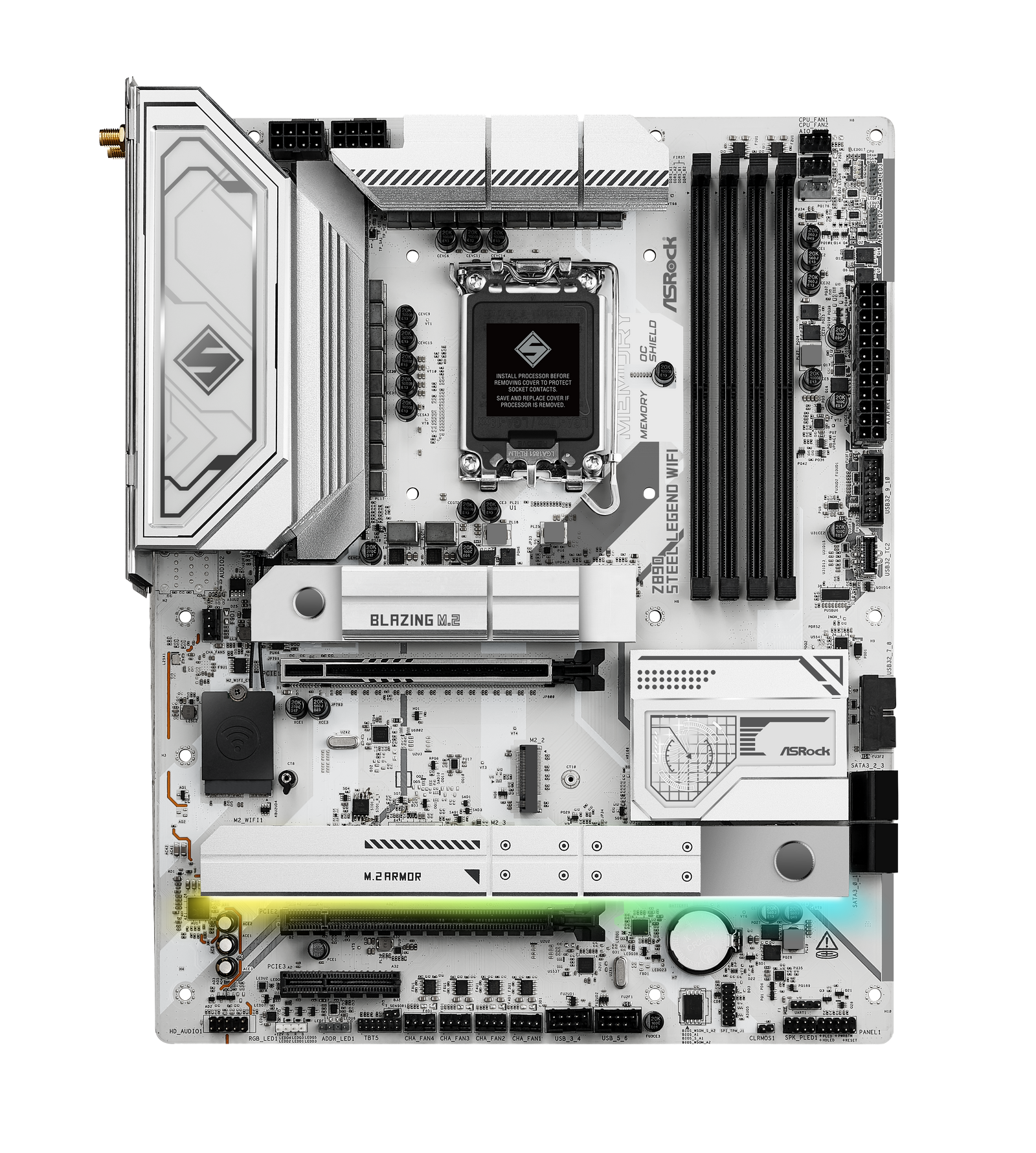

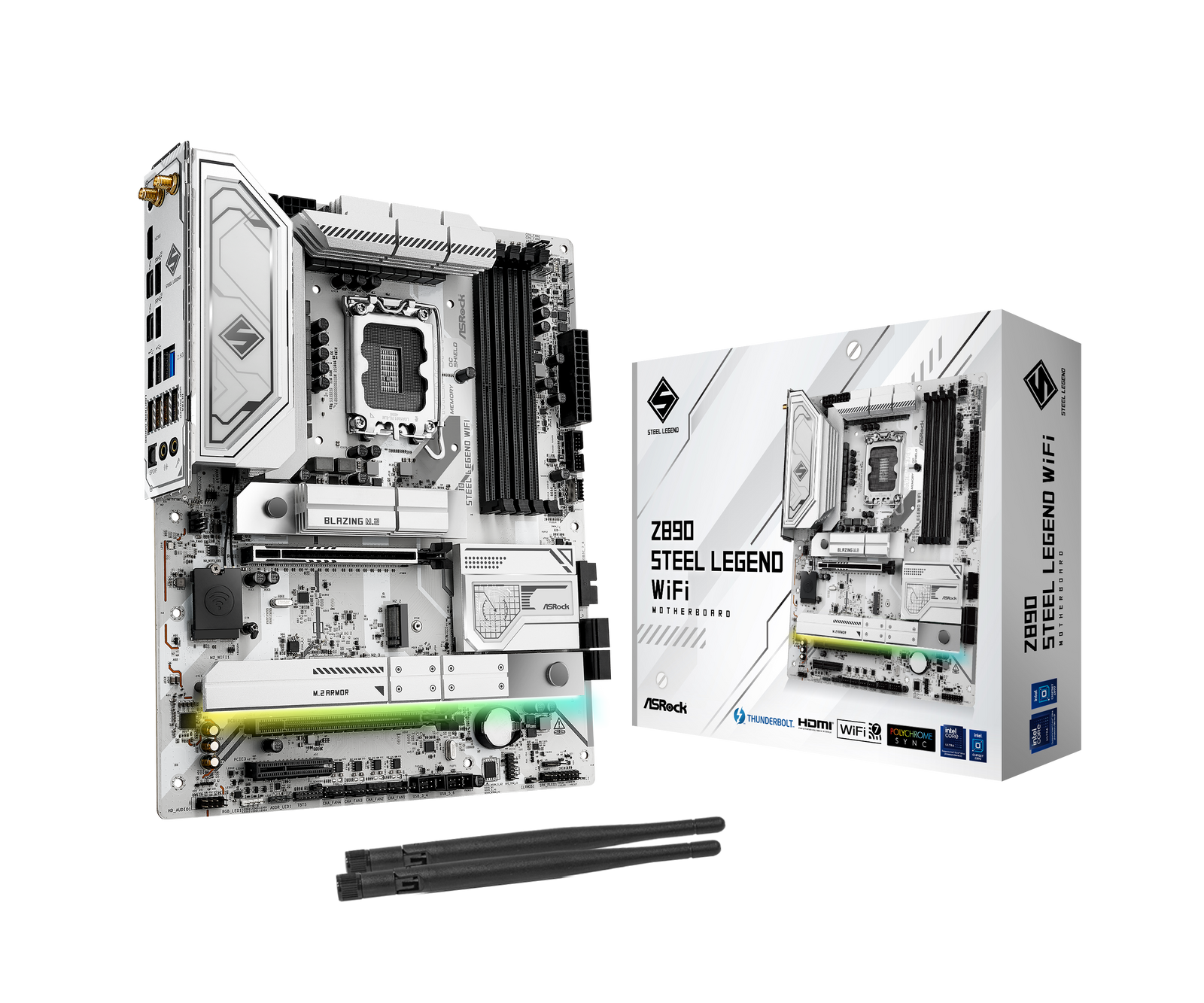

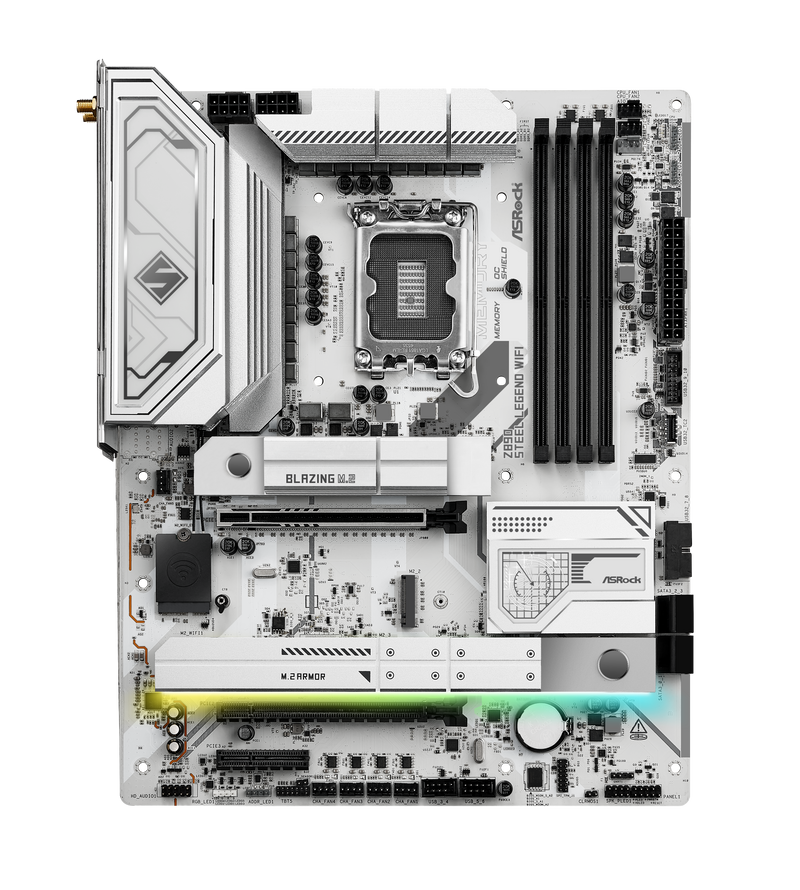

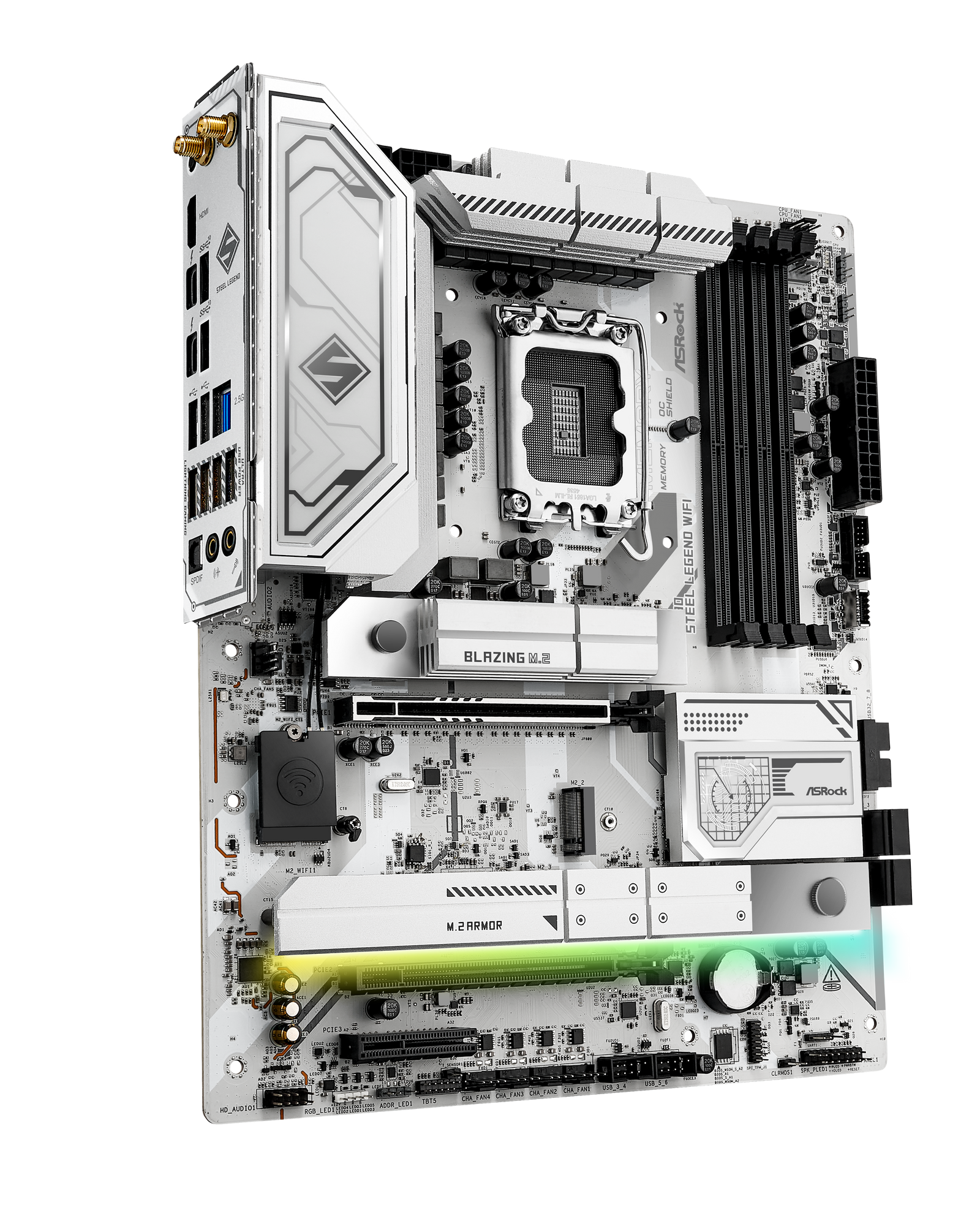

Asrock Z890 Steel Legend WIFI (LGA 1851) DDR5 ATX Motherboard

SKU MOT-ASR-03360EAN 4710483947520MPN 90-MXBPF0-A0UAYZ

Overview

Intel Core Ultra compatible, LGA 1851 Socket, Z890, PCIe Gen 5, ATX, 4x DIMM slots, DDR5 9066MHz (OC), 4x M.2, 4x SATA, 2.5Gb LAN, HDMI, Type-C

Category	Details
Unique Feature	Superb Productivity PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability Server-Grade Low-Loss PCB 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor Memory OC Shield Flexible Integrated I/O Shield 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity 2.5G LAN, 802.11be Wi-Fi 7 Module ASRock Lightning Gaming Ports EZ Update BIOS Flashback Button ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
CPU	Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration
Chipset	Intel® Z890
Memory	Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)* Supports Clocked Unbuffered DIMM (CUDIMM) Max. capacity of system memory: 256GB Supports Intel® Extreme Memory Profile (XMP) 3.0x *1DPC 1R Up to 9466+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively.
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Intel® Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* *Only CPU models with integrated graphics support Thunderbolt display output.
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI & Network Usage Statistics Optimized Settings for Game, Browser, and Streaming Modes User Customized Priority Control
Wireless LAN	802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz frequency bands* Supports 320MHz channel bandwidth with 6GHz frequency band* 1 antenna supporting 2x2 diversity Supports Bluetooth 5.4 Supports MU-MIMO *Wi-Fi 7 module requires Windows 11 and regional support for 6GHz band.
Slots	CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode* 1 x M.2 Socket (Key E) for WiFi/BT PCIe module and Intel® CNVio/CNVio2 *PCIE1 supports riser card extension. Supports NVMe SSD as boot disks.
Storage	CPU: 1 x Blazing M.2 Socket (M2_1) PCIe Gen5x4 (128 Gb/s) 1 x Hyper M.2 Socket (M2_2) PCIe Gen4x4 (64 Gb/s) Chipset: 1 x Hyper M.2 Socket (M2_3) SATA3 & PCIe Gen4x4 1 x Hyper M.2 Socket (M2_4) PCIe Gen4x4 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD). Supports NVMe SSD boot disks.
RAID	Supports RAID 0, 1, 5, and 10 for SATA and M.2 NVMe storage devices.
USB	CPU: 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front) 2 x USB 3.2 Gen2 Type-A (Rear) 8 x USB 3.2 Gen1 (4 Rear, 4 Front) 6 x USB 2.0 (2 Rear, 4 Front) *All USB ports support ESD Protection.
Connector	1 x Thermistor Cable Header 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)* 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)* 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * Supports up to 12V/3A, 36W LED Strip. Supports up to 5V/3A, 15W LED Strip. * CPU_FAN1 supports up to 1A (12W), others up to 3A (36W) with auto detection for 3/4-pin fans.

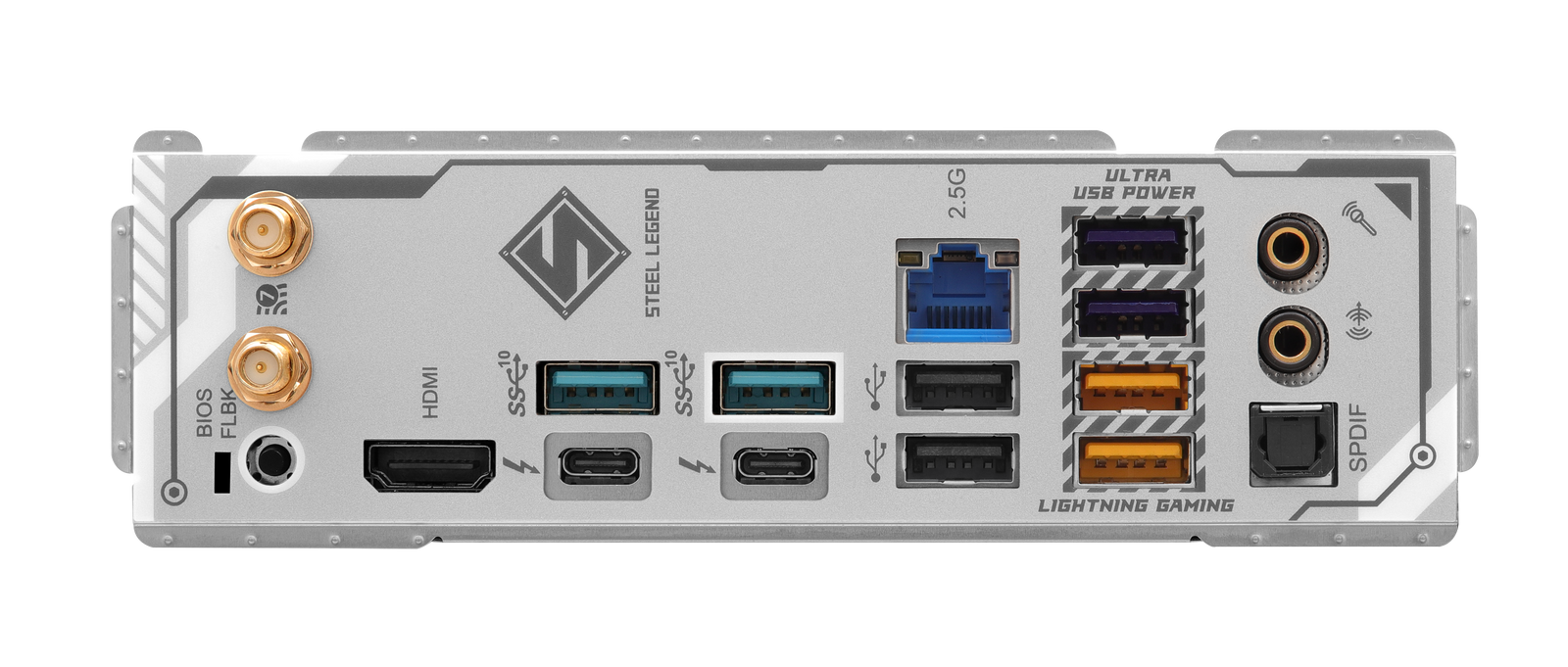

Rear Panel I/O	2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s USB4 and Thunderbolt protocol)* 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 4 x USB 3.2 Gen1 Ports** 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging. ** USB32_34 are Lightning Gaming Ports, USB32_56 support Ultra USB Power.
Software and UEFI	Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash *Utilities downloadable from ASRock Live Update & APP Shop.
Accessories	2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 1 x Thermistor Cable
Form Factor	ATX Form Factor: 12.0-in x 9.6-in (30.5 cm x 24.4 cm), 2oz Copper PCB
OS	Microsoft Windows® 11 64-bit
Certifications	FCC, CE, ErP/EuP ready (requires ErP/EuP ready power supply)

Specifications

Motherboard	Motherboard Chipset Intel Z890 Form Factor Motherboard Form Factor ATX Colour Primary Colour White Lighting Lighting / RGB Yes CPU CPU Manufacturer Intel CPU Socket 1851 Wi-Fi & LAN LAN Yes LAN Ports 1x 2.5 Gbit/s Wi-Fi / Bluetooth Yes Wi-Fi Standard Wi-Fi 7 Bluetooth Standard 5.4 Memory Max. Memory 256 GB Memory Type DDR5 Memory Form Factor DIMM Max. Memory Speed (OC) 9066 MT/s Memory slots 4x Performance Profile Intel XMP 3.0 Fan Header 4 Pin Fan Connectors 8 External Ports USB4 Gen 3x2 (external) Type C 2 USB 3.1 (external) Type A 2 USB 3.0 (external) Type A 4 USB 2.0 (external) Type A 2 Expansion Slots PCIe x16 slots (total) 2 PCIe x4 slots (total) 1 Internal Ports CPU Power Supply 2x 8-Pin USB 3.0 / 3.1 / 3.2 (internal) Type C Header 1 USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports 1 USB 3.0 (internal) Header 2 USB 3.0 (internal) Possible Ports 4 USB 2.0 (internal) Header 2 USB 2.0 (internal) Possible Ports 4 RGB / LED connectors 1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG) Front Panel Audio Header Yes SPI TPM Header No Storage Ports M.2 PCIe 4.0 x4 1 M.2 PCIe 4.0 x4 & SATA 6G 1 M.2 PCIe 5.0 x4 1 M.2 PCIe 5.0 x4 & SATA 6G 1 SATA 6G (internal) 4 Cooling VRM Heatsinks Yes Audio Soundchip Realtek ALC1220
Motherboard Chipset	Intel Z890
Motherboard Form Factor	ATX
Primary Colour	White
Lighting / RGB	Yes
CPU Manufacturer	Intel
CPU Socket	1851
LAN	Yes
LAN Ports	1x 2.5 Gbit/s
Wi-Fi / Bluetooth	Yes
Wi-Fi Standard	Wi-Fi 7
Bluetooth Standard	5.4
Max. Memory	256 GB
Memory Type	DDR5
Memory Form Factor	DIMM
Max. Memory Speed (OC)	9066 MT/s
Memory slots	4x
Performance Profile	Intel XMP 3.0
4 Pin Fan Connectors	8
USB4 Gen 3x2 (external) Type C	2
USB 3.1 (external) Type A	2
USB 3.0 (external) Type A	4
USB 2.0 (external) Type A	2
PCIe x16 slots (total)	2
PCIe x4 slots (total)	1
CPU Power Supply	2x 8-Pin
USB 3.0 / 3.1 / 3.2 (internal) Type C Header	1
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports	1
USB 3.0 (internal) Header	2
USB 3.0 (internal) Possible Ports	4
USB 2.0 (internal) Header	2
USB 2.0 (internal) Possible Ports	4
RGB / LED connectors	1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
Front Panel Audio Header	Yes
SPI TPM Header	No
M.2 PCIe 4.0 x4	1
M.2 PCIe 4.0 x4 & SATA 6G	1
M.2 PCIe 5.0 x4	1
M.2 PCIe 5.0 x4 & SATA 6G	1
SATA 6G (internal)	4
VRM Heatsinks	Yes
Soundchip	Realtek ALC1220

Specifications

Manufacturer	ASRock
Manufacturer part number	90-MXBPF0-A0UAYZ
OcUK SKU	MOT-ASR-03360
EAN	4710483947520
CPU Socket	1851
Lighting / RGB	Yes
Memory Form Factor	DIMM
Memory Type	DDR5
Primary Colour	White
RGB / LED connectors	1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
