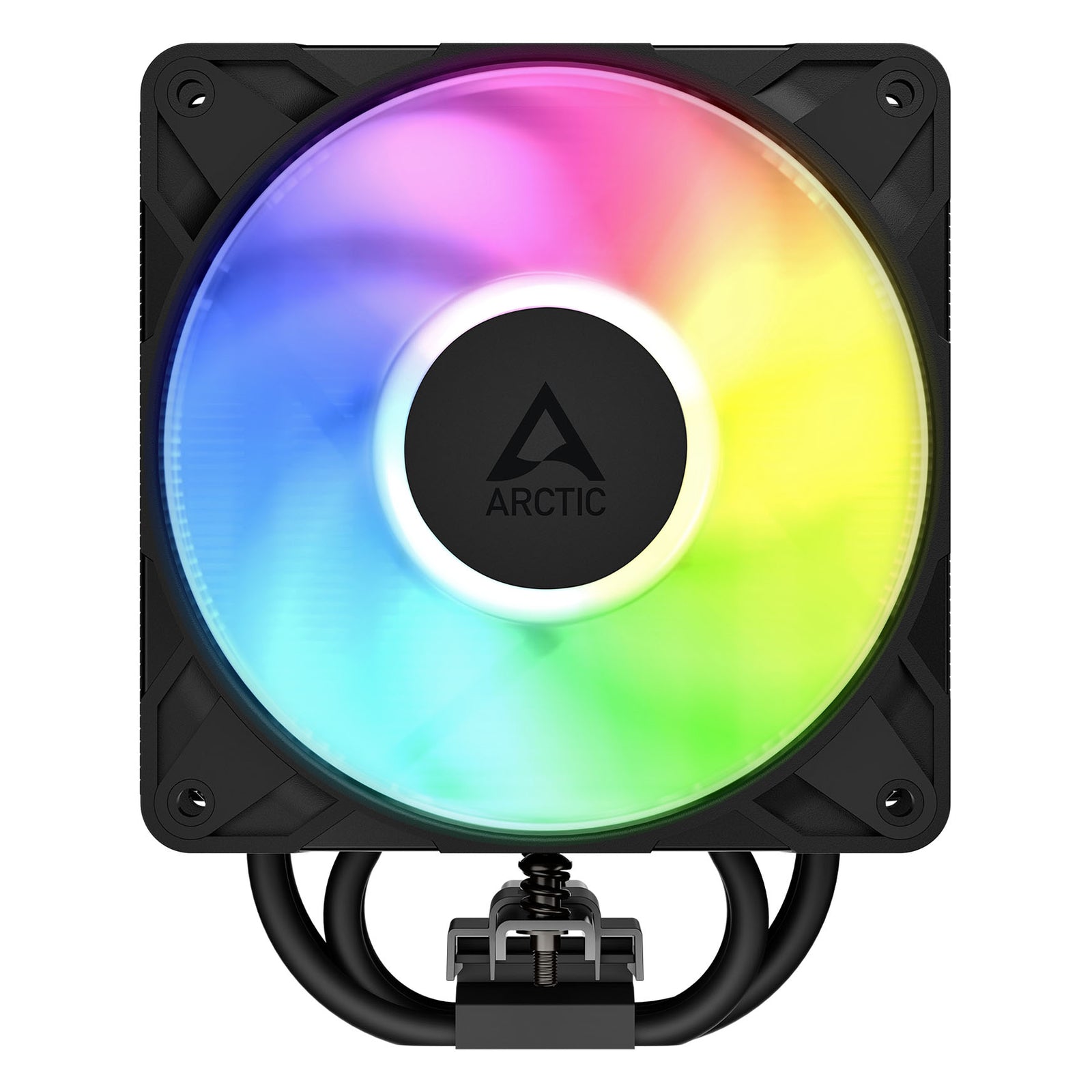

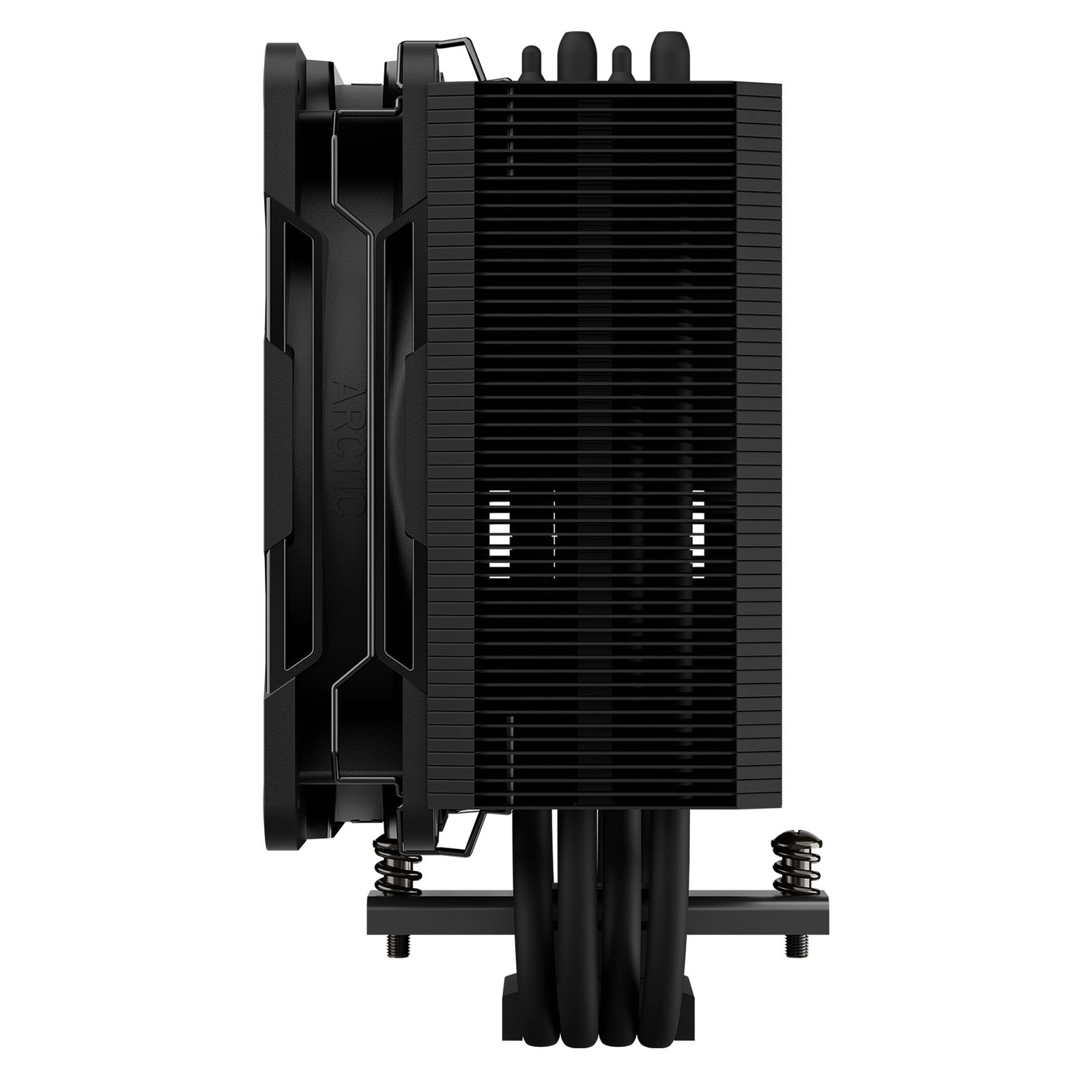

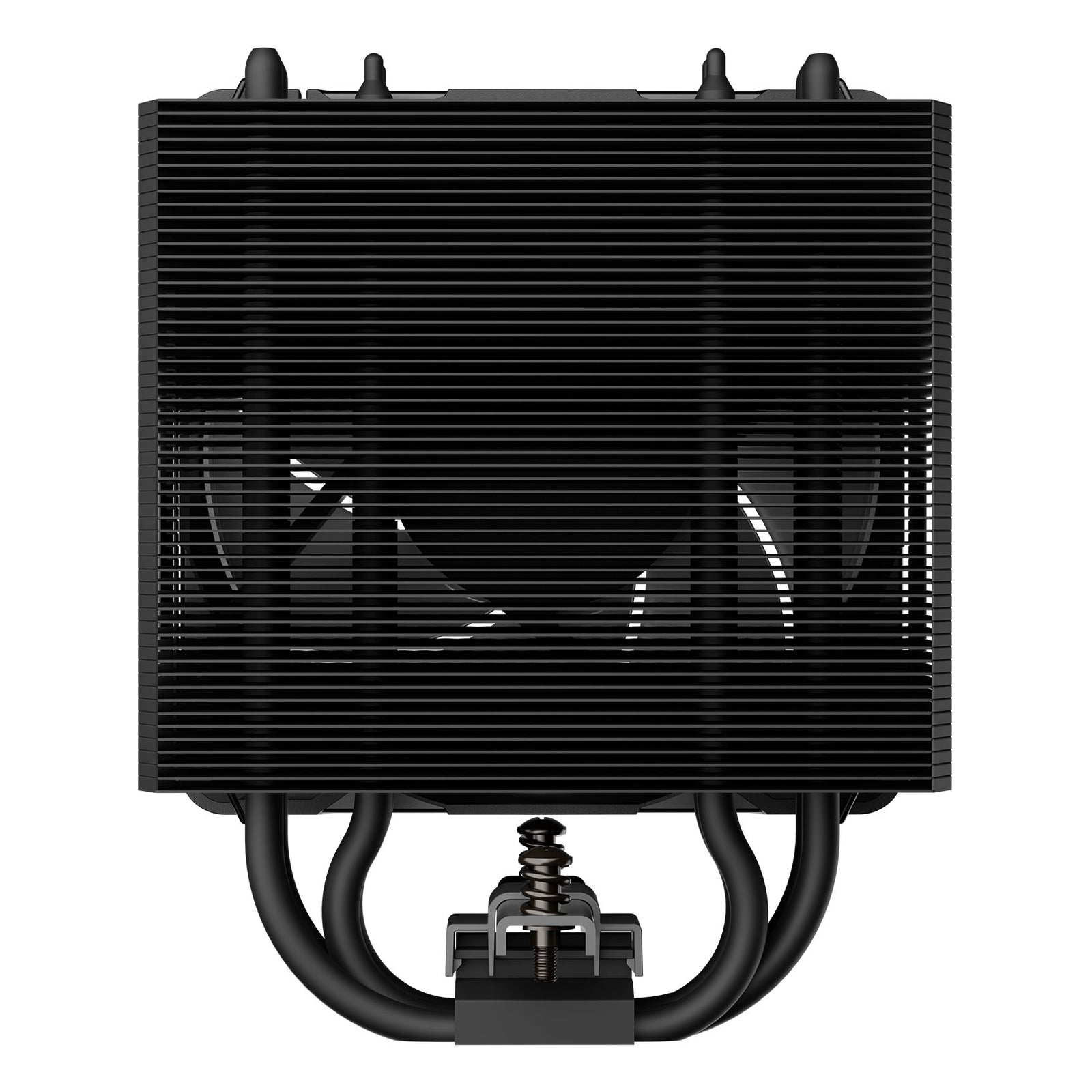

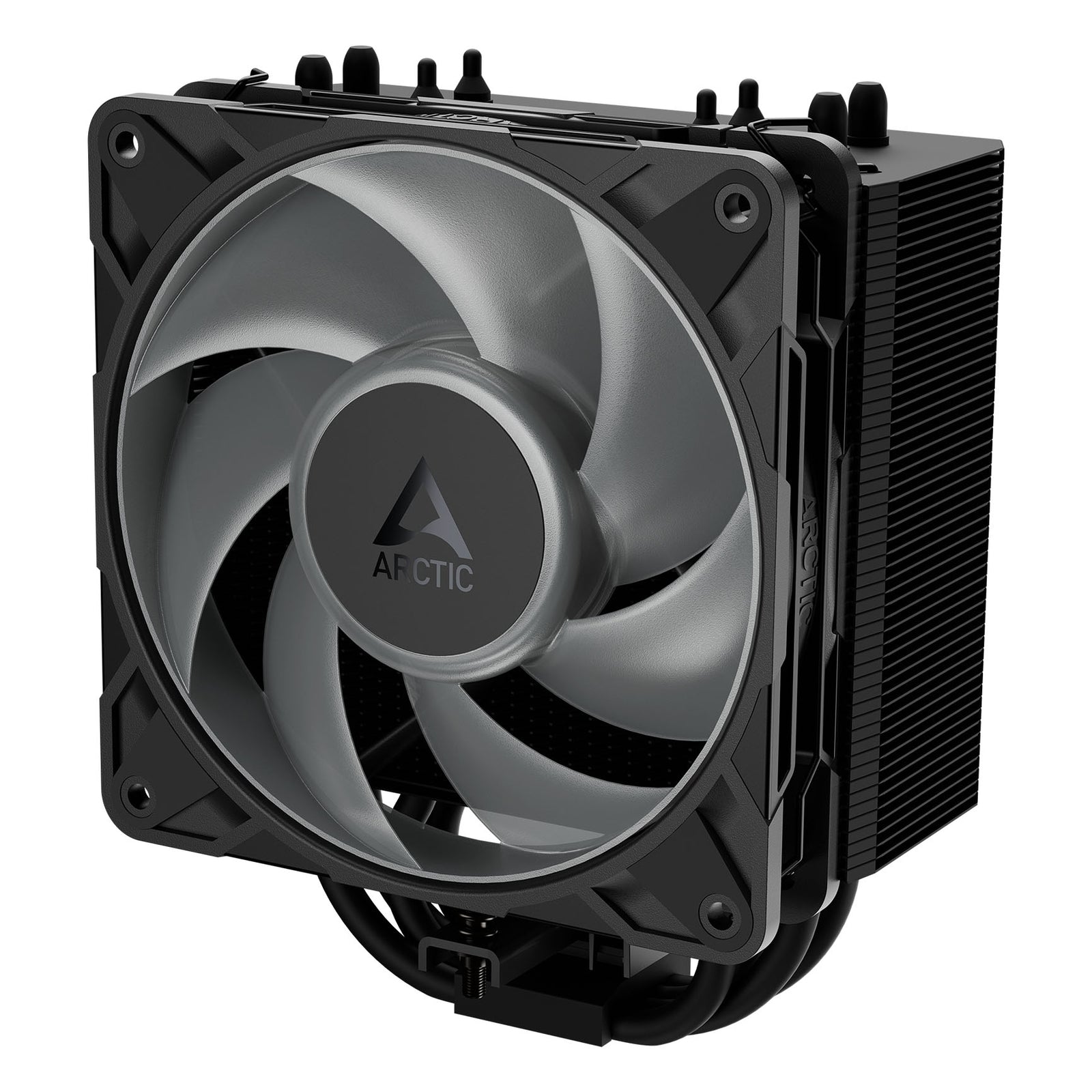

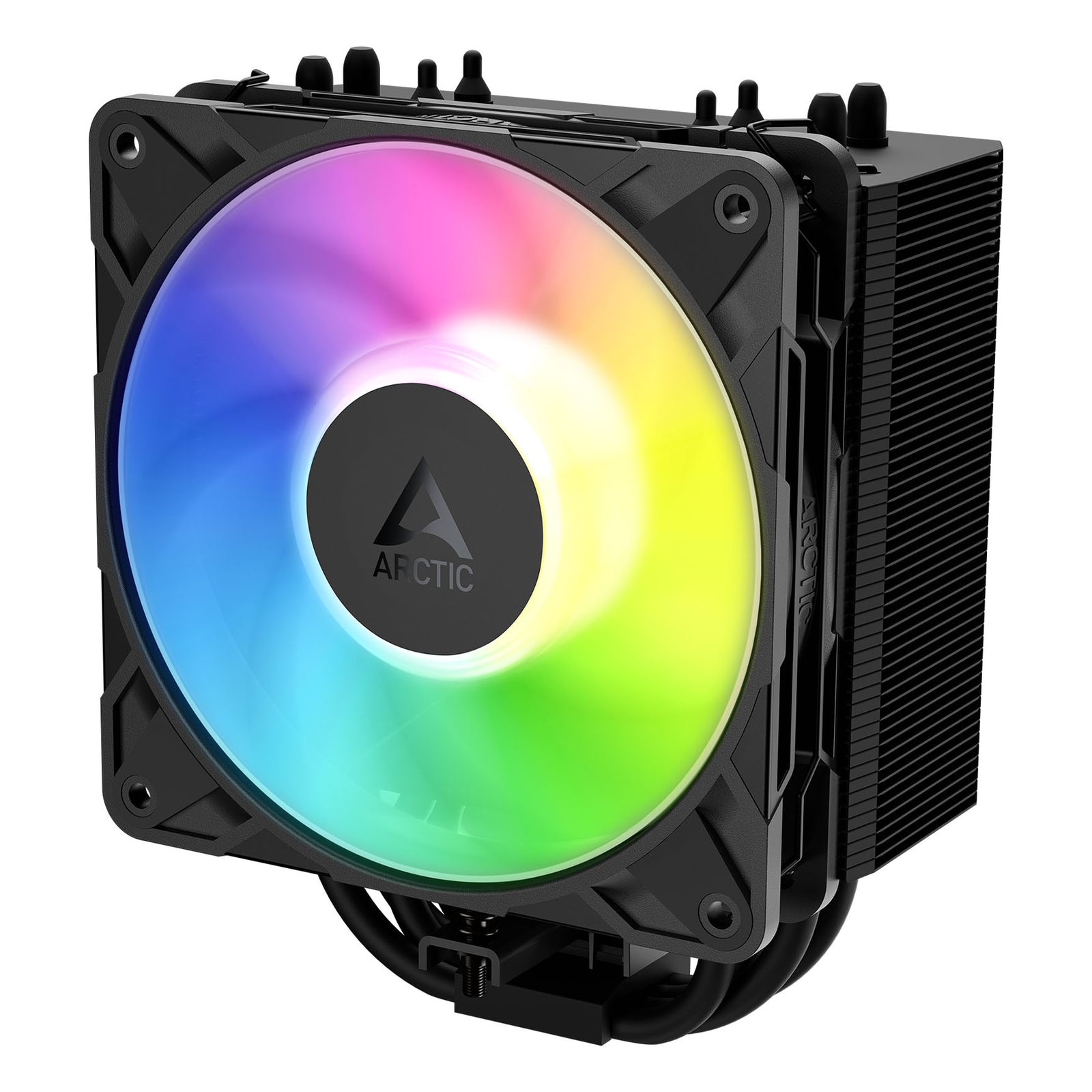

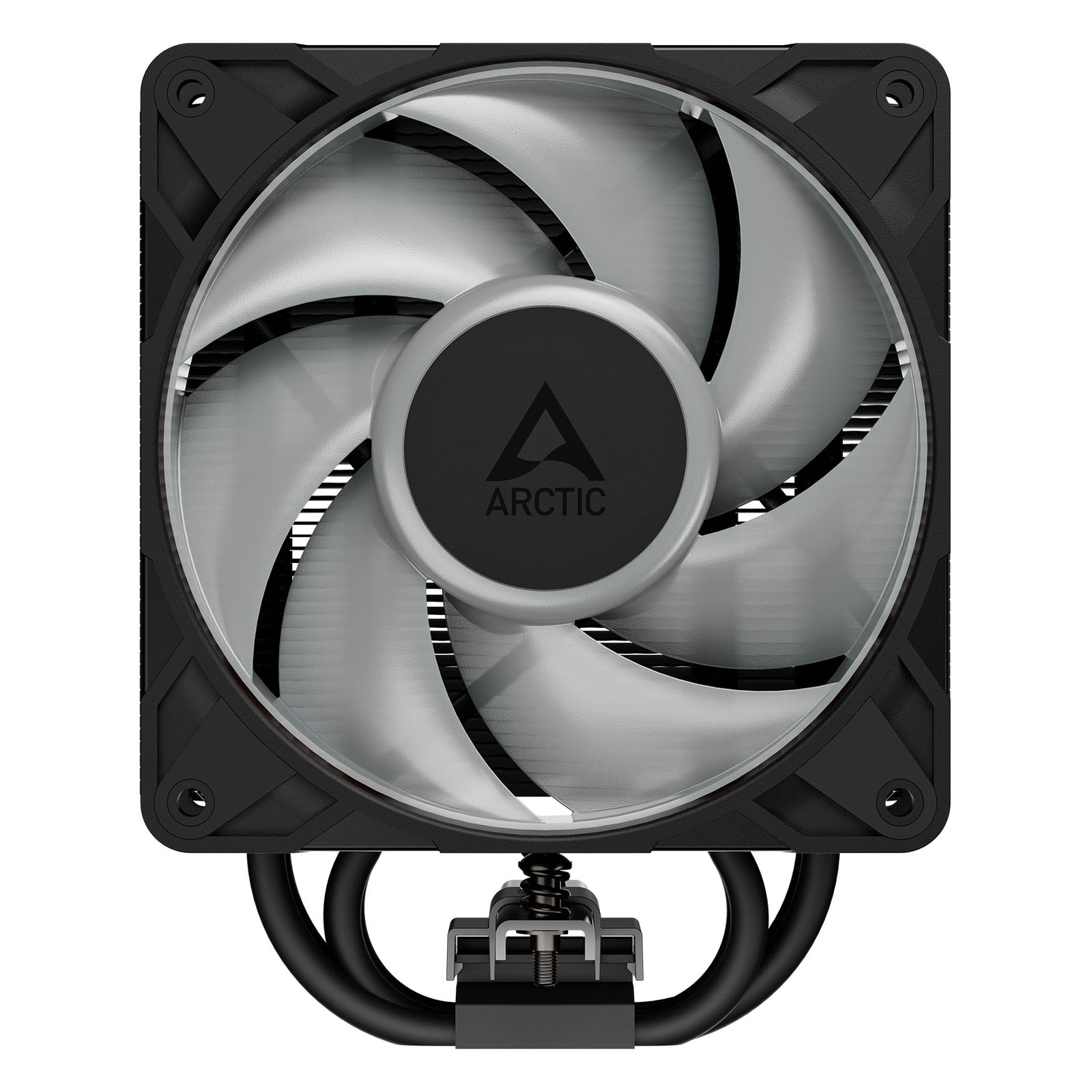

ACFRE00198A, 120mm cooler, ARGB Lighting, Black Design, Intel and AMD support, 6 year warranty

Stable Mounting for Long-Therm Stabillity
The Contact Frame provides even mounting pressure, prevents CPU bending, and ensures optimal contact for lower thermal resistance and reliable long-term stability

Broad Future-Proof Compatibility
Compatible with Intel LGA1851, and LGA1700 sockets. Also supports AMD AM5 and AM4 platforms for maximum system flexibility.

Optimized Cooling with P12 Pro PST
High static pressure and precise airflow for maximum heat dissipation, especially on heatsinks. Engineered with performance headroom, it ensures reliable cooling under demanding workloads.

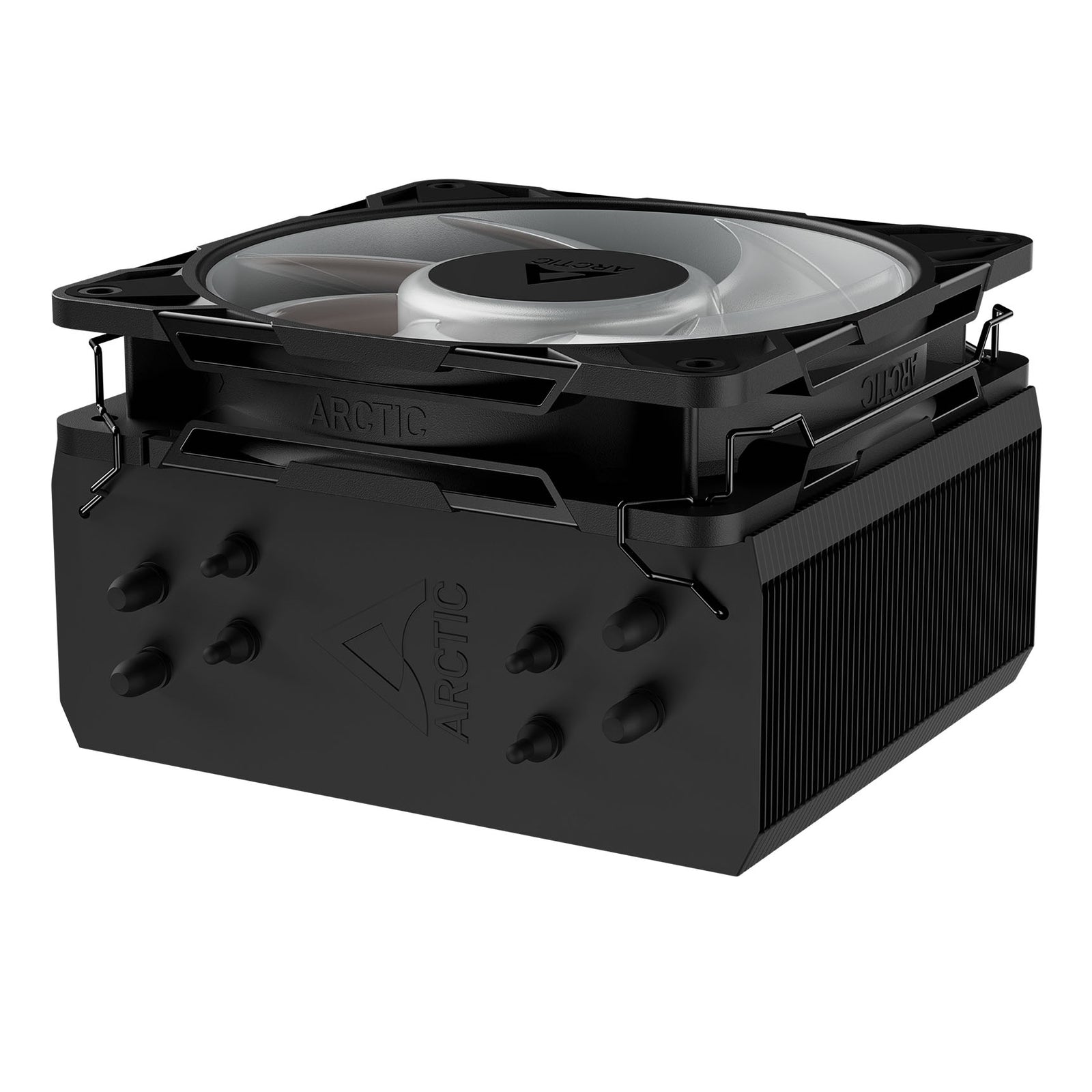

Secure and Quick Fan Mounting
The included wire clips provide a firm, stable fit on your cooler. The tool-free design keeps the fan securely in place, ensuring reliable positioning even during transport or system movement.

Fits More in Your Build
Its compact design is perfect for smaller cases, ensuring full compatibility with tall RAM modules and nearby components.

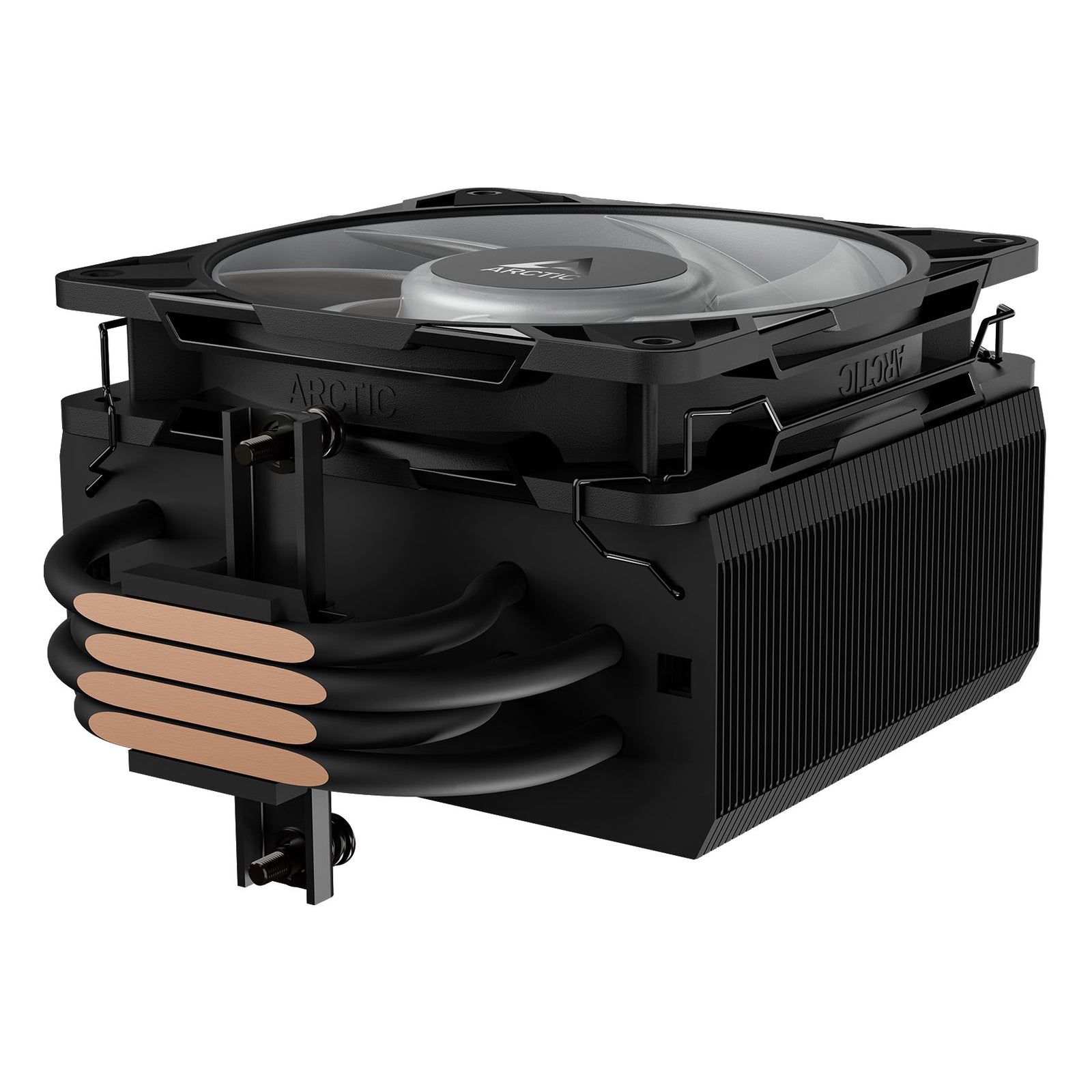

Even Distribution for Better Cooling
The staggered heatpipe layout ensures optimal heat transfer of the cooler to the fins, delivering uniform distribution and improved cooling performance.

Faster Cooling, Better Performance
Direct Touch heatpipes sit directly on the CPU IHS without any additional layers, ensuring faster heat transfer and lower temperatures.

6-Year Warranty – Because Satisfaction Matters
Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.

Specification:
General Specifications
- Warranty: 6 Years
- Operating Ambient Temperature: 0-40 °C
- Dimensions: 126 (L) x 88 (W) x 156 (H) mm
- Weight: 685 g

Fan Specifications
- Fan Speed: 600-3000 rpm
- 0dB below: 5 %
- Bearing: Fluid Dynamic Bearing
- Current | Voltage: 0.33 A | 12 V DC
- Cable Length: 200 mm
- Connector: 4-Pin PWM-Connector

CPU Specifications
- Intel® Socket: 1851, 1700
- AMD® Socket: AM5, AM4
- RAM Clearance: 0 mm

Heatsink Specifications
- Heatpipe Diameter: 6 mm
- Heatpipe Material: Copper
- Fin Amount: 54
- Fin Thickness: 0.4 mm
- Heatsink Material: Aluminium

RGB Specifications
- LED Amount: 12
- Current | Voltage: 0.4 A | 5 V DC
- RGB Type: A-RGB
- Cable Length: 200 mm
- Connector: 3-Pin A-RGB-Connector + 3-Pin Plug

Specifications

Type	CPU Cooler Type Single Tower Colour Primary Colour Black Fan Main Colour (Frame) Black Fan Main Colour (Rotor) White Lighting Lighting / RGB Yes Lighting Colour RGB Materials Materials Aluminium, Copper Base Plate Material Copper Heat Sink Material Aluminum Cooler Specifications Heatpipe diameter 6 mm Number of heatpipes 4 Ventilation type active Additional fans possible Yes Dimensions Length / Depth 126 mm Width 88 mm Height 156 mm Weight 685 g Additional Contents Included fans 1x 120 mm Fan Specifications Min. Fan RPM 600 rpm Max. Fan RPM 3000 rpm Max. Single Fan Airflow 77 cfm Max. Static Pressure 6.9 mmH2O CPU CPU Socket 1700, AM4, AM5, 1851 Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Internal Ports Fan connectors 4 Pin (PWM) RGB / LED connectors 1x Digital RGB (3-Pin 5VDG)
CPU Cooler Type	Single Tower
Primary Colour	Black
Fan Main Colour (Frame)	Black
Fan Main Colour (Rotor)	White
Lighting / RGB	Yes
Lighting Colour	RGB
Materials	Aluminium, Copper
Base Plate Material	Copper
Heat Sink Material	Aluminum
Heatpipe diameter	6 mm
Number of heatpipes	4
Ventilation type	active
Additional fans possible	Yes
Length / Depth	126 mm
Width	88 mm
Height	156 mm
Weight	685 g
Included fans	1x 120 mm
Min. Fan RPM	600 rpm
Max. Fan RPM	3000 rpm
Max. Single Fan Airflow	77 cfm
Max. Static Pressure	6.9 mmH2O
CPU Socket	1700, AM4, AM5, 1851
Compatibility Note	Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Fan connectors	4 Pin (PWM)
RGB / LED connectors	1x Digital RGB (3-Pin 5VDG)
