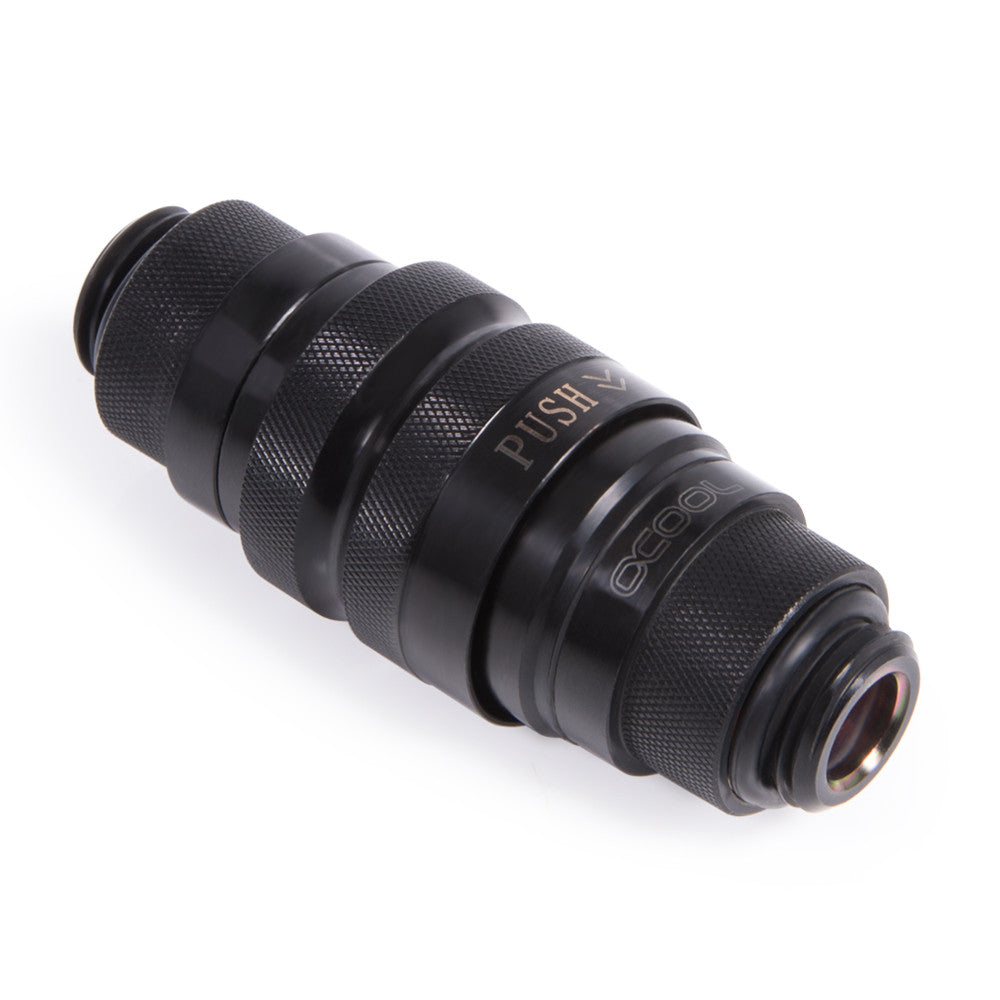

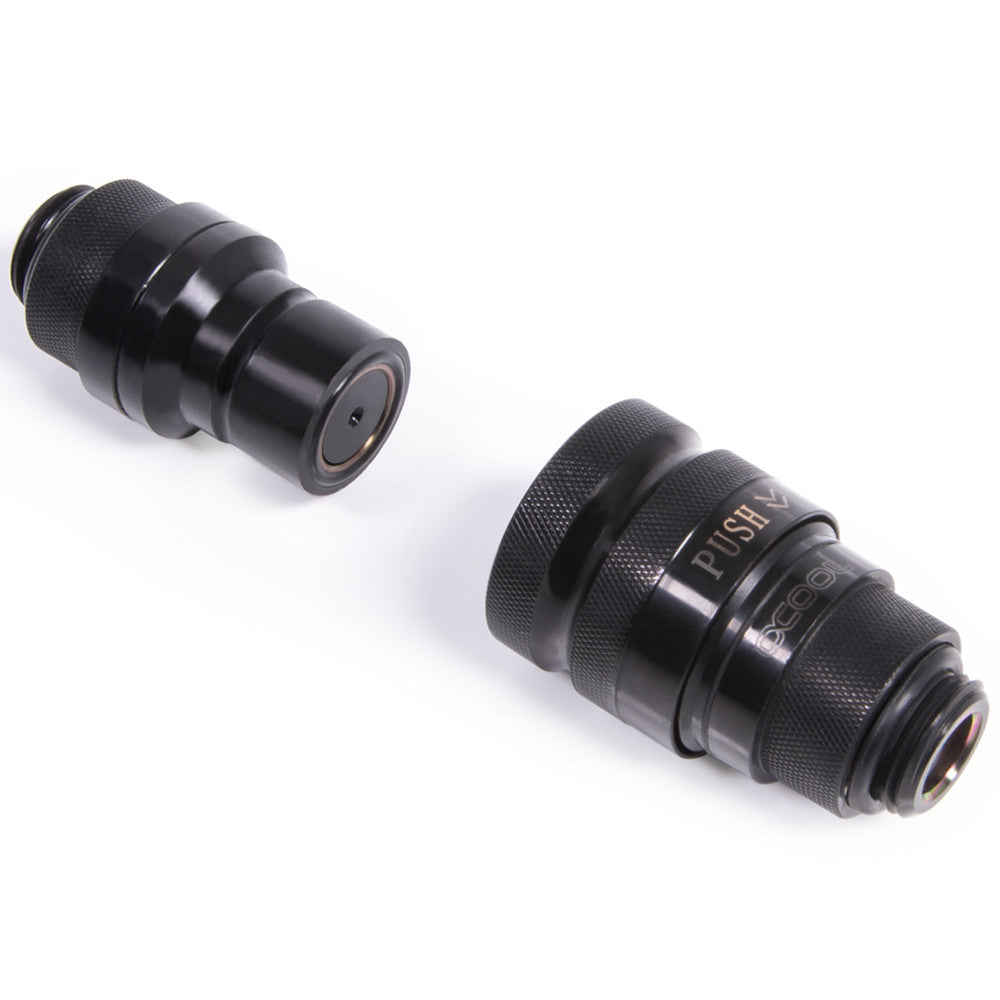

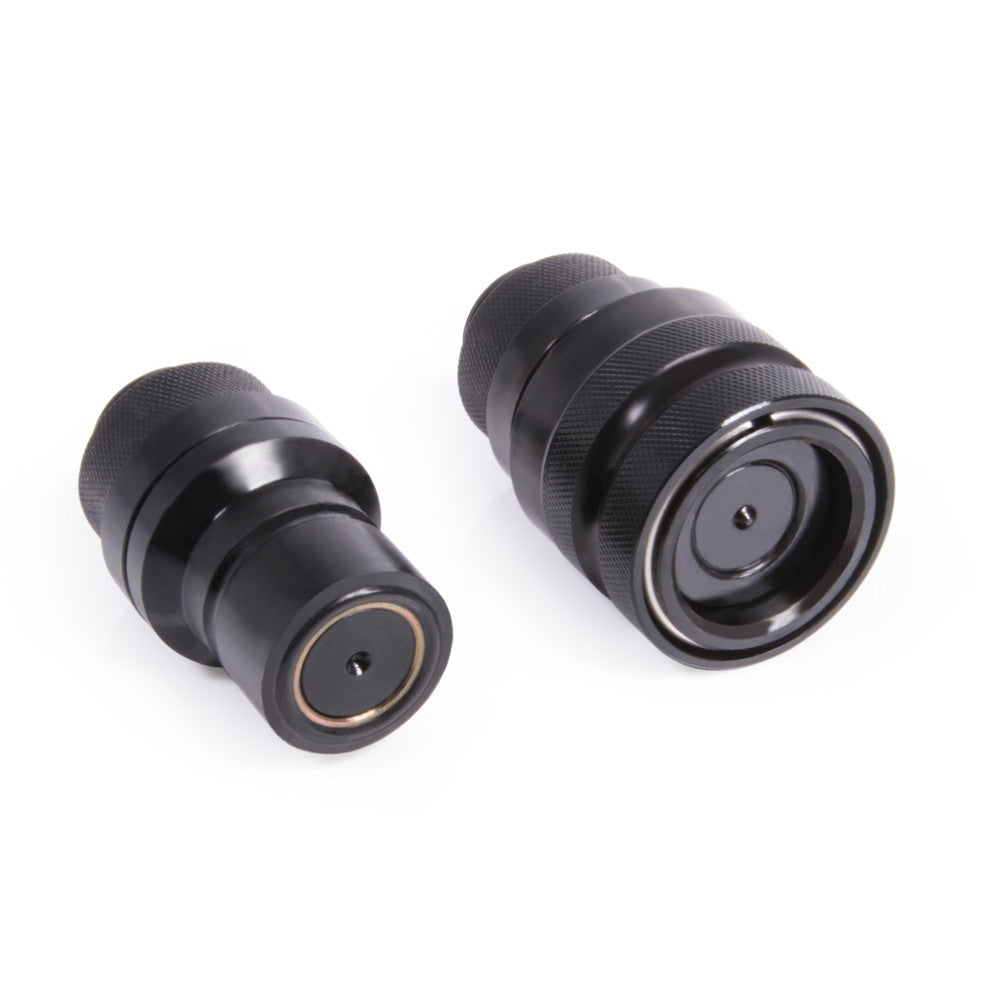

Quick Disconnect Black Fittings, Complete set both Male and Female Component

The Eiszapfen series represents the high-end variant of the Alphacool product series. It is intended to appeal to enthusiasts and professional users and offer them the best of quality, functionality and design.

How much water comes out when connecting
Thanks to a sophisticated locking and sealing system and the NDSL (no drip, no splash, no leak) technology, water loss when opening the quick release is minimal. Only a tiny drop of water comes out. The lock is easily released by pulling on the connecting ring. The counterpart jumps out of the quick release by itself. Both pieces are simply plugged together to connect. The whole thing is very easy and can be carried out by any user.

The Alphacool Eiszapfen quick release fasteners are available in different designs, but they can all be combined with one another.

Technical data (set):
- L x D: 62.5 x 24 mm
- Total net weight: 95 g
- Material: Brass
- Connections: 2 x G1 / 4 “AG
- Thread length: 5 mm
- Type of quick release: Push In

Technical data (plug):
- L x D: 36.5 x 20.5 mm
- Total net weight: 32 g

Technical data (coupling):
- L x D: 39.5 x 24 mm total
- Net weight : 63 g
