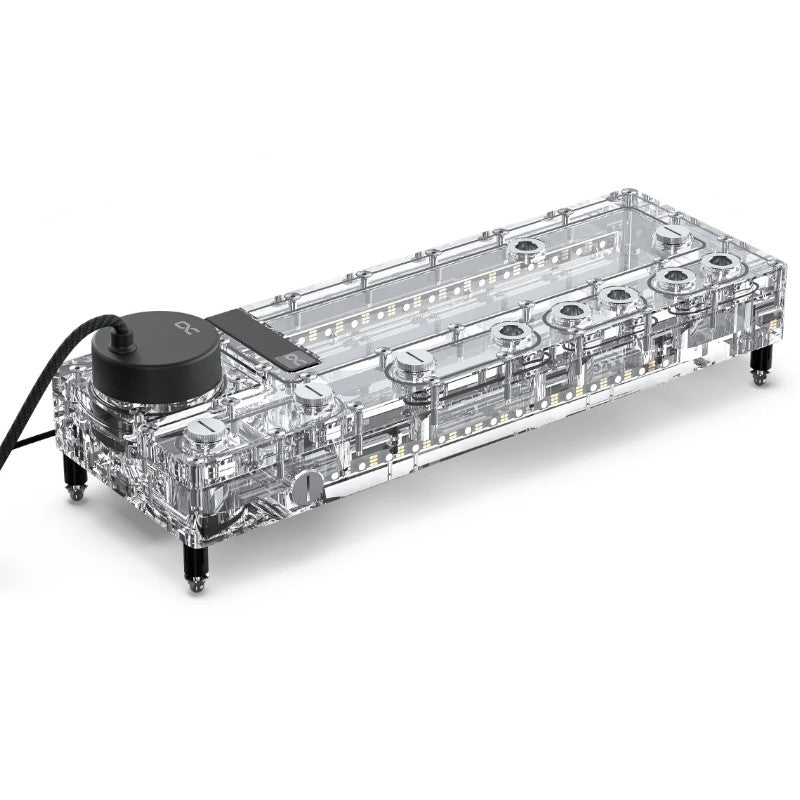

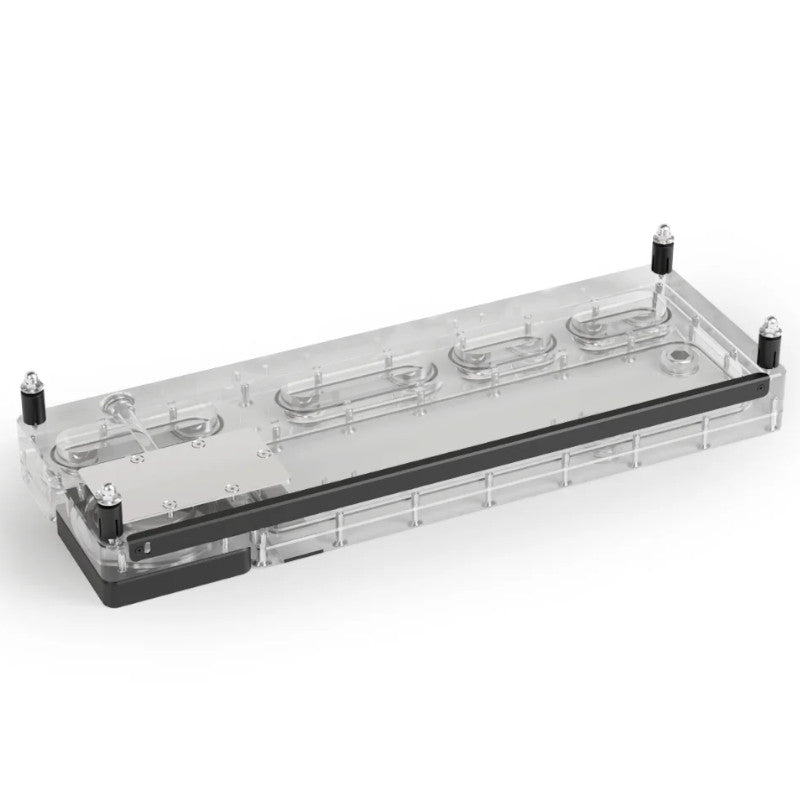

Distro Plate, Suitable for 360mm (3 x 120mm) Spacing, D5 Pump Included, Right Side Pump

The 360mm version of the Core Distro Plate V.2 is the ultimate distribution hub for large-scale custom loops. With its redesigned layout and the powerful VPP Apex pump, it offers maximum flexibility for integrating CPUs and multiple GPUs.

Highlights at a Glance:
- Smart Brass Fittings: Chrome-plated G1/4" threads are embedded directly into the acrylic and counter-locked. This eliminates the risk of stress cracks and ensures absolute leak-tightness.
- Space-Saving & Efficient: Thanks to the slim design and 10 strategically placed ports, you can achieve extremely clean tubing paths.
- VPP Apex Power: The smooth-running pump with a ceramic shaft features precise PWM control and is reliably powered via a SATA connector.
- Push Mounting System: The included kit enables easy installation on radiators or chassis panels and quick removal for maintenance.

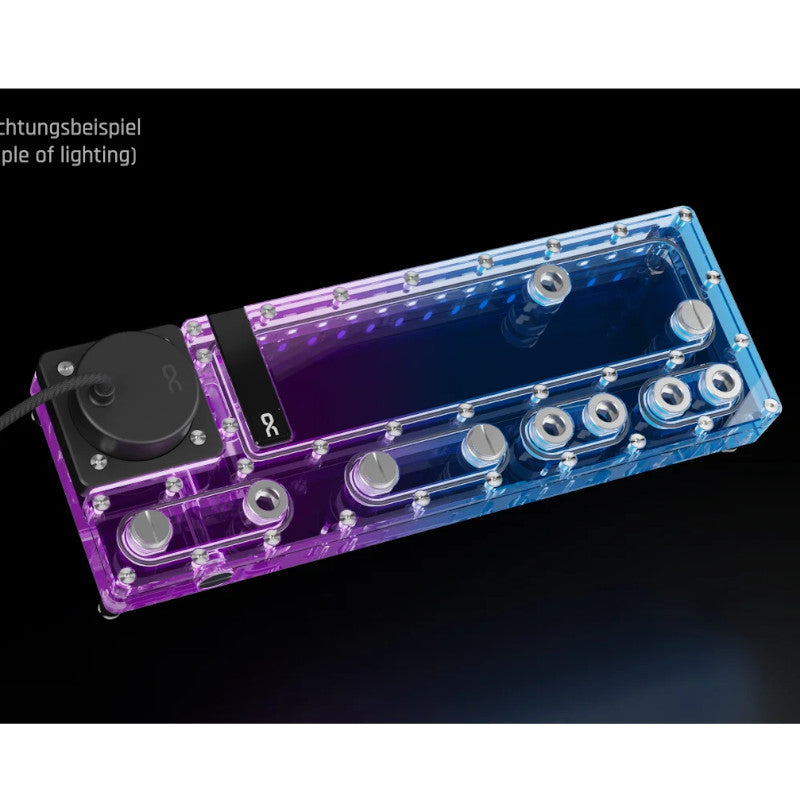

- Stunning Aesthetics: 19 digital aRGB LEDs illuminate the transparent acrylic and can be controlled via standard controllers or the motherboard.
- Easy Maintenance: A dedicated lateral drain port allows for controlled and easy draining of the loop.

Technical Specifications:
- Dimensions (L x W x H): 360 x 125 x 34.5 mm (without accessories)
- Ports: 10x G1/4“ female thread | 1x Drain port
- Volume: 190 ml
- Pump: VPP Apex (2500 - 4500 RPM, 4.25m head)
- Lighting: 19x digital aRGB LEDs (5V)

Specifications

Pump Specifications	Max. Pressure Head 4.25 m Max. Water Flow 340 l/h Materials Materials Acrylic, Aluminium, Ceramic Compliance EU GARAN Duration 3 Years Dimensions Length / Depth 360 mm Width 125 mm Height 88.8 mm Volume 190 ml Weight 2116 g Colour Primary Colour Transparent Secondary Colour Black Type Pump type D5 Lighting Lighting / RGB Yes Lighting Colour RGB Water Cooling Water cooling component Distro Plate Water cooling connectors 10x G1/4" Thermal Specifications Max. System Temperature 60 °C Power Specifications Rated voltage 13 V Compatibility Compatibility Note Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. Internal Ports Pump connectors 4 Pin (PWM control), SATA (power) RGB / LED connectors 1x Digital RGB (3-Pin 5VDG)
Max. Pressure Head	4.25 m
Max. Water Flow	340 l/h
Materials	Acrylic, Aluminium, Ceramic
EU GARAN Duration	3 Years
Length / Depth	360 mm
Width	125 mm
Height	88.8 mm
Volume	190 ml
Weight	2116 g
Primary Colour	Transparent
Secondary Colour	Black
Pump type	D5
Lighting / RGB	Yes
Lighting Colour	RGB
Water cooling component	Distro Plate
Water cooling connectors	10x G1/4"
Max. System Temperature	60 °C
Rated voltage	13 V
Compatibility Note	Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
Pump connectors	4 Pin (PWM control), SATA (power)
RGB / LED connectors	1x Digital RGB (3-Pin 5VDG)
